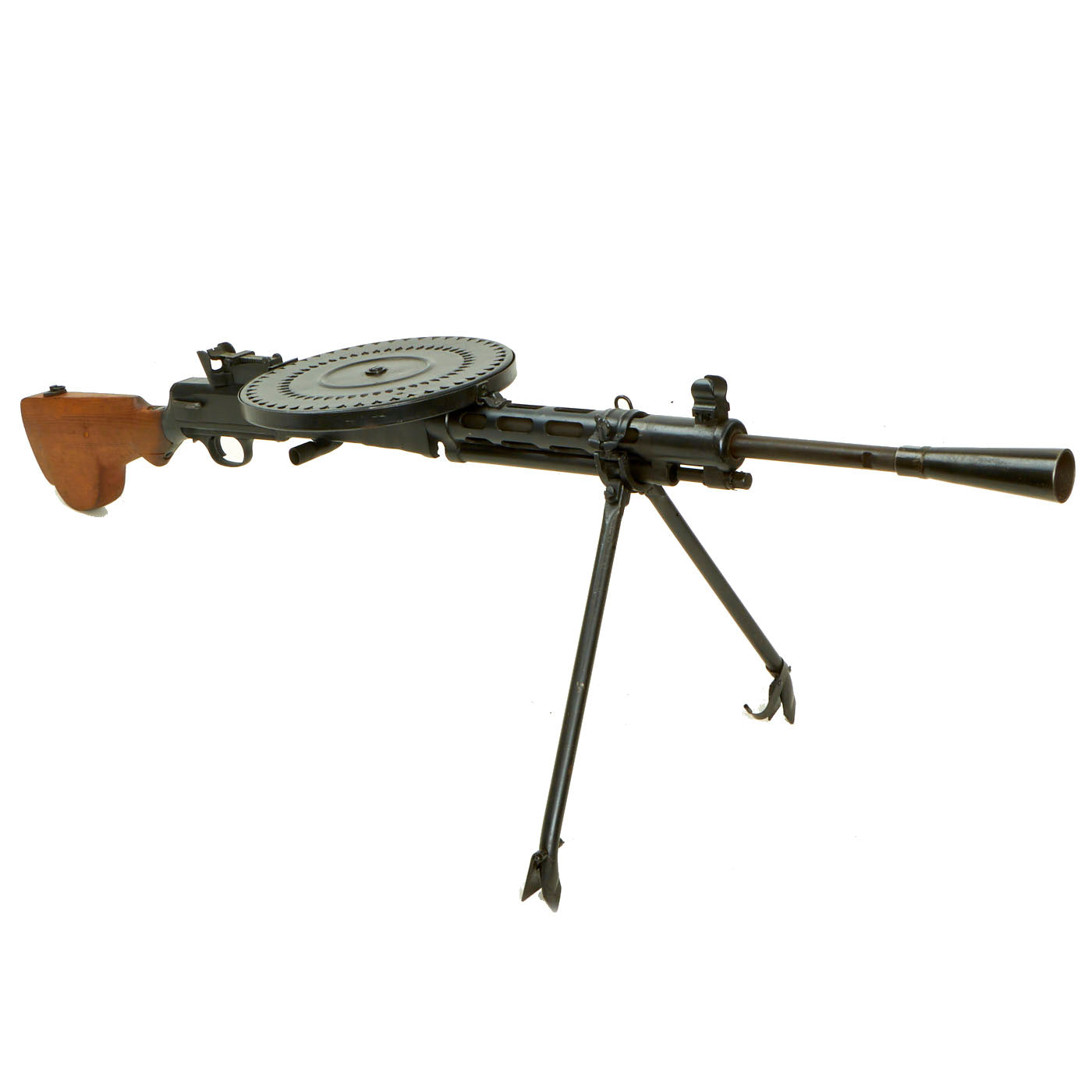

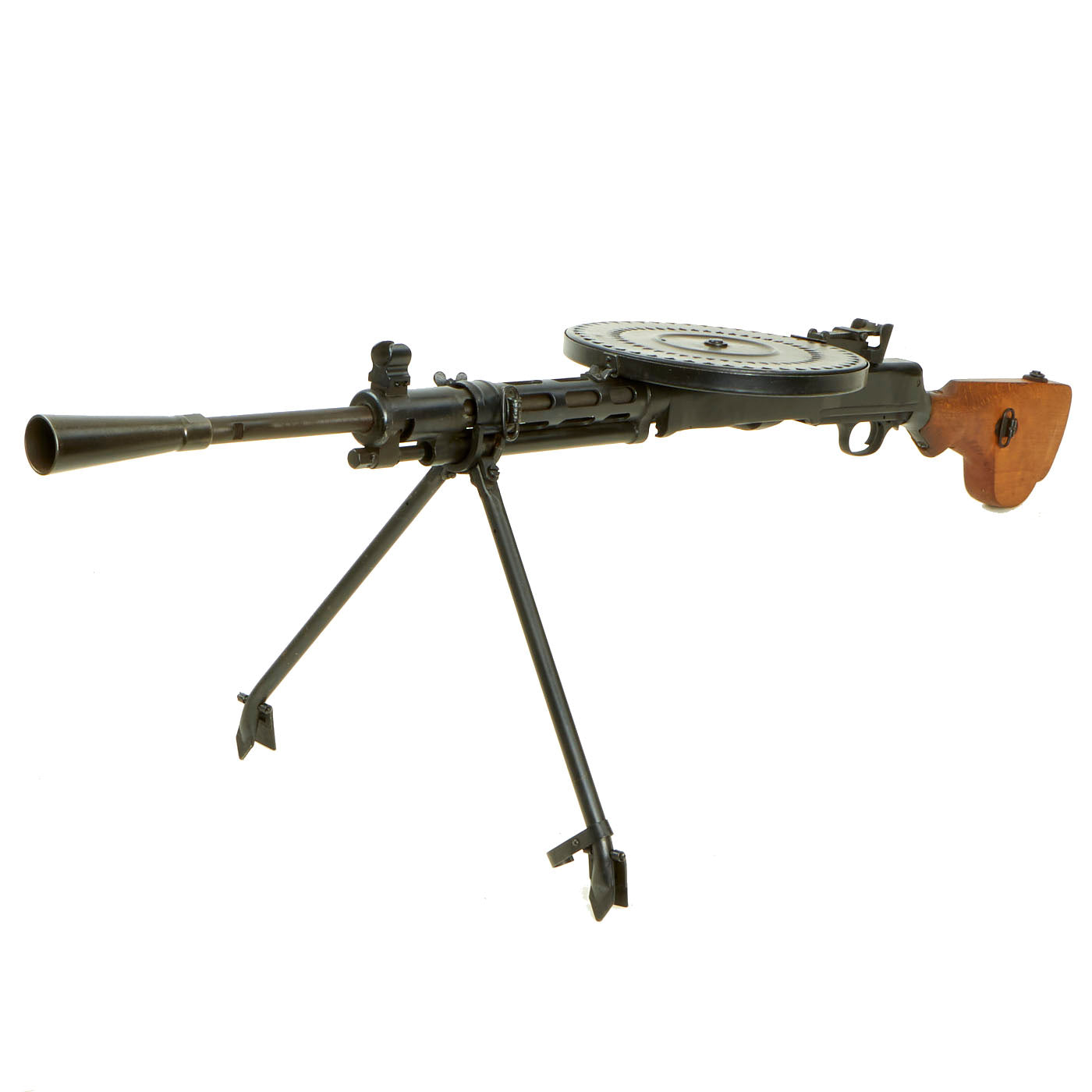

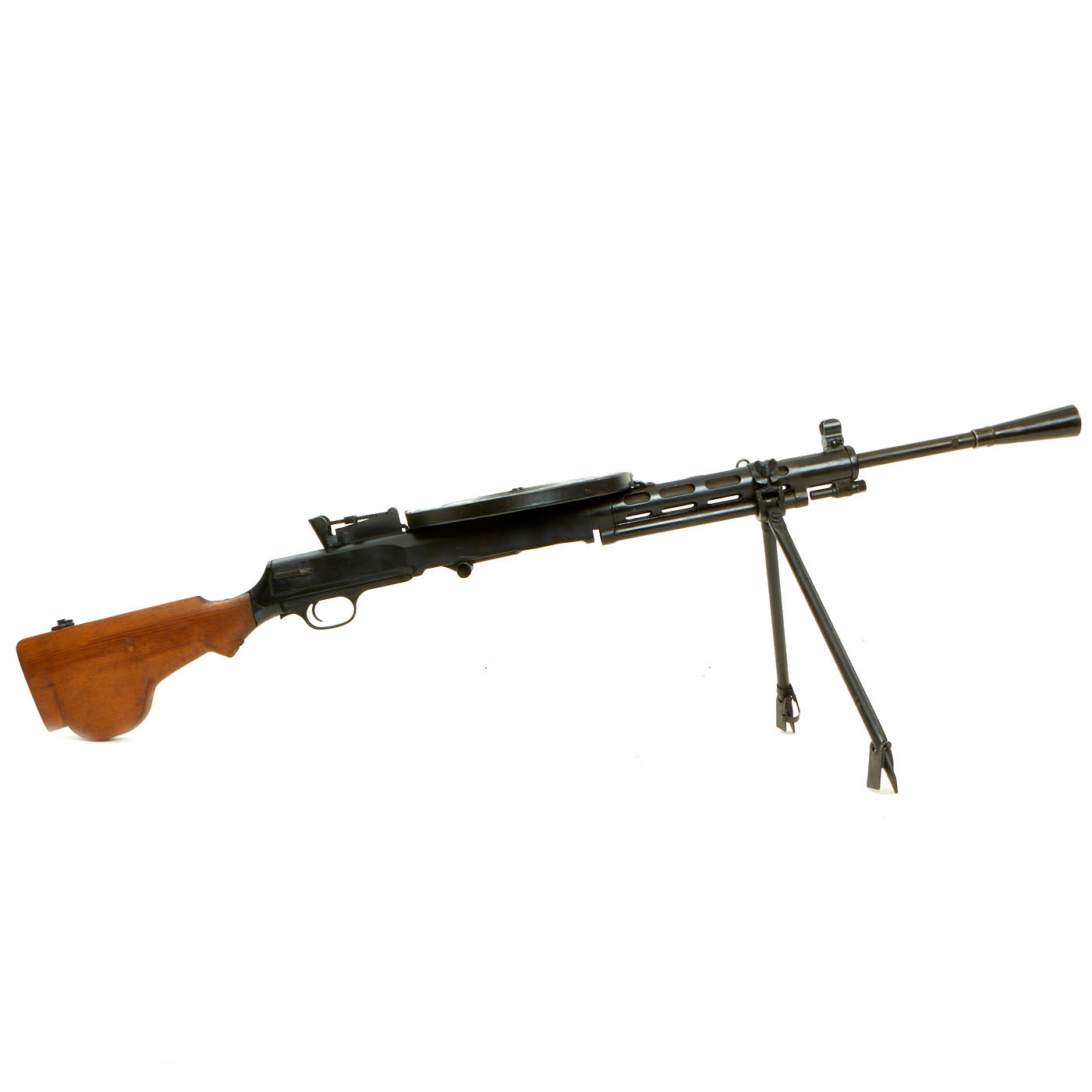

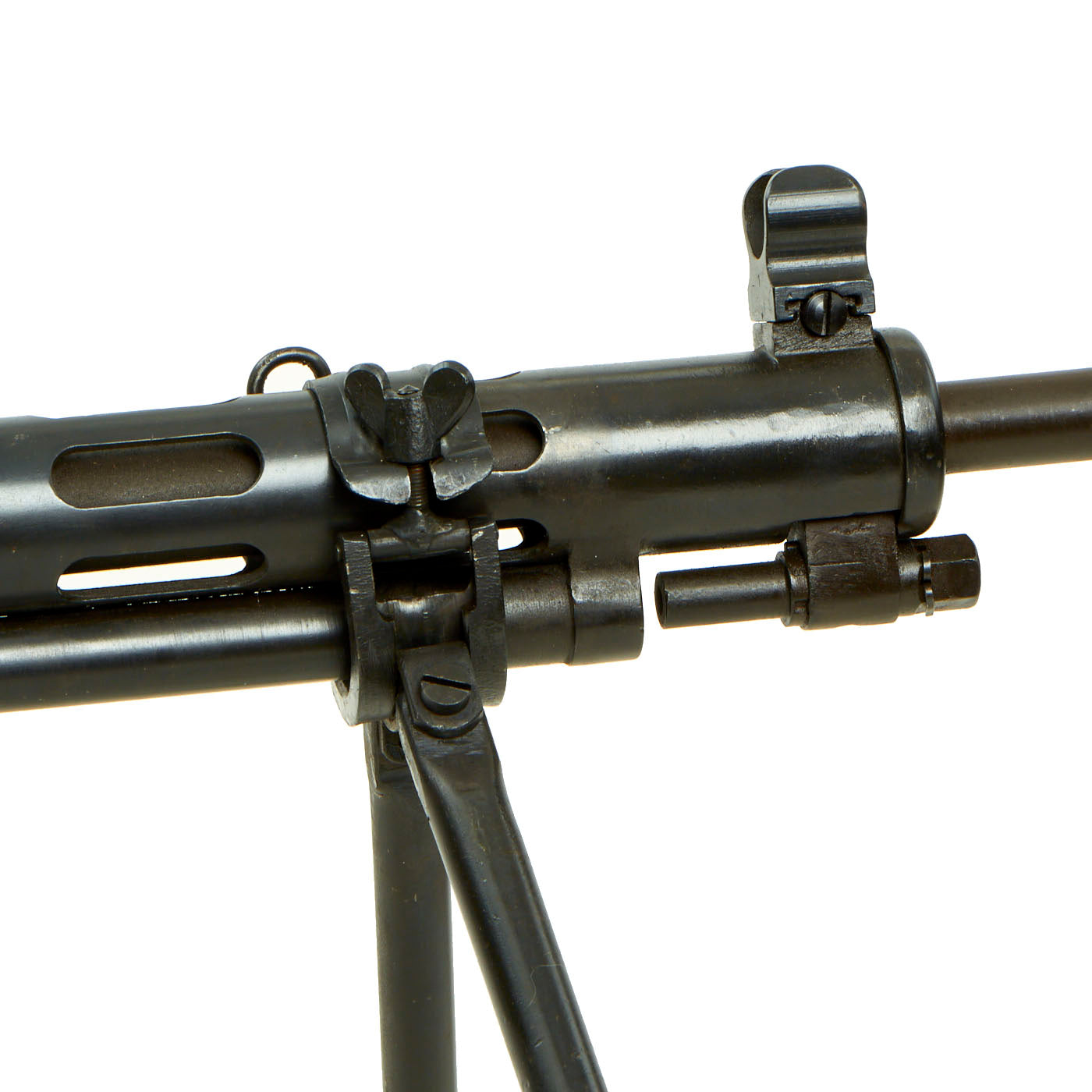

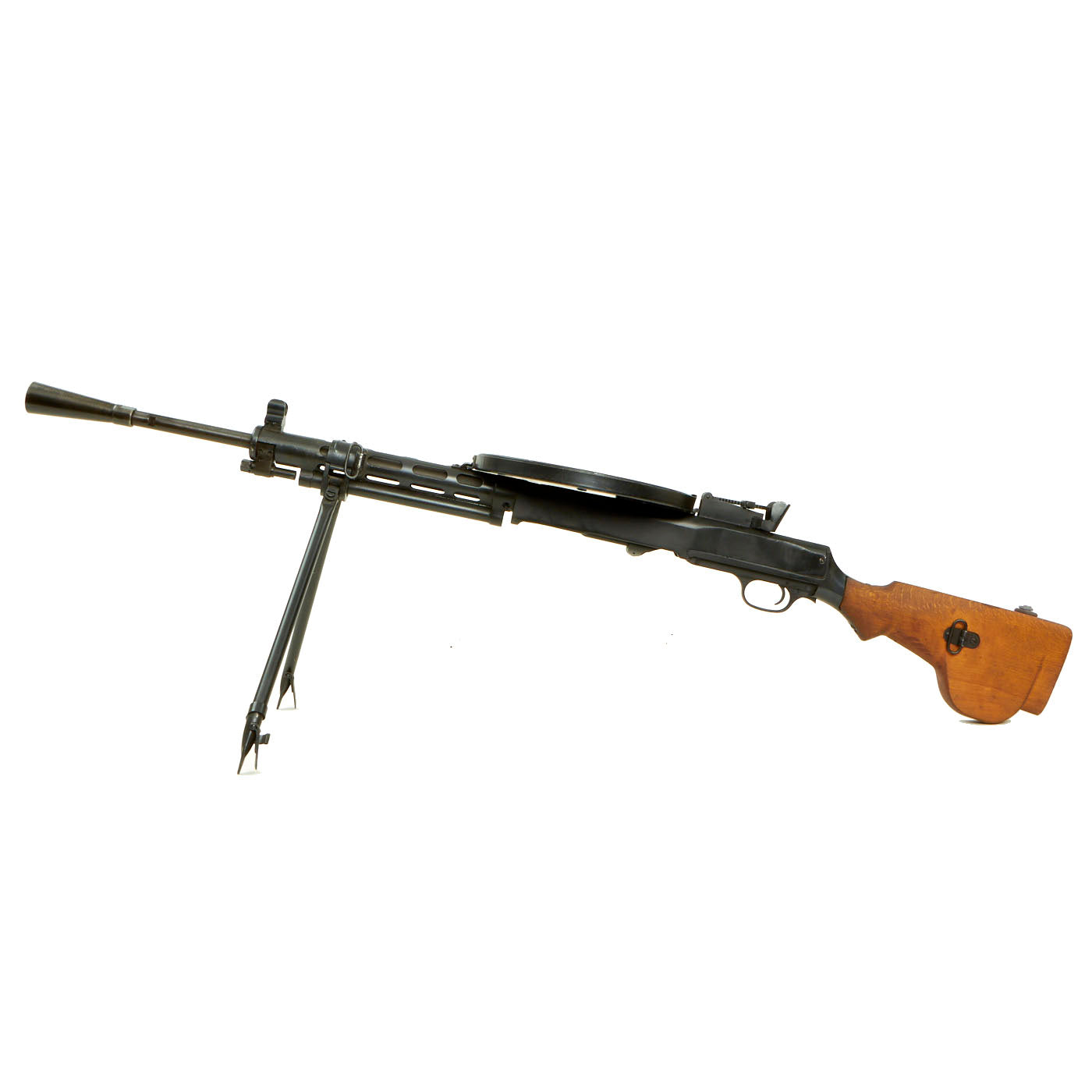

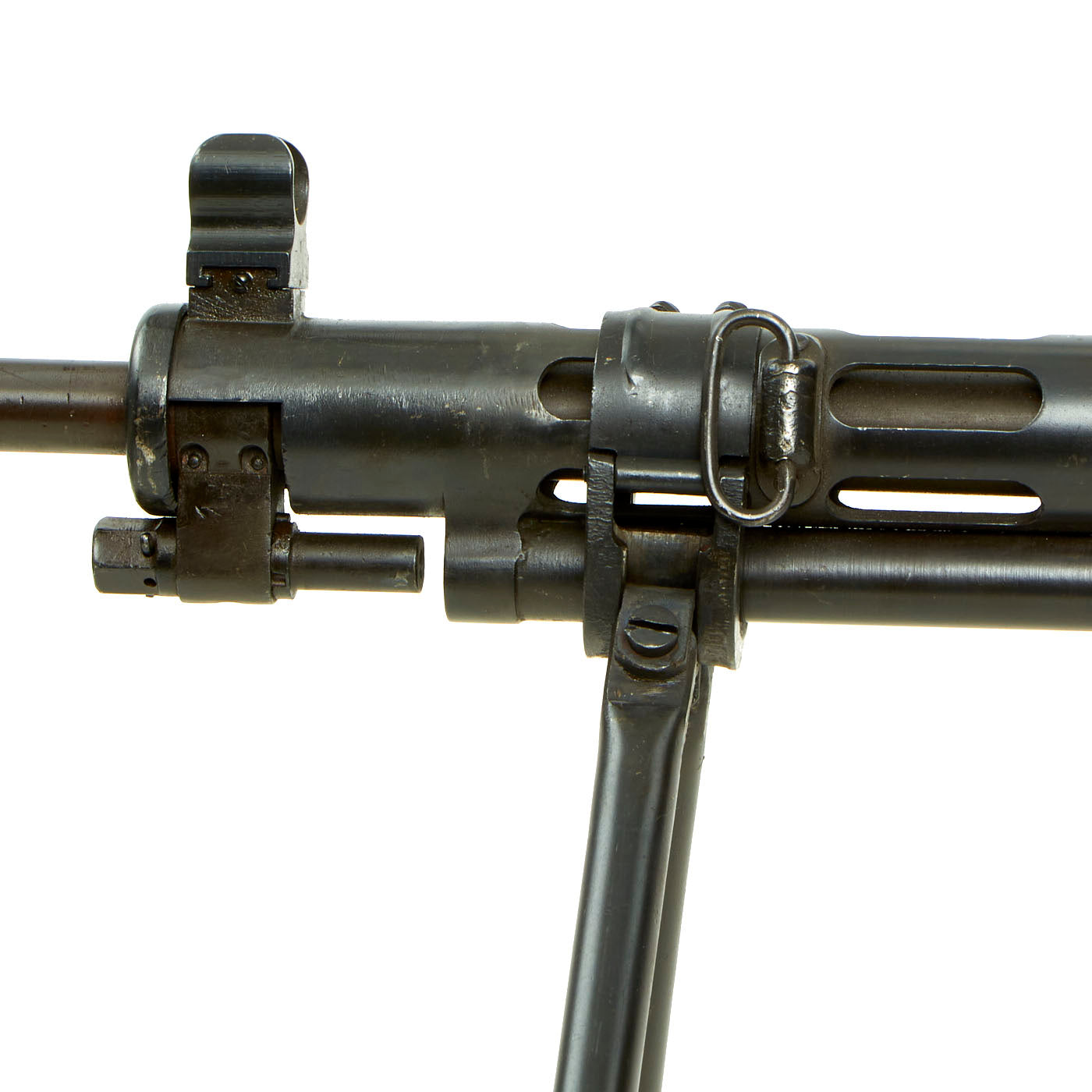

Original Item: Only One Available. This is a fantastic original Russian 7.62 x 54R DP 28 Display light machine gun, complete with an original pan magazine, bipod, and sturdy original leather sling! Also, unlike almost all other examples we have, this one was made using an original re-welded display receiver, with the correct 2 inches replaced with solid steel bar stock per BATF regulations.

The 7.62 mm Ruchnoy Pulemyot DP (Degtyaryova pakhotnyi) was adopted by the Soviet army in 1928. It is extremely simple, yet remarkably reliable and robust. It remained the standard light gun until the 50's, and large numbers of them were used by the North Korean and Chinese Communists in the Korean war. The secret of the DP was the simple locking device, which makes use of locking flaps on the bolt, pushed out by the firing pin. The DP proved resistant to dust and dirt, and free from any serious vices.

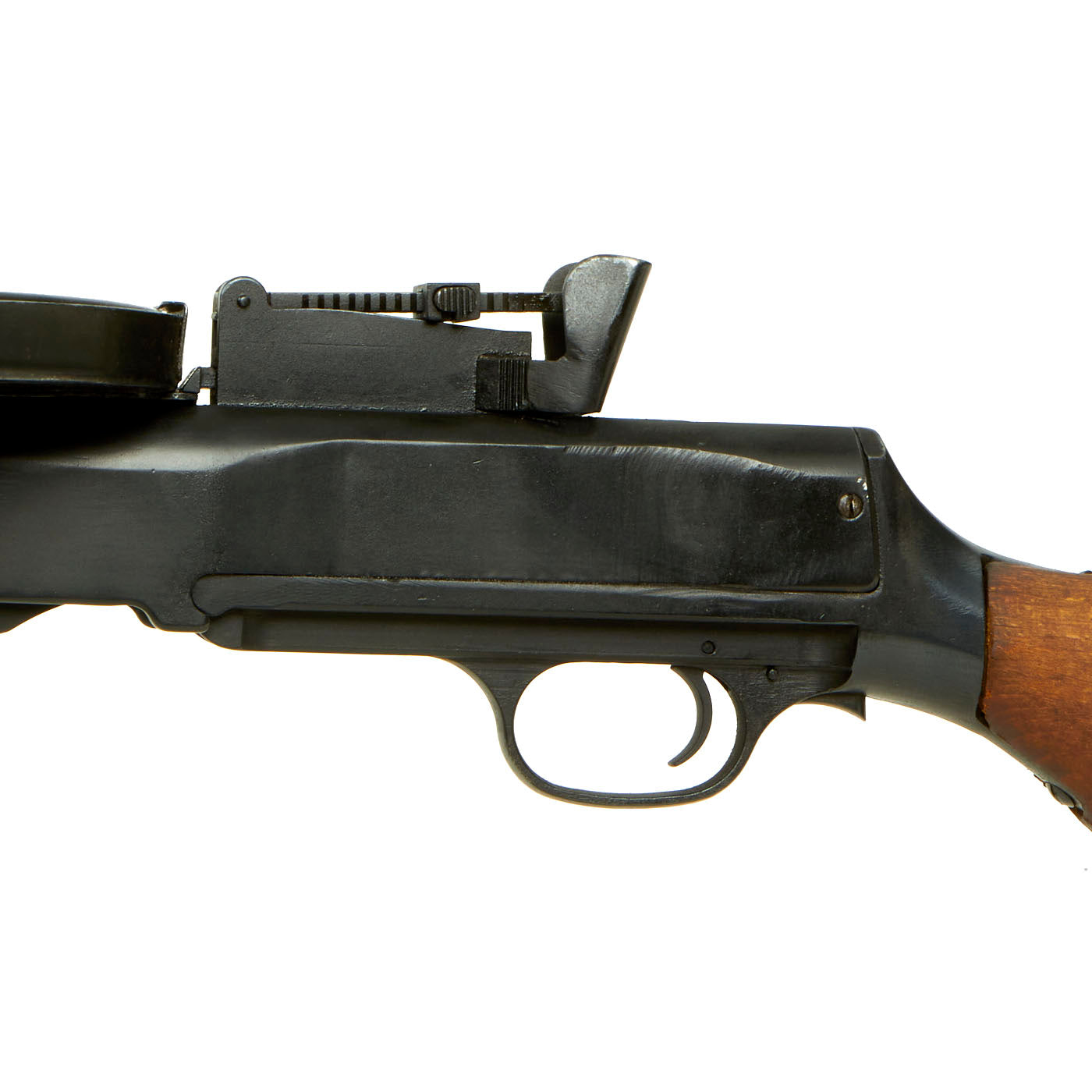

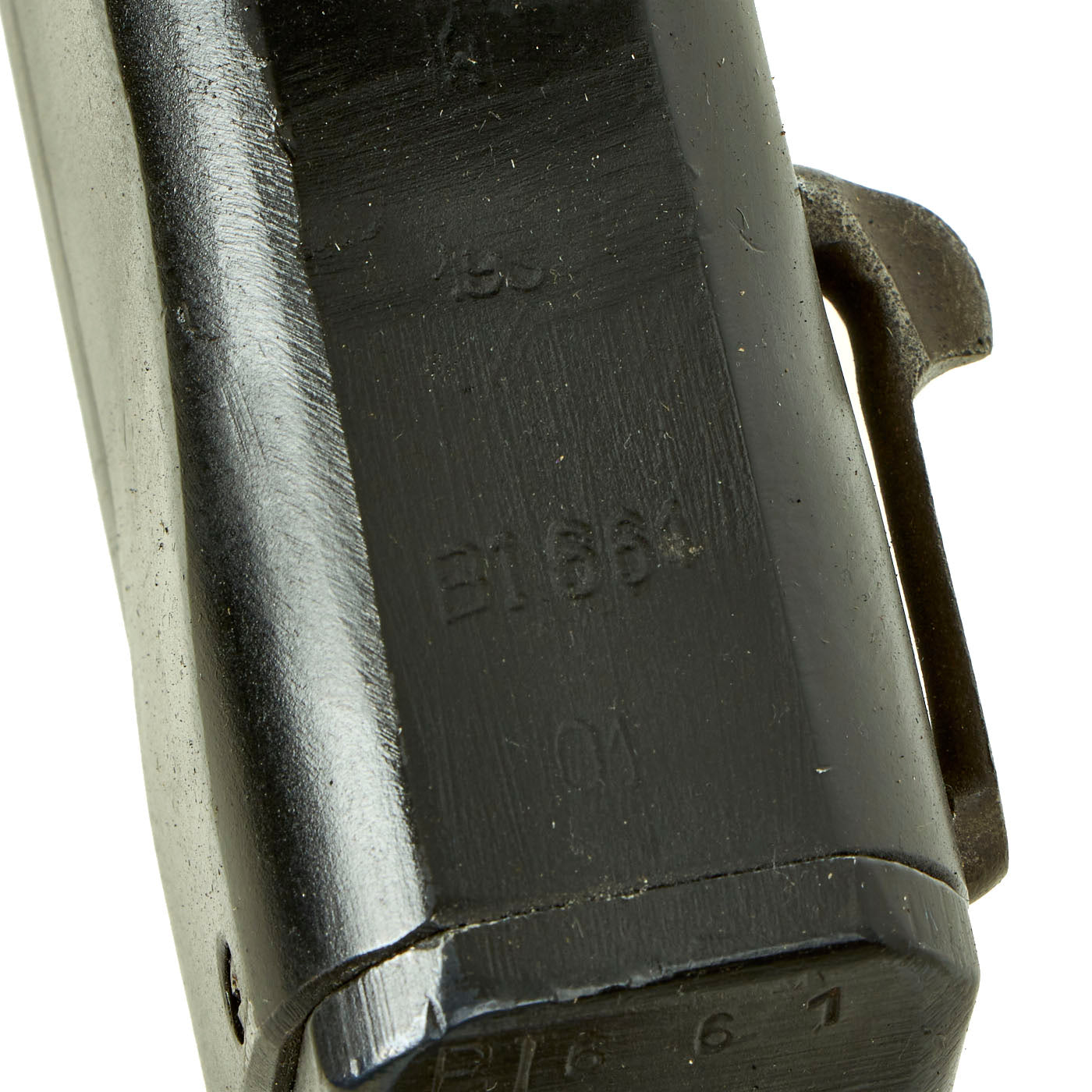

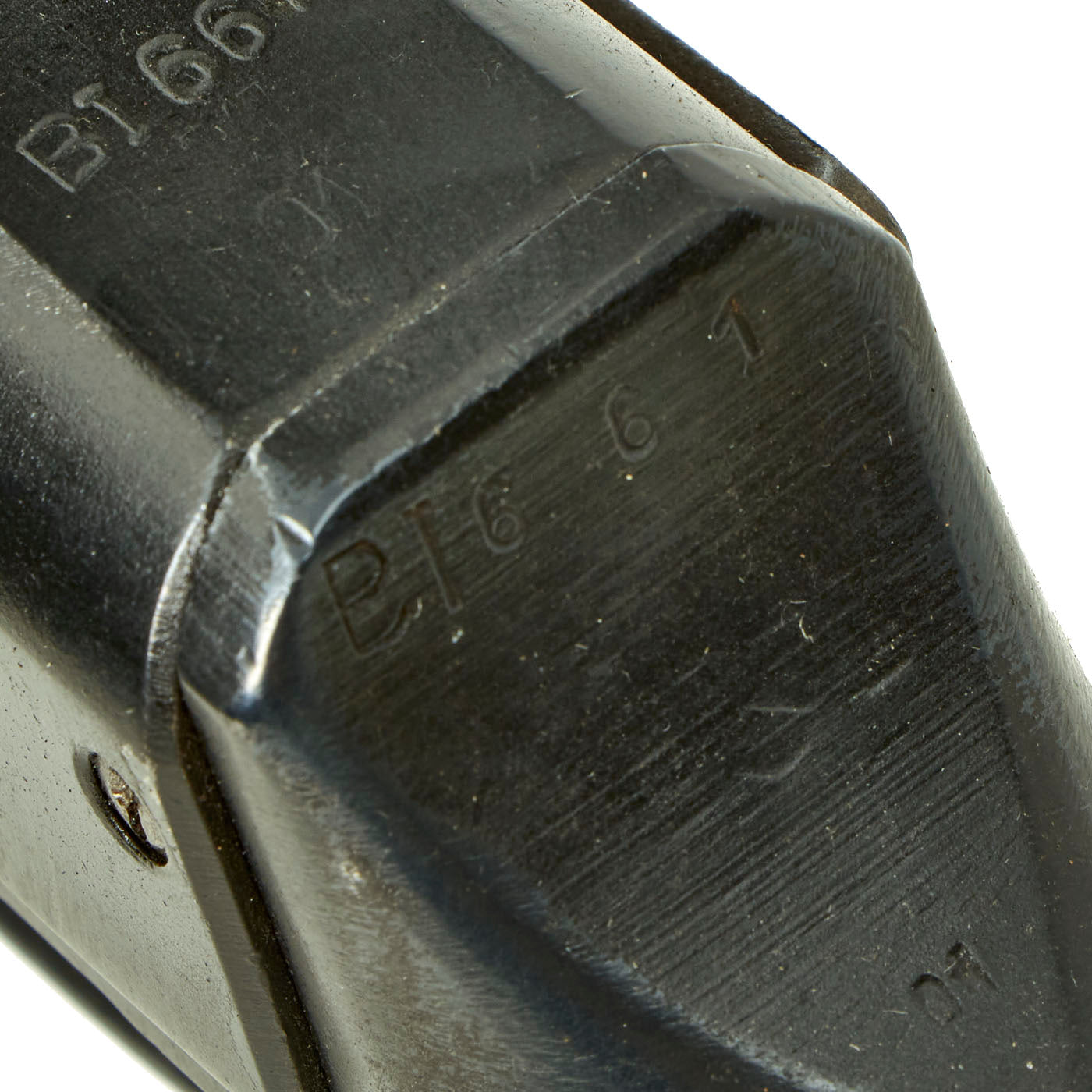

This display gun is constructed of all original parts on a totally re-welded display receiver. It is fully approved by the BATF and can be purchased without a license. The rear of the receiver is marked with ARROW in an OVAL, which indicates that it was made in the Kovrov Arsenal in Russia. There are other markings underneath, including the serial number:

(ARROW)

19??

BI661

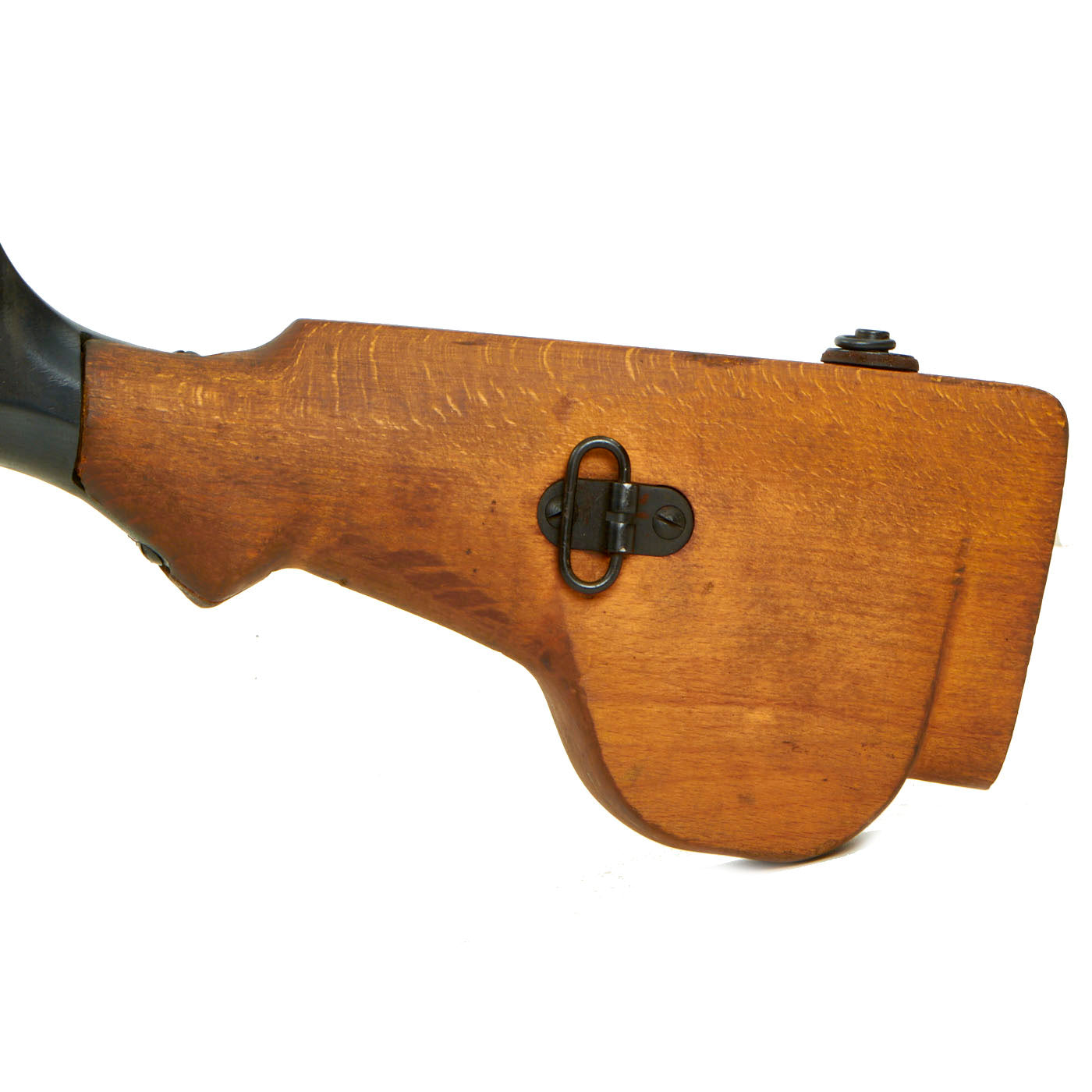

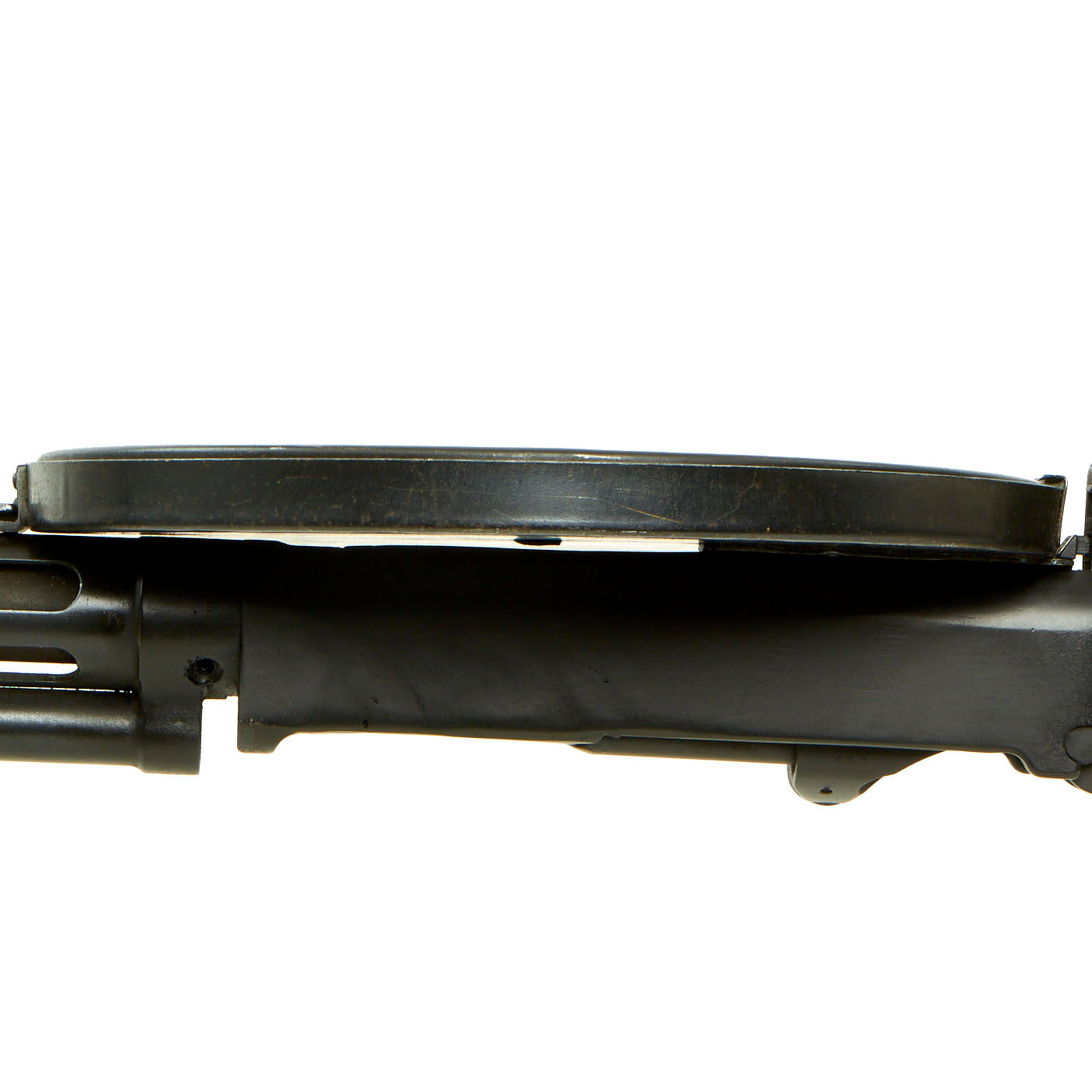

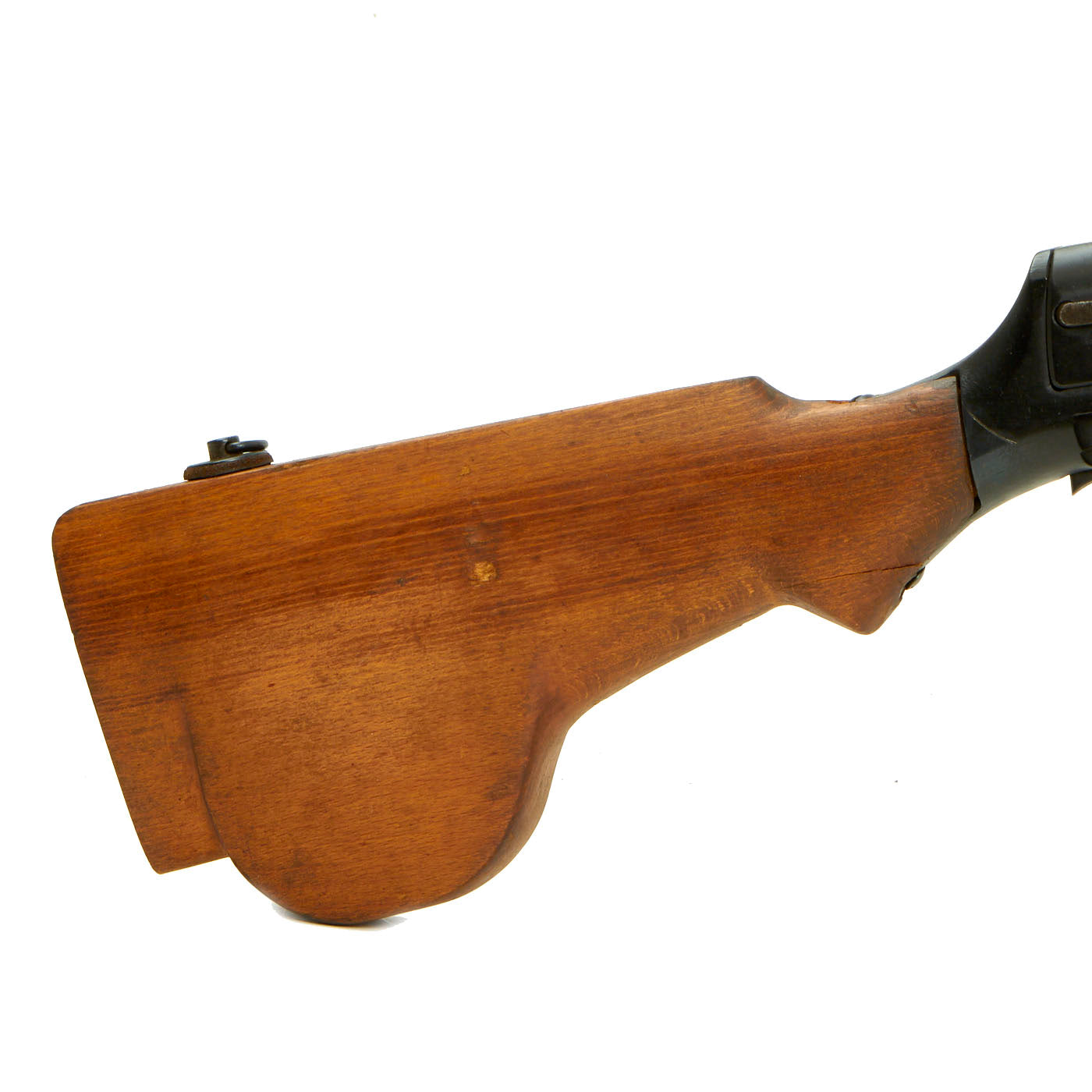

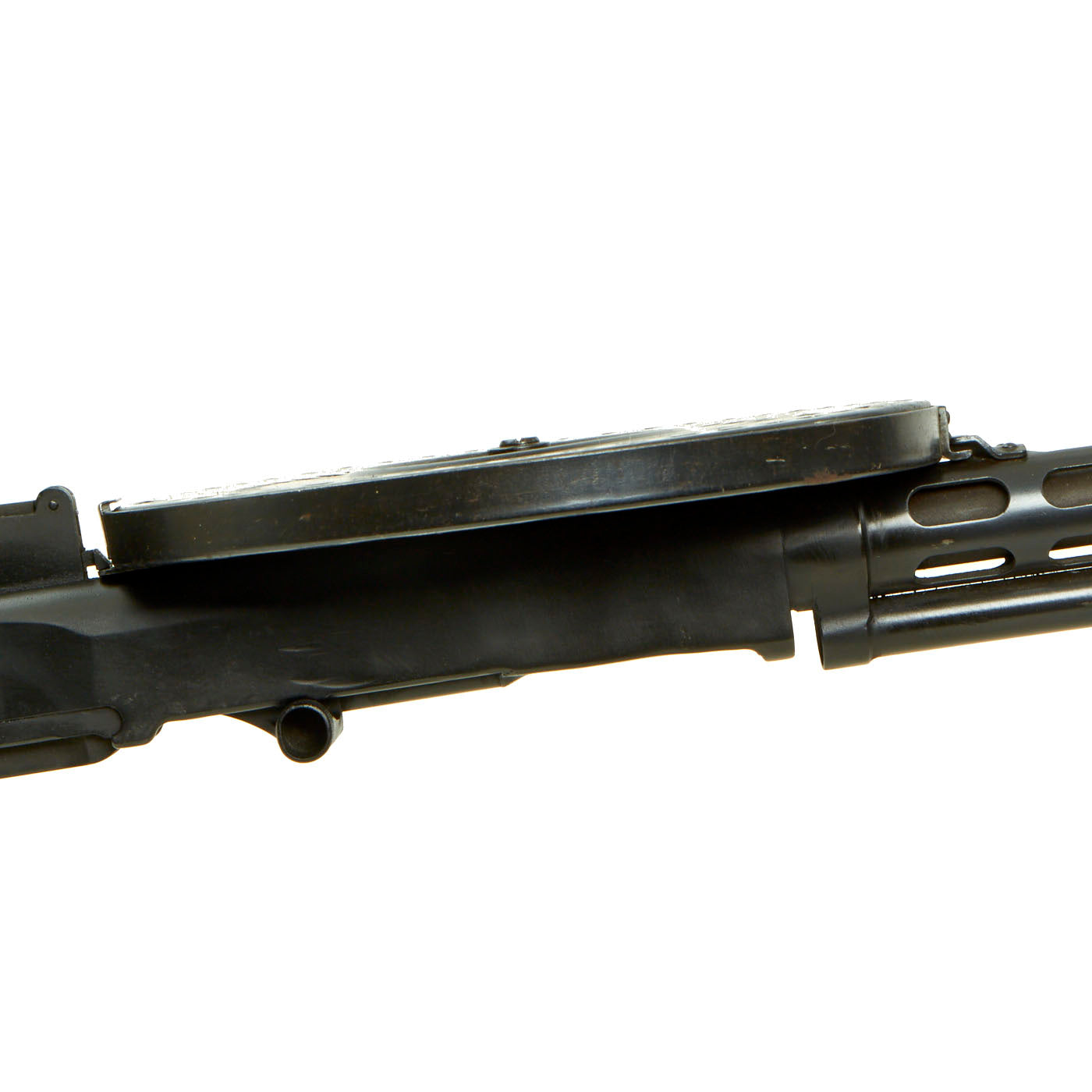

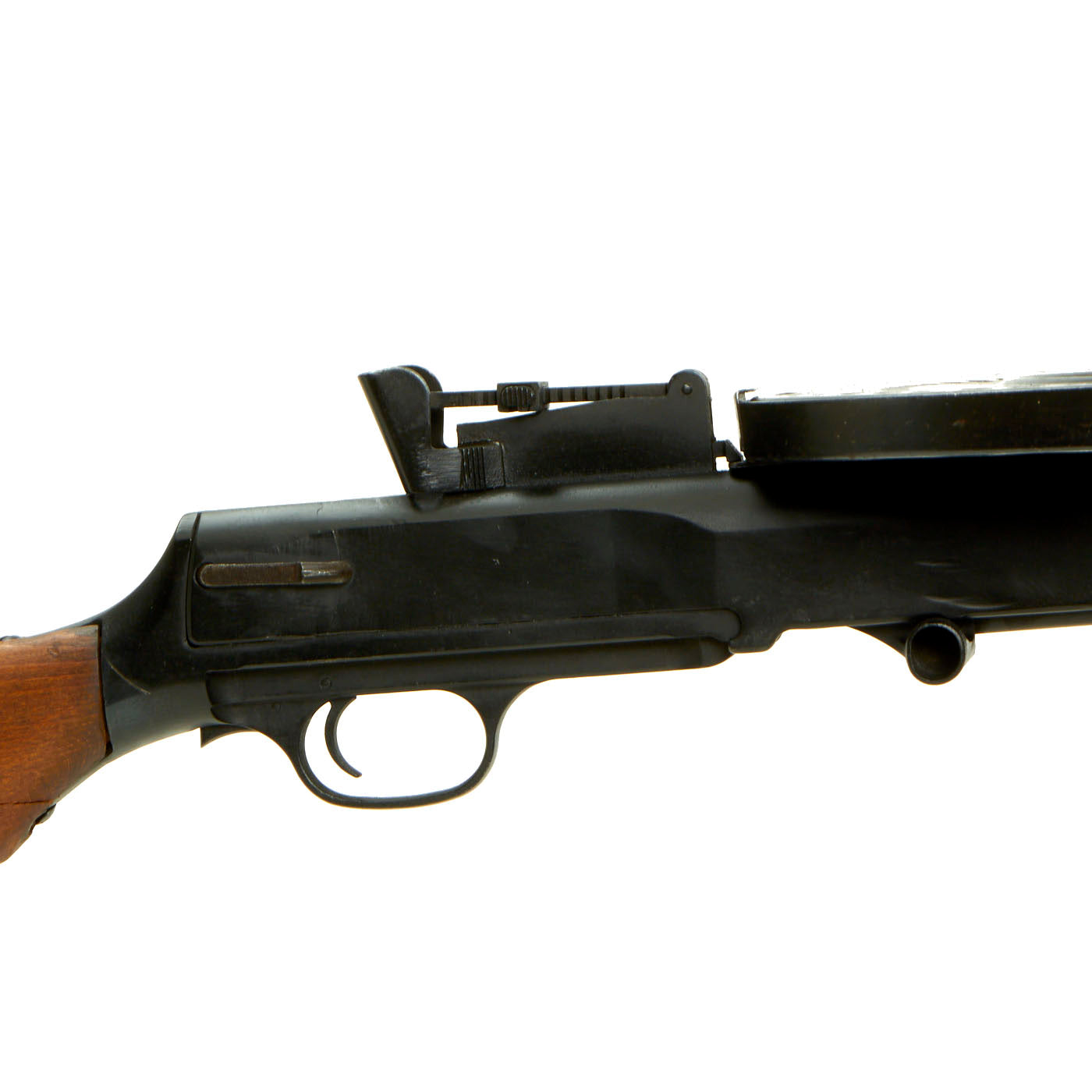

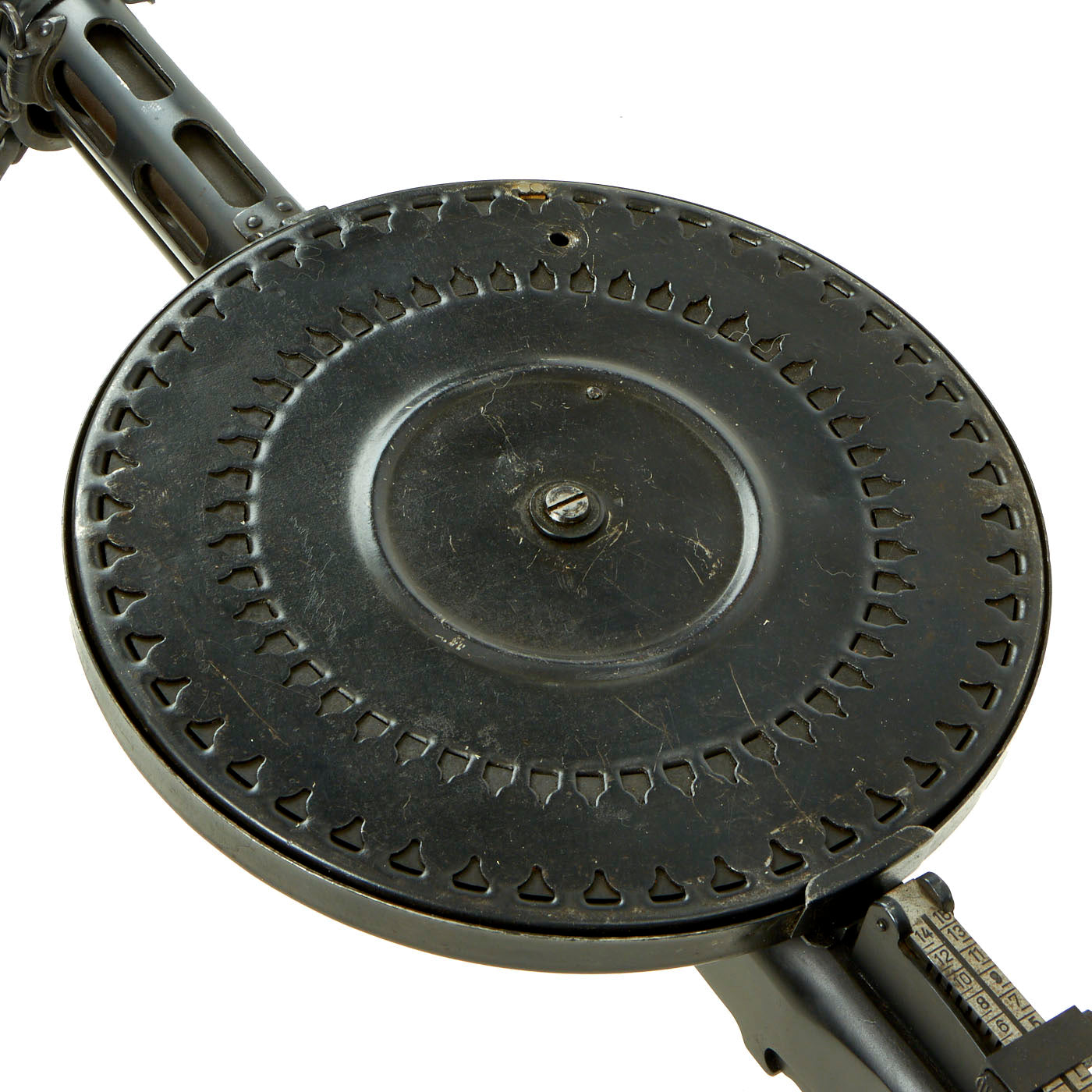

This matches the number stamped on on the rear of the lower receiver / trigger group, so this display machine gun is at least partially matched. Condition is excellent, with a very good condition Buttstock, which still has the original oil bottle and intact brush. The butt stock has a lovely color and varnished finish, with a repair on the bottom by the trigger guard, which is very common. The Metal finish is good, making this a choice example. It comes complete with an original DP28 Pan magazine, which will be deactivated where required.

We have not had one of these available for some time, and possibly never before with an original re-welded receiver, and these always go quickly. This is a chance to add a hard to find DP 28 style gun to your WWII collection!

More on the DP 28 Machine Gun

The Degtyaryov machine gun (Russian: Пулемёт Дегтярёвa Пехотный Pulemyot Degtyaryova Pekhotny "Degtyaryov's infantry machine gun") or DP is a light machine gun firing the 7.62×54mmR cartridge that was used primarily by the Soviet Union starting in 1928. The DP machine gun was supplemented in the 1950s by the more modern RPD machine gun and entirely replaced in Soviet service by the general purpose PK machine gun in the 1960s.

Design:

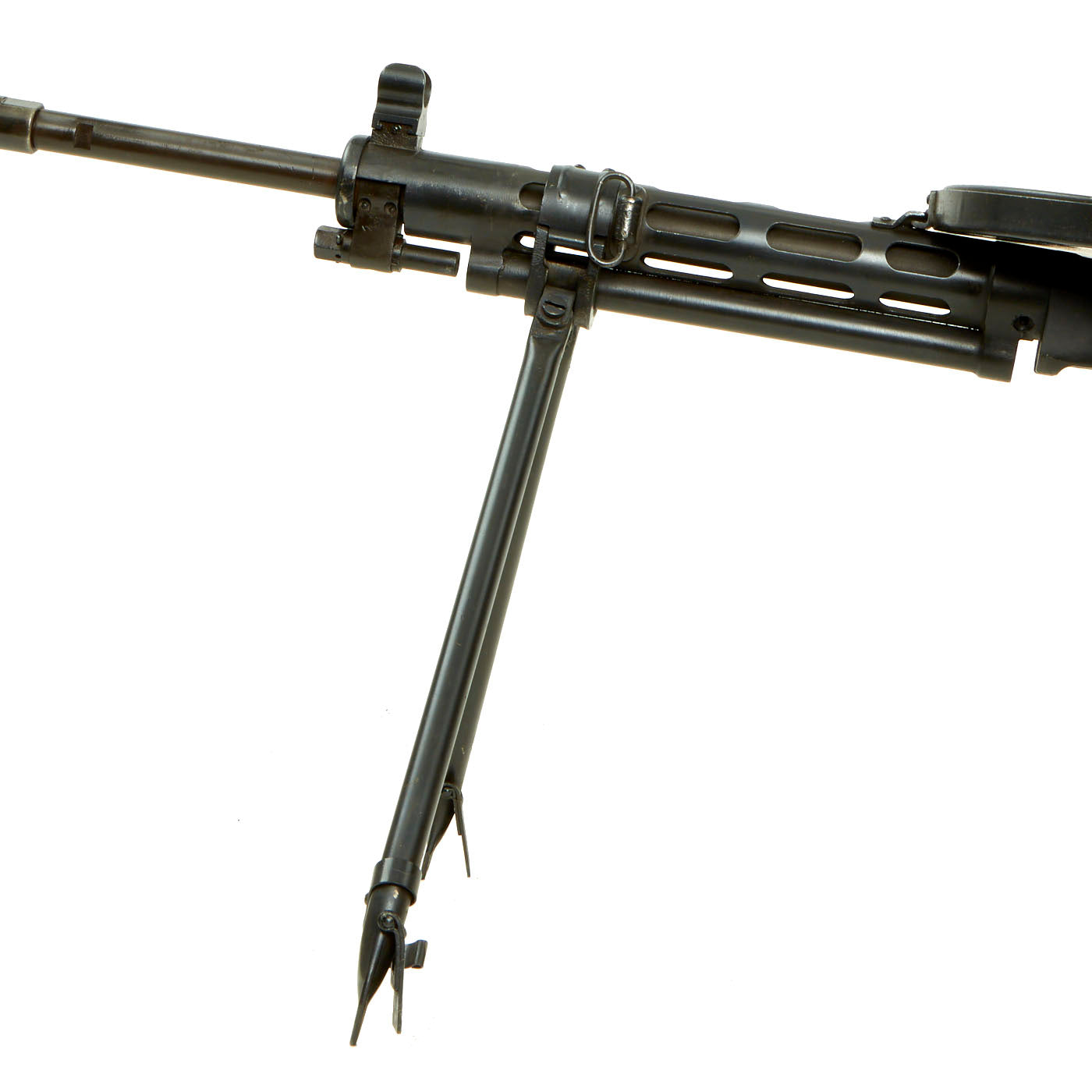

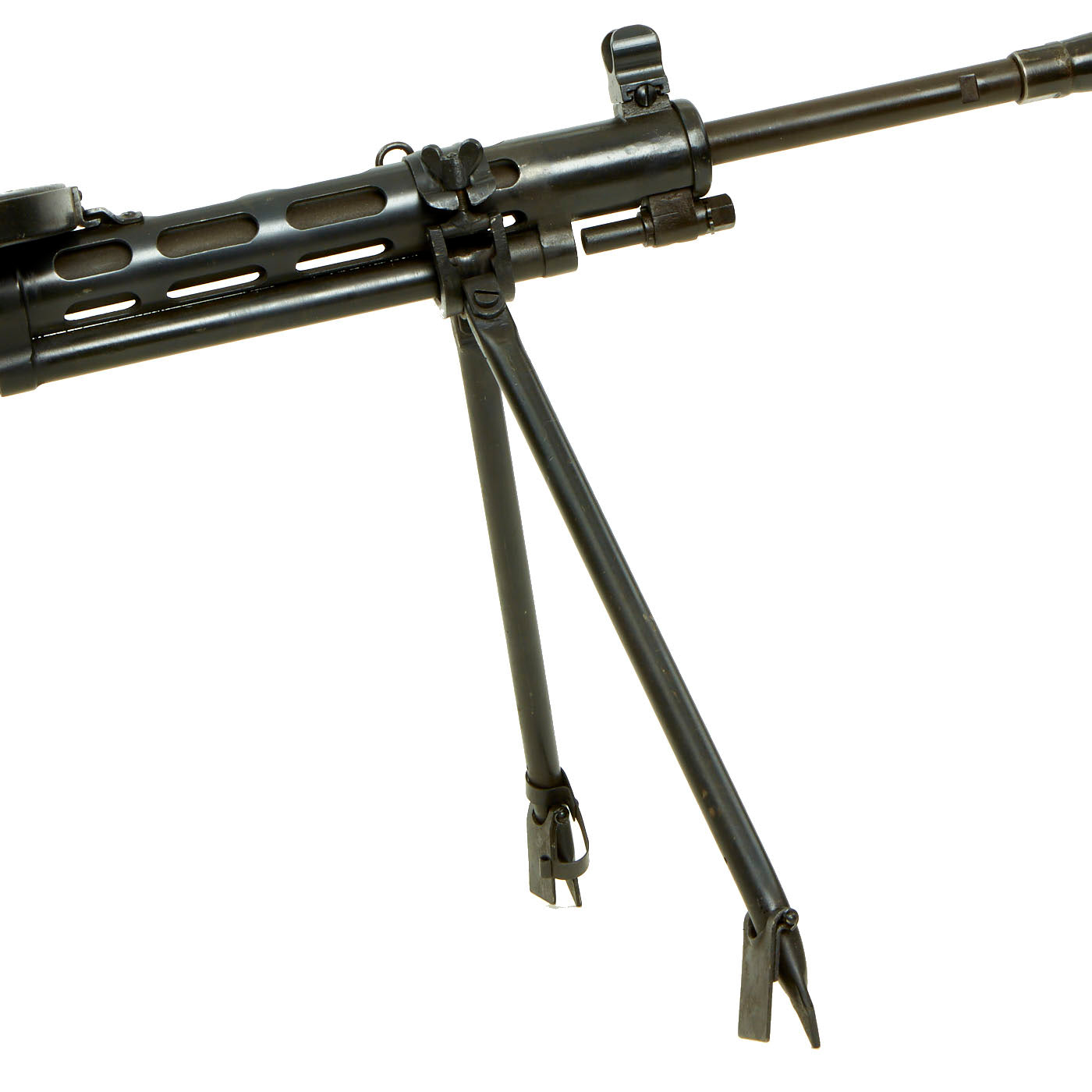

The DP-28 was an improvement of the earlier DP-26, both designed by Vasily Degtyaryov. The DP-28 was relatively cheap and easy to manufacture - early models had fewer than 80 parts. The DP was especially able to withstand dirt in a reliable fashion. In tests it was buried in sand and mud and was still capable of firing more than 500 rounds. One of the DP's main drawbacks though was its bipod; it could not withstand much abuse and broke easily. Furthermore, the recoil spring was located under the barrel, around the gas piston; this was one of the design problems of the DP, since the spring tended to lose its temper due to overheating. Also, the only magazine option, a pan with 47 rounds that fed in from the top, was relatively small and continuous fire for long periods could not be relied on as much as contemporary belt-fed weapons. The ammunition was troublesome for automatic fire. Degtyarov had to use a flat pan magazine, which could feed those cartridges reliably, but was too heavy itself, uncomfortable to carry and prone to damage. Due to the design of the magazine, reloading an empty magazine with cartridges took a very long time. A redeeming factor was that the DP's lower cyclic rate of fire did however reduce the risk of barrel overheating.

Service History:

Despite its numerous problems the DP had a reputation as a relatively effective light support weapon. It was nicknamed the "Record player" (proigryvatel') by Red Army troops because the disc-shaped pan magazine resembled a gramophone record and its top cover revolved while the weapon was fired. Many were captured by the Finnish army in the Winter War and the Continuation War and partially replaced the Lahti-Saloranta M/26. The DP received the nickname Emma in Finnish service after a popular waltz. In the summer of 1944, the Finnish army had about 3400 Finnish-made Lahti-Salorantas and 9000 captured Soviet-made Degtyarevs on the front.

The Chinese Nationalists received 5,600 DPs from the USSR and used them in the Second Sino-Japanese War and the Chinese Civil War. The Chinese Communists used the DP in the Korean War and copied the DPM as the Type 53.

A number of the RP-46 variant of the DP have been spotted in present day Somalia, in use with militant forces, and also among rebel forces in the 2011 Libyan uprising to overthrow Muammar Gaddafi.
