Original Rare U.S. Civil War Colt M-1862 Pocket Navy .36cal Percussion Revolver with 6 1/2" Barrel made in 1863 - Serial 9498

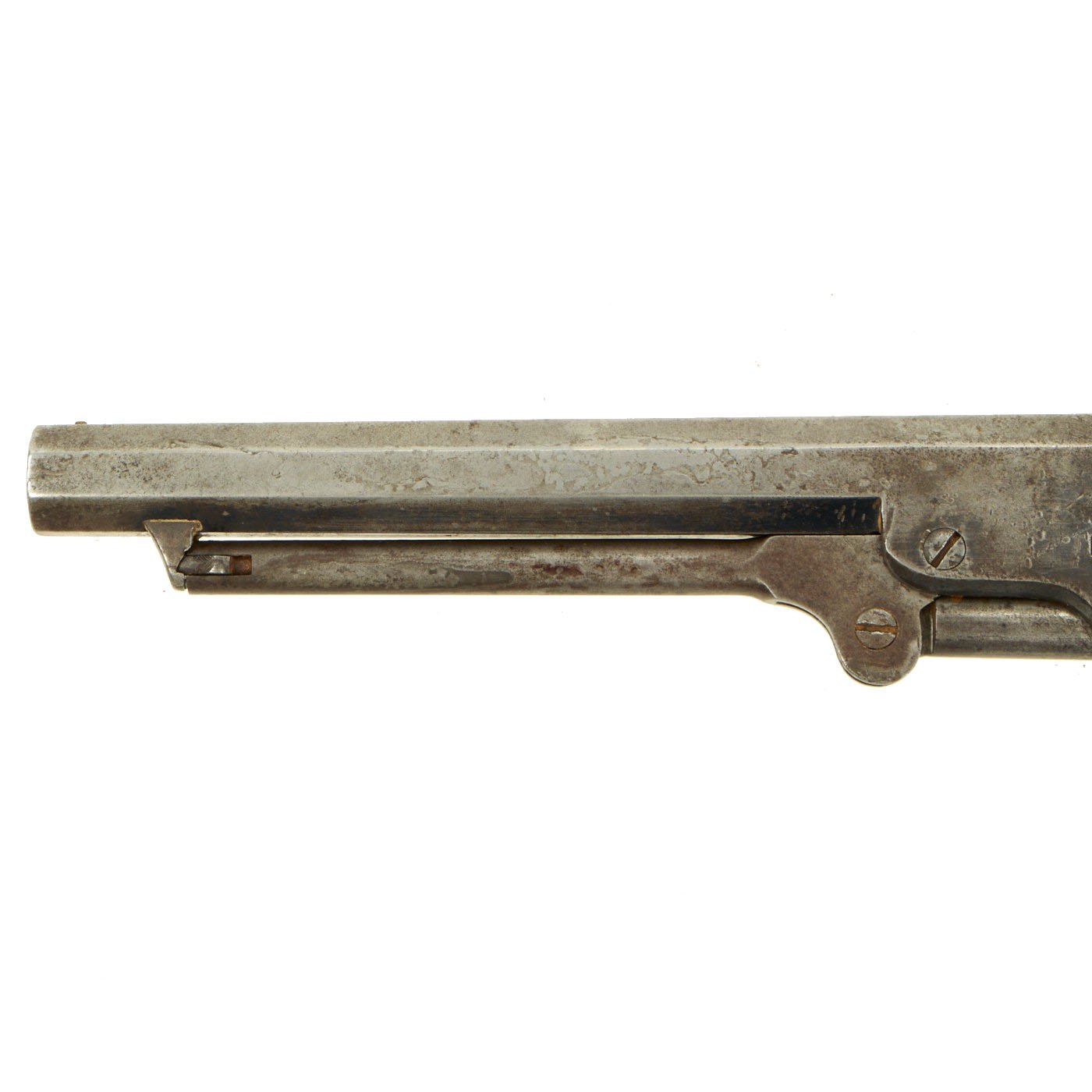

Original Item: Only One Available. Introduced in 1862 as the "Pocket Model of 1862 of Navy Caliber (.36)", this 5 shot .36 caliber percussion revolver was often purchased by serving Officers as a reserve handgun carried on the inside of their tunics. These were available with 4 1/2, 5 1/2, and 6 1/2 inch long barrels. Unlike the "Police Pocket" model, they retained the octagonal barrel and stage coach scene from the larger Model 1851 Navy revolver. Less than 22,000 of these "Pocket Navy" revolvers were ever made, making them very rare and desirable.
This very nice example is in choice condition, and has matching serial number 9498 on most parts, including the barrel, frame, grip, cylinder, cylinder axis pin, and trigger guard! Only the barrel wedge is an unmarked arsenal replacement. The serial number indicates production in 1862, according to Colt firearms records. This was however not the first year of production, as even though this is a model 1862, as production started in 1861. These share the same serial number sequence as the "Police Pocket Model of Navy Caliber", and are pretty much the same gun with a different cylinder and barrel.
The revolver was made right during the height of the Civil War, and most likely was used during the conflict. The cylinder still has the original COLTS PATENT marking above the serial number, and the same marking is on the left side of the frame. There is even a good amount of the "Stagecoach Holdup" scene still visible on the cylinder.

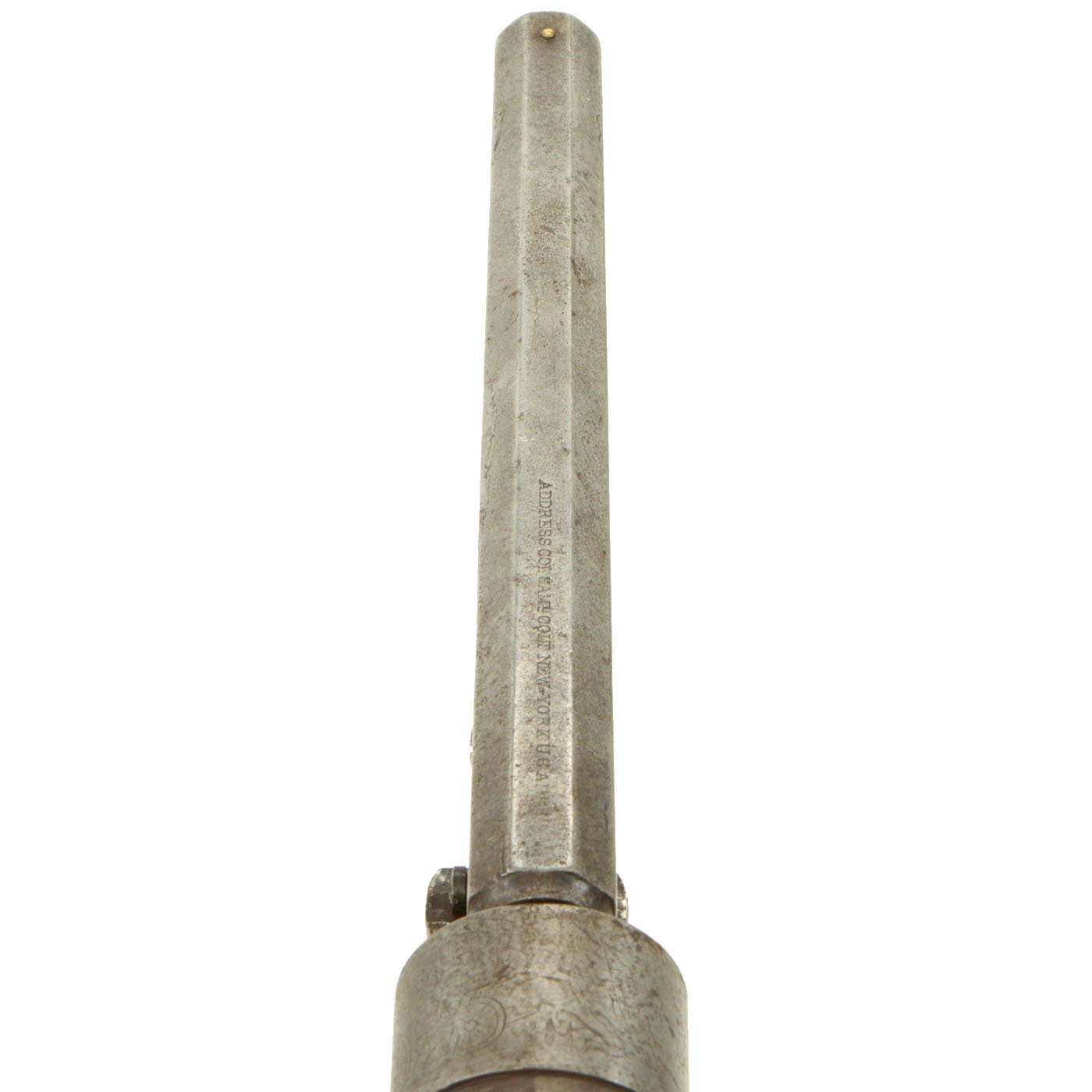

Top of the barrel still has the original Colt markings clearly visible:
ADDRESS COL. SAML COLT NEW-YORK U.S. AME[RICA]
The revolver not only looks great but it is in tight fully functional condition, with a strong hammer pull, and good cycling. We did not notice any of the usual issues with cylinder lock up and indexing.

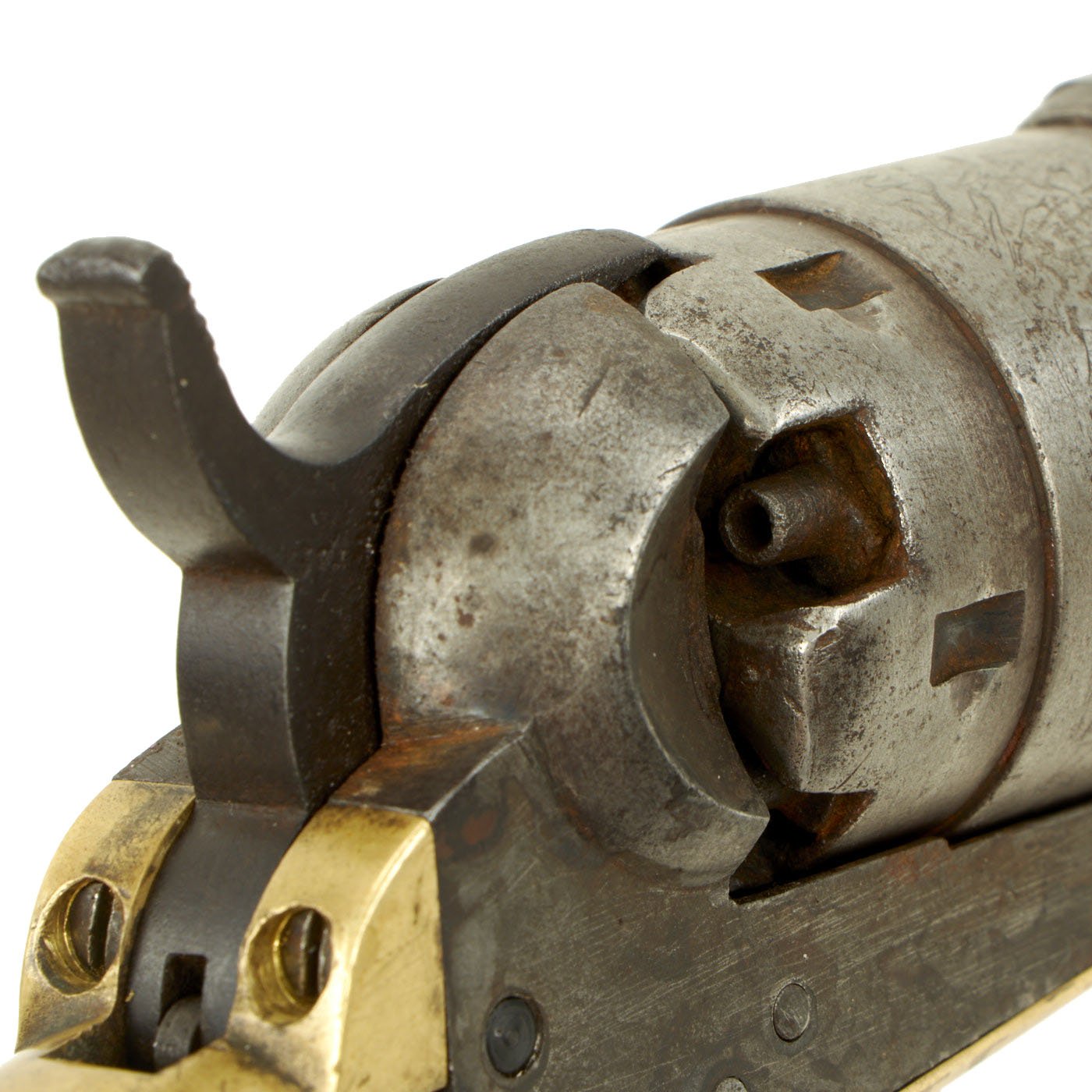

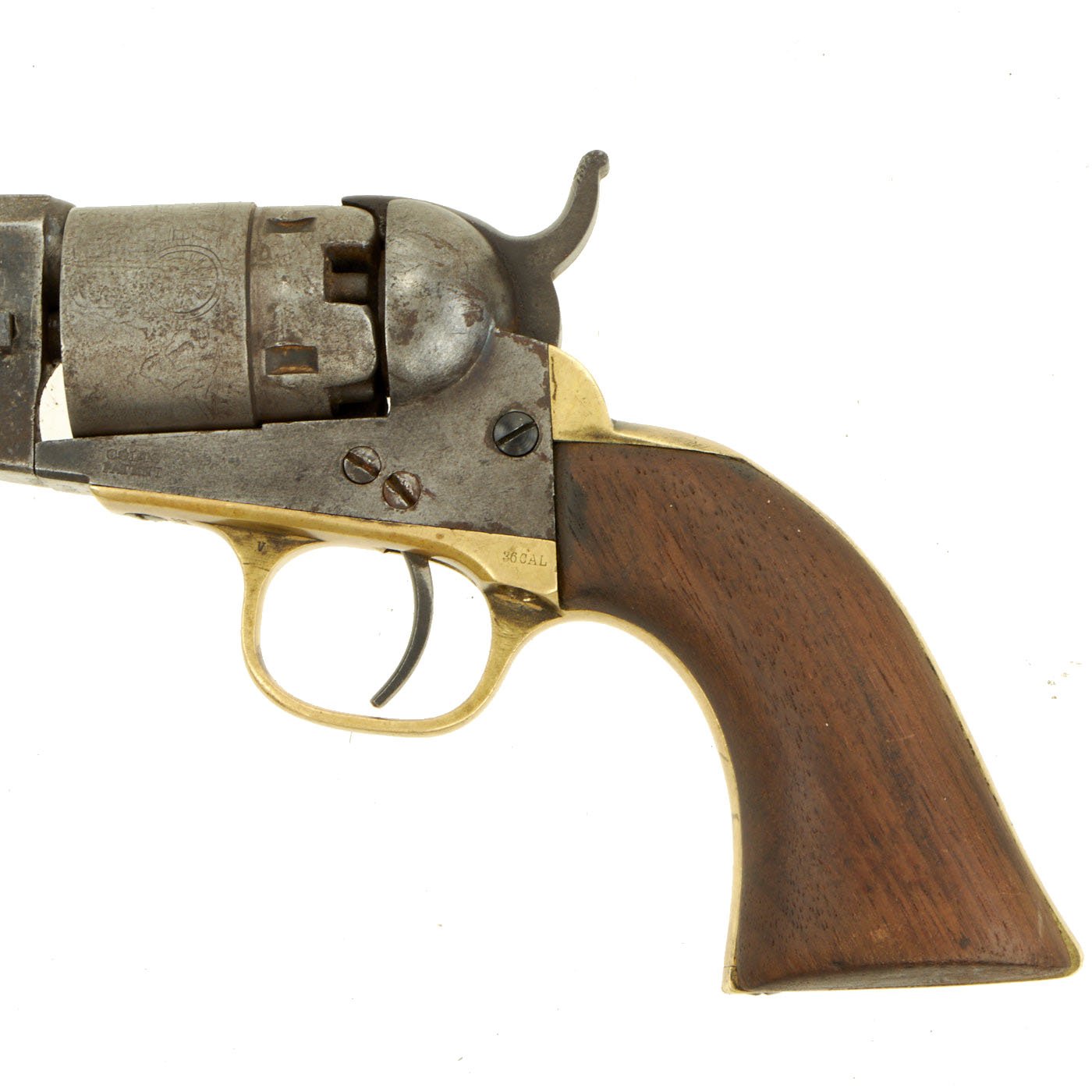

The pistol metalwork retains much bluing, now faded to a gray patina. There is however some original unfaded bluing on the barrel assembly, something we very rarely see. The grips are in nice shape, with a great lightly worn look. The bore shows clear lands and grooves, though there is some oxidation and powder fowling. All 5 of the original cap nipples are still clear on the cylinder.
A great example of a rare Civil War Revolver, ready to cherish and display!
Year of Manufacture: 1863
Ammunition Type: Cap and Ball
Barrel Length: 6 1/2 inches
Overall Length: 11 3/4 inches
Action: Single Action
Feed System: 5 Shot Revolver
History of the Colt Pocket Percussion Pistols:
The family of Colt Pocket Percussion Revolvers evolved from the earlier commercial revolvers marketed by the Patent Arms Manufacturing Company of Paterson, N.J. The smaller versions of Colt's first revolvers are also called "Baby Patersons" by collectors and were produced first in .24 to .31 caliber, and later in .36 caliber, by means of rebating the frame and adding a "step" to the cylinder to increase diameter. The .31 caliber carried over into Samuel Colt's second venture in the arms trade in the form of the "Baby Dragoon"-a small revolver developed in 1847–48. The "Baby Dragoon" was in parallel development with Colt's other revolvers and, by 1850, it had evolved into the "Colt's Revolving Pocket Pistol" that collectors now name "The Pocket Model of 1849". It is a smaller brother of the more famous "Colt's Revolving Belt Pistol of Naval Caliber" introduced the same year and commonly designated by collectors as the "1851 Navy Model" (and which was a basically a larger, .36 caliber of the Pocket Model, "belt pistol" referring to a weapon sized to fit into a belt holster, as opposed to the saddle holsters generally called for by Colt's larger cavalry combat models). In 1855 Colt introduced another pocket percussion revolver, the Colt 1855 "Sidehammer", designed alongside engineer Elisha K. Root.
The Pocket Model revolvers all have a traditional "Colt-style" frame, generally with brass grip straps and trigger guard, and a case-hardened steel frame. In appearance, the frames are almost identical to the larger 1851 Navy and .44 caliber 1860 Army Models, with the exception of being smaller, and so having a proportionately larger trigger guard. Since they appear so similar to the larger weapons, without an object nearby to give them scale, the Pocket Revolvers tend to give an impression of being larger than they actually are; it is difficult to fit all four fingers onto the slender grip, even for a person with average-sized hands. Except for by noting the relative size of the trigger guard to the frame, it is easy for a casual observer to mistake a .31 caliber Model 1849 for an 1851 Navy (un-rebated frame, slab-sided webbing around a regular pivoting loading lever, octagonal barrel, unfluted cylinder); indeed, the Model 1851 Navy was basically no more than a scaled -up 1849 Pocket Model. Likewise, the larger .36 caliber Pocket Police Models are virtually identical to the 1860 Army Model, with rebated frame and stepped cylinder (to accommodate a size up from .31 to .36, instead of .36 to .44 as with the Army Model), a graceful, flowing webbing surrounding a new style "creeping" loading lever, and a round barrel. The most obvious difference is that the Pocket Police had a fluted 5-shot cylinder, while most Army Models were unfluted, and held six shots. The reason for this close similarity is that all four guns were closely related, and followed similar paths of development; the original .31 caliber Model 1849 was scaled up to create the .36 caliber 1851 Navy Model. Later, the Navy Model was increased in bore size by rebating the frame and enlarging the cylinder, and became the 1860 Army Model. With the success of this project, the .31 caliber of the 1849 Model was similarly increased to .36, using the same method, creating the Pocket Police and Pocket Navy models in 1860.
In 1860, the .36 caliber Police Pocket model was created, after lessons were learned from experimentation aimed at reducing the size of the .44 Colt Holster Pistols (i.e. large cavalry weapons), Colt took advantage of stronger mass-produced steel by rebating the frame of the Navy revolver to hold a larger-diameter 44/100-inch chambered cylinder, basically fitting the power of a large cavalry saddle holster-gun and fitting it into the .36 caliber Navy Model, a gun that could be carried in a belt holster. Previously, it wasn't thought that the smaller frame could handle the power of the .44 round, but the introduction of stronger metals made it possible. Learning the lessons from this, the Colt factory applied the same technology to the .31 caliber Model 1849 Pocket revolvers, using high-strength (for the time) steel for the frame, which allowed them to remove enough material to fit a larger-diameter .36 caliber cylinder which still had five shots (the alternative was to simply retain the original cylinder diameter, and create a 4-shot .36 caliber version. The stronger steels made this sacrifice unnecessary. Other changes including lightweight fluted cylinders, and a round barrel, to offset the added weight, and a "creeping" loading lever as used in the 1861 Army Model; the result was the "Police Pocket Model of 1862", even though production started in 1861. The Pocket Navy was a version similarly up-sized to .36 caliber, but which retained the octagonal barrel and traditional loading lever of the earlier pocket mode. Between 1862 and 1873, Colt records document production of 19,000 of the Pocket Navies and over 20,000 Pocket Police revolvers. Relative to the .31 Pocket Revolvers, the period of manufacture was short and overall numbers were further limited by a fire at the Colt Factory in 1862 and War production concerns.
