Original Japanese WWII Type 97 Inert Fragmentation Hand Grenade with Fuse - dated 1941

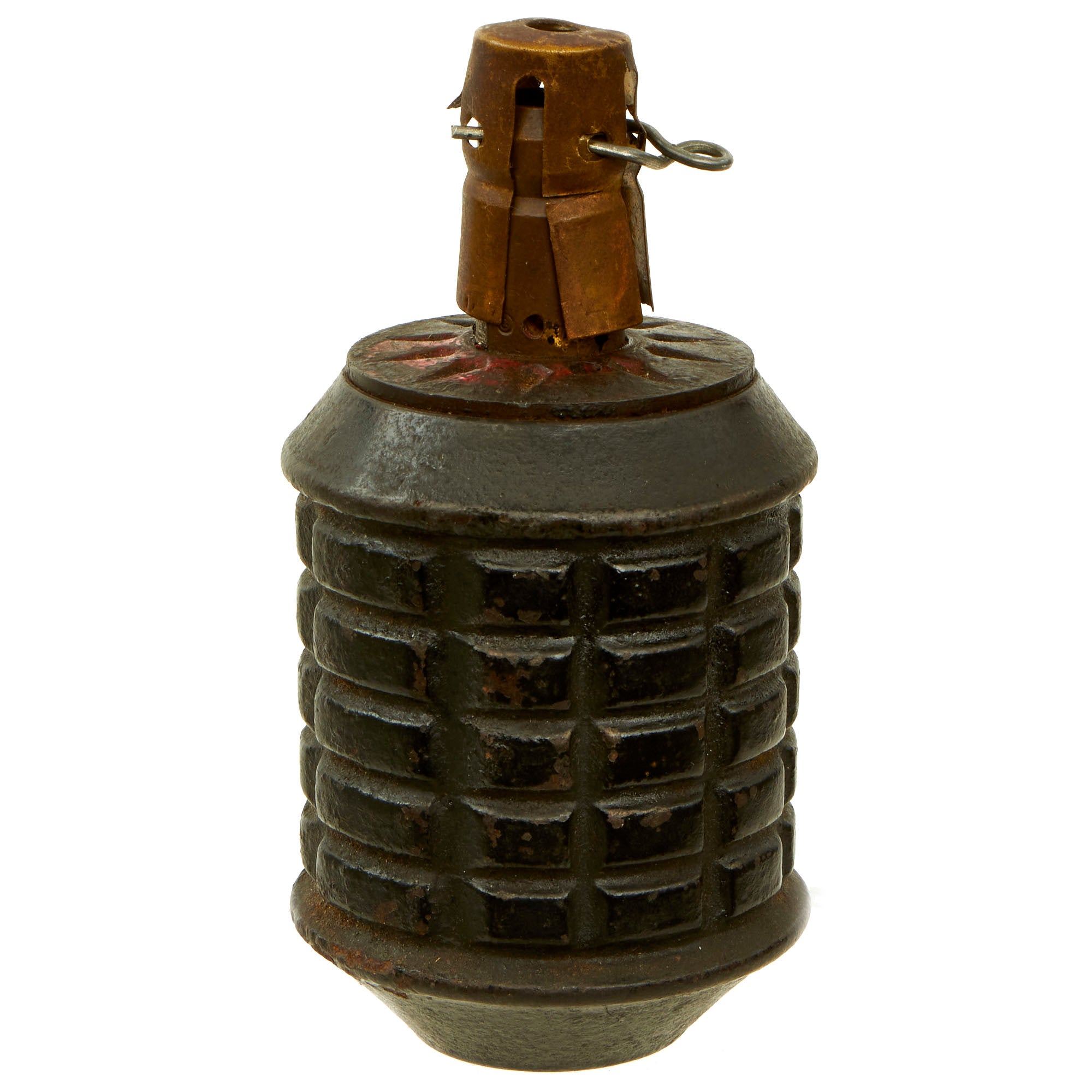

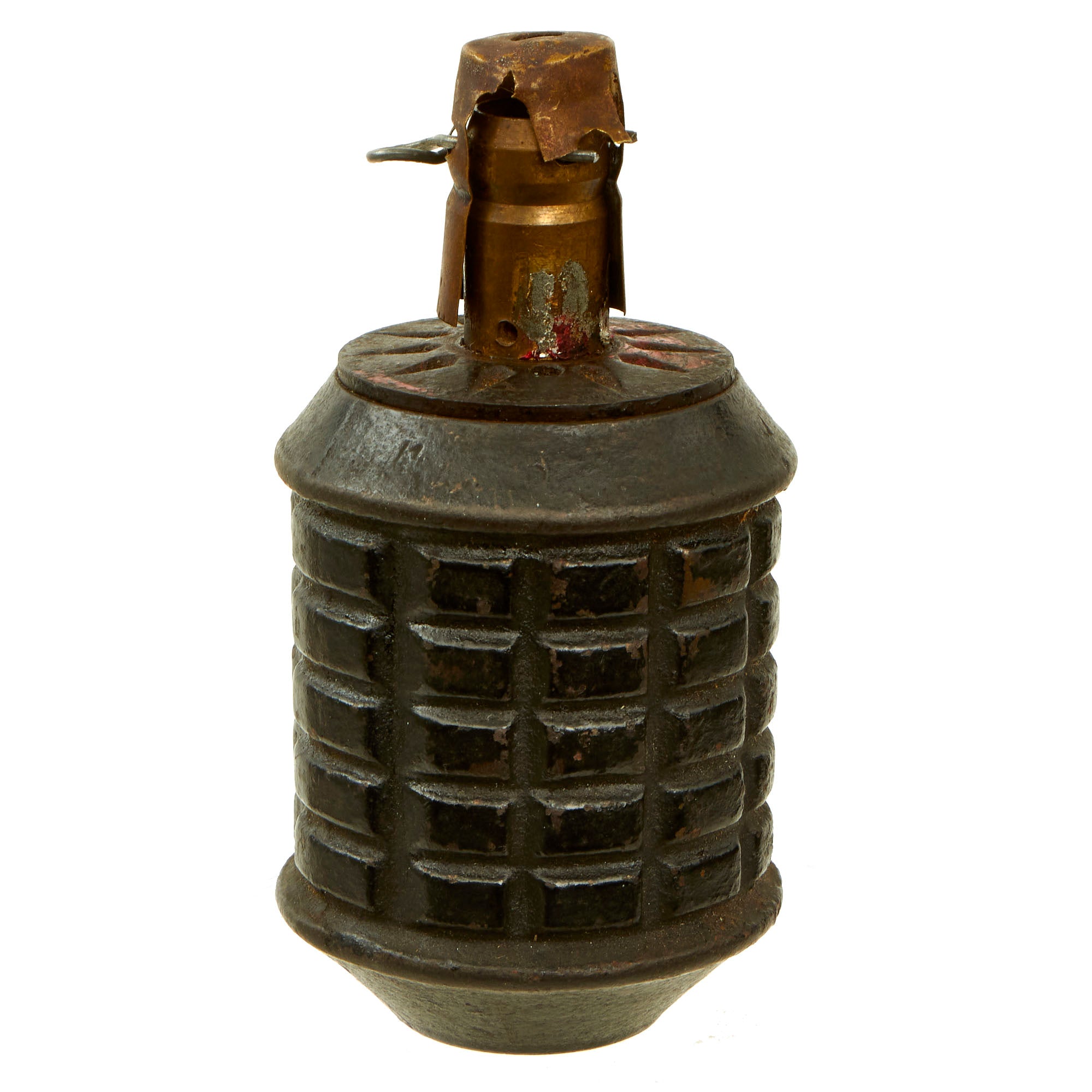

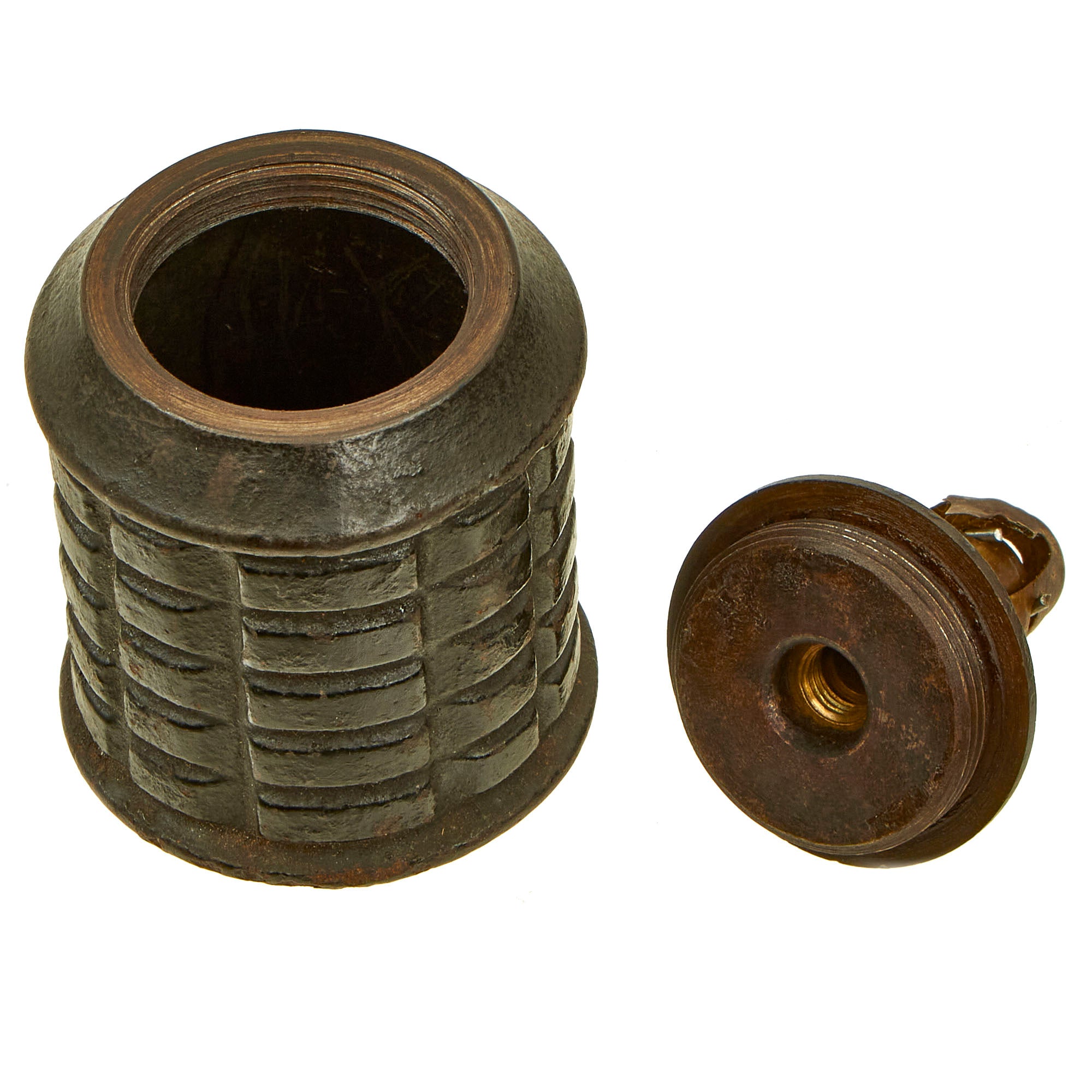

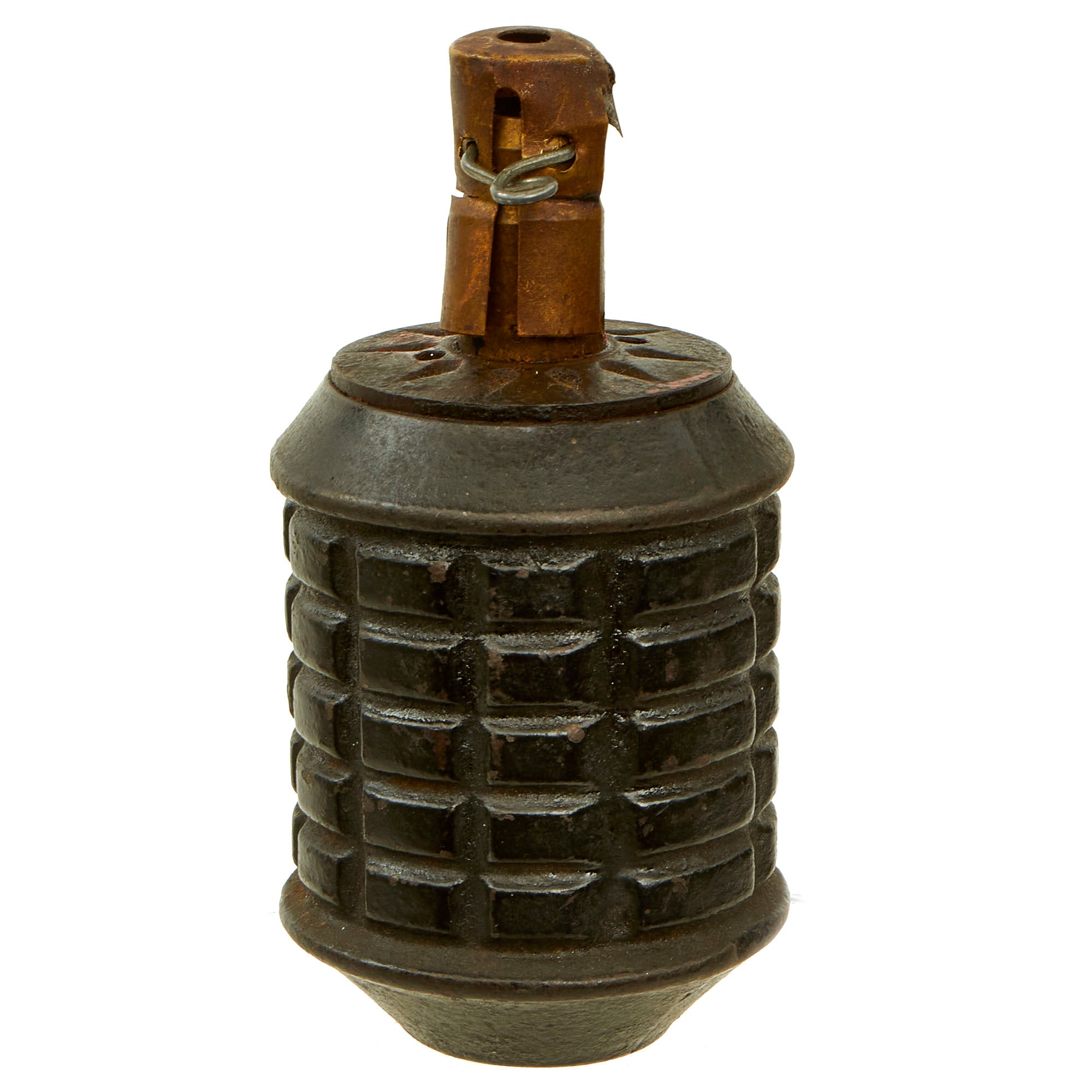

Original Item: Only One Available. This is a very nice inert demilitarized genuine Japanese Type 97 Hand Grenade. This example is offered in excellent condition with fuze housing. This is still attached to the screw off top, which can be removed to inspect the interior. This example is completely inert and is in compliance with the current BATF standards on inert ordnance. Not Available For Export.

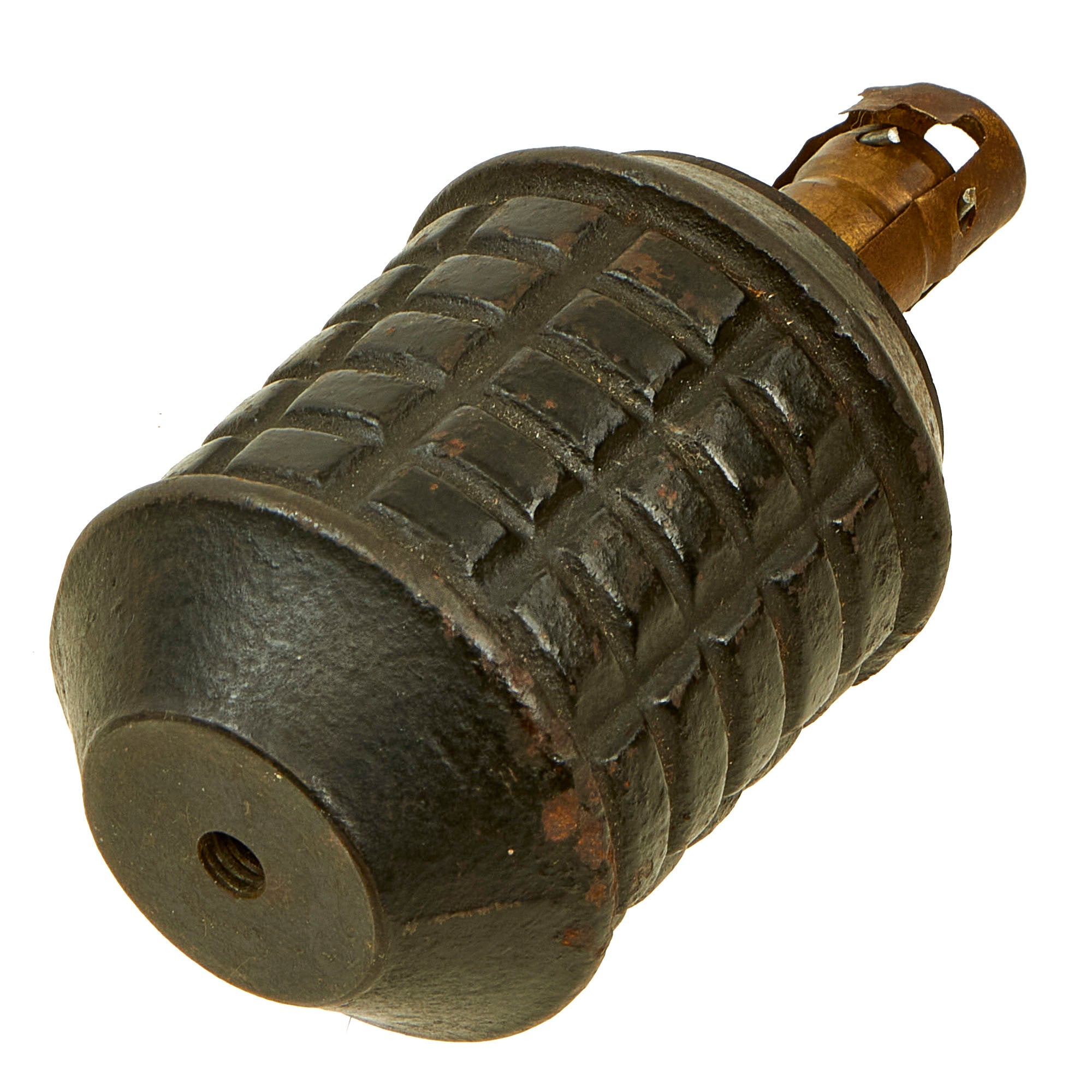

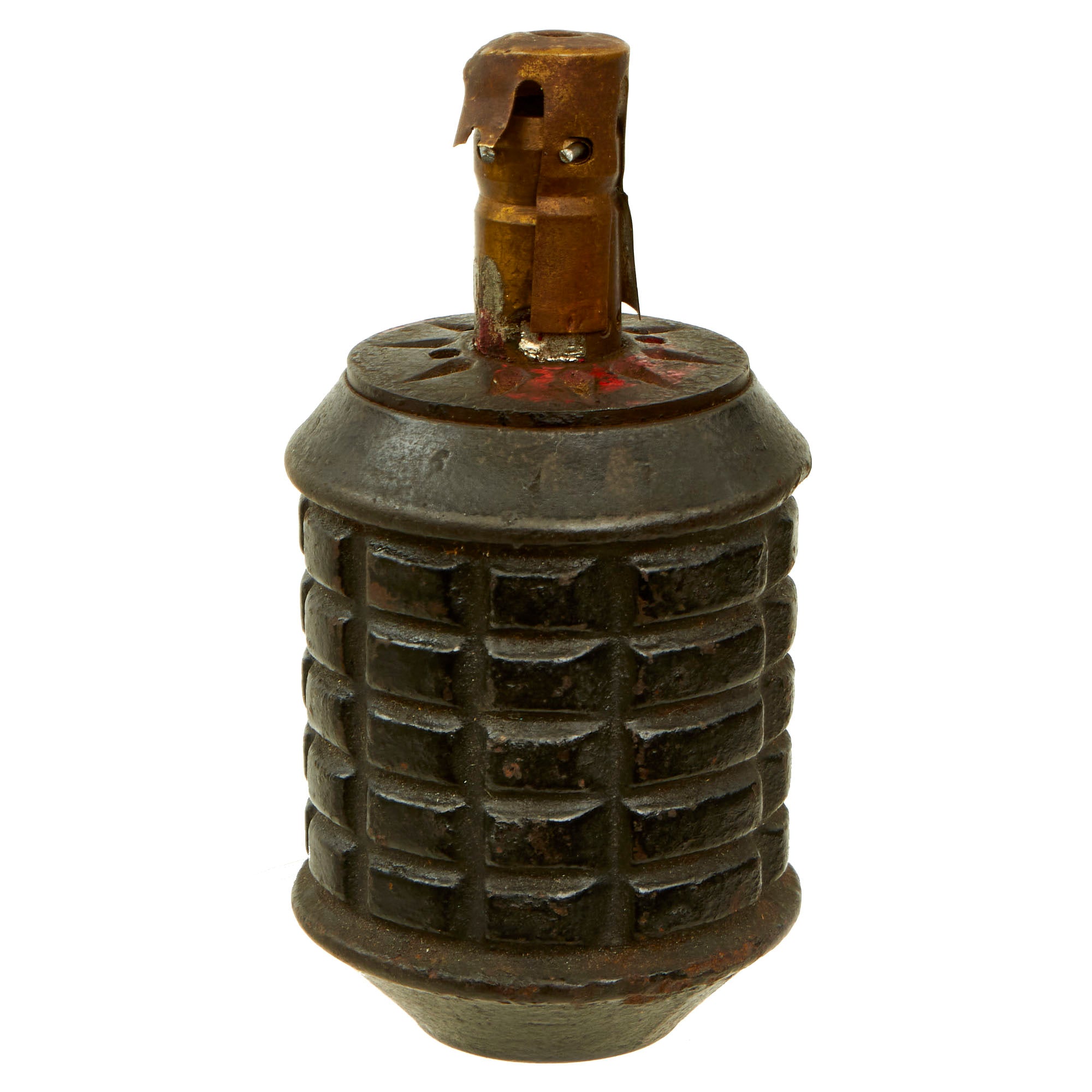

The grenade body still retains most of the original black paint, with the top still showing some of the original red paint. The fuse on this example is actually marked with a Japanese date: 5 六 十 昭. This marking is written right to left, and would be read: SHOWA (current reigning emperor) Juu-Roku (16th year of reign - 1941) 5th month (May). The fuze still retains a partial cover, and a pull pin, which could be a replica. There is also a threaded hole in the bottom of the body, probably added to help display it at some point.
The Type 97 Hand Grenade was the standard fragmentation hand grenade of the Imperial Japanese Army and Imperial Japanese Navy SNLF during the Second Sino-Japanese War and World War II.
A great example of a sought after WWII Japanese grenade! Ready to display!
History and Development
The Type 97 was developed from the earlier Type 91 Grenade which could also be used as a fragmentation hand grenade, but was predominately used as munitions for the Type 10, and Type 89 grenade launchers. For this reason, it had less explosive power and a relatively longer delay time than a dedicated manual hand grenade. To address these issues, the Army Technical Bureau developed a new design in 1937.
The Type 97 had the same principles as most of fragmentation grenades of the period: a grooved 'pineapple-shaped' segmented body which dispersed sharp pieces of shrapnel when it exploded. Operation was accomplished by first screwing down the firing pin, so that it protruded from the base of the striker. Then the safety pin was removed by pulling the cord to which it was attached; the protective cap which covered the striker was removed. A sharp blow against a hard surface, such as a rock or combat helmet would overcome a creep spring and crush a thin brass cap, allowing the pin to hit the primer and initiate the delay sequence before throwing at the target. However, in comparison with Allied hand grenades of the period, the explosive force of the Type 97 was weaker and, due to lack of an automatic ignition mechanism, the grenade in practice was found to be unreliable and even dangerous to use because of its inaccurate fuse.
Physically, the Type 97 was almost indistinguishable from the Type 91, except that it had no attachment on the base for a propellant canister. Paper labels with ink-stamped fill dates warned of the shorter 4-5 second delay.
The Type 97 hand grenade was issued as standard equipment to Japanese infantrymen in the Second Sino-Japanese War and throughout the various campaigns of World War II.
- This product is not available for international shipping.
Totally inert, cannot be converted to an explosive device, not available for export. This item is completely legal within the USA. International Military Antiques, Inc observes all Federal, State and Local laws. Everything for sale on ima-usa.com is completely legal to own, trade, transport and sell within the United States of America.
All deactivated ordnance sold by IMA, Inc is engineered to be inoperable according to guidelines provided by the US Bureau of Alcohol, Tobacco, Firearms and Explosives (BATF).
- Not eligible for payment with Paypal or Amazon
