Original Japanese WWII Type 100 HE 81mm Inert Mortar Round - dated 1941 / 1942

Item Description

Original Item: Only One Available. This mortar round is totally non-functional and inert, having been deactivated according to specifications outlined by the BATF (Bureau of Alcohol, Tobacco, Firearms and Explosives). It is totally inert, cannot be converted to an explosive devise.

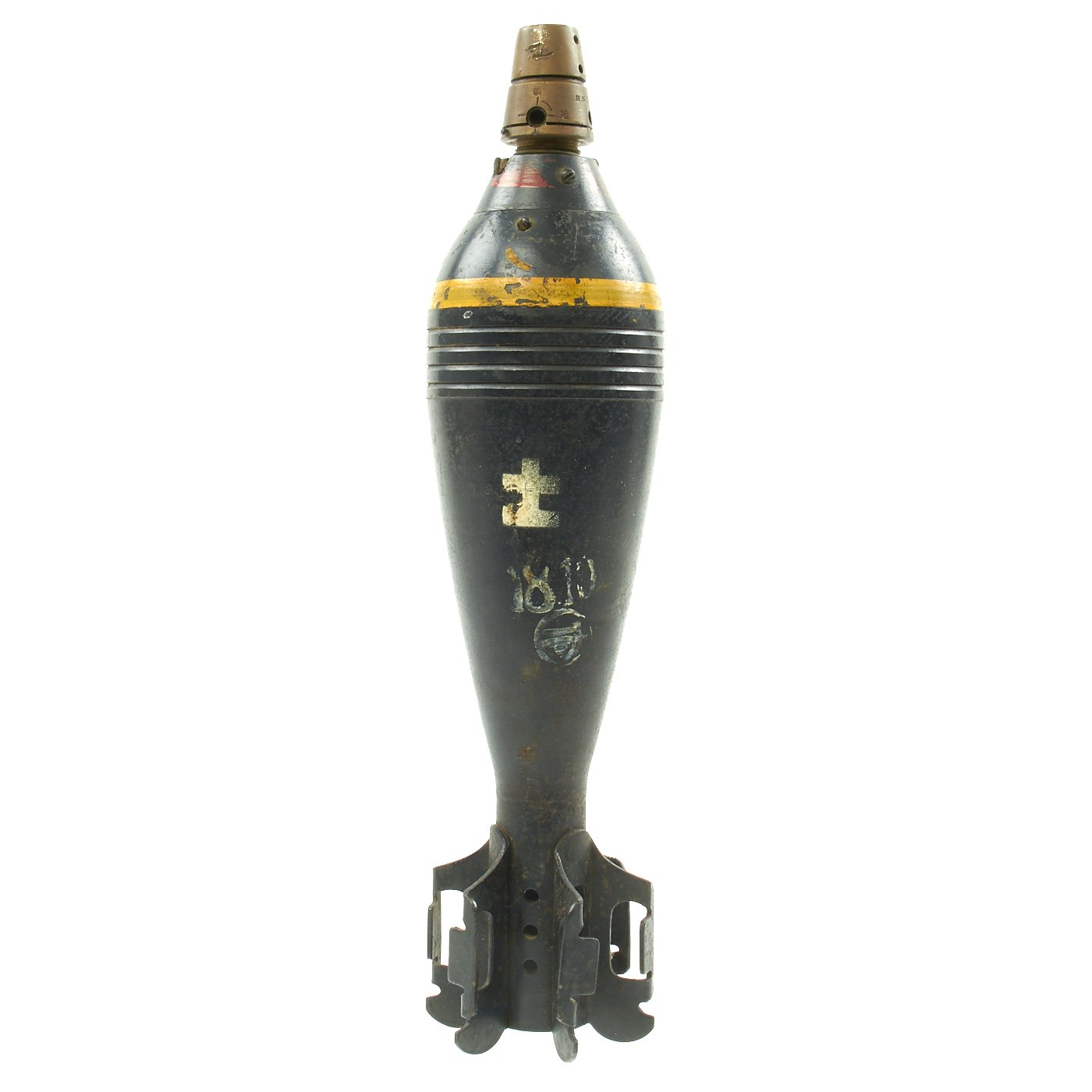

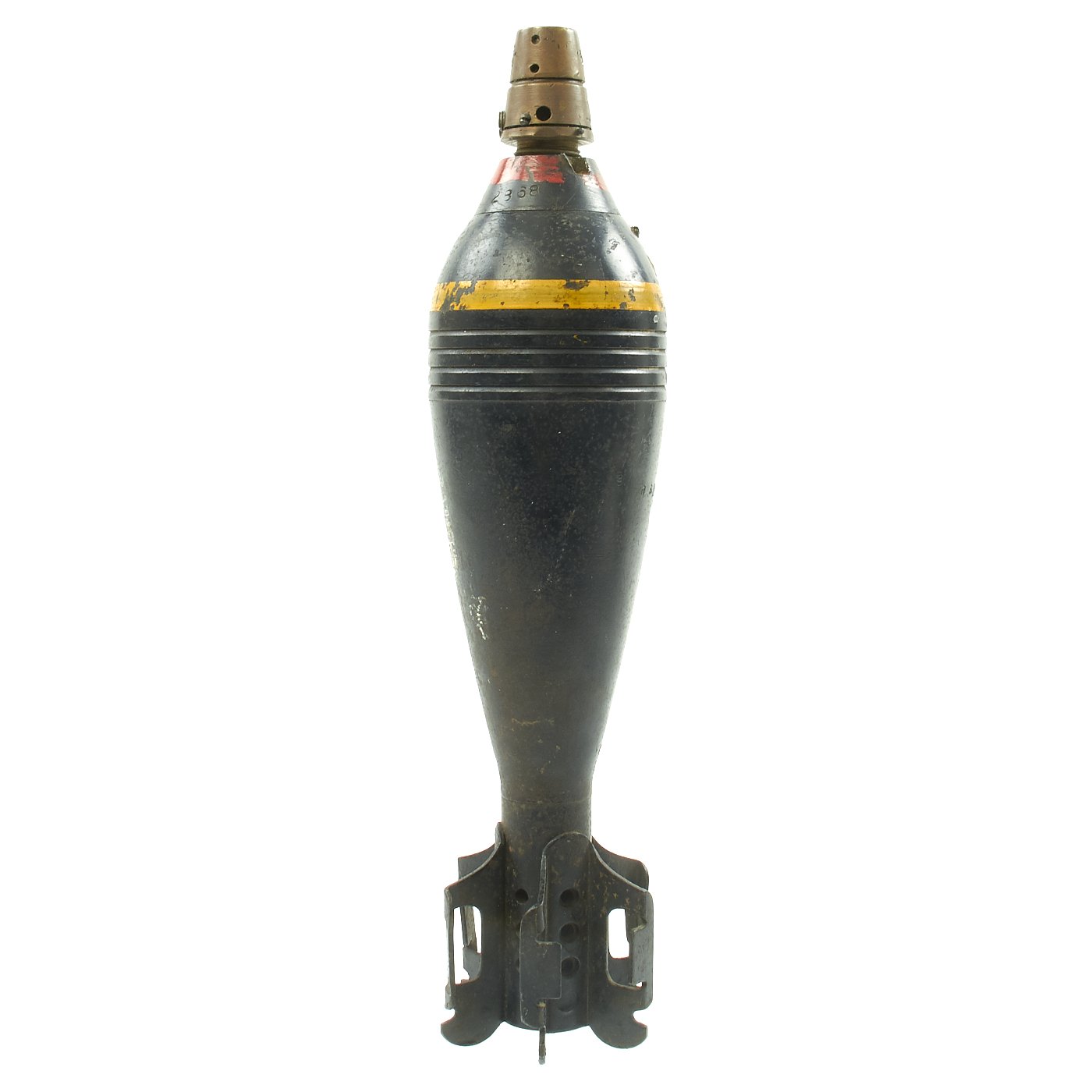

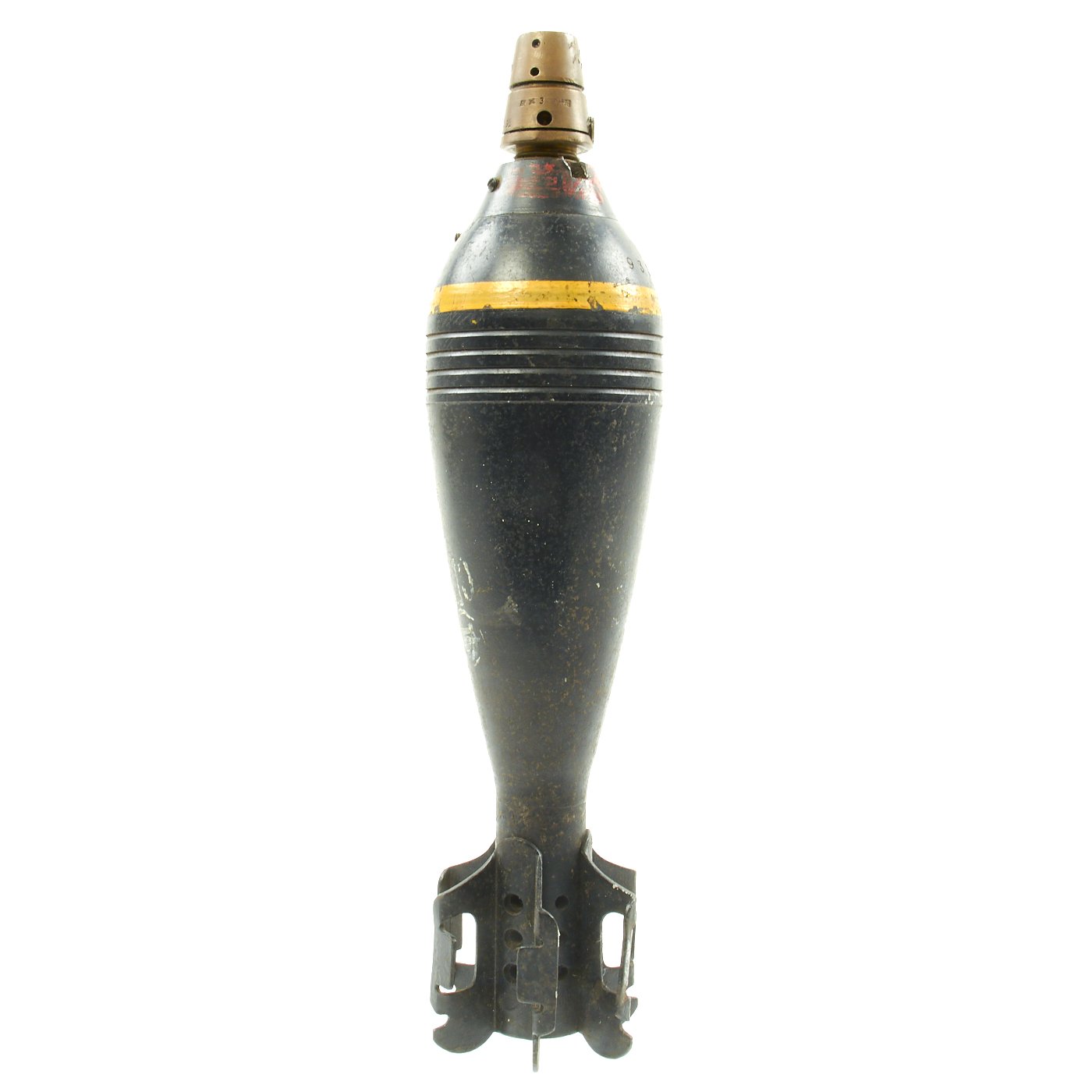

This is a very good condition rare example of the Japanese Type 100 HE Mortar Round used with the Type 97 (1937) and later the Type 99 small trench mortar. This is based on the Stokes-Brandt design, as was the U.S. 81mm, and this round was actually interchangeable with the U.S. M43A1 shell.

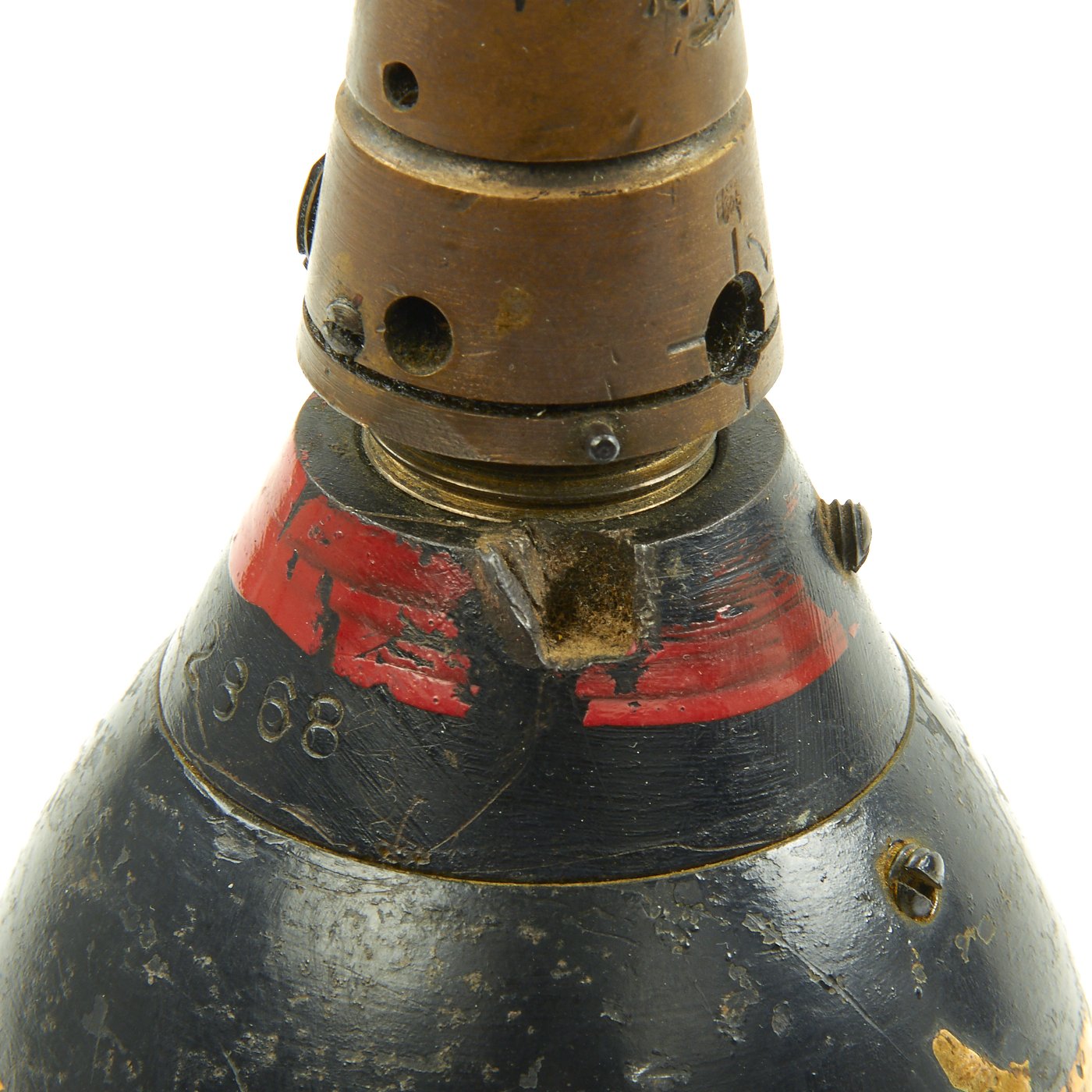

The Japanese Type 100 round had a maximum range of about 3,000 yards. Loaded weight: ~3kg (6.9lbs) of which 1 pound was TNT. This round is complete, except that the detonator tip is missing. The top cap is also not currently removable. It still has the original paint markings indicating type and other information regarding the round.

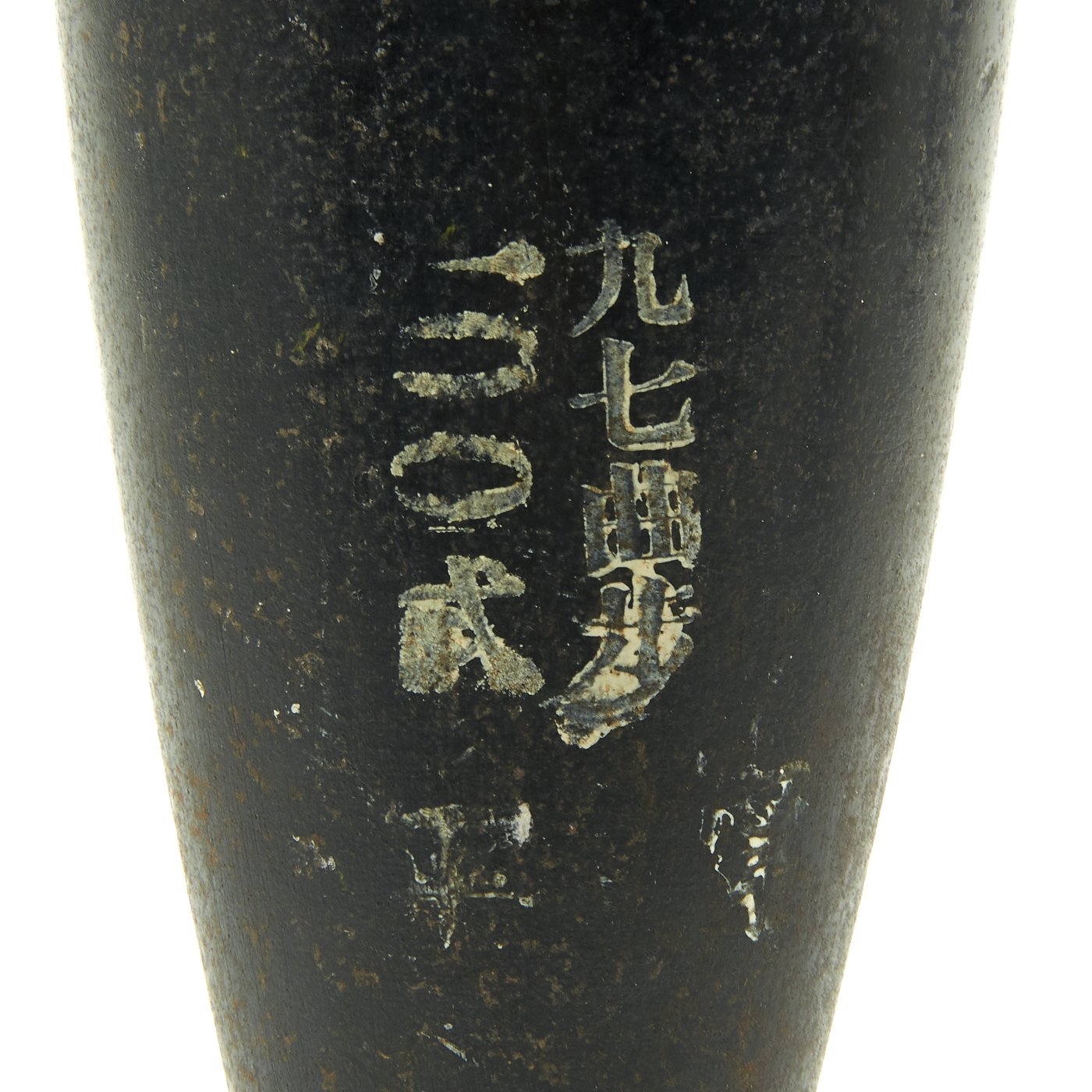

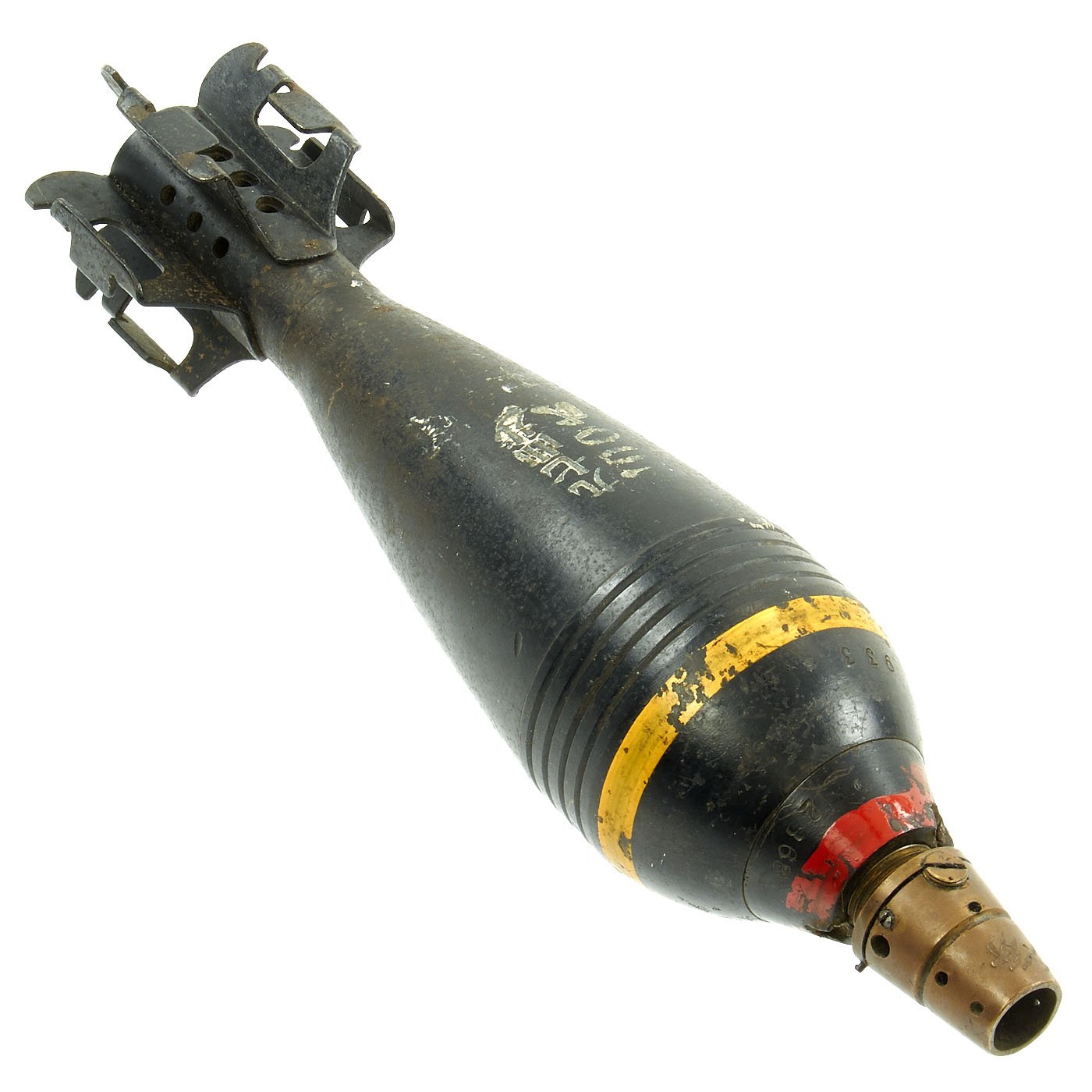

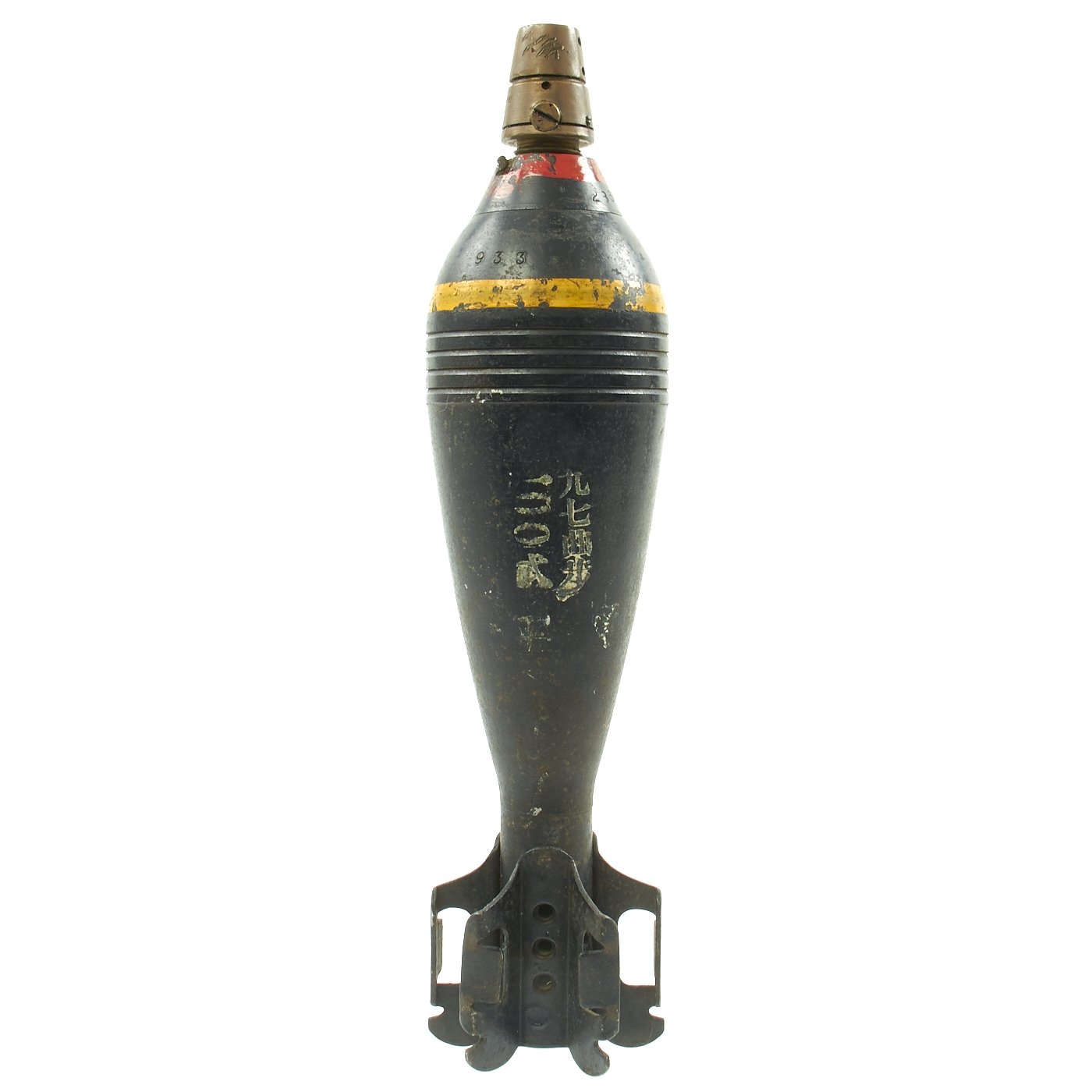

The stenciled text translates-
Left column:
100 Type (Model)
Right column:
97 Infantry Mortar

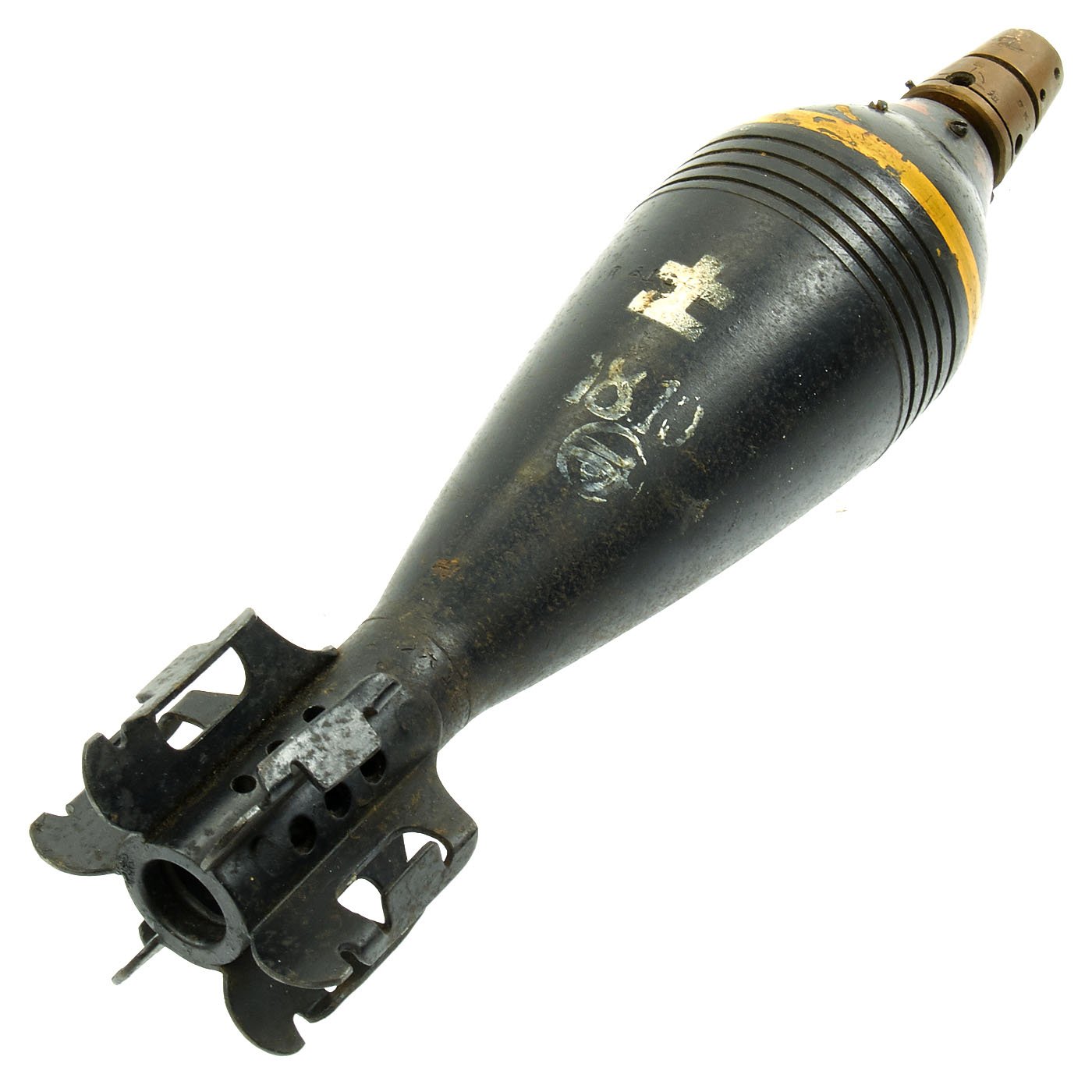

Kyoku Ho is the abbreviation of "Kyokusha Hoheiho", which the IJA called the infantry mortar. It has another stencil indicating the weight specification. There are 5 possible markings for this: ++   +    +/-    -     --

+/- as this example is marked indicates nominal weight, while ++  1.5% to 2.5% over, and -- 1.5% to 2.5% under.

Evidently this was to make up for variations in manufacturing variables. These weight indicators would be taken into account when aiming, to obtain the desired ballistics.

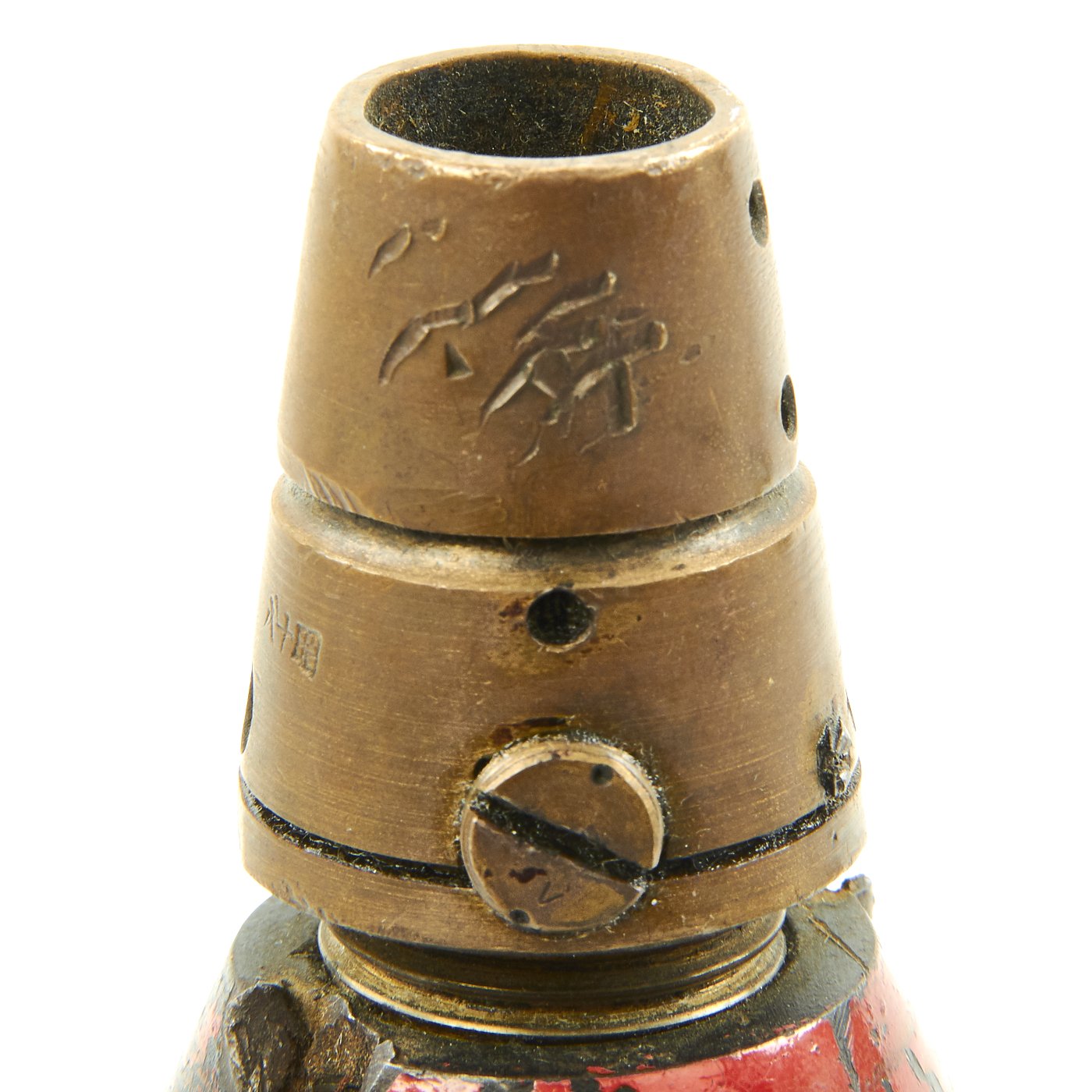

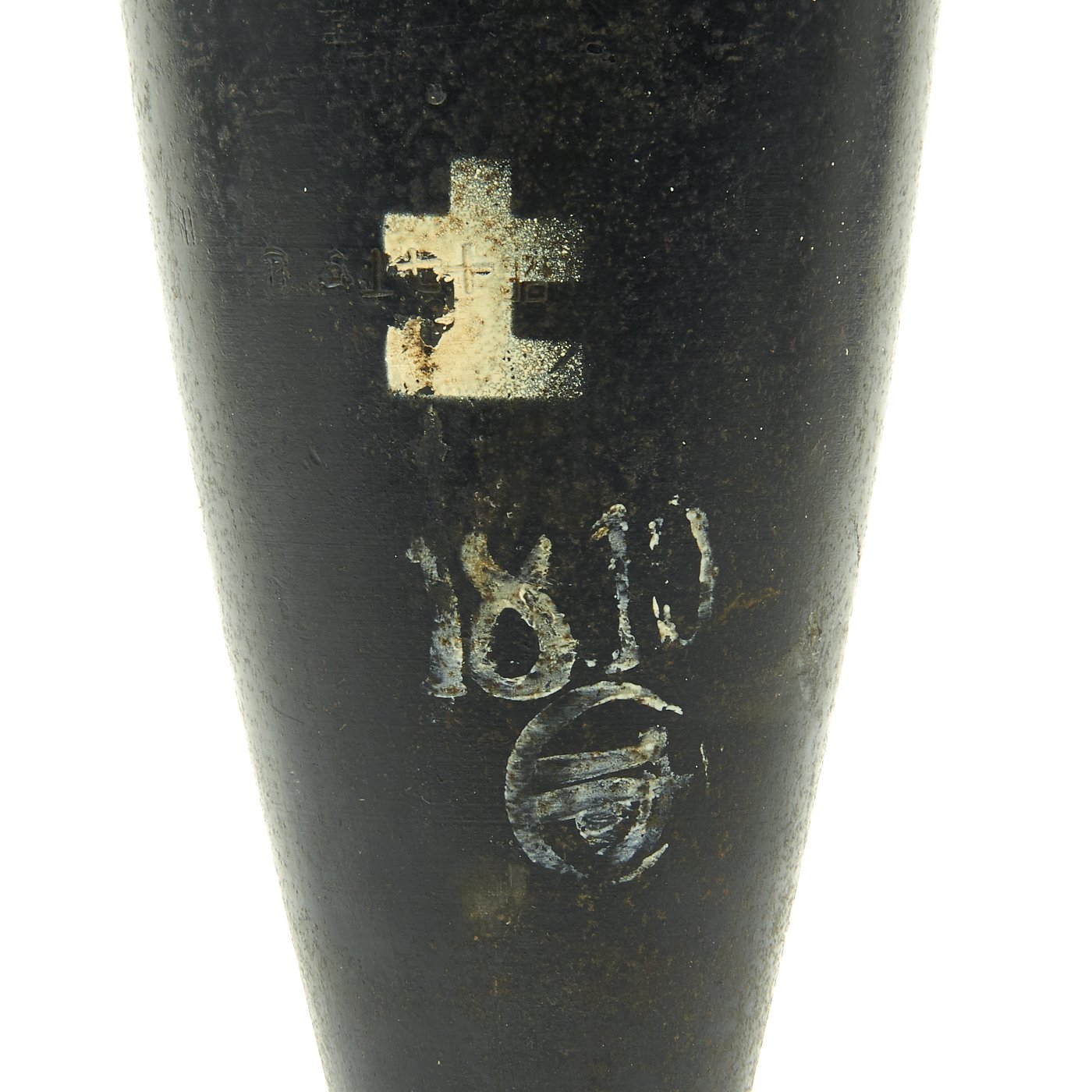

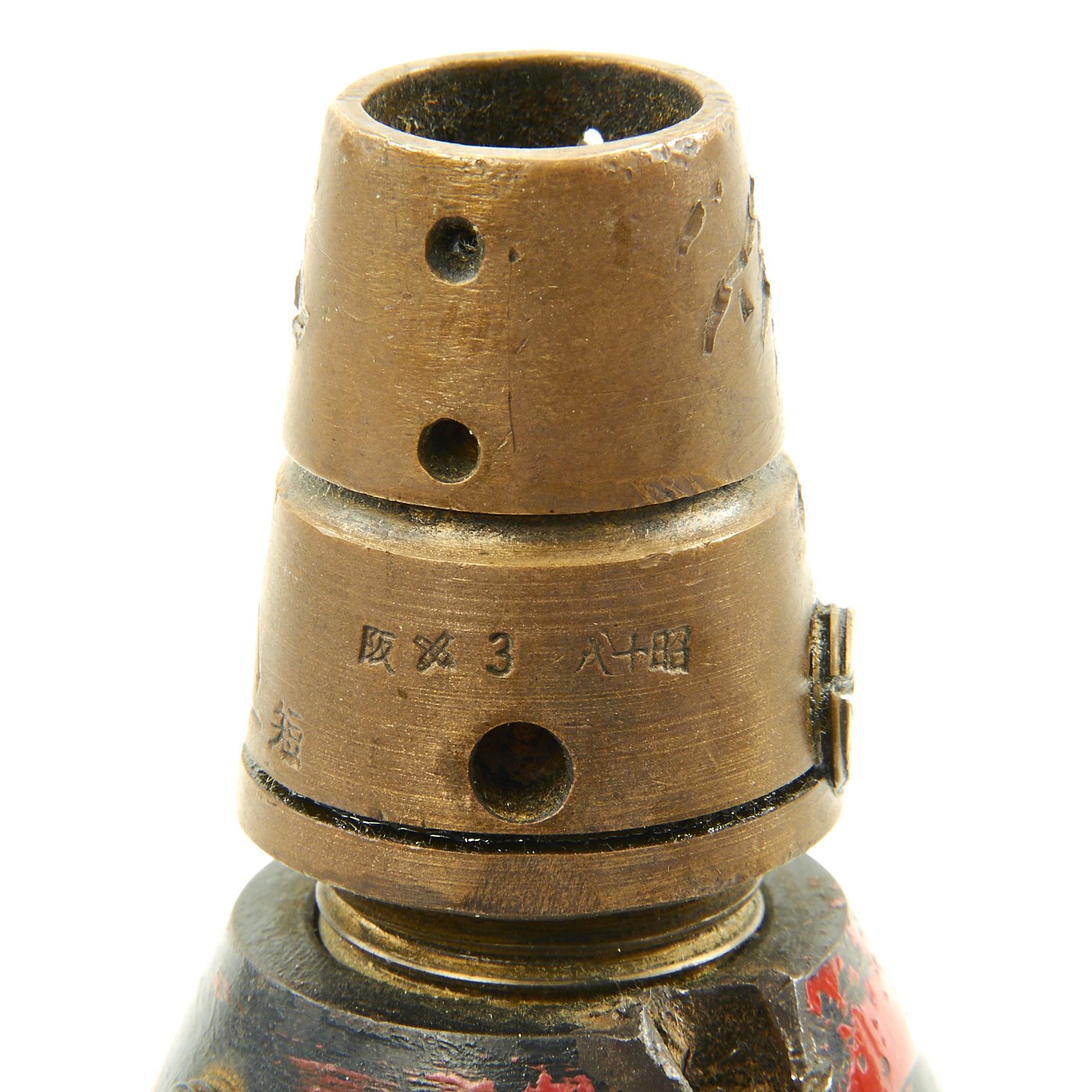

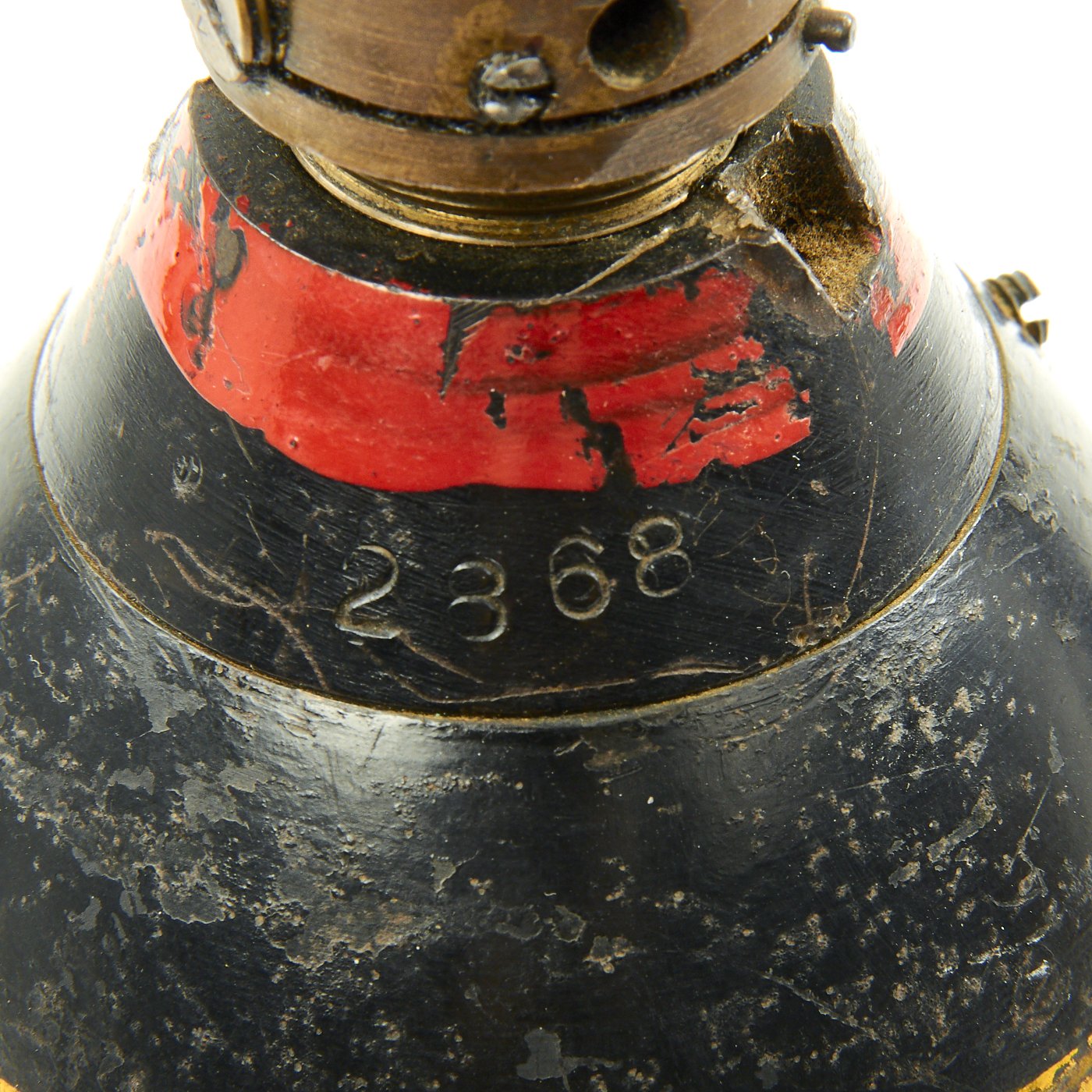

There is also an arsenal marking on the body of the round, which is dated after that: 1 七 十 昭. This marking is written right to left, and would be read: SHOWA (current reigning emperor) Juu-Nana Nen (17th year of reign - 1942), probably the fist month of January. The marking on the base reads 12 六 十 昭, for December of the previous year, 1941 (Showa 16). There is even a date on the fuse, 八 十 昭, for 1943 (Showa 18). The parts were made separately, and not assembled until they were issued, so having different dates is normal.

This piece would make a great addition to any WWII Ordnance collection.

  • This product is not available for international shipping.
  • Not eligible for payment with Paypal or Amazon
