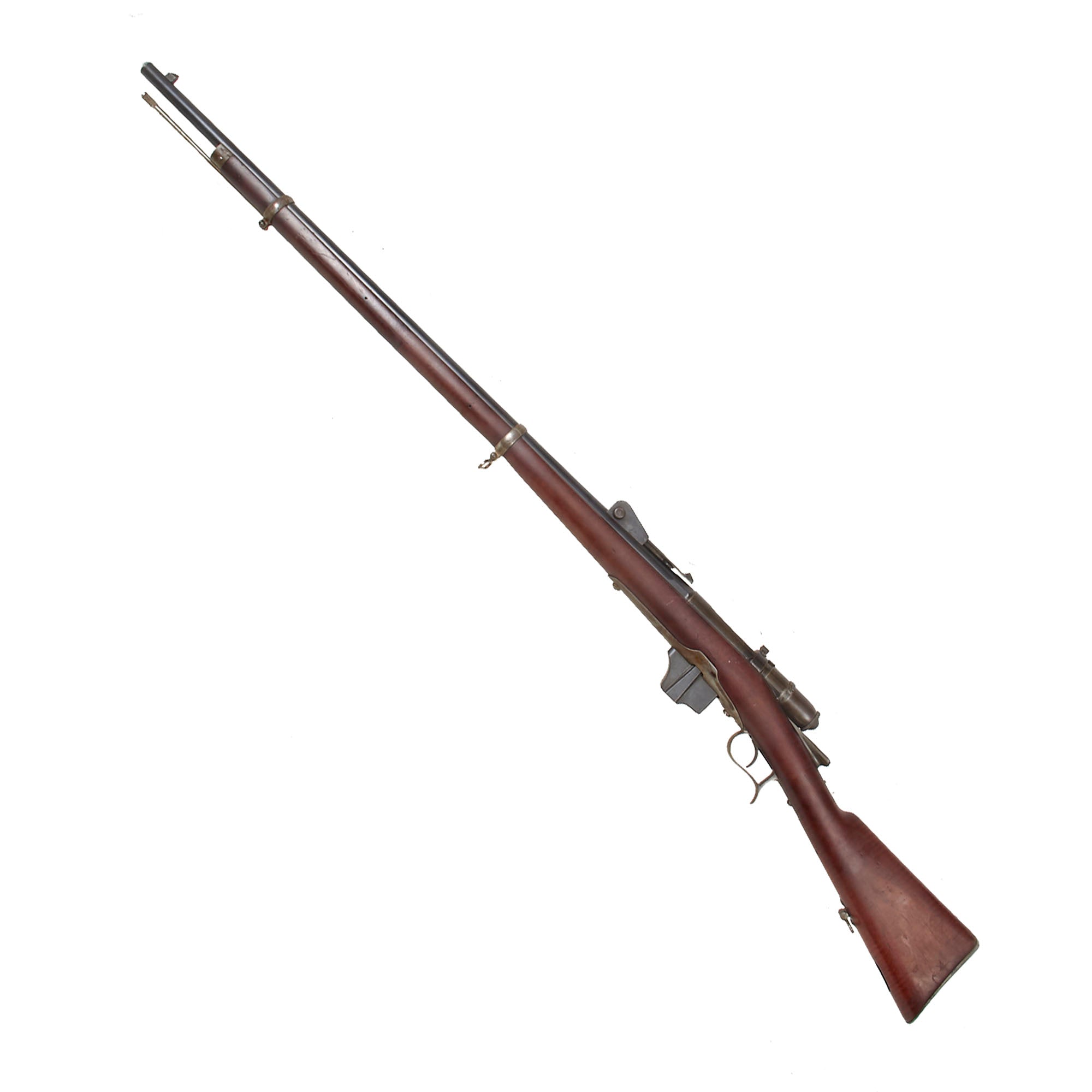

Original Item: Only One Available. The M1870 Vetterli was the Italian service rifle from 1870-1887. The M1870 was a single-shot bolt action rifle chambered for the 10.4mm Vetterli centrefire cartridge, at first loaded with black powder and later with smokeless powder. The M1870 was based upon the M1869 Swiss Vetterli but simplified for economy. Starting in 1887, all model 1870s were updated to the M1870/87 Italian Vetterli-Vitali variant, which has a 4 round magazine. Many were later converted to work with 6.5mm ammunition after 1915, so unconverted examples like this are hard to find. We have had many of the 6.5mm examples, but only a handful of examples like this.

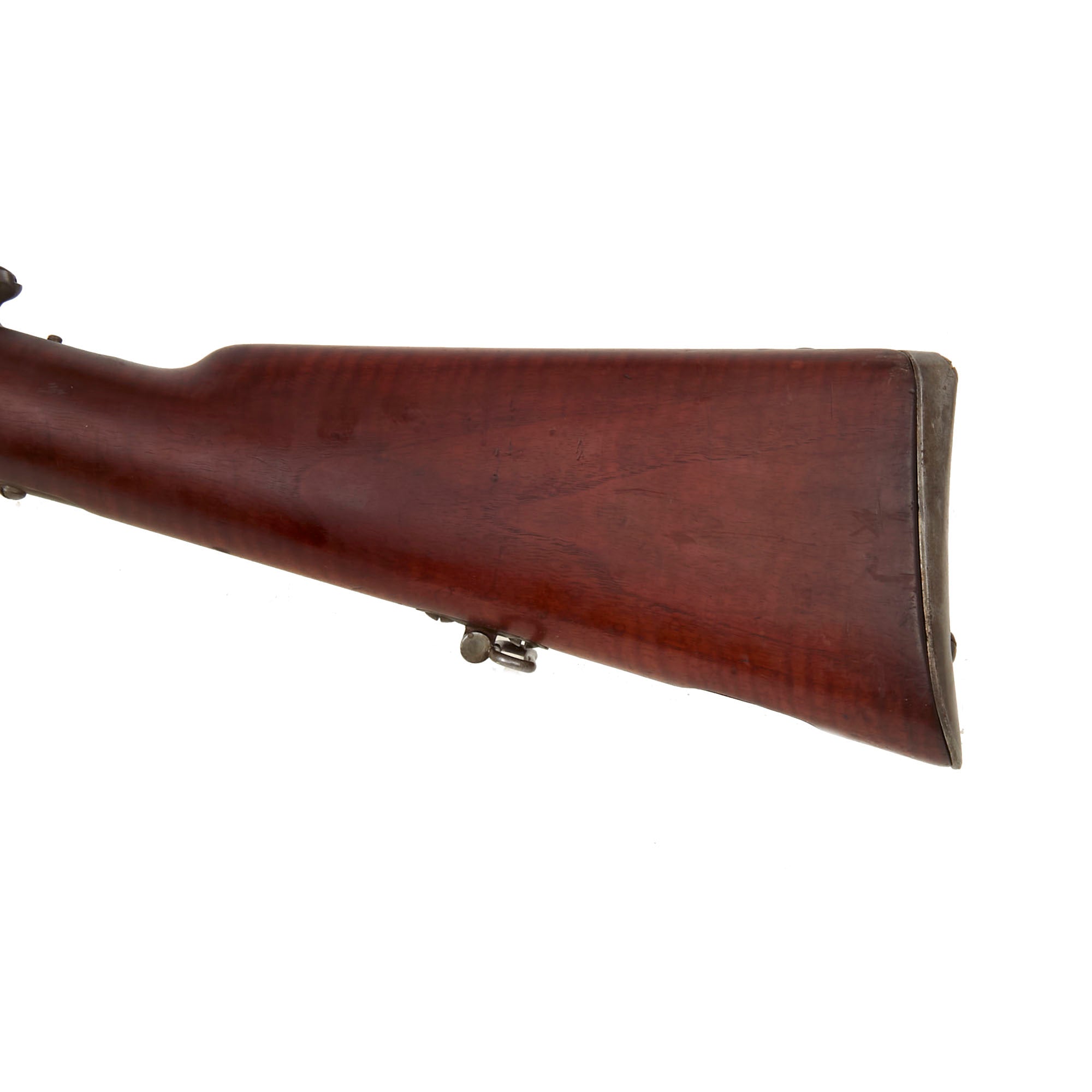

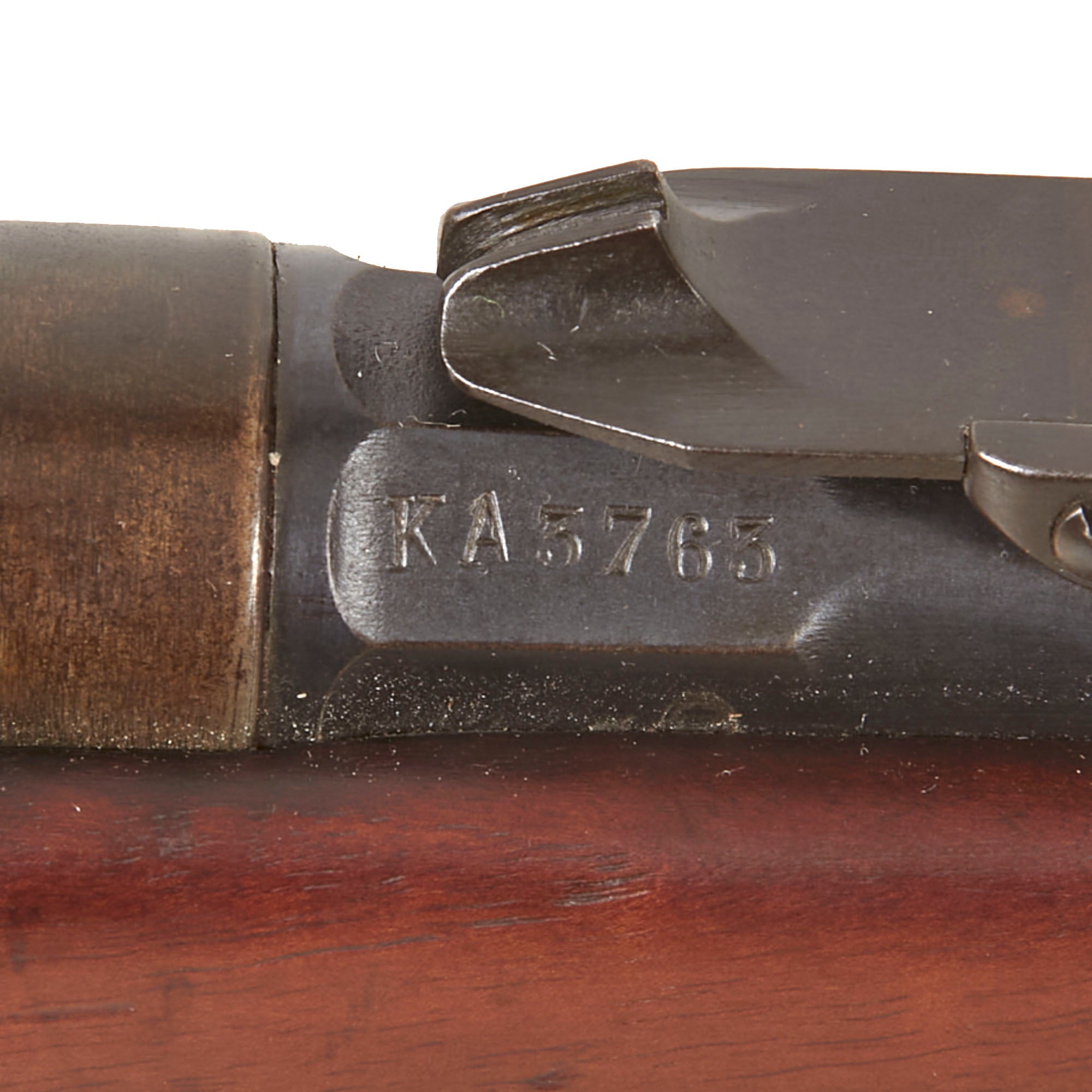

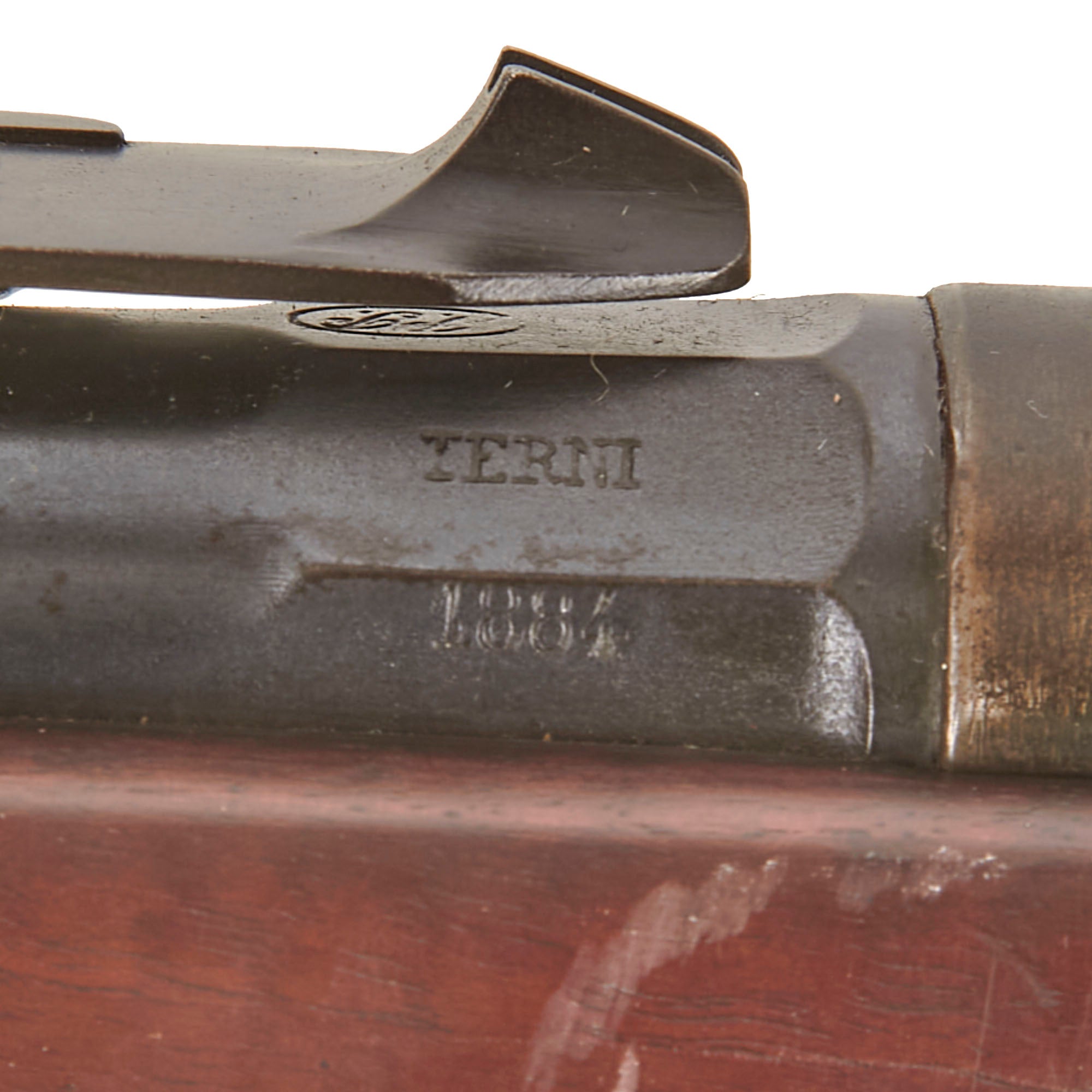

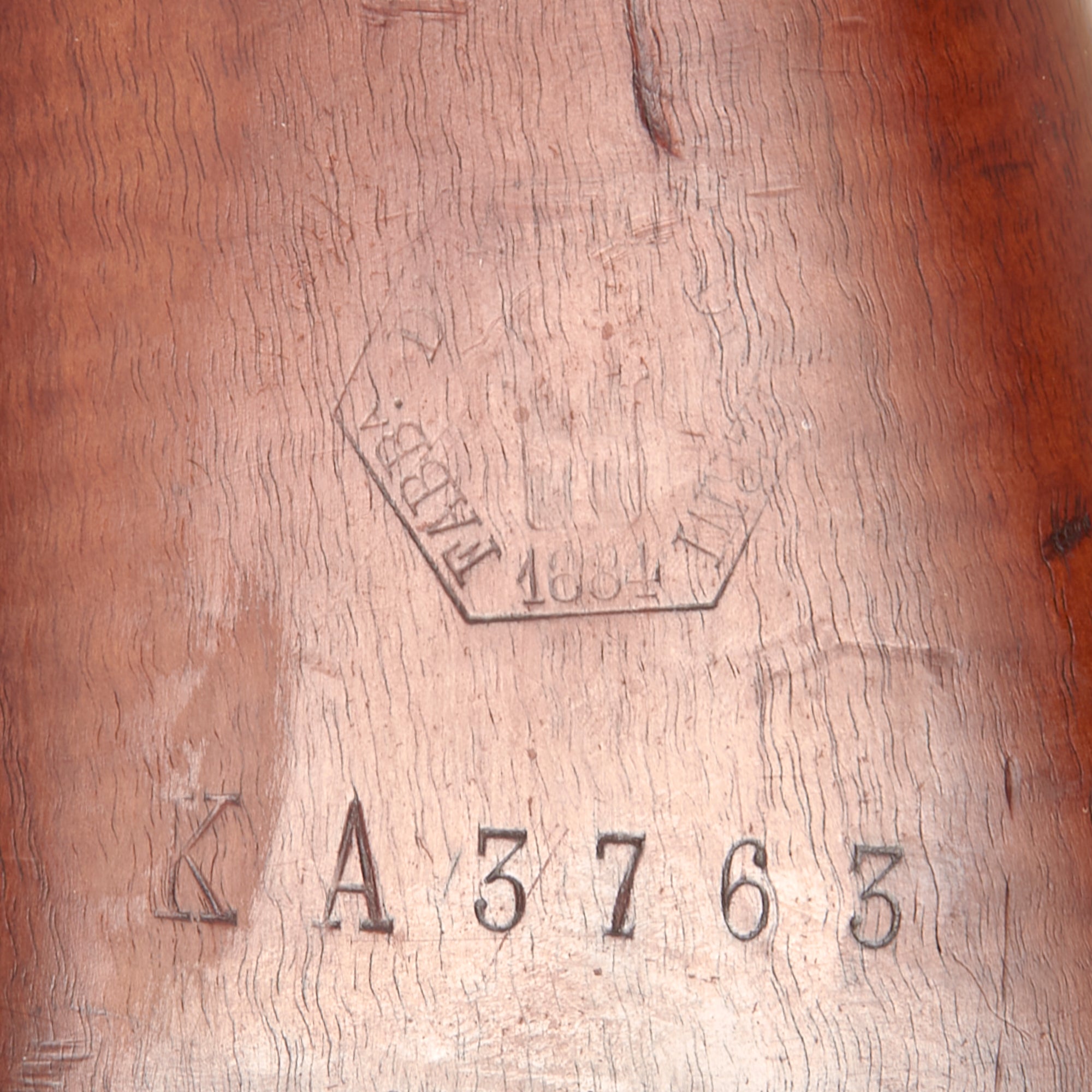

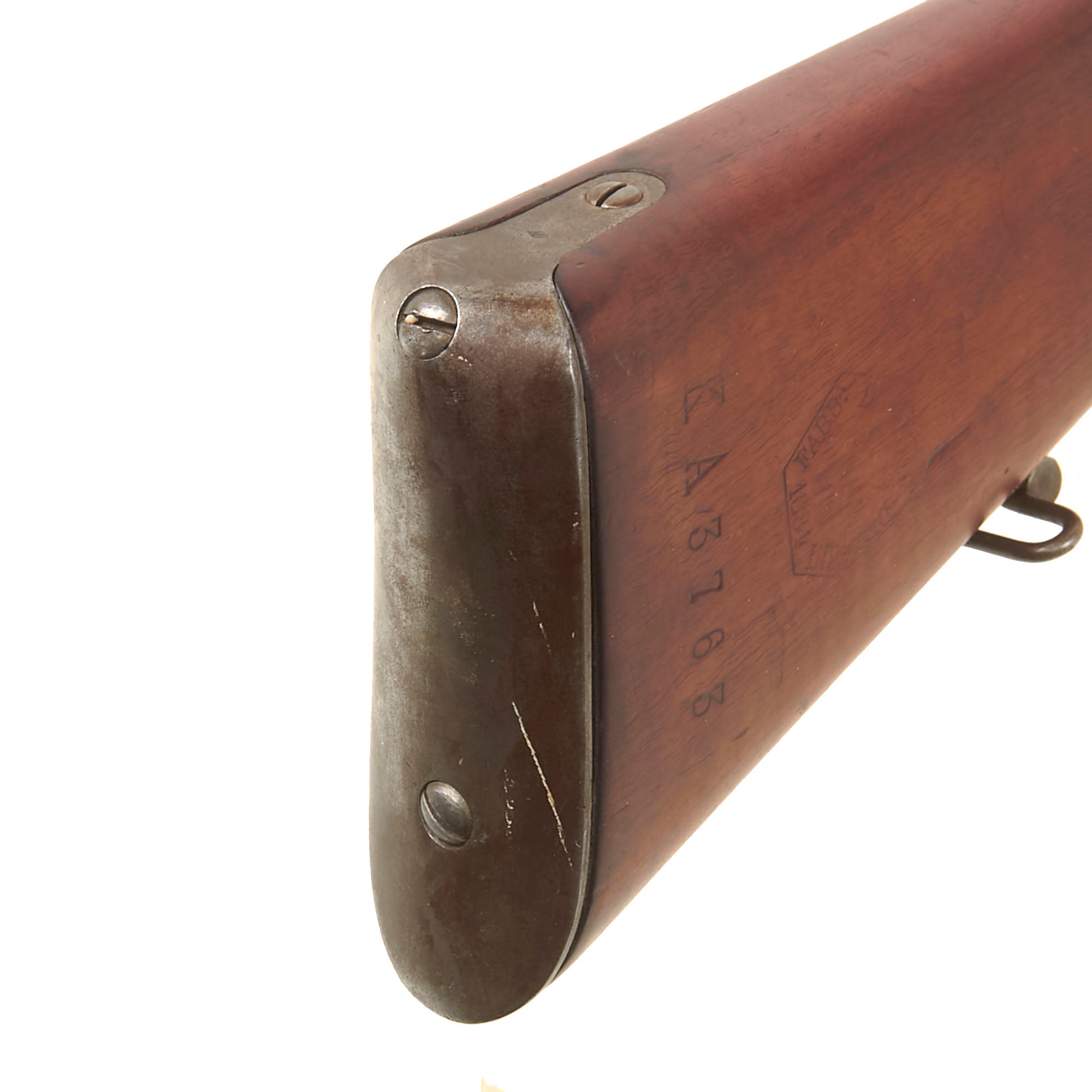

This example bears serial number KA 3763 on the barrel nocks form and stock, and is offered in very good condition, with a beautiful flame figured stock. It is marked TERNI over an 1884 date on the barrel nocks form, indicating manufacture in Terni, the major city in the Terni province. This is a somewhat rare maker, and most examples we see are made in Turin or Brescia. There is a maker symbol on the top, but it is unfortunately not one that we recognize. The stock does look to have been cleaned and possibly refinished. This has made the serial number a bit faint, and also partly removed the cartouche on the right side of the butt stock. We have however seen this same cartouche before, and it originally read as follows:-

This indicates that this rifle was manufactured at Artigiana Fabbrica D'Armi Terni (Artisan Weapons Factory Terni) in 1884. We do not see any indication of when it was converted to the Vetterli-Vitali magazine system.

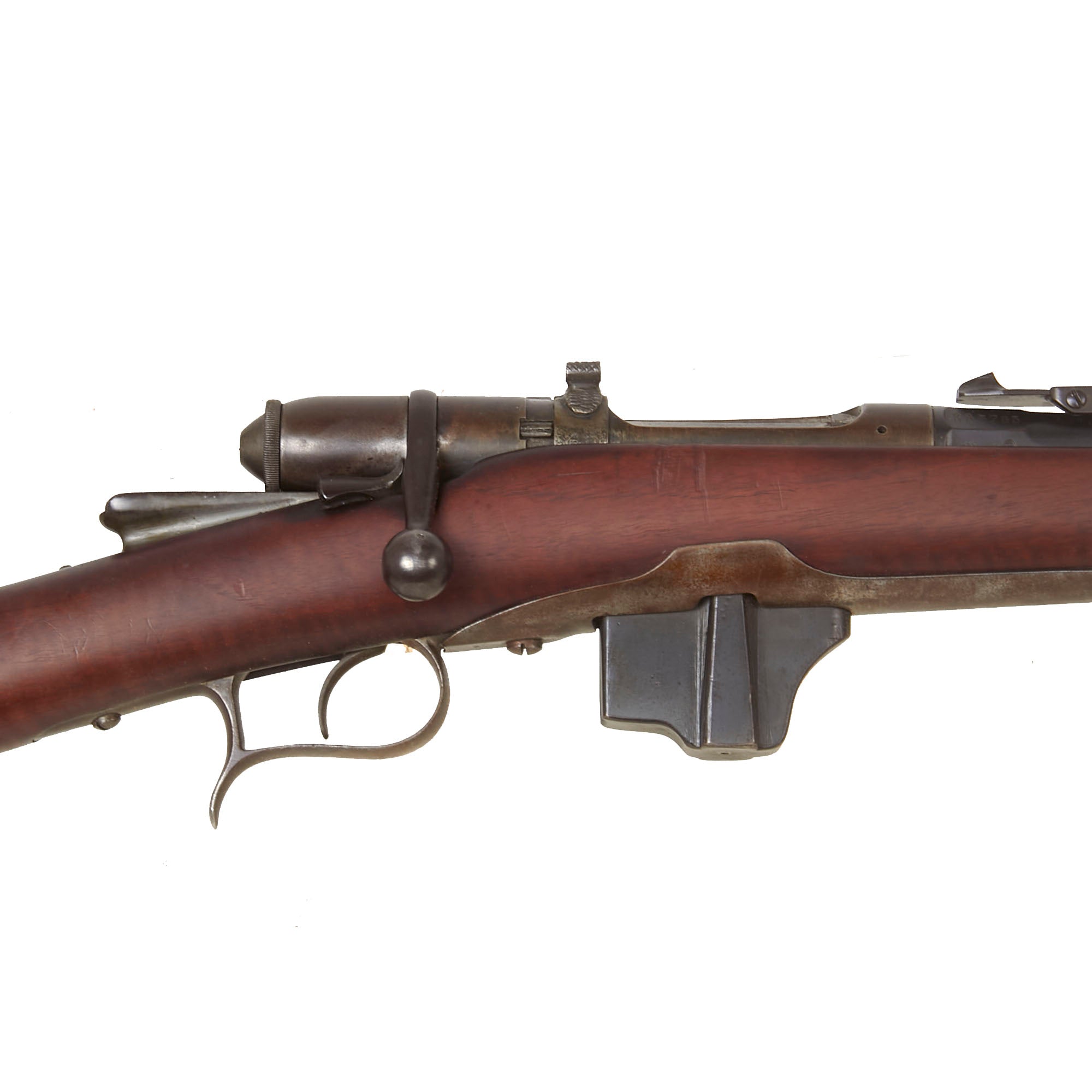

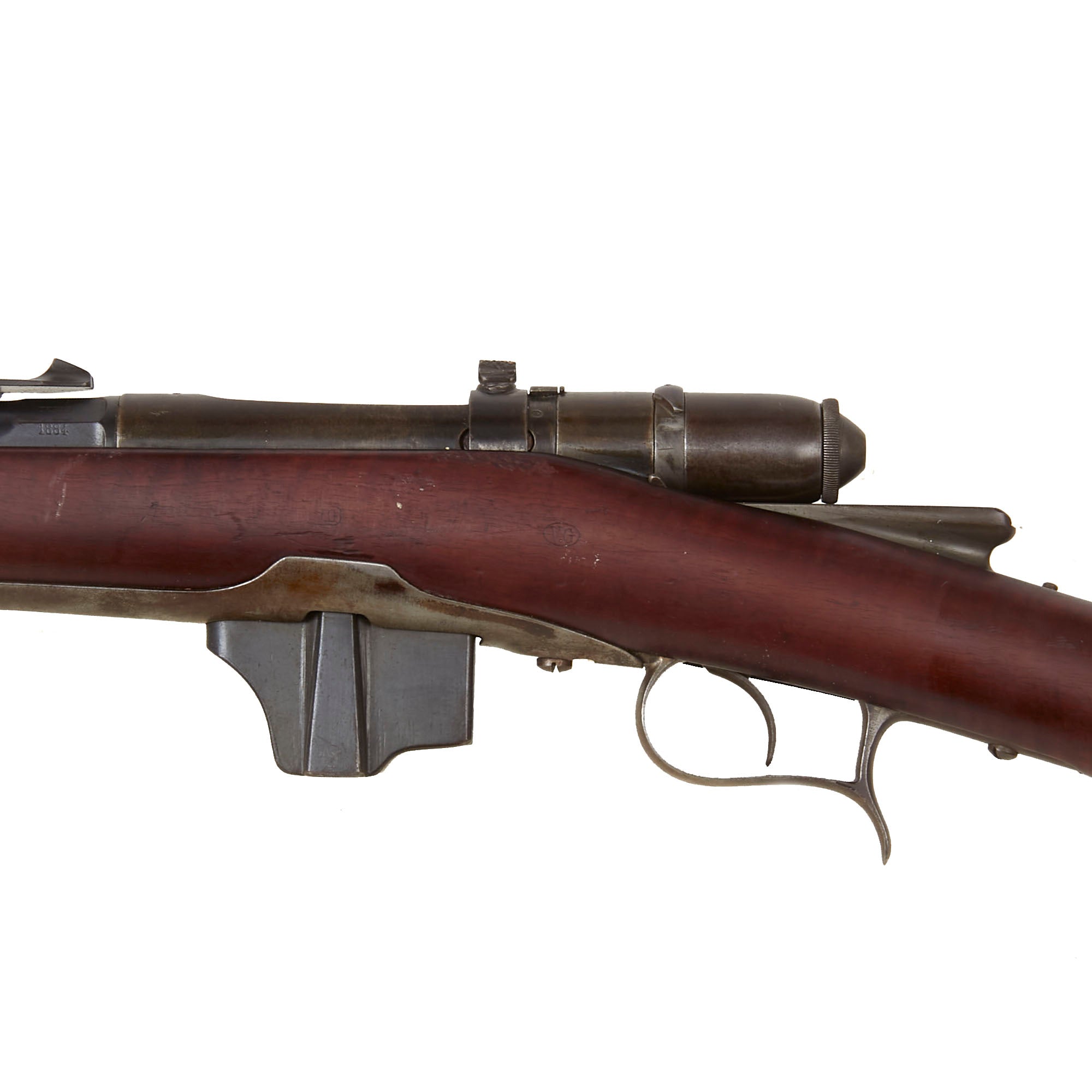

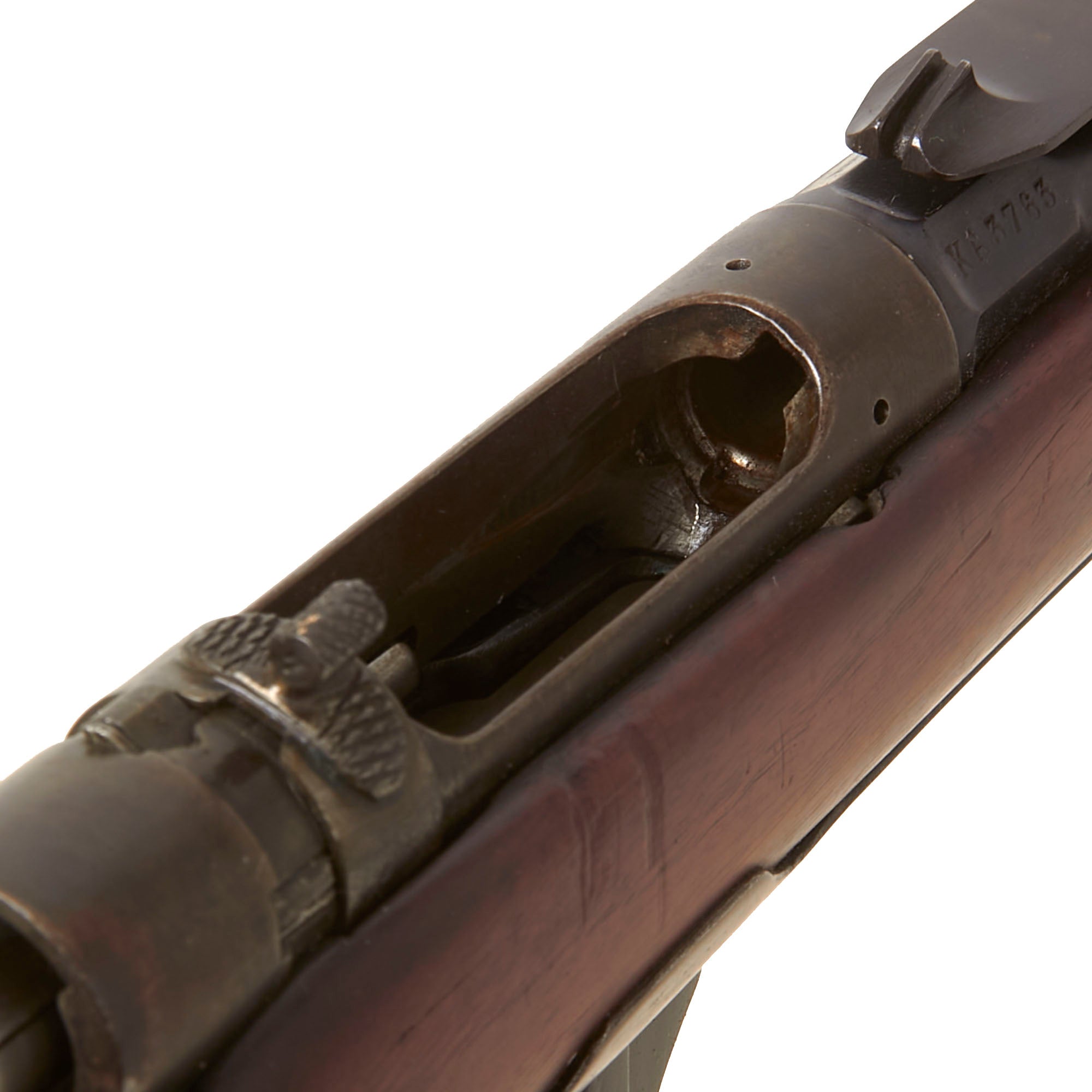

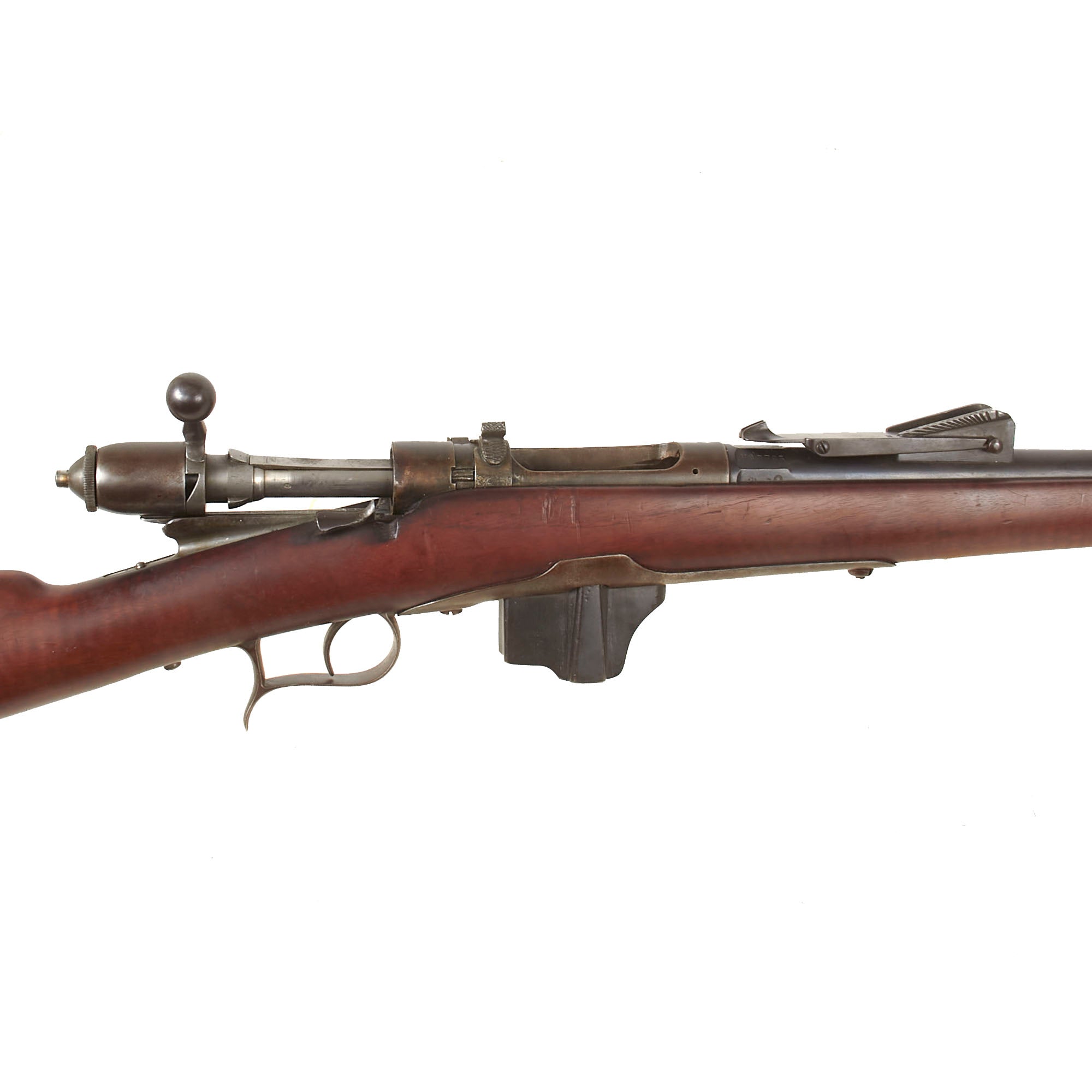

The metalwork is in very good condition, still showing strong bluing on the barrel, rear sight, magazine, and other components, while the receiver, magazine plate, and other components show a worn patina with some sins of past oxidation. Mechanically it functions great, cycling correctly with a good dry fire, and is just a bit sticky due to dried grease in the action. The magazine cutoff ring is still present, and moves into place correctly, though we have no way of testing it. We checked the bore, and it is in excellent condition, showing a bright finish with crisp lands and grooves. There is just a tiny bit of past oxidation in fouling in a few areas, making this a great bore for a black powder era rifle such as this.

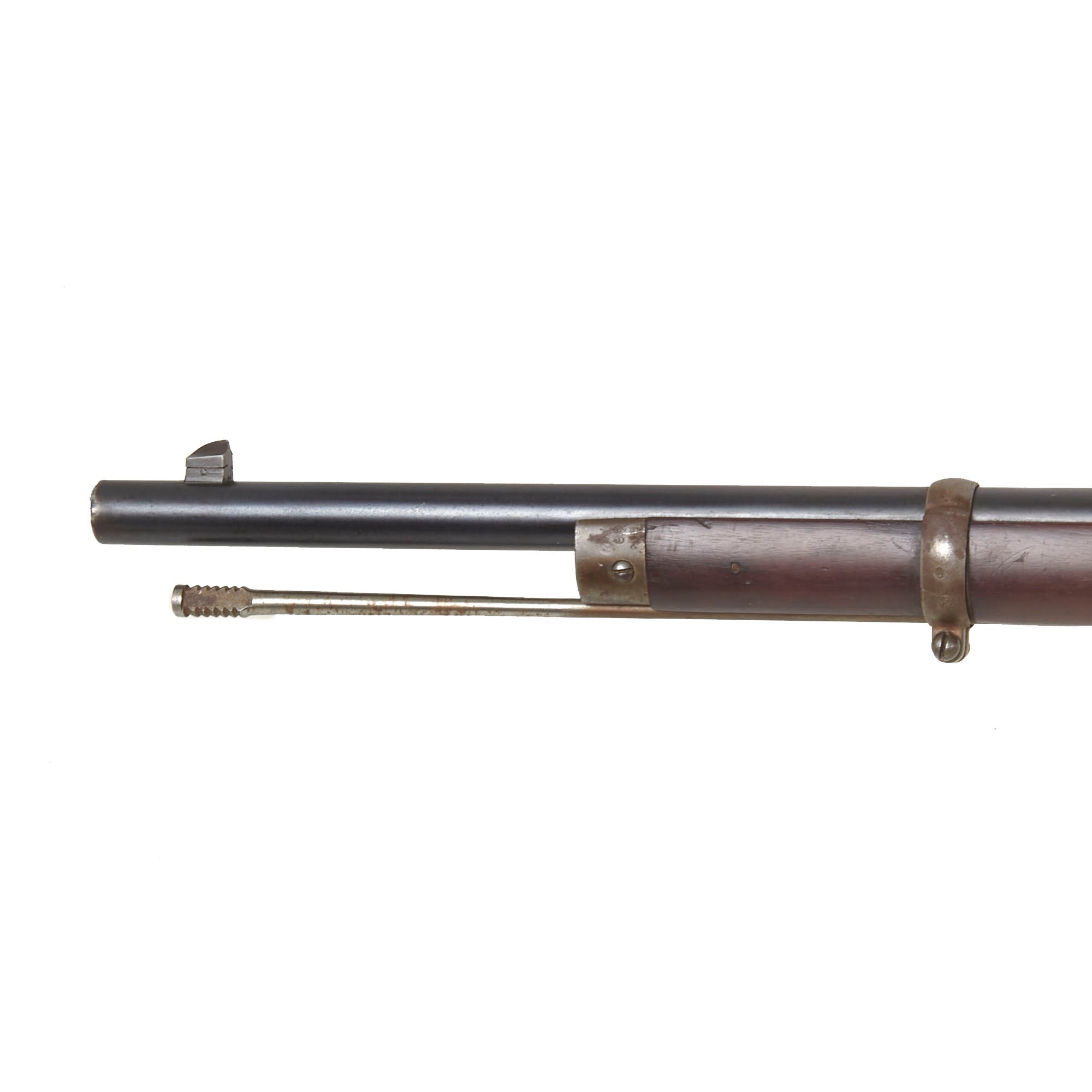

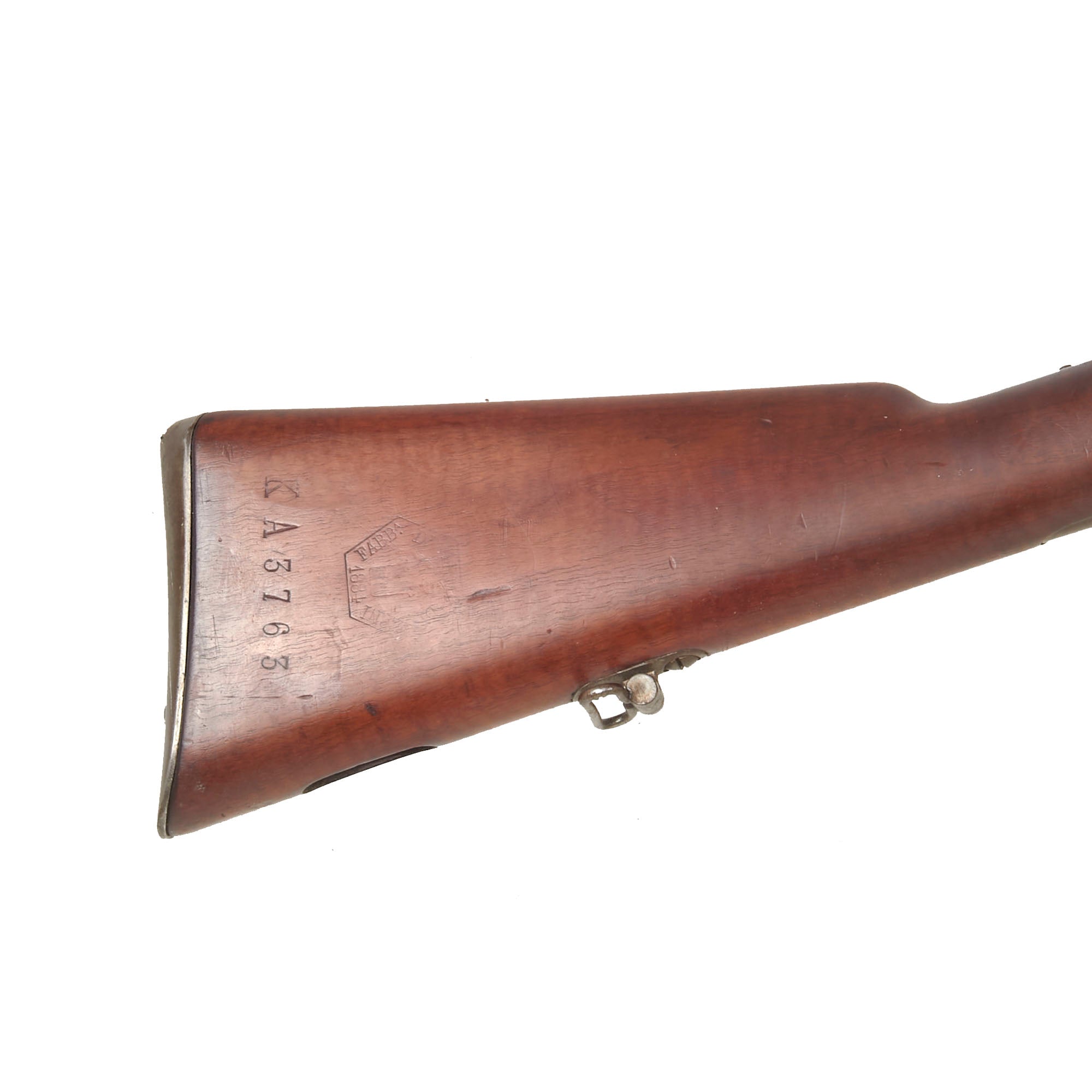

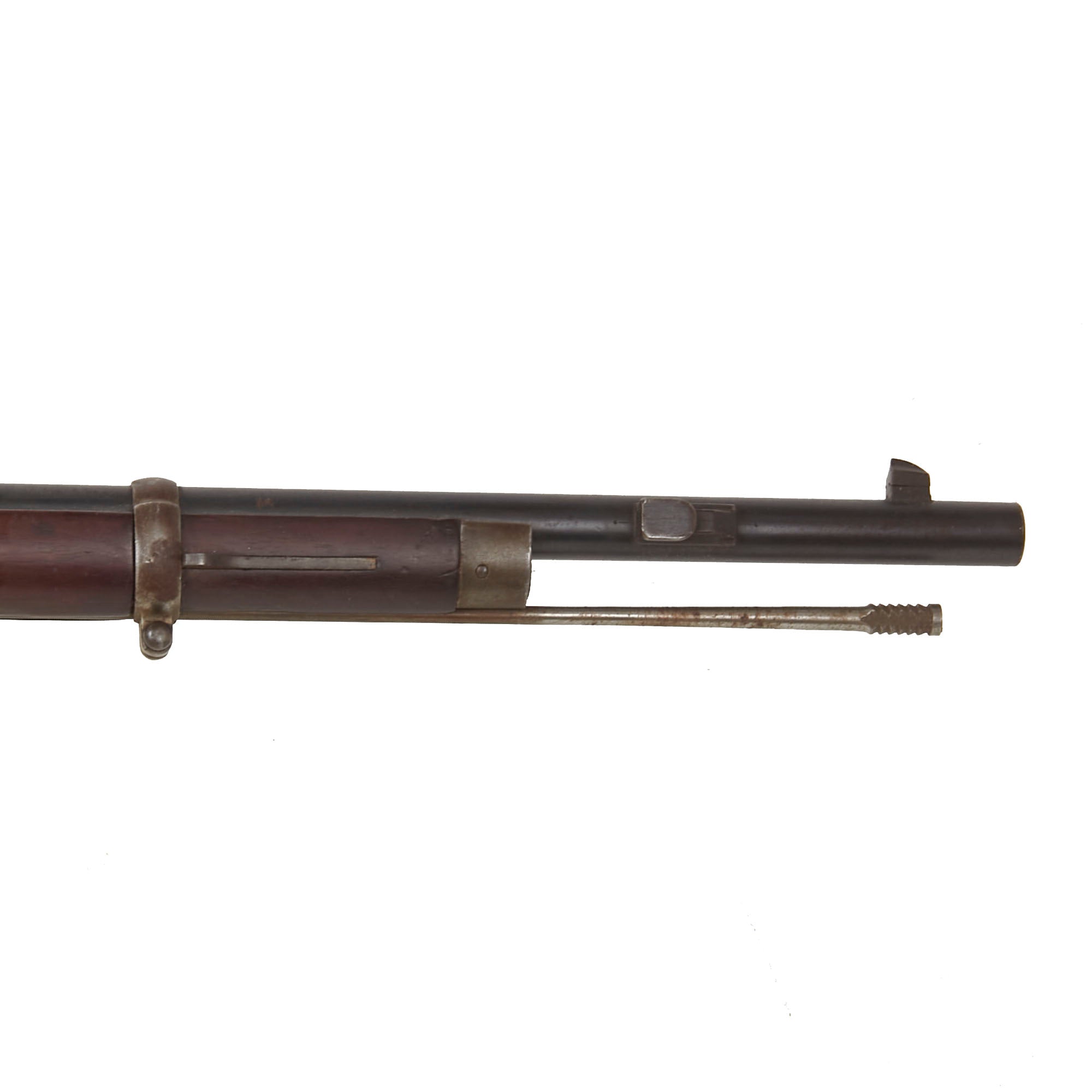

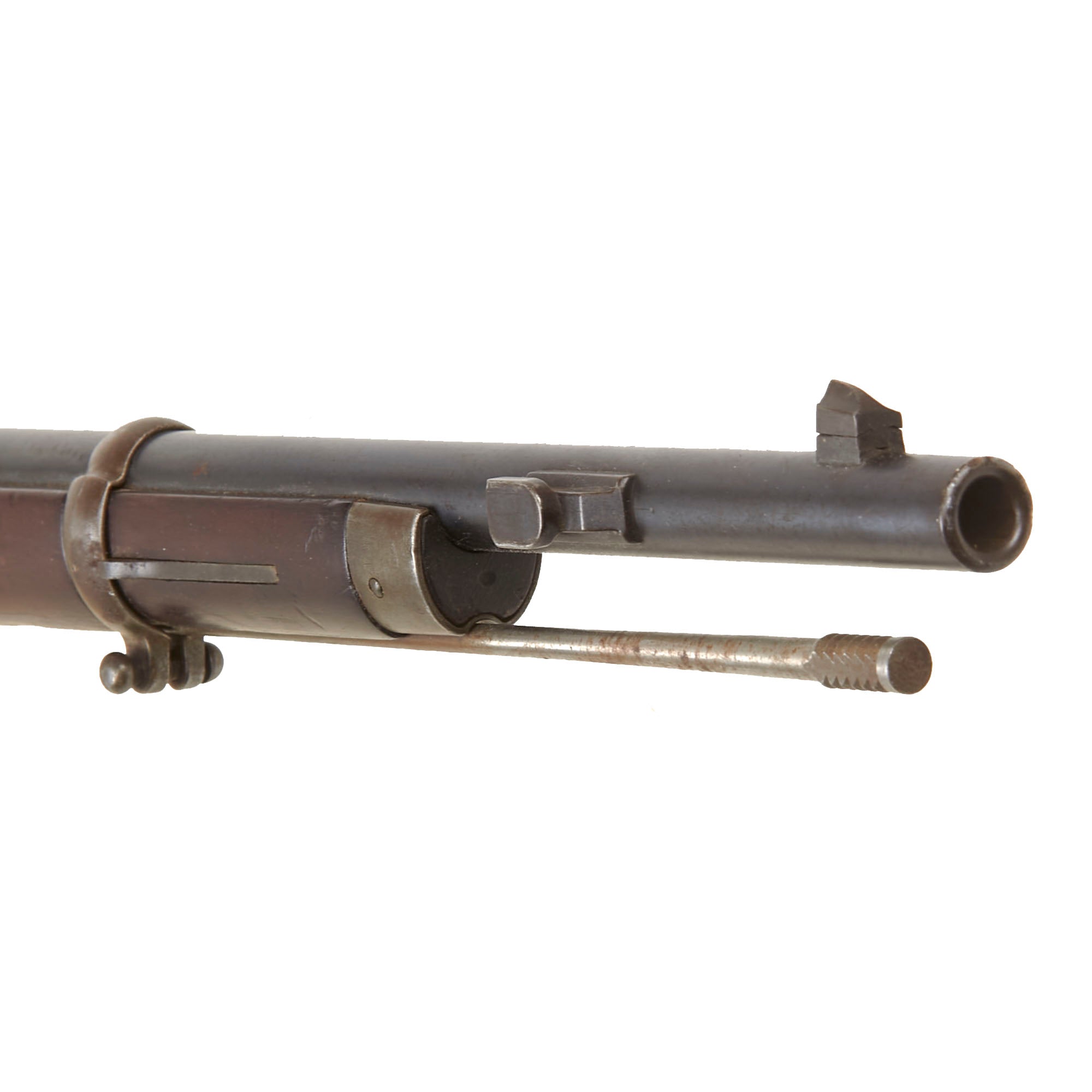

The stock is really in great shape, and does not look to have seen a large amount of use during its service life. The stock really is lovely, with a high level of chatoyancy in the flamed grain. We did notice that for some reason there is an extra barrel band spring in the middle of the fore stock, and also that the lower sling swivel was moved up a bit, from what looks to have been sheared off screws on the lower swivel. The rear sight is fully functional, with an intact adjustment button, and both sling swivels are still present. It has the original cleaning rod still present, with the threads still present and light surface oxidation present.

Overall a lovely example of this somewhat rare and desirable weapon that definitely, ready to display!

Specifications-

Year of Manufacture: 1884 - converted later
Caliber: 10.4×47mmR
Cartridge Type: Centerfire Cartridge
Barrel Length: 34 inches
Overall Length: 53 Inches
Action type: Bolt-Action
Feed System: 4 round magazine

History of the Vetterli Rifle

The 19th Century proved a critical one for the advancement of firearms. Up to this point, the flintlock muzzle-loading system was the adopted standard but all this changed with the advent of the percussion cap system and breech-loading configuration. Add to this the arrival of the self-contained cartridge and the gun of the late 1800s was a far cry from that of early part of the decade.

In Switzerland, Johann-Freidrich Vetterli had developed a new cartridge-based, breech-loading, bolt-action rifle that entered service with the Swiss Army in 1869 - the "Vetterli Rifle". This long gun was based around the 10.4x38mm Swiss cartridge, a rimfire cartridge with black powder content. The rifle went on to provide service from the period of 1869 to 1890 with some of the 36,700 units seeing combat service into World War 1 (1914-1918) on the side of the Russians.

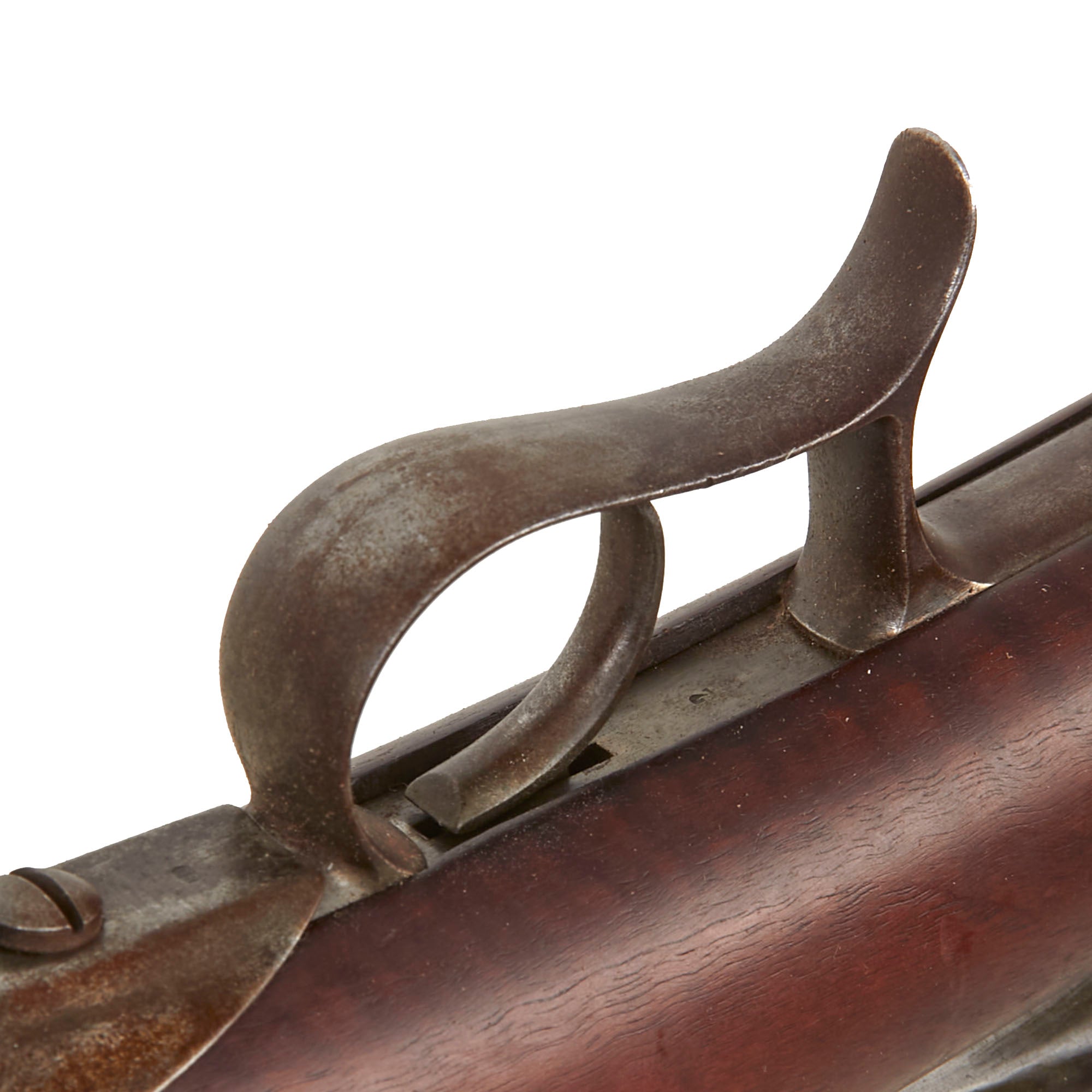

The Italian Army, in search of a modern cartridge-based long gun themselves, adopted the Swiss gun a short time later and these came to be known as the Model 1870 "Italian Vetterli". The Italian model differed somewhat from its original Swiss design in that attention was paid to streamlining the product for Italian Army requirements. The rifle - once an 11-round tube-fed weapon - was reduced to just single-shot firing and rechambered for the 10.35x47mmR, a centerfire cartridge with black powder content. On the whole, the rifles maintained the same design form as the Swiss version with its long wooden stock, ornate trigger guard, and turn-down bolt handle. A large rear sighting assembly was an identifying feature of the Italian mark and a two-banded arrangement was seen on the long wooden body leading up to the muzzle.

In 1887, the rifle was upgraded with a four-round projecting magazine case for repeat-firing, this afforded much efficient use out of the bolt-action arrangement. The magazine was of a local design by Italian artillery Captain G. Vitali - his surname making it into the revised designation of Model 1870/87 "Italian Vetterli-Vitali". This magazine was fed by way of Mannlicher-style preloaded clips while still chambered for the 10.4x47R cartridge. The modified guns were appropriately marked along their butt stocks.

By the time of World War 1 (1914-1918), the Italian government - as with other world powers - found itself desperately short of many viable war-making products including service rifles. It committed to the war effort on the side of the Allies in 1915 and quickly scoured its stores for useful weapons of all types. This meant that the aged Model 1870s were still in play, numbering in the hundreds of thousands by this point. However, local conversions were forced upon the design in an attempt to produce a more modern end-product - chief of these changes being the conversion to the 6.5x52mm Carcano standard Italian rifle cartridge with smokeless powder content. The move also required new barrel lining and new magazine (Mannlicher type).

The 6.5mm Italian Vetterli guns were issued to second-line Italian Army regiments in the hope that these groups would not be pressed into serious combat action - but if they were they could carry with them a somewhat useful infantry rifle. This did not prove the norm on the whole however for the rifles did see direct combat action against the enemy during several of the Italian offensives of the war.

The Italian Vetterli was still in circulation throughout the inter-war period following and some even played a role in the Italian invasion of Ethiopia during the Second Italo-Ethiopian War (1935-1936), the Italians claiming a decisive victory.
