Original German WWII MP 40 Part Set with Live Barrel- Dated 1941

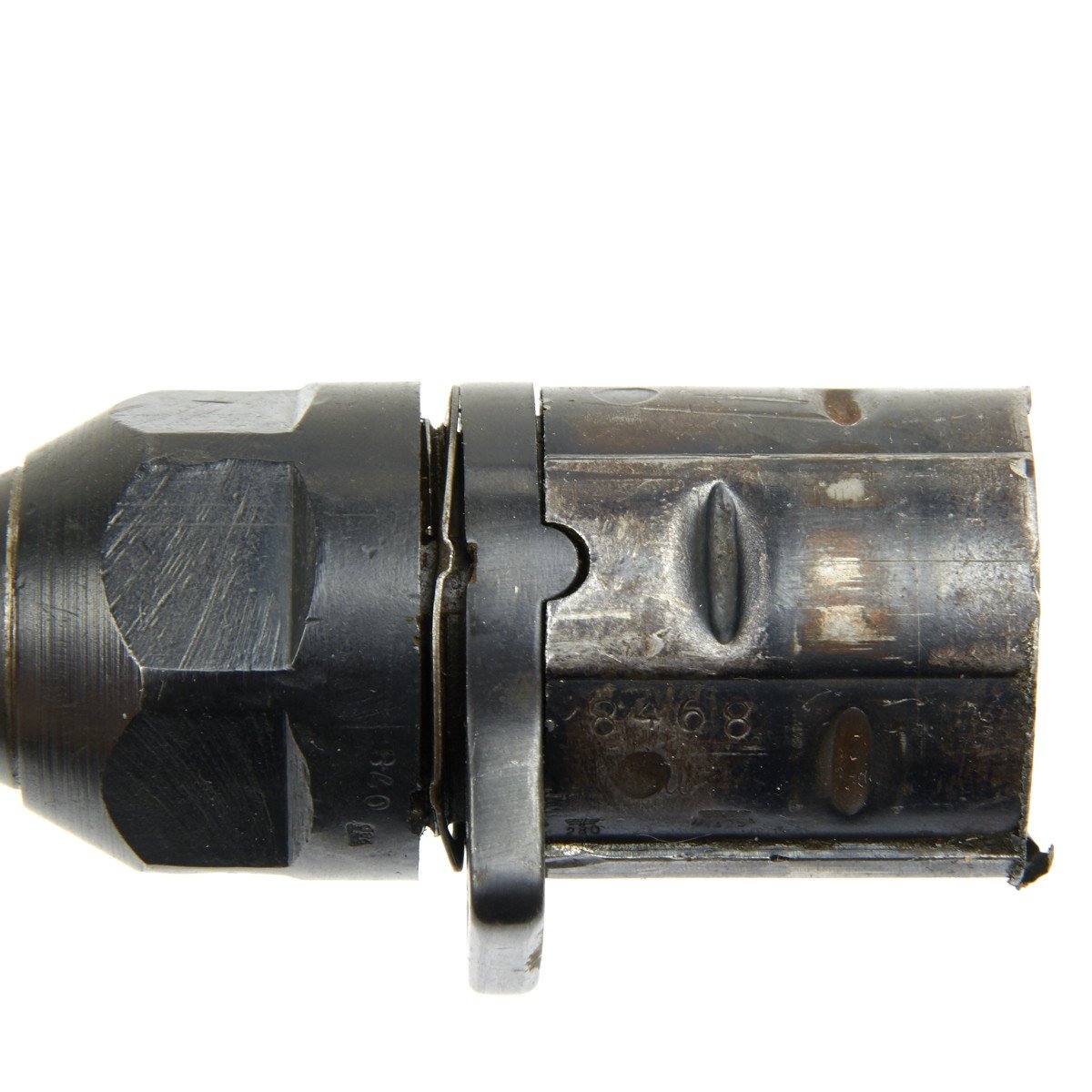

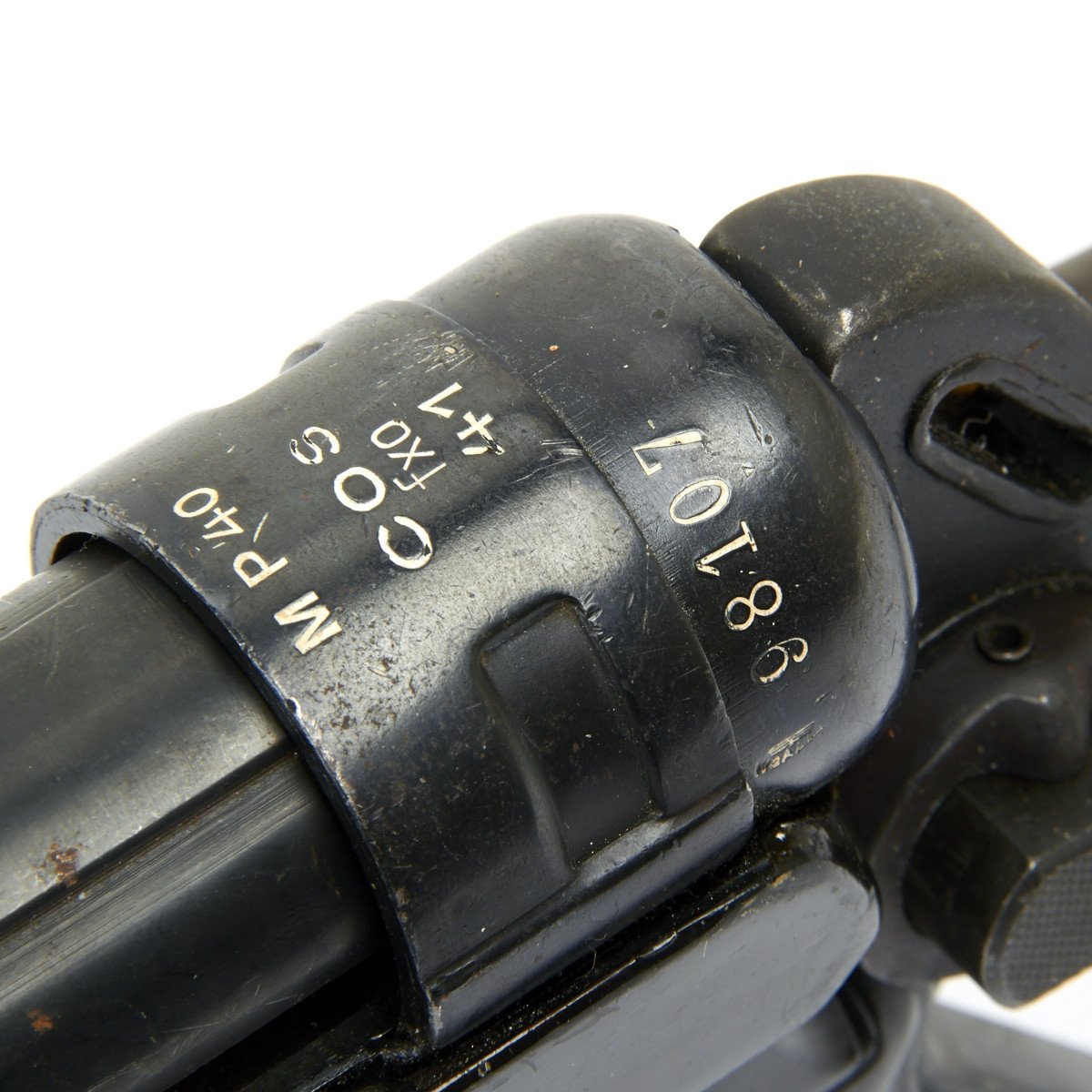

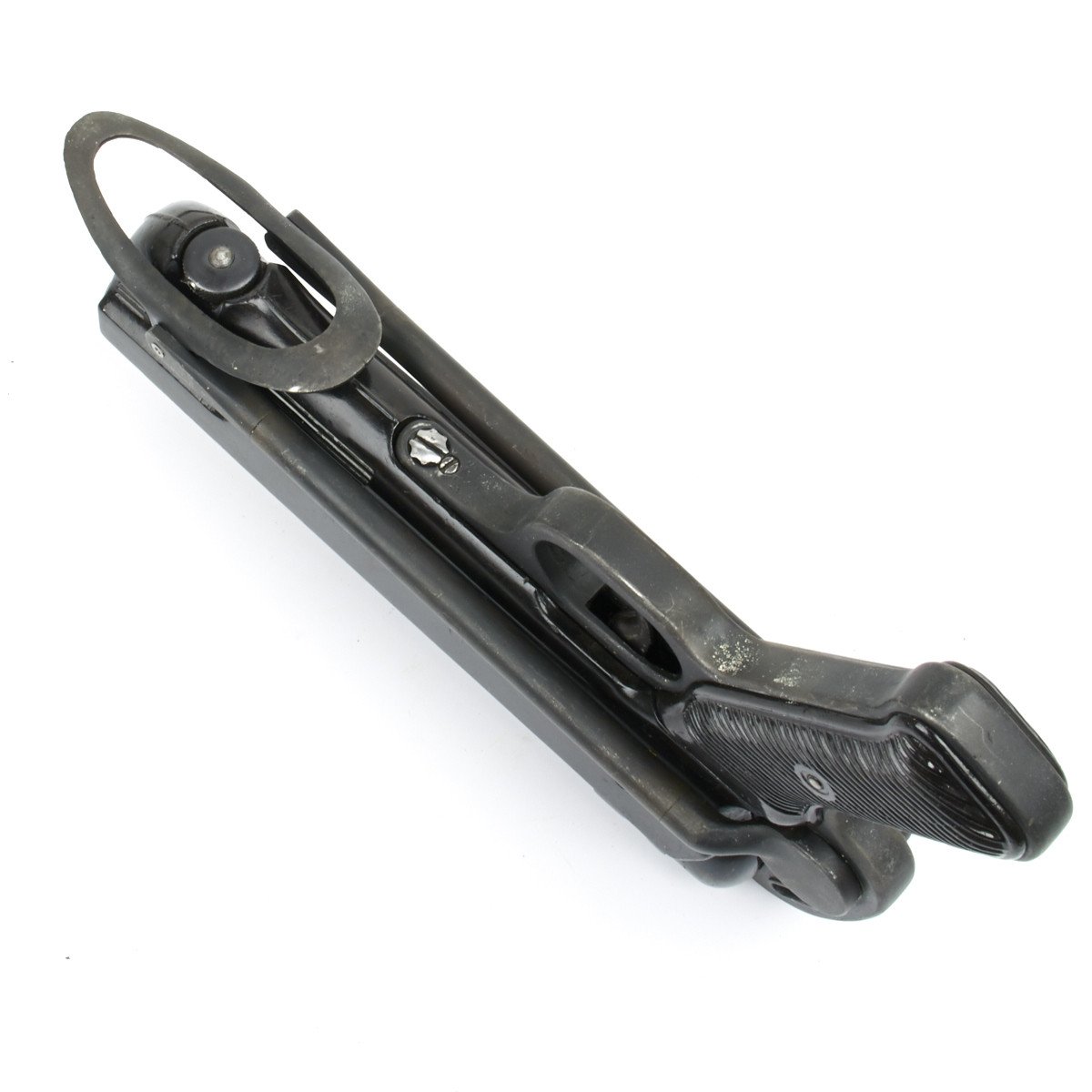

Original Item: Only One Available. This is an excellent condition MP40 parts set comprised of all original parts clearly dated 1941 and coded "fxo" for the manufacturer C.G. Haenel, Waffen- u. Fahrradfabrik.

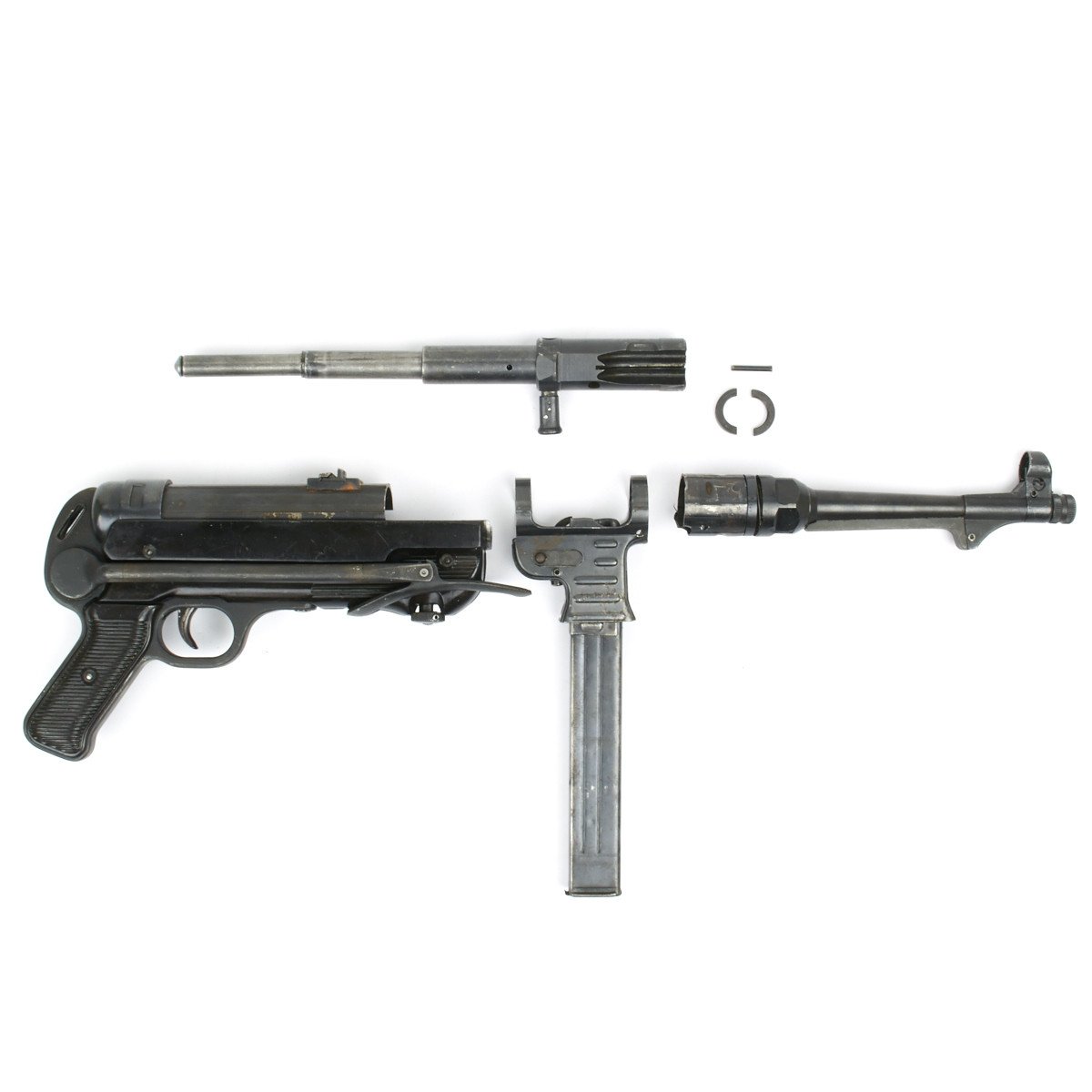

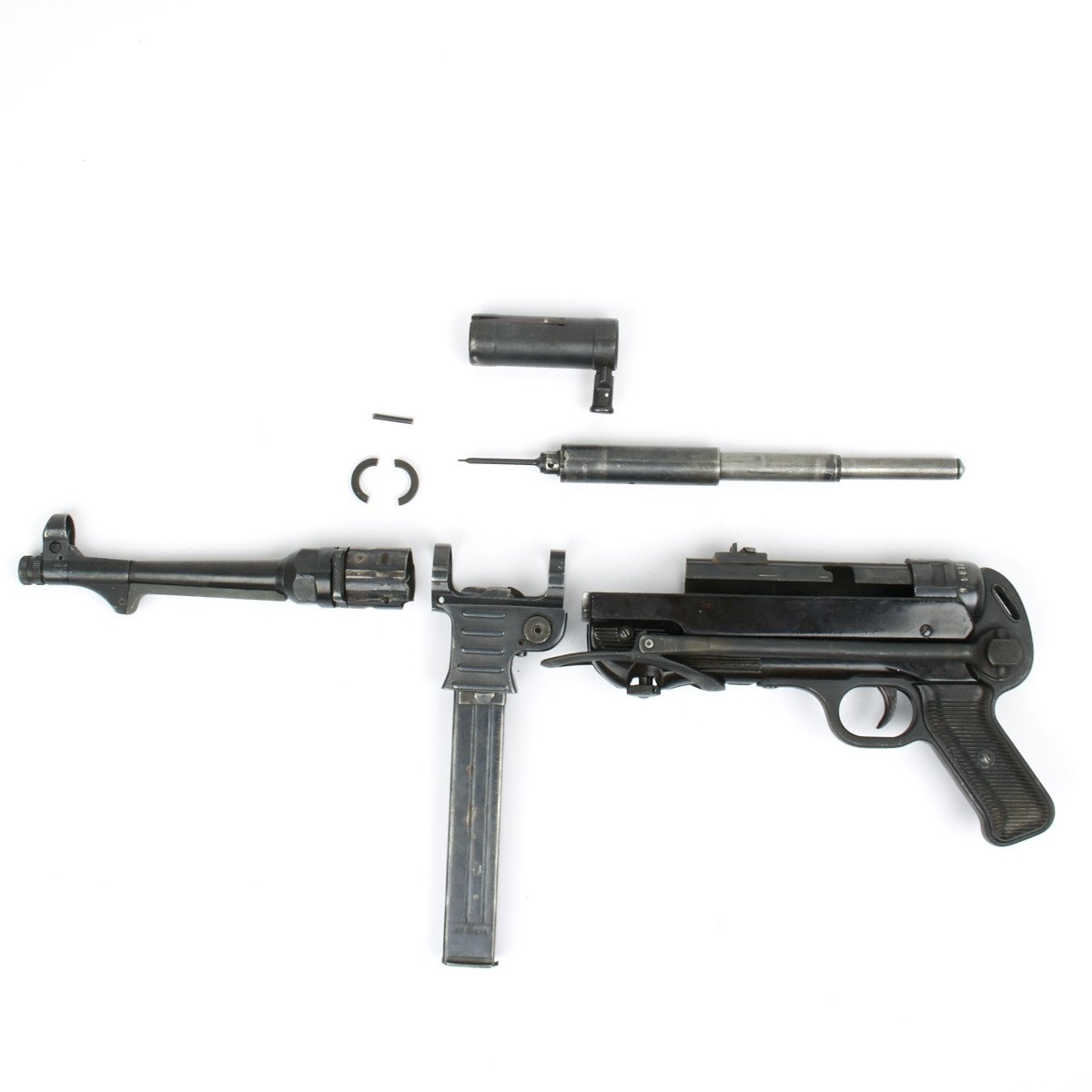

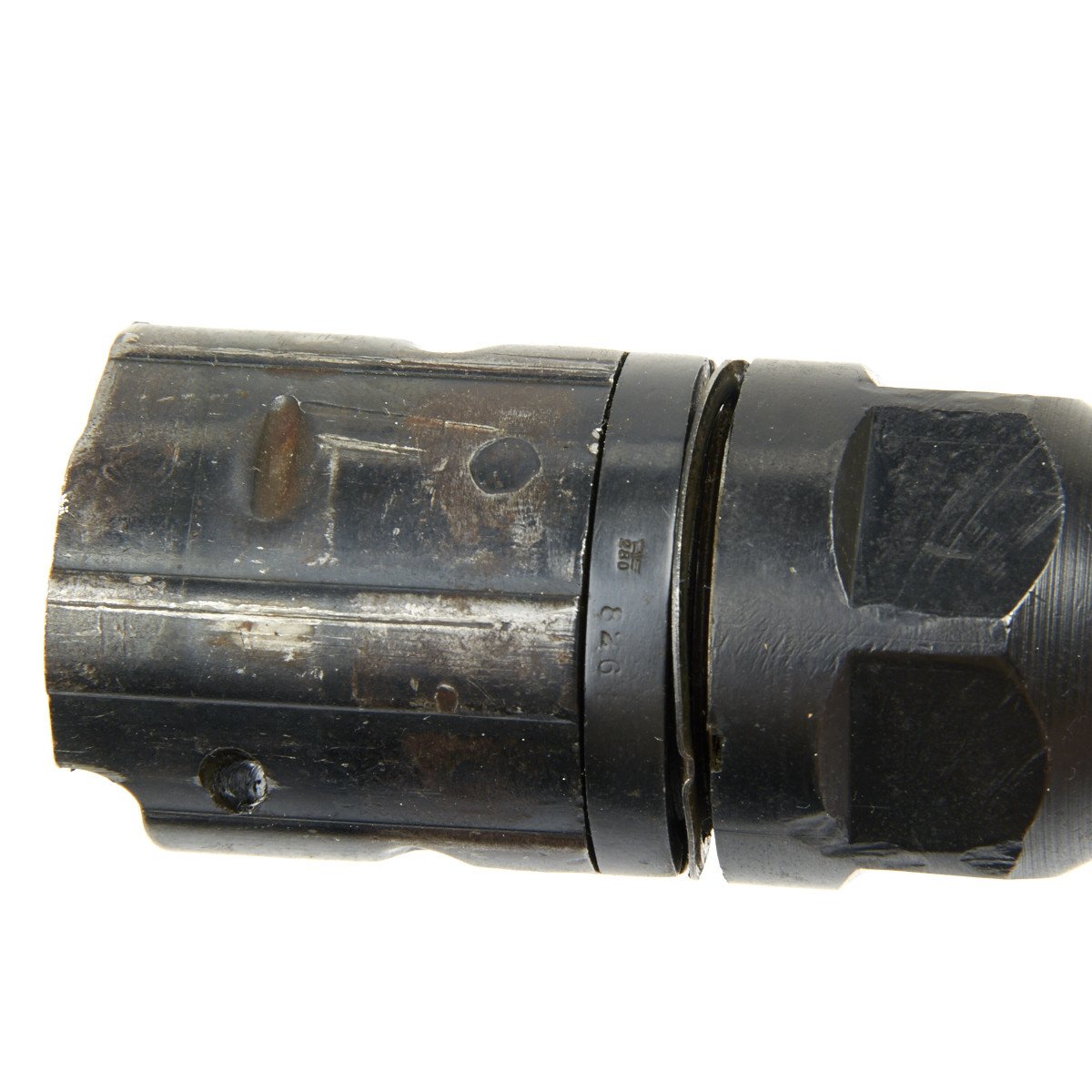

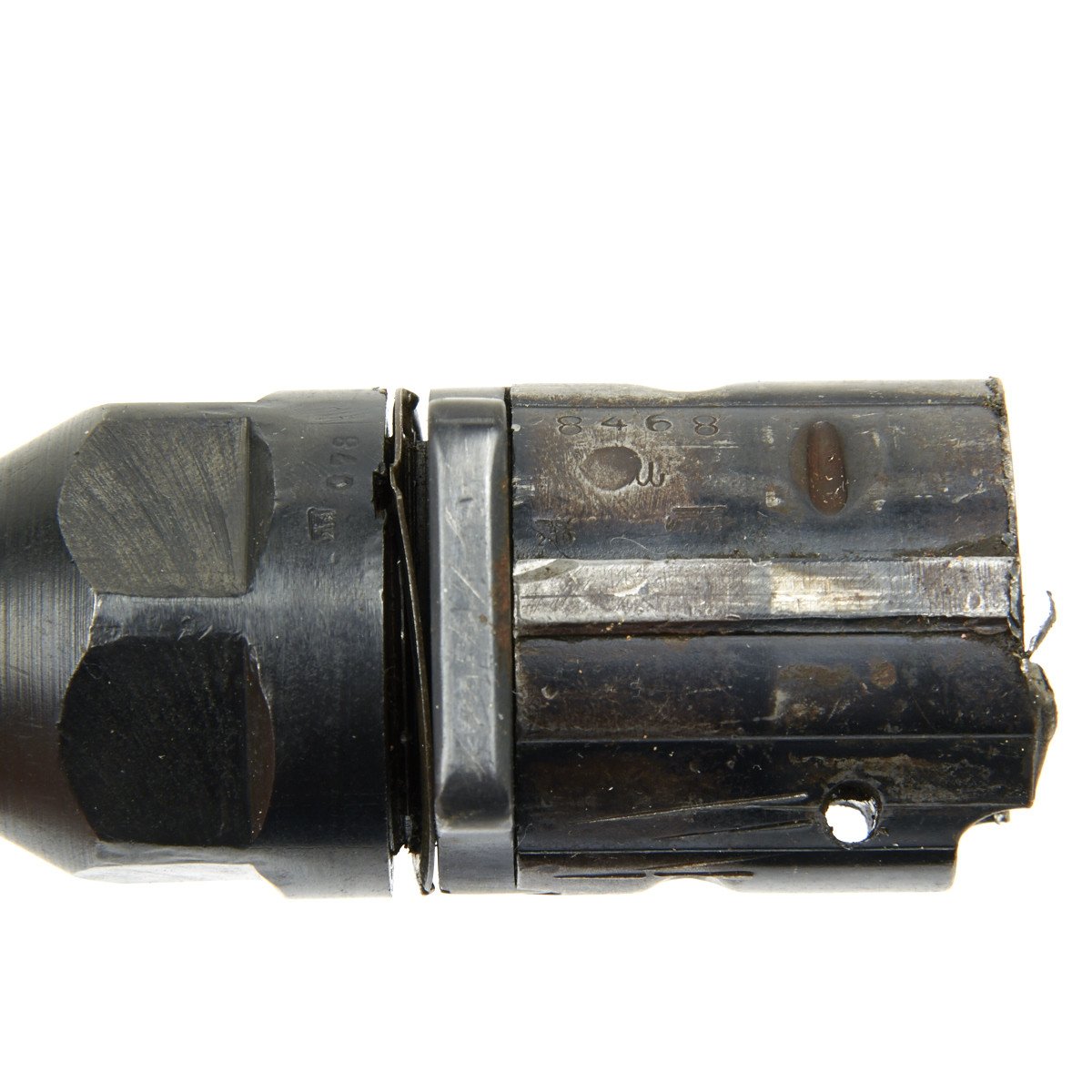

Offered in excellent condition, about 70% of genuine receiver is intact. All internal parts such as a the bolt and recoil assembly are included.

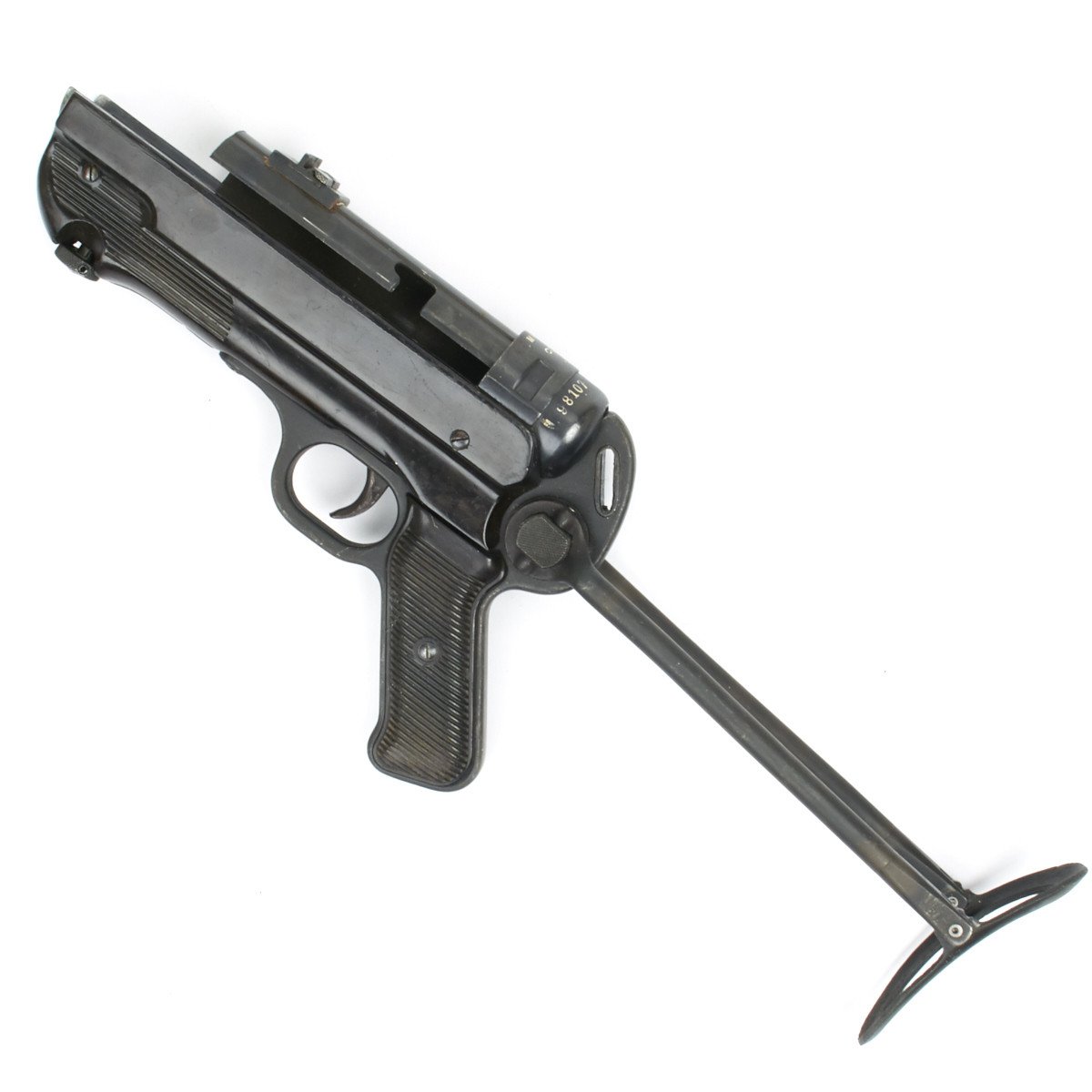

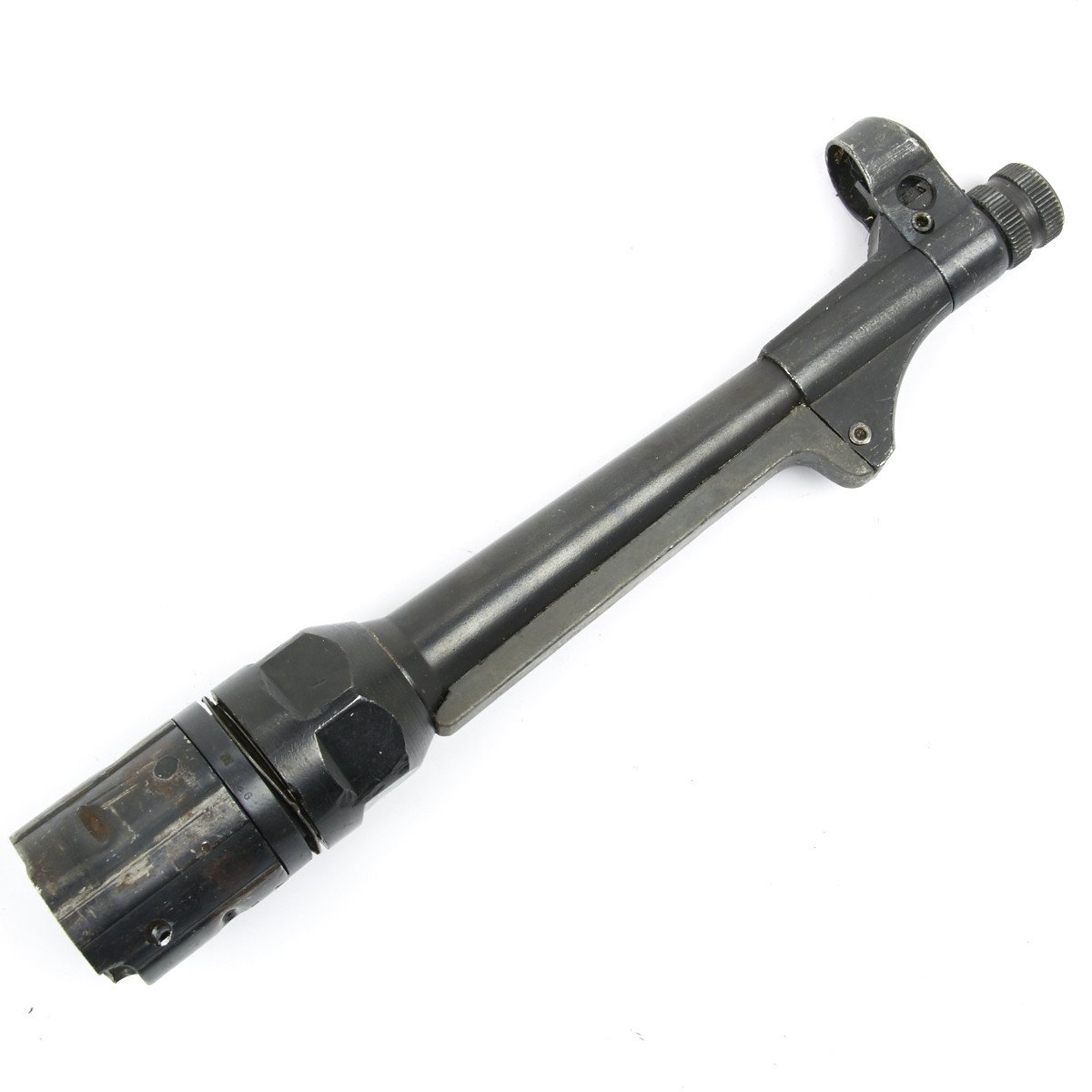

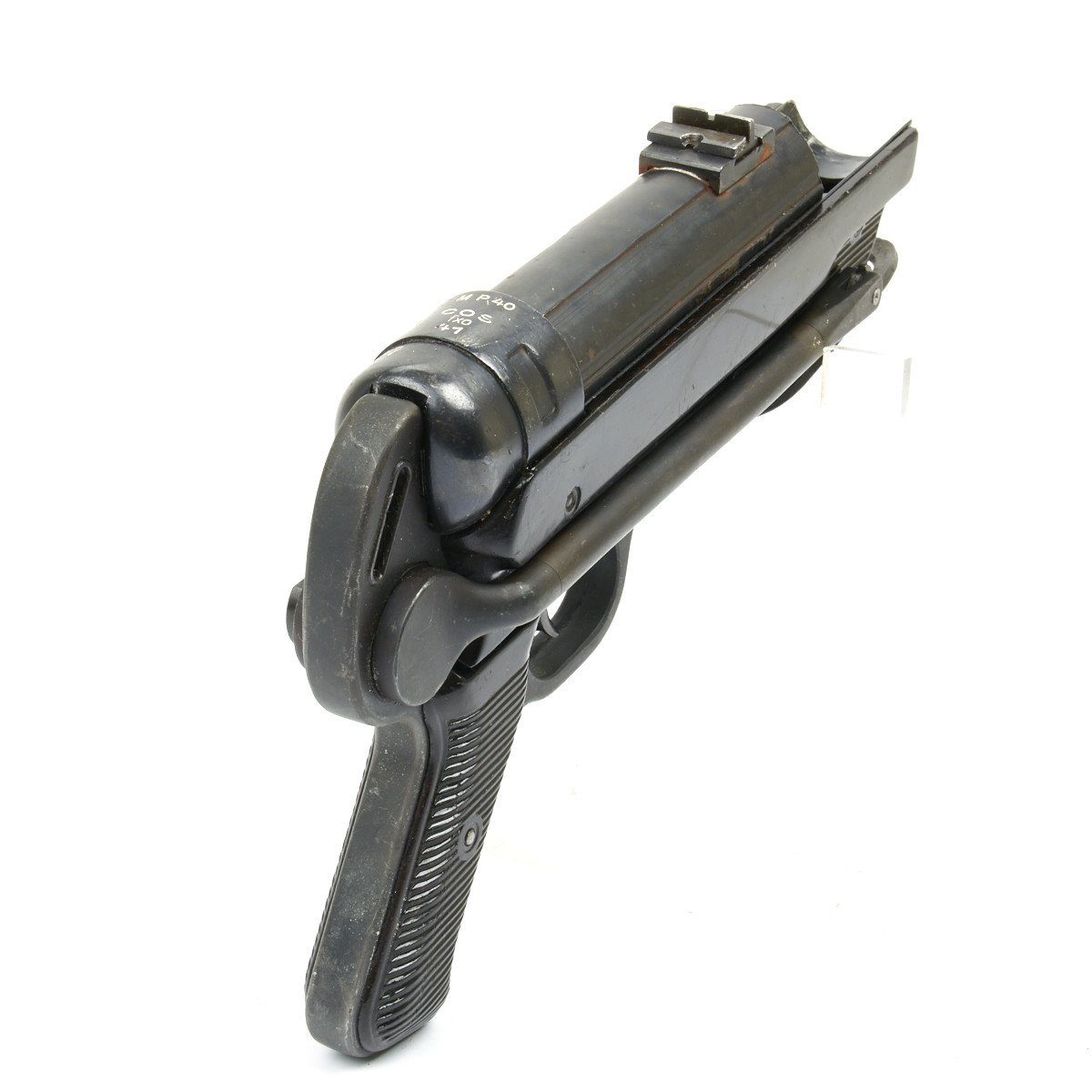

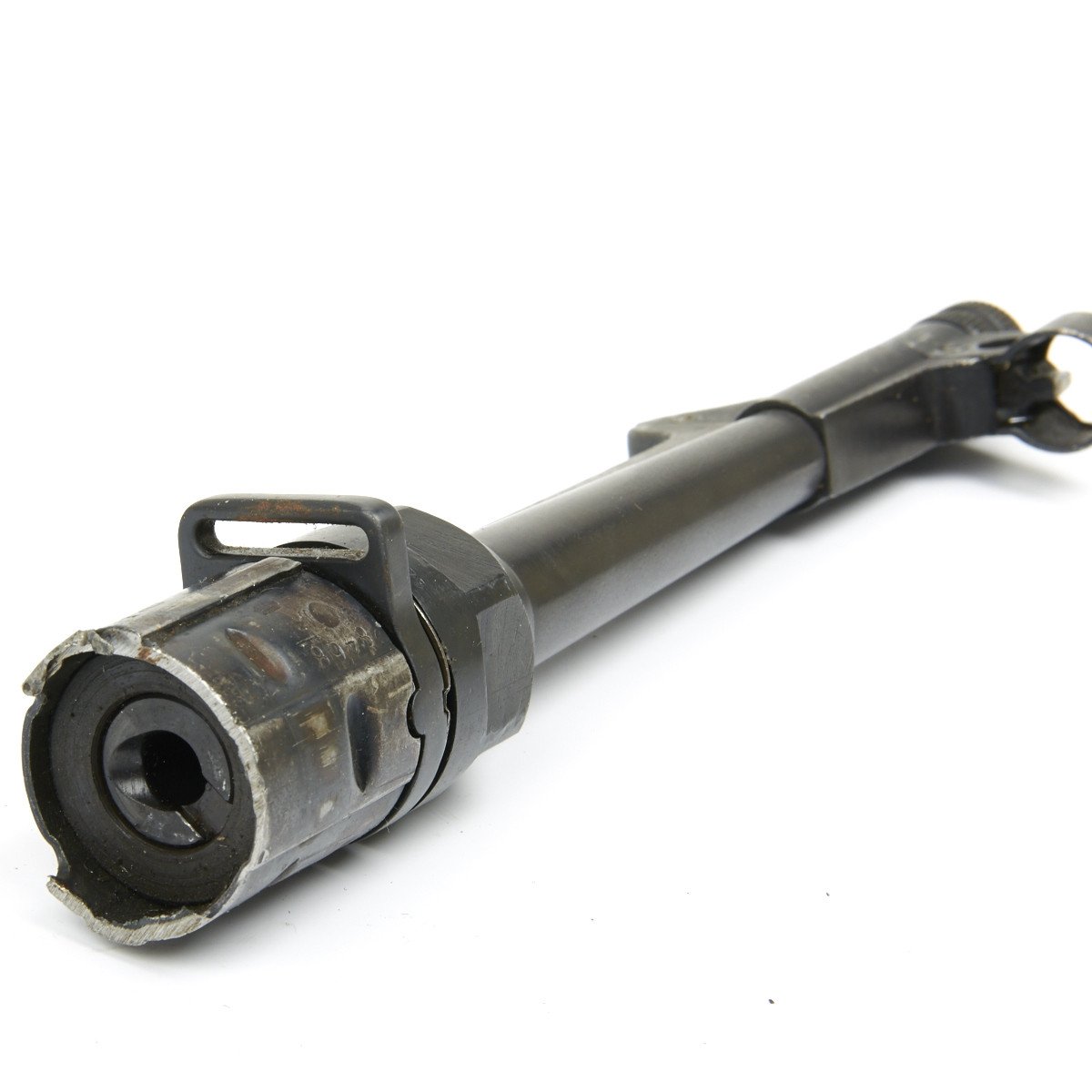

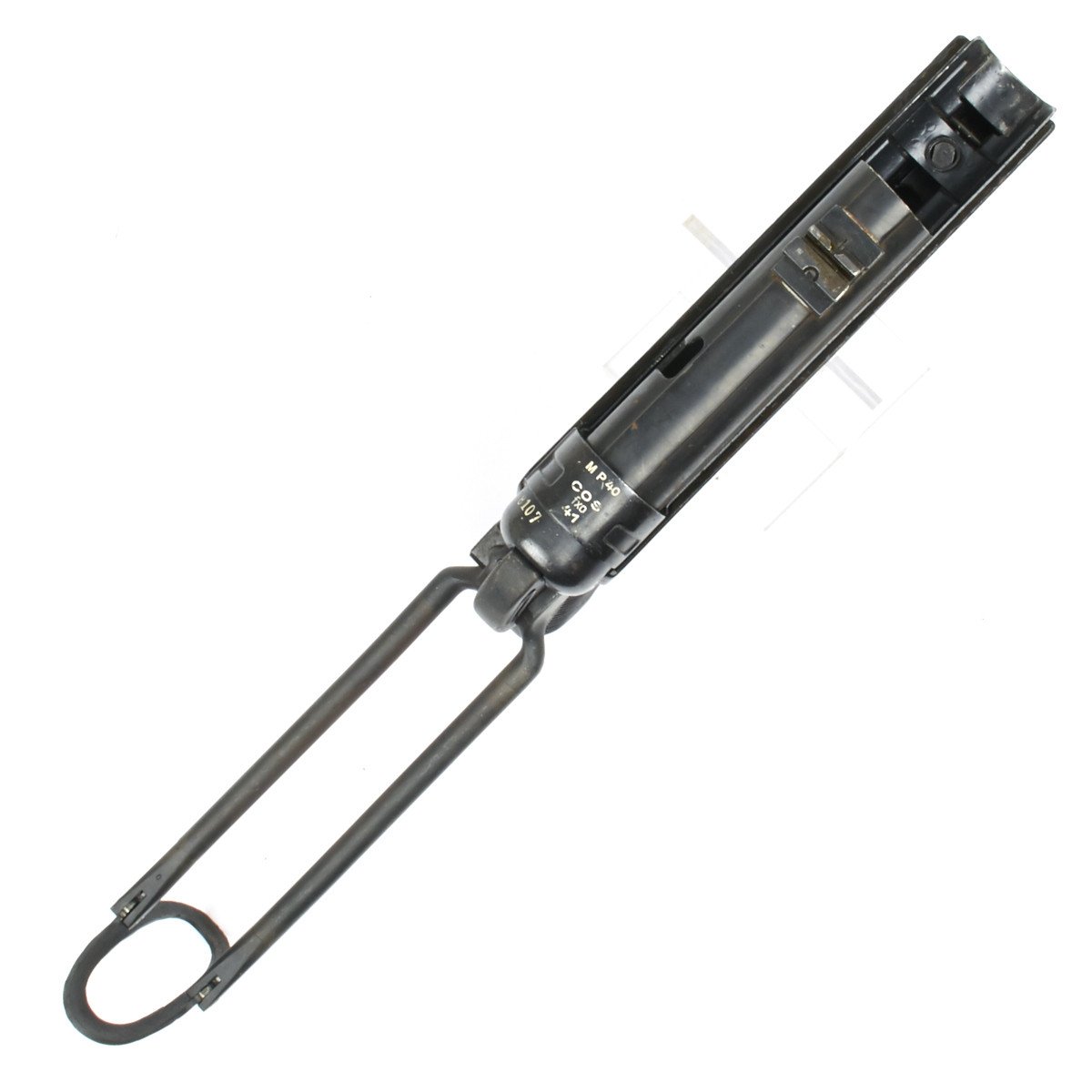

IMA has been very fortunate in finding this highly sought after Original WW2 German MP 40 parts set Offered with totally original Bakelite stock and functional extending butt stock, this is the real thing that will only appreciate in value as time passes. Live barrels are banned from importation to the USA so these are becoming as rare as hens teeth.
Original markings maintained and make a keystone item for any serious WW2 Collection.

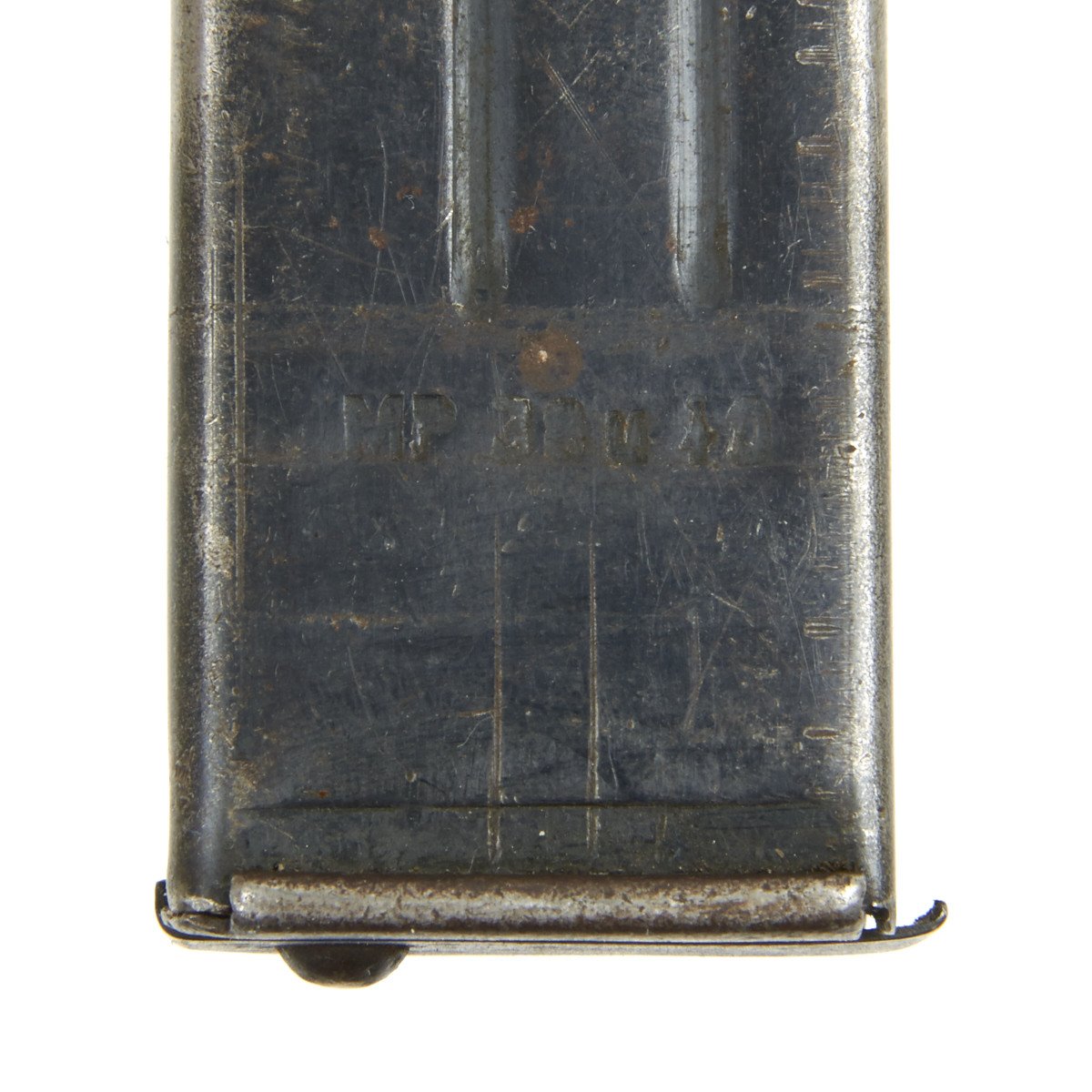

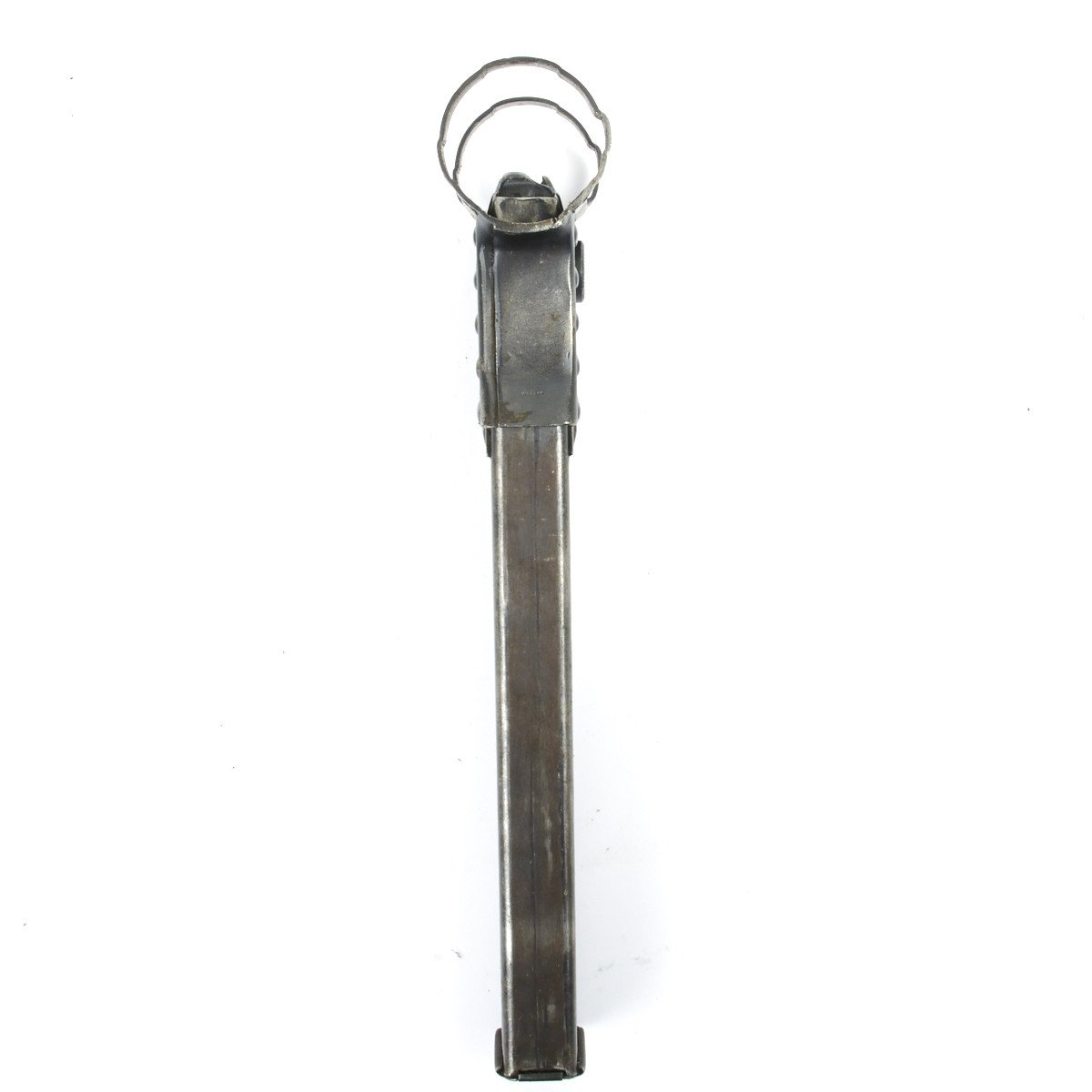

One original MP 40 functional magazine included where permissible, in areas where prohibited we send only the magazine shell (looks correct but magazine will not be functional).
History of the MP40:
The MP 40 was a submachine gun developed in NSDAP Germany and used extensively by the Axis powers during World War II.
Designed in 1938 by Heinrich Vollmer with inspiration from its predecessor the MP 38, it was heavily used by infantrymen, paratroopers, platoon and squad leaders on the Eastern and Western Front. Its advanced and modern features made it a favorite among soldiers and popular in countries from various parts of the world after the war. It was often erroneously called "Schmeisser" by the Allies, despite Hugo Schmeisser's non-involvement in the weapon's design and production. From 1940 to 1945, an estimated 1.1 million were produced by Erma Werke.

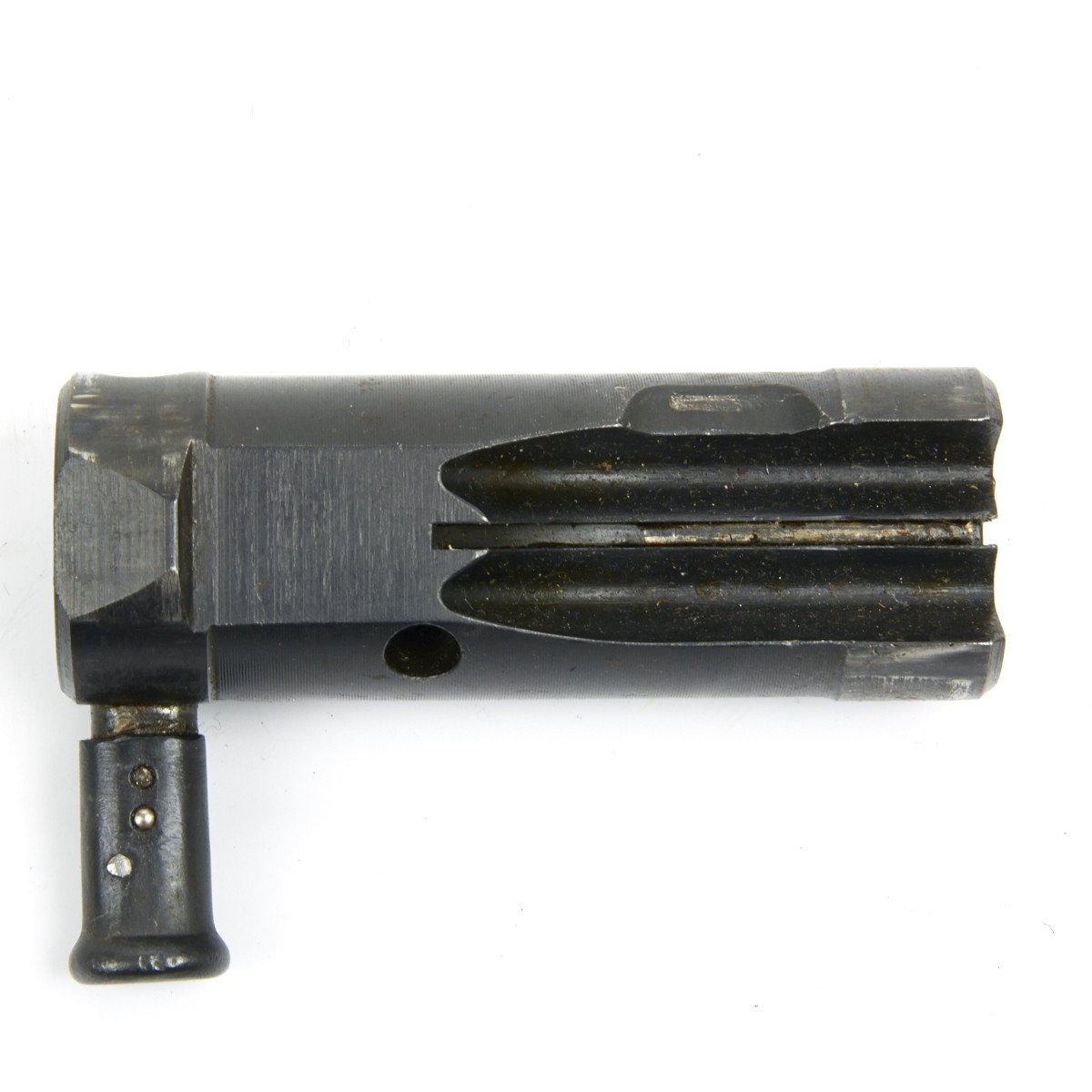

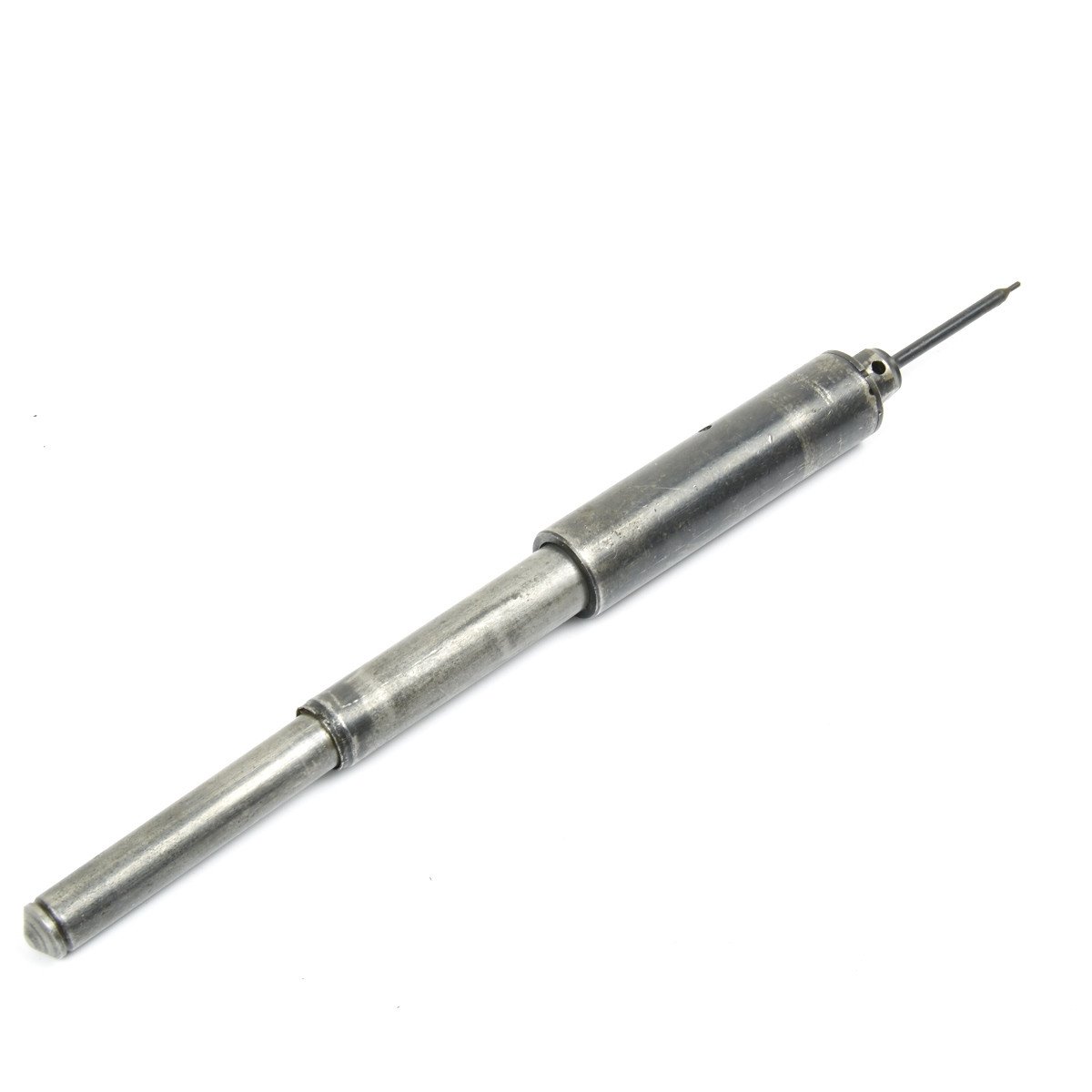

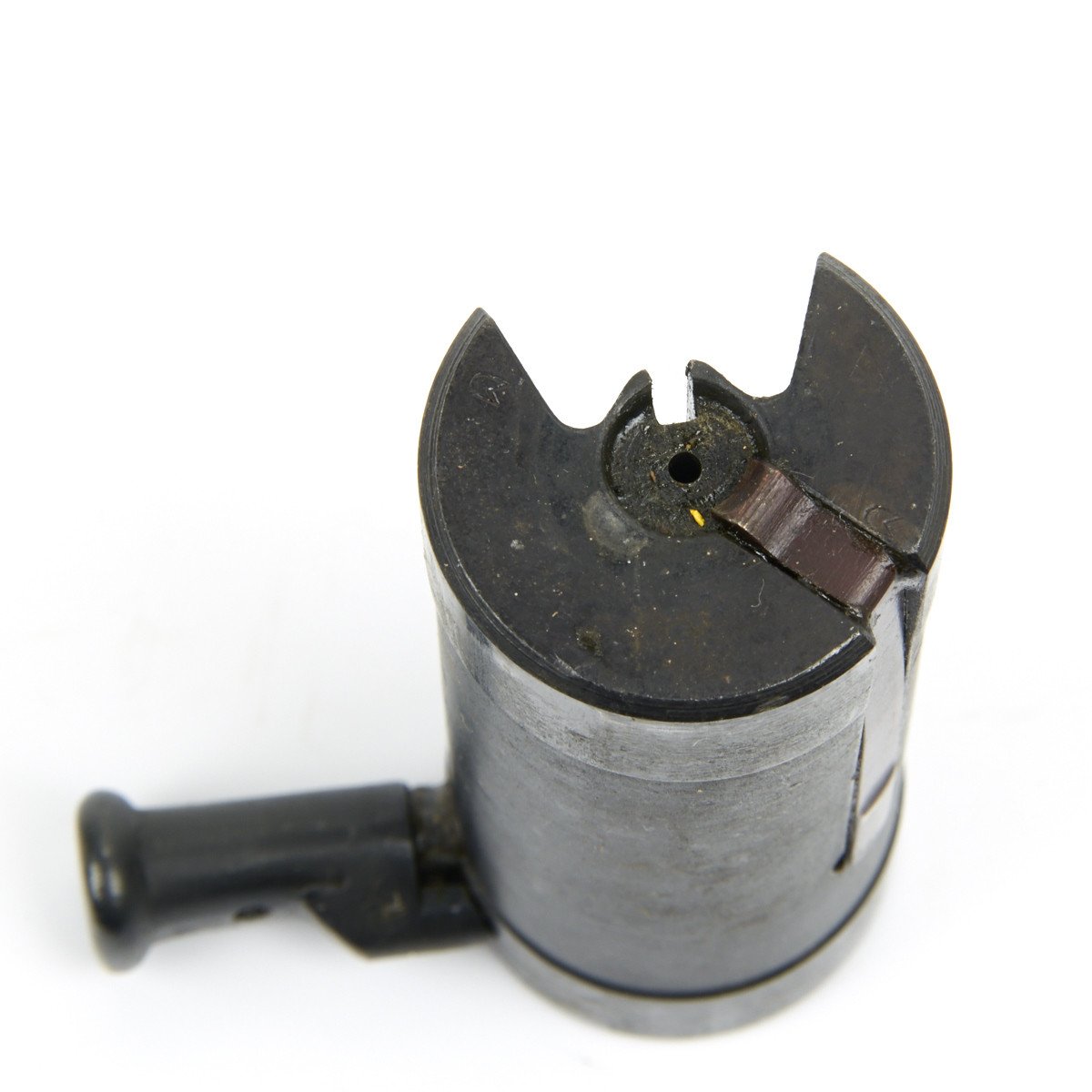

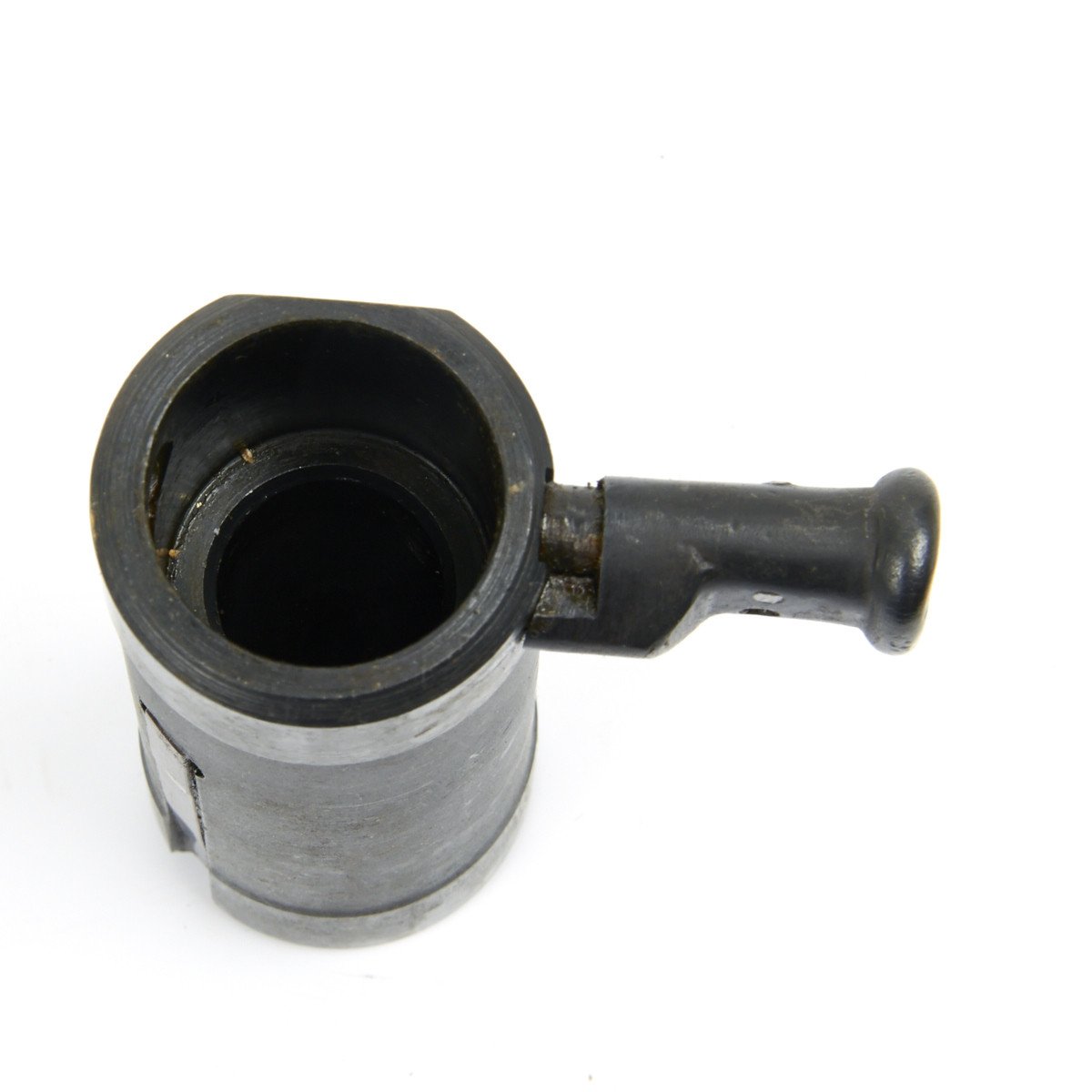

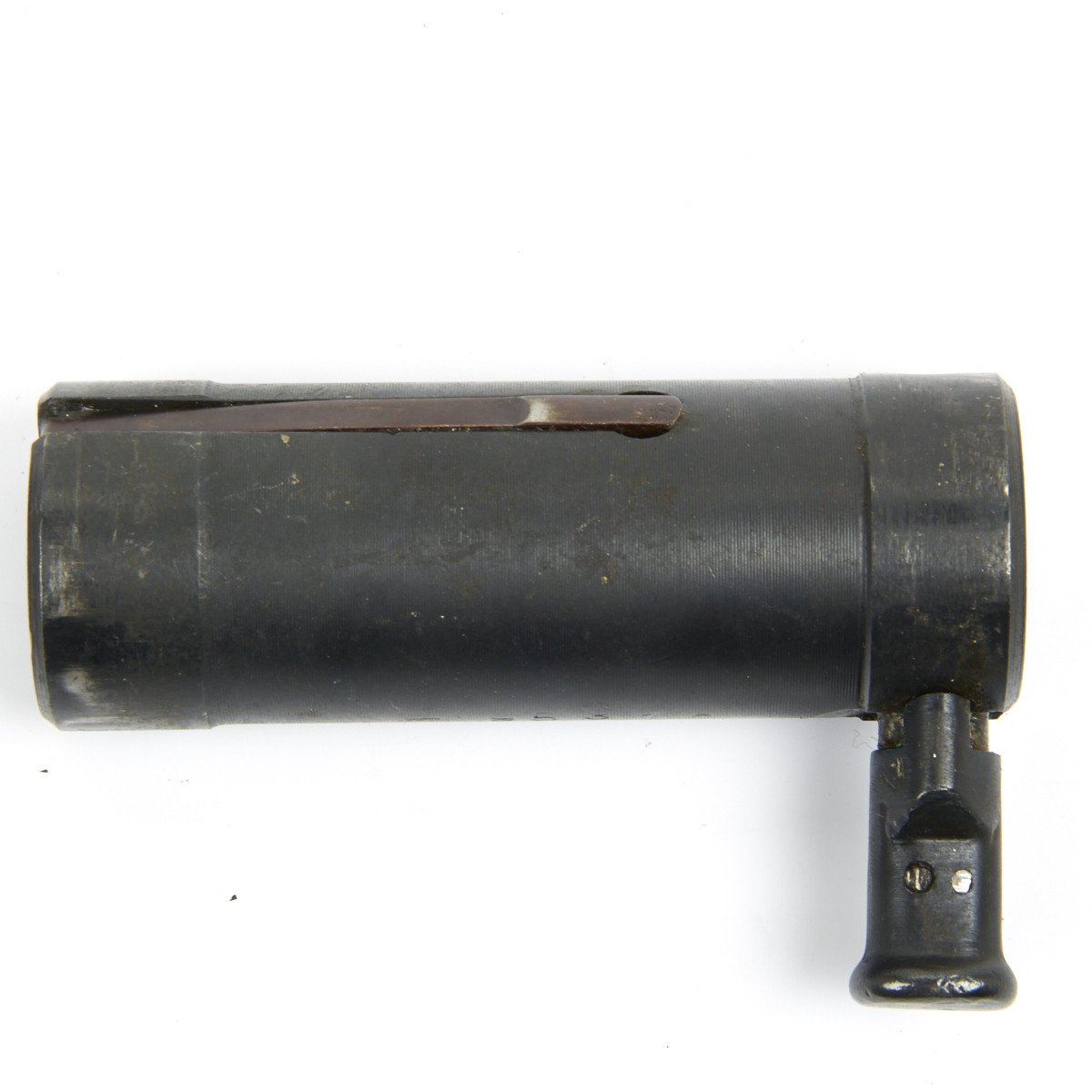

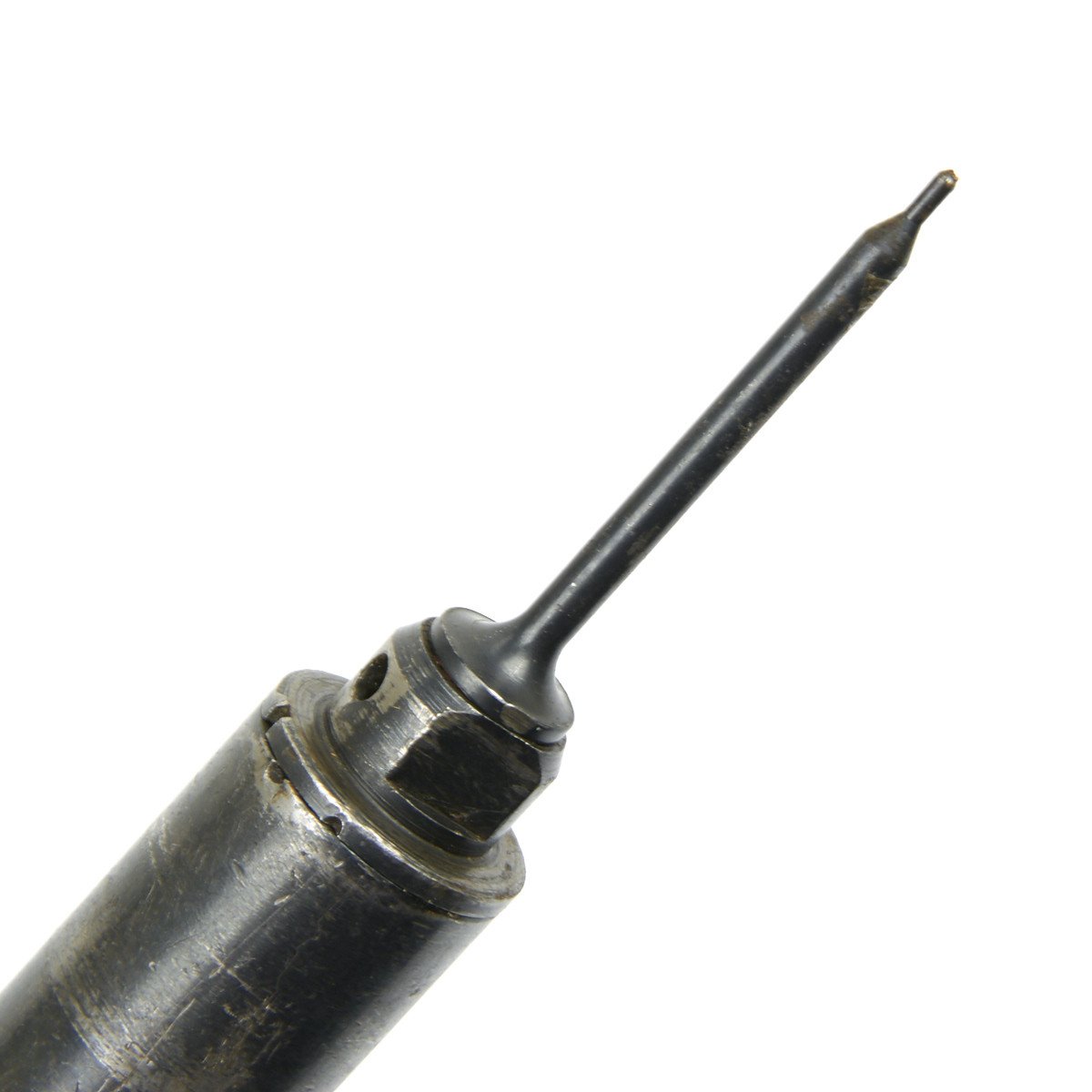

The MP 40 submachine gun are open-bolt, blowback-operated automatic arms. Fully automatic fire was the only setting, but the relatively low rate of fire allowed for single shots with controlled trigger pulls. The bolt features a telescoping return spring guide which serves as a pneumatic recoil buffer. The cocking handle was permanently attached to the bolt on early MP 38s, but on late production MP 38s and MP 40s, the bolt handle was made as a separate part. It also served as a safety by pushing the head of handle into one of two separate notches above the main opening; this action locked the bolt either in the cocked (rear) or uncocked (forward) position. The absence of this feature on early MP 38s resulted in field expedients such as leather harnesses with a small loop, used to hold the bolt in forward position.

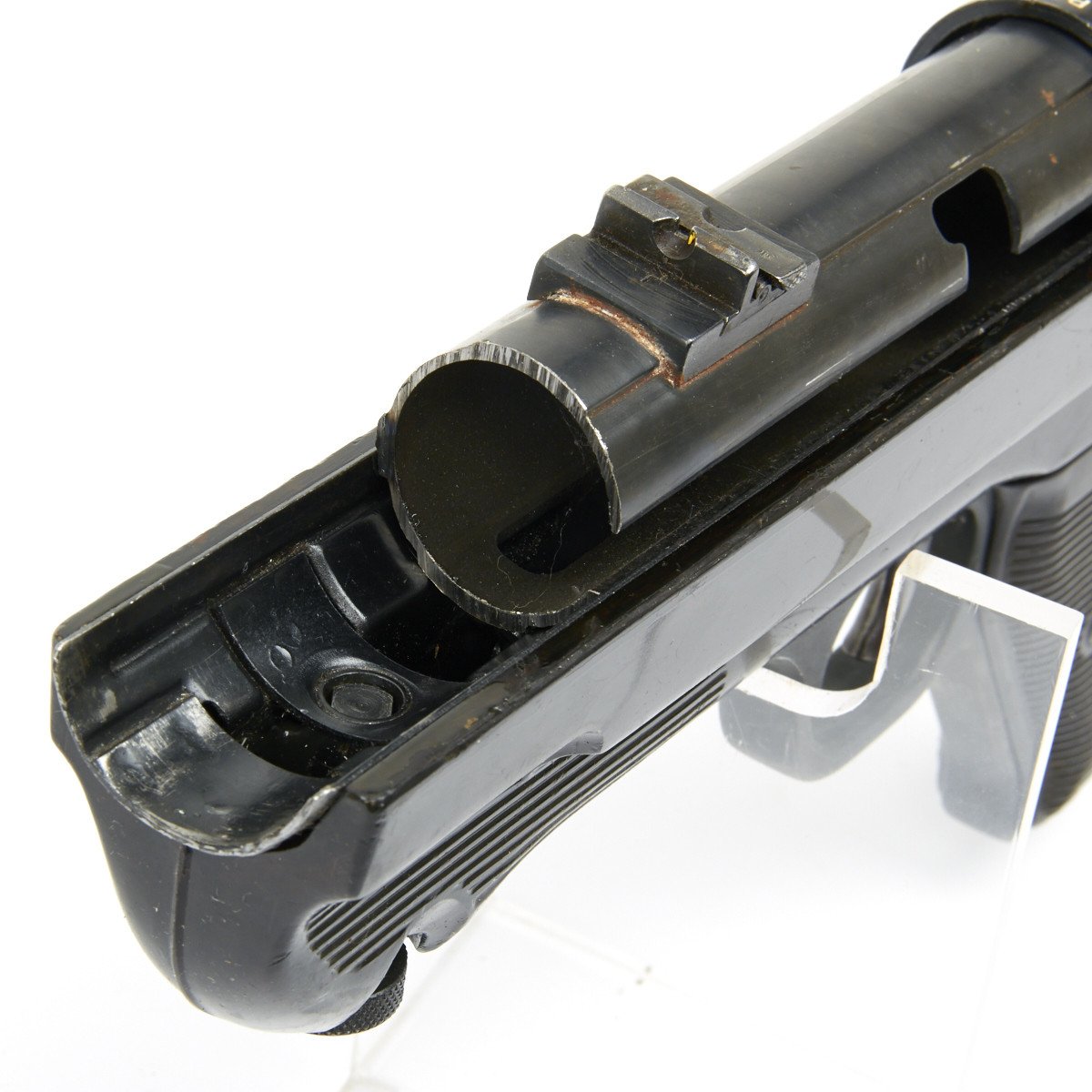

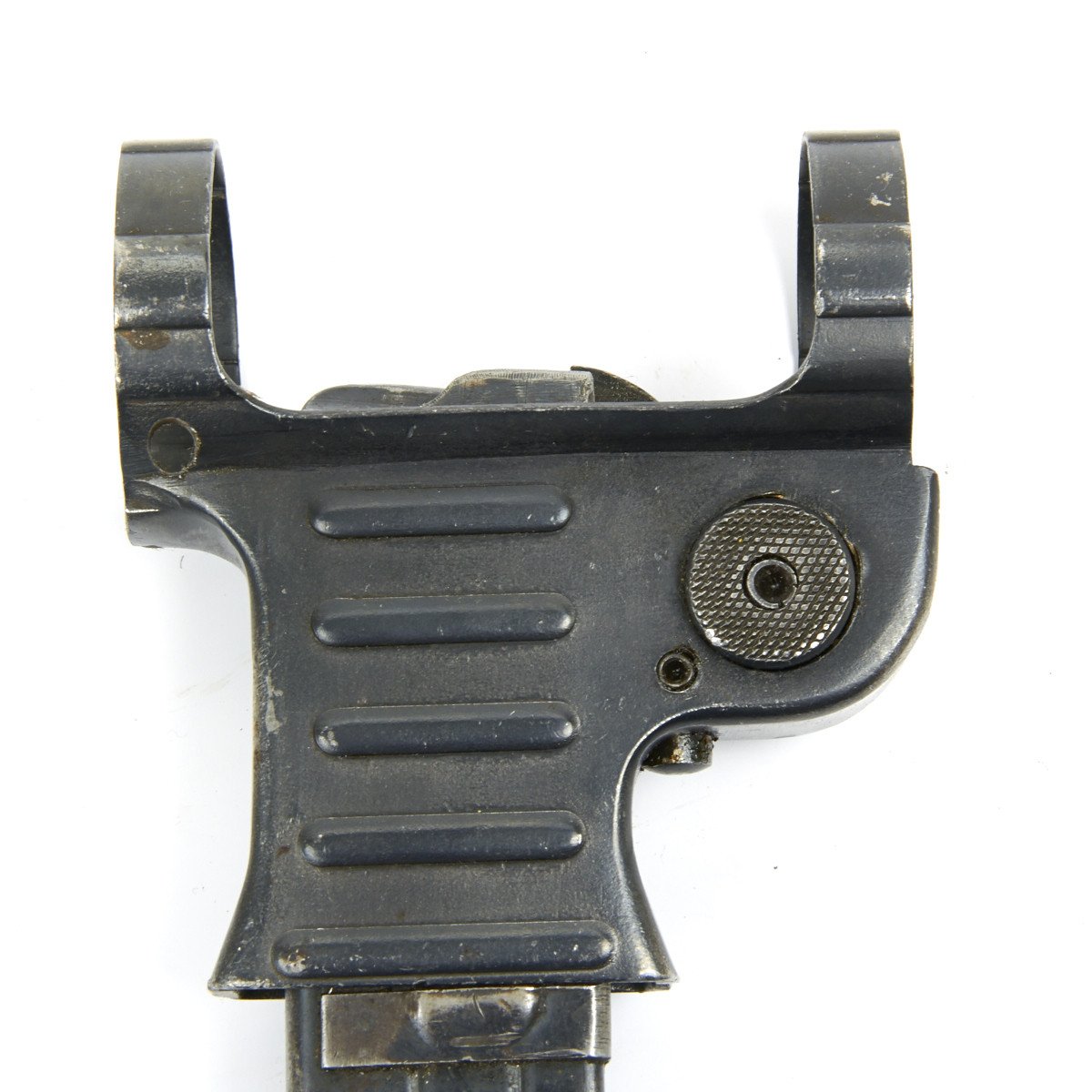

The MP 38 receiver was made of machined steel, but this was a time-consuming and expensive process. To save time and materials, and thus increase production, construction of the MP 40 receiver was simplified by using stamped steel and electro-spot welding as much as possible.  The MP 38 also features longitudinal grooving on the receiver and bolt, as well as a circular opening on the magazine housing. These features were eliminated on the MP 40.

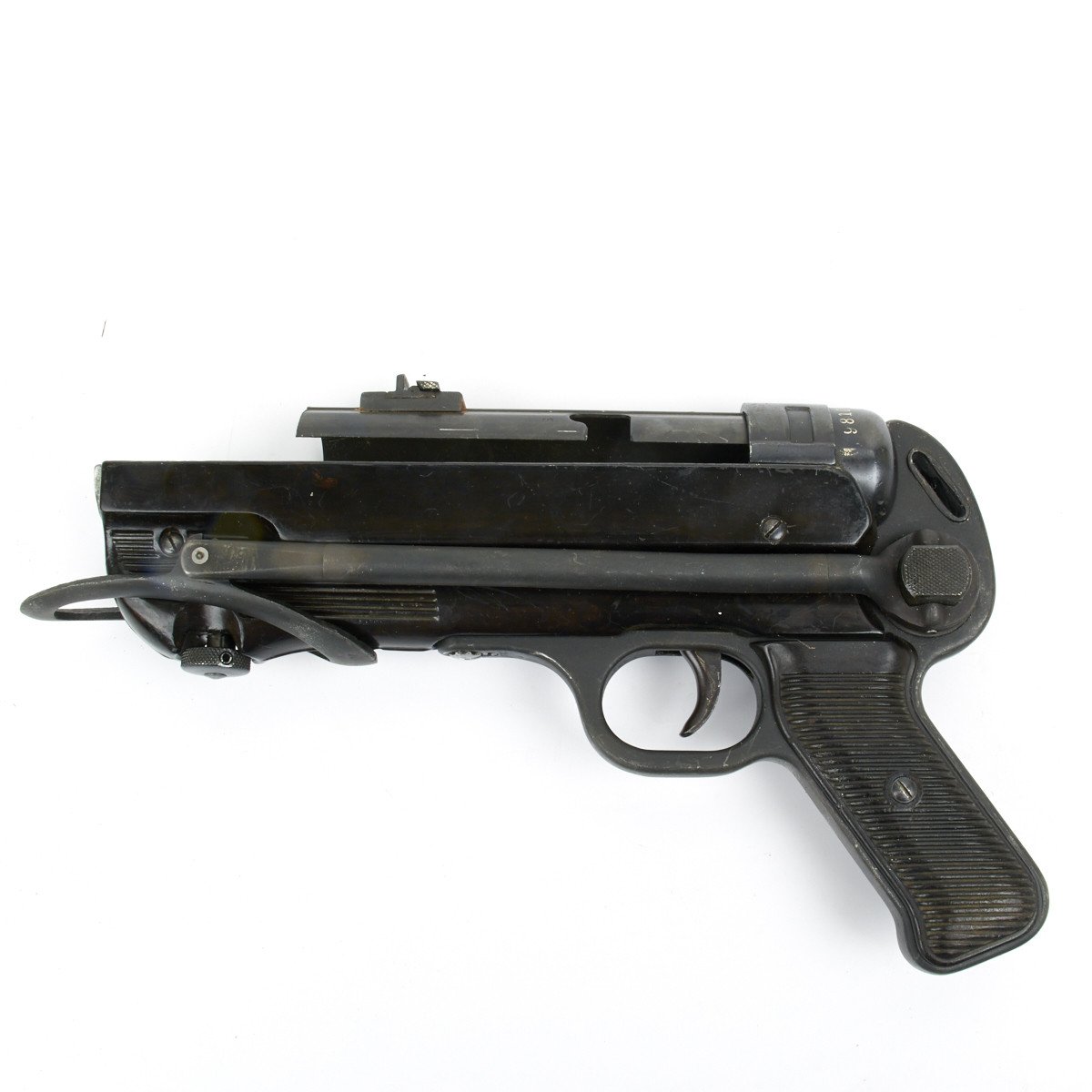

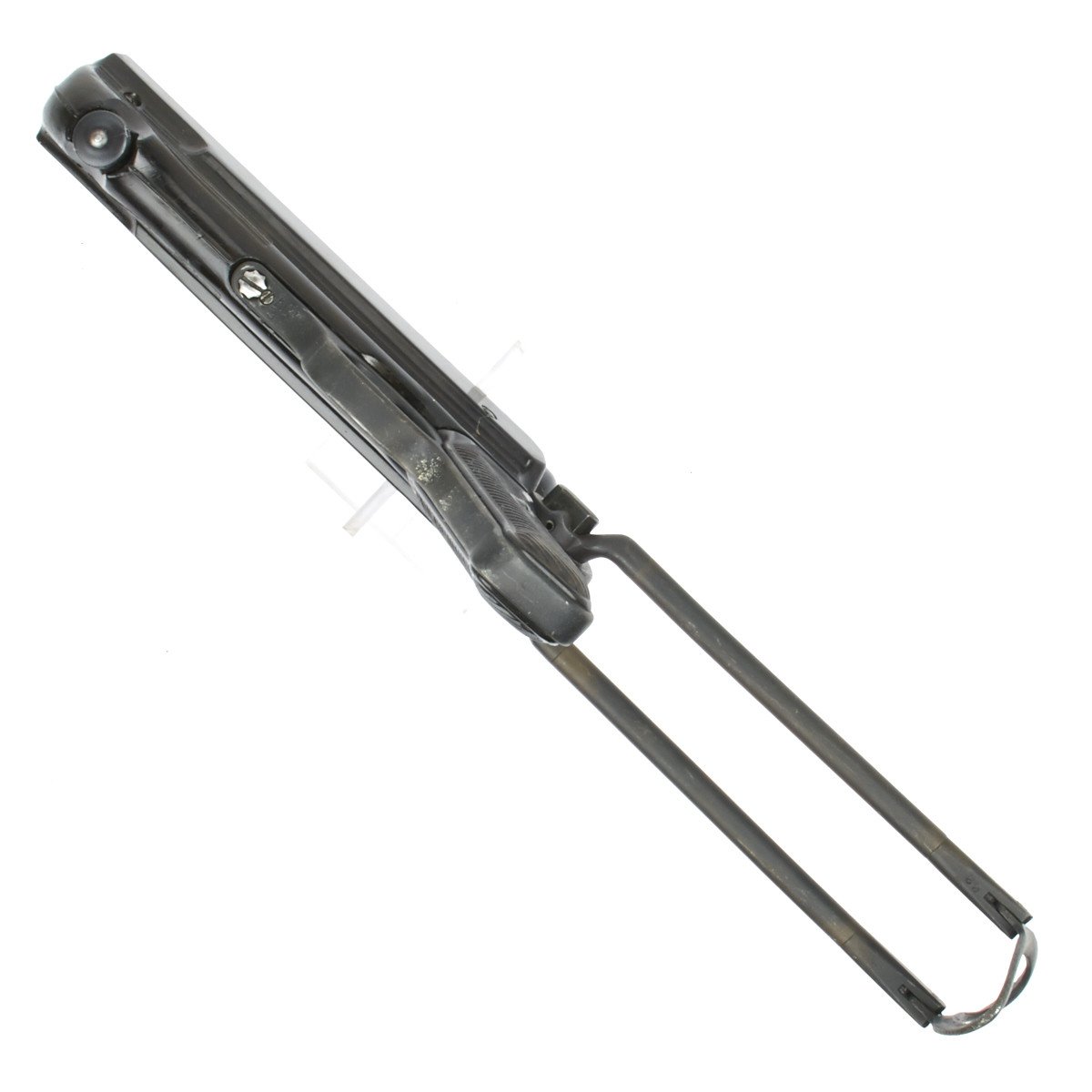

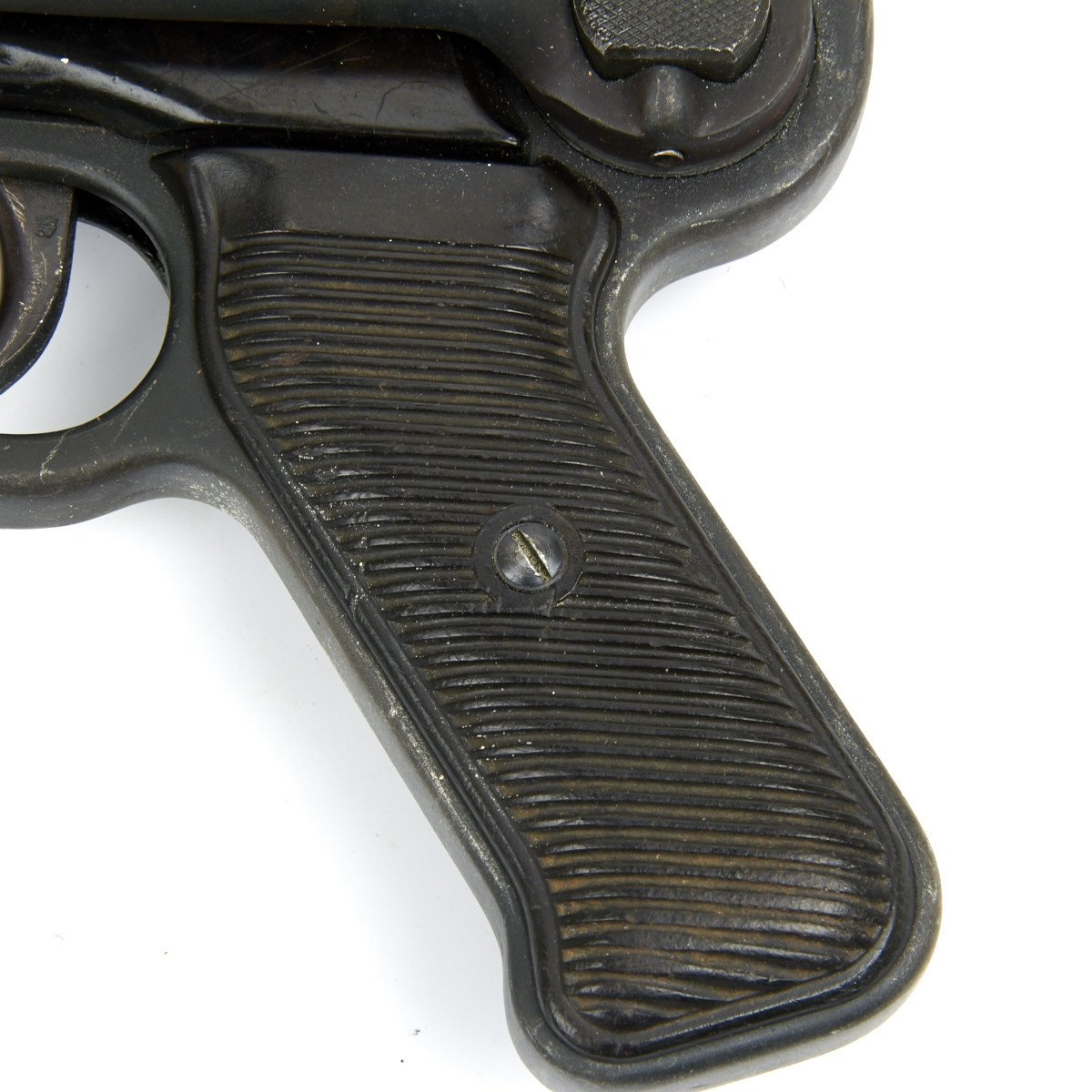

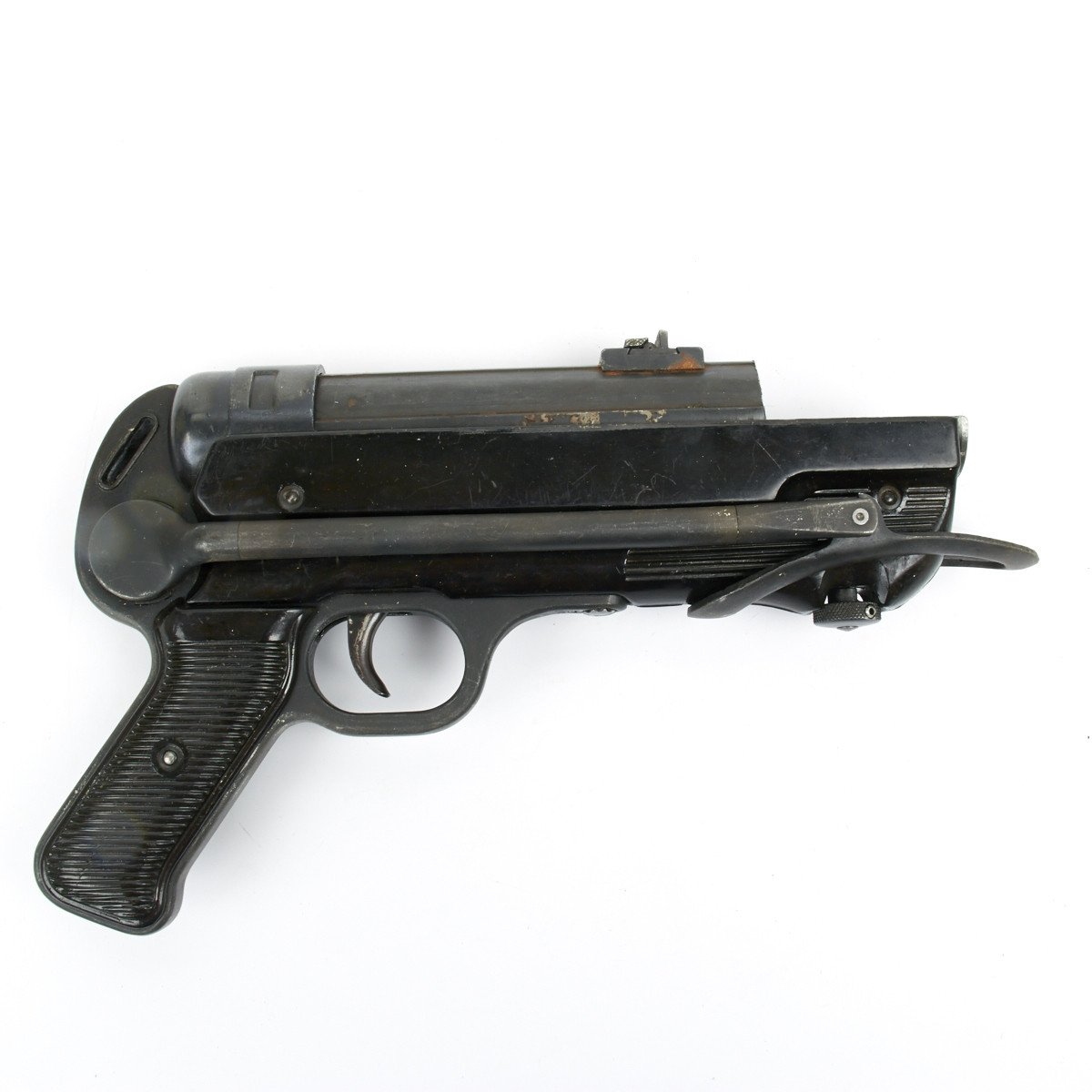

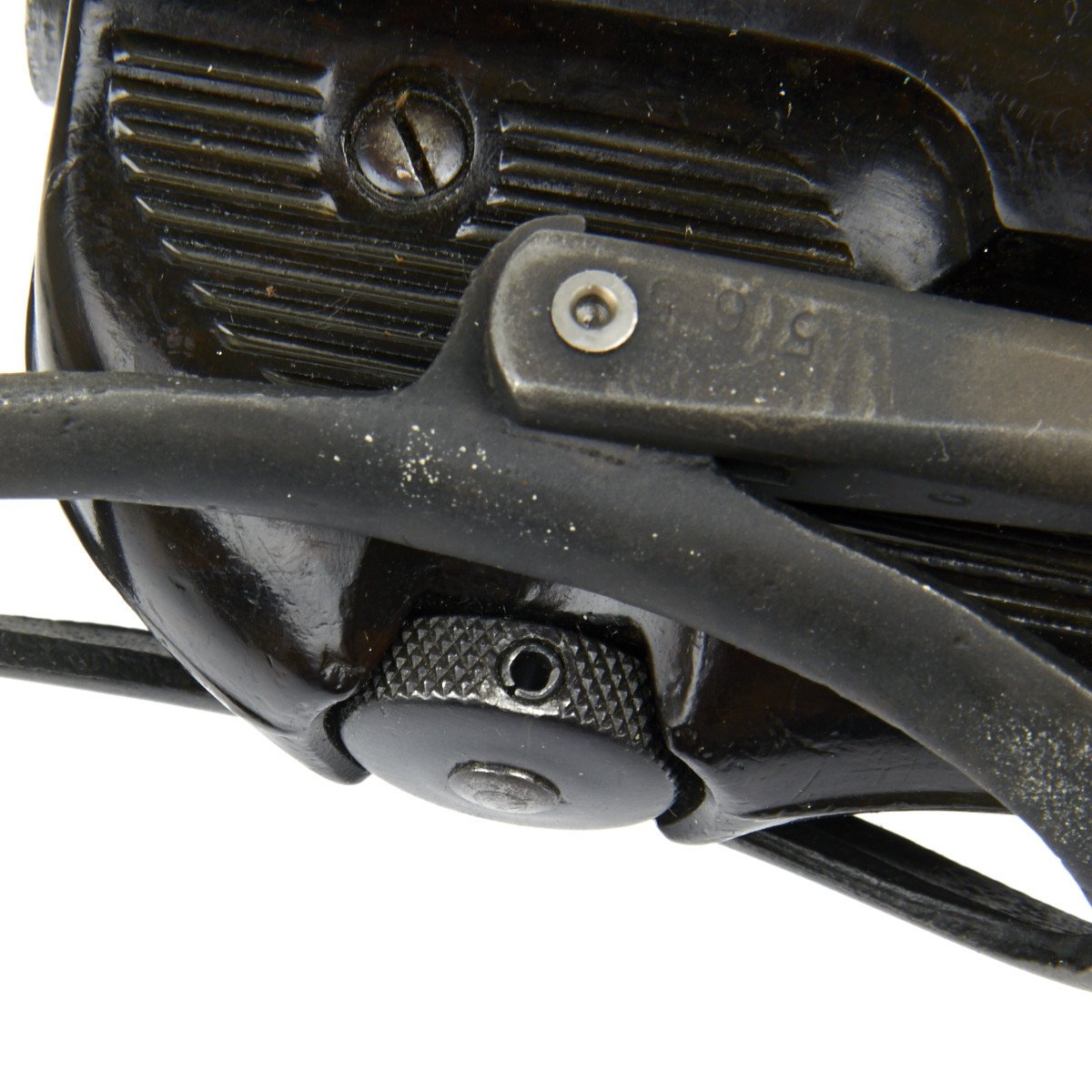

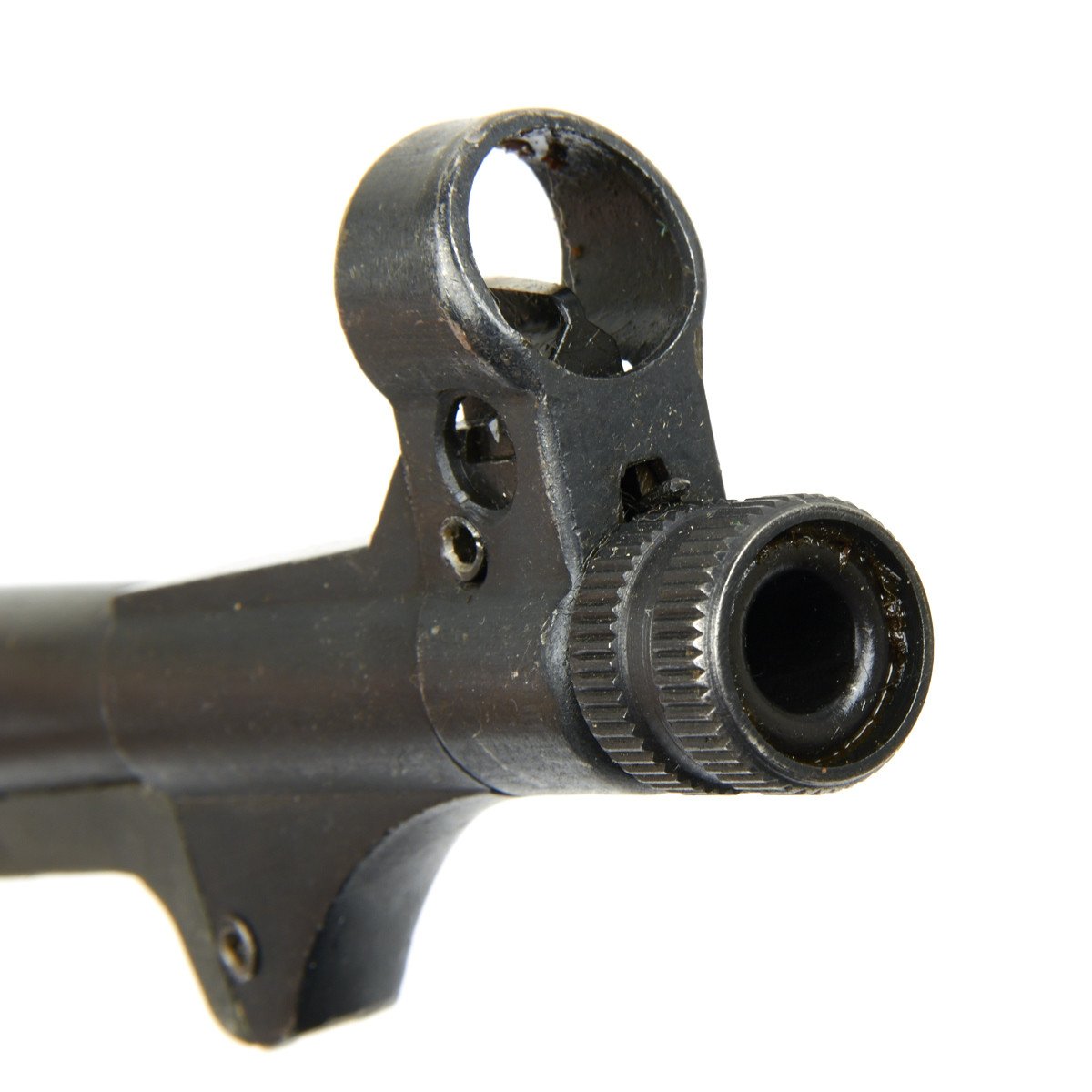

One unique feature found on most MP 38 and MP 40 submachine guns was an aluminum, steel, or bakelite resting bar or support under the barrel. This was used to steady the weapon when firing over the side of open-top armored personnel carriers such as the Sdkfz 251 half-track. A handguard, made of a synthetic material derived from bakelite, was located between the magazine housing and the pistol grip. The barrel lacked any form of insulation, which often resulted in burns on the supporting hand if it was incorrectly positioned. The MP 40 also had a forward-folding metal stock, the first for a submachine gun, resulting in a shorter overall weapon when folded. However, this stock design was at times insufficiently durable for hard combat use.

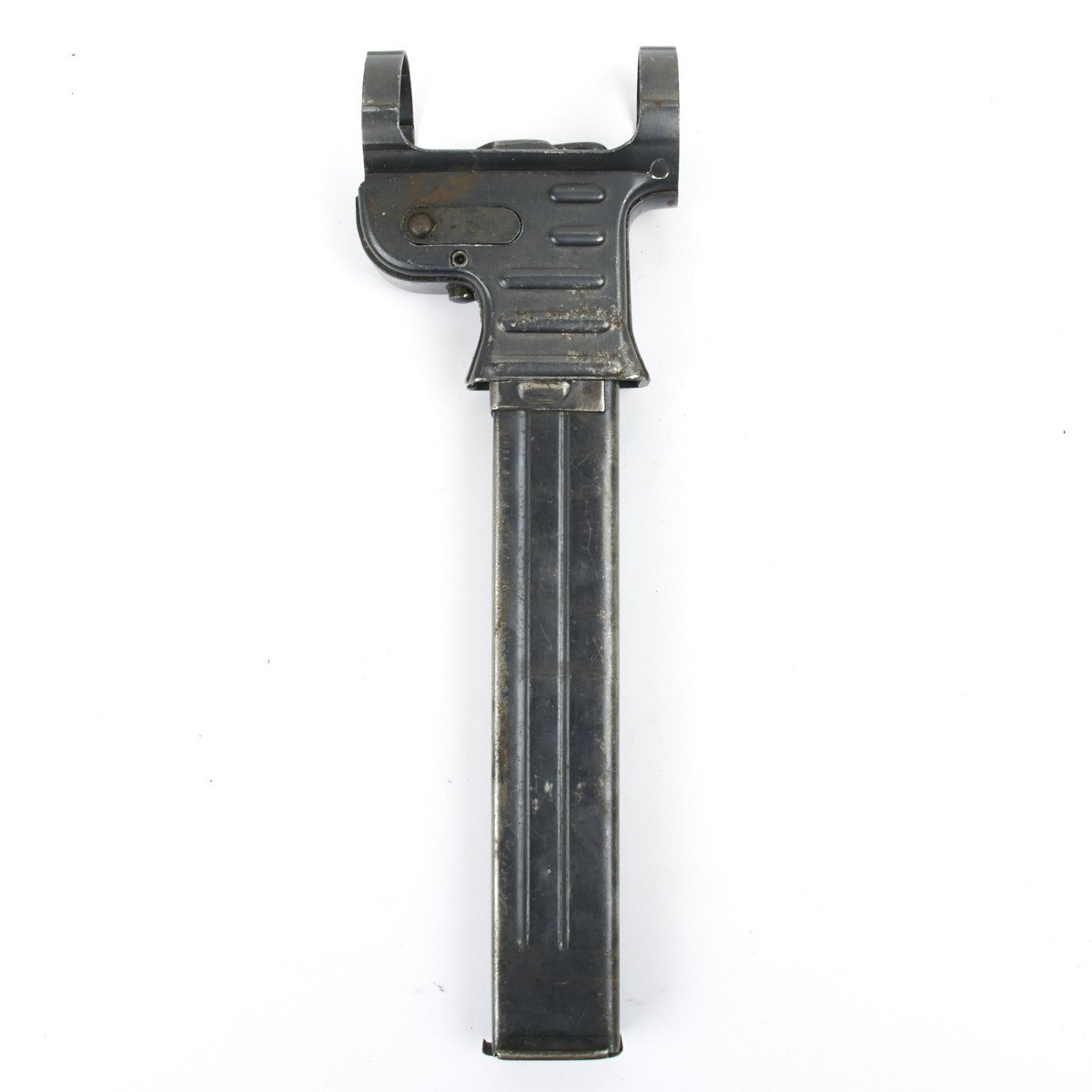

Although the MP 40 was generally reliable, a major weakness was its 32-round magazine. Unlike the double-column, dual-feed magazine insert found on the Thompson M1921-28 variants, the MP 40 used a double-column, single-feed insert. The single-feed insert resulted in increased friction against the remaining cartridges moving upwards towards the feed lips, occasionally resulting in feed failures; this problem was exacerbated by the presence of dirt or other debris. Another problem was that the magazine was also sometimes misused as a handhold. This could cause the weapon to malfunction when hand pressure on the magazine body caused the magazine lips to move out of the line of feed, since the magazine well did not keep the magazine firmly locked. German soldiers were trained to grasp either the handhold on the underside of the weapon or the magazine housing with the supporting hand to avoid feed malfunctions.
At the outbreak of World War II, the majority of German soldiers carried either Karabiner 98k rifles or MP 40s, both of which were regarded as the standard weapons of choice for an infantryman.
However, later experience with Soviet tactics, such as the Battle of Stalingrad where entire Russian units armed with submachine guns outgunned their German counterparts in short range urban combat, caused a shift in tactics, and by the end of the war the MP 40 and its derivatives were being issued to entire assault platoons on a limited basis. Starting in 1943, the German Army moved to replace both the Karabiner 98k rifle and MP 40 with the new, revolutionary StG 44. By the end of World War II, an estimated 1.1 million MP 40s had been produced of all variants.
- This product is not available for international shipping.
- This item is completely legal within the USA. International Military Antiques, Inc observes all Federal, State and Local laws. Everything for sale on ima-usa.com is completely legal to own, trade, transport and sell within the United States of America. Every display machinegun and machine gun parts set and gun sold by IMA, Inc is engineered to be inoperable according to guidelines provided by the US Bureau of Alcohol, Tobacco, Firearms and Explosives (BATF).
High Capacity Magazine Laws & Restrictions
Due to State & Federal law we do not ship magazines that exceed the following capacities to the following locations:
California - 10 round maximum for all magazines.
Colorado - 15 round maximum for all magazines.
Hawaii - 10 round maximum for all handgun magazines.
Maryland - 20 round maximum for all magazines.
Massachusetts - over 10 rounds.
New Jersey - 15 round maximum for semi-automatic firearms only.
