Item:
ONSV2825

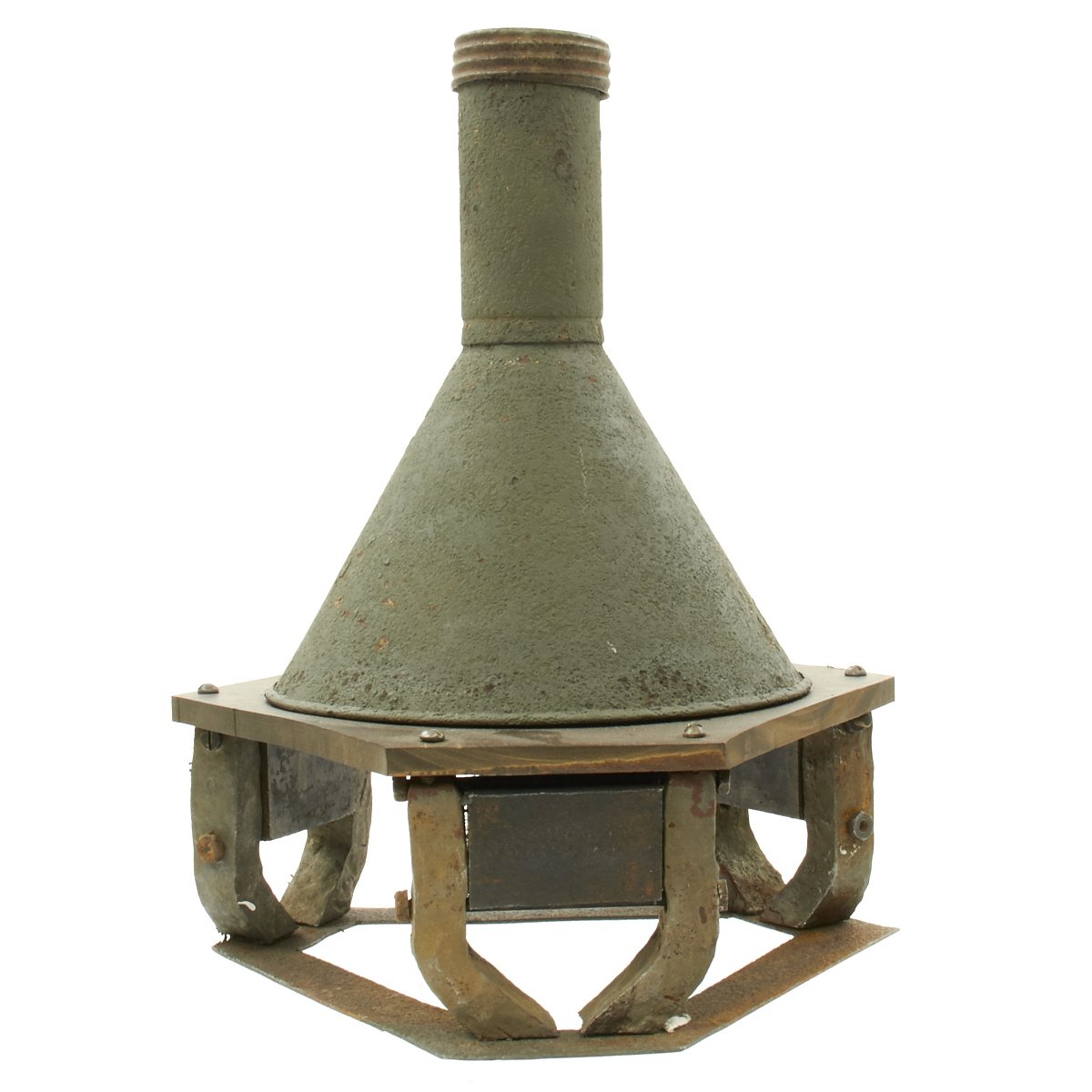

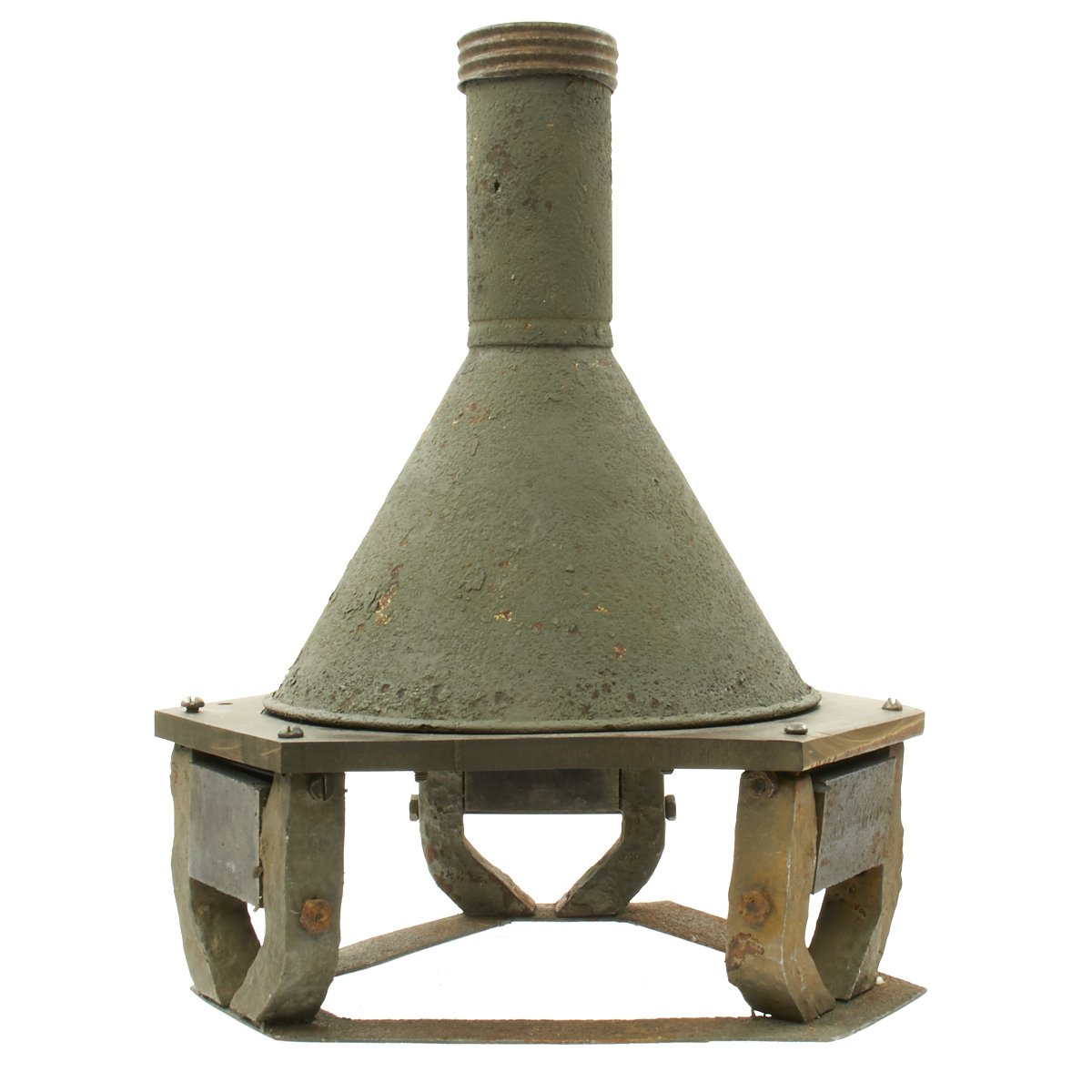

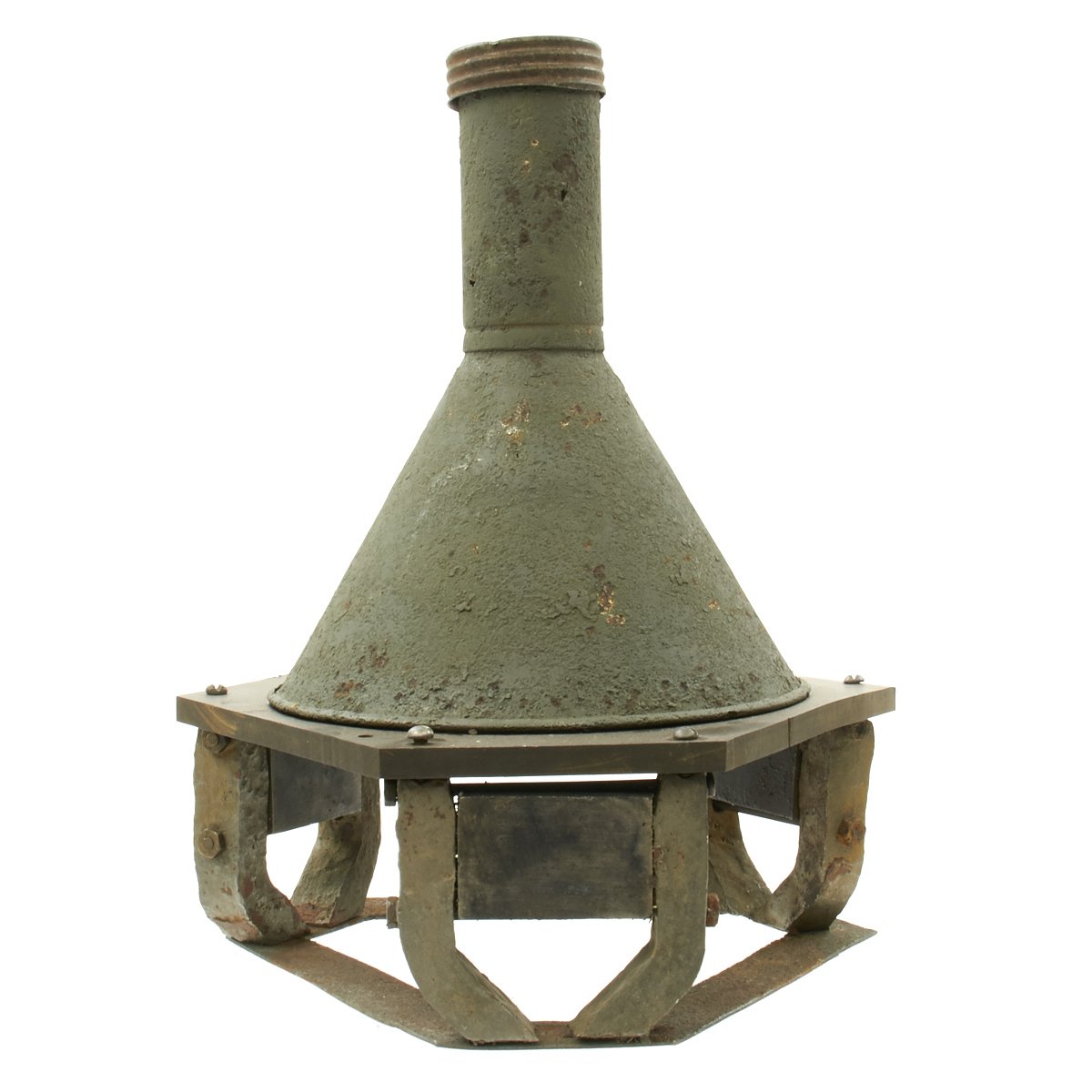

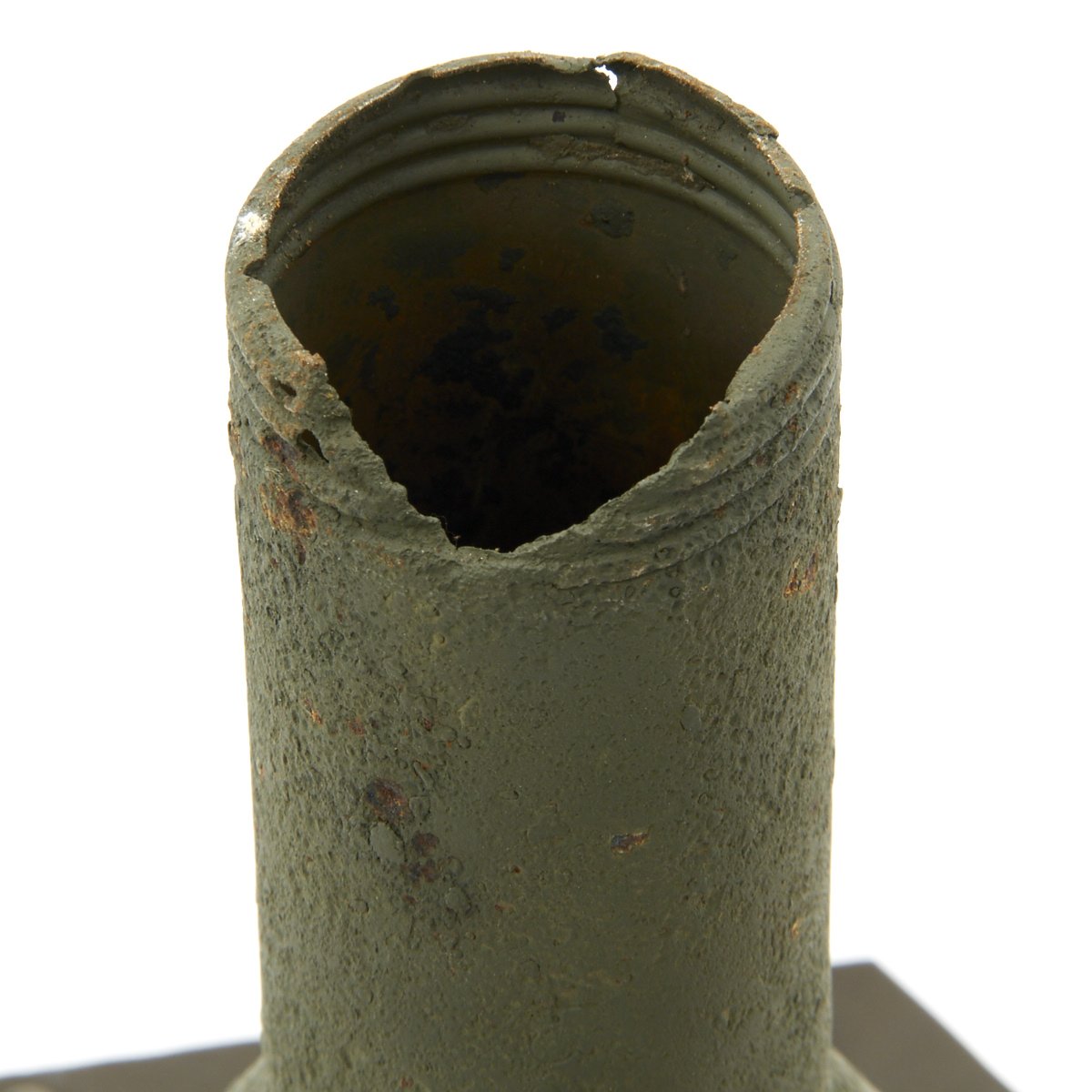

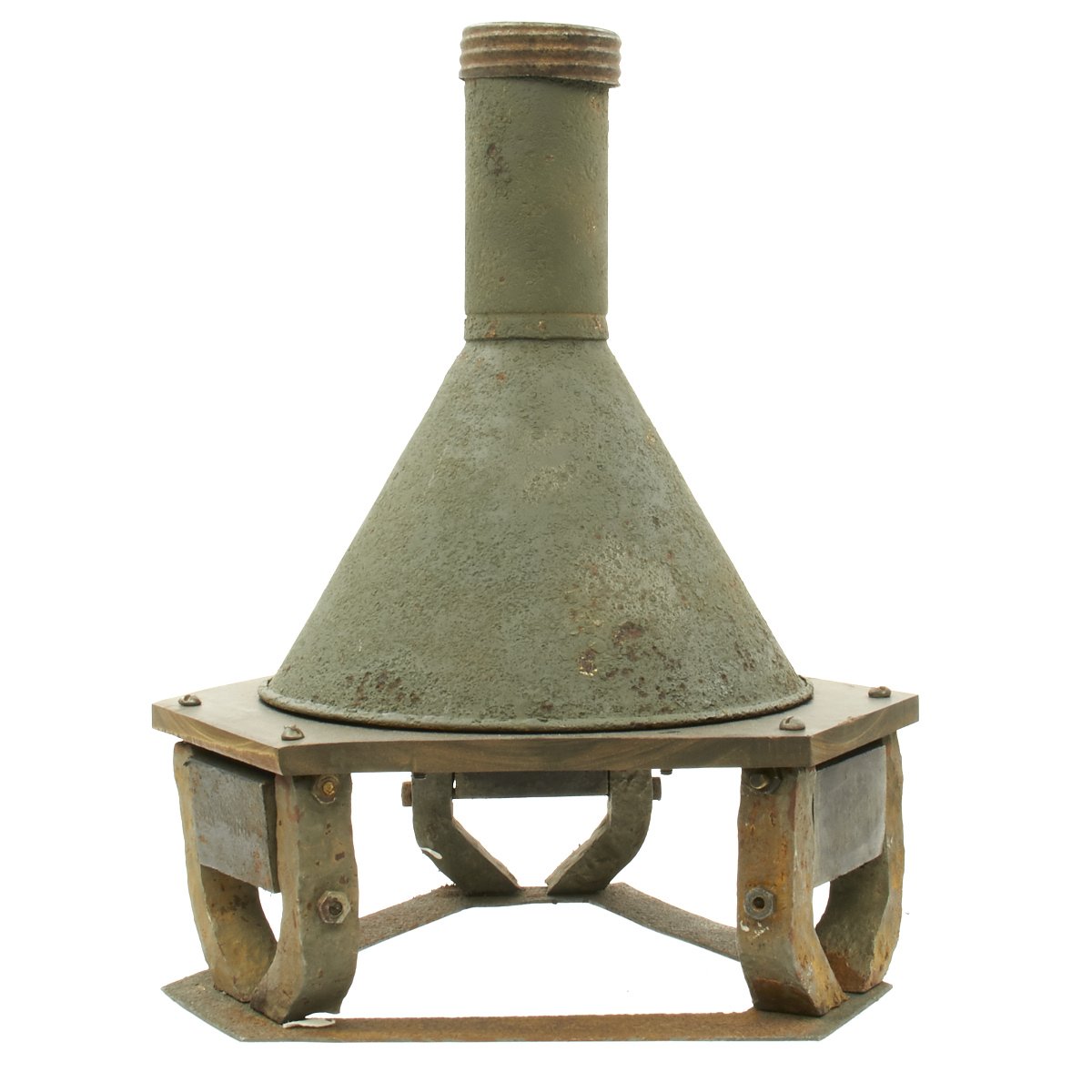

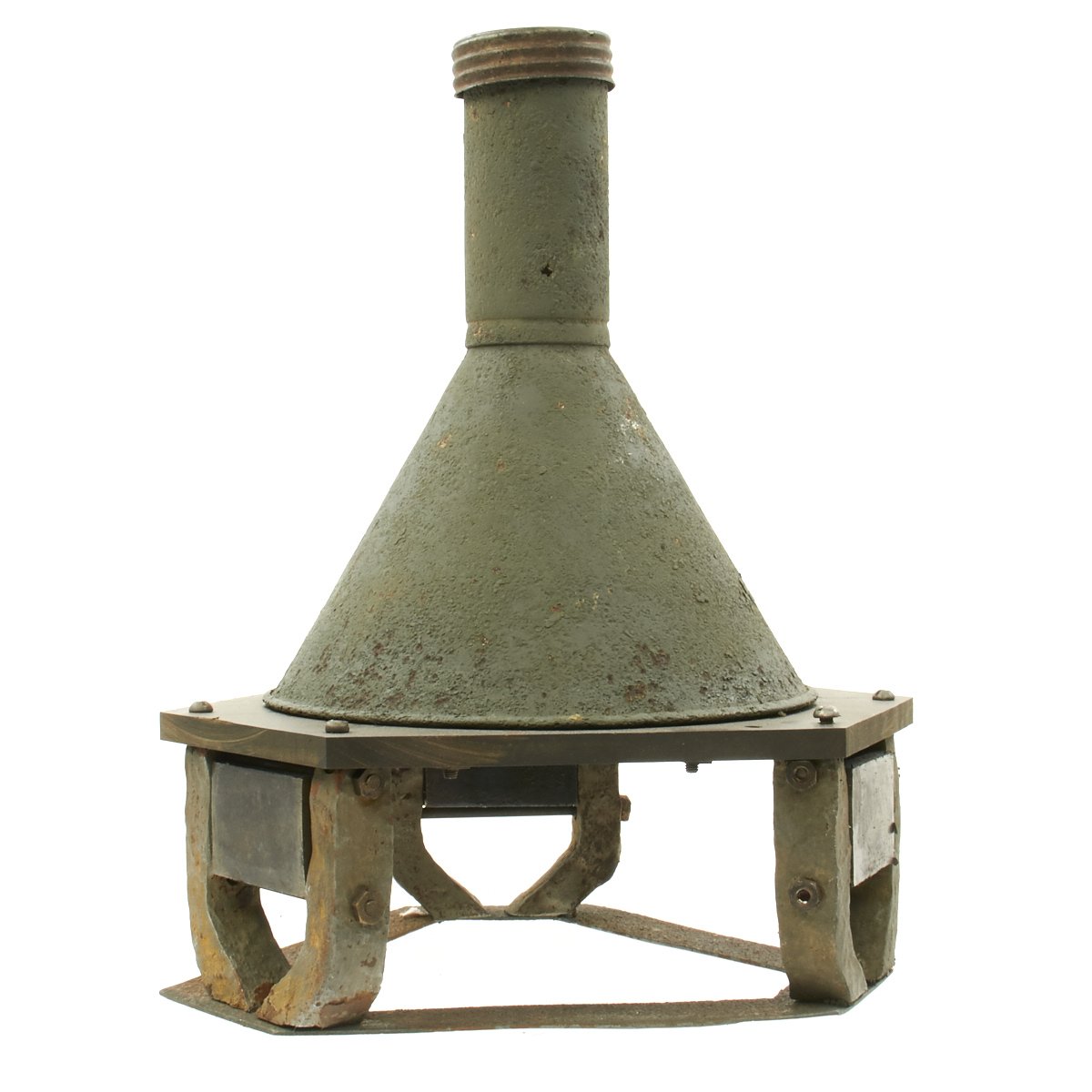

Original German WWII Hafthohlladung Magnetic Anti-Tank Bundle - Panzerknacker

Regular price $895.00

Splitit Learn More

Item Description

Original Item: Only One Available. The Hafthohlladung, also known as the "Panzerknacker" ("Tank breaker", German connotation "Safe cracker") was a magnetically-adhered, shaped charge anti-tank grenade used by German forces in World War II, sometimes described as a mine.

This example, acquired from a private collector, has been demilitarized according to specifications by the ATF. This example is in excellent condition and still retains its fully functional magenets. Its has many areas of pitting but is solid, appears to have been repainted but overall it is in very good condition and totally authentic. These are incredibly rare.

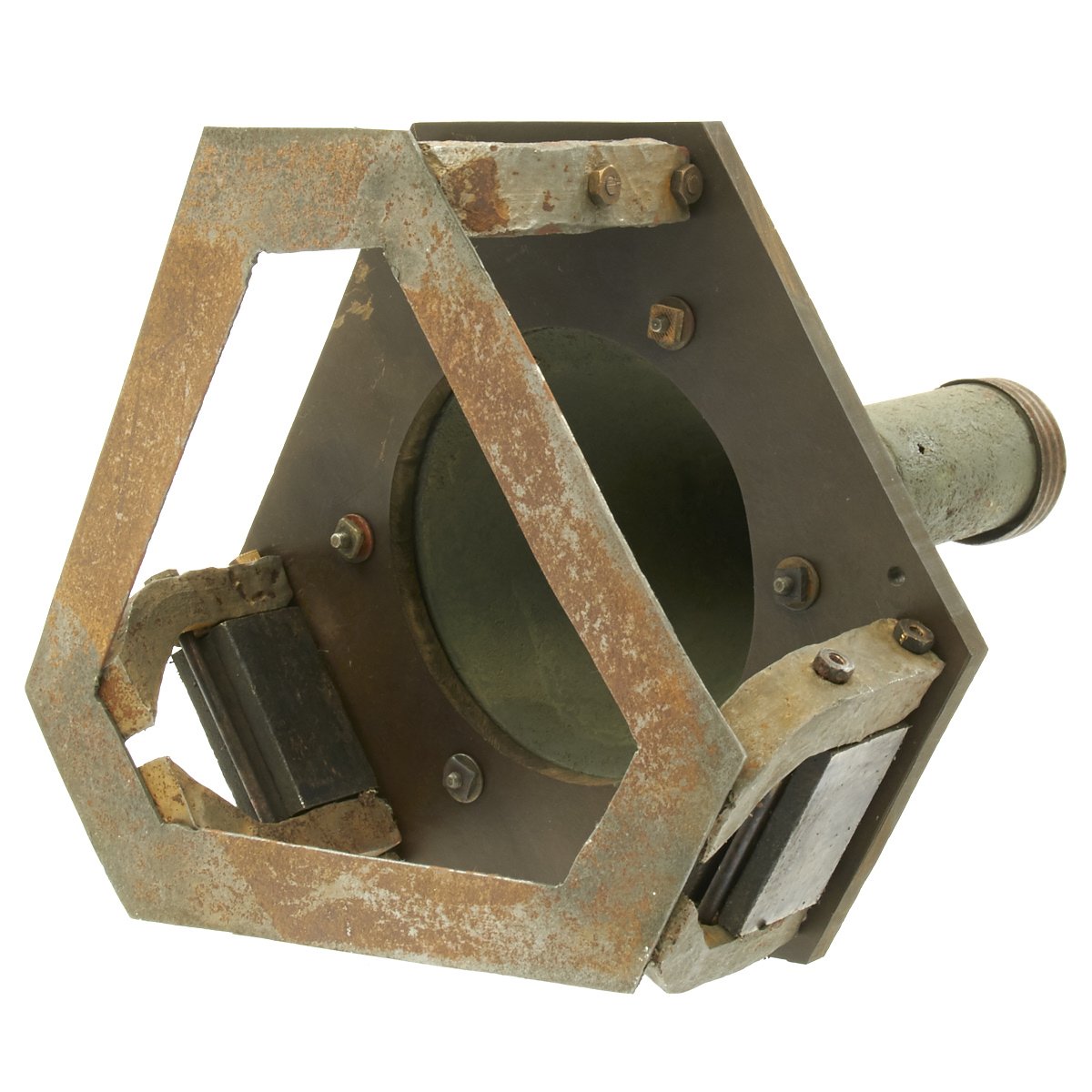

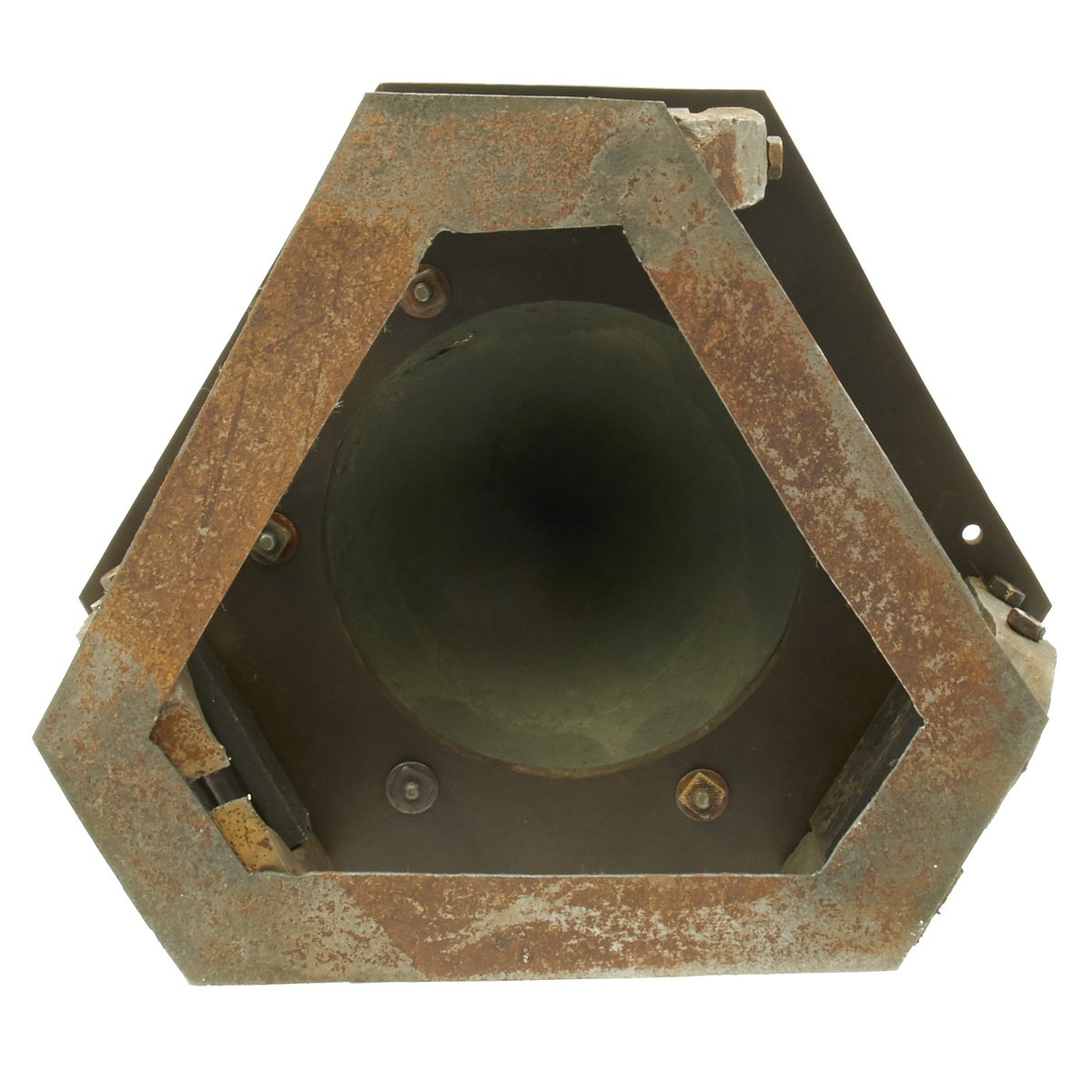

The Hafthohlladung (lit. adhesive hollow charge) was primarily used by Wehrmacht tank killer squads. Designed with three magnets at the base, each with a pair of poles creating a strong magnetic field across their gap, an infantryman could attach it to an enemy's tank no matter the angle of the surface. As the blast axis should be flush and perpendicular to the plane of the armor at the point of placement, and armed by pulling the igniter on the rear of the mine, the degree of a tank's sloped armor would be irrelevant for the device's penetration. However this required direct placement made use of the device very dangerous, since the deploying infantryman placing it on an enemy fighting vehicle would be highly vulnerable to enemy fire.

The Hafthohlladung device was very effective against armour, able to penetrate 140 mm of Rolled Homogeneous Armour (RHA). The H3 (3 kilogram) and H3.5 (3.5 kilogram) models are easily distinguishable; the H3 is bottle-shaped and H3.5 is conical.
Specifications

- Weight: 3 kg (H3 version) or 3.5 kg (H3.5 version)
- First issued: November 1942
- Penetration: At 0°, 140mm of RHA or 508 mm (20") of concrete
- Fuse: Friction ignited, 4.5 second delay, later 7.5 seconds in May 1943
- Number produced: 553,900
- Declared obsolete in May 1944 in favor of the Panzerfaust, but remaining stockpiles used until exhausted
  • This product is not available for international shipping.
  • Not eligible for payment with Paypal or Amazon
