Item Description
Original Item: Only One Available. This genuine example is totally inert and in compliance with ATF guidelines.
The Propagandawerfer 41 was a rocket launcher for the associated non-lethal Propagandagrante 41 rocket. The launcher and rocket were a light man-portable system fired by specially-trained propaganda troops during World War II to distribute leaflets.
Launcher
The Propagandawerfer 41 consisted of a light 12.26 kg (27 lb) steel tube framework. The base of the launcher was triangular in shape and had a crossbar through the center with a hinge that connected the base to a circular launch cage. At the tip of the base there was an adjustable arm for elevating the launch cage and in the center of the launch cage was a trough which the Propagandagranate 41 rocket was launched from.[2] The rocket rested at the top of the cage until the crew pulled a lanyard, the rocket then slid down until it hit a firing pin which launched the rocket.
Rocket

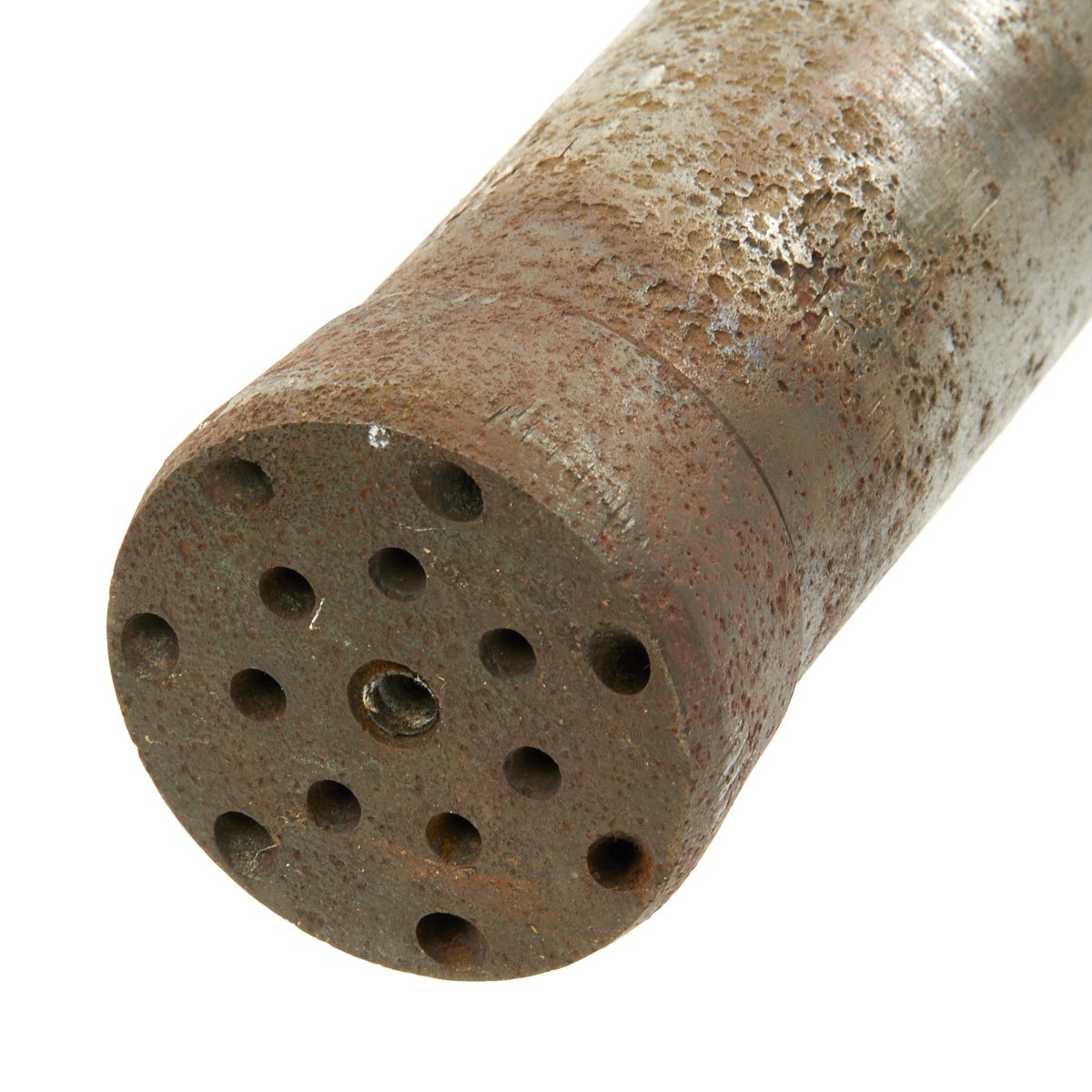

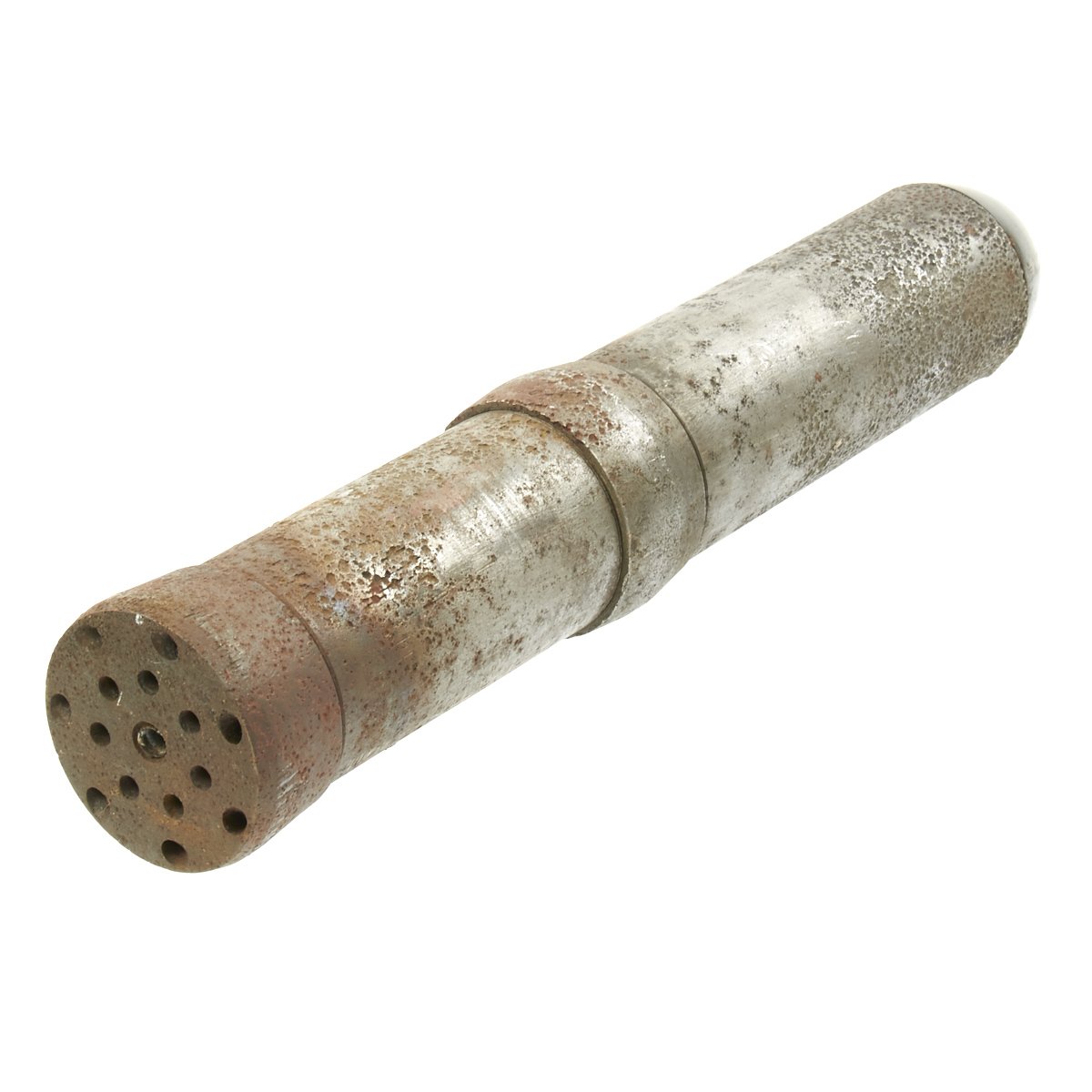

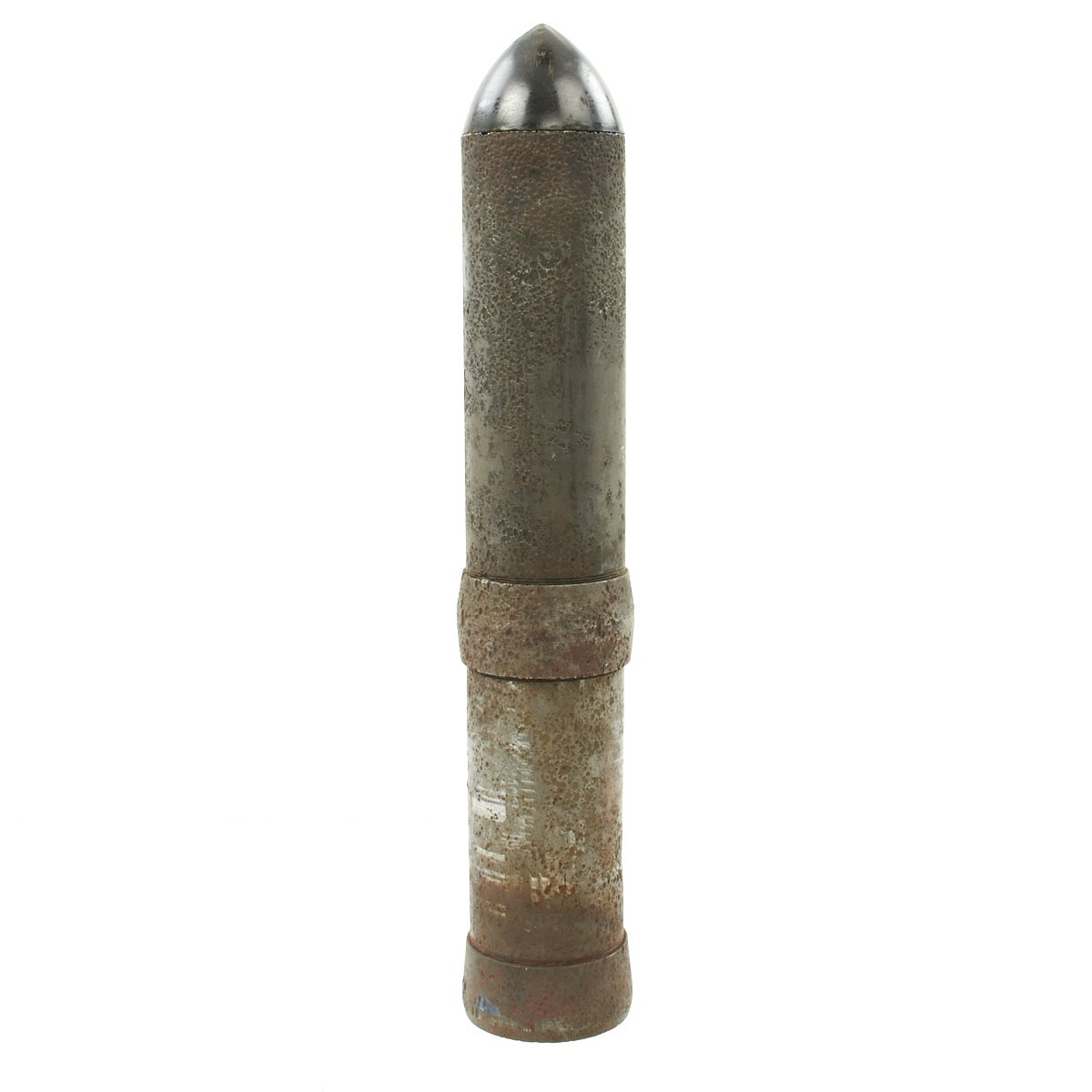

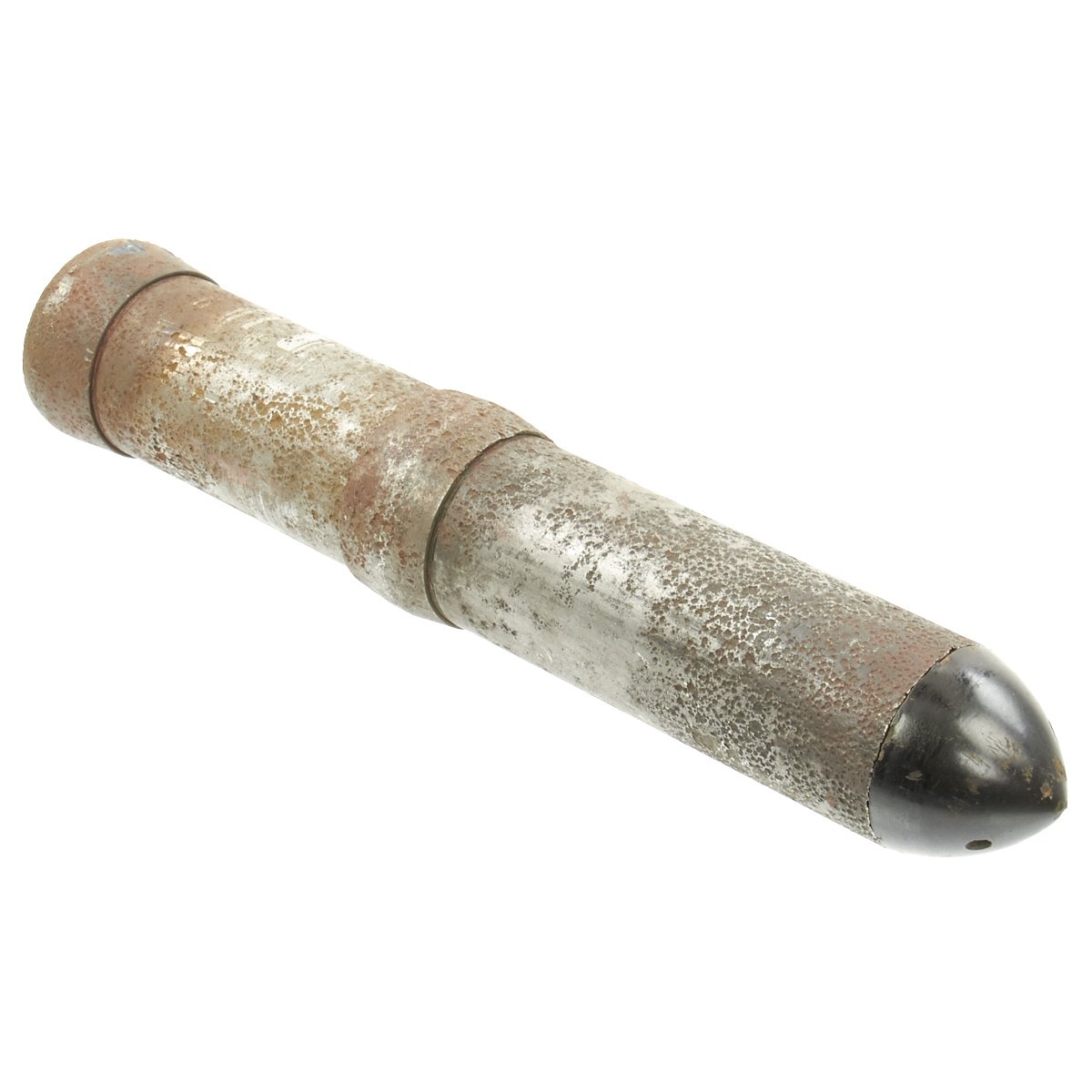

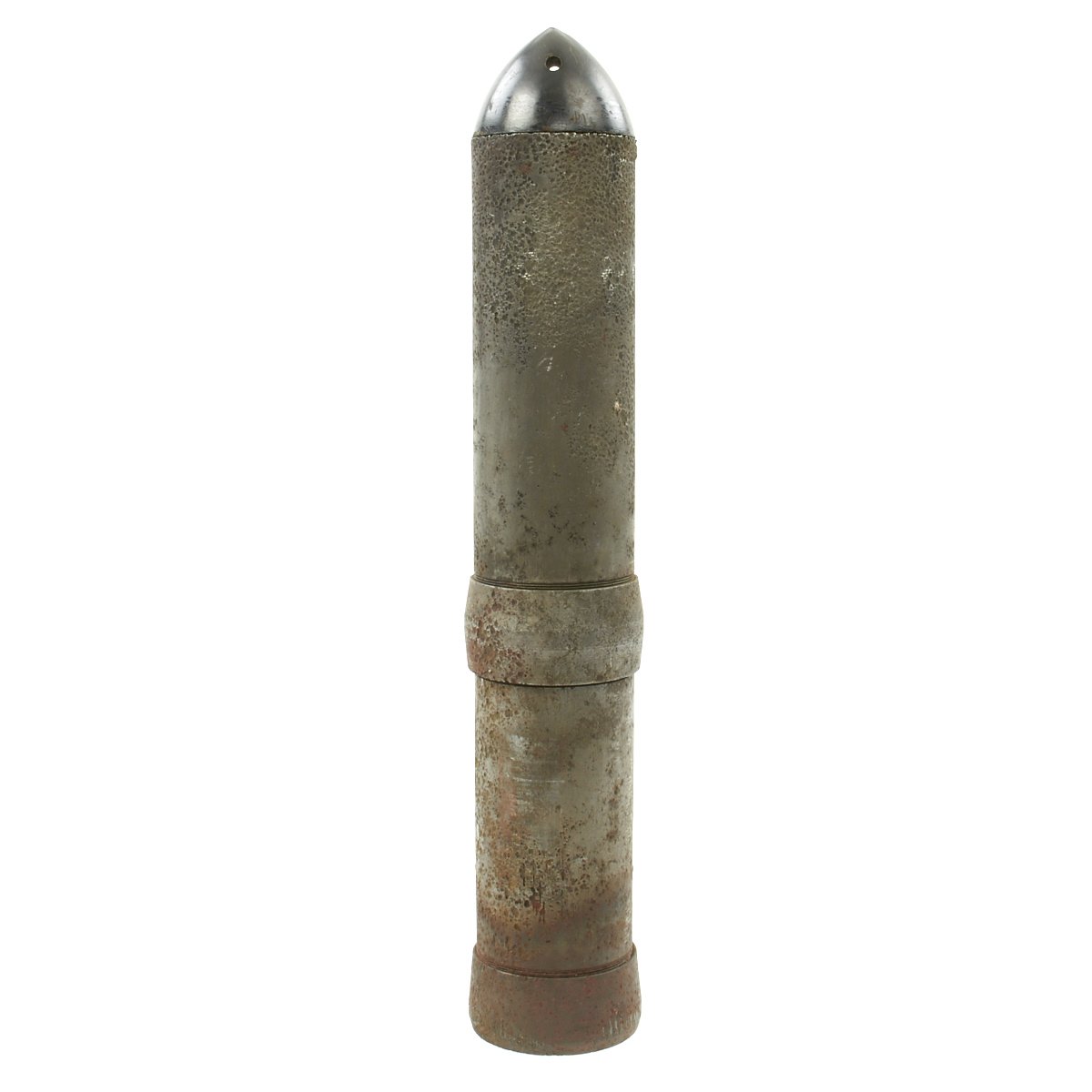

The Propagandagrante 41 was constructed of a plastic (bakelite) nose cone which held 200 leaflets weighing .23 kg (8 oz) that were rolled around a coiled spring and a metallic base which held the solid rocket. When the rocket was fired propellant gasses were forced through a steel base plate that had angled venturis drilled in it to impart spin. A delay fuse was also ignited and a bursting charge separated the nose cone from the base at an altitude of 100–150 m (330–490 ft), the spring then uncoiled to scatter the leaflets.
The Propagandawerfer 41 was a rocket launcher for the associated non-lethal Propagandagrante 41 rocket. The launcher and rocket were a light man-portable system fired by specially-trained propaganda troops during World War II to distribute leaflets.
Launcher
The Propagandawerfer 41 consisted of a light 12.26 kg (27 lb) steel tube framework. The base of the launcher was triangular in shape and had a crossbar through the center with a hinge that connected the base to a circular launch cage. At the tip of the base there was an adjustable arm for elevating the launch cage and in the center of the launch cage was a trough which the Propagandagranate 41 rocket was launched from.[2] The rocket rested at the top of the cage until the crew pulled a lanyard, the rocket then slid down until it hit a firing pin which launched the rocket.
Rocket
The Propagandagrante 41 was constructed of a plastic (bakelite) nose cone which held 200 leaflets weighing .23 kg (8 oz) that were rolled around a coiled spring and a metallic base which held the solid rocket. When the rocket was fired propellant gasses were forced through a steel base plate that had angled venturis drilled in it to impart spin. A delay fuse was also ignited and a bursting charge separated the nose cone from the base at an altitude of 100–150 m (330–490 ft), the spring then uncoiled to scatter the leaflets.
- This product is not available for international shipping.
- This item is completely legal within the USA. International Military Antiques, Inc observes all Federal, State and Local laws. Everything for sale on ima-usa.com is completely legal to own, trade, transport and sell within the United States of America. Every display machinegun and machine gun parts set and gun sold by IMA, Inc is engineered to be inoperable according to guidelines provided by the US Bureau of Alcohol, Tobacco, Firearms and Explosives (BATF).
- Not eligible for payment with Paypal or Amazon
