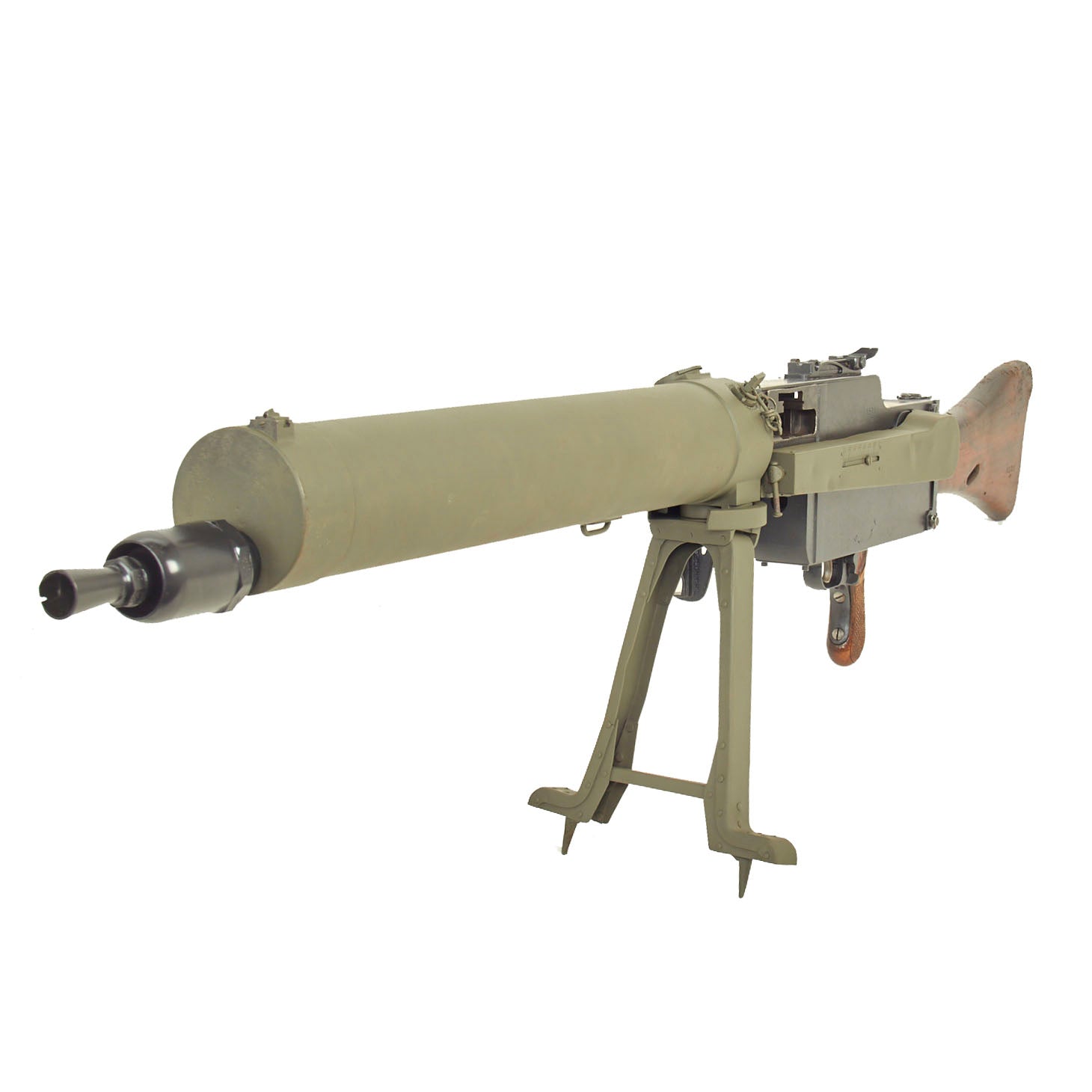

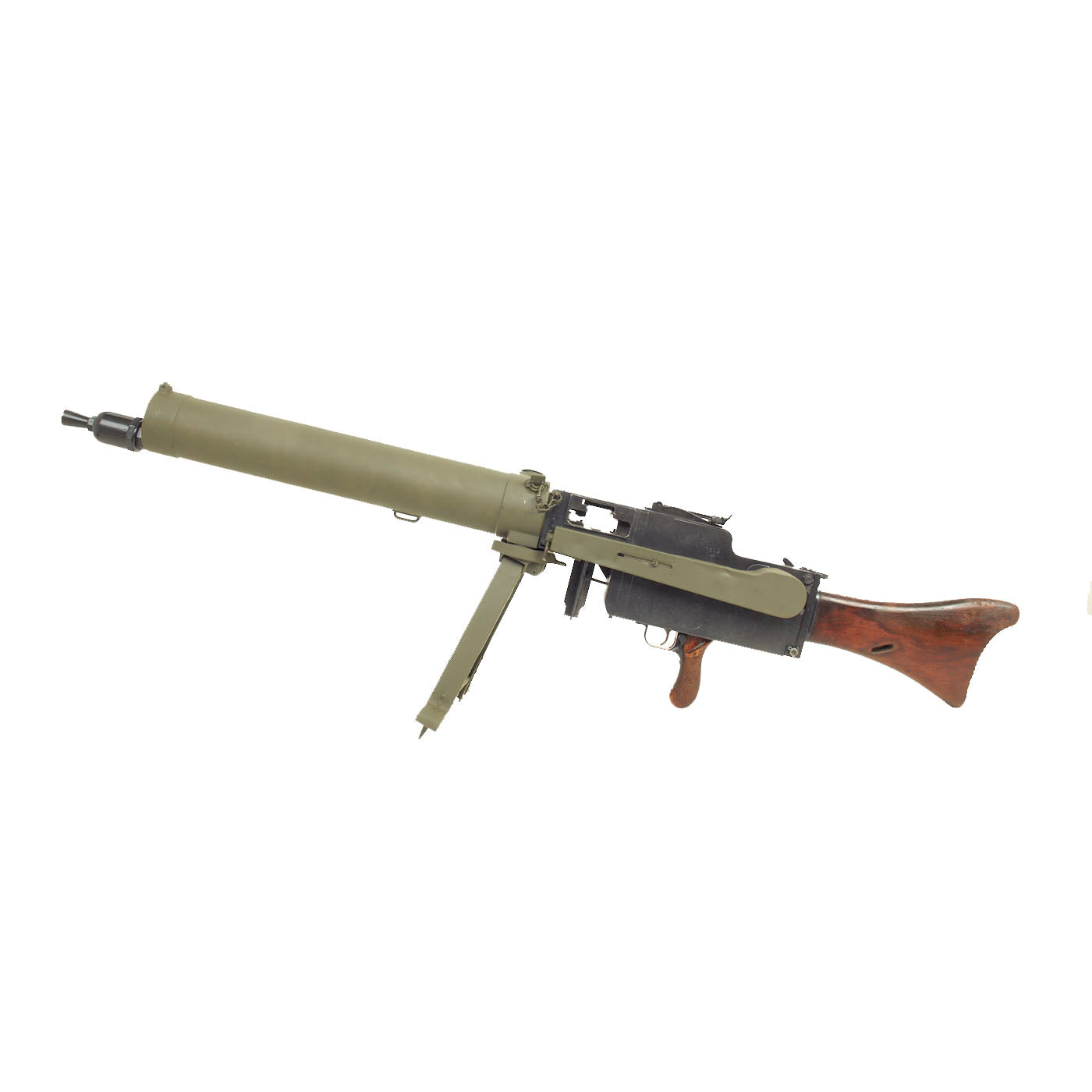

Original German WWI Maxim MG 08/15 Display Machine Gun Serial 1519 a by M.A.N NÜRNBERG - dated 1918

Regular price $5,495.00

Item Description

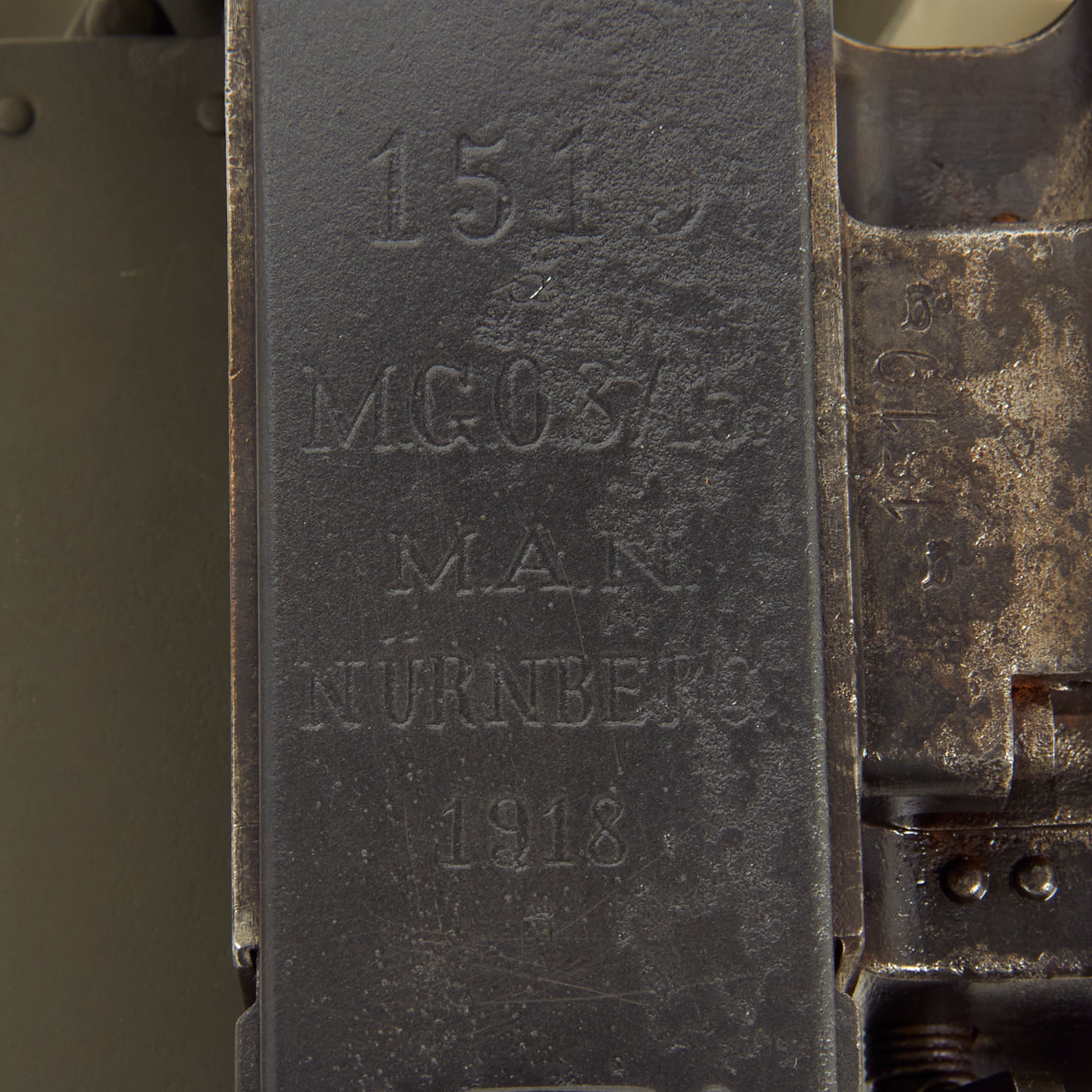

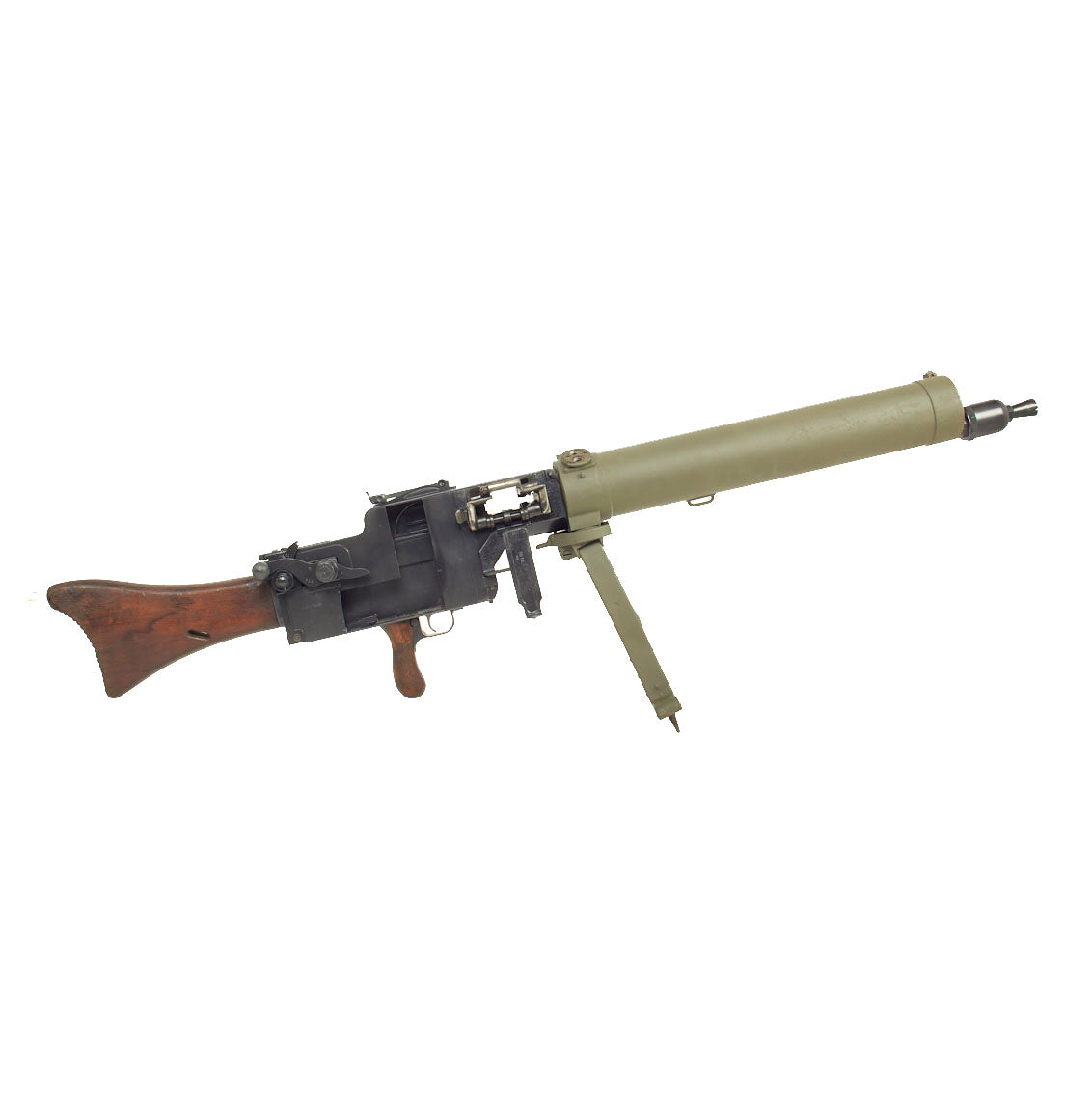

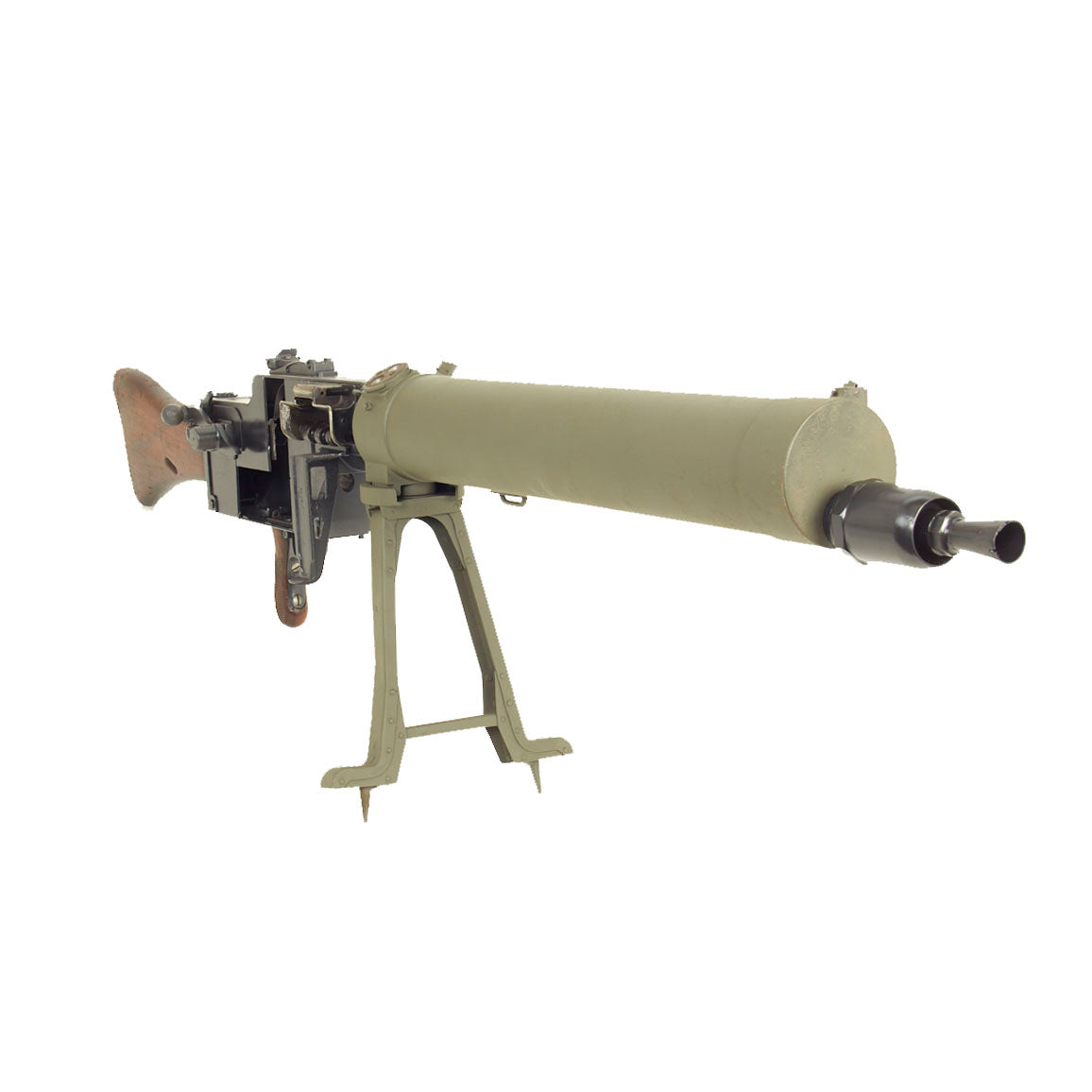

Original Item: Only One Available. This fine example of the legendary German Maxim Maschinengewehr (Machine Gun) 08/15, known as the MG 08/15. This gun became, by far, the most common German machine gun deployed in World War I (Dolf Goldsmith, 1989) since it reached a full allocation of six guns per company or 72 guns per regiment in 1918. By that time, there were four times as many MG 08/15 light machine guns than heavy MG 08 machine guns in each infantry regiment. This great example is covered with markings and proofs, and is nicely marked on the top cover:

1915
a

M.G. 08/15.
M.A.N.
NÜRNBERG.
1918

The initials M.A.N stand for Maschinenfabrik Augsburg Nürnberg AG, a company known more for its heavy machinery than armaments. However, during the War many companies were contracted to produce the MG08/15, and while the majority were made at the Spandau and Erfurt arsenals, there were a few made by private contractors, which makes this an especially interesting and rare example, the only example we have seen.

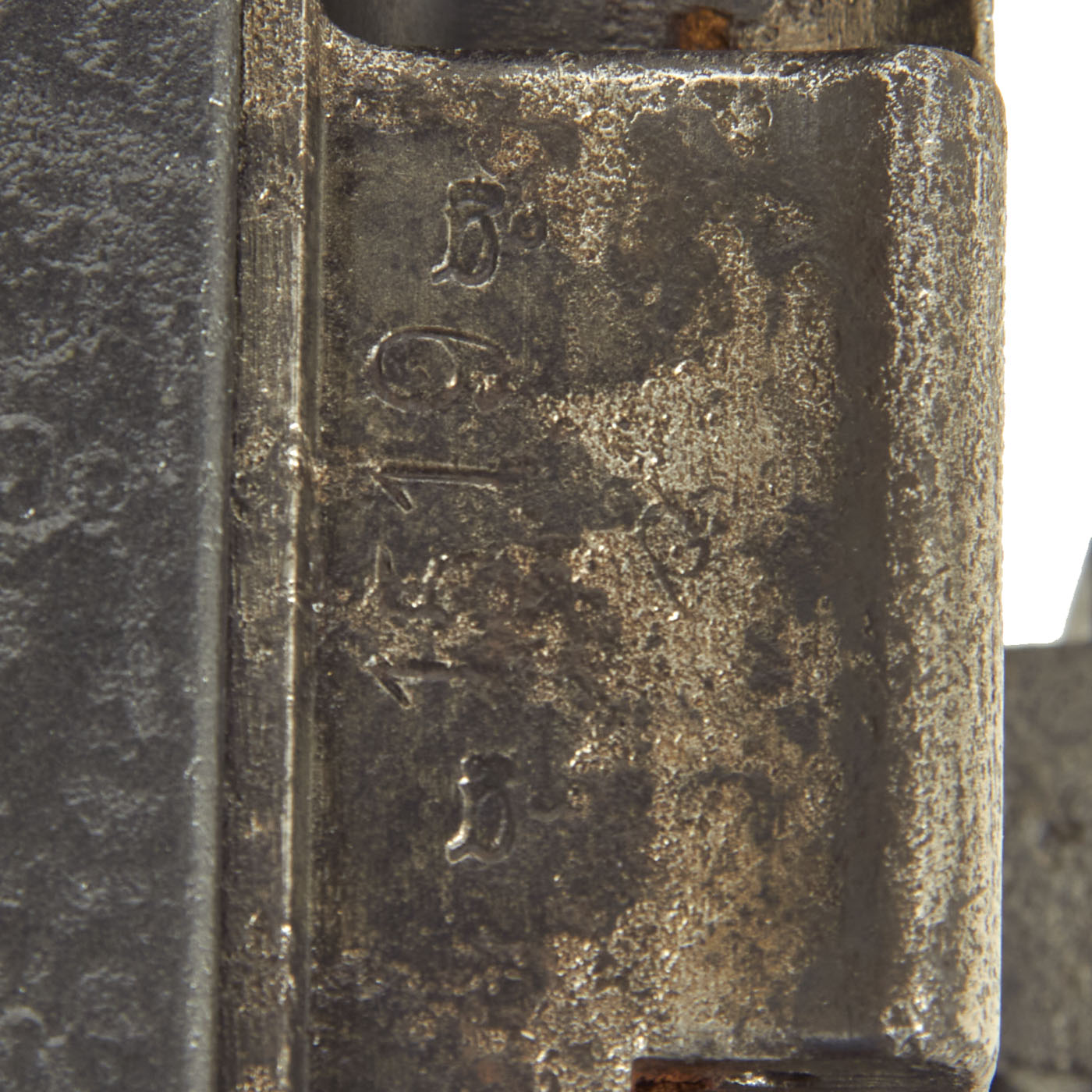

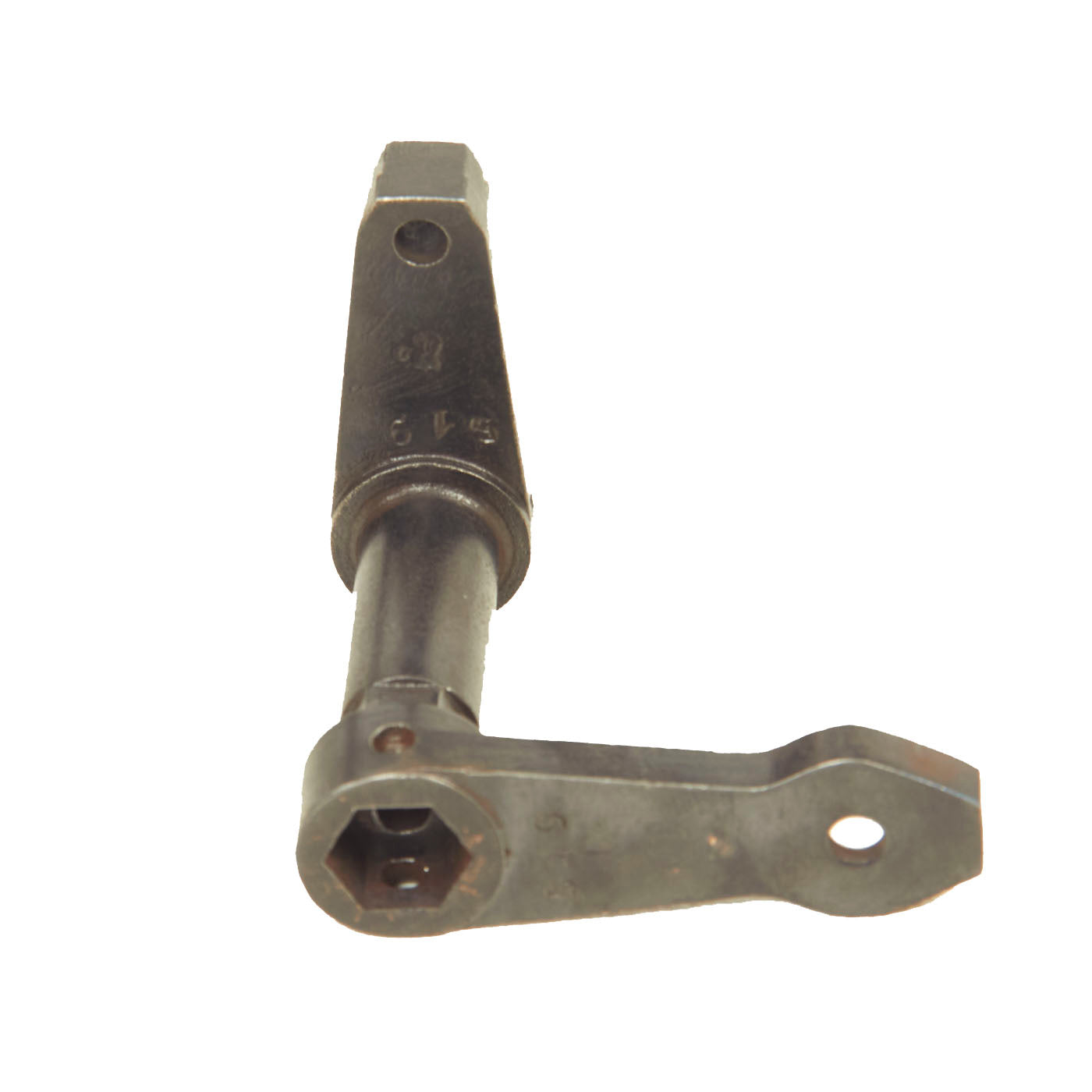

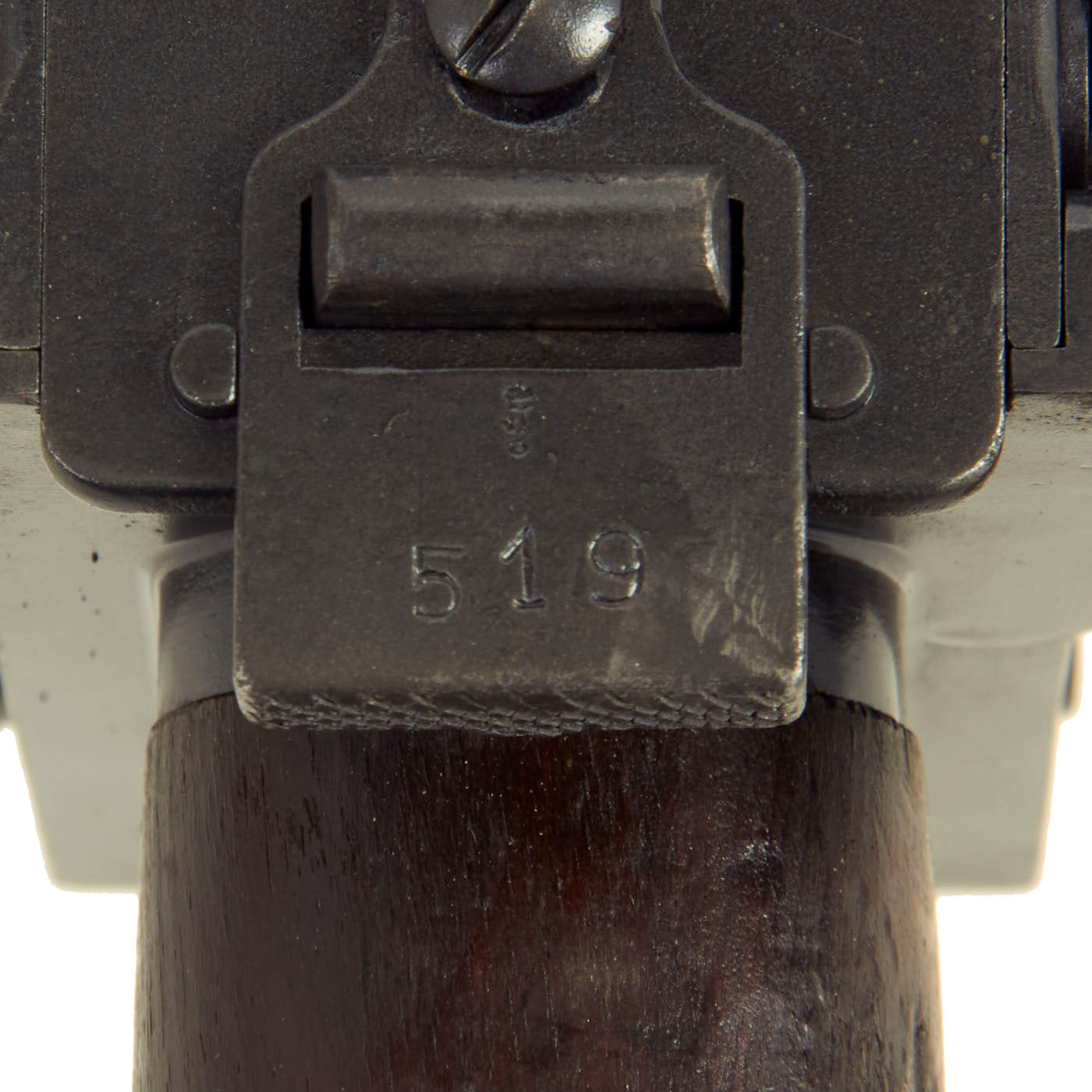

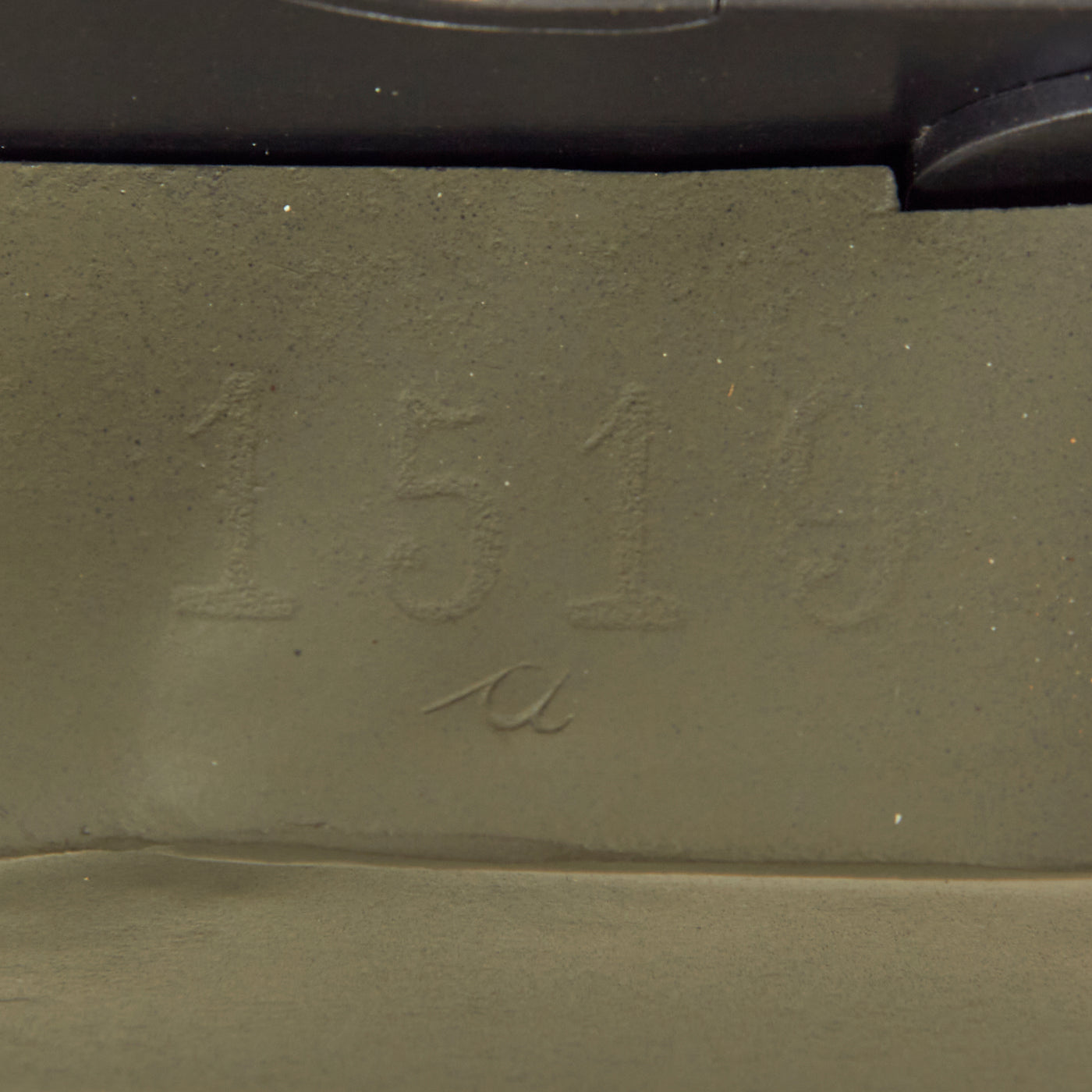

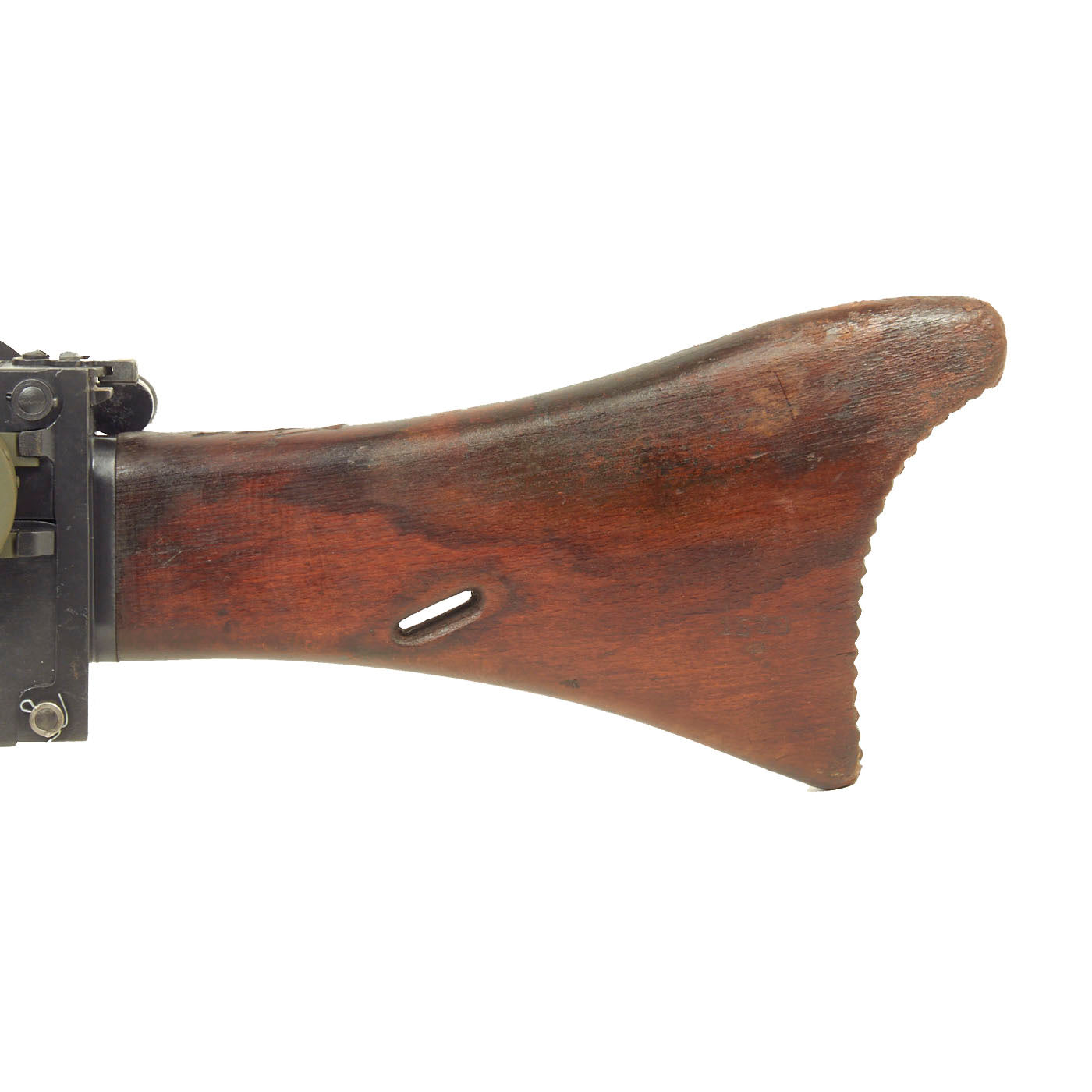

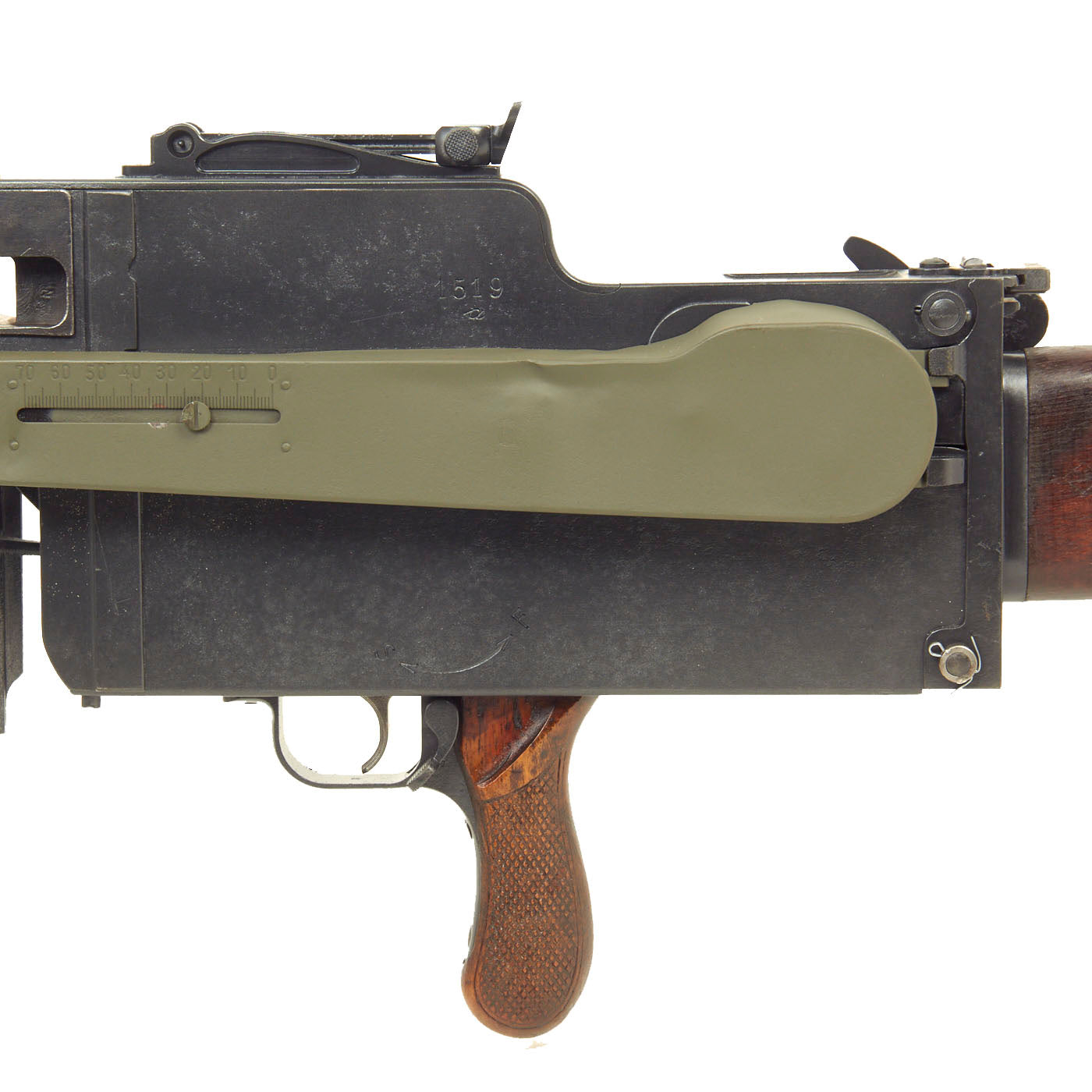

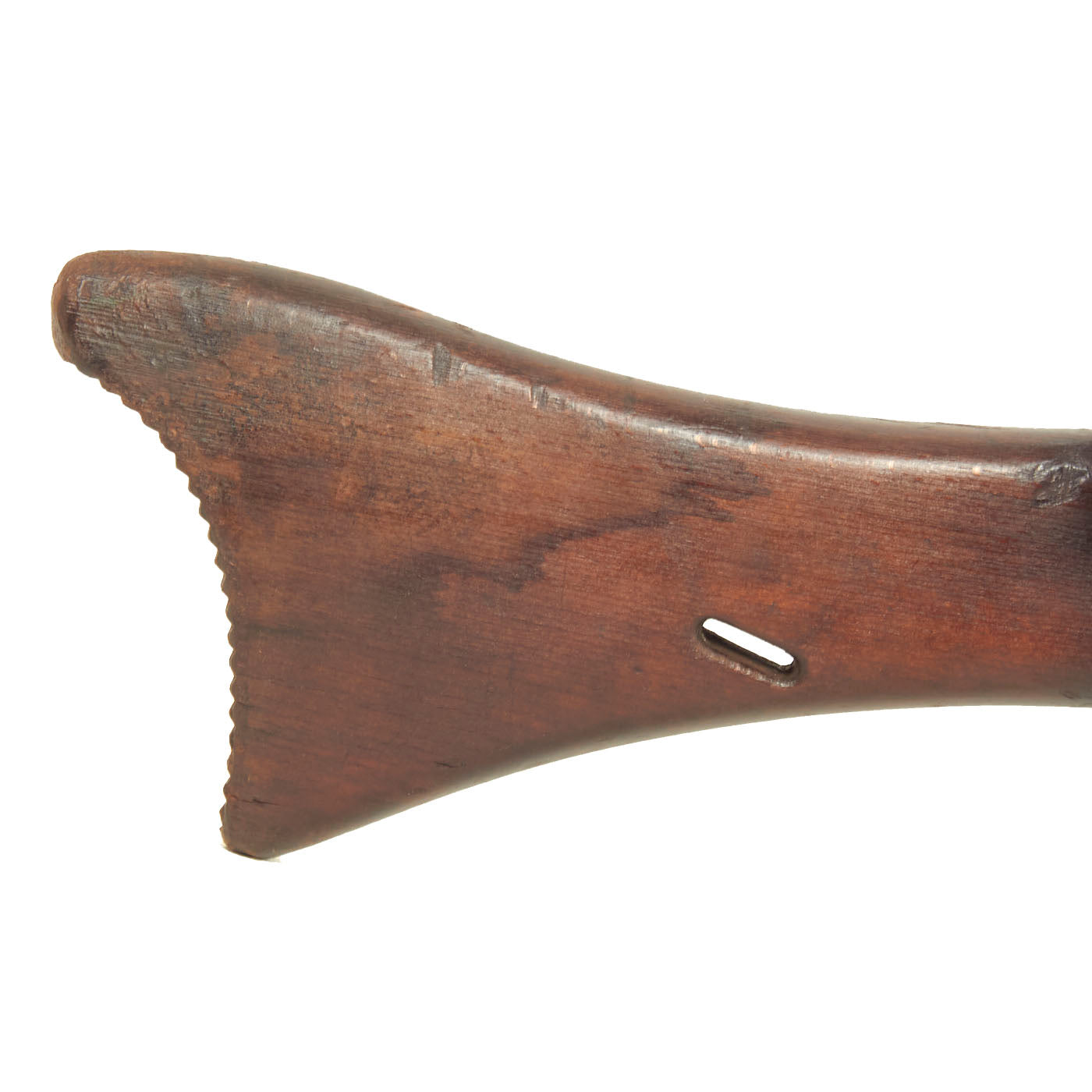

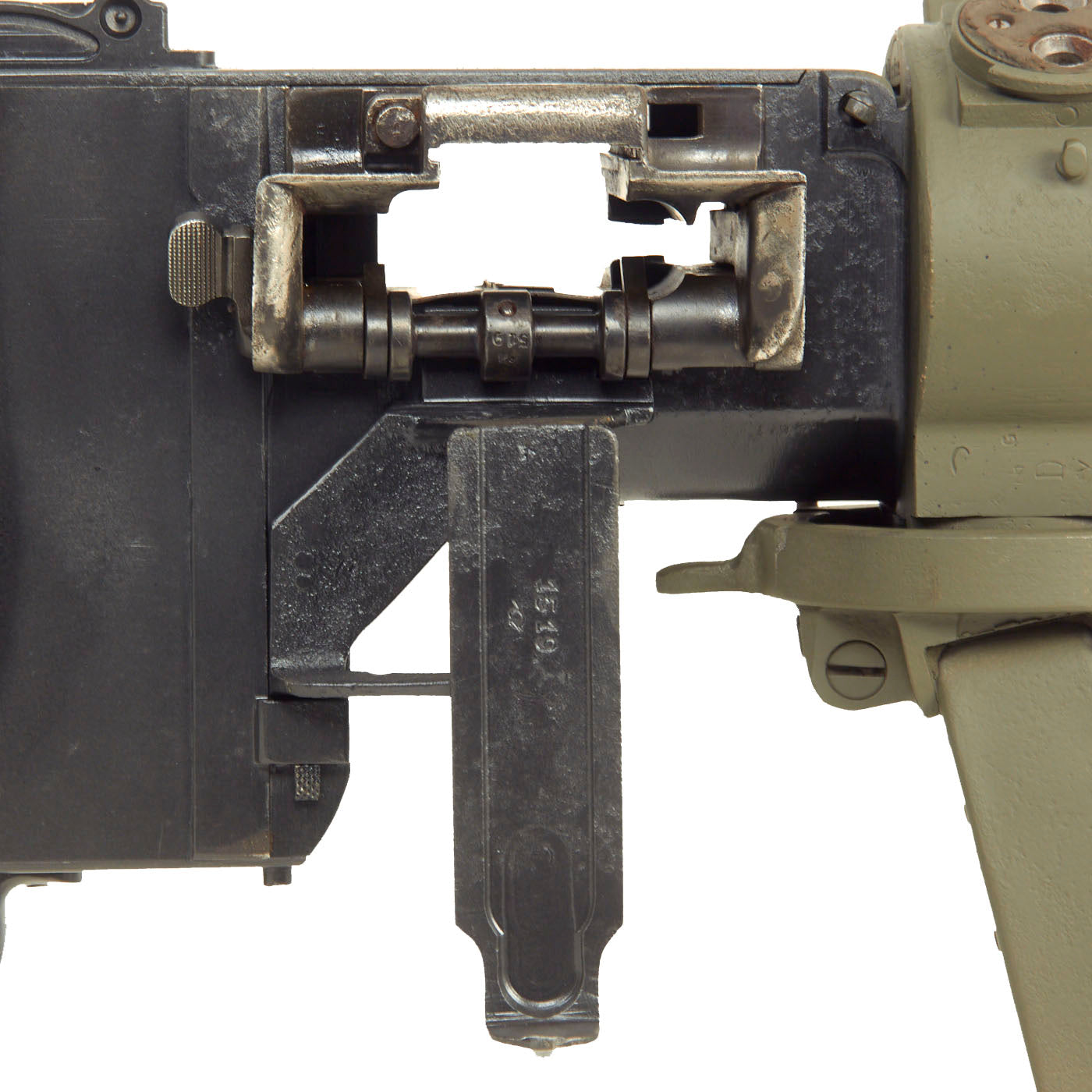

The top cover and fusee spring cover are marked with serial number 1915 / a, while the crank handle, side plate, feed tray, wooden butt stock, and other components all have the serial number 1915 (often shortened to 915) meaning this is a very rare matched numbered example! Even the belt drum bracket is number matching! There are lot of markings and proofs on this example, typical of WW1 German production.

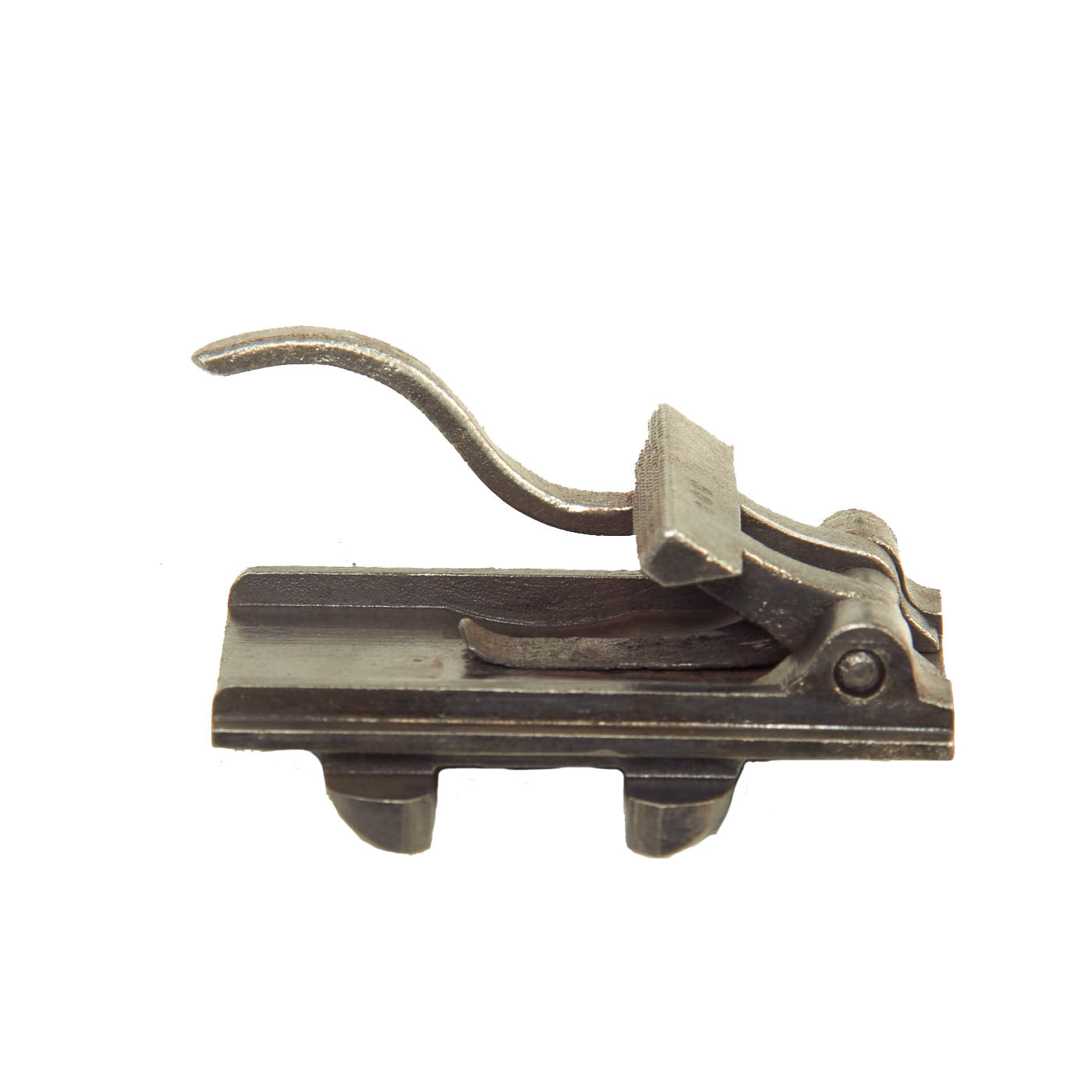

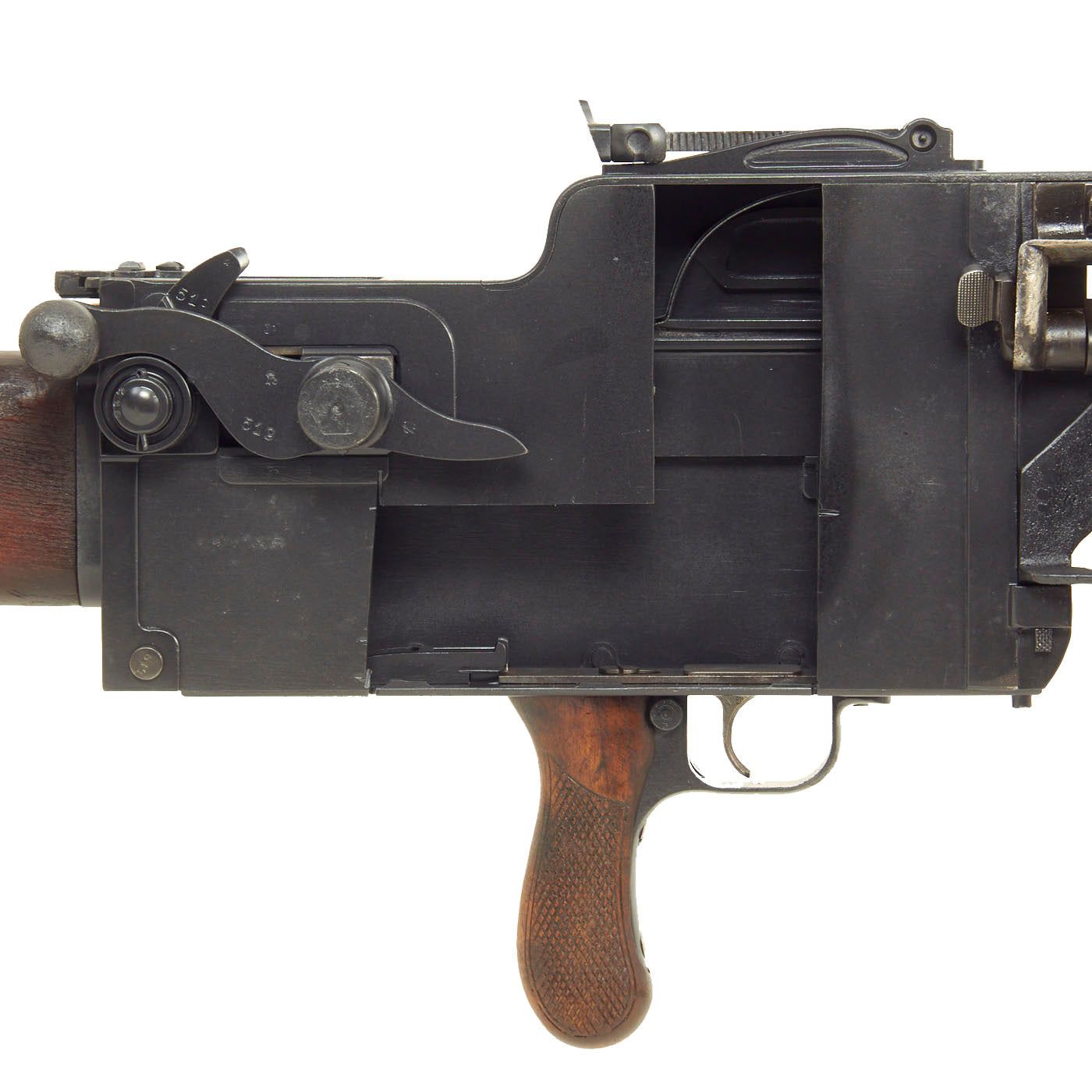

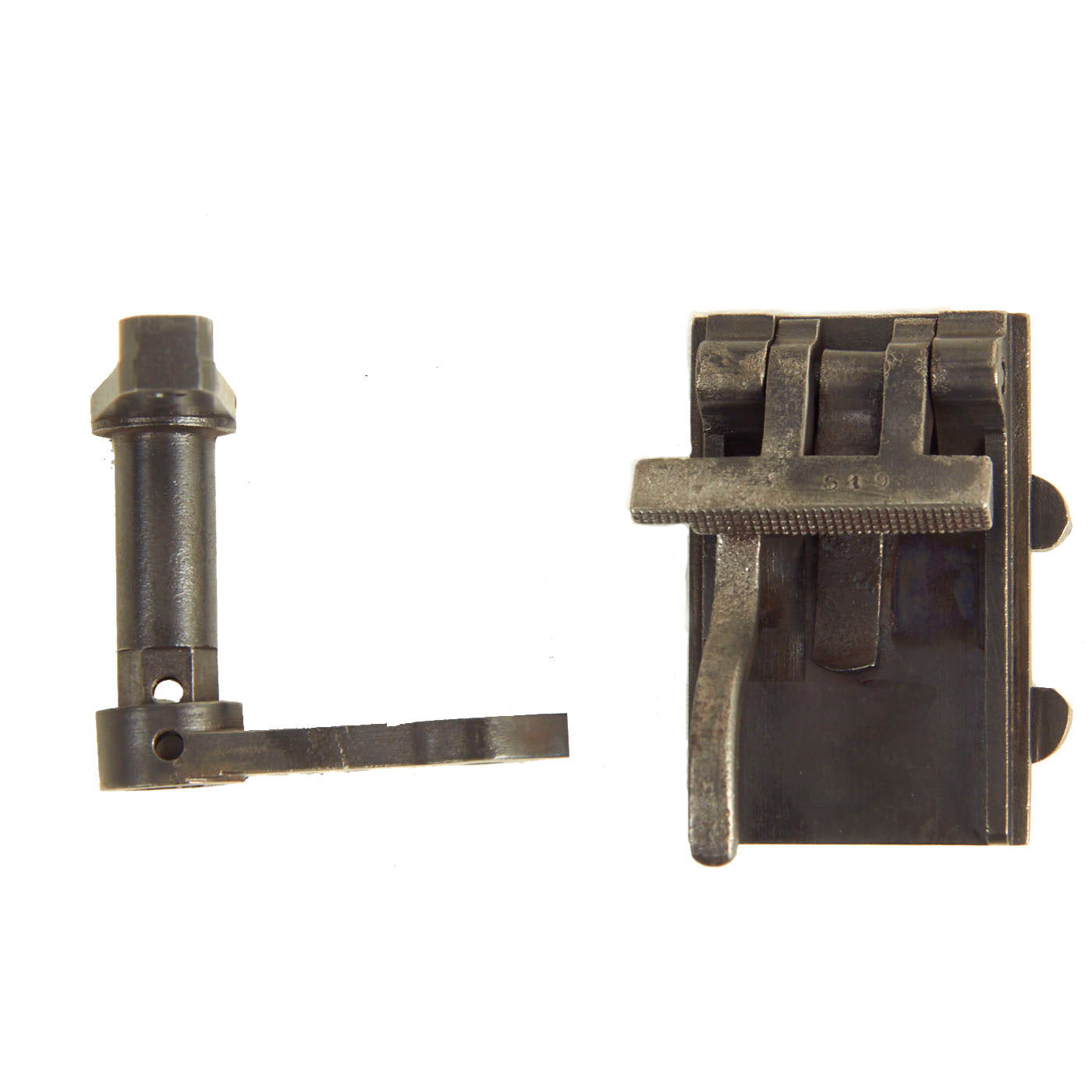

This is a complete and fully BATF approved inert non-firing display non-gun built using a deactivated right side plate, which has been left open so that the interior can be seen. There are no new made parts we know of used in the construction of this display gun. Please note that the lock is not included, and that the feed block had to have some components removed so that it would fit into the deactivated barrel plates. The removed parts are included.

Perfect for advanced collectors, ones this nice rarely come to market. Ready to be the centerpiece of your German WWI collection!

History of the MG 08-

The Maschinengewehr 08, or MG 08, was the German Army's standard machine gun in World War I and is an adaption of Hiram S. Maxim's original 1884 Maxim gun. It was produced in a number of variants during the war. The MG 08 served during World War II as a heavy machine gun in many German infantry divisions, although by the end of the war it had mostly been relegated to second-rate fortress units.

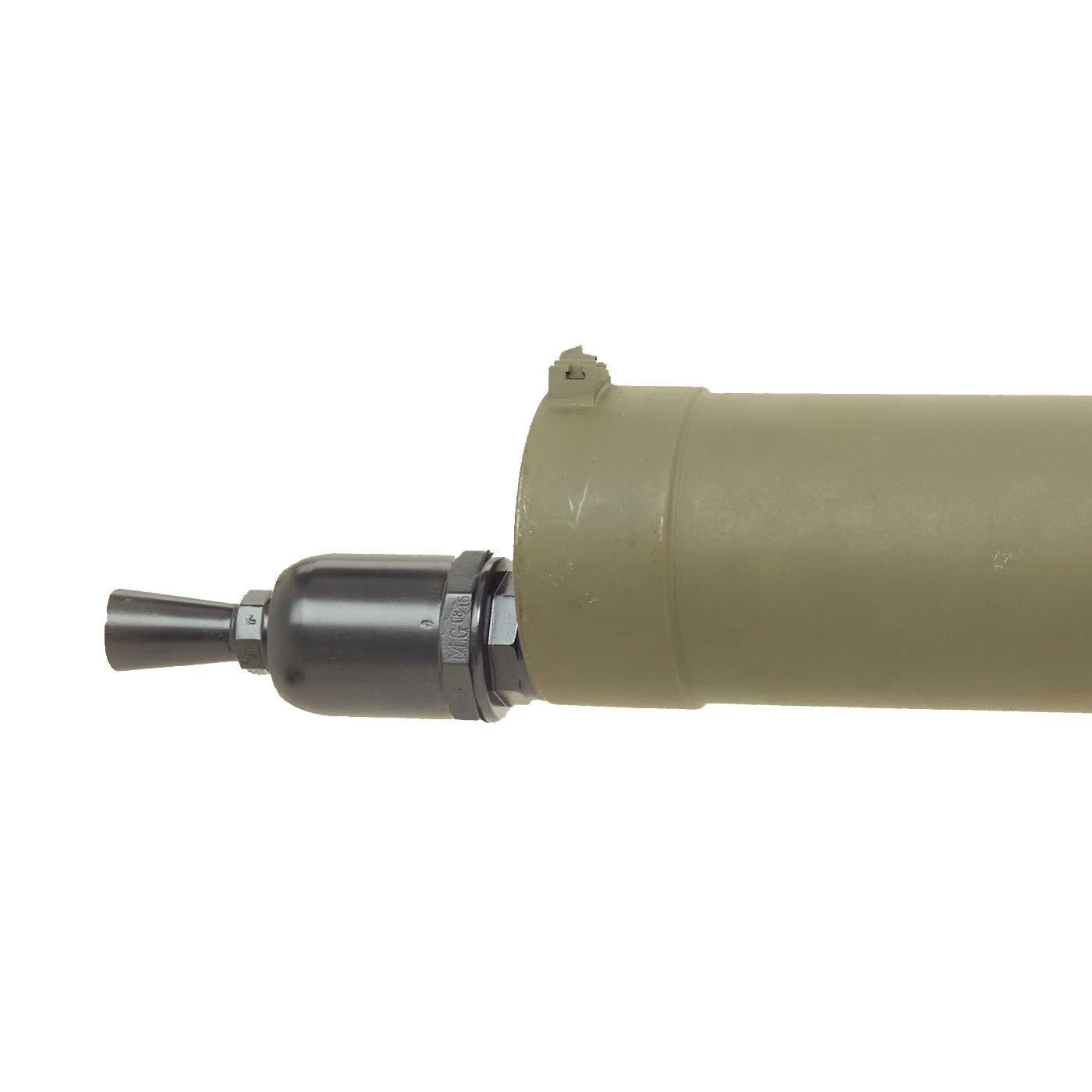

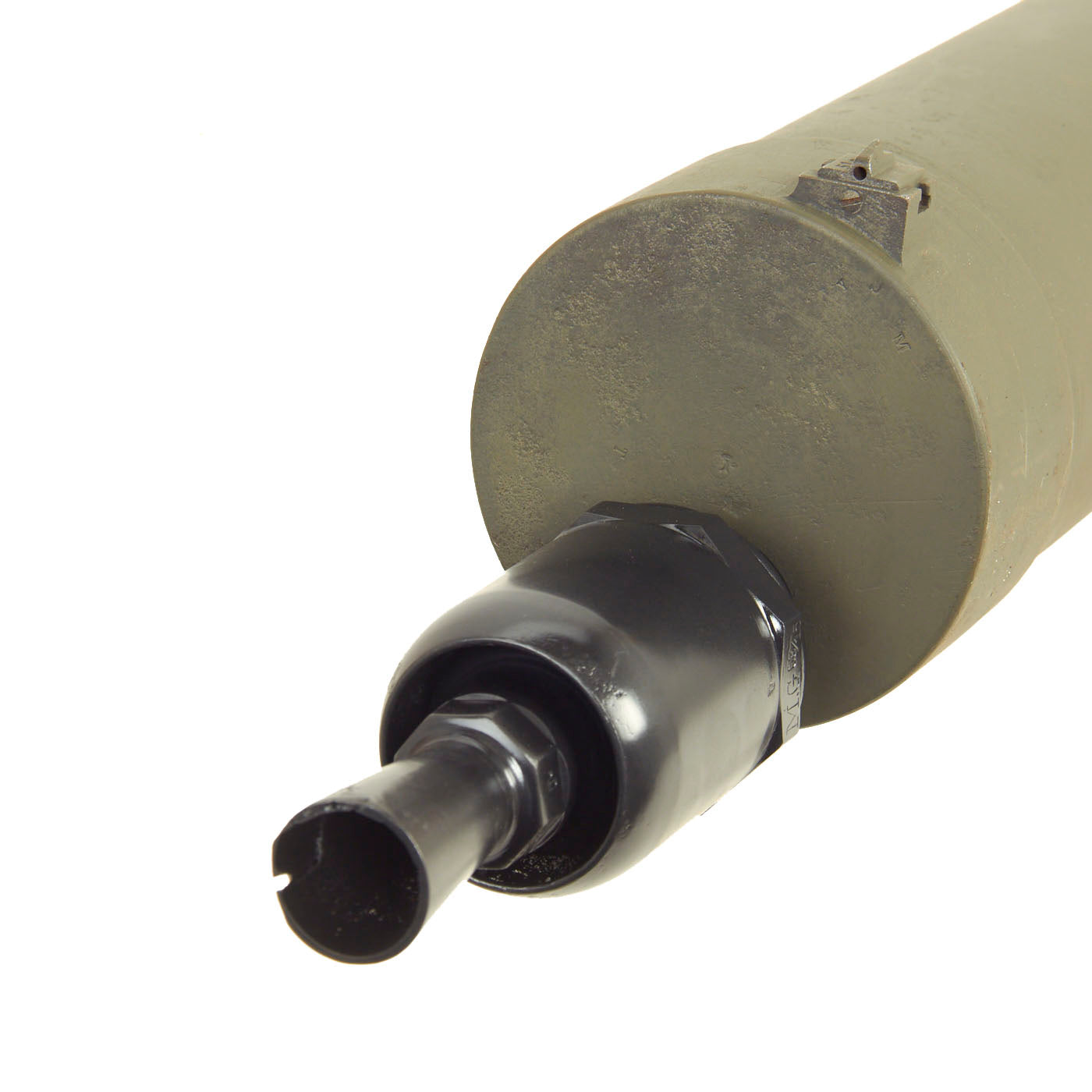

The Maschinengewehr 08 (or MG 08) - so-named after 1908, its year of adoption - was a development of the license made Maschinengewehr 01. It could reach a firing rate of up to 400 rounds per minute using 250-round fabric belts of 7.92x57mm ammunition, although sustained firing would lead to overheating; it was water-cooled using a jacket around the barrel that held approximately one gallon of water. Using a separate attachment sight with range calculator for indirect fire, the MG 08 could be operated from cover. Additional telescopic sights were also developed and used in quantity during the war.

The MG 08, like the Maxim gun, operated on the basis of short barrel recoil and a toggle lock; once cocked and fired the MG 08 would continue firing rounds until the trigger was released (or until all available ammunition was expended). Its practical range was estimated at some 2,000 metres (2,200 yd) up to an extreme range of 3,600 metres (3,900 yd). The MG 08 was mounted on a sled mount (German: Schlittenlafette) that was ferried between locations either on carts or else carried above men's shoulders in the manner of a stretcher.

Pre-war production was by Deutsche Waffen und Munitionsfabriken (DWM) in Berlin and the government arsenal at Spandau (so that the gun was often referred to as a Spandau MG 08).

A lightened and thus more portable version - by "stepping-down" the upper rear and lower forward corners of the original MG 08's rectangular-outline receiver and breech assembly - was tested as a prototype in 1915 by a team of weapon designers under the direction of a Colonel Friedrich von Merkatz—the MG 08/15. The MG 08/15 had been designed to be manned by four trained infantrymen spread on the ground around the gun and in the prone position. To accomplish that purpose the MG 08/15 featured a short bipod rather than a heavy four legged sled mount, plus a wooden gunstock and a pistol grip. At 18 kg, the MG 08/15 was lighter and less cumbersome than the standard MG 08 since the MG 08/15 had been designed to provide increased mobility of infantry automatic fire. It nevertheless remained a bulky water-cooled weapon that was quite demanding on the quality and training of its crews. Accurate fire was difficult to achieve and usually in short bursts only. It was first introduced in battle during the French "Chemin des Dames" offensive in April 1917 where it contributed to the very high casualty count among the French assailants. Its deployment in increasingly large numbers with all front line infantry regiments continued in 1917 and during the German offensives of the spring and summer of 1918. The MG 08/15 became, by far, the most common German machine gun deployed in World War I (Dolf Goldsmith, 1989) since it reached a full allocation of six guns per company or 72 guns per regiment in 1918. By that time, there were four times as many MG 08/15 light machine guns than heavy MG 08 machine guns in each infantry regiment. To attain this goal, about 130,000 MG 08/15 had to be manufactured during World War I, most of them by the Spandau and Erfurt government arsenals.
