Original German WWI Maxim LMG 08/15 Aircraft Display Machine Gun - Spandau 1918 - Serial 1327 r

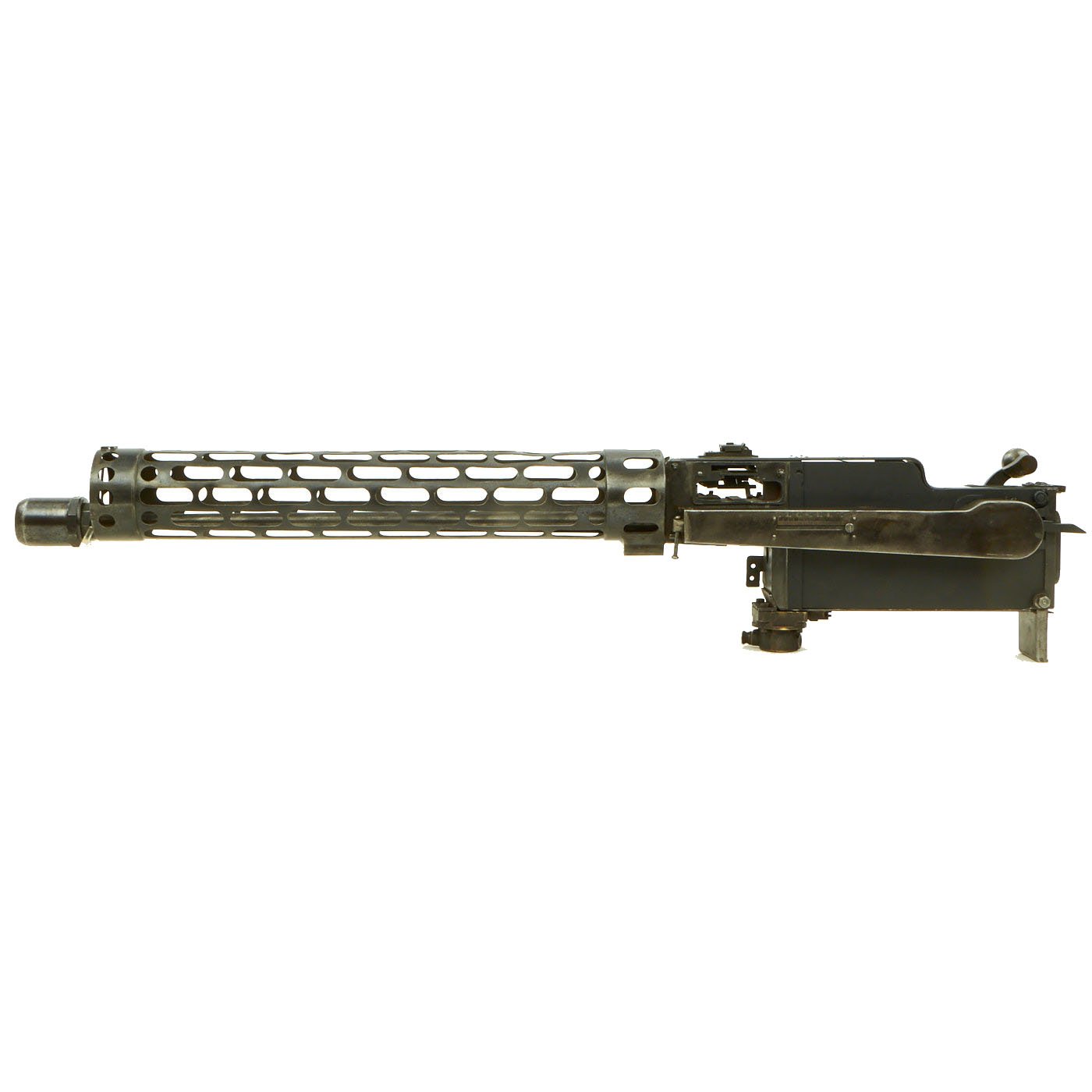

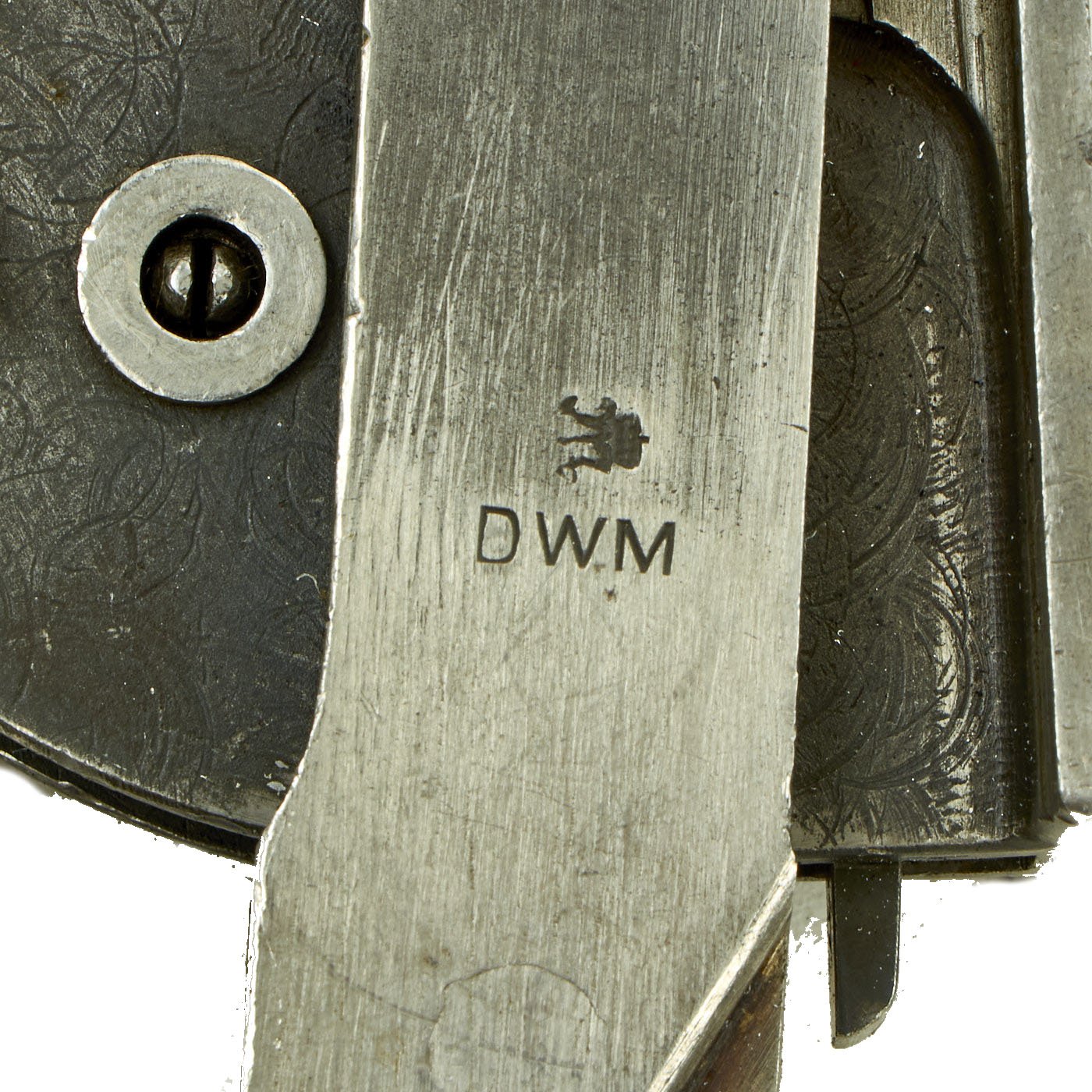

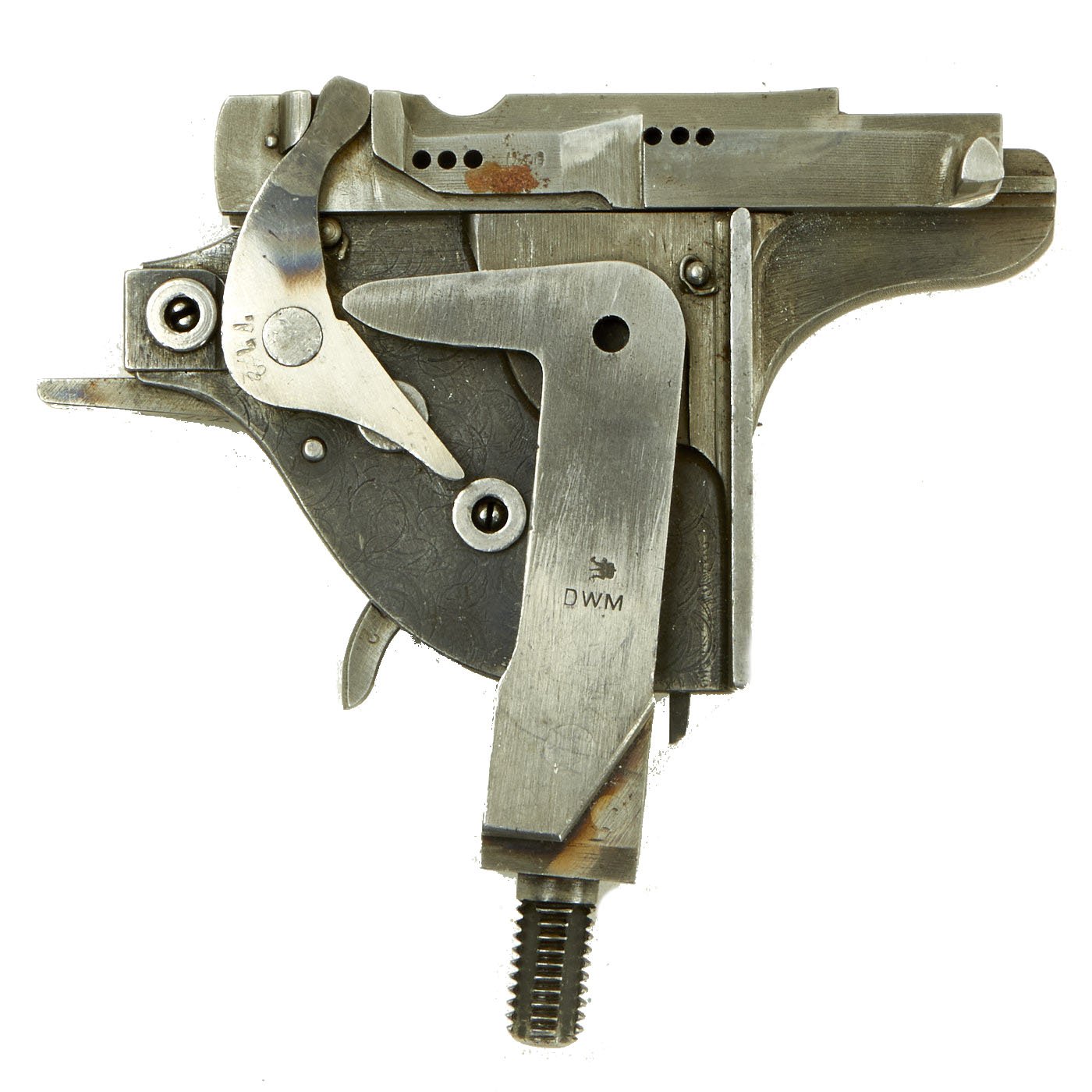

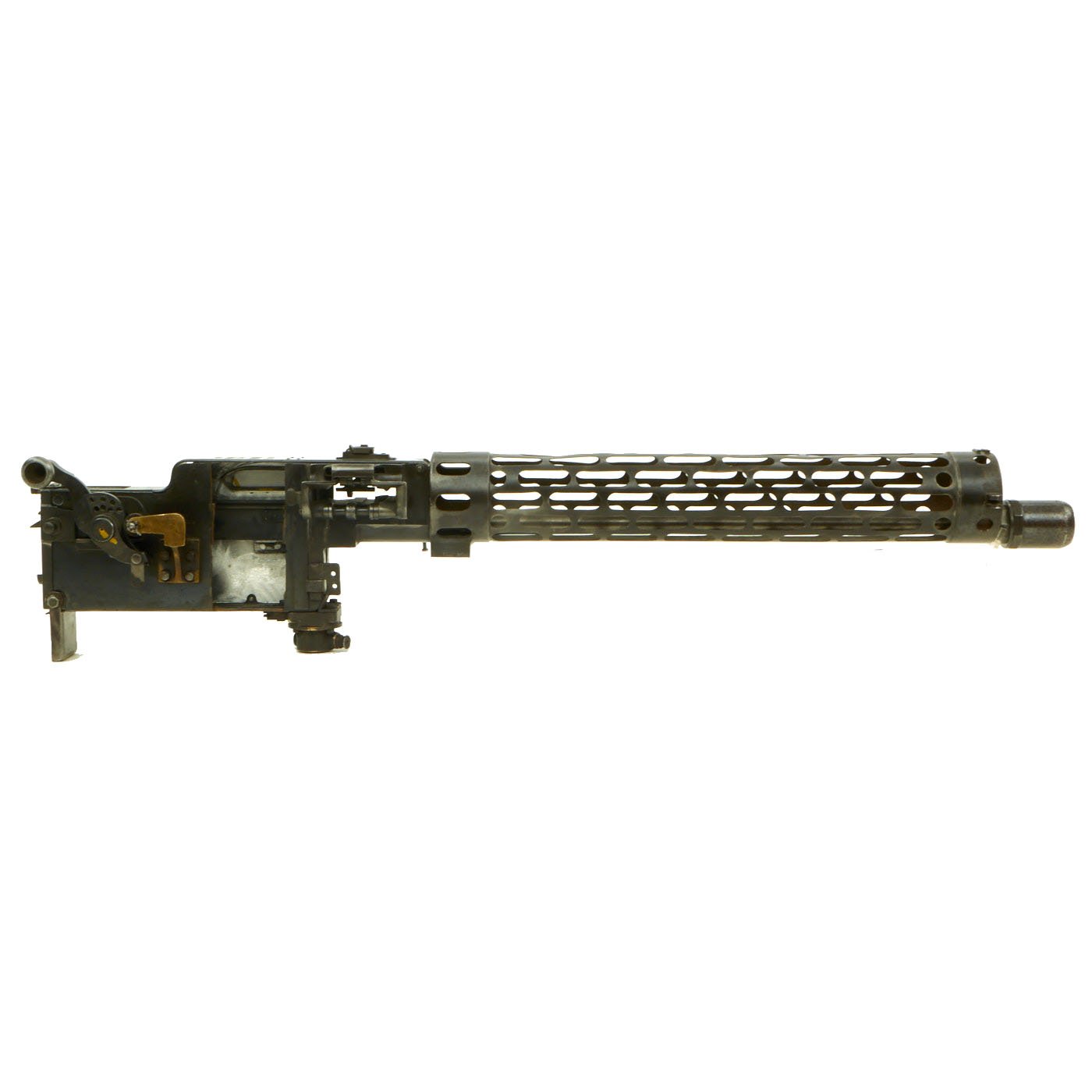

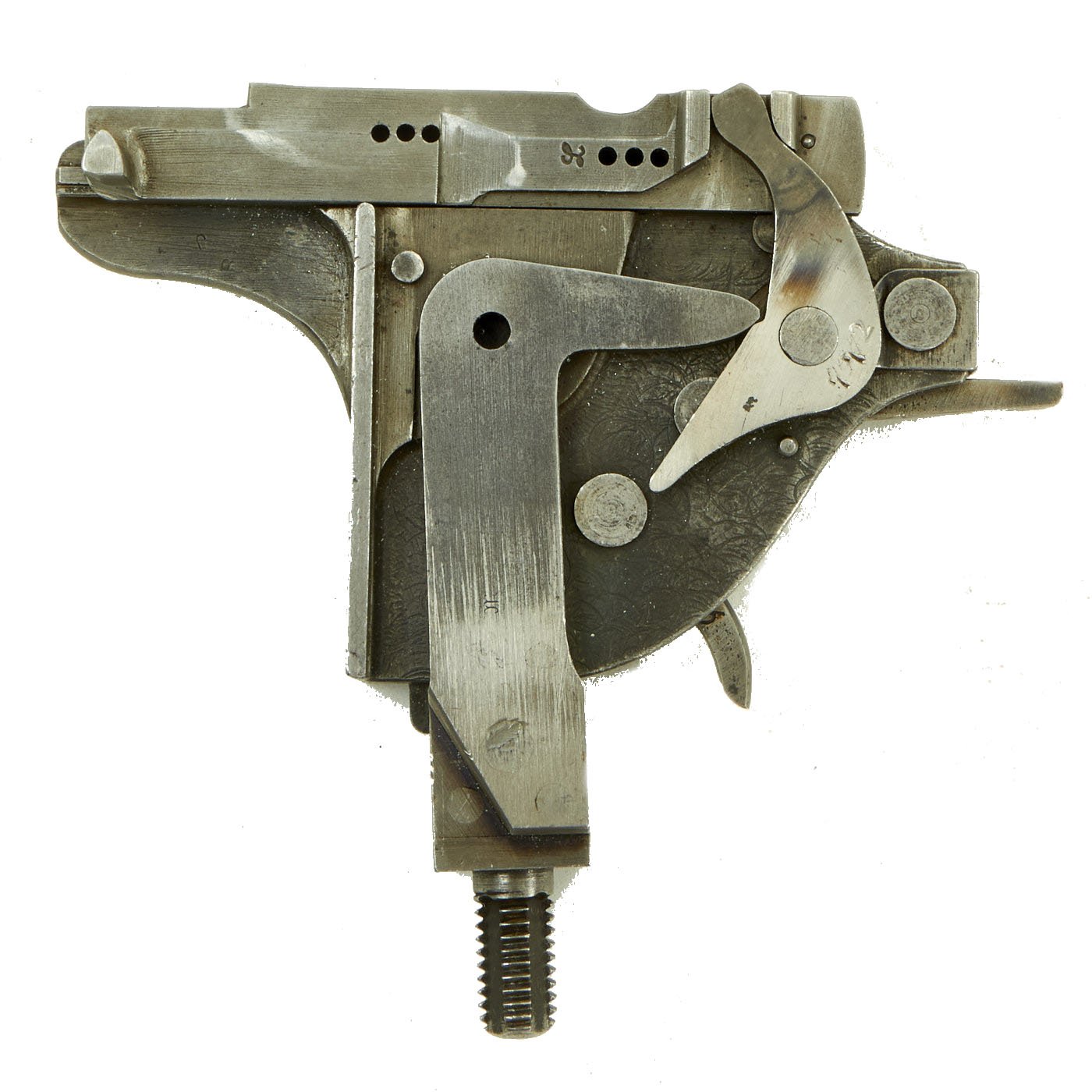

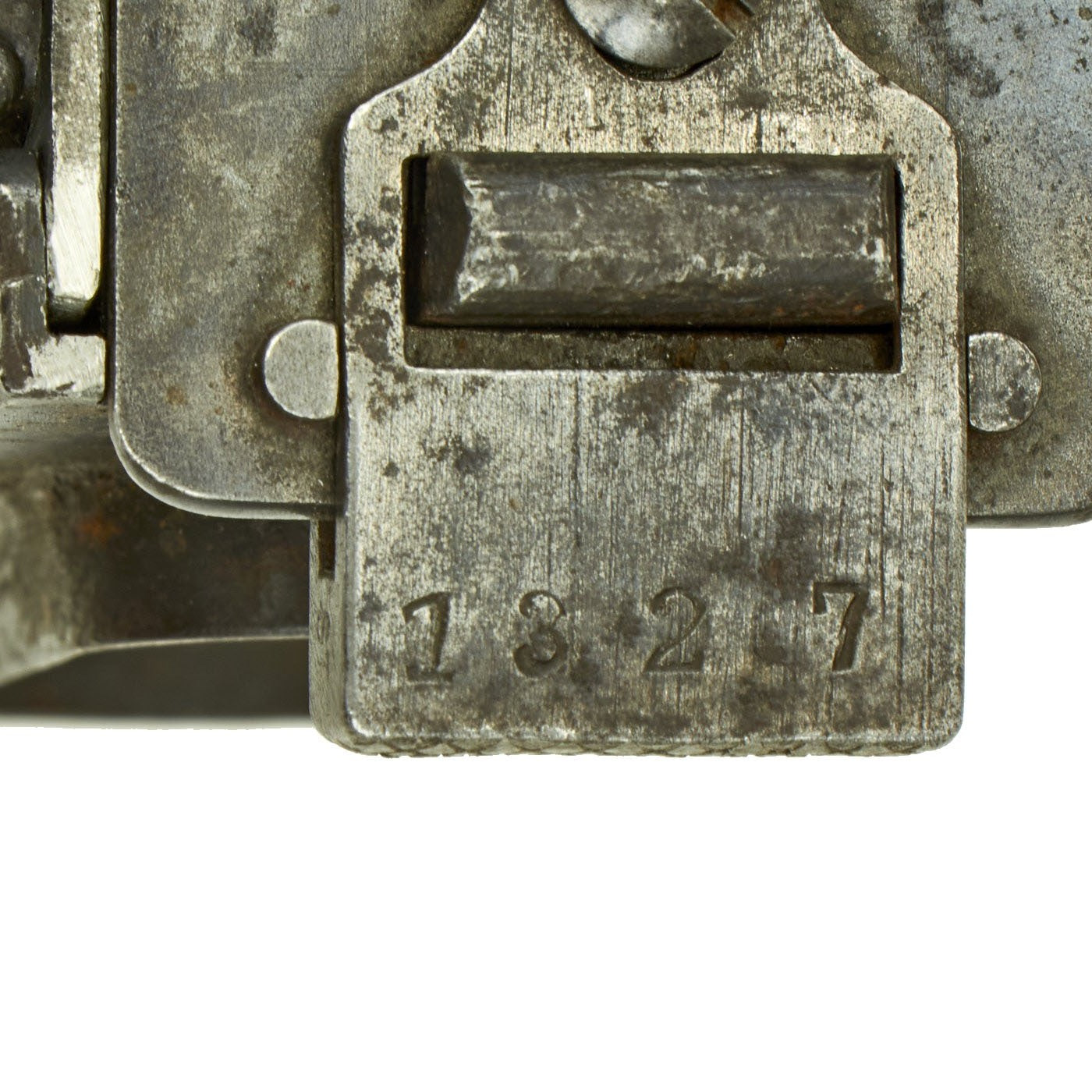

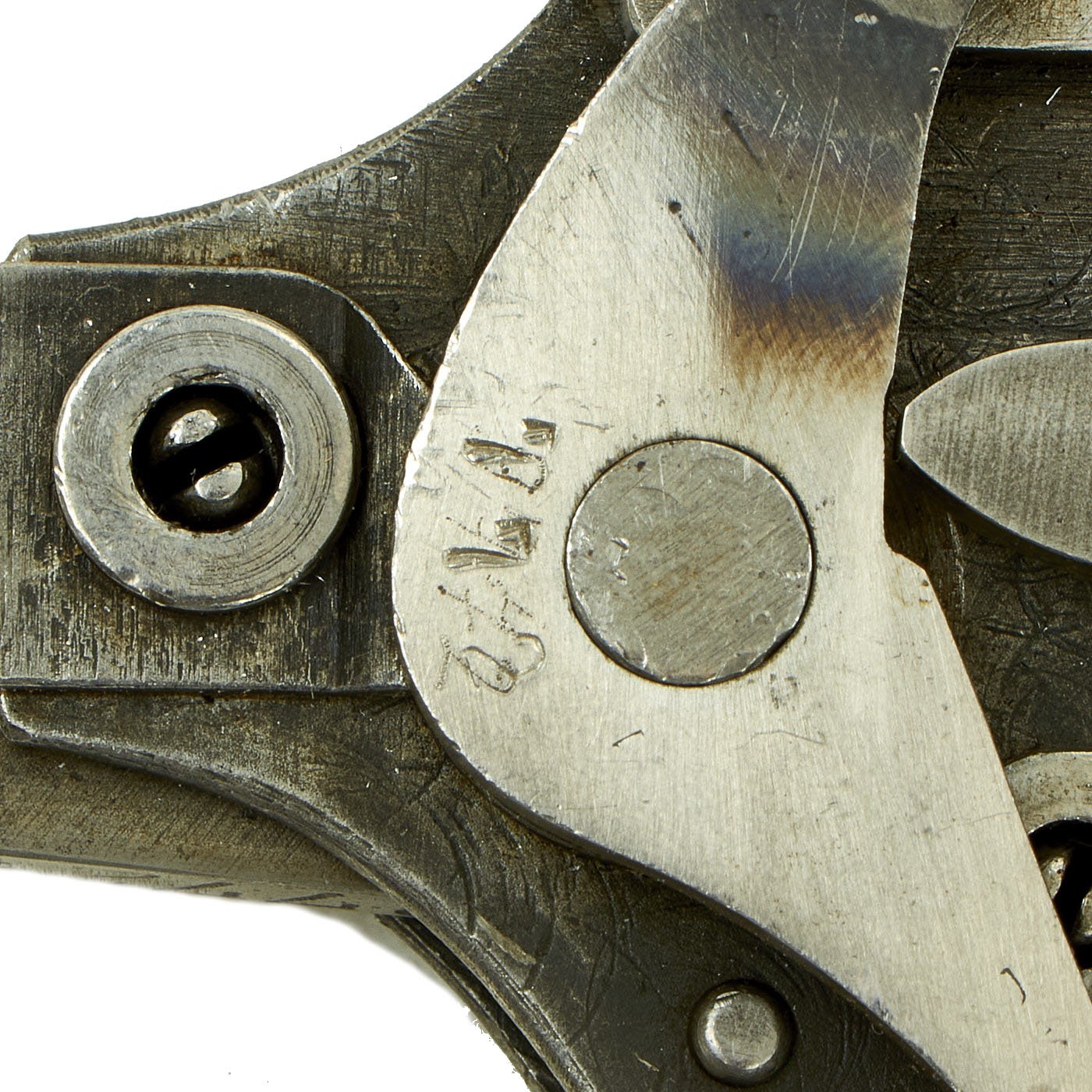

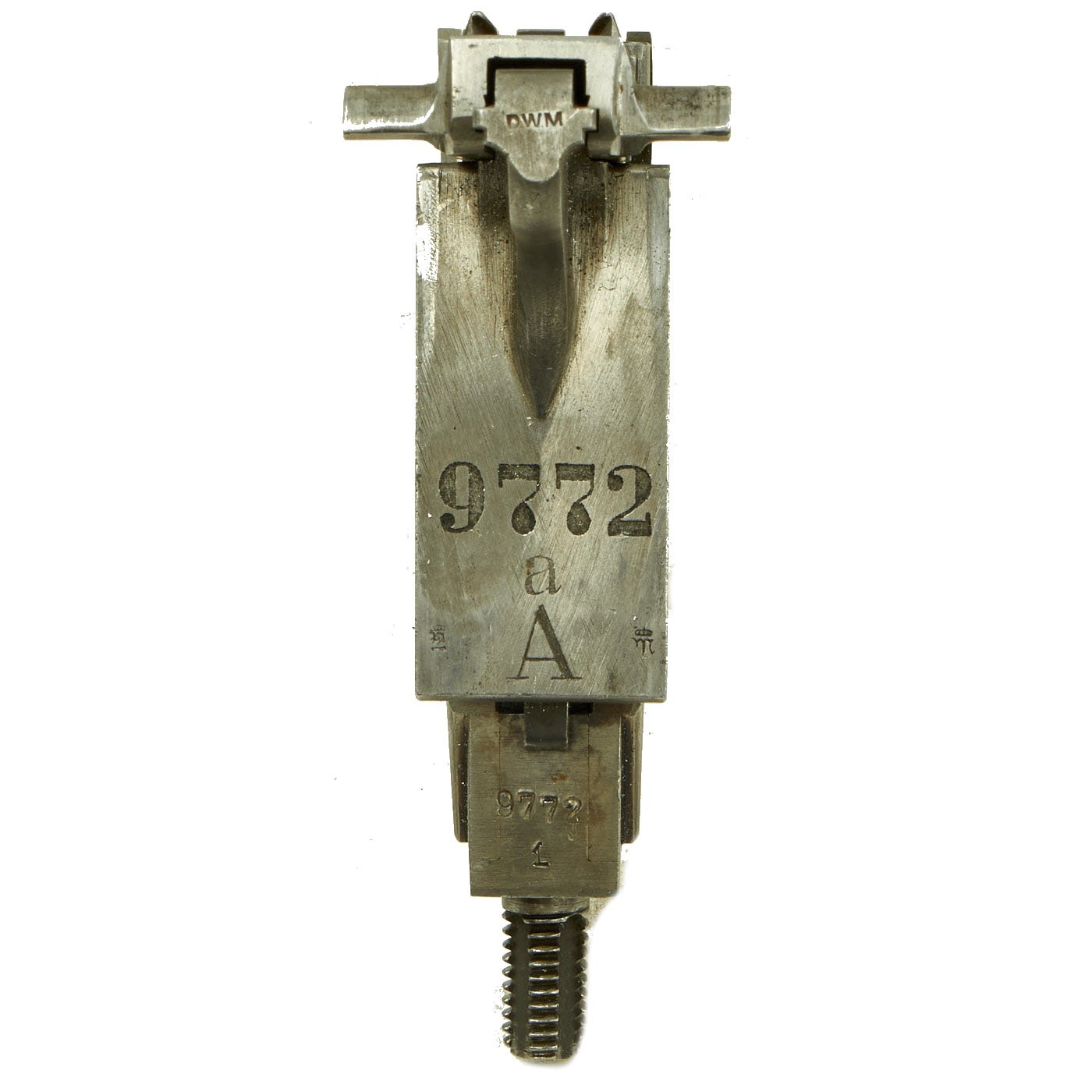

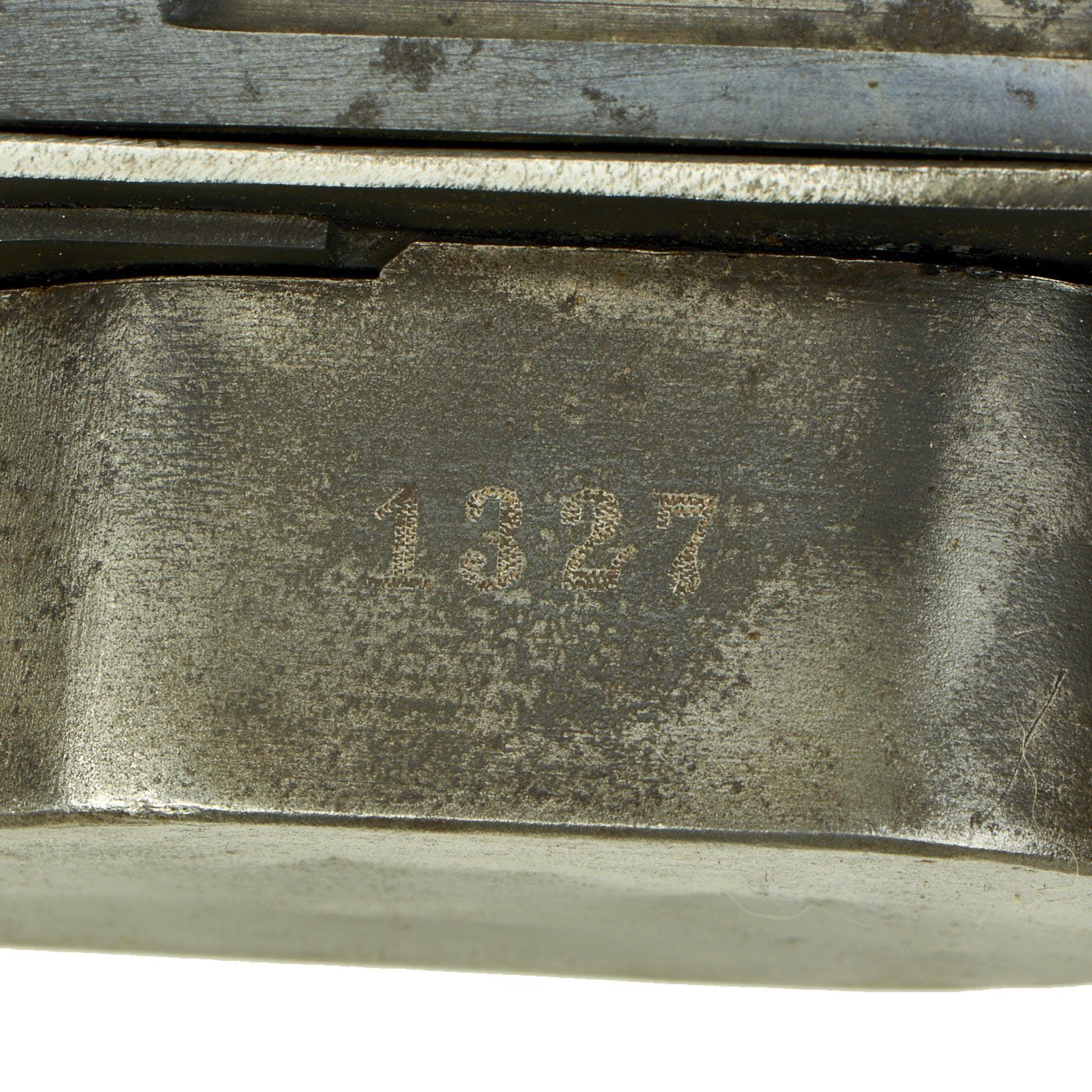

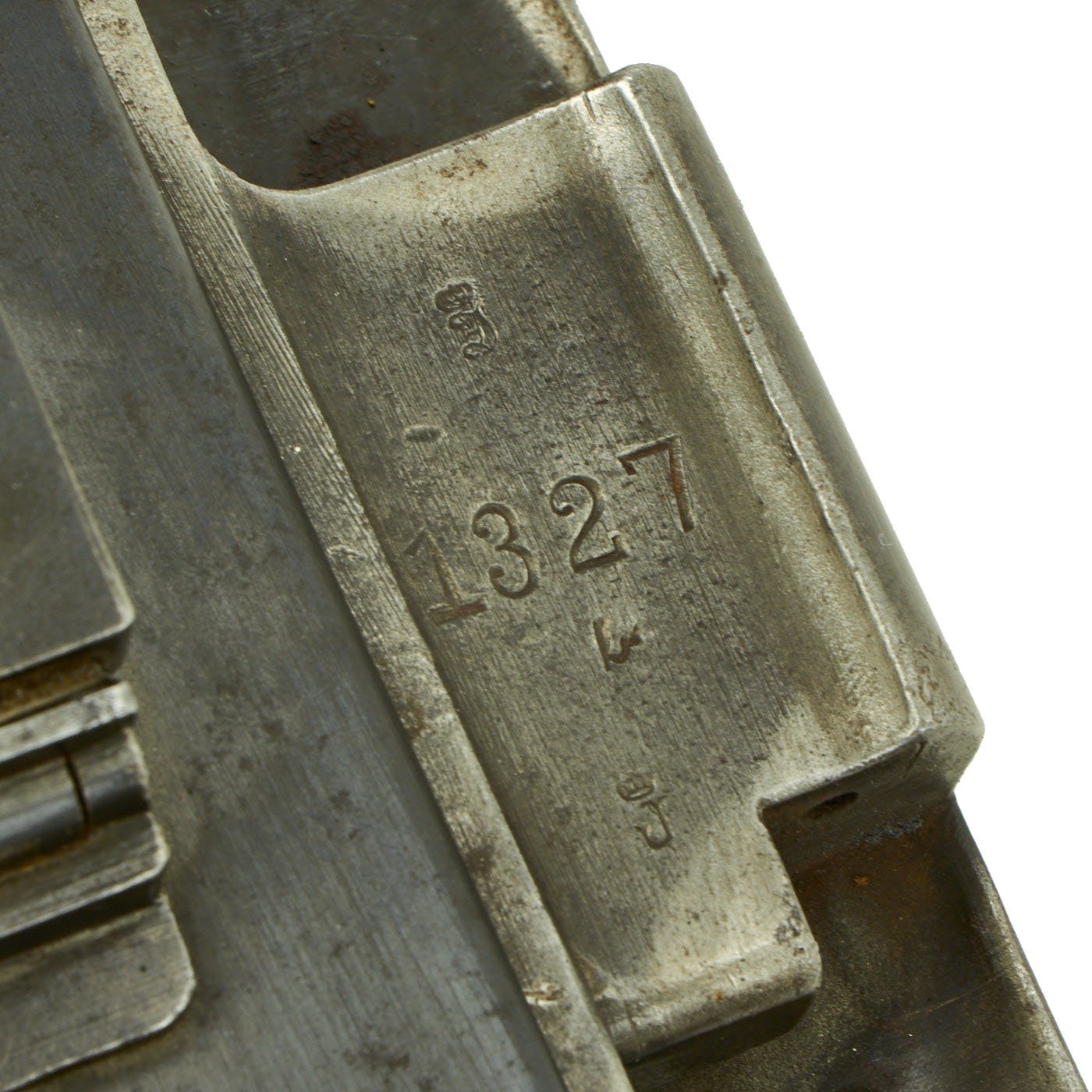

Original Item: Only One Available. A true lightened air-cooled version LMG 08, developed by the Spandau arsenal as a rigidly mounted aircraft machine gun, dated 1918. This fine example of the legendary German WWI Aircraft gun is nicely marked SPANDAU and dated 1918 on the top cover, with serial number 1327 r (often shortened to 327 or 27 on smaller parts) is on nearly every part of the gun. Only the lock is an unmatched arsenal replacement, bearing serial number 9772 a.

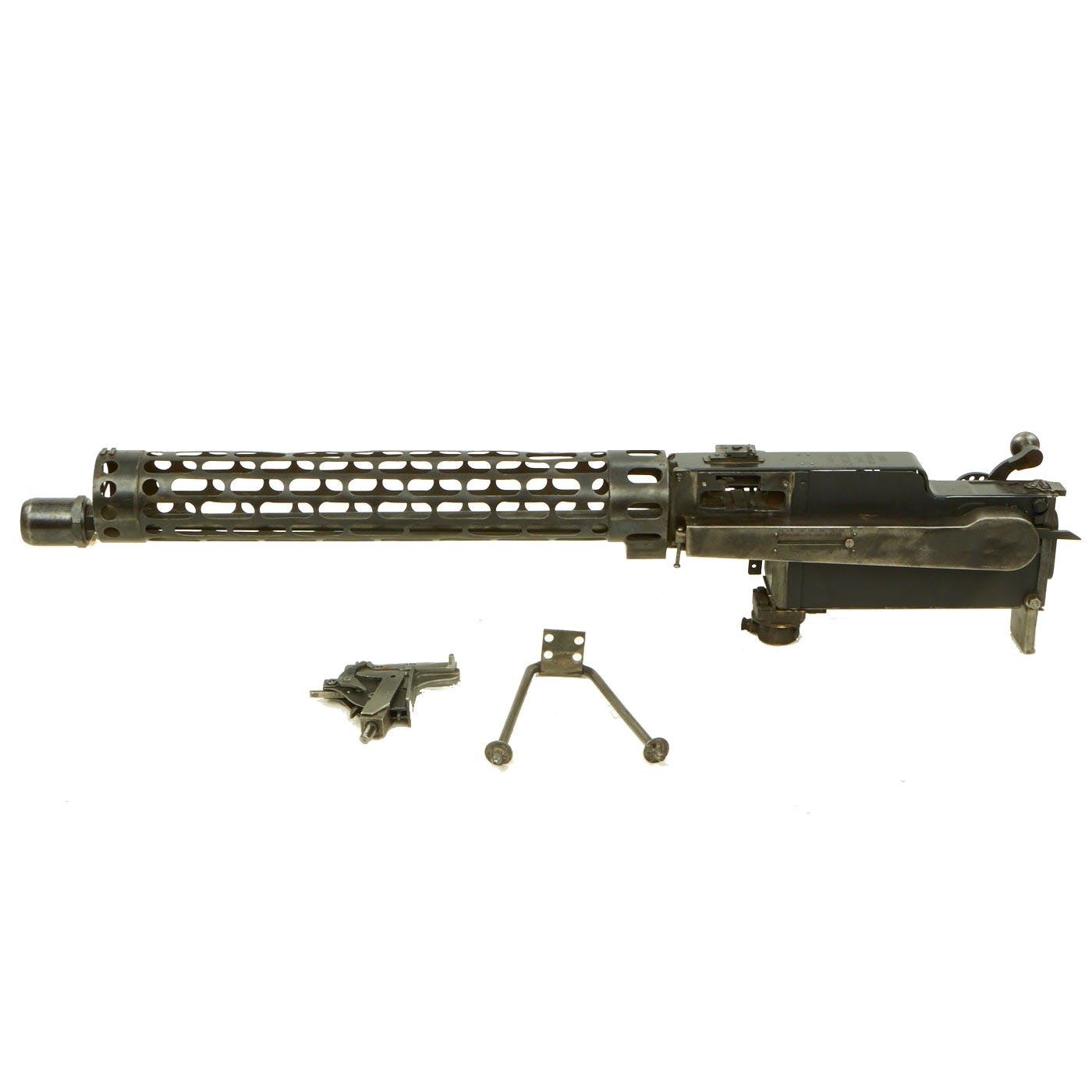

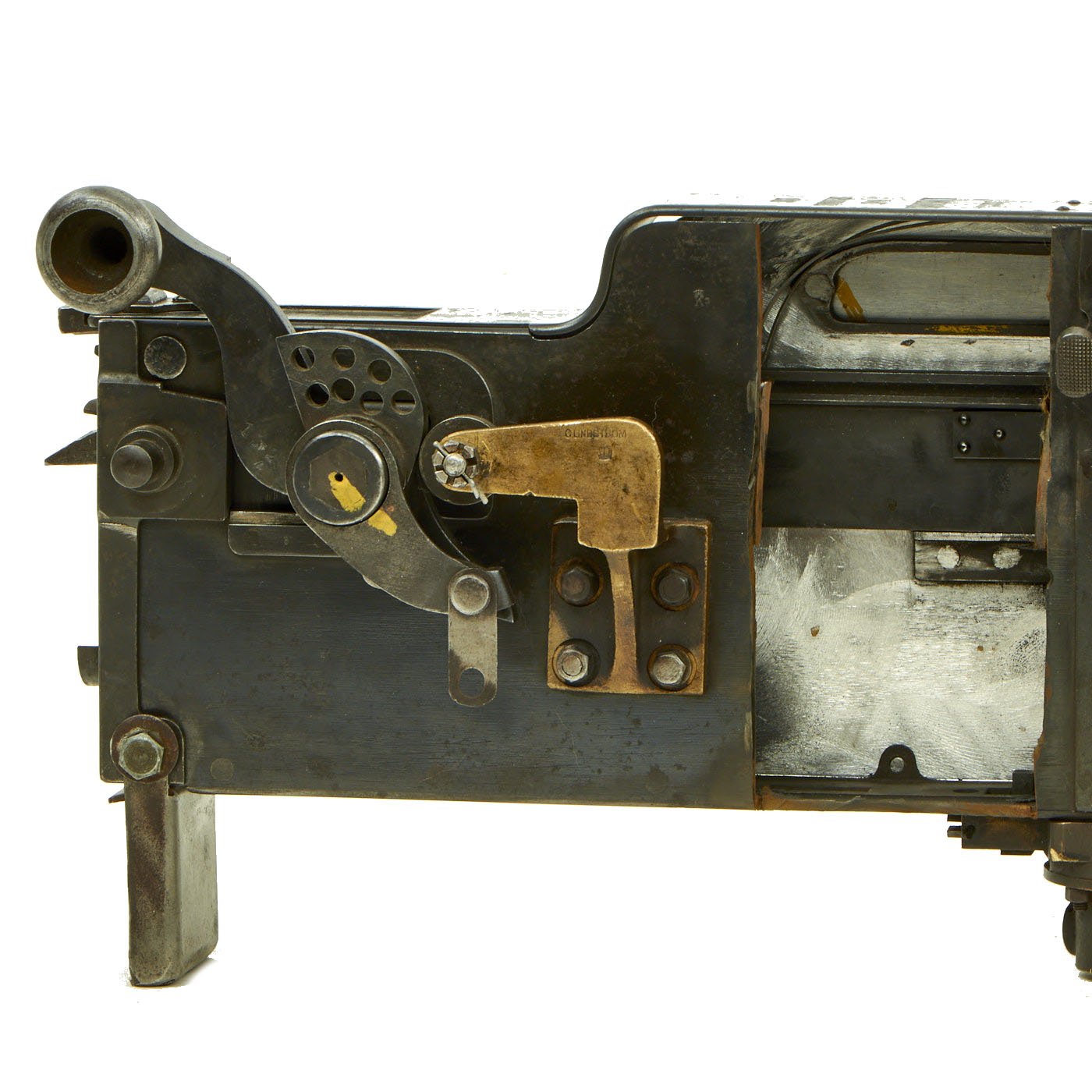

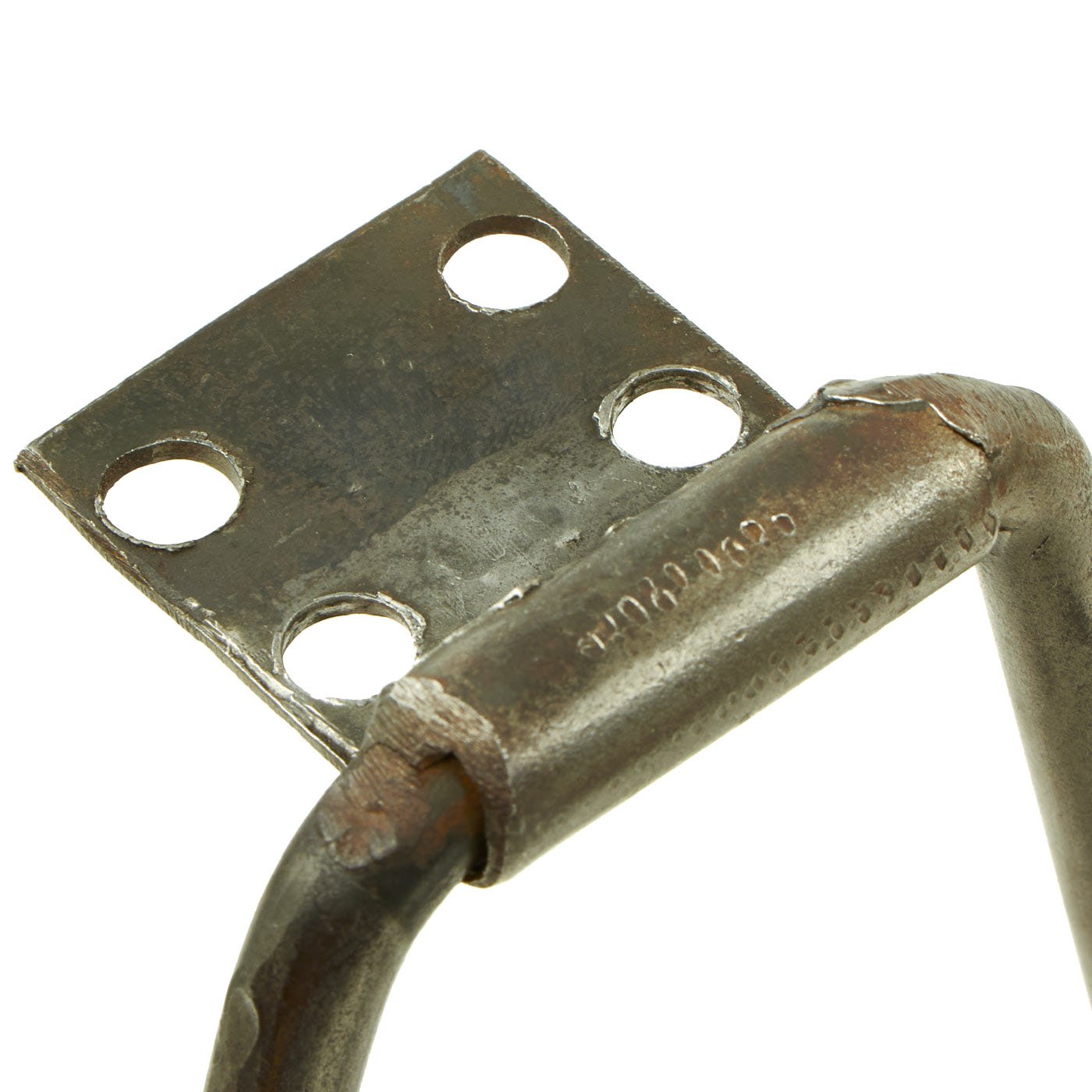

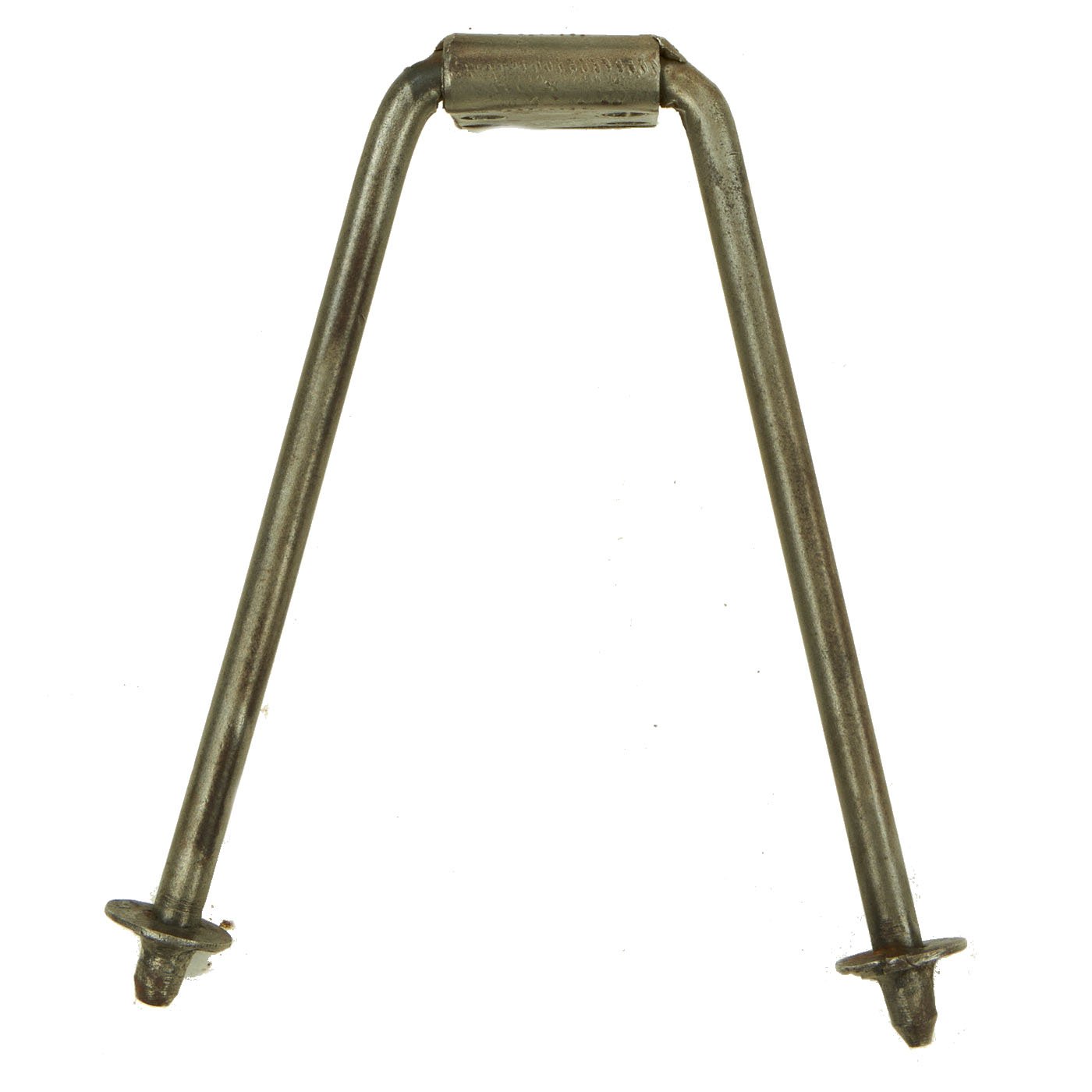

All parts are original except the left receiver plated, which is an aluminum replica. The right side plate and crank have been deactivated, with a 2 inch section missing from both. The correct the brass interrupter gear, which prevented the gun from firing into the propeller by synchronizing the timing, and the brass side roller safety are both included. This example does not have the barrel jacket mounting bracket, and comes with a crudely made display bipod that screws onto the mounting bracket bolster.

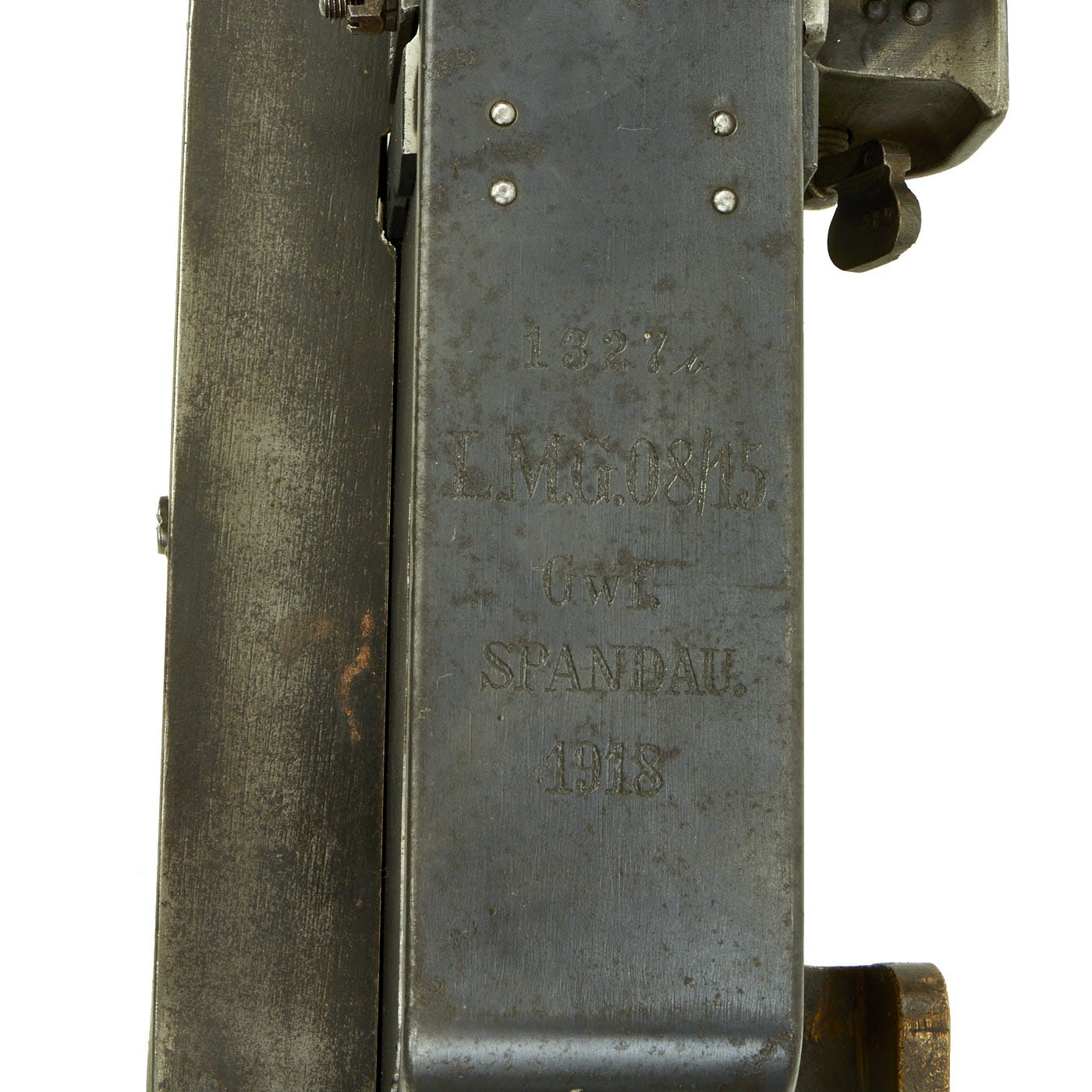

Top cover is marked:
Spandau Arsenal, known in German as Gewehr und Munitionsfabrik (Gwf.) Spandau during the WWI period, the center for development of military small arms for Imperial Germany from the Industrial Revolution until 1919. They manufactured many long arms during the 19th and early 20th centuries at the their location, which is today part of Berlin.
This is a complete and fully BATF approved inert non-firing display gun for the advanced collector. This fine example was built from all original mostly matched serial number parts and is offered in excellent condition with multiple German markings.
History of the LMG 08-
The lightened air-cooled version, the lMG 08, was developed by the Spandau arsenal as a rigidly mounted aircraft machine gun and went into production in 1915, in single-gun mounts, for use on the E.I through the E.III production versions of the Fokker Eindecker. A lower case letter "L" beginning the prefix meant luftgekühlt (air-cooled) rather than Luft (air). The lMG 08s were later used in pairs by the time of the introduction of the Fokker D.III and Albatros D.I biplane fighters in 1916, as fixed and synchronized cowling guns firing through the propeller. The Parabellum MG14 built by DWM was a lighter (22 lbs) and quite different Maxim system gun with a very high rate of fire (900 rounds/min). It was introduced in 1915, and was, but not without serious problems on occasion (as noted by Otto Parschau), prototyped on Parschau's own A.16/15 Fokker A.III monoplane with the Fokker Stangensteuerung gun synchronizer, received by Parschau on May 30, 1915 and first used in quantity as the synchronized forward-firing armament on the five examples of the Fokker M.5K/MG Eindecker production prototype aircraft, and soon afterwards served as a flexible aircraft observer's gun for rear defense. The initial model of the air-cooled "Spandau" lMG 08 front-firing cowling machine guns had lost the stocks, grips, and bipods of the infantry MG 08s, but the 103 mm diameter cylindrical sheet metal water jacket was initially over-lightened with cooling slots, and because the cooling jacket on the MG 08 series of guns was an important structural support for the barrel, the excessive slotting of the initial air-cooled lMG 08 rendered the gun as too fragile to the point of making it impossible to fit the muzzle booster that the water-cooled infantry MG 08 guns could be fitted with. The later model of lMG 08 air-cooled machine gun had the slotting omitted at the extreme ends of the cooling jacket's cylindrical member, with a 13 cm wide area of solid sheet metal at the breech end, and a 5 cm wide solid area at the muzzle end, giving the resultant gun much more rigidity. Also, the lMG 08 retained unchanged the rectangular rear receiver and breech assembly of the water-cooled MG 08 infantry weapon. Later the receiver would be lightened by being "stepped down" at its upper rear and lower forward corners as the more developed and lighter weight LMG 08/15 version was developed, using the same airframe mounting geometry as the earlier ordnance. The lMG 08's and lMG 08/15's would always be used as fixed forward-aimed synchronized firing in dual mounts on German single-seat fighter aircraft, first appearing most notably on the mass-produced examples of Robert Thelen's Albatros D.I and D.II fighters in late 1916, and singly on German armed two-seat observation aircraft for synchronized forward-firing armament. A device, occasionally fitted to the rear surface of the LMG 08/15's backplate, told the pilot how much ammunition was left to fire, and later on a significant upgrade to the gun's aerial usability was the fitting of the Klingstrom device on the right side of the receiver, which allowed the gun to be cocked and loaded with one hand from the cockpit. Various cocking/charging handle styles evolved with a simplified distinctive long handled cocking/charging device finally becoming preferred late in the war.
LMG 08/15's used the 30mm "two hole" ammunition belts of the flexible Parabellum MG14 machine gun rather than the wider "three hole" belts of the MG 08/15 water-cooled infantry weapon. It is possible that these belts were used as they were a bit lighter and less bulky than the wider "three hole" ground gun belts and certainly made for standardization which would have been easier for the armorers and in addition allowed for smaller and lighter "tubes" or "chutes" that guided the empty belts into storage containers in the aircraft after firing. It is a common misconception that the tubes or chutes coming out of the fixed mounted aviation LMG 08/15 fixed guns were for expended cartridge cases; in actuality these attachments were for guiding the empty cartridge belts into a container inside the fuselage of the aircraft so that the belts would not interfere with the operation of the aircraft. As the entire MG 08 Spandau family of German machine guns ejected their empty cartridge cases forward through a round hole in the receiver under the barrel (as can be clearly seen on many videos) these cartridge cases were guided out of the aircraft (except on post Fokker Eindecker Fokker designed aircraft) through tubes from under the barrel to the bottom of the fuselage. With Fokker designed aircraft following the Eindecker the cartridge cases were ejected without tubes from the receiver hole directly into open trays that guided the tumbling cartridge cases backward and sideways onto the sloped fuselage decking which them streamed down past the cockpit on either side. These trays are clearly visible in photographs but have rarely been recognized for their purpose. Hermann Goering, who flew both the Fokker Dr.I and Fokker D.VII was obviously so annoyed with the case tumbling out in front of him that he had deflectors made on his aircraft to ensure the empty cartridge cases did not find their way into his cockpit. On photographs of Goering's aircraft these plates, only seen on his aircraft, are very prevalent and have even been recognized in scale models of his aircraft copying his particular planes, but even then most historians have failed to recognize their purpose. Both empty belt guides and trays were attached directly to the machine guns rather than to the aircraft. In the famous film showing Australian officers handling the LMG 08/15's from the crashed Baron von Richthofen's triplane, the Fokker type belt tubes/chutes and empty cartridge trays can be clearly seen still attached to the guns.
More than 23,000 examples of the LMG 08/15 and an unknown number of the lMG 08 were produced during World War I.
NOTE: Per BATF Ruling 2010-3 a Maxim without a right side plate is not capable of firing, and is not considered a firearm of any type.
This product is not available for shipping in US state(s)
New Jersey, Washington
This product is not available for international shipping.
- This item is completely legal within the USA. International Military Antiques, Inc observes all Federal, State and Local laws. Everything for sale on ima-usa.com is completely legal to own, trade, transport and sell within the United States of America. Every display machinegun and machine gun parts set and gun sold by IMA, Inc is engineered to be inoperable according to guidelines provided by the US Bureau of Alcohol, Tobacco, Firearms and Explosives (BATF).Please note that the requirements for each display gun are decided on a per case basis by the BATF, and may require deactivation of omission of some internal components. For more information on this display gun, please contact us. Not available for Expor
Information pertaining to Maxim display guns:
taken from BATF ruling 2010-3 : https://www.atf.gov/regulations-rulings/rulings/atf-rulings/atf-ruling-2010-3.html
During the evaluations, complete, original models of Vickers and German MG-08 Maxim-type machineguns were tested and found to fire automatically more than one round of ammunition by a single function of the trigger. Additionally, a reference model of a Vickers-type machinegun was tested for function; first, by partially removing the right side-plate, and then after completely removing the right side-plate. Although the sample firearm was capable of firing one shot with a partial right side-plate, once the entire right side-plate was removed, testing demonstrated the sample was not capable of functioning without the right side-plate. Accordingly, it was determined that neither a Vickers nor any Maxim-type machinegun would be capable of firing with the entire right side-plate removed. Nonetheless, ATF has previously examined semi-automatic versions of the Vickers/Maxim firearm where the right side-plate has an approved block that prevents installation of machinegun fire control components. These semi-automatic firearms have been classified by ATF as firearms under the Gun Control Act of 1968 (GCA), but not as machineguns under the GCA or the National Firearms Act (NFA).
