Original German Pre-WWI Gewehr 91 S Artillery Carbine by Erfurt Arsenal Serial 1294 - Possible "Bicycle Carbine" - Dated 1891

Item Description

Original Item: Only One Available. Adopted in 1888 the new German Infantry round in 7.92 X 57mm replaced the old 10.4mm large bore cartridge adopted in 1871. The M-1888 Rifle was referred to as the "Commission Rifle" and was manufactured as a full Infantry Rifle (Gewehr 88) and a Cavalry Carbine (Karabiner 88) starting in 1888. In 1891 Artillery Carbine was adopted called the Gewehr 91, and it was identical to the Cavalry carbine, except it had a stacking hook below the nose cap.

The gun was adopted for Prussia, Saxony and Wurttemberg on 25 March, 1891. They were produced between 1891 - 1896 by private contractors, mainly C.G. Haenel or V.C. Schilling, and the Erfurt Arsenal. Those manufactured or rebarreled post 1896 were Z modified (deepened rifle grooves), and most were "S" modified (like this one) between 1903 - 1905. The Gew 91 were replaced by the Karbiner 98 AZ between 1909 - 1910, and were stored away for the Reserves & Landwehr, then in turn for the Landstrum.

This trend would change with the outbreak of war, of course, and every one of the 88 / 91 pattern carbines in German inventory would be re-issued during the Great War after it began in 1914. Their size and weight made them ideal for the troops who needed a personal weapon but were unlikely to actually have to fight with it (artillery crews, cyclists, supply drivers, balloon crews, etc). There are many known 1918 dated photographs showing it was still in use with the artillery at the end of the war.

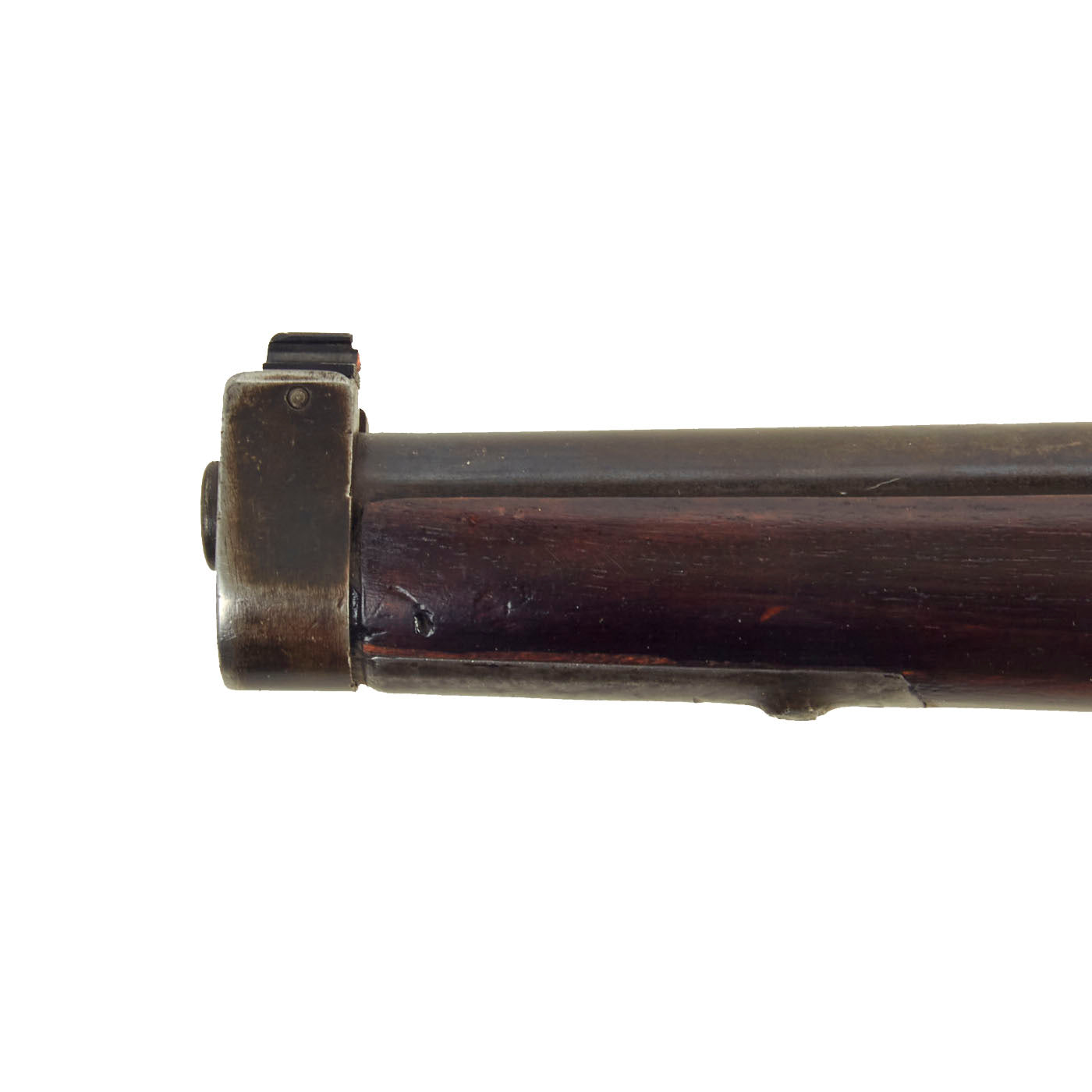

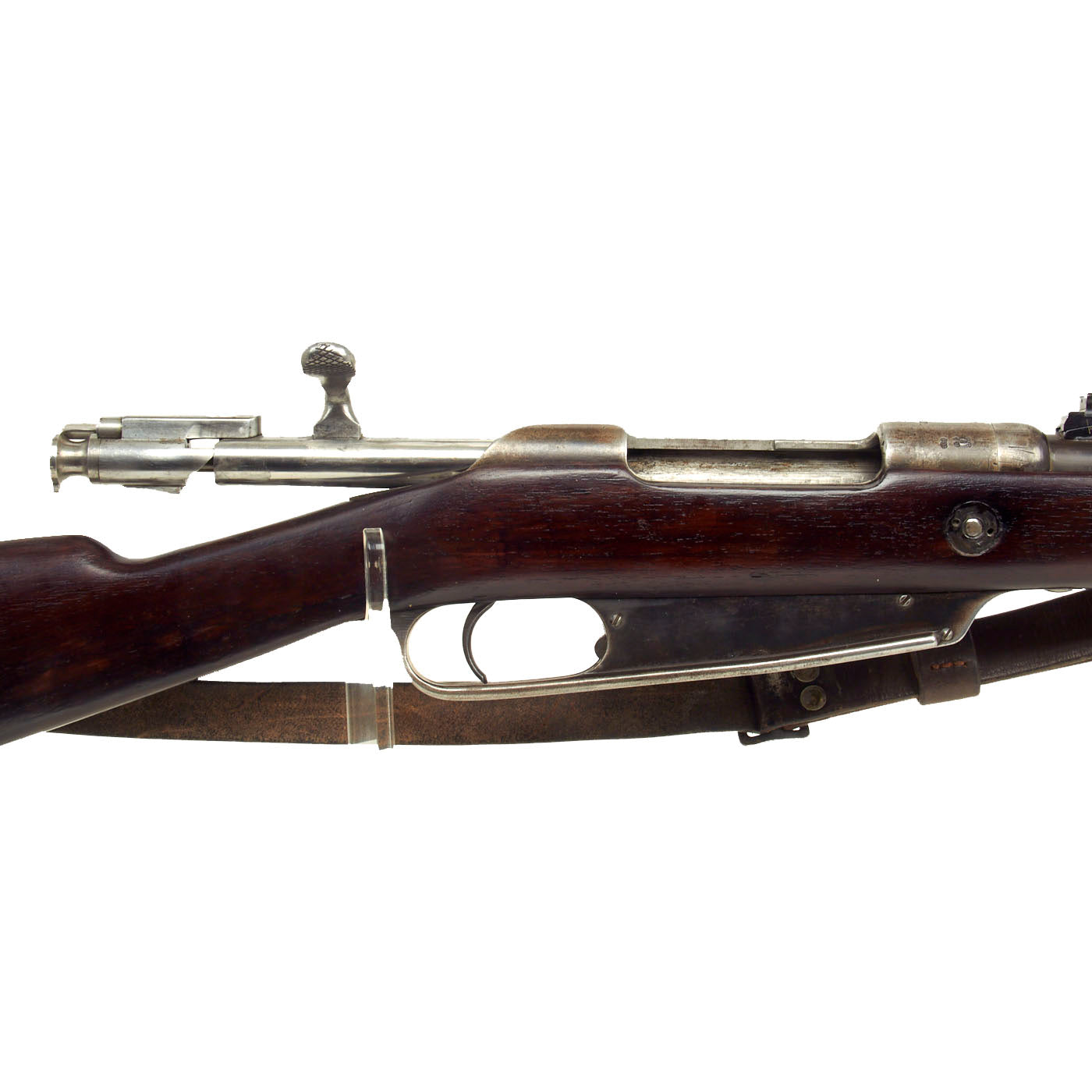

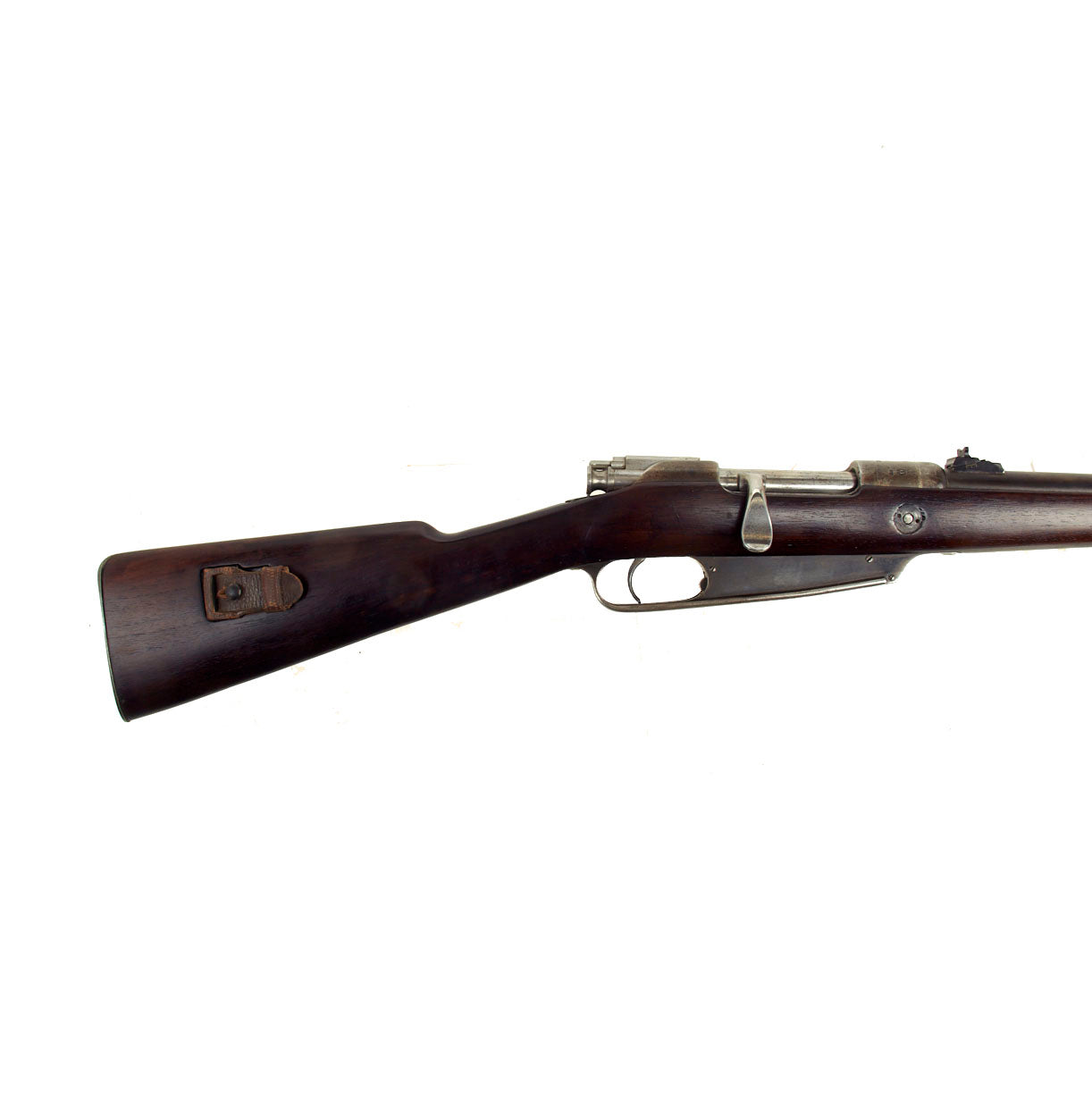

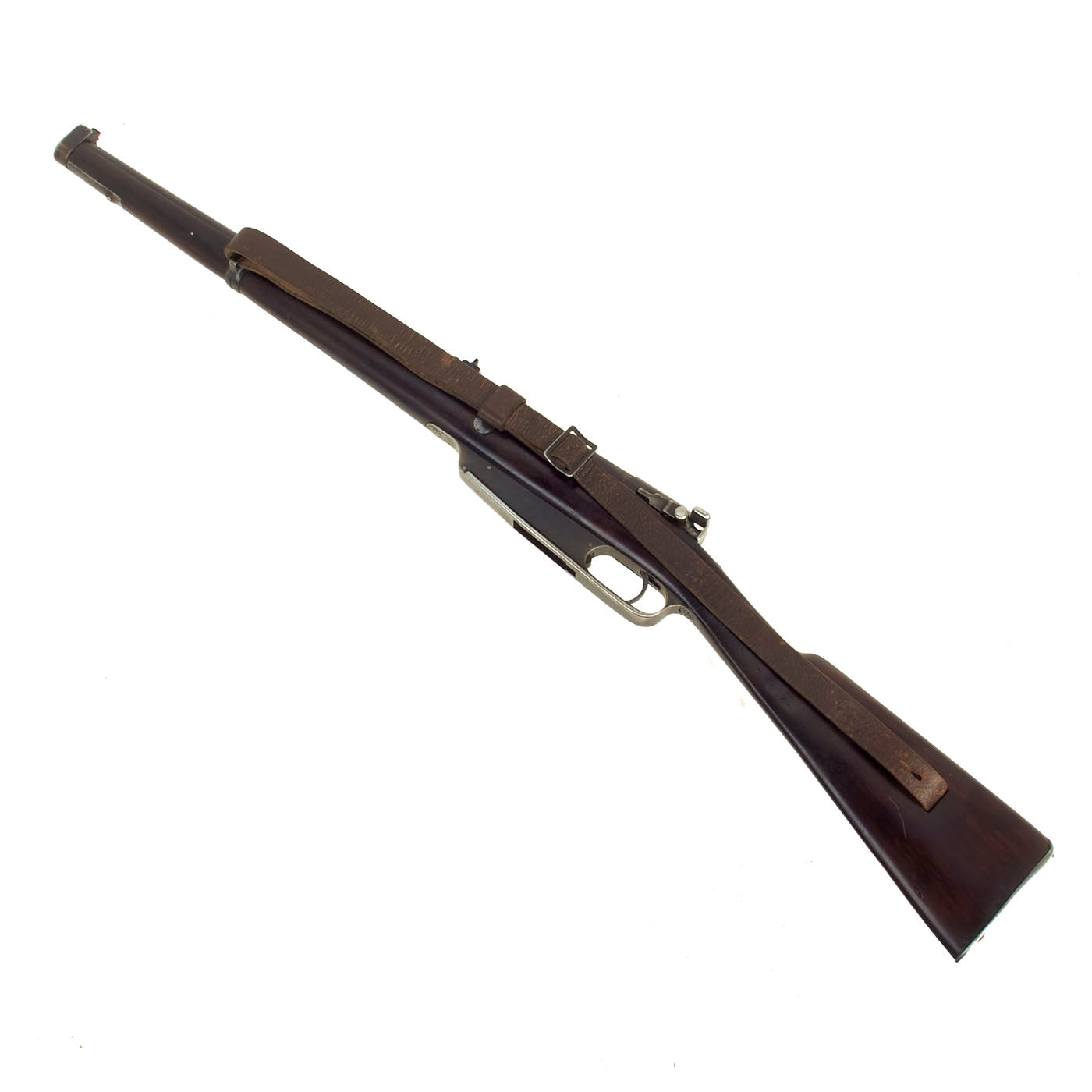

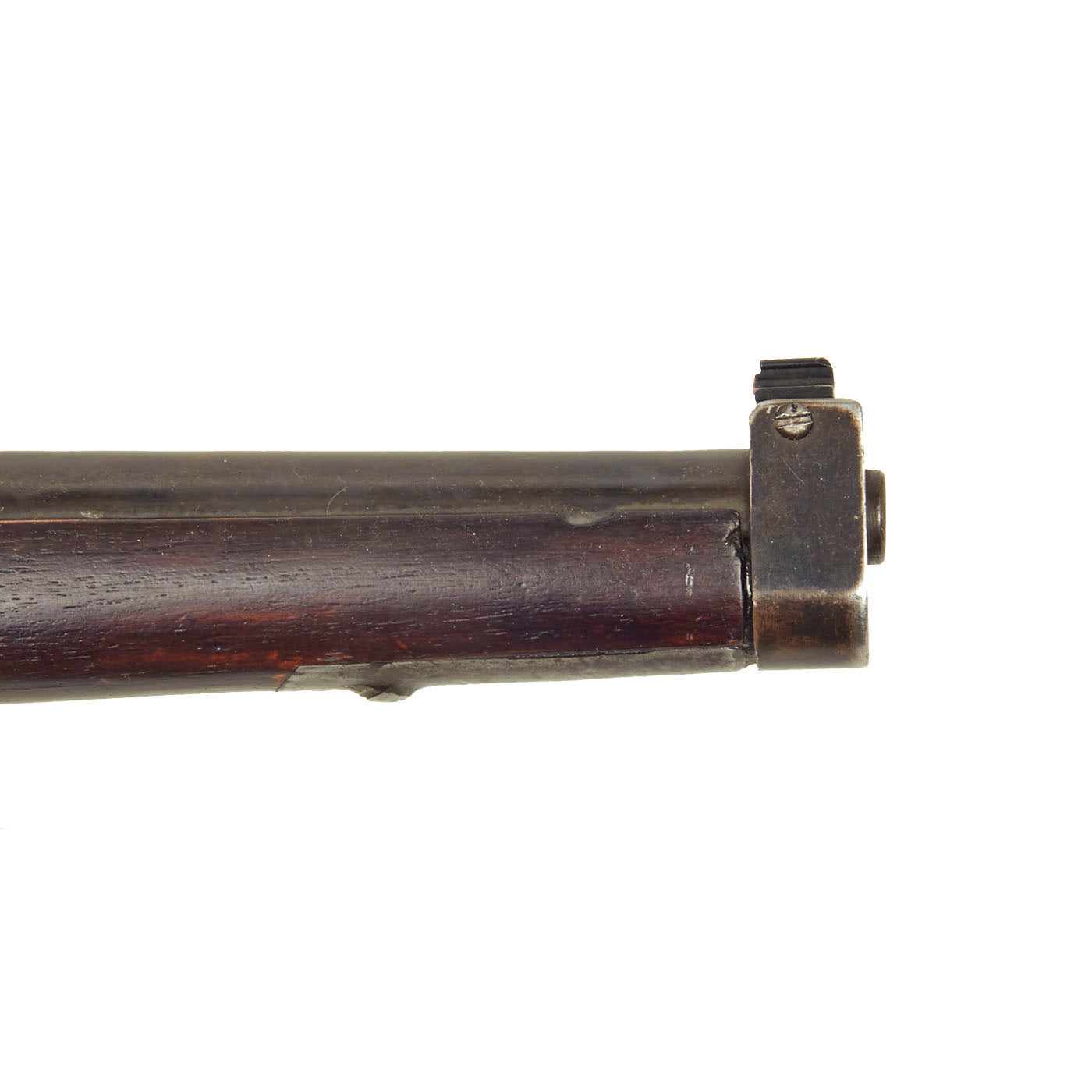

Our example is of the Artillery Carbine Gewehr 91, though it had the stacking hook removed, leaving only the metal fitting under the nose cap, which we have seen before. It also has had the stock "slimmed down", particularly around the wrist and butt stock area, which would be perfect for use as a "Bicycle Carbine" during the war. This would make it more light weight as well as easier to stow under the arm for quick access.

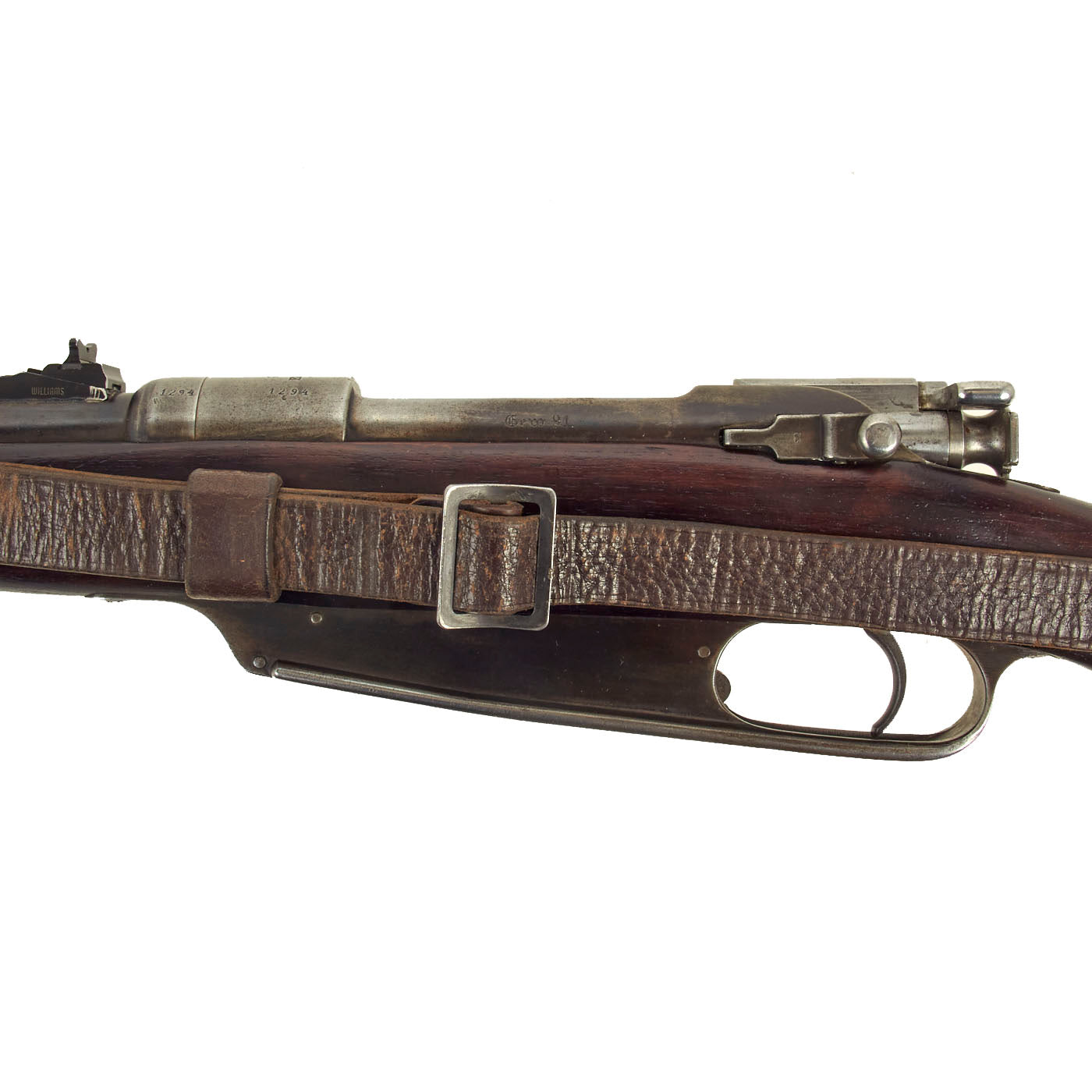

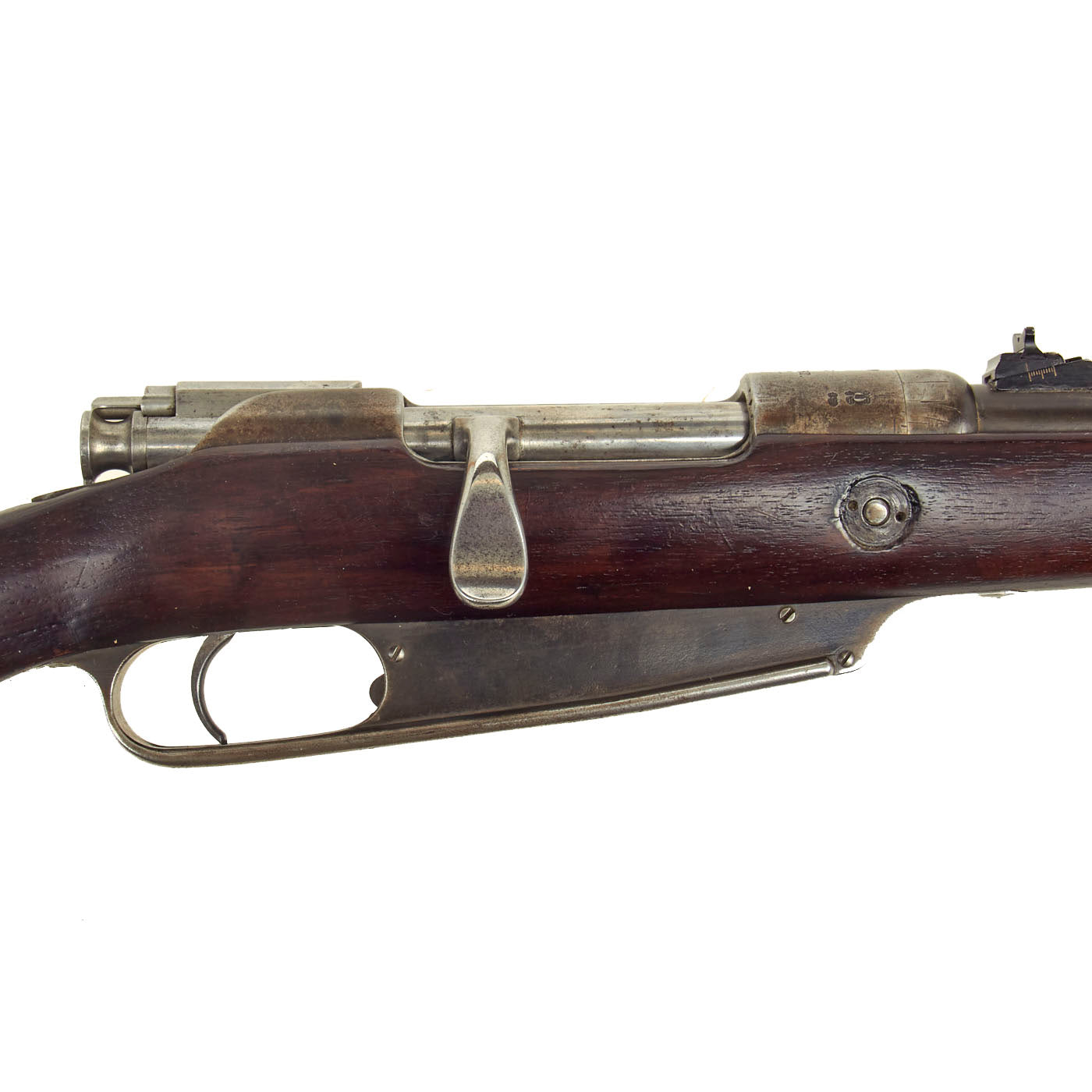

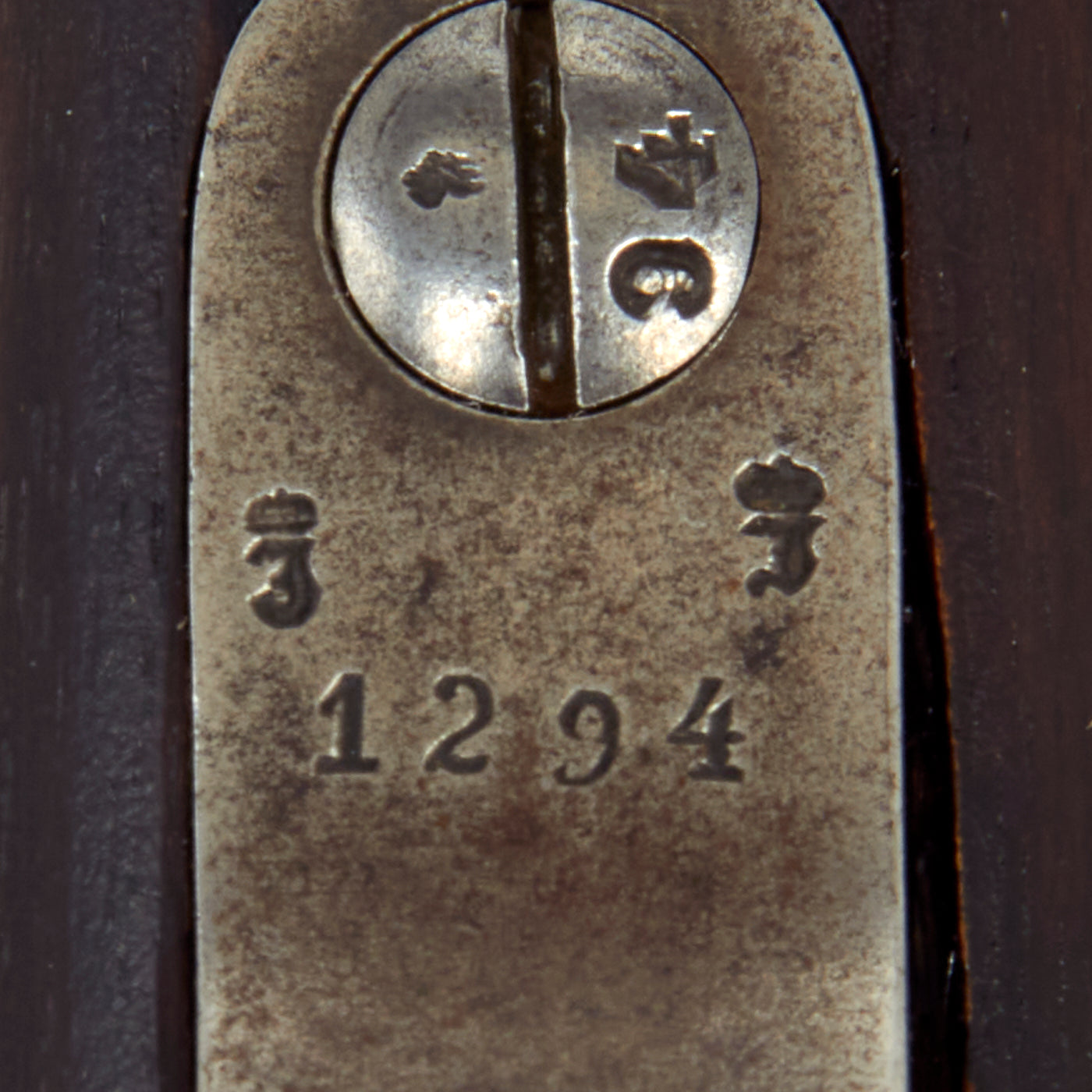

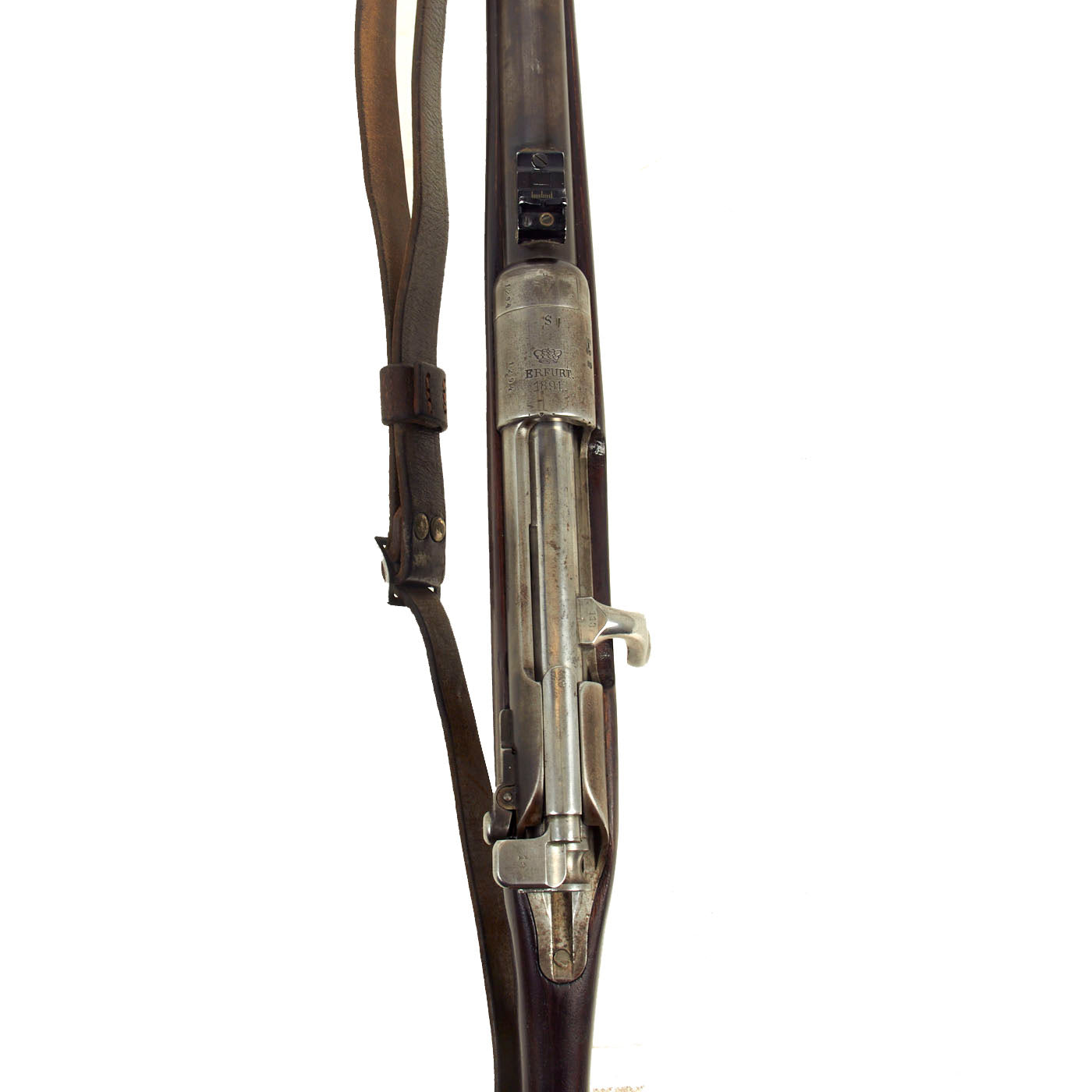

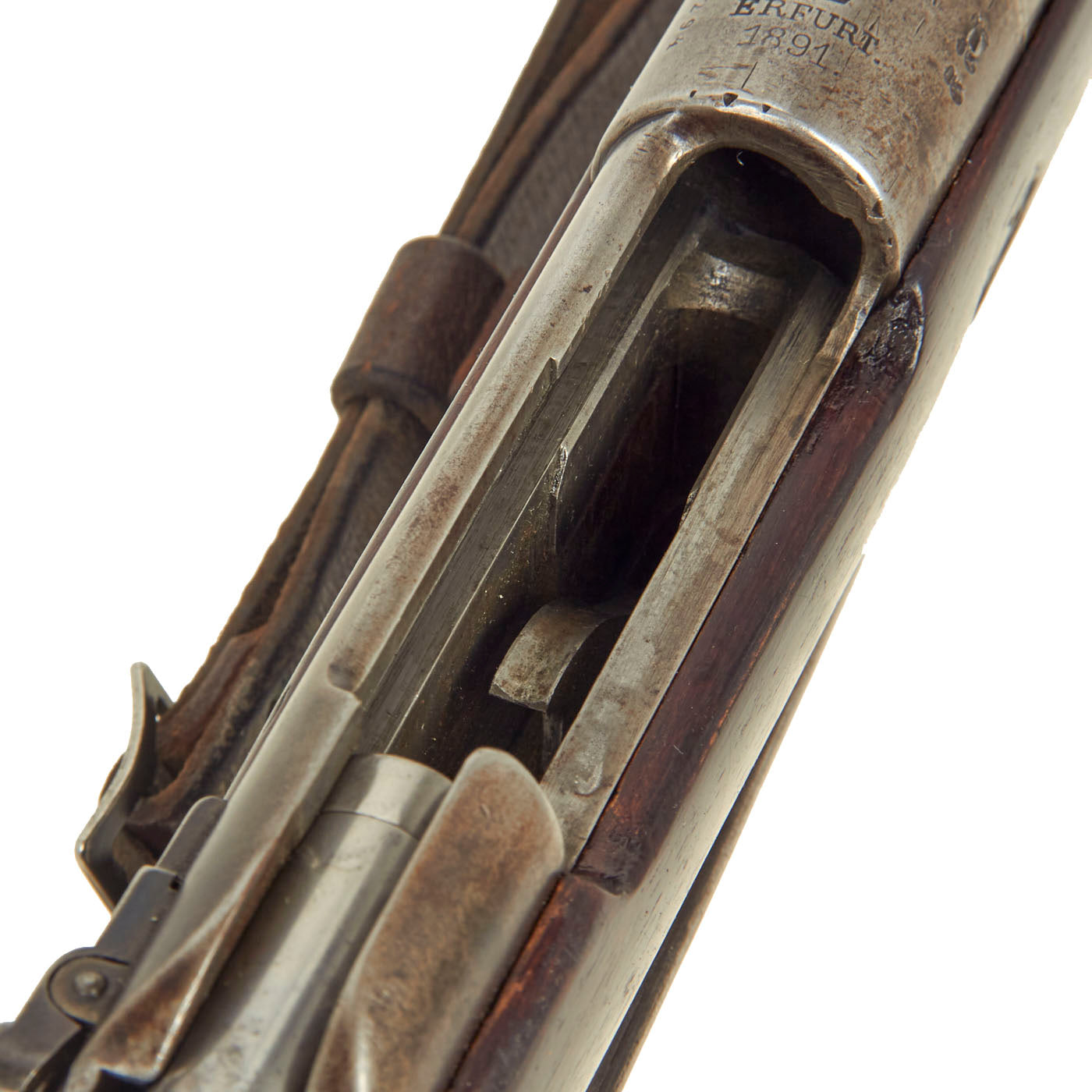

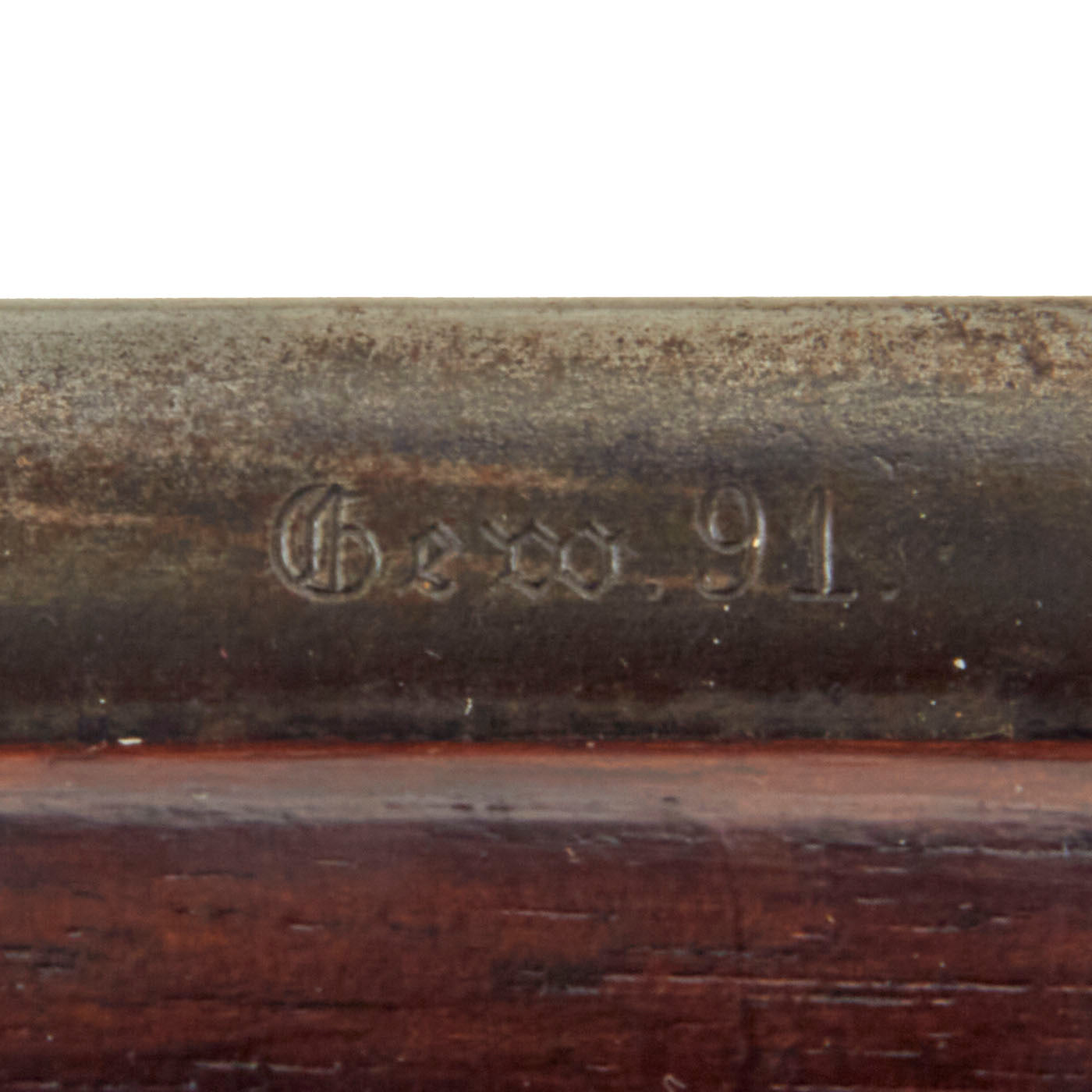

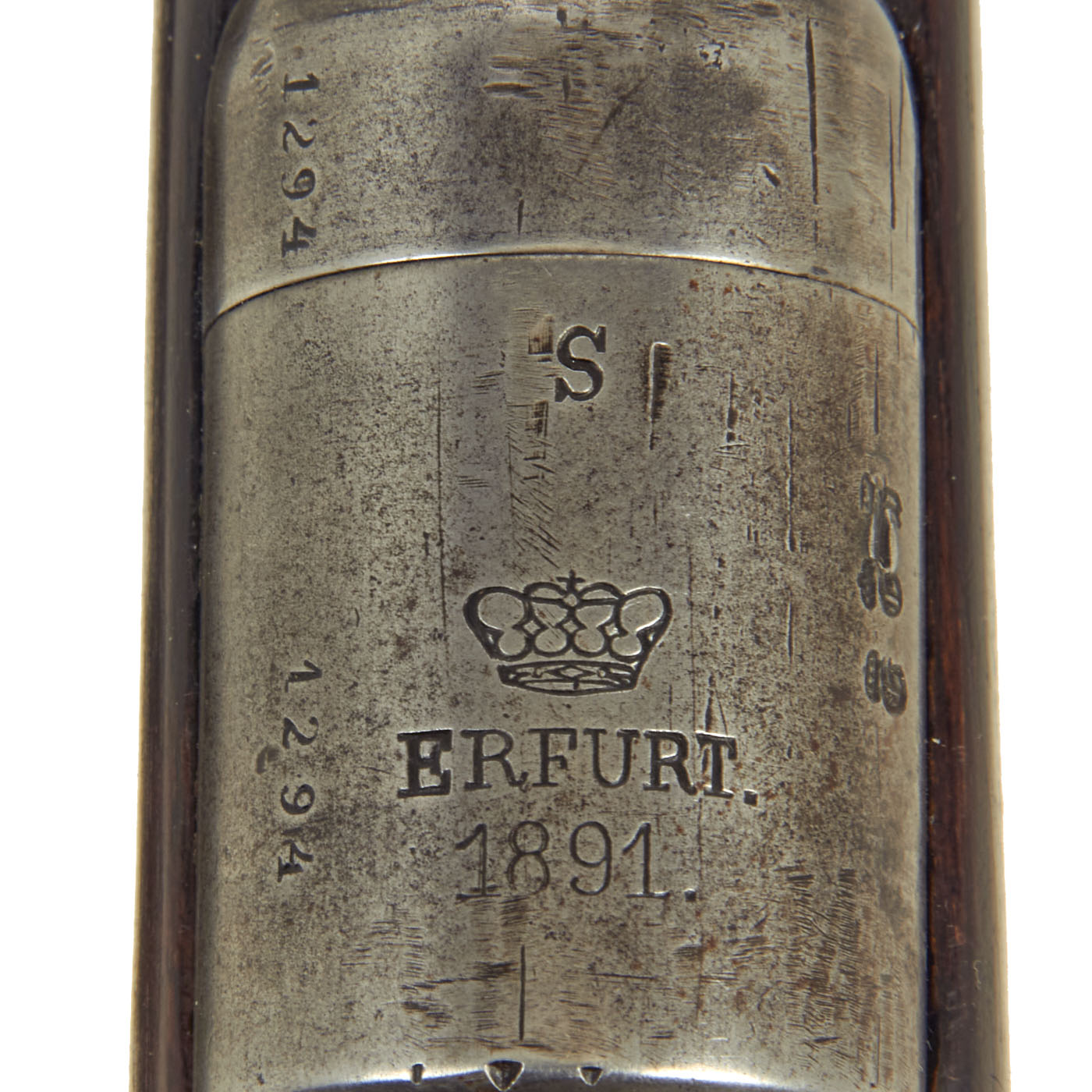

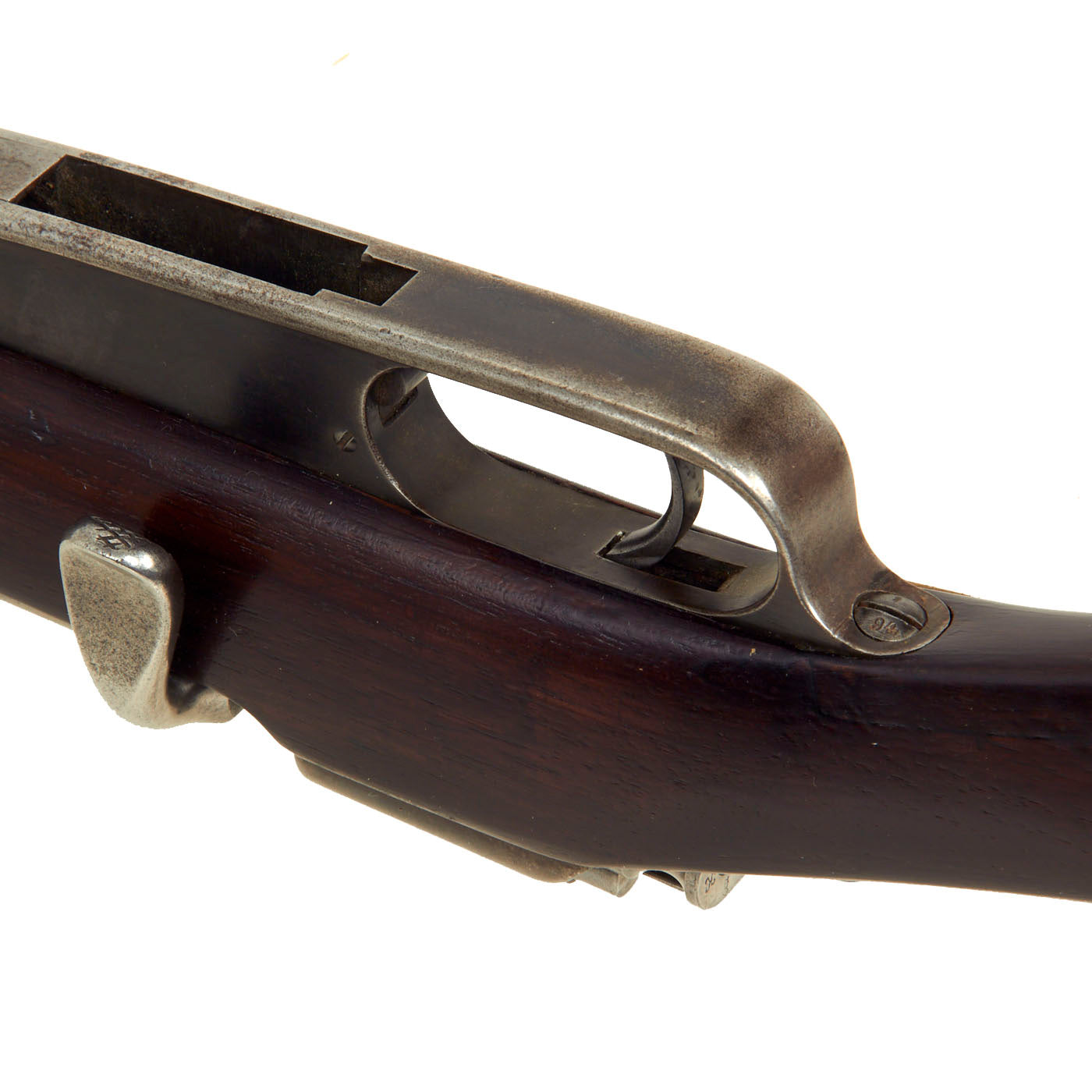

It is marked over the chamber with (CROWN) / ERFURT. / 1891., for 1891 manufacture at the Imperial Erfurt Arsenal, located in Thuringia. The right side of the receiver is marked with Gew. 91. in German blackface type, and there are additional proof marks on various components of the carbine. The barrel, receiver, and magazine housing of the carbine are marked with serial number 1294, with shortened number 94 present on almost all of the screws and the nose cap. The bolt is non-matching, marked with serial number 131, having been swapped out at arsenal.

The carbine has an 18" barrel which has a good bore, showing wear and oxidation from service. The rifling is still visible, but the lands are worn and the finish is oxidized to a gray color. The rifle cycles and dry fire well, and the firing pin is fully intact, as is the often lost cartridge ejector on the bolt face. It bears an S marked over the chamber to indicate modification for the S-PATRONE cartridge introduced in 1903 (we do not recommend firing the S-cartridge in this carbine).

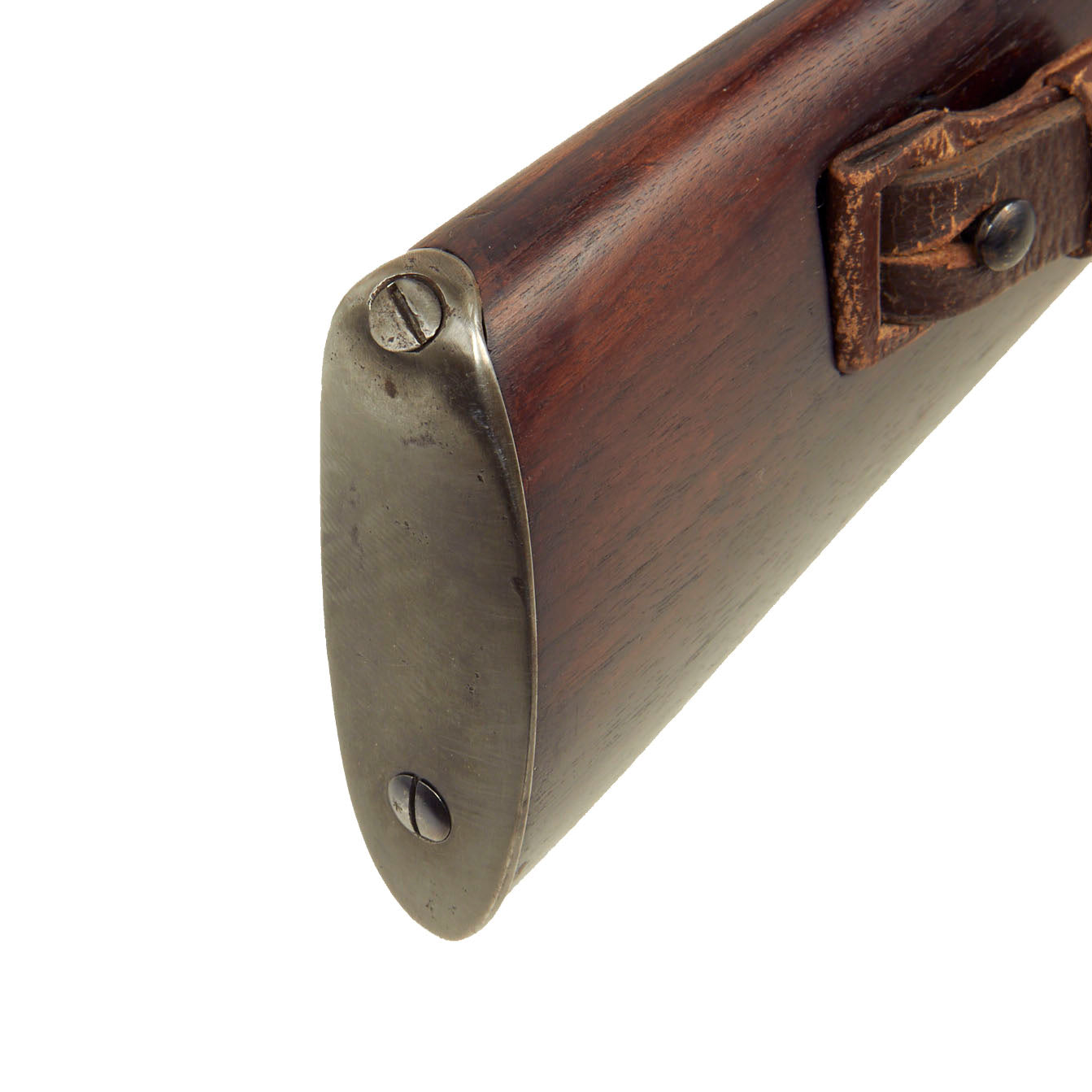

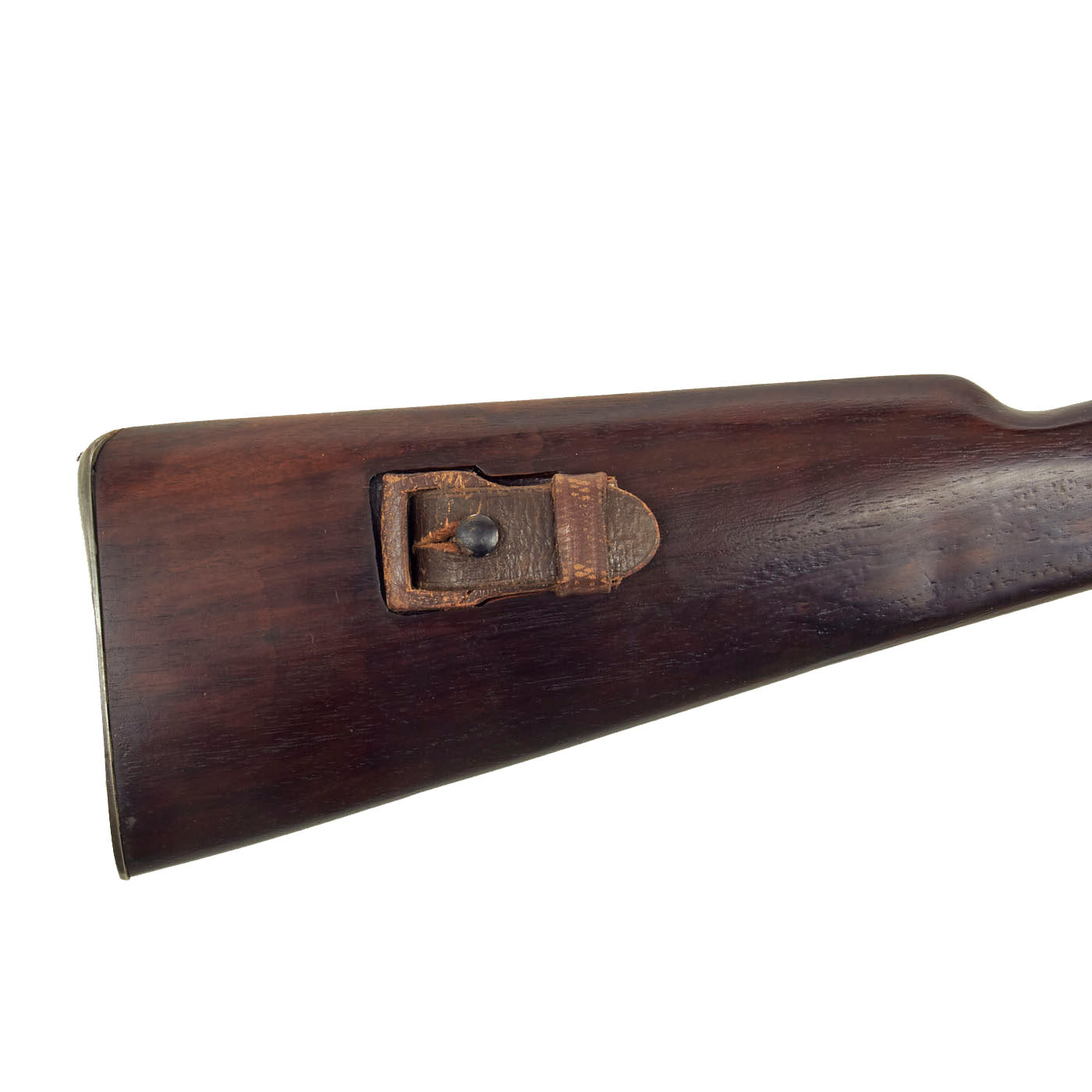

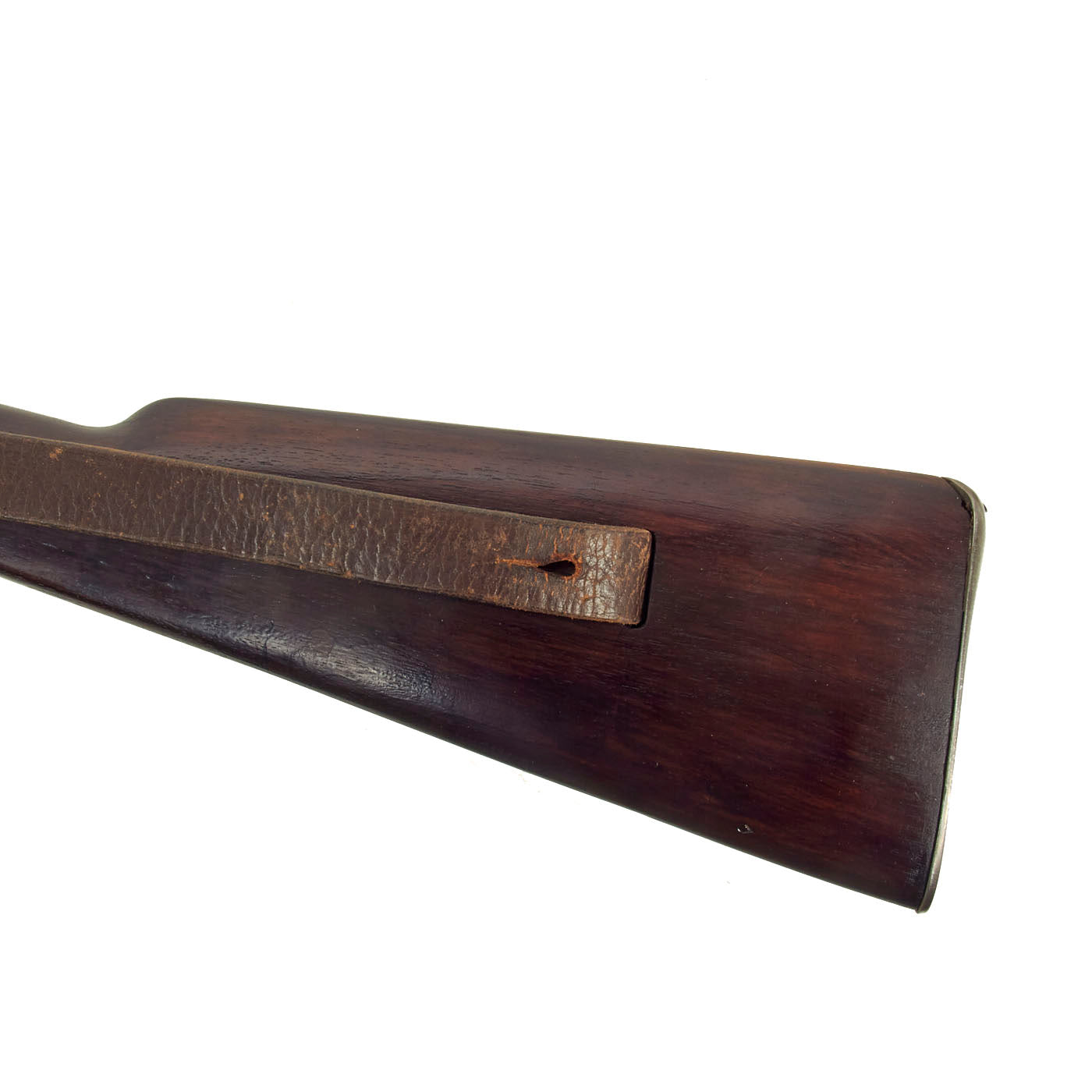

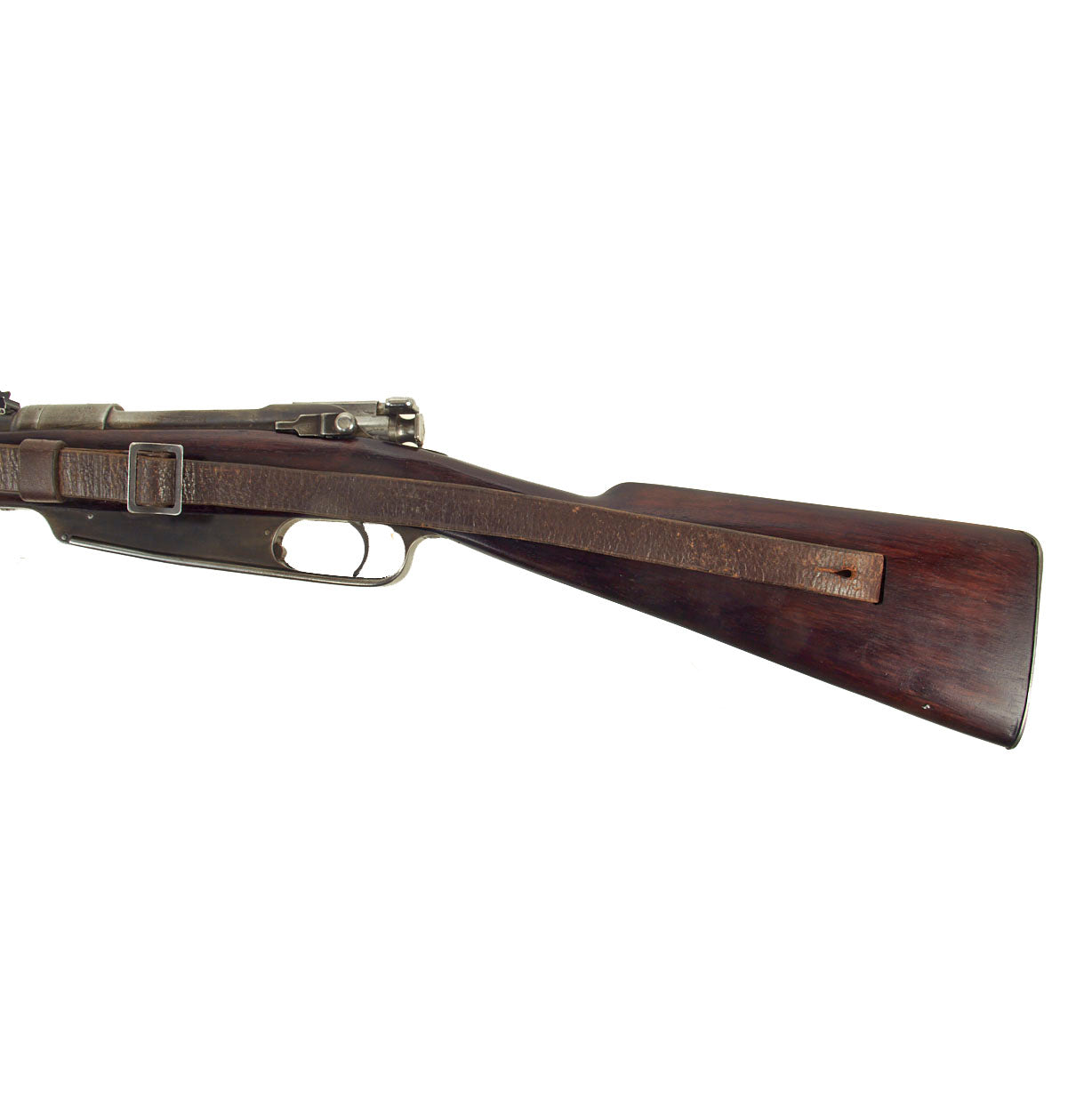

The stock is in good service used condition, having been arsenal reconditioned and reduced in size for use by specialized troops during WWI. It may have been refinished after that, and now has a dark brown color, with a lovely polished glow. It has been fitted with a WWI Style sling, though we suspect that it is a mid 20th century reproduction.

In 1891 this was cutting edge technology as the Gewehr 1888 Mauser rifles and carbines were the first to use the 7.92mm cartridge that replaced the 10.4mm used in the Mauser 1871/84 tubular magazine rifles.

This little carbine used an integral 5 shot box magazine and was extremely popular. It was superceded in 1898 with the introduction of the Gew 98 rifle also in an updated version of the same caliber and many 88s were updated and then marked with a small "S" on the receiver ring to indicate it could be used with the upgraded ammunition.

Both the Mauser Model 88 and 98 rifles and carbines saw extensive use in WWI. During the Great War cavalry was quickly becoming a thing of the past once trench warfare was introduced.

By WW2 the Germans had adopted the Mauser 98K Rifle, again in the improved 7.92mm caliber, this rifle was shorter than the Gew 98, longer than the carbine, and became the standard.

A very rare 1891 dated Mauser Gew. 91 Artillery Carbine, only 37" in overall length, federally classified as an antique due to its pre-1899 manufacture date.

Specifications-

Year of Manufacture: 1891
Caliber: 7.92×57mm Mauser S Patrone
Cartridge Type: Centerfire Cartridge
Barrel Length: 18 Inches
Overall Length: 36 7/8 Inches
Action type: Bolt-Action
Feed System: 5 round internal magazine

History of the Gewehr 88

In 1886, the French Army unveiled the Modelle 1886 "Lebel" rifle. There was an immediate reaction in German military circles bordering on hysteria. Why? Because the Lebel was the world's first small bore military rifle using an efficient smokeless powder cartridge. Now, the Lebel, which used a tubular magazine located under the barrel was not a particularly noteworthy design, but the power and flat trajectory of the new French 8mm round far outclassed the 11mm Reichspatrone black powder round used in the contemporary German infantry rifle, the Mauser 71/84.

In this rather charged atmosphere, the German Gewehr Prfungs Kommission (GPK - Rifle Testing Commission) went to work. Initially, the idea was to revise the Mauser Gewehr 71/84 to use a small caliber smokeless powder round based on the old 11mm black powder Reichspatrone. To this extent, production machinery was ordered from the Ludwig Loewe Company of Berlin-Charlottenburg in December, 1887. As things progressed, the GPK became disillusioned with this technical approach, and so a rather strange hybrid of ideas took shape.

The bolt design was highly revised by a Spandau Arsenal technician named Louis Schlegelmilch and features a separate bolt head. The ensuing rifle had a Schlegelmilch/Mauser action, a five shot clip loaded Mannlicher style magazine (note: while the clip falls out as with the Mannlicher clips, this one was markedly improved in that it could be loaded with either end down as opposed to only one end on the true Mannlicher), and a full length barrel jacket designed by Armand Mieg. The pitch and profile of the rifling were copied directly from that of the Lebel. The cartridge chosen was a modified Swiss style rimless design based on the ideas of Eduard Rubin. By March 23, 1888, the Bavarian military observer in Berlin, General von Xylander reported that the development was virtually complete.

Field trials for the new rifle were completed in November, 1888, and the GPK recommended that it be adopted immediately. The adoption orders were signed by Kaiser Wilhelm II on November 12, 1888. Issue of the Gewehr 88 as the new rife was designated, were first made in the spring of 1889 to the XV and XVI Armeekorps stationed in Elsass-Lothringen. Issue to the Bavarian military units began in October 1889, and by August 1890, all Prussian, Saxon, and Wrttemberger line units had been re-equipped.

The Gewehr 88 was made by the three primary Prussian arsenals at Danzig, Erfurt, and Spandau, a smaller Bavarian establishment at Amberg, as well as several private contractors, including the Ludwig Loewe Company, Osterreichische Waffenfabrik Gesellschaft (Steyr), and Haenel. Production figures up to the time production ceased in 1897 are as follows:

Prussian Government Arsenals: 750,000

Amberg: 425,000

Loewe: 425,000

Steyr: 300,000

Haenel: 100,000

Total: 1,675,000
