Item Description

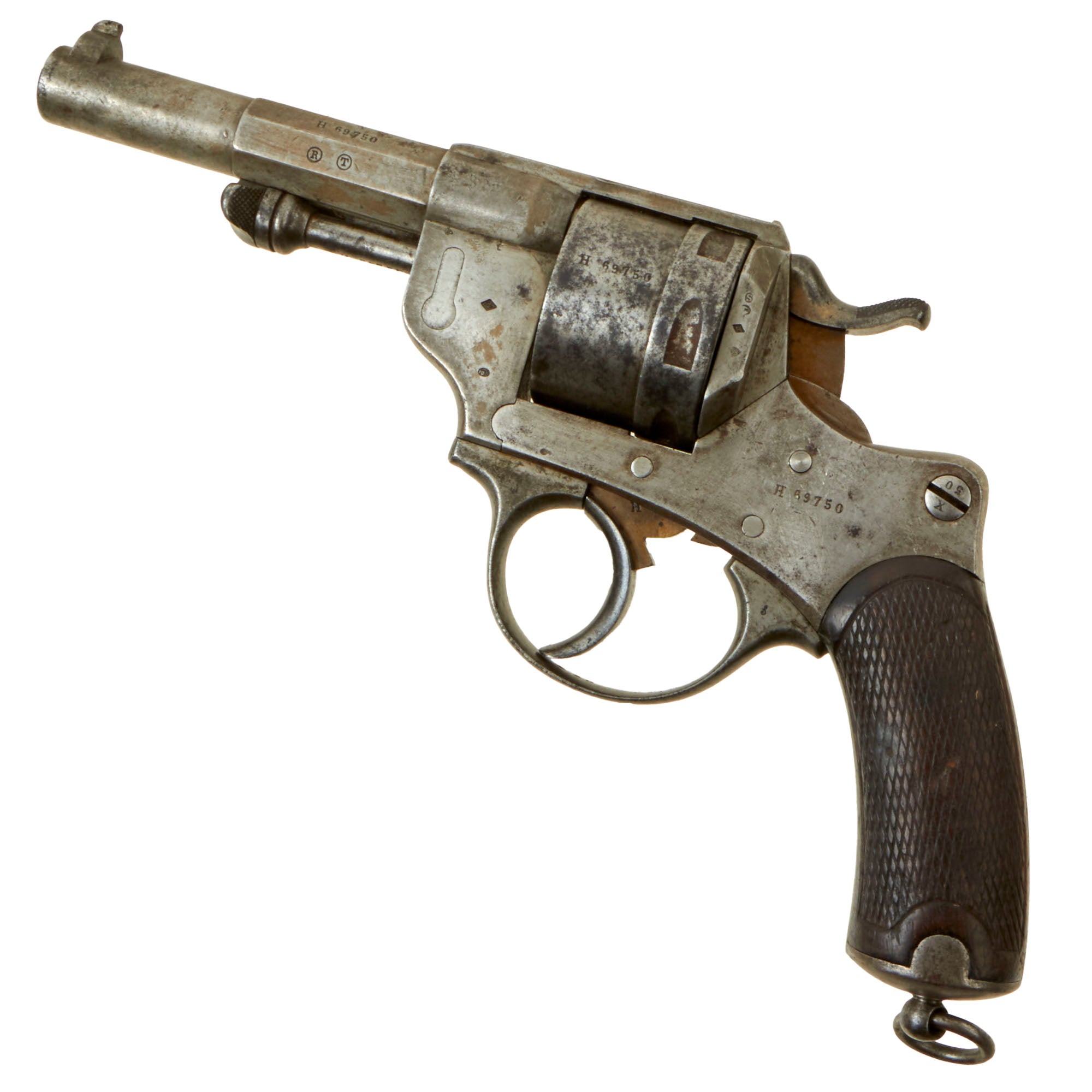

Original Item: Only One Available. This is a wonderful lightly used example of the service revolver model 1873 Chamelot-Delvigne which was the first double-action revolver used by the French Army. It was produced by Manufacture d'armes de Saint-Étienne from 1873 to 1887. Although replaced by the Model 1892 revolver, it was nevertheless widely used during the First World War, and issued to reserve units in 1940. The Resistance made widespread use of it during the Occupation. Both the 1873 and the 1874 use a 11mm cartridge which proved to have an insufficient velocity. The weapons themselves were very reliable and resistant.

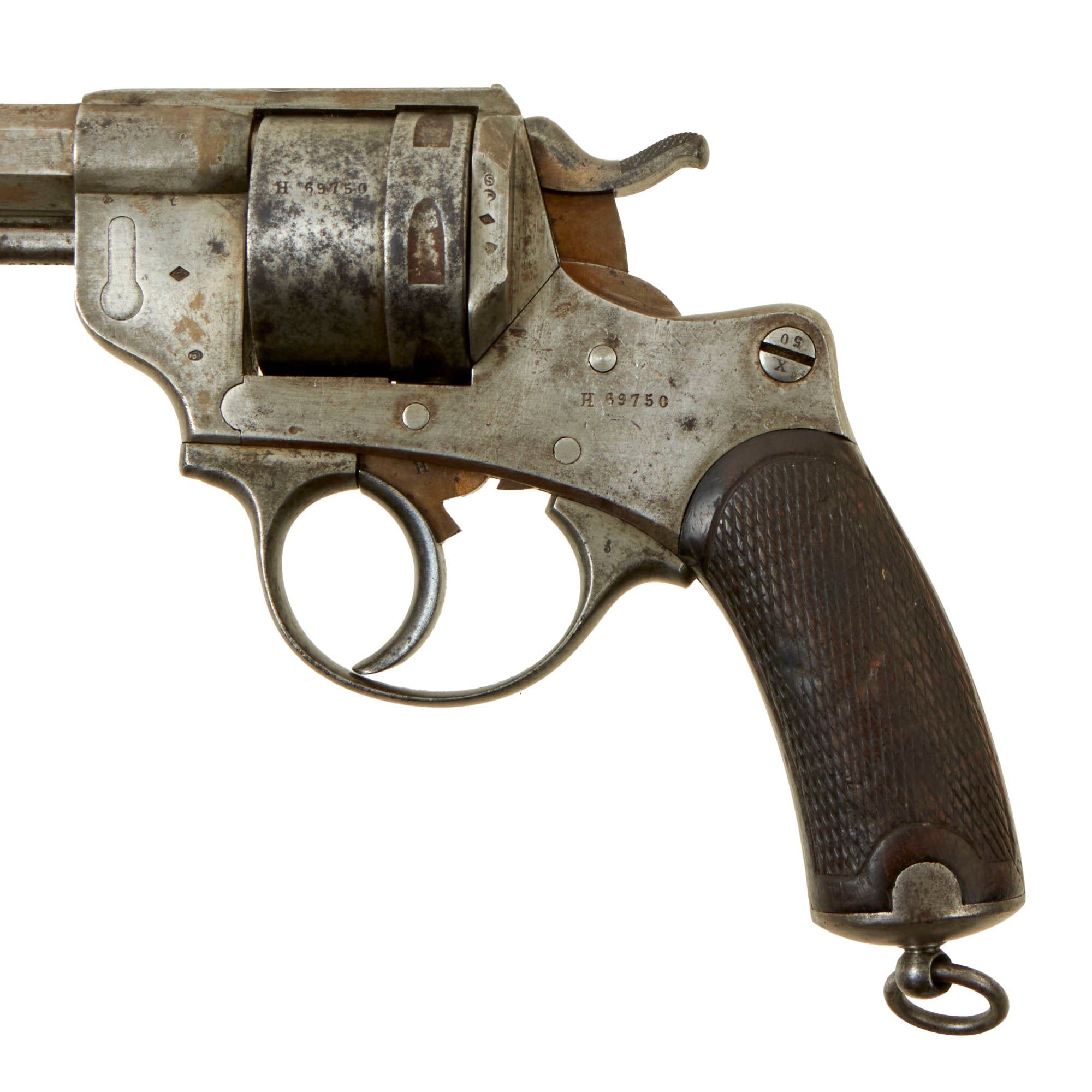

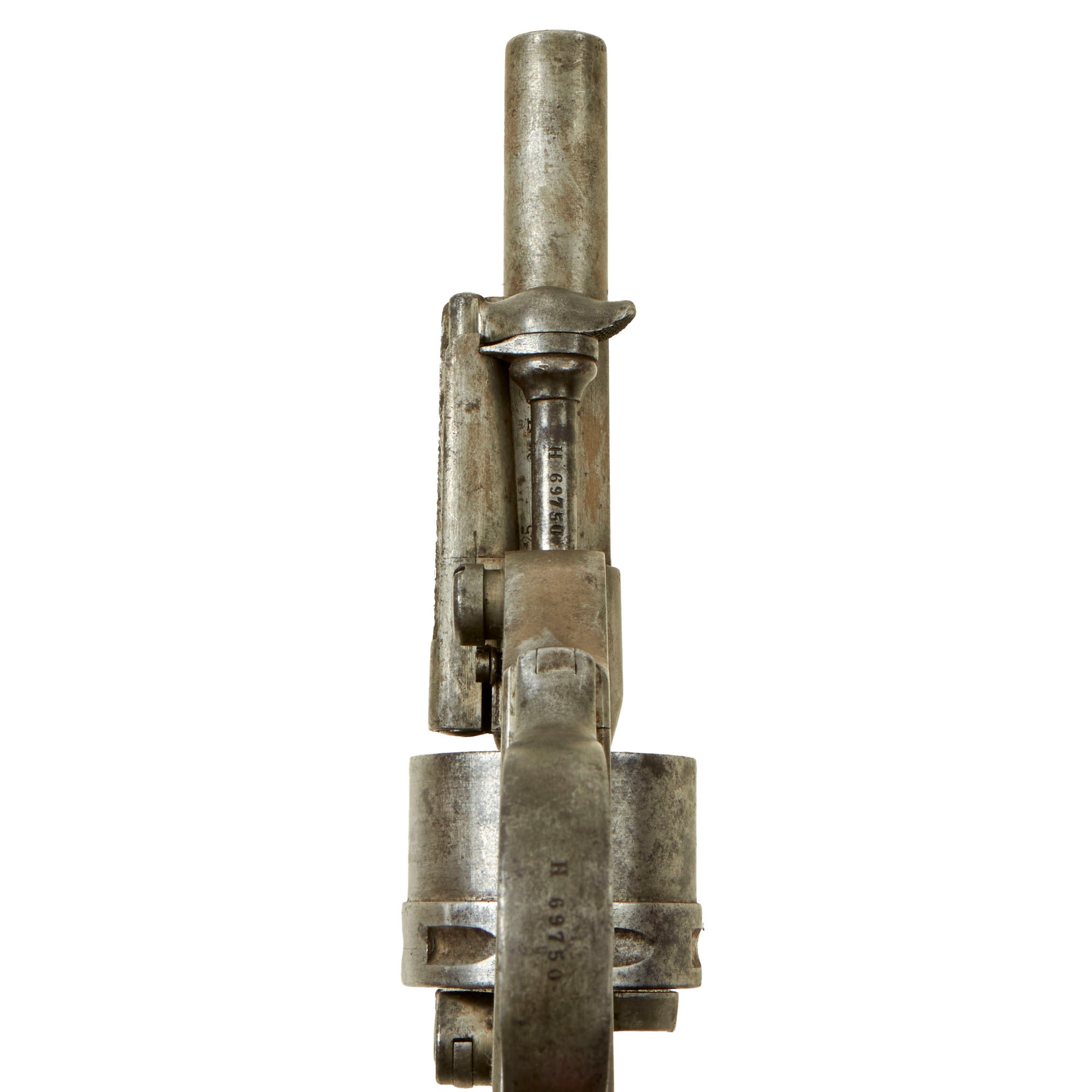

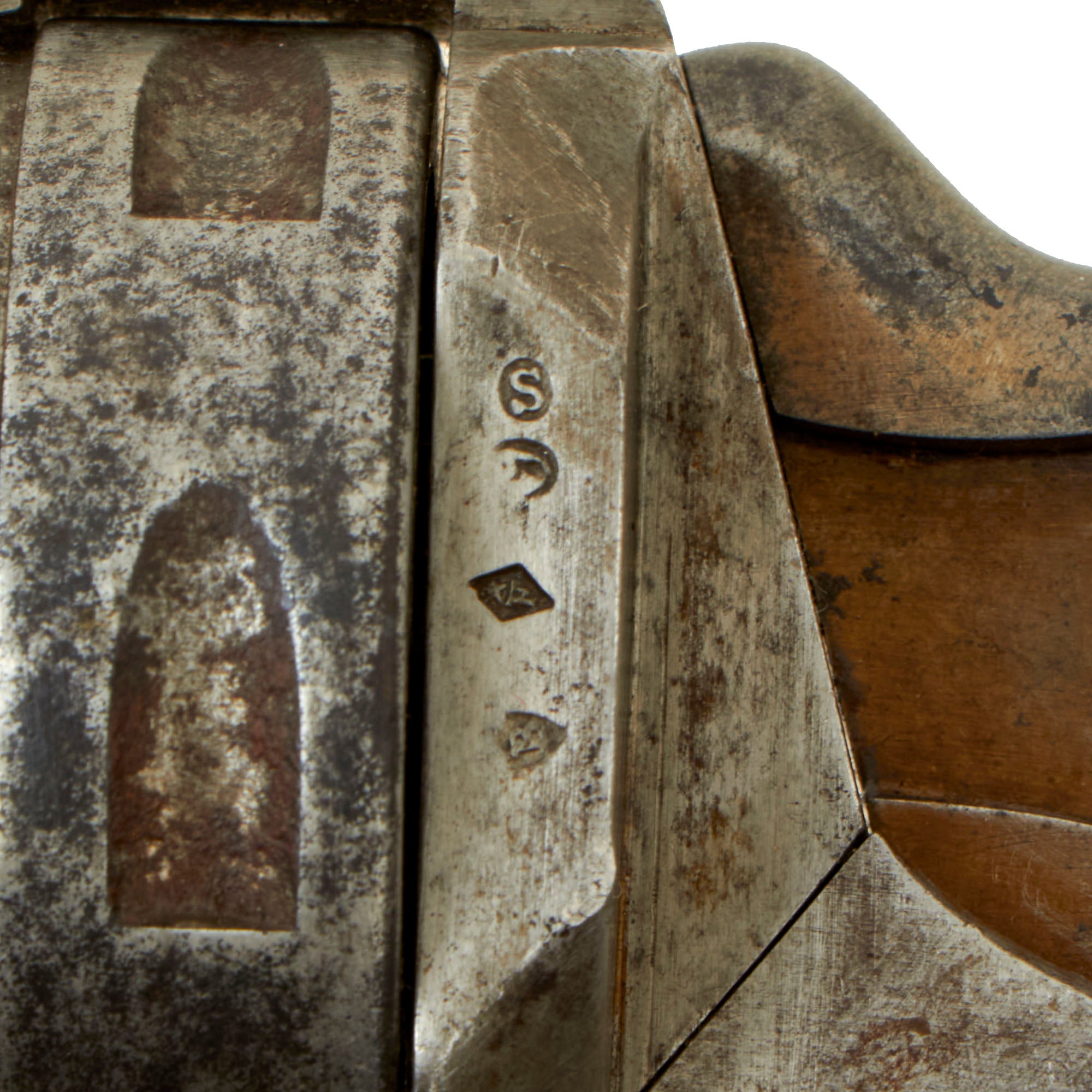

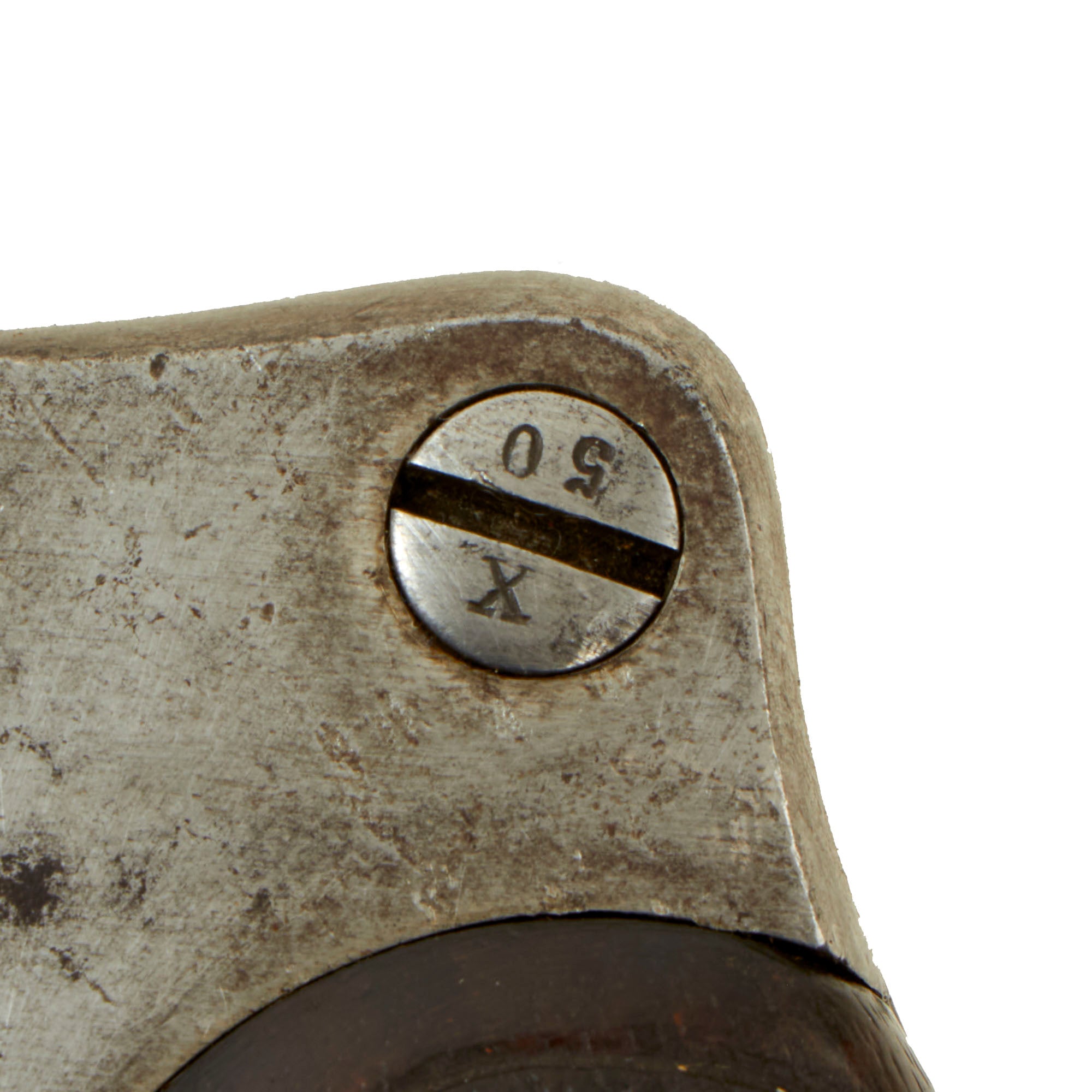

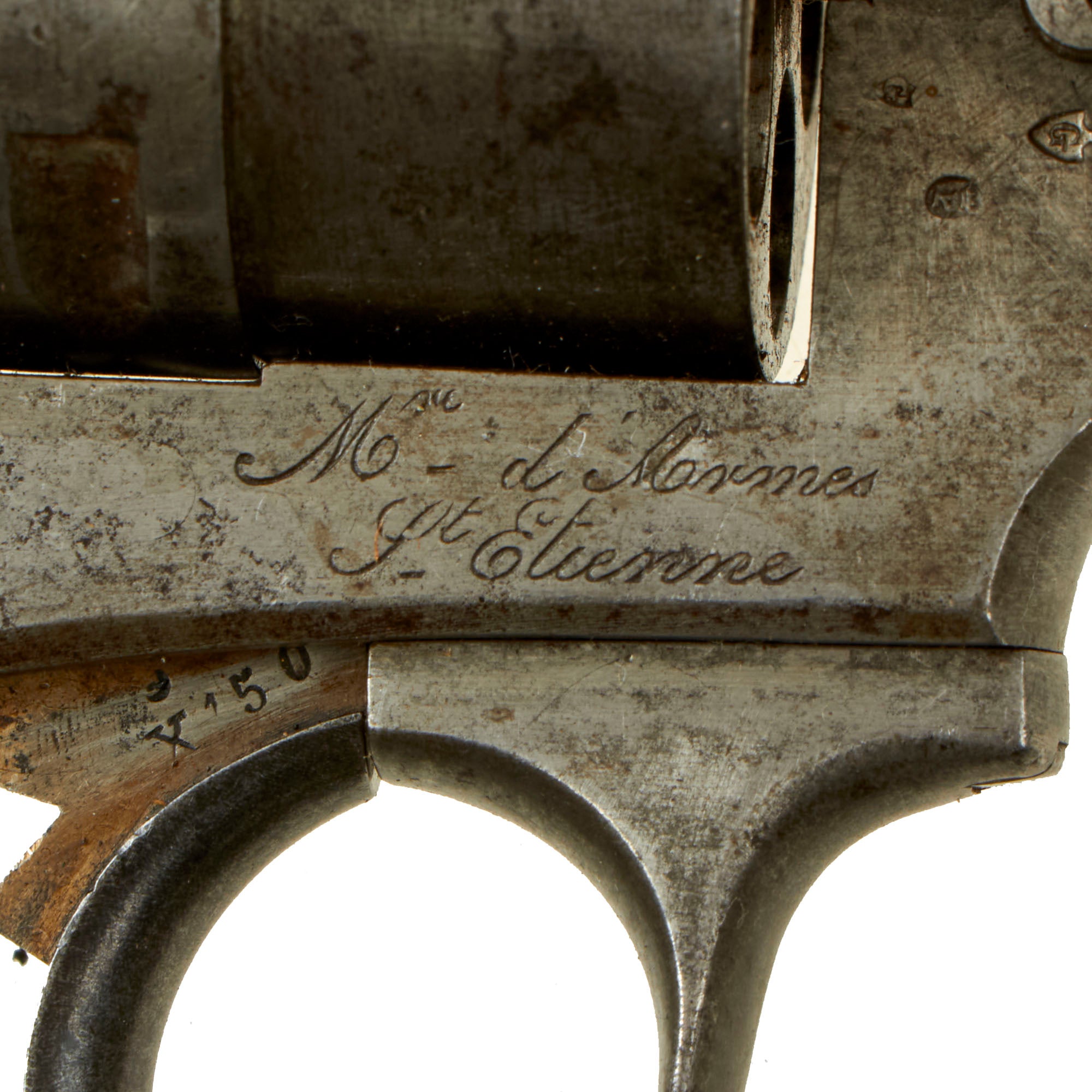

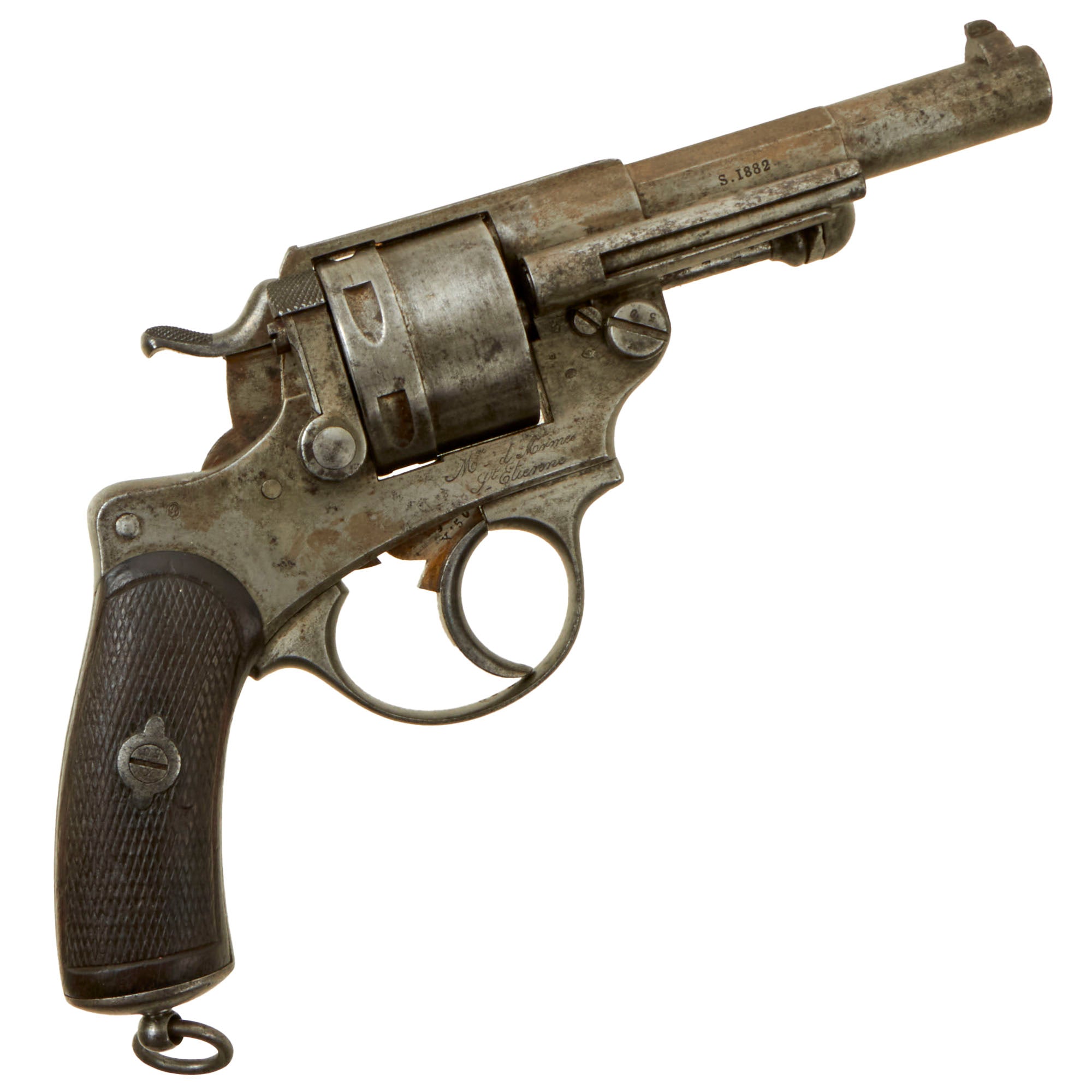

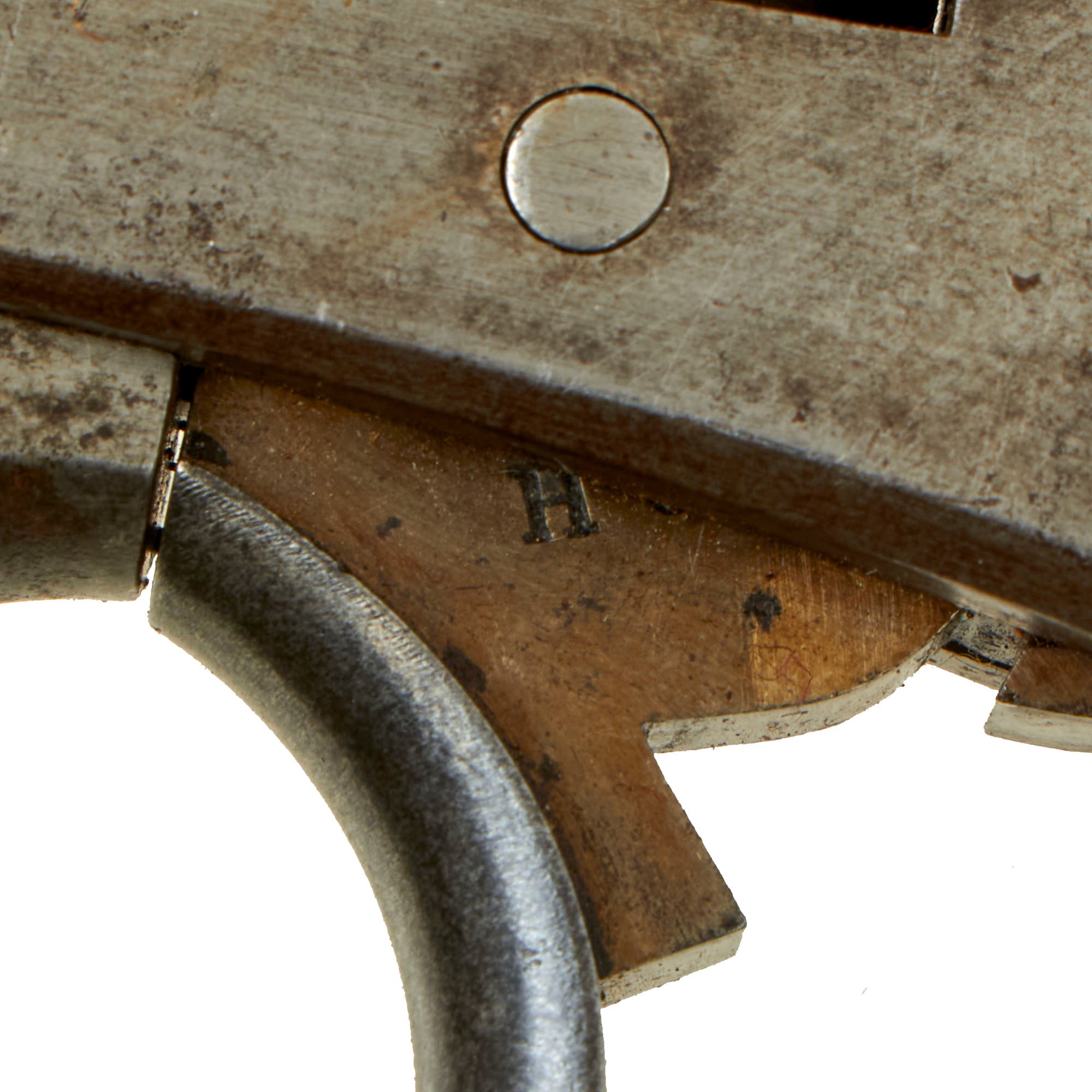

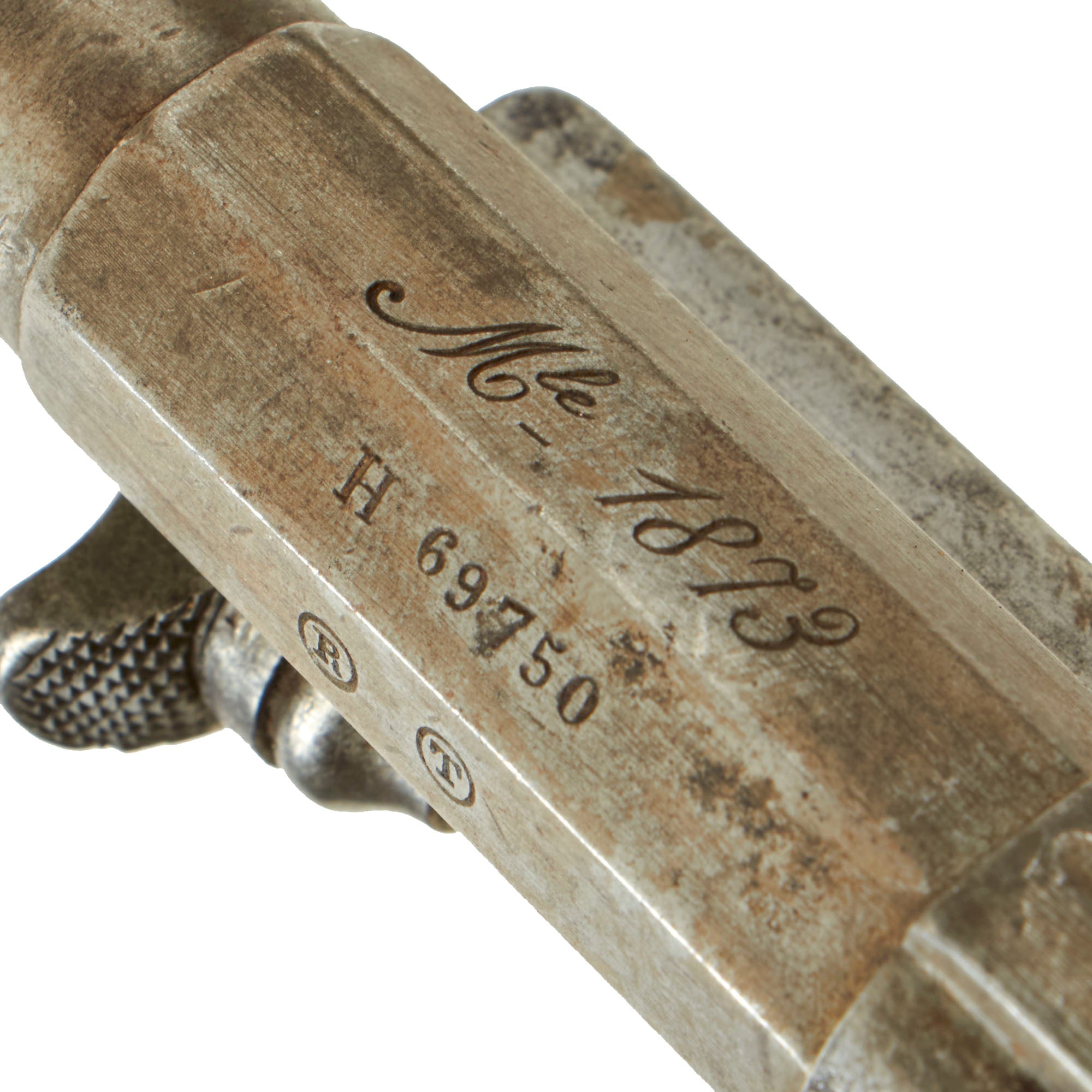

This very good mechanically sound example is in the original bright finish, though it does show overall light staining and oxidation from use in service. It does not look to have been majorly cleaned or had any restoration done, so all of the markings are still crisp. There are a few areas of light peppering consistent with long term lack of cleaning. It is marked Mre d'Armes / Saint-Étienne on the right side of the frame and features all matching serial number H 69750 on the barrel, frame, trigger guard, cylinder, trigger, hammer, and cylinder arbor pin. The top of the barrel is marked Mle 1873 and the side of the barrel is marked S. 1882, indicating the revolver was manufactured in 1882, with "S" indicating St.-Étienne. Many of the small parts of the revolver are also marked with assembly number X / 50. This definitely is an "ALL MATCHING" example, with no parts swapped out over the years!

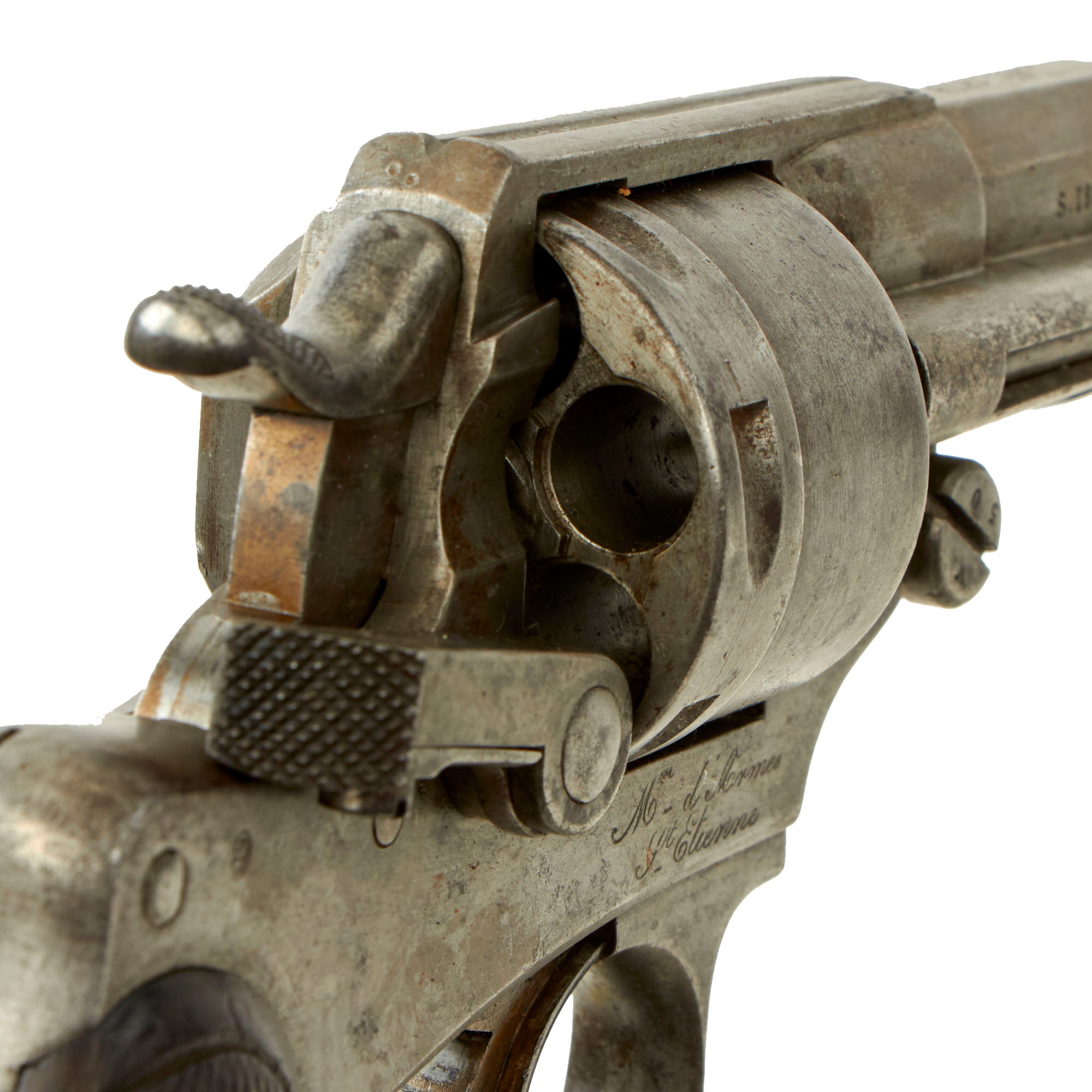

The checkered wooden grips are original and the overall condition of the revolver is very good. The revolver overall shows a lovely aged patina, which we have left intact to preserve the history of this piece. The bore is in excellent condition, with crisp lands and grooves and a bright finish. It shows very little signs of use. The lanyard ring is still present, and is not damaged or dented. The action works well, with good cylinder lockup and indexing. The cylinder arbor pin can be removed and the cylinder removed for cleaning. The loading gate is present, and the ejector rod works perfectly.
You may recall that a pair of these revolvers were carried in shoulder holsters by Brendan Fraser in his 1999 adventure film "THE MUMMY".
A great chance to own a wonderful lightly used example of a late 19th century French Service Revolver, ready to display!
Specifications of MAS model 73
Year of Manufacture: 1882
Length: 240 mm (9.5 inches)
Barrel length: 115 mm (4.5 inches)
Finish: Bright Steel
Weight (empty): 1.04 kg
Cylinder: 6 cartridges
Ammunition: 11 mm Mle 1873 (11x17mmR)
Rifling: 4 right-hand grooves
Operation: Double Action / Single Action
History of the MAS 1873
The Franco-Prussian War in 1870 clearly demonstrated the need for up-to-date equipment in war time. A great military tradition and esprit de corps can be defeated by superior training, and in the case of that war, artillery. After the war, both Germany and France continued to improve their military technology. However, neither side was convinced of the importance of pistols for field officers. The sword continued to be the symbol of authority for an officer on the battlefield all the way into World War I. European general staffs at that time were extremely conservative and pistols were sometimes grudgingly adopted as personal defense weapons with no practical offensive use. Even as pistols became more of a symbol of the officer, most preferred to privately purchase a smaller and more comfortable handgun instead of using a large standard issue revolver.
The Chamelot-Delvigne 11mm Modele 1873 was adopted by the French army as a service revolver for non-commissioned officers. The Modele 1874 Revolver d'Officier was the version issued to officers. The differences between the two models included the following: the 1873 was finished in the white, whereas the 1874 had a fluted cylinder and a blued finish. The 1873 and 1874 were the first center-fire cartridge revolvers adopted by the French army. They had solid-frame, side-ejection, double-action mechanisms. The pistols were manufactured by the St. Etienne armoury, which still continues to manufacture fine sporting arms.
The design of the Chamelot-Delvigne revolvers became so popular that versions were adopted by the Belgian in 1871, Dutch, Italian, and 1872 in Switzerland with the Model 1872 Revolver.
The caliber of these French pistols was 11x17.8mmR. The French round was actually 0.47 mm larger than its German counterpart. The German round could be loaded and used in the French pistol, but French rounds would not chamber in the German pistol. The cartridge had a pointed lead bullet weighing 11 grams. The case length was 17.8 mm, which was rather on the short side. Reloading this cartridge could take some patience due to the shortness of the case. Military specifications called for black powder loads, replaced by a mild smokeless powder in the early twentieth century. Standard muzzle velocity was around 550 feet per second.
The cylinder had a side-loading gate which pulled straight to the rear. The sight picture was a ball and v type and is easy to align. It could be difficult to stay on target double-action due to the stiffness of the action. There was certainly no danger of accidentally pulling the trigger double-action. Cleaning and disassembly were easy as the cylinder pin doubled as a screwdriver and all-purpose tool. Internal parts were finely machined and finished. The trigger, hammer, and several of the internal springs were straw-finished, a type of case-hardening hot oil finish.
The French pistols began their service with the French army in the late 19th Century and saw service all over the globe in French colonies. Many saw service in World War I when European armies finally realized how important pistols were in the trenches. The Chamelot-Delvigne finally ended its venerable service as a police sidearm in World War II.
