Original Excellent U.S. Civil War Whitneyville “Plymouth” Navy Percussion Rifle Serial 5126 with Bayonet & Scabbard - dated 1863

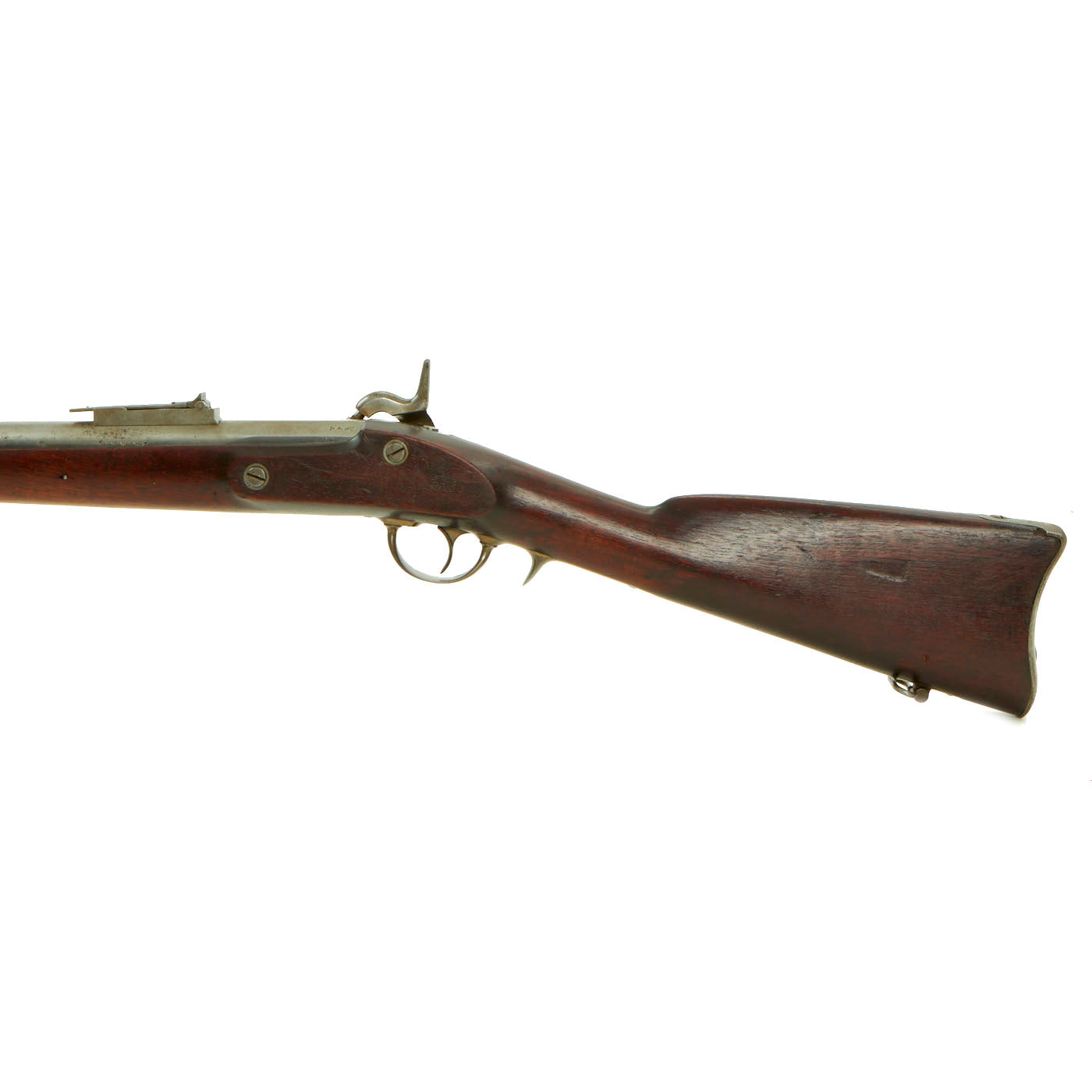

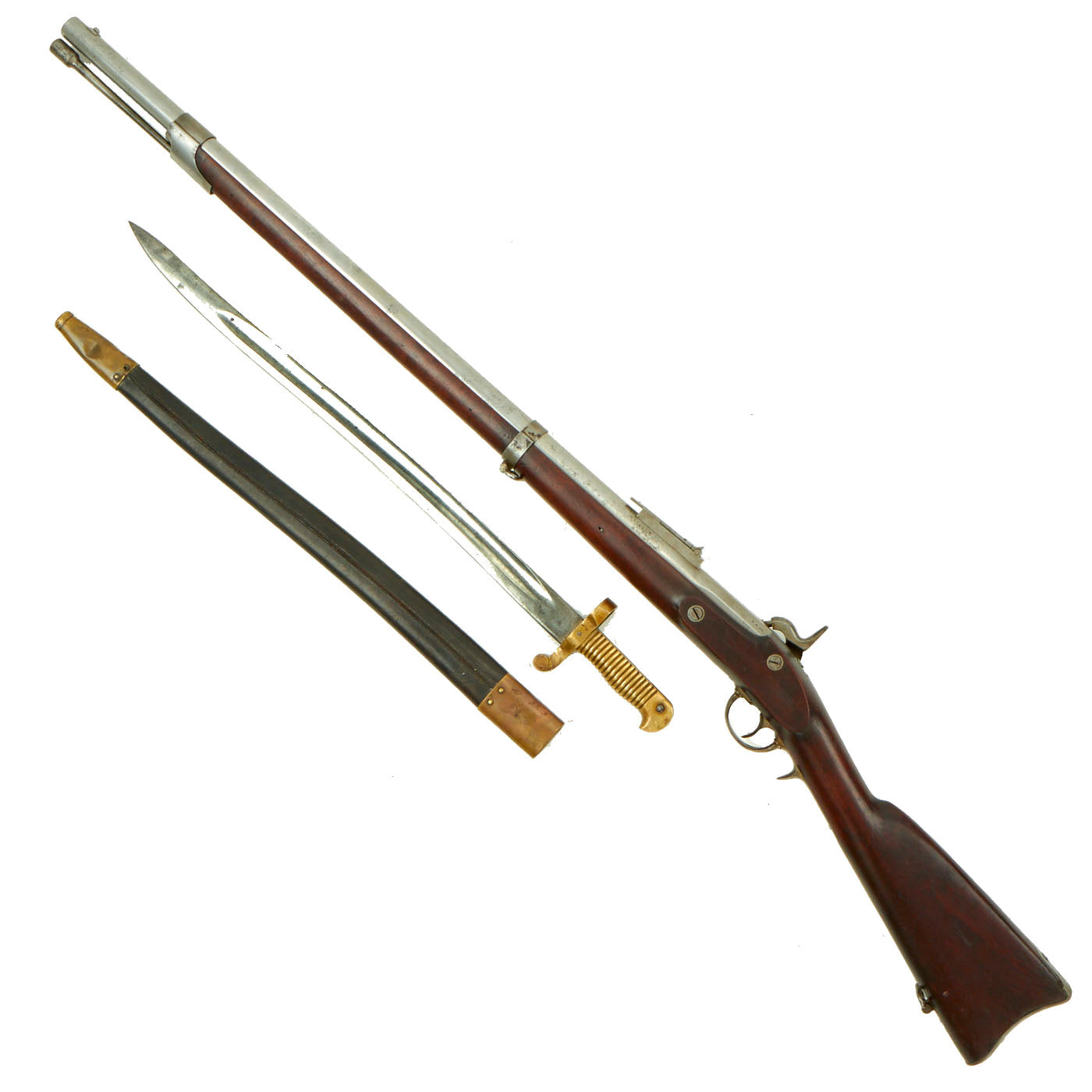

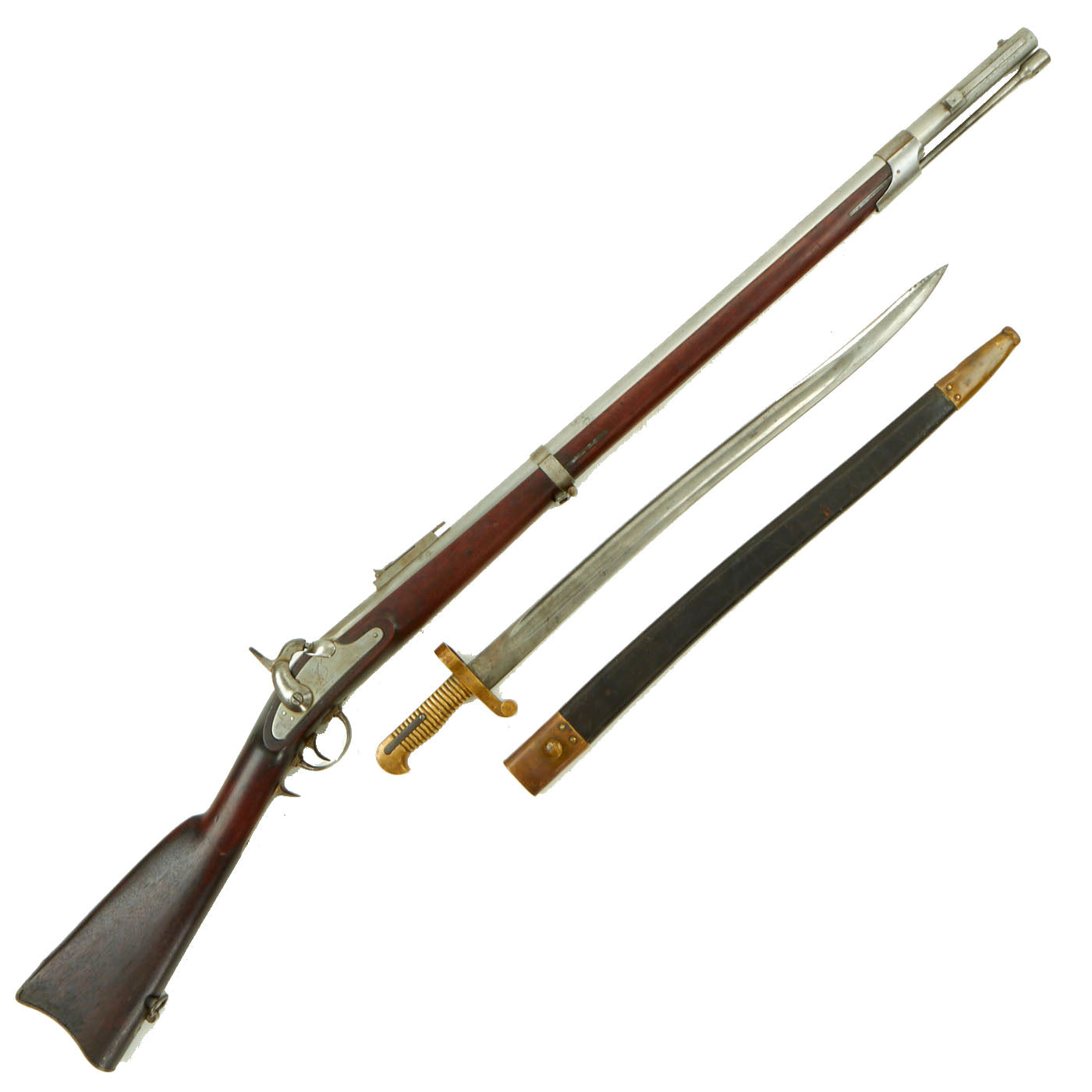

Original Item: Only One Available. This is a fantastic offering that we have never had before, and most likely will not see again for some time, if ever! Here we have an Excellent condition rare U.S. Civil War "Plymouth" Navy Percussion Rifle, complete with the even rarer bayonet in its original scabbard. This is one of 10,000 made by Eli Whitney’s manufactory, Whitney-ville, based on an 1861 contract to the U.S. Navy. Five sample rifles were delivered in October 1862 and regular deliveries started in February 1863, with 5,300 delivered that year and the remaining 4,695 in 1864.
The Whitneyville "Plymouth" Navy Rifle was the brainchild of John A. Dahlgren, who began testing the idea of a .69 caliber rifle for the U.S. Navy on the 1858 voyage of the USS Plymouth, hence one of the several names applied to this rifle. Dahlgren wanted a large-caliber short rifle for shipboard use and used the French carabine-a-tige as a model. He wanted a heavy barrel to compensate for its recoil and originally had the idea of fitting it with a Bowie-knife style bayonet that would be useful has a hand-held weapon and for other shipboard tasks. A few of these were made, but it was decided that a longer Saber bayonet would be more practical.

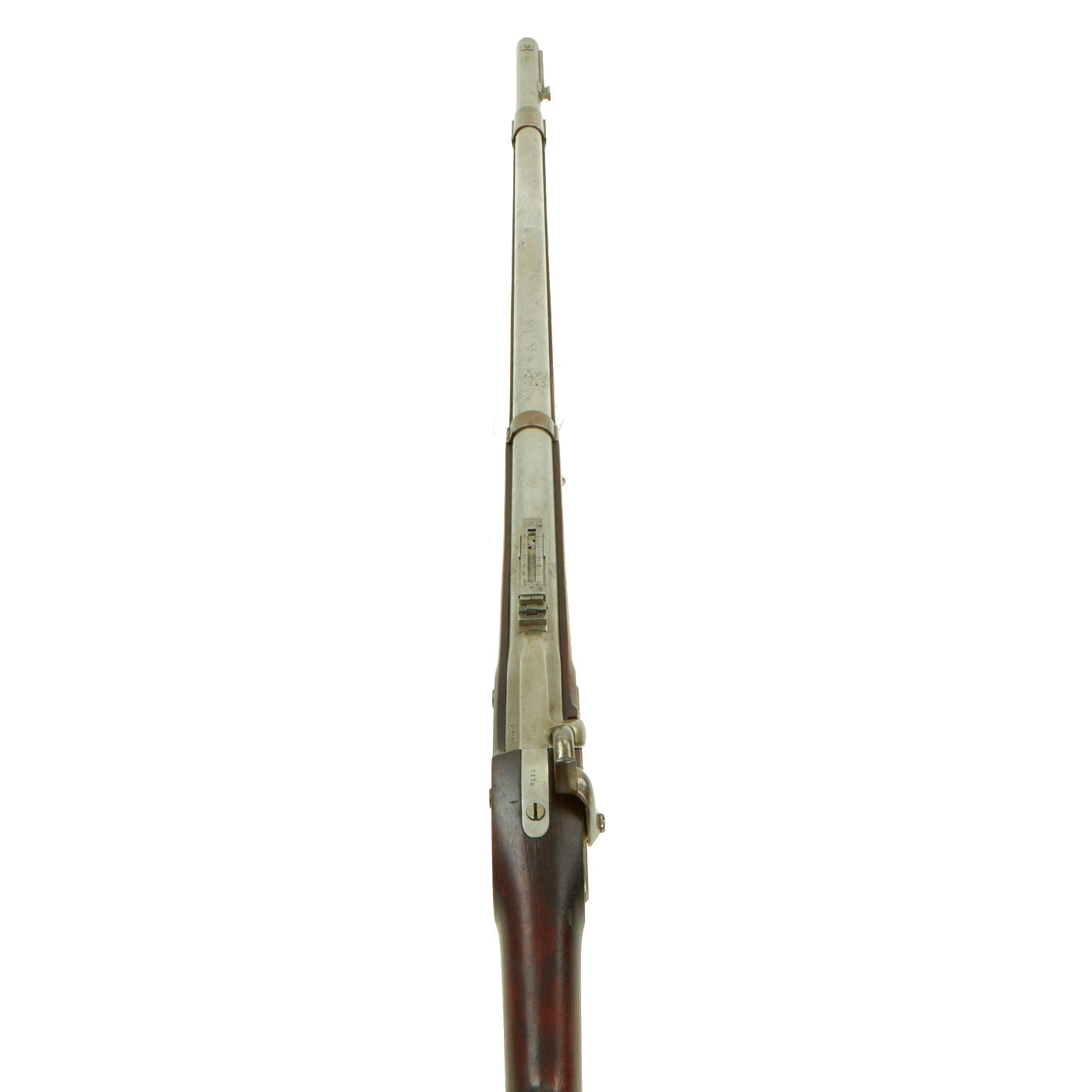

As produced by Whitney for the Navy on a July 1861 contract, the rifle was lighter than Dahlgren envisioned and utilized a saber bayonet supplied by Collins, but mounted a 34-inch .69 caliber rifled barrel secured by two bands, with a long French style rear sight graduated to 1,000 yards. This example matches the pattern exactly, was produced about half way through production, delivered at the very end of 1863.

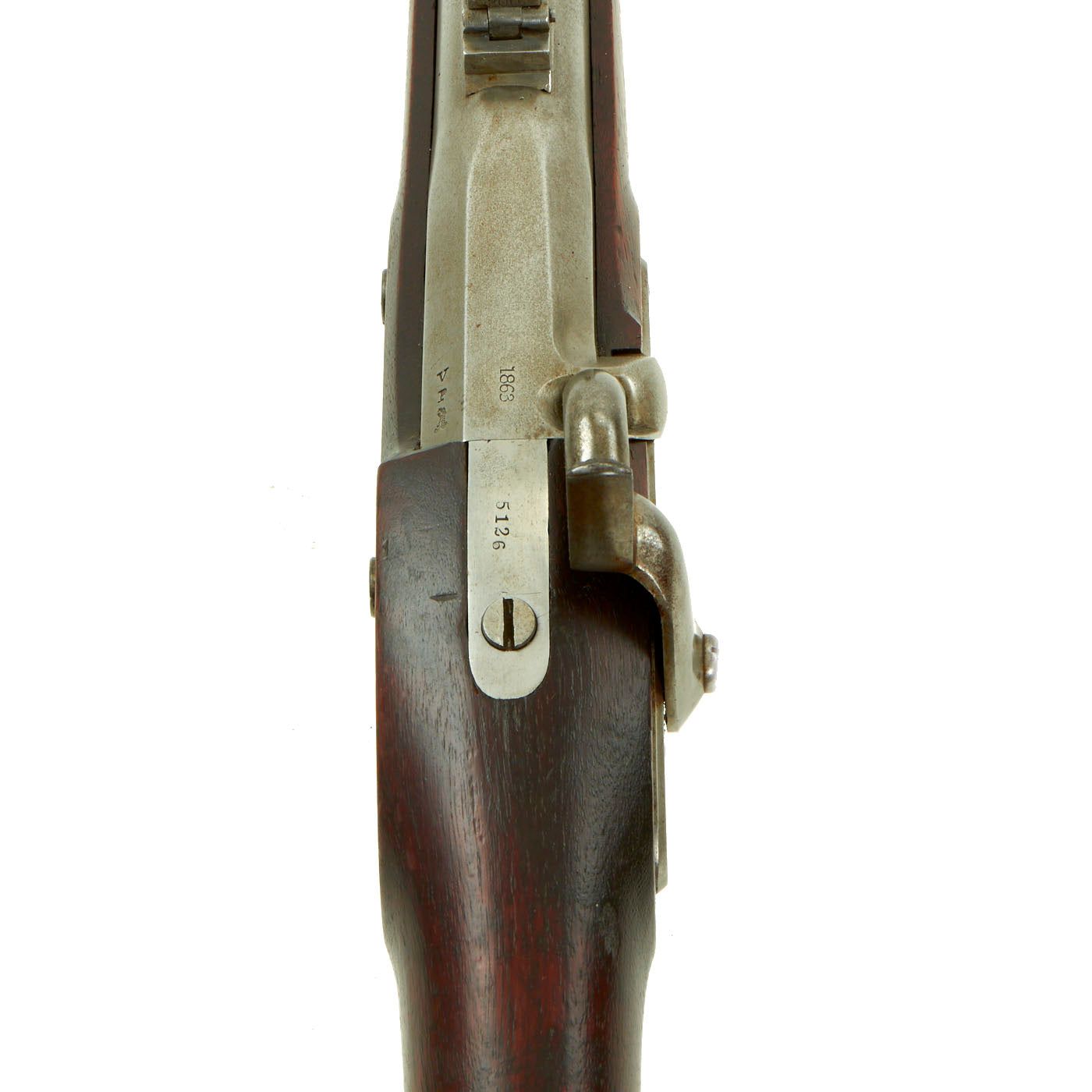

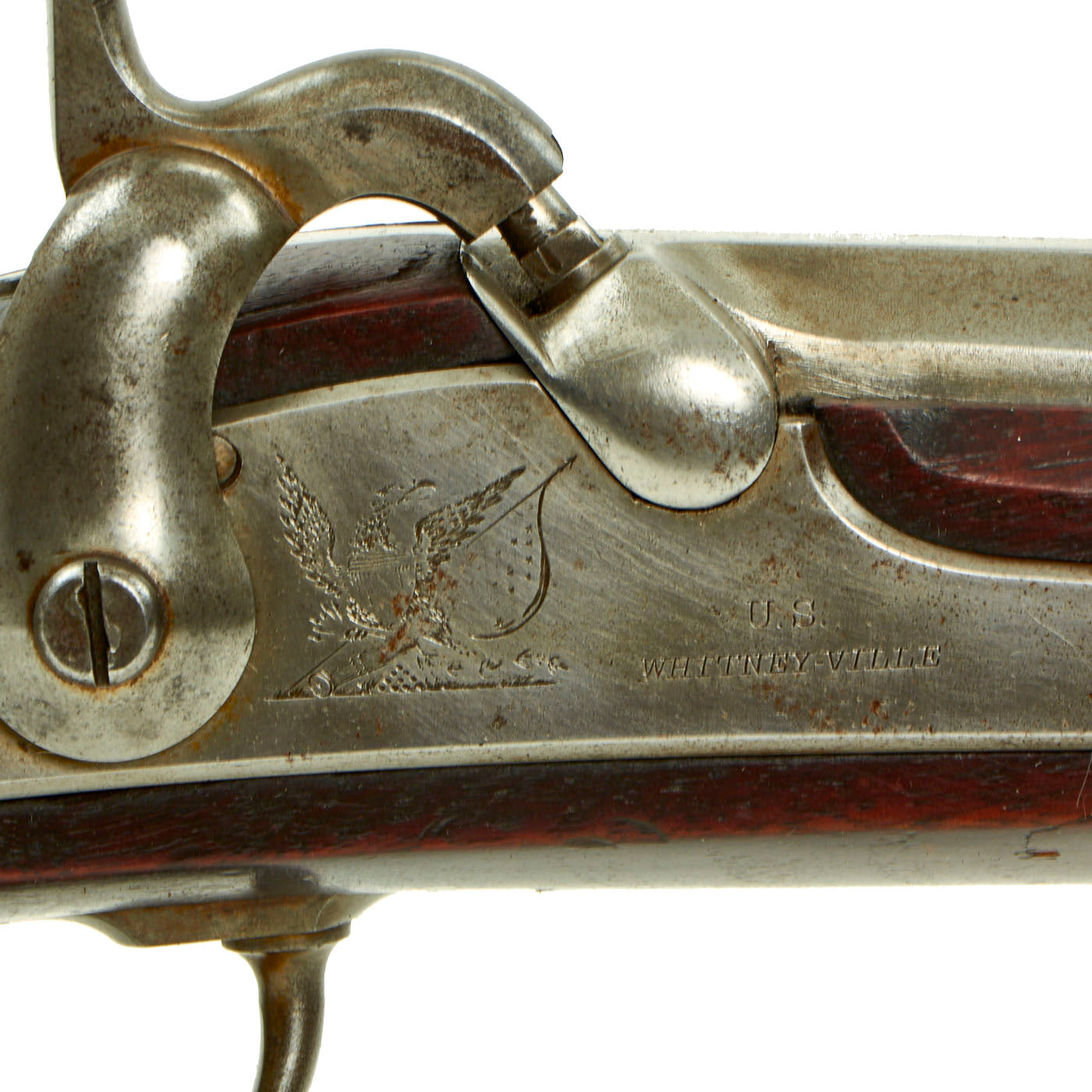

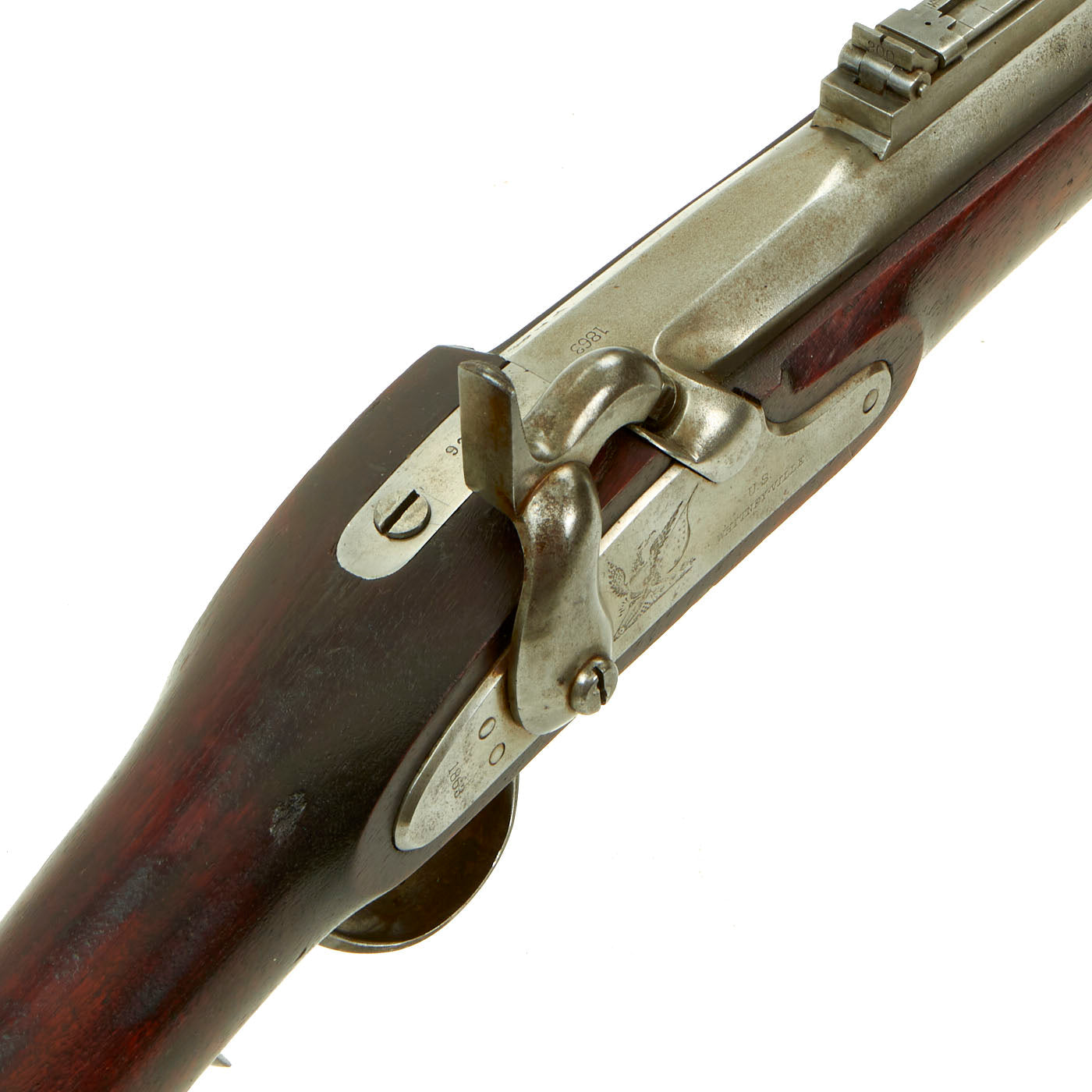

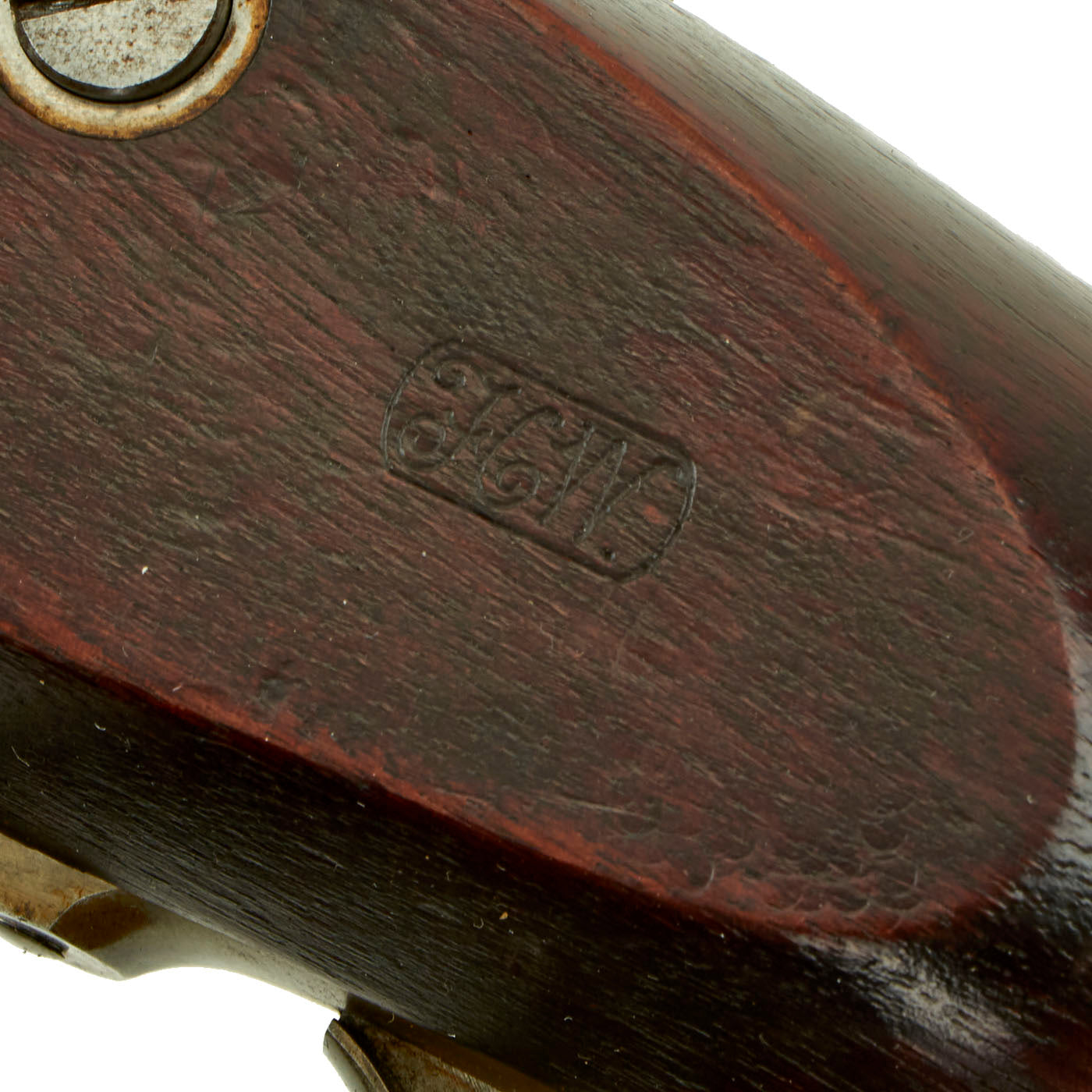

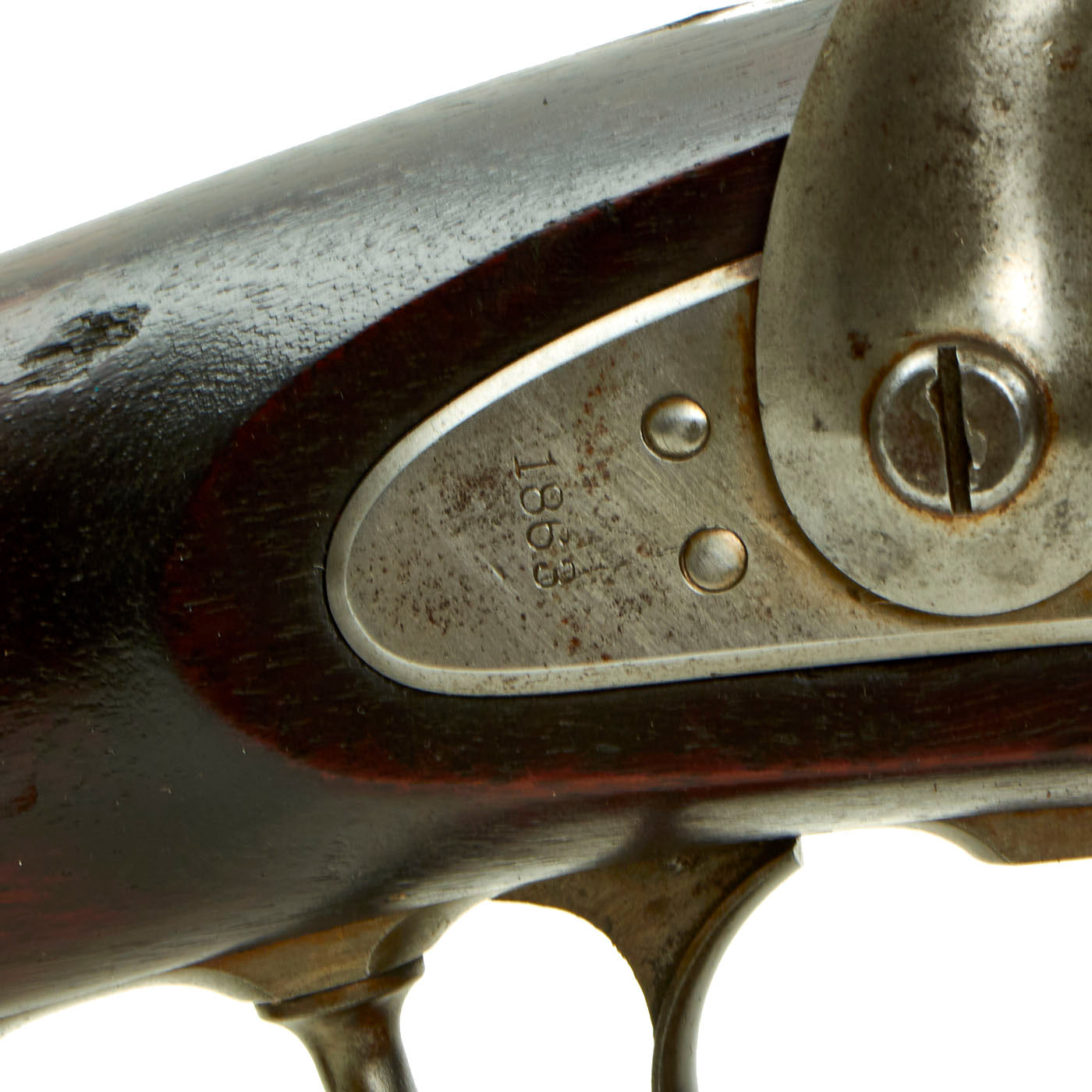

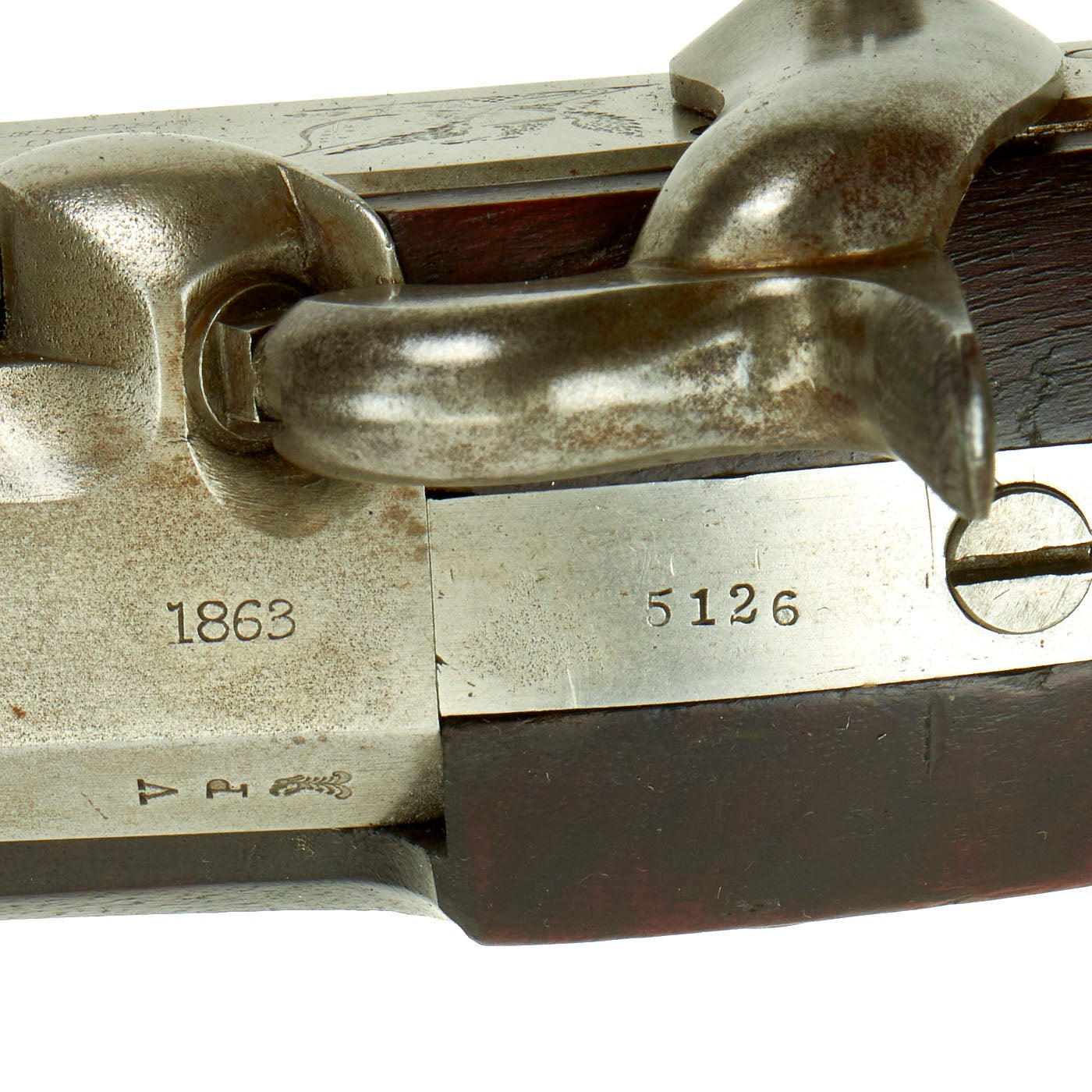

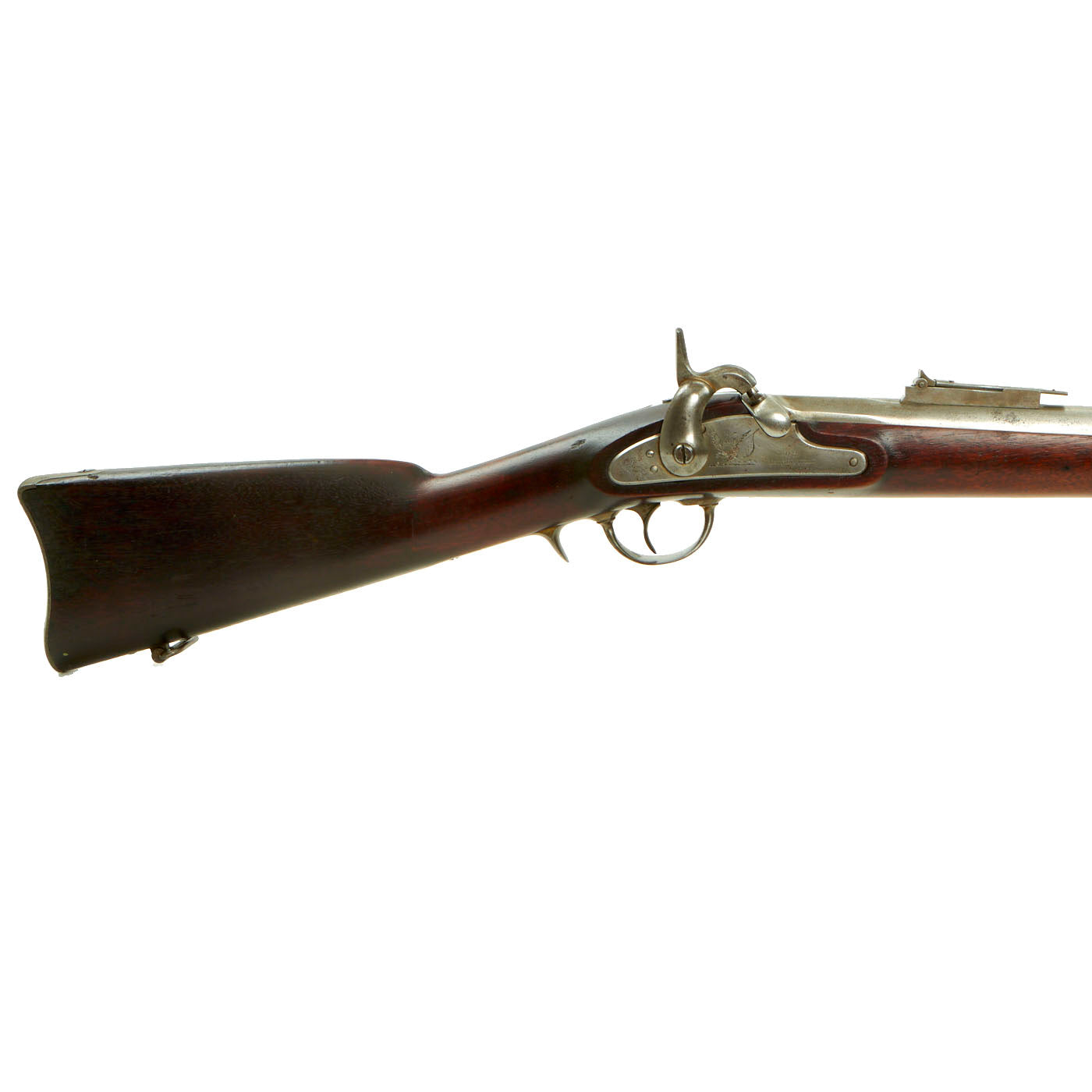

It is dated 1863 on the lock plate tail, and has the correct Federal Eagle with a U.S. banner to the right. Under the bolster is a U.S. / WHITNEY-VILLE stamping, indicating Whitney production. The barrel nocks form still has complete clear markings, with a date of 1863 on the top and serial number 5126 stamped onto the barrel tang. The left barrel facet is stamped with the standard V / P / Eagle's Head proof marks, and under this are the initials of the ordnance sub inspector, F.C.W.. This is the marking for civilian inspector Frank C. Warner, who is listed as inspecting Remington M1866 .50RF Pistols, Whitney .36 Percussion Revolvers, Plymouth Rifles, and M1867 Remington Navy Carbines. There is also a CLEAR FCW boxed cartouche on the left side of the stock. The barrel band is still correctly "U" Marked, and the butt plate tang has a U.S. marking on it.

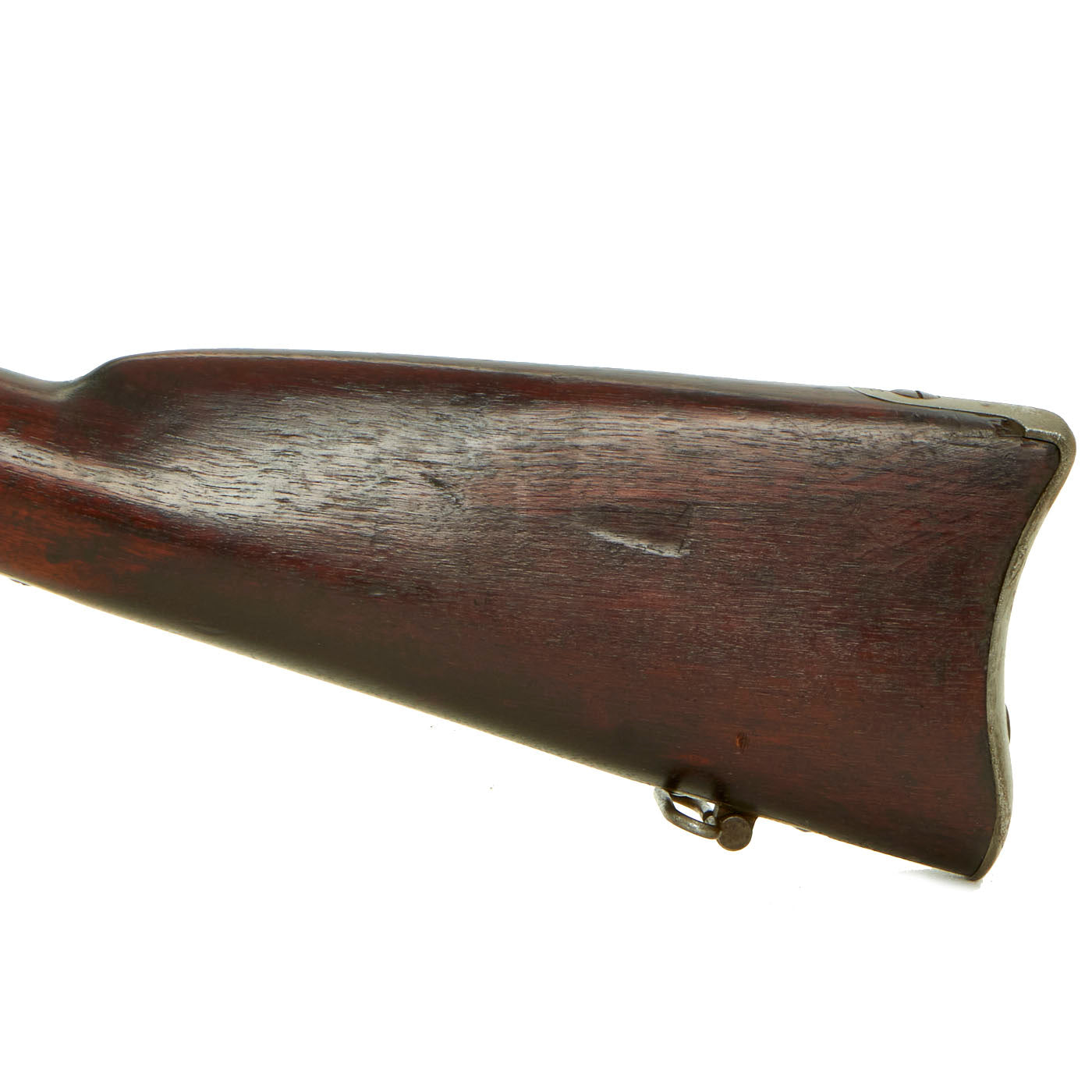

The condition is astounding for being on a rifle over 150 years old, and we suspect it may have never been issued, with all wear being from storage. The metalwork is still mostly in the original polished bright steel state, with a bit of past peppering that has been polished away. The stock is as close to unissued as we have seen on a U.S. service rifle from this era, with a lovely red brown color, and just a few scrapes and dings. The raised grain can still be seen from the original factory finish.

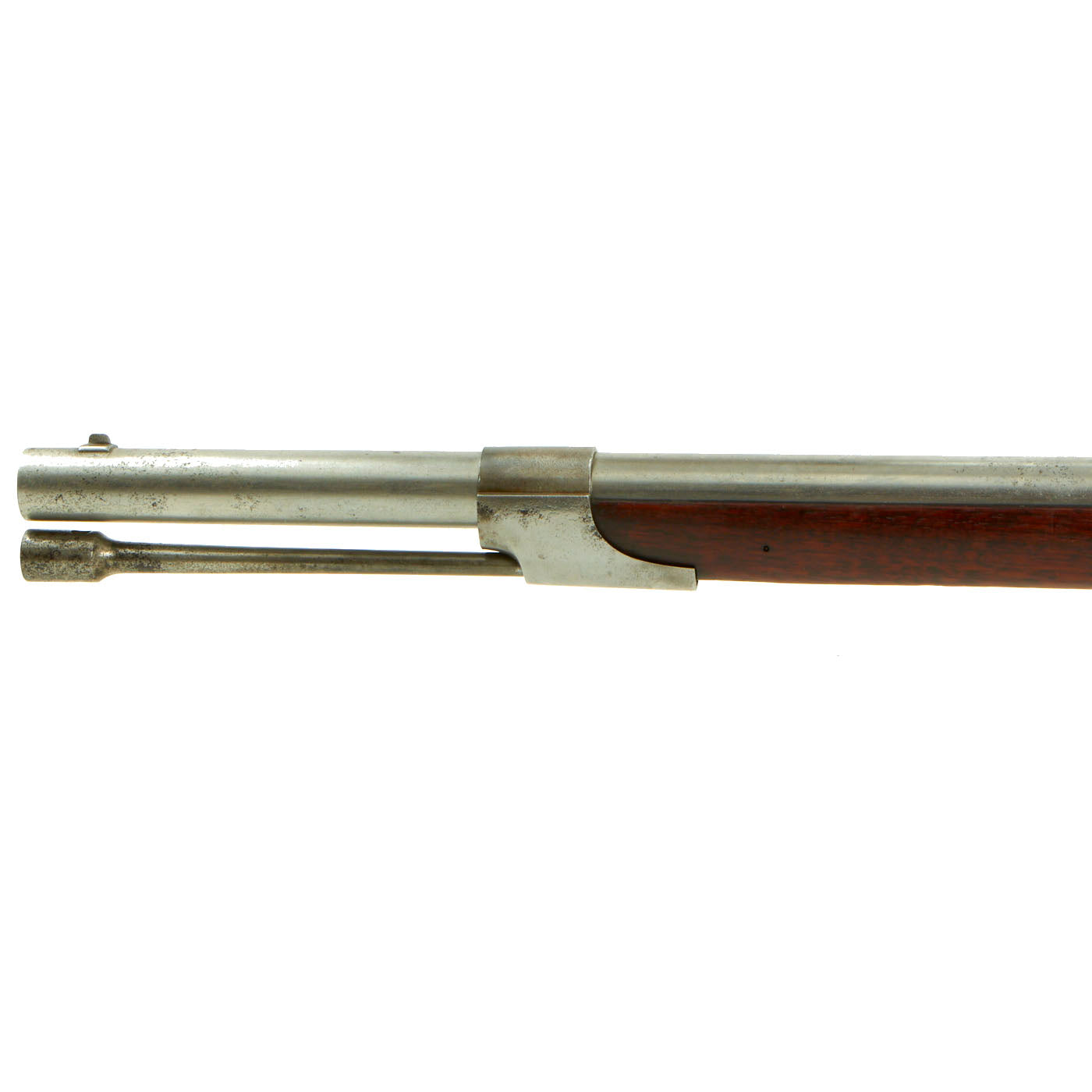

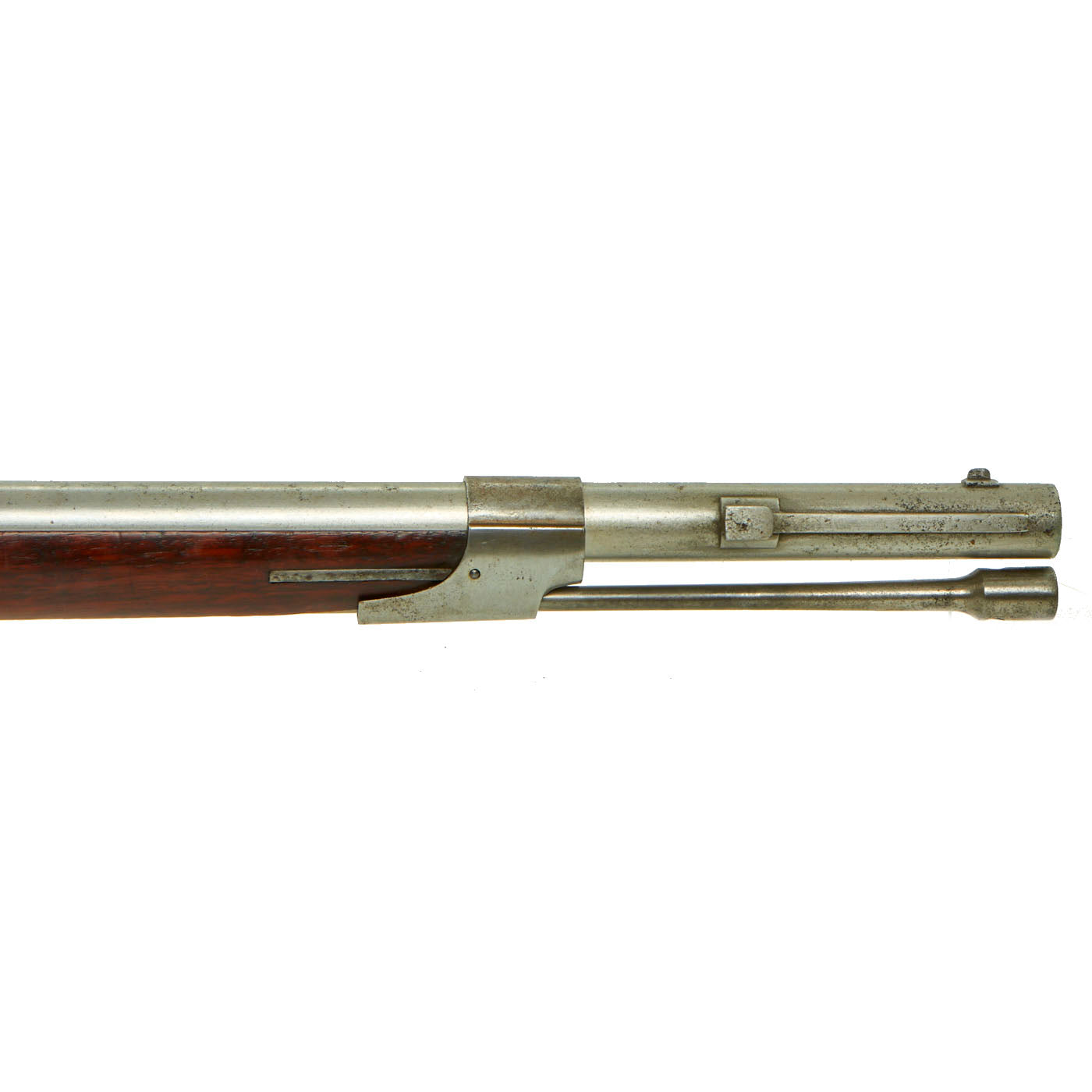

The barrel band and nose cap are both firmly secured with their original retaining springs. Sling swivels are original to the gun, and still move freely, as intended. Under the barrel is the correct characteristic ramrod for this rifle, with the large barrel-shaped end. The original 1000 Yard rear ladder sight is still fitted in place, with all parts intact and fully functional. The lock functions correctly, holding at full cock and dry firing correctly. We checked the bore, and it is in excellent nearly unissued condition, clearly showing three groove rifling, which is crisp. The original cutting marks are still present, and we have not seen a Civil War gun with a better bore in some time, if we have at all.

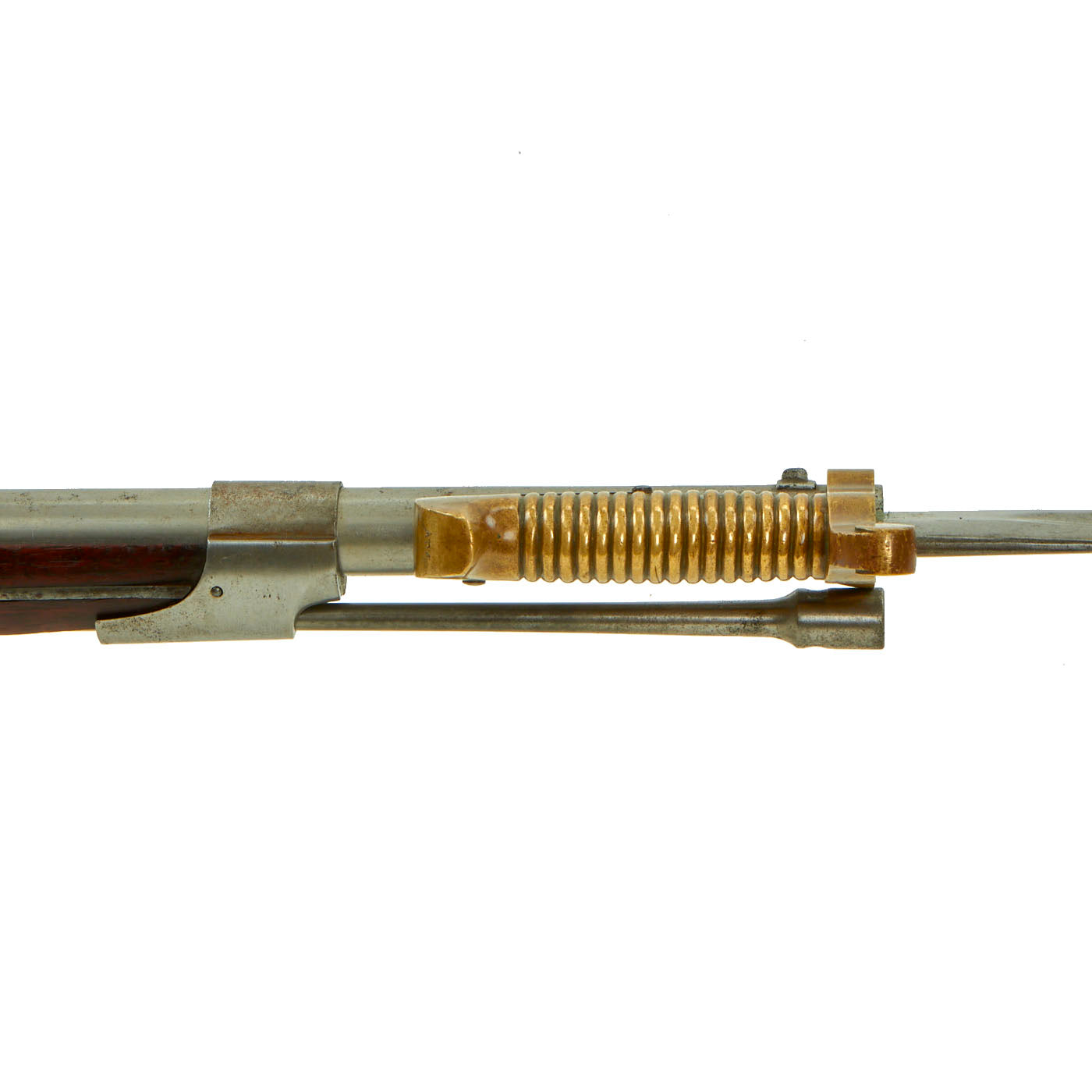

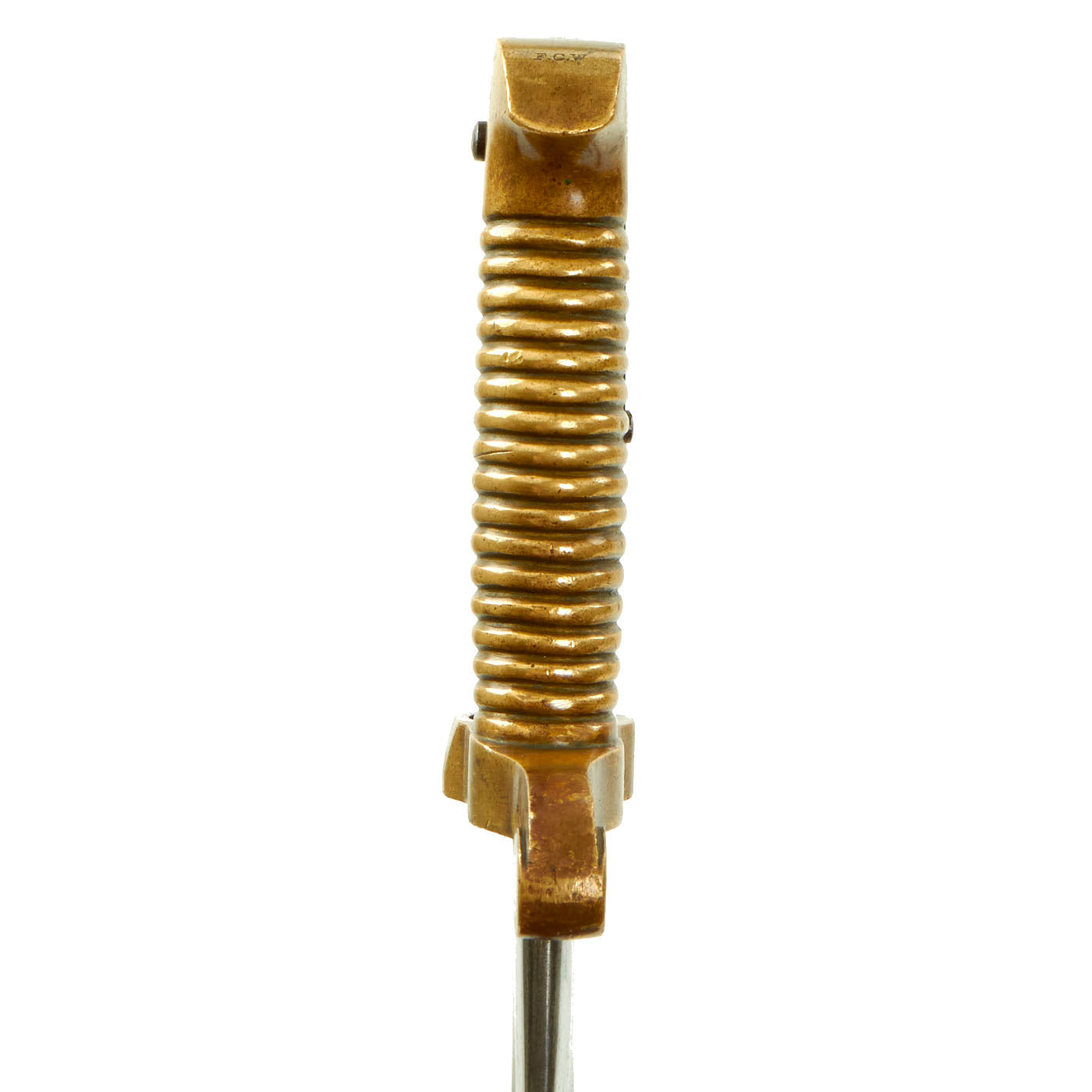

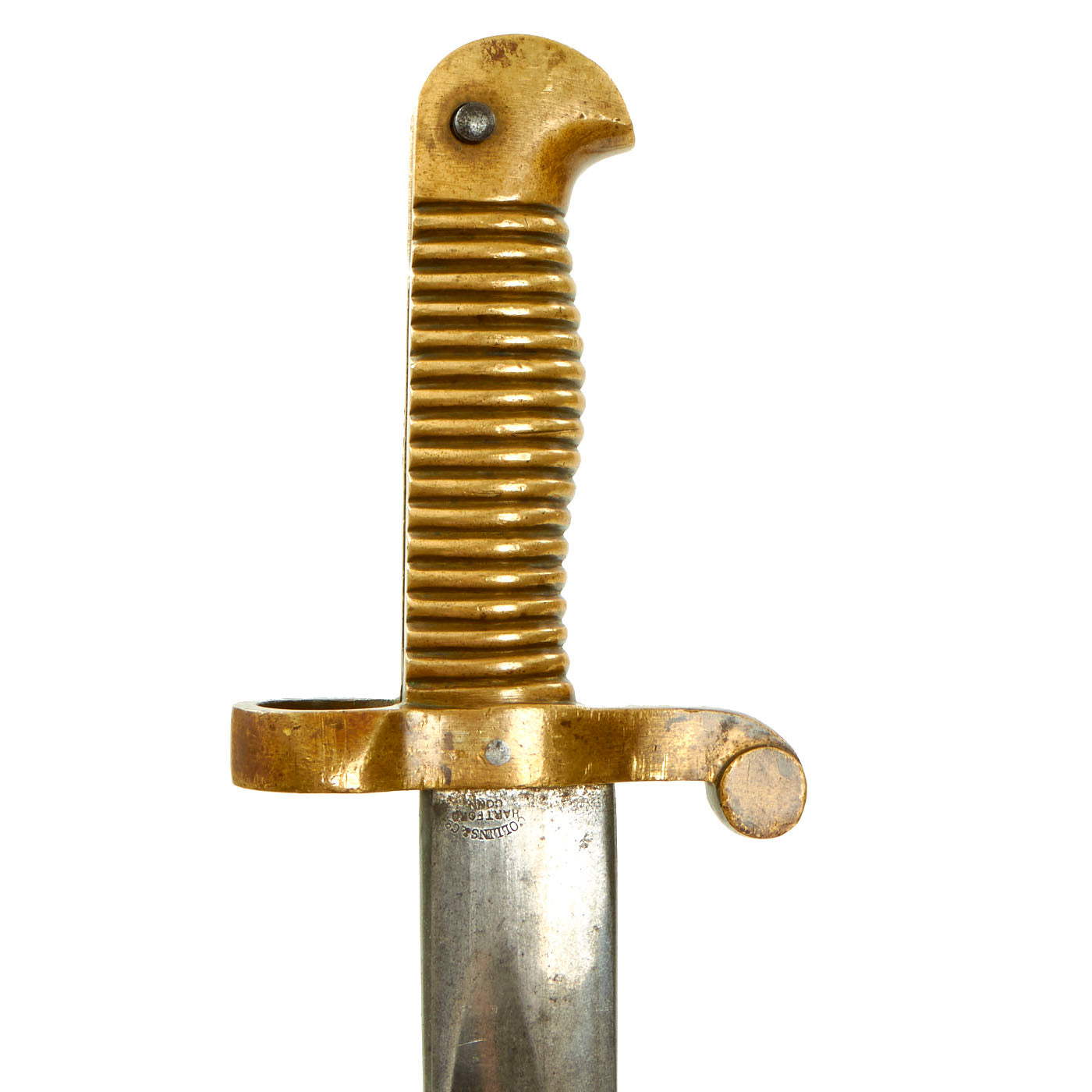

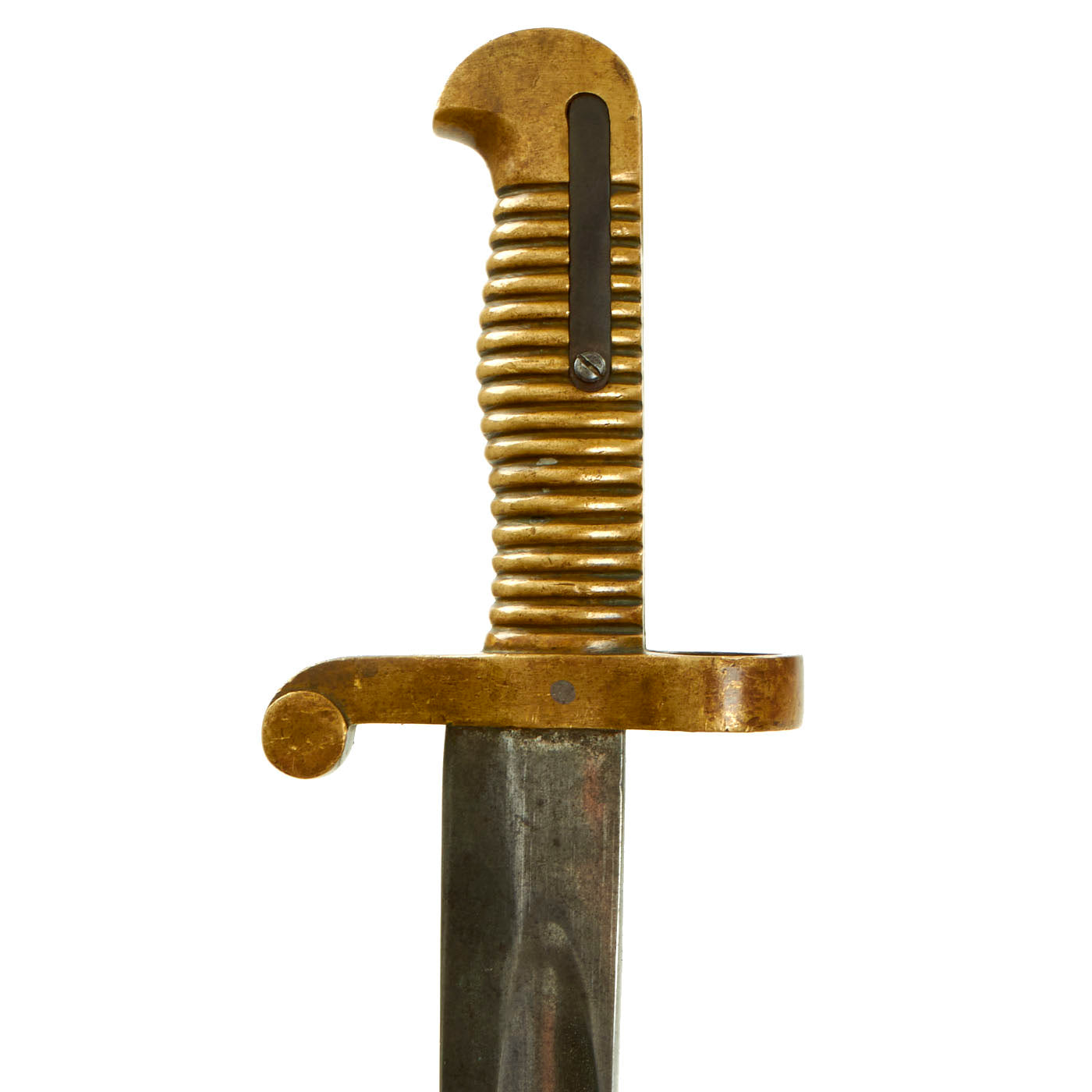

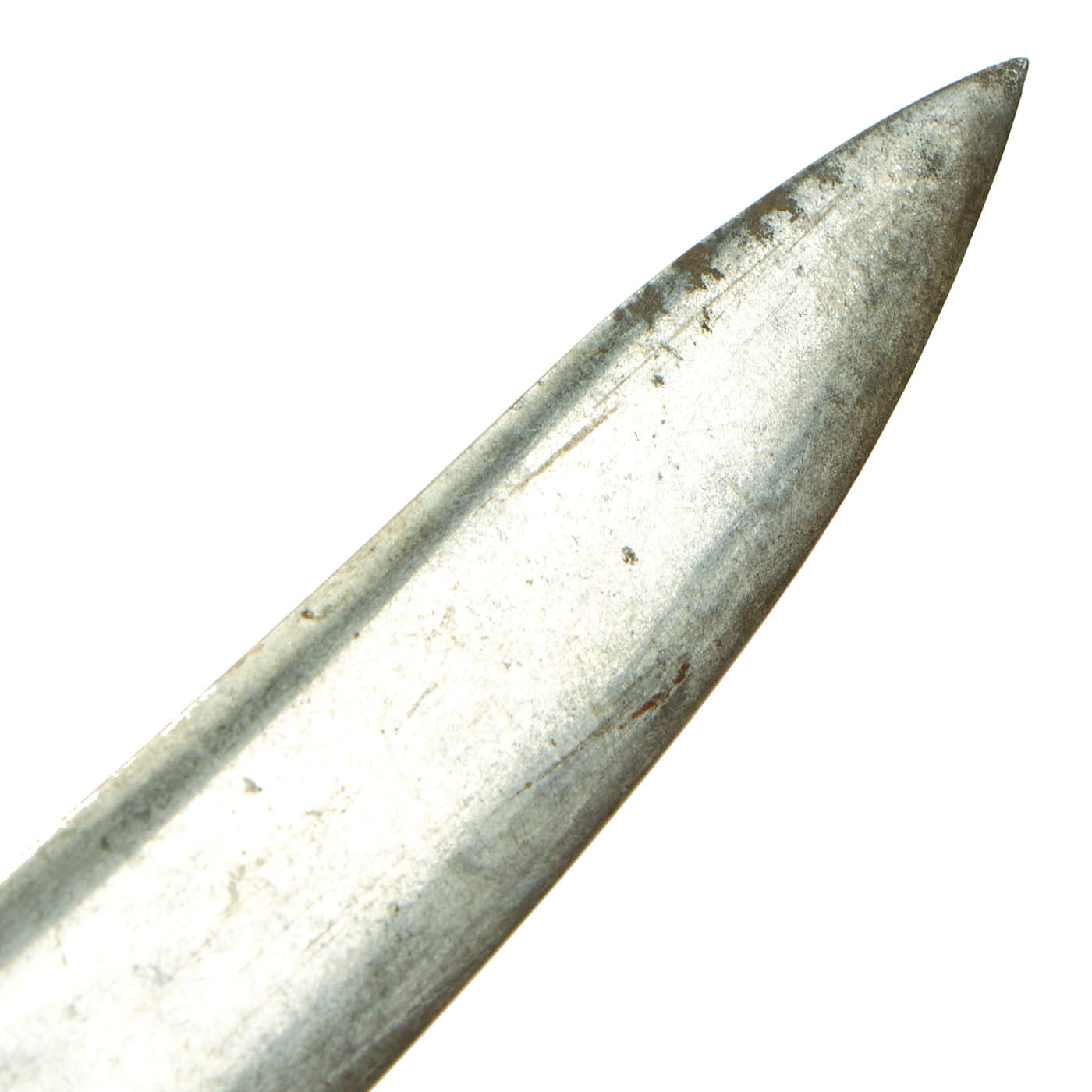

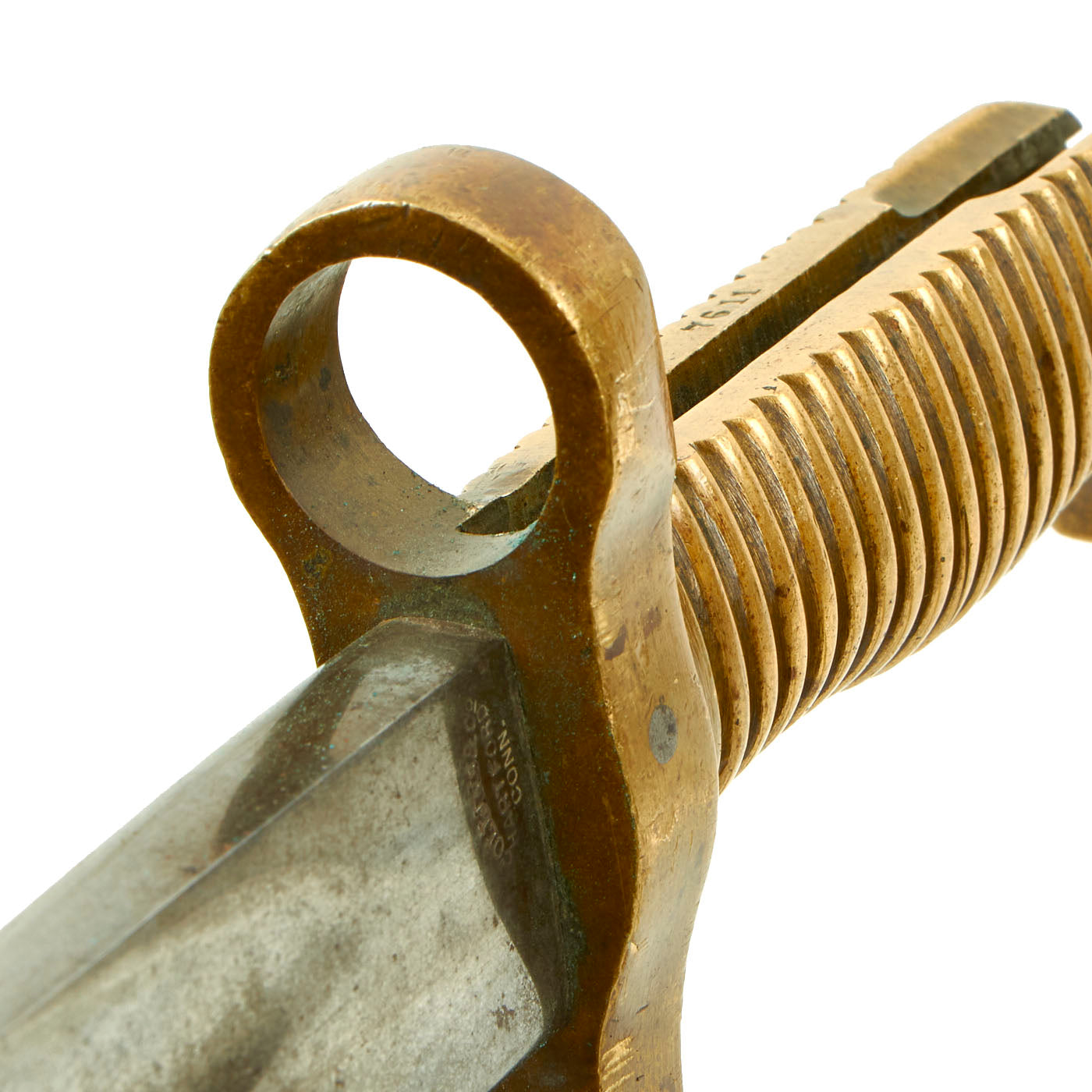

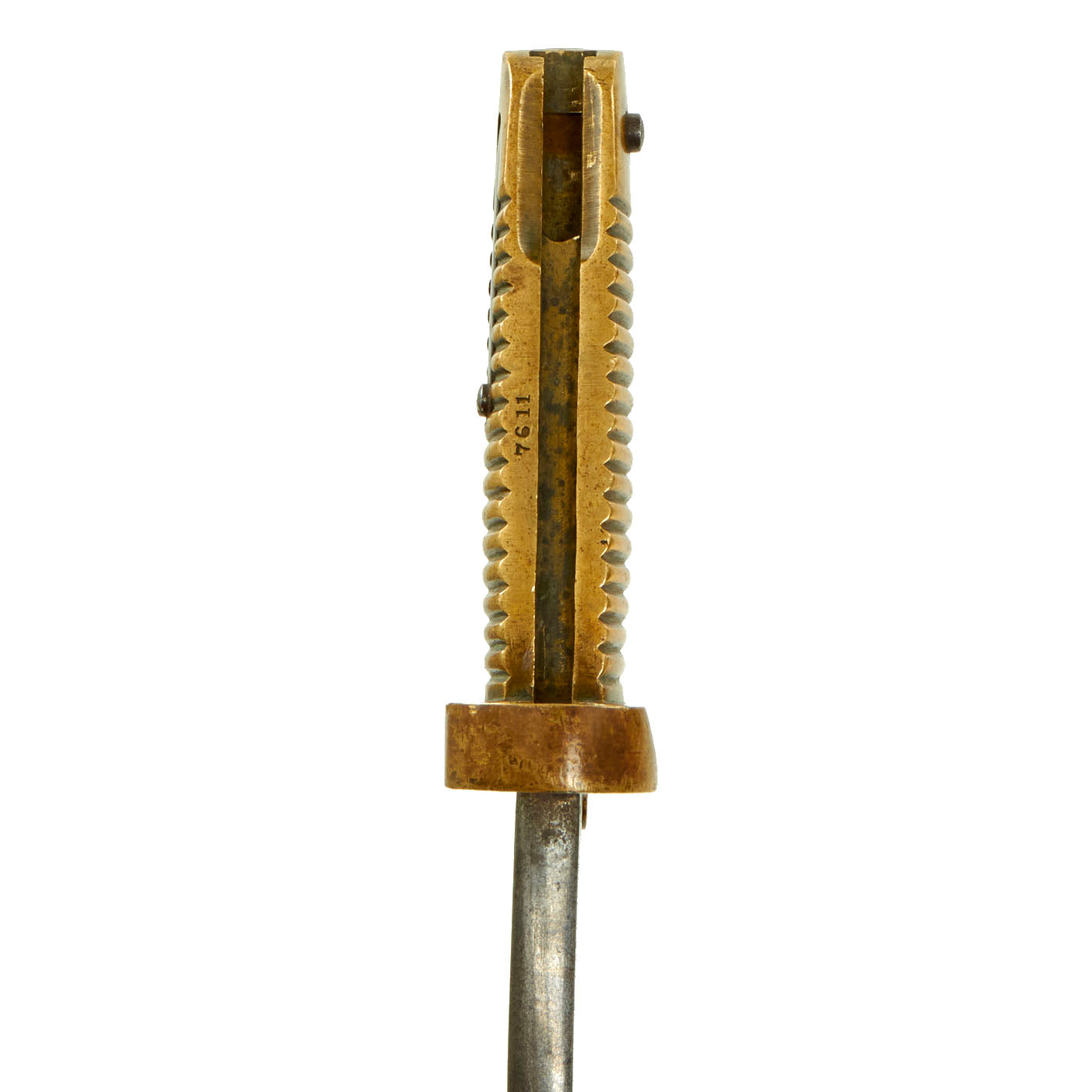

The included bayonet is also in great shape, with the bright steel 'Yataghan' shaped blade only showing a bit of light staining. The hilt is marked with serial number 7611 next to the channel. It has never been sharpened, and still has a clear makers mark on the ricasso:
COLLINS & CO

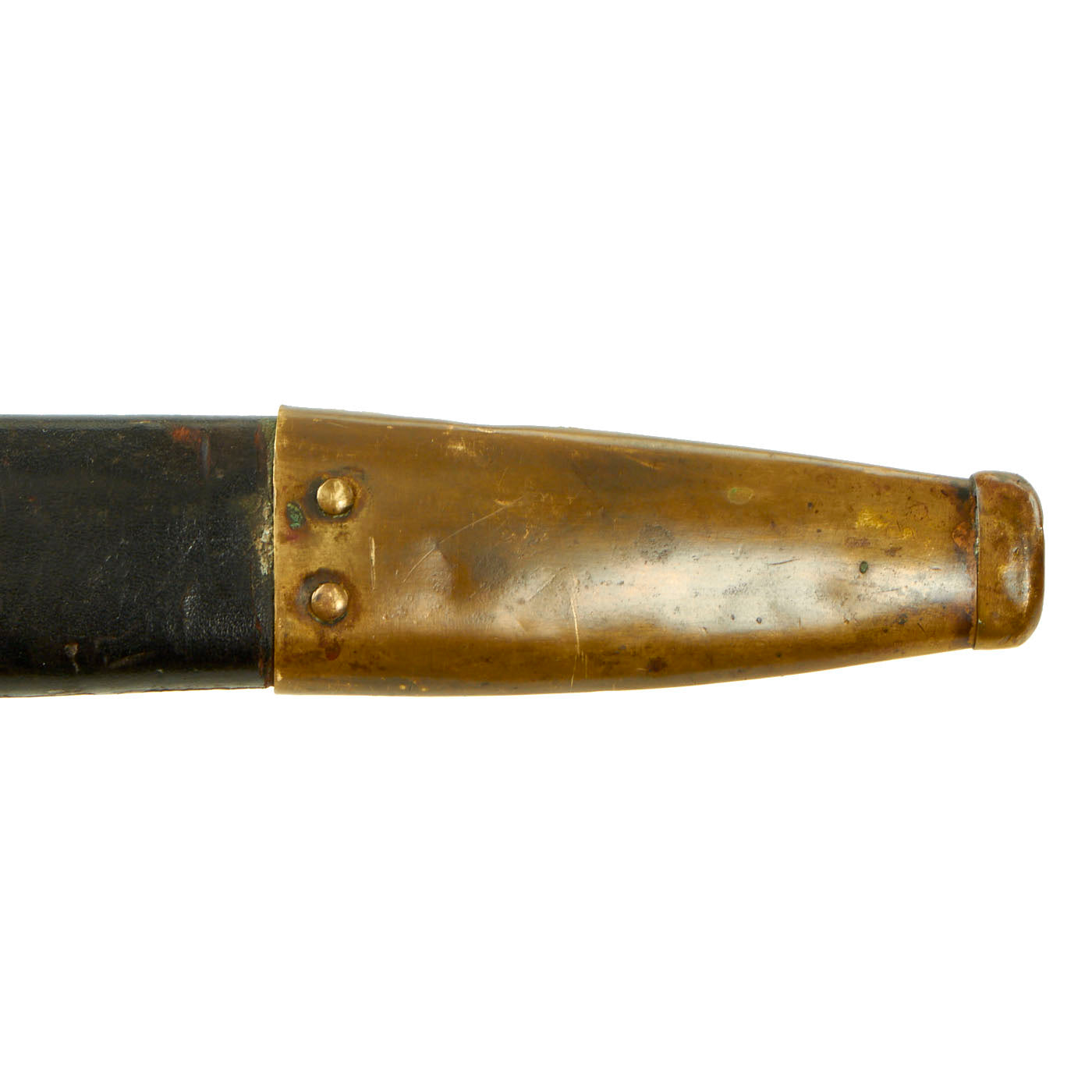

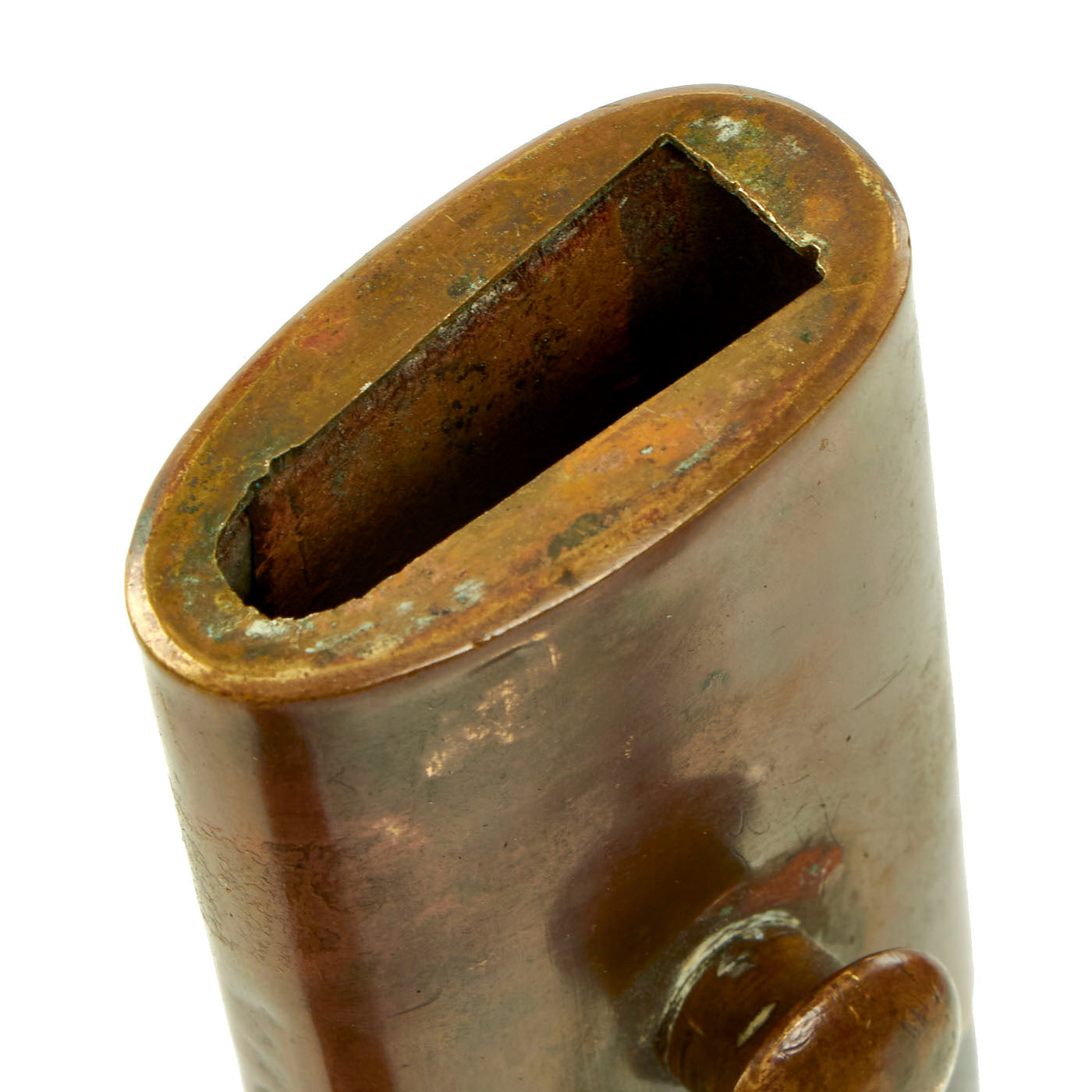

It comes complete with the original brass-fitted leather scabbard, which has passed the test of time with flying colors. The leather shows some cracking in the finish, but no bends or breaks, and the stitching looks to be complete. The only real issues to note with the scabbard are dents on the drag, and one of the four rivets holding it on is missing. It fits on the rifle easily, locking in place, and can be removed easily as well.
An amazing really important U.S. Civil War Whitney-ville Contract Percussion NAVY Rifle complete with bayonet in wonderful condition. Ready to display!
Year of Manufacture: 1863
Cartridge Type: Minié Ball and Powder
Barrel Length: 34 Inches
Overall Length: 50 Inches
Action type: Side Action Lock
Feed System: Muzzle Loaded
Blade Length: 22 1/2"
Blade Style: Single Edge Yataghan w/ Fuller
Overall length: 27 3/8“
Crossguard: 3 1/2”
Scabbard Length: 24"
