ONJR22NVGA060

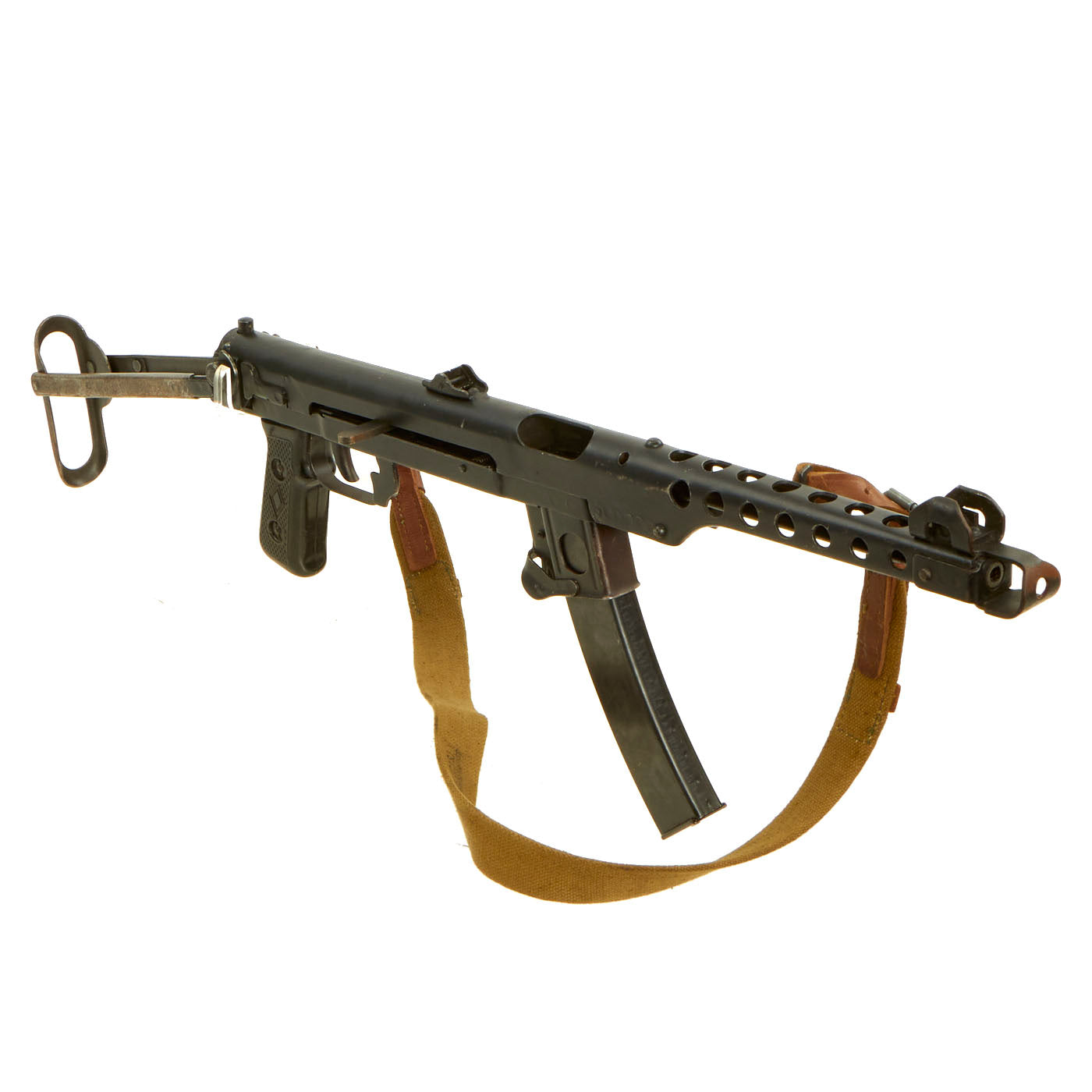

Original Chinese ChiCom Type 54 Display SMG with Magazine & Sling - Soviet PPs-43 Copy

Item Description

Original Item: Only One Available. Just purchased at a large military show! The ChiCom Type 45 SMG is a Chinese produced licensed copy of the Soviet Russian PPs-43 SMG.

This legendary submachine gun design was developed in Leningrad while the Germans had the city under siege during WW2. The designer, A. I. Sudarev, wanted a gun that could be manufactured with the resources available in the city. The result was the PPS 43, which has very few machined parts, depended on simple stampings, welding, and riveting for its construction. The design was so successful that it was adopted by the Soviet Army and used extensively during the rest of the war, and after. During the post war years many countries produced their own variants of the design, which are still in use in many parts of the world.

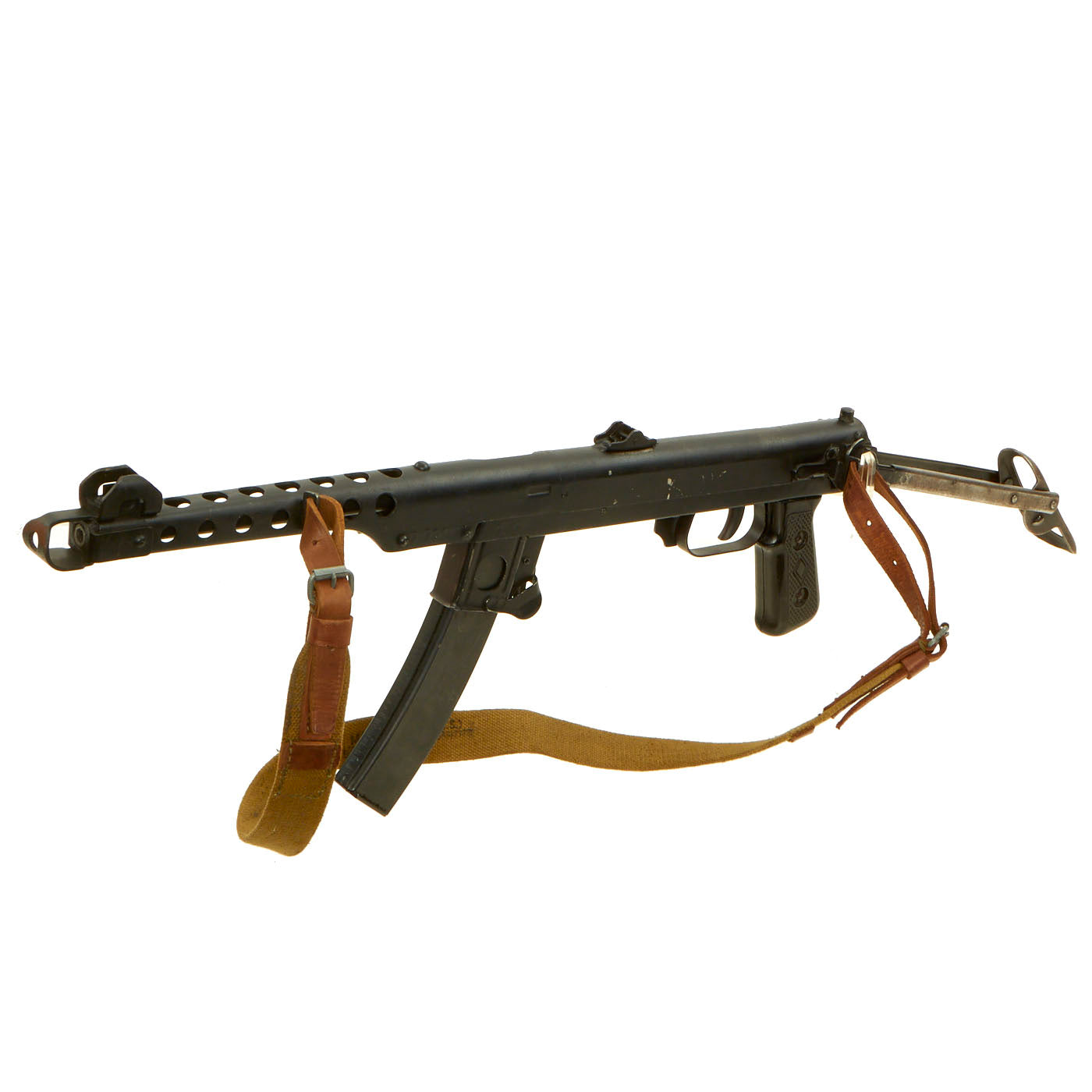

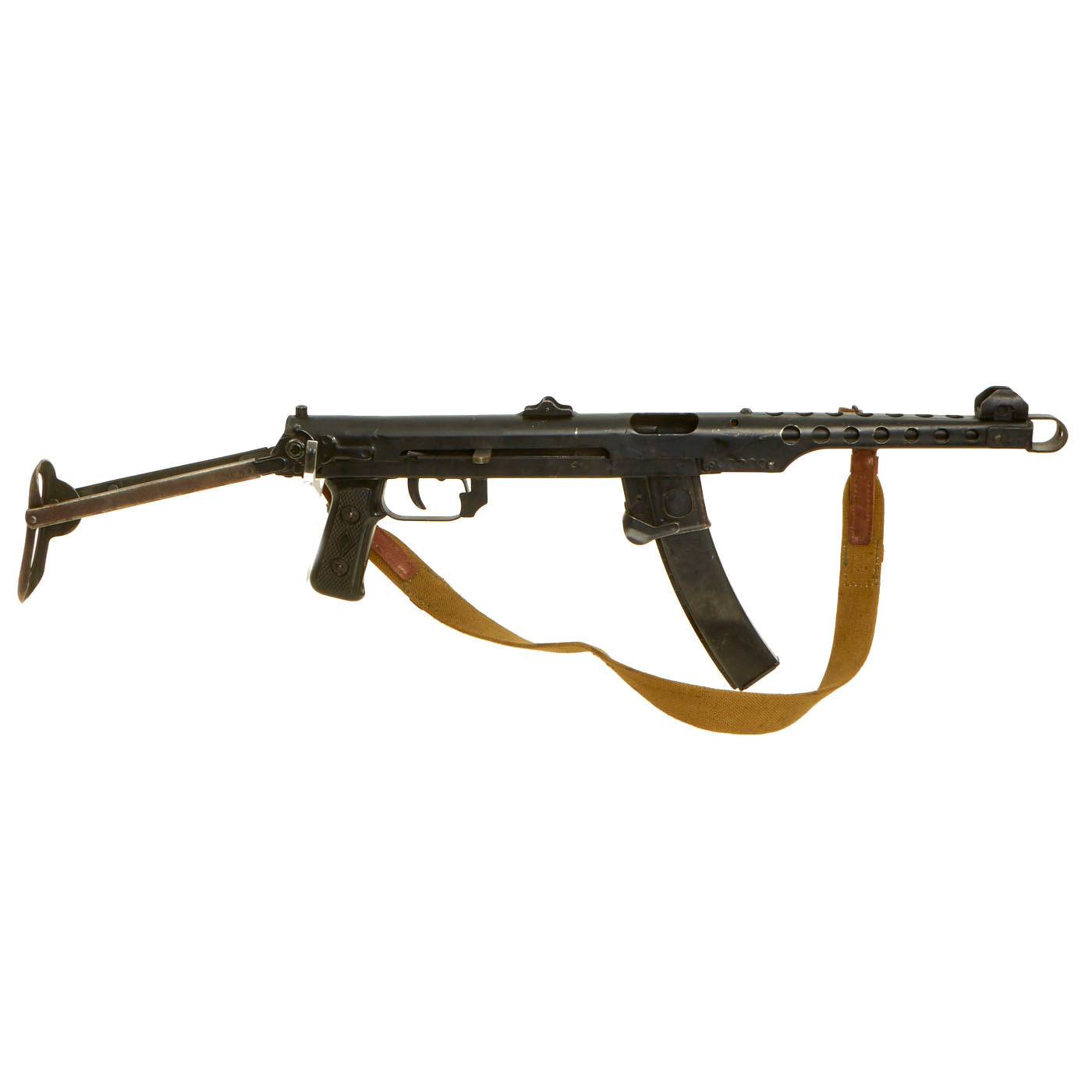

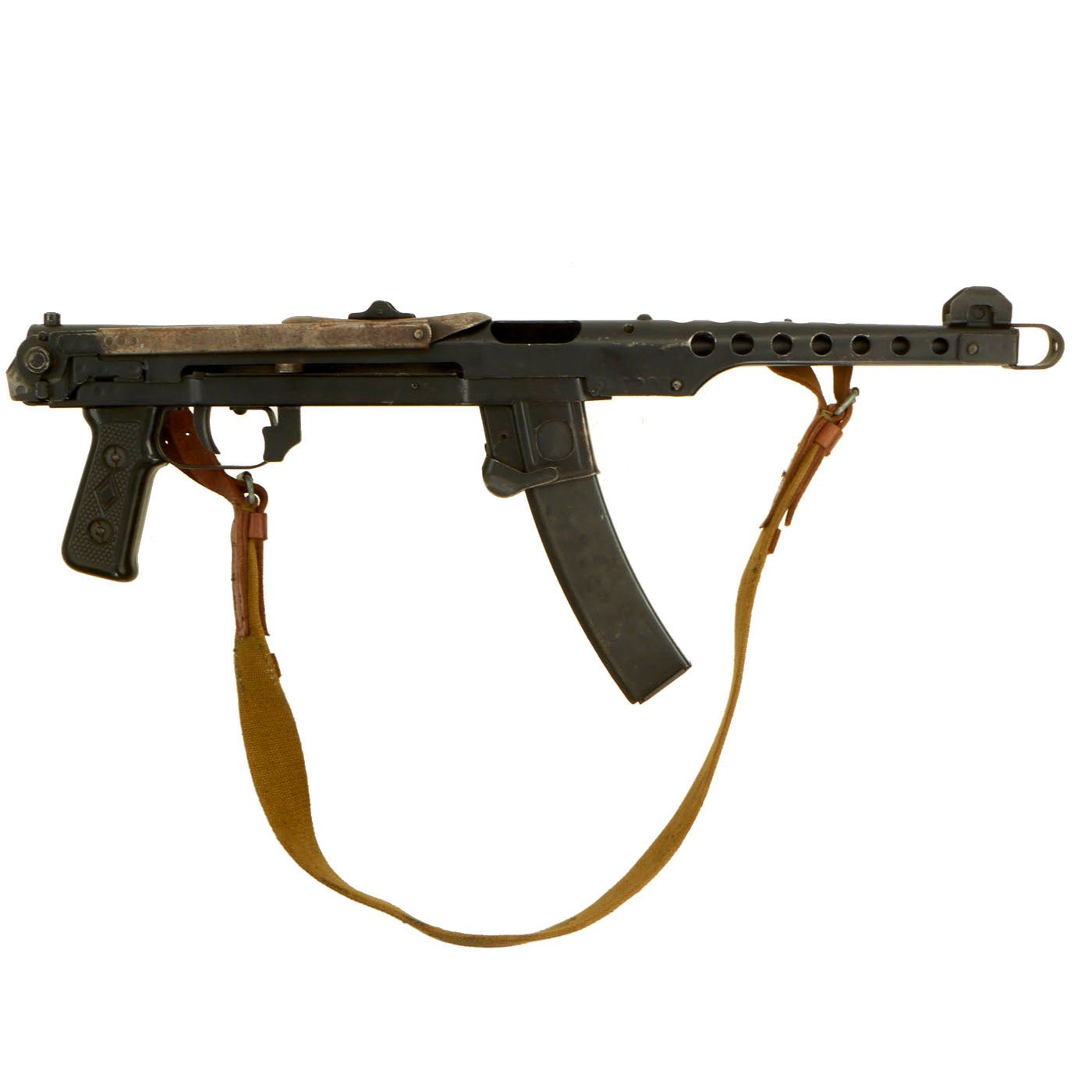

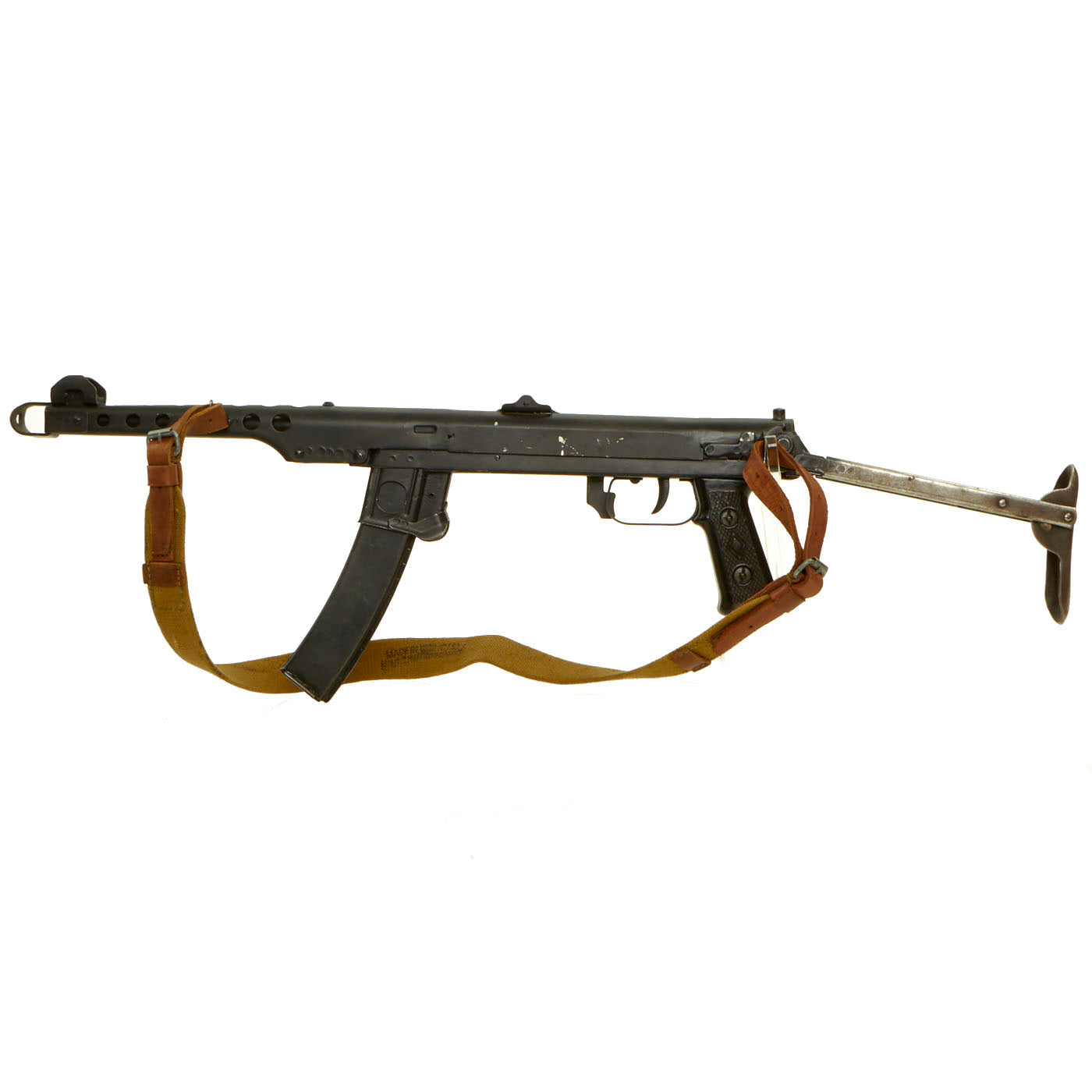

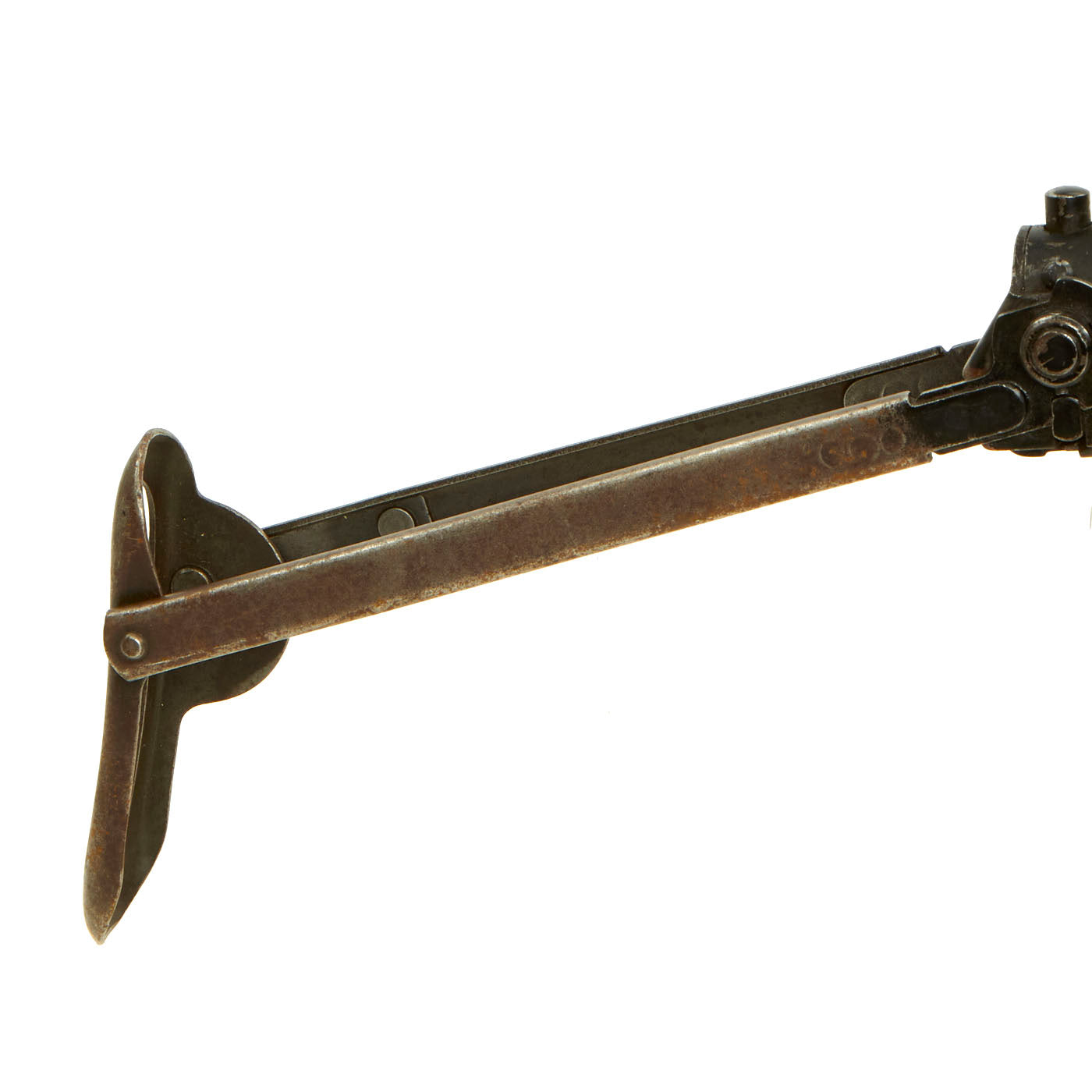

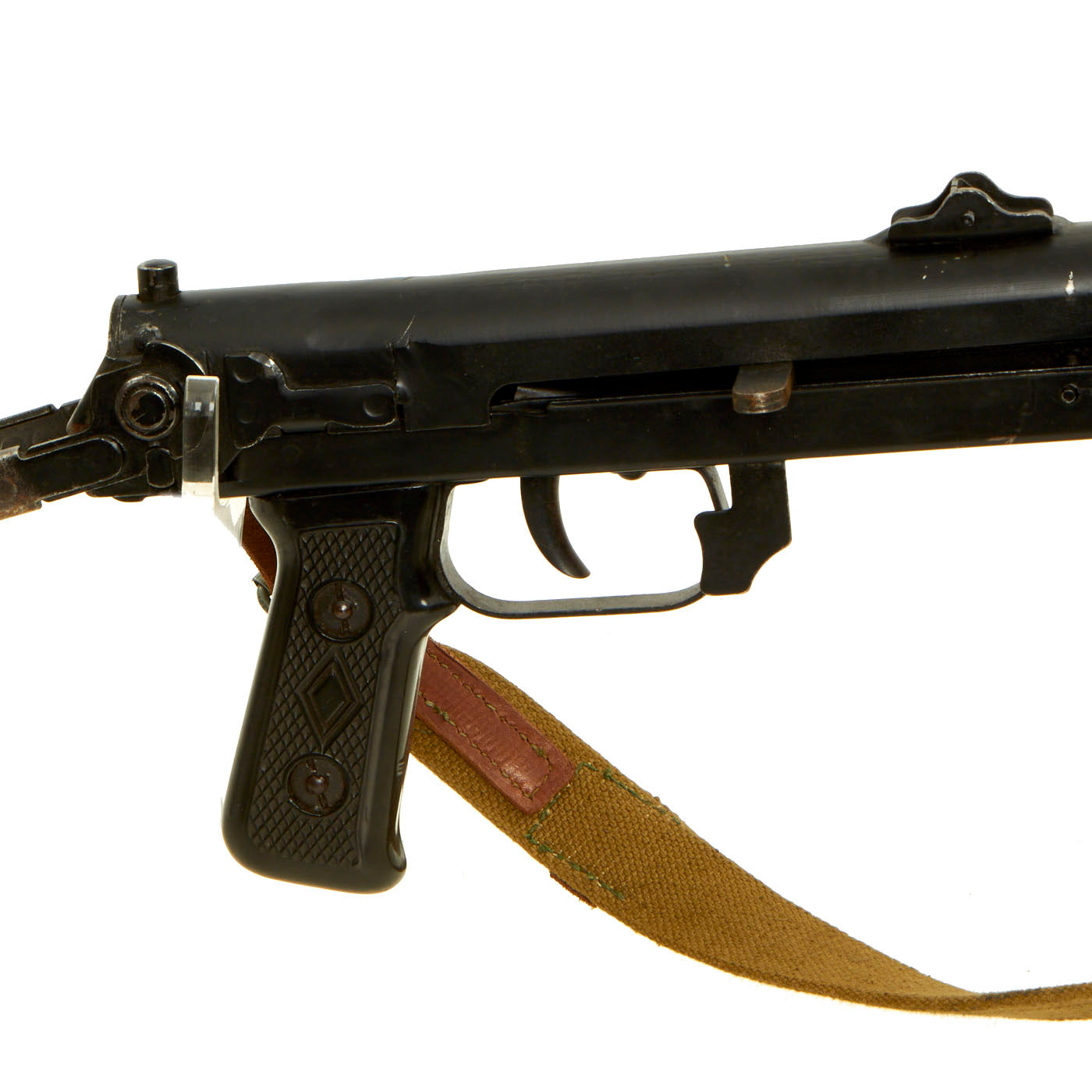

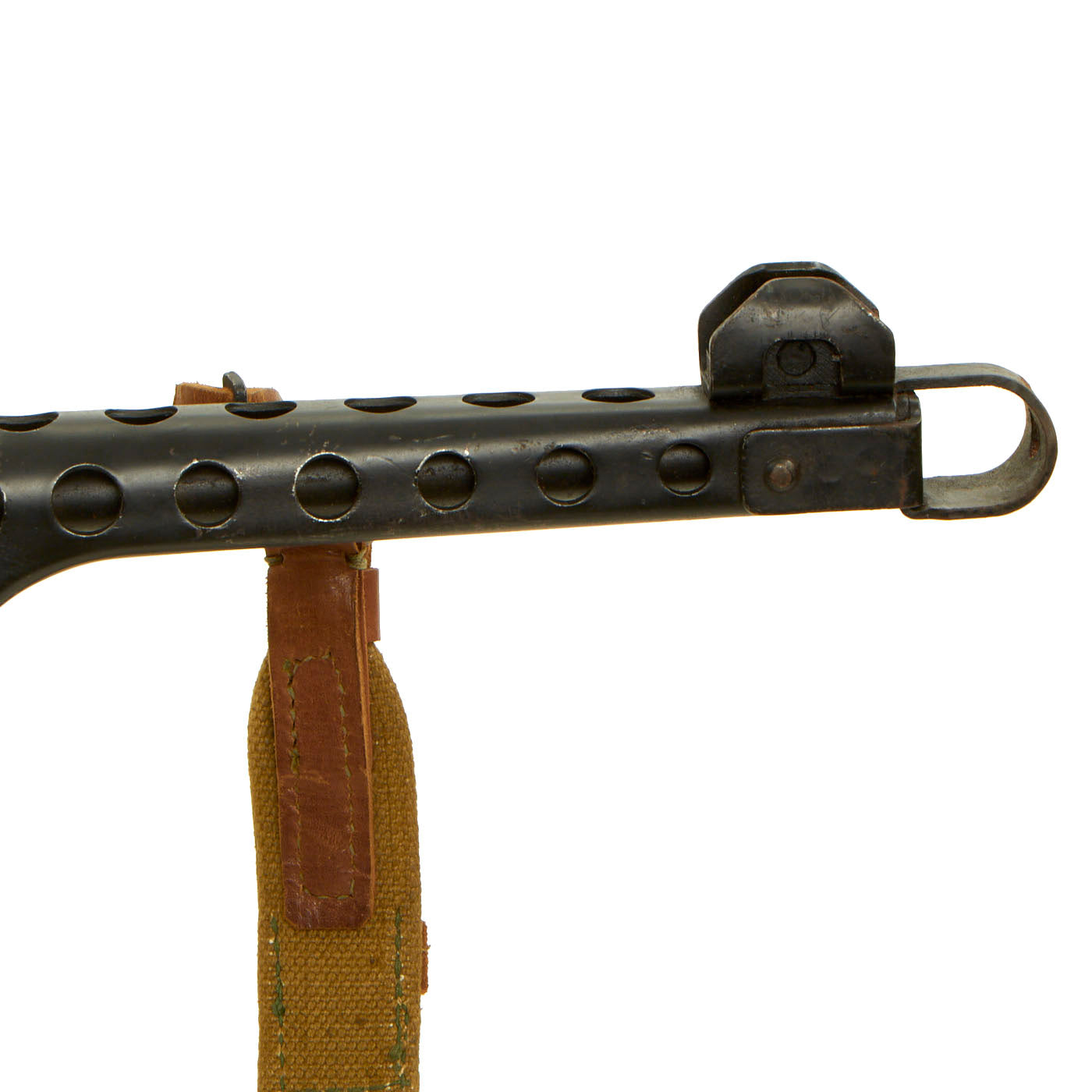

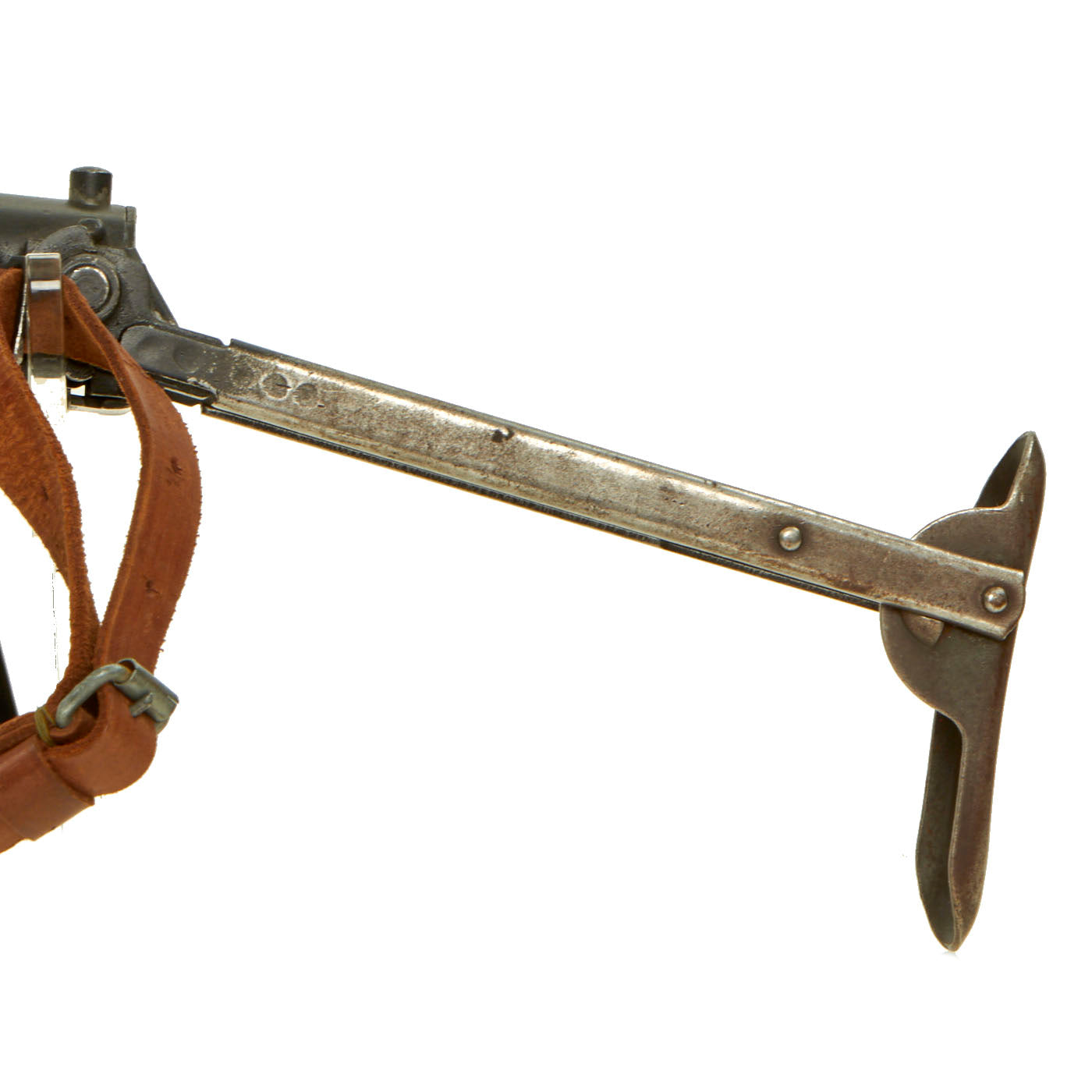

This example was made from original ChiCom issue parts, and constructed per BATF-specifications as a non-functional display gun with a solid steel dummy receiver. It has no moving internal parts, though the trigger still pulls, and the stock is still able to be moved into the open and closed positions. There are some markings on the receiver and other parts, but most were removed during the rewelding process. The barrel looks to have been made from a loose rifle barrel, and is welded in place and at the chamber.

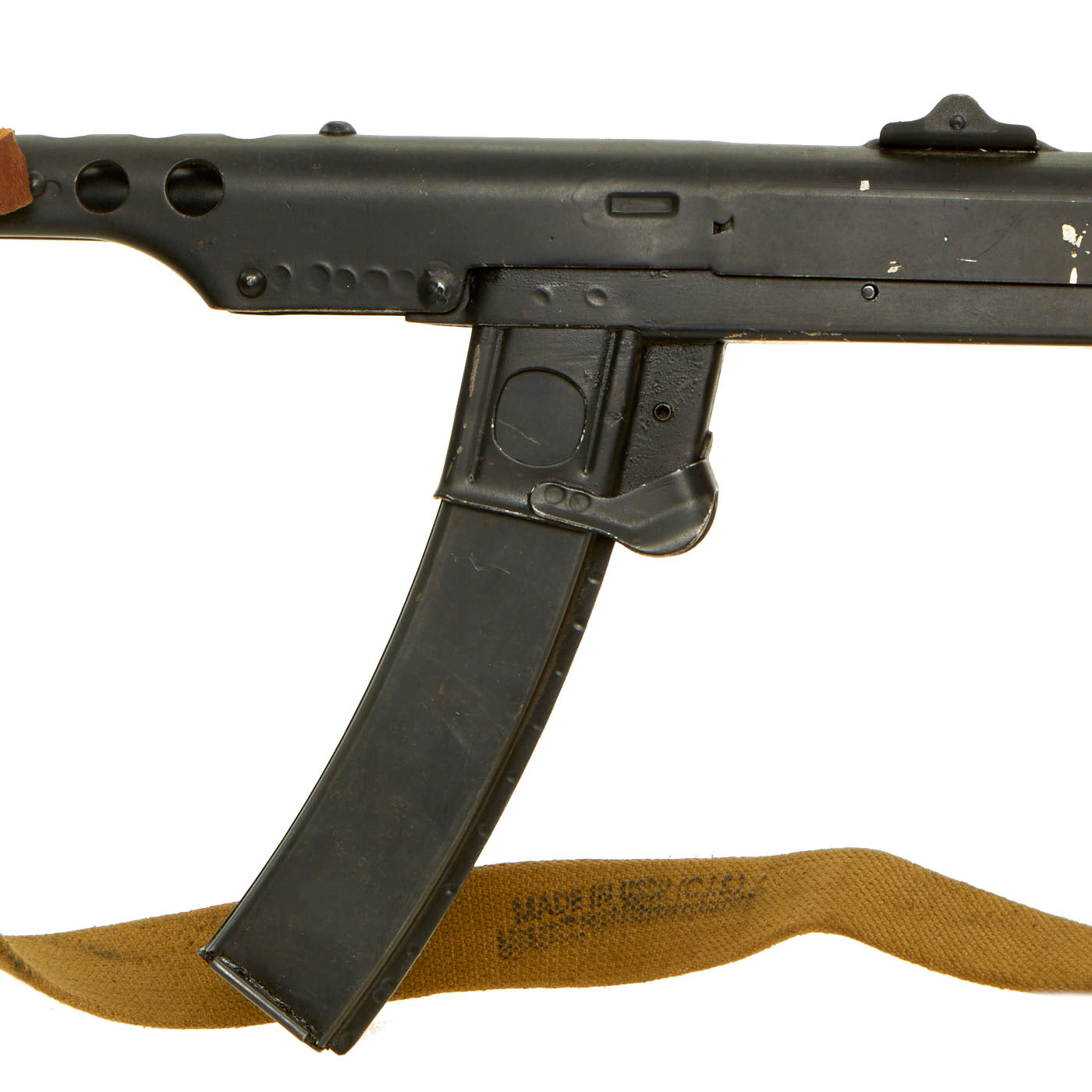

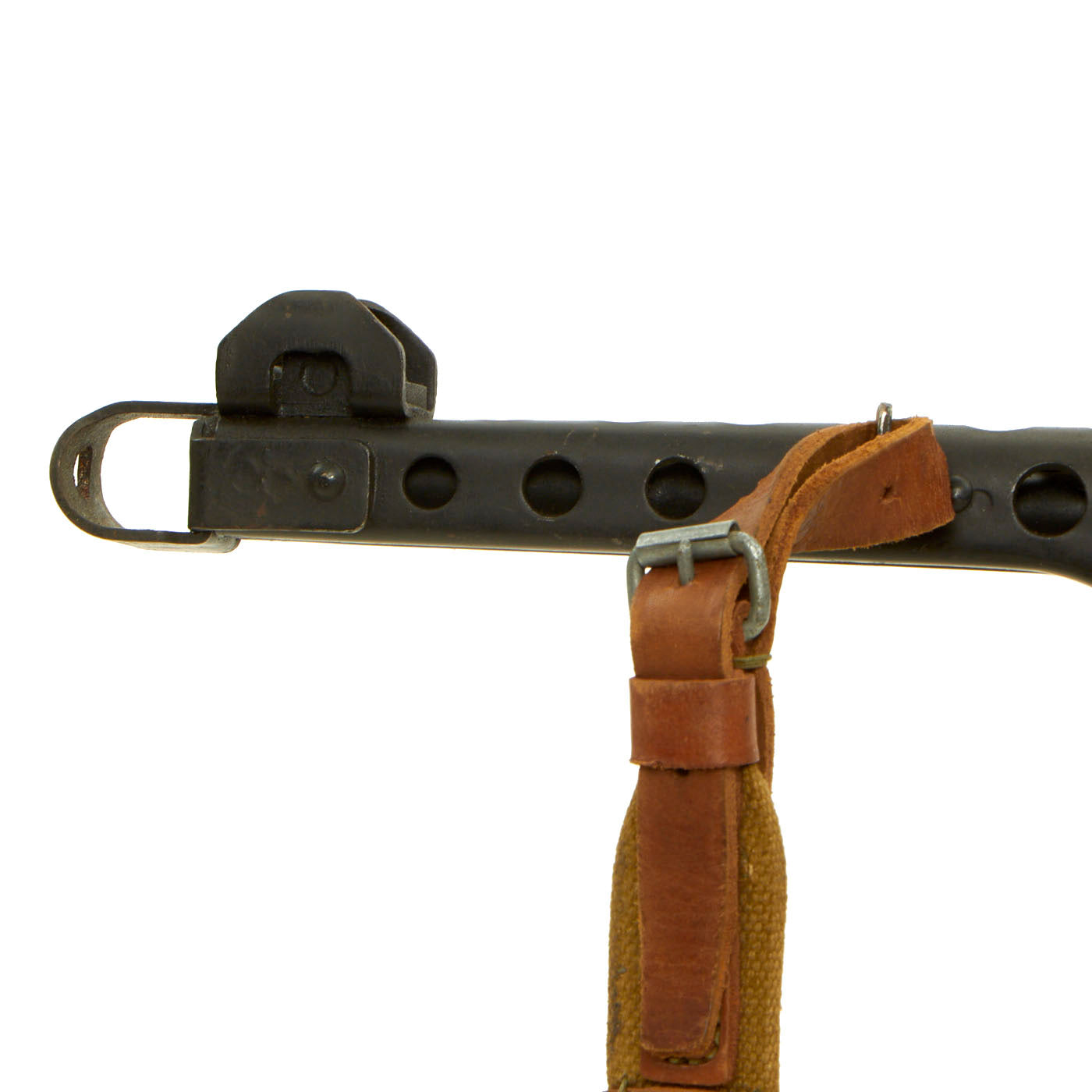

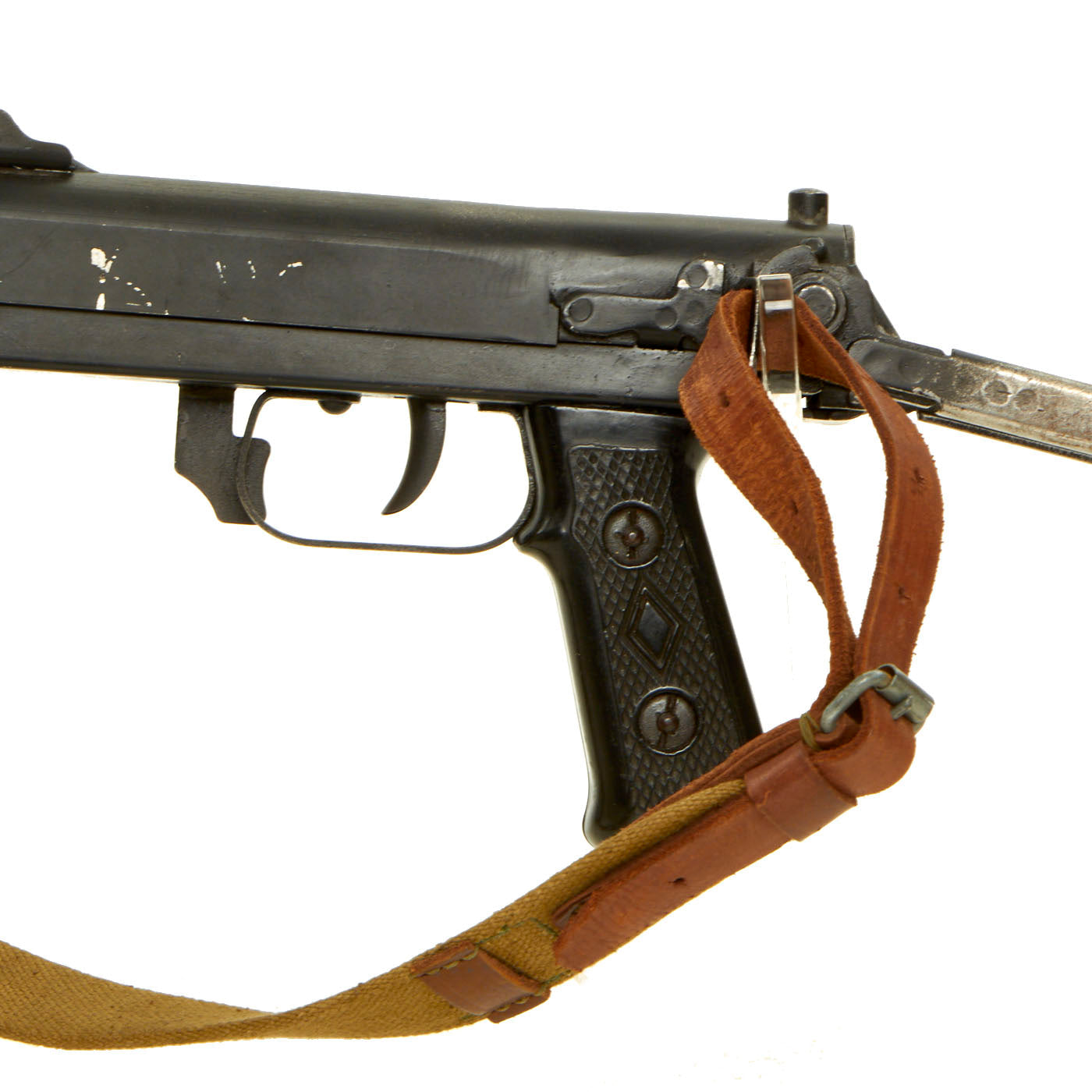

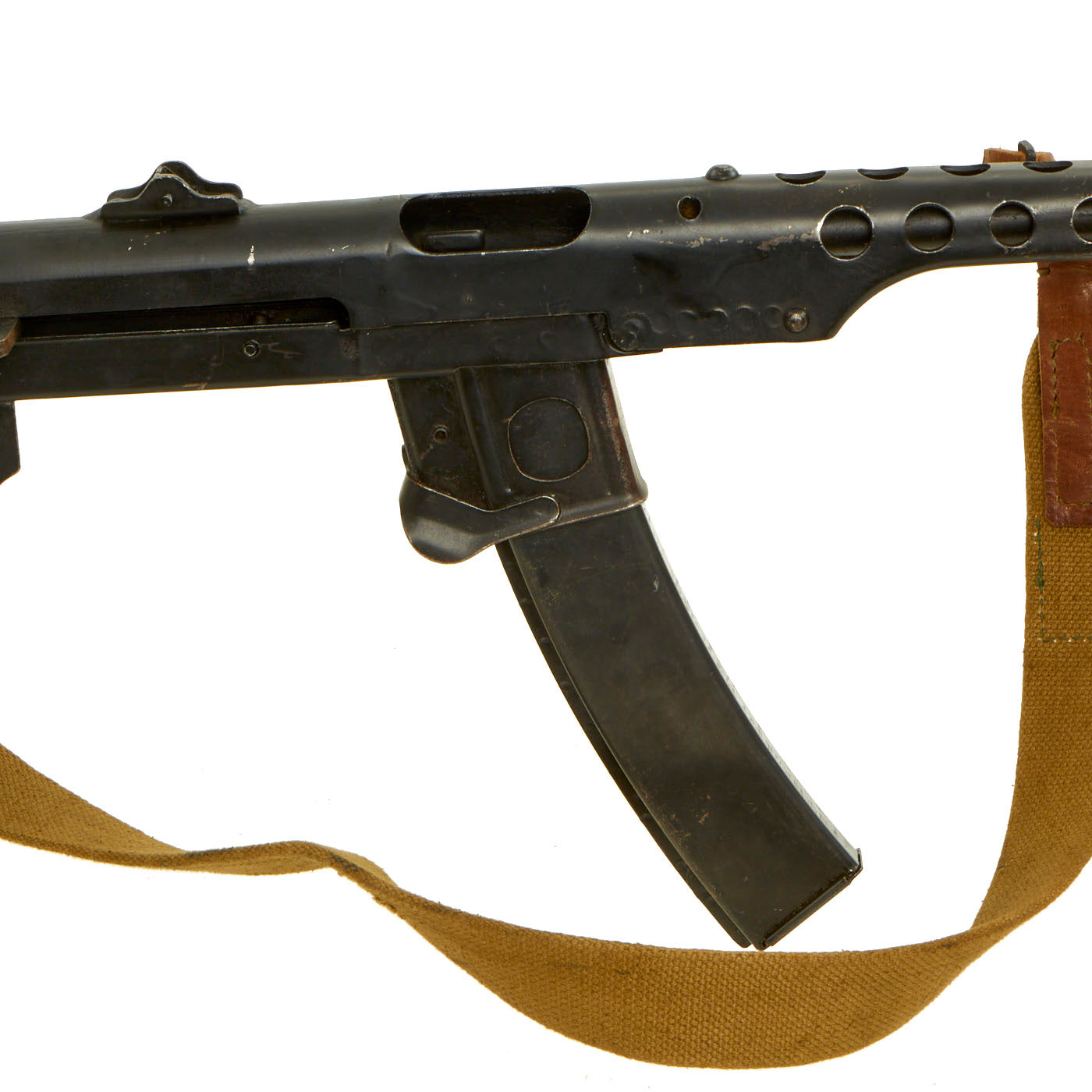

Attached to the gun is a very nice Soviet leather and canvas sling, marked "MADE IN USSR". It comes complete with an original intact magazine where permitted. Otherwise a deactivated magazine will be sent.

Offered in very good display condition, ready to add to your collection!

The PPS (Russian: ППС – "Пистолет-пулемёт Судаева" or "Pistolet-pulemyot Sudaeva", in English: "Sudaev's submachine-gun") was a family of Soviet submachine guns chambered in 7.62×25mm Tokarev, developed by Alexei Sudayev as a low-cost personal defense weapon for reconnaissance units, vehicle crews and support service personnel.

The PPS and its variants were used extensively by the Red Army during World War II and were later adopted by the armed forces of several countries of the former Warsaw Pact as well as its many African and Asian allies.

The PPS was created in response to a Red Army requirement for a compact and lightweight weapon with similar accuracy and projectile energy to the Soviet PPSh-41 submachine gun widely deployed at the time, with reduced rate of fire, produced at lower cost and requiring less manpower, particularly skilled manpower.

Sudaev was ordered by the State Commission for Armaments to perfect for large-scale production the sub-machine gun design of lieutenant I.K. Bezruchko-Vysotsky from the Dzerzhinsky Artillery Academy, who had created two prototypes in 1942; the second of these was the basis of Sudaev's gun.

During design, emphasis was placed on simplifying production and eliminating most machining operations; most of the weapon's parts were sheet-steel stamped. These measures reduced the number of machined components to a bare minimum, cutting down machining time by more than half, to 2.7 hours of machining instead of 7.3 hours for the PPSh-41. There were also savings of over 50% in raw steel usage, down to 6.2 kg instead of 13.9 kg, and fewer workers were required to manufacture and assemble the parts. Thanks to the improvements in production efficiency, the Soviet planners estimated that the new gun would have allowed an increase in monthly submachine gun output from 135,000 units to 350,000 weapons.

Prototypes were field tested between 26 April and 12 May 1942; the evaluation commission's report was largely favorable, but still proposed some minor improvements mostly aimed at strengthening the gun's structure. By July, Shpagin had finished his own improved model (PPSh-2), and it was pitted in field trials against the PPS, which was found superior in most respects: accuracy, reliability, maneuverability. (This was apparently a large scale contest, in which 20 designs participated. On July 28, 1942 GAU head N.D. Yakovlev and his aide Ivan Novikov presented Sudaev's gun to the State Defense Committee for approval. The firearm was accepted into service as the PPS-42 (Russian: Пистолет-пулемёт Судаева—ППС or Pistolet Pulemyot Sudayeva model of 1942). The weapon was put into small-scale production during the Siege of Leningrad; mass production did not commence until early 1943 at the Sestroretsk Arsenal (over 45,000 weapons were produced before being replaced by the improved PPS-43). The factory in charge for the pilot production starting in December 1942 was the Sestroretsk Tool Factory (Russian: Сестрорецкий инструментальный завод «Воскова».) The first series guns were presented for personal inspection to Andrei Zhdanov and Leonid Govorov in the same month. The full-scale production began in 1943, and the official count of PPS-42 guns produced was 46,572. Most were used during the military trials by the soldiers of the Leningrad Front. The military trials officially took place between January and April 1943.

Due to the massive investment already made in machinery for PPSh-41 production, which was already being produced in more than a million pieces per year, it turned out it would have been uneconomical to completely abandon its production in favor of the PPS. By end of the war some two million PPS-43 submachine guns were made. Due to the oversupply of the Soviet army with submachine guns after the war, production of the PPS in the Soviet Union ceased in 1946.

In the last two years of the war, Sudaev continued to experiment with improvements for his submachine gun. Six of his later prototype models, made in 1944 and 1945, are found in the Military Historical Museum of Artillery, Engineers and Signal Corps. These have variations in bolt shape and weight, as well as more obvious outward differences like a wooden, non-folding stock or a folding bayonet.

The PPS remained in service with some Soviet forces until the mid-1950s. Among the last to relinquish it were crews of armored vehicles and the Naval Infantry. Some WWII-era weapons found their way to the Chinese People's Liberation Army and were subsequently captured by UN forces in the Korean War.
