Original British Royal Navy Nock Seven Barrel Flintlock Volley Gun Circa 1780 in Excellent Condition
Watch Alex evaluate and fire a second model Nock Gun on History Channel's Pawn Stars!

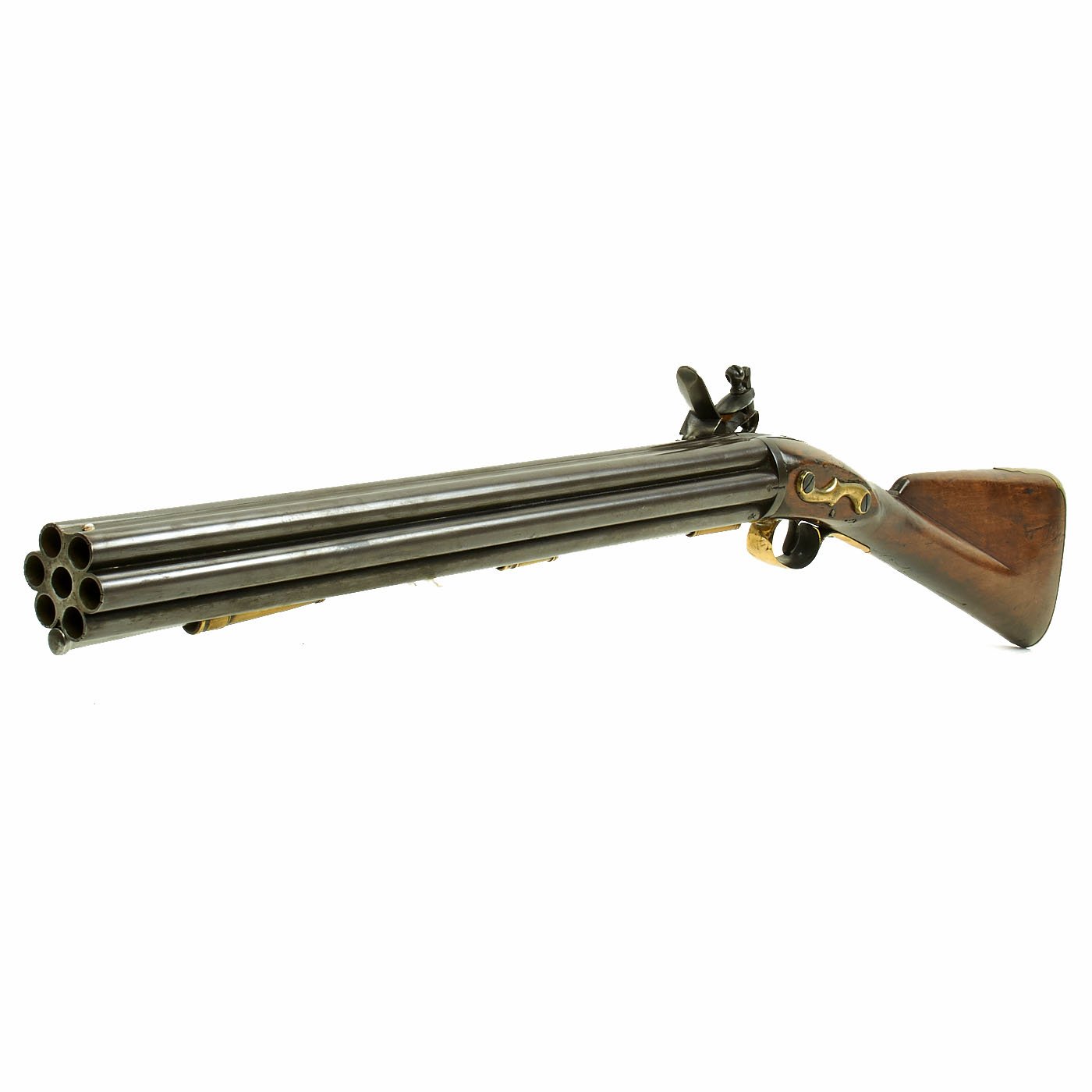

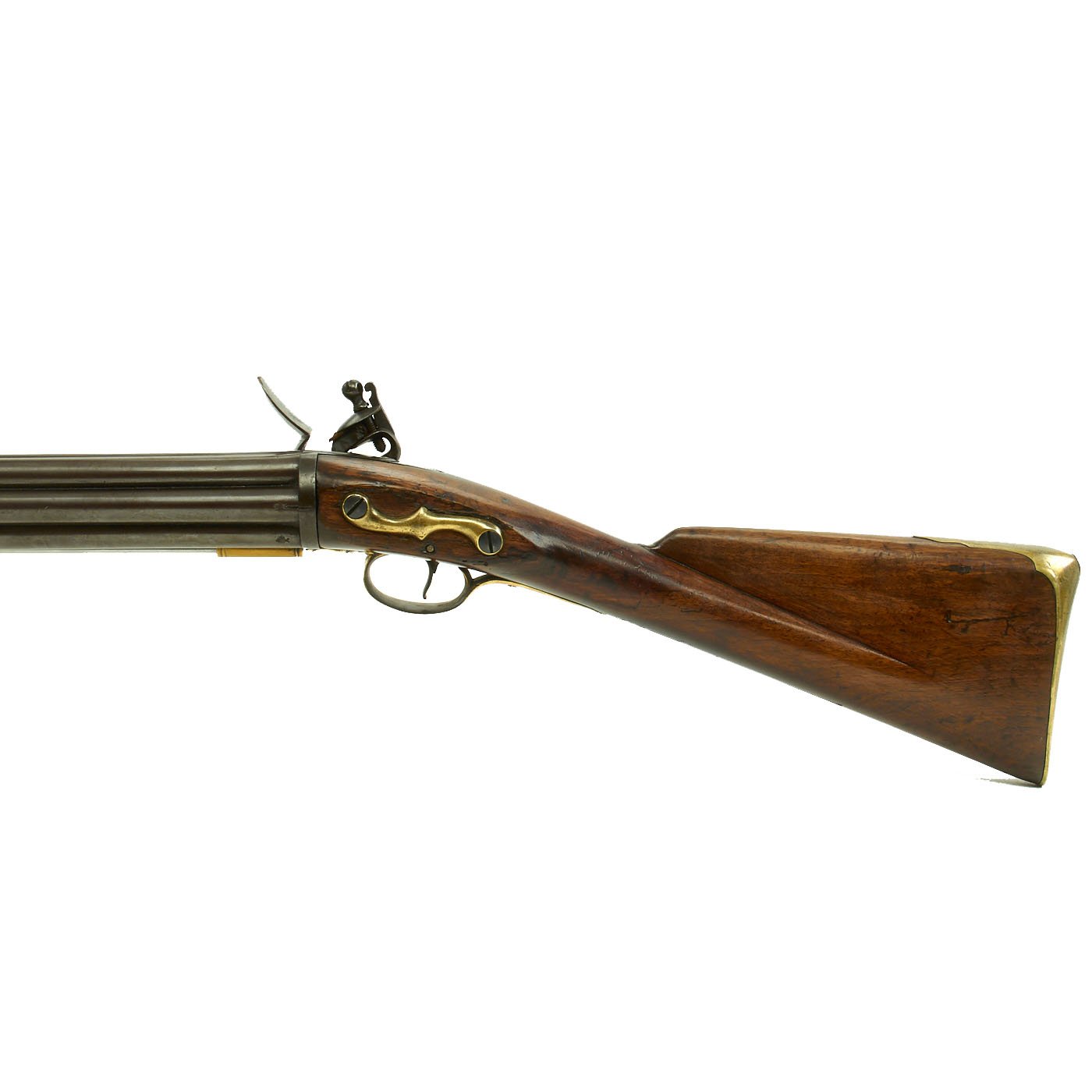

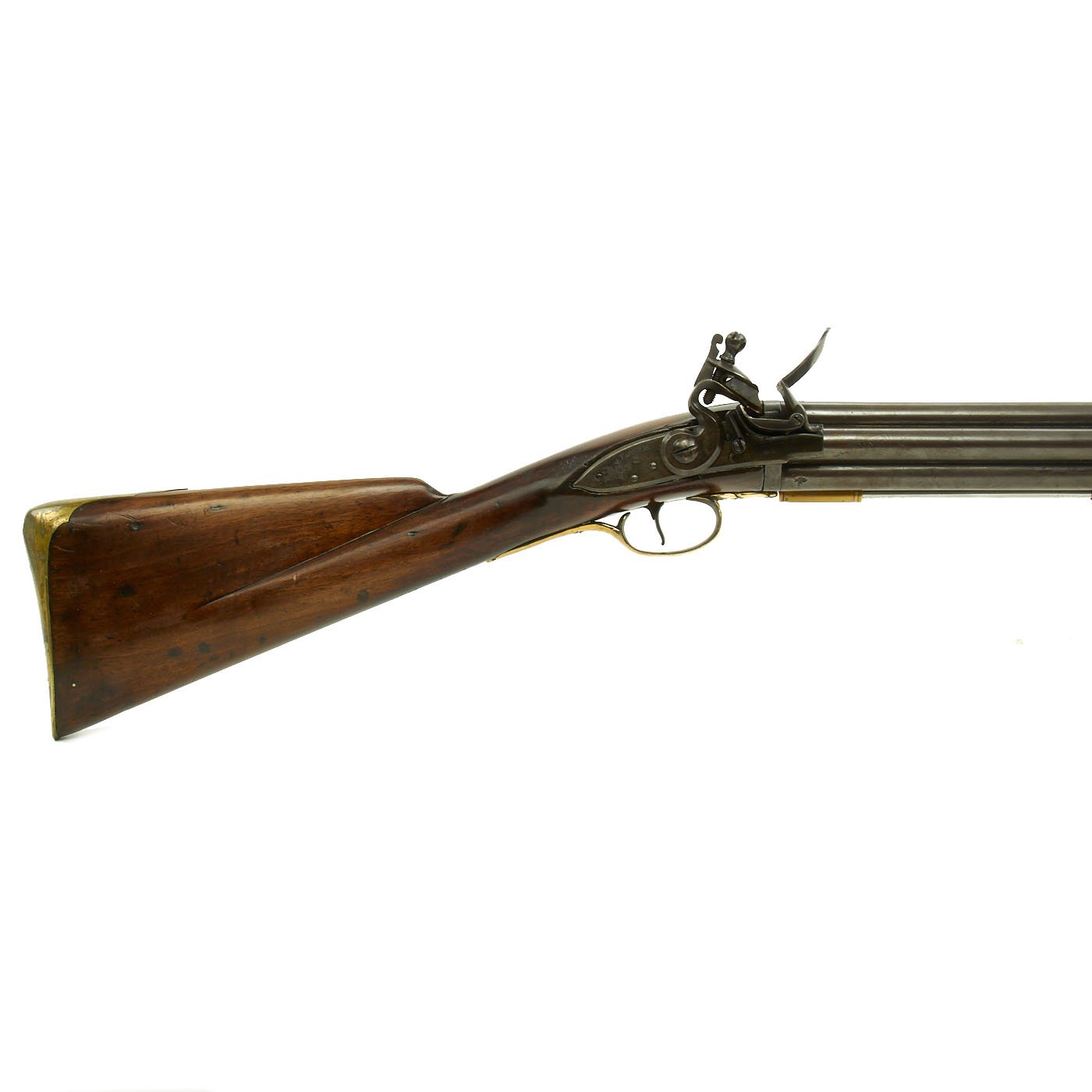

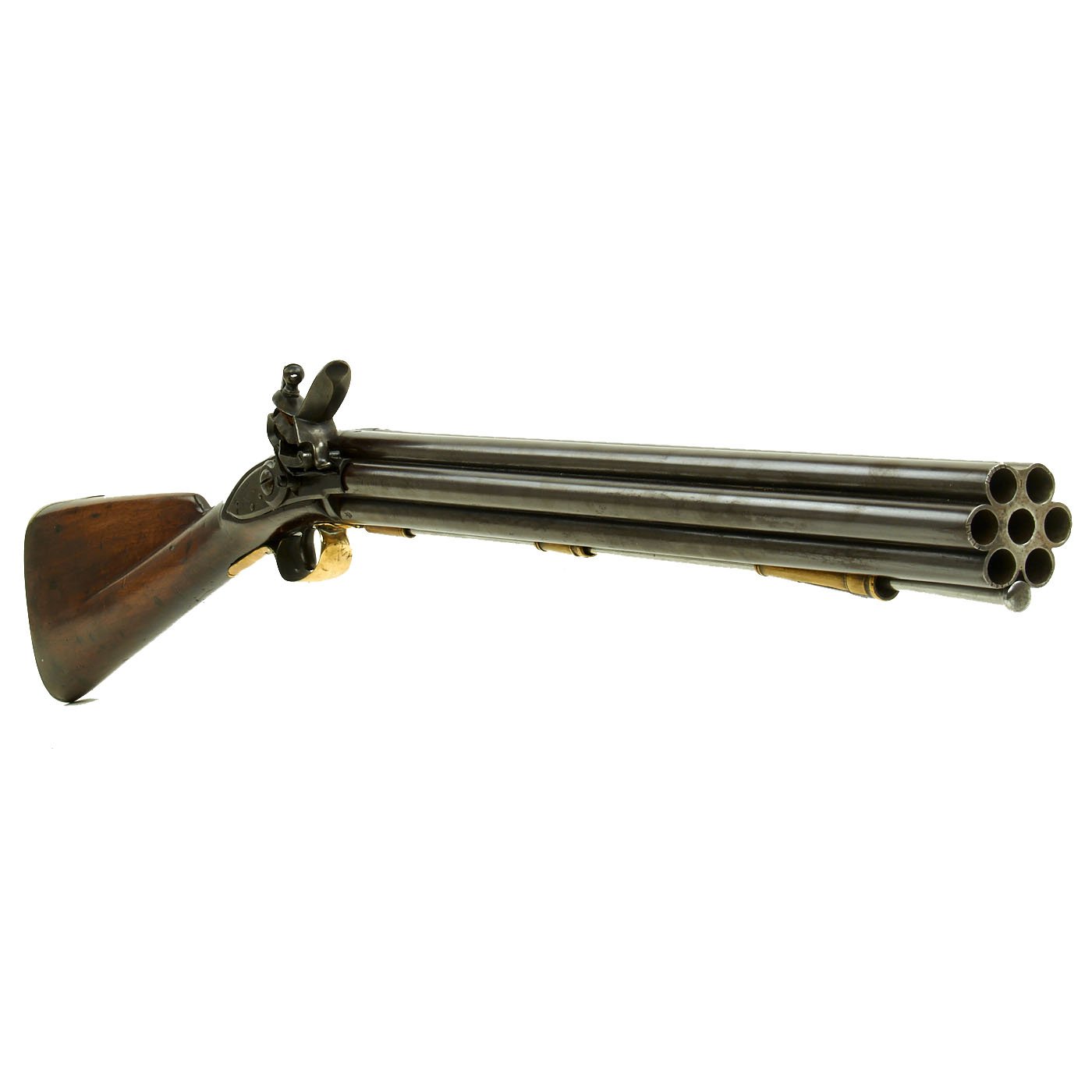

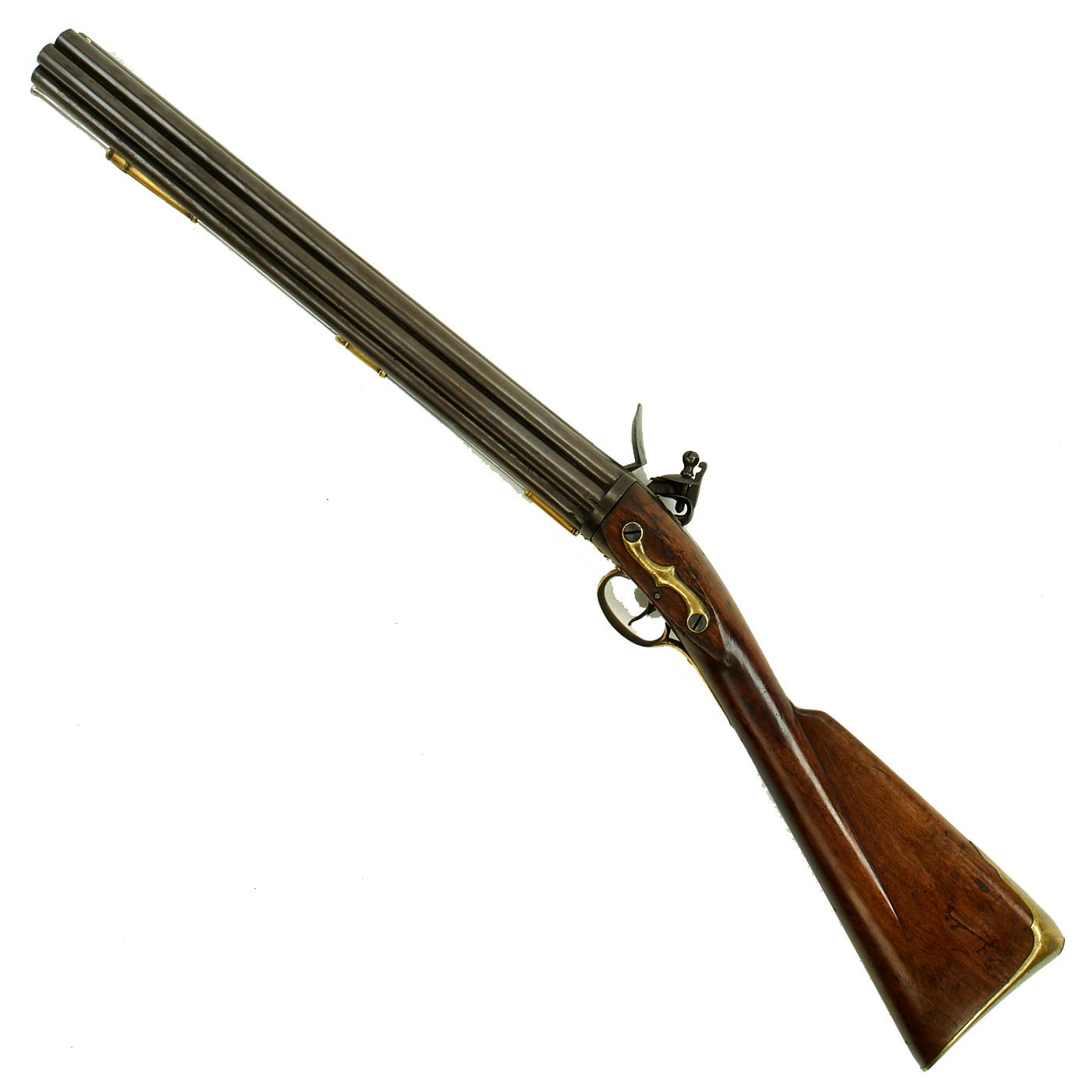

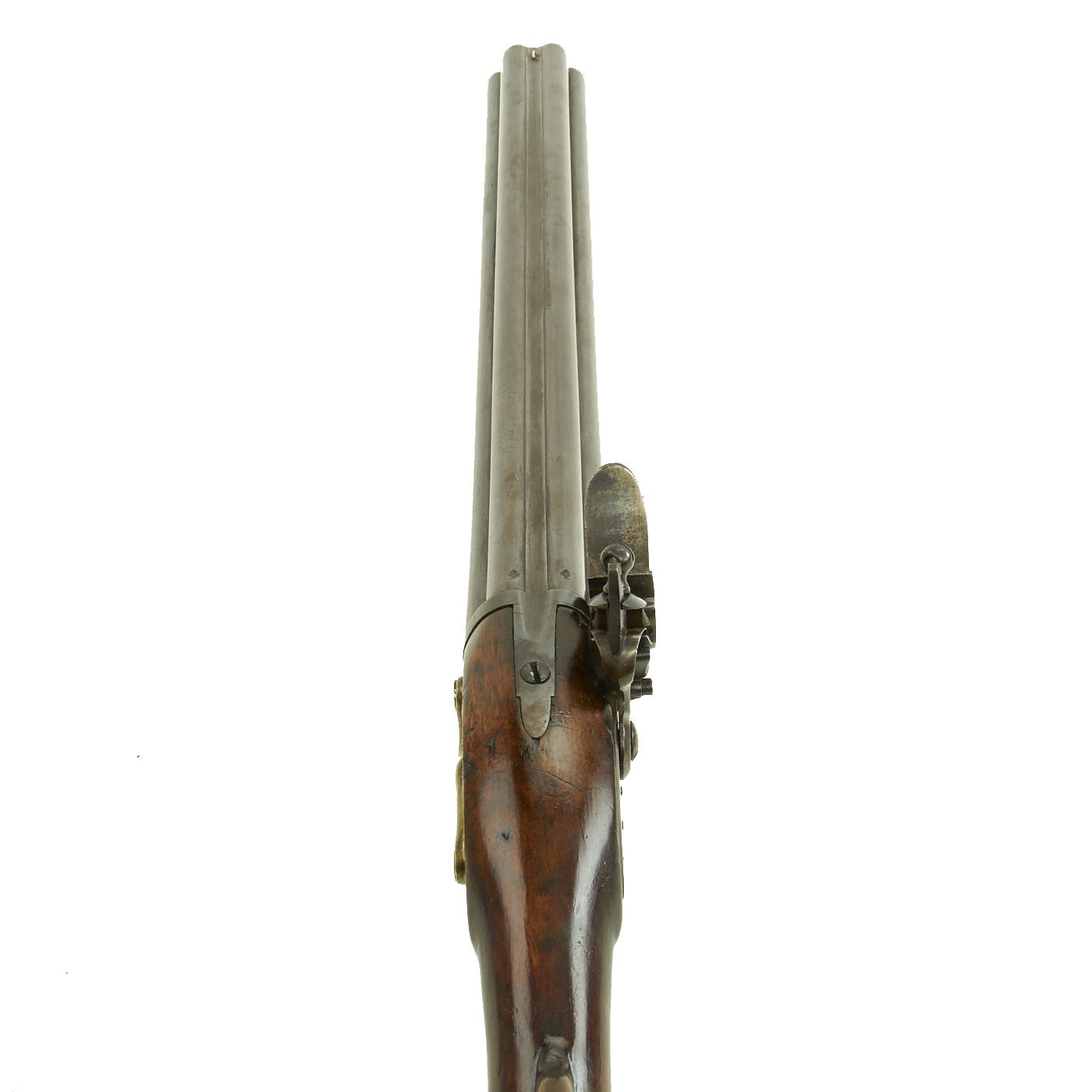

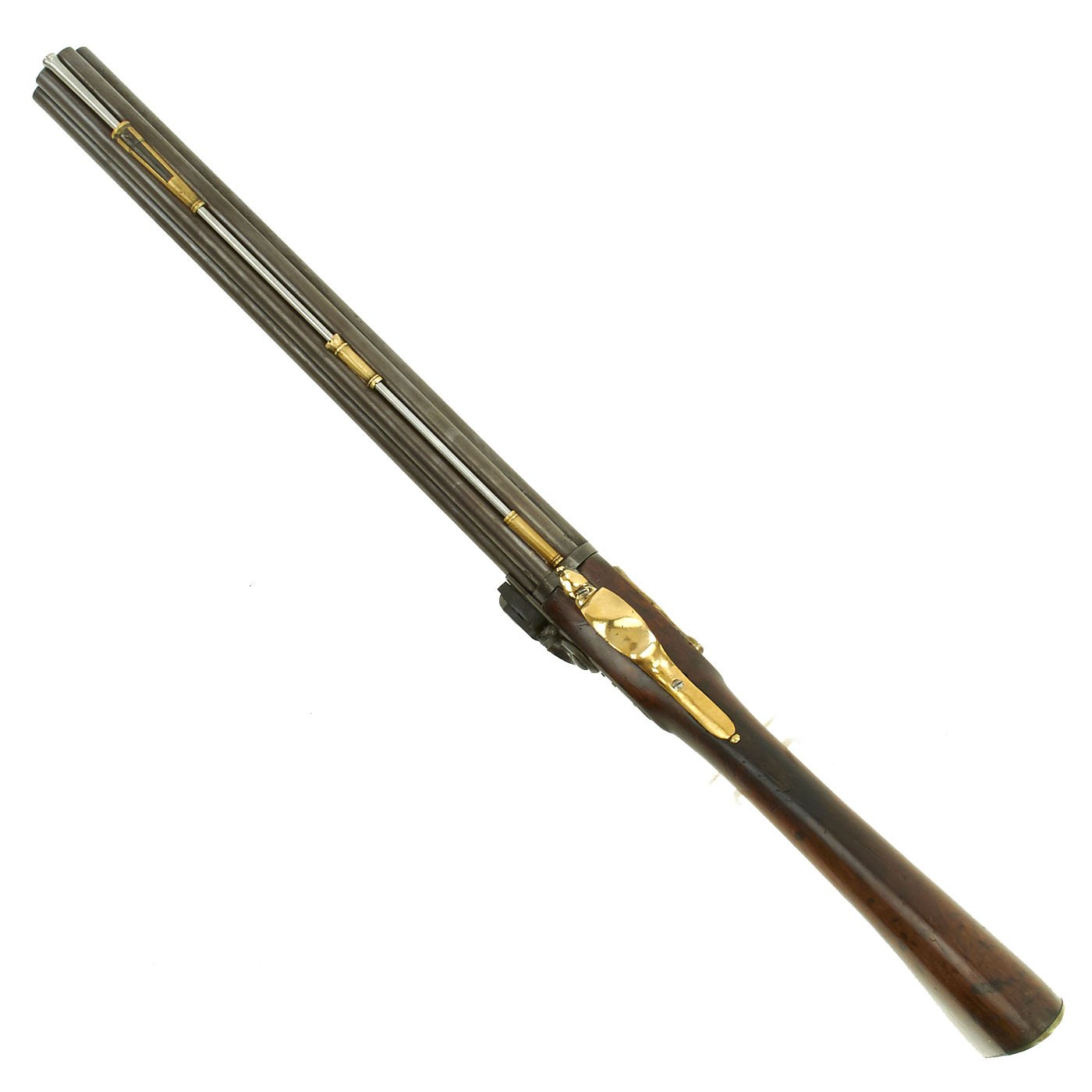

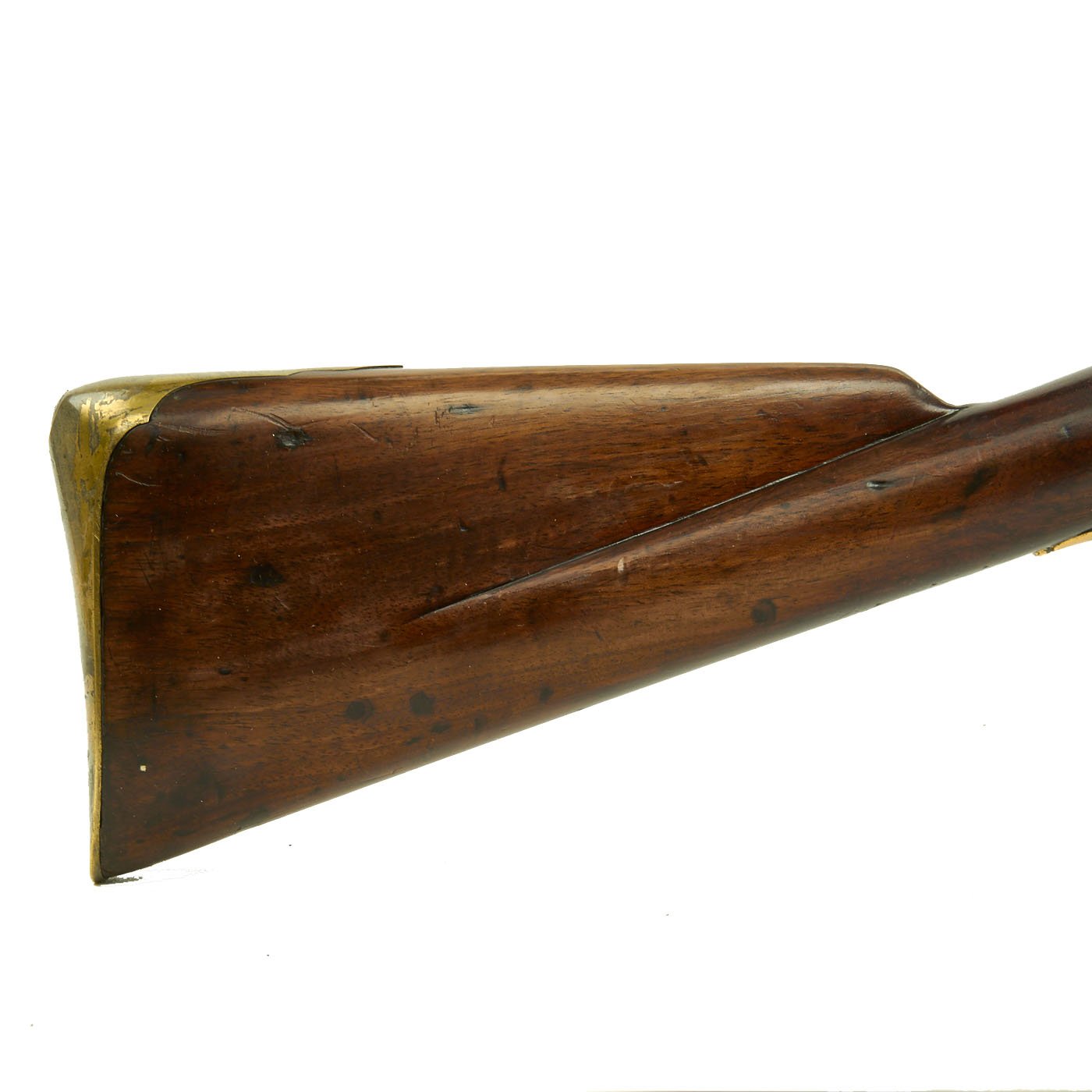

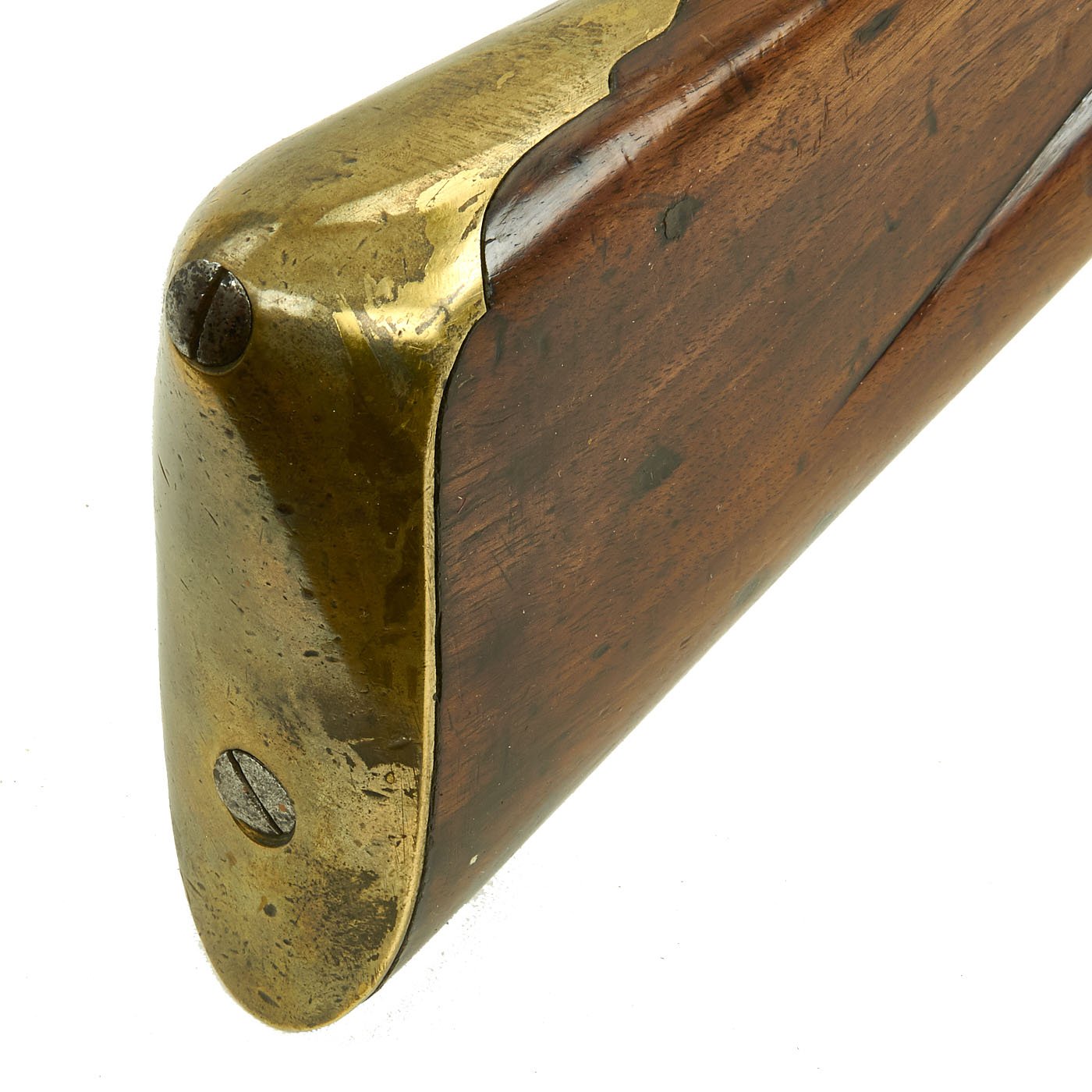

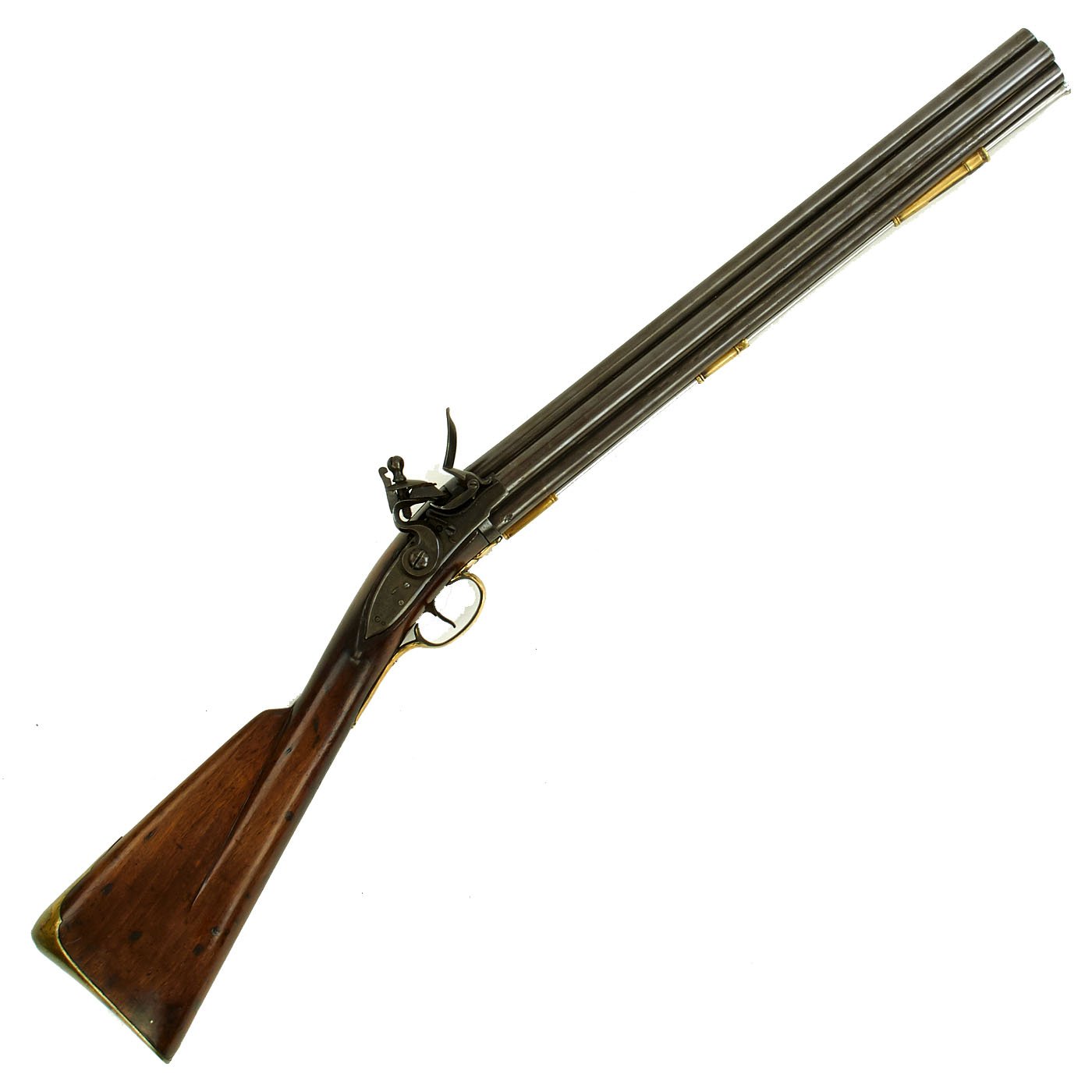

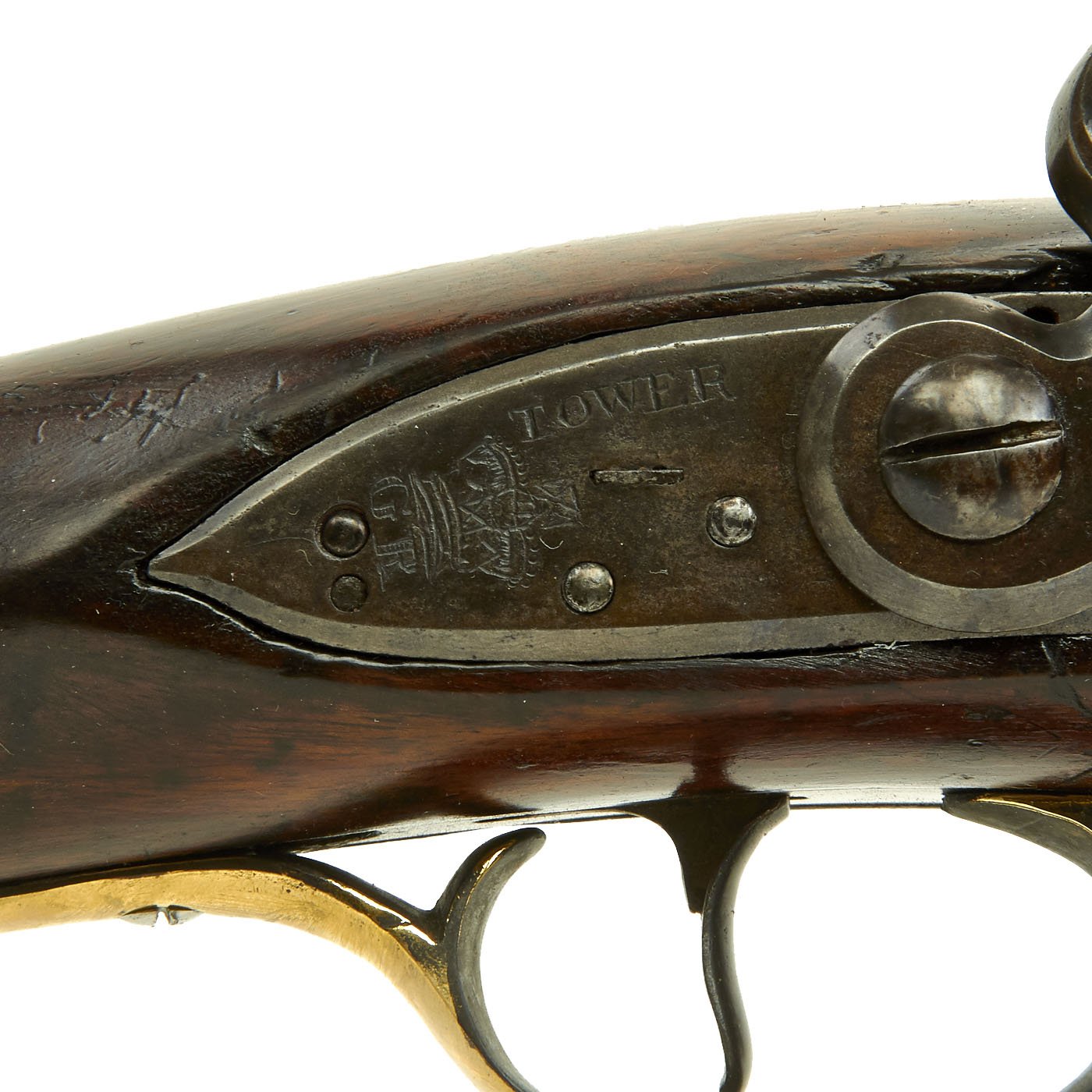

Original Item: One-of-a-kind. This is a magnificent example of the second model smooth bore Seven Barrel Nock Volley gun. It is nicely marked TOWER with a CROWN / G.R. on the lock plate, with the correct "Lock Viewer's Mark" under the flash pan. It is correctly marked H. NOCK marked on the right side of the barrel cluster, and all barrels show CROWN / CROSSED SCEPTER British proof marks. It is comprised of all original parts and offered in excellent condition. This is the finest example that we have ever seen.
In 1780 the British Ordnance received a total of 526 naval Volley guns which were made by Henry Nock, a London gunmaker who supplied multiple types of firearms to the British Board of Ordnance between 1773 until 1806. Some additional Volley Guns were supplied after the first batch. A second batch totaling 655 second model volley guns were supplied before 1788. These firearms were then termed "Lord Nelson" or "Crow's Nest" guns and were designed to fire seven barrels at one time from the upper rigging of ships during combat.

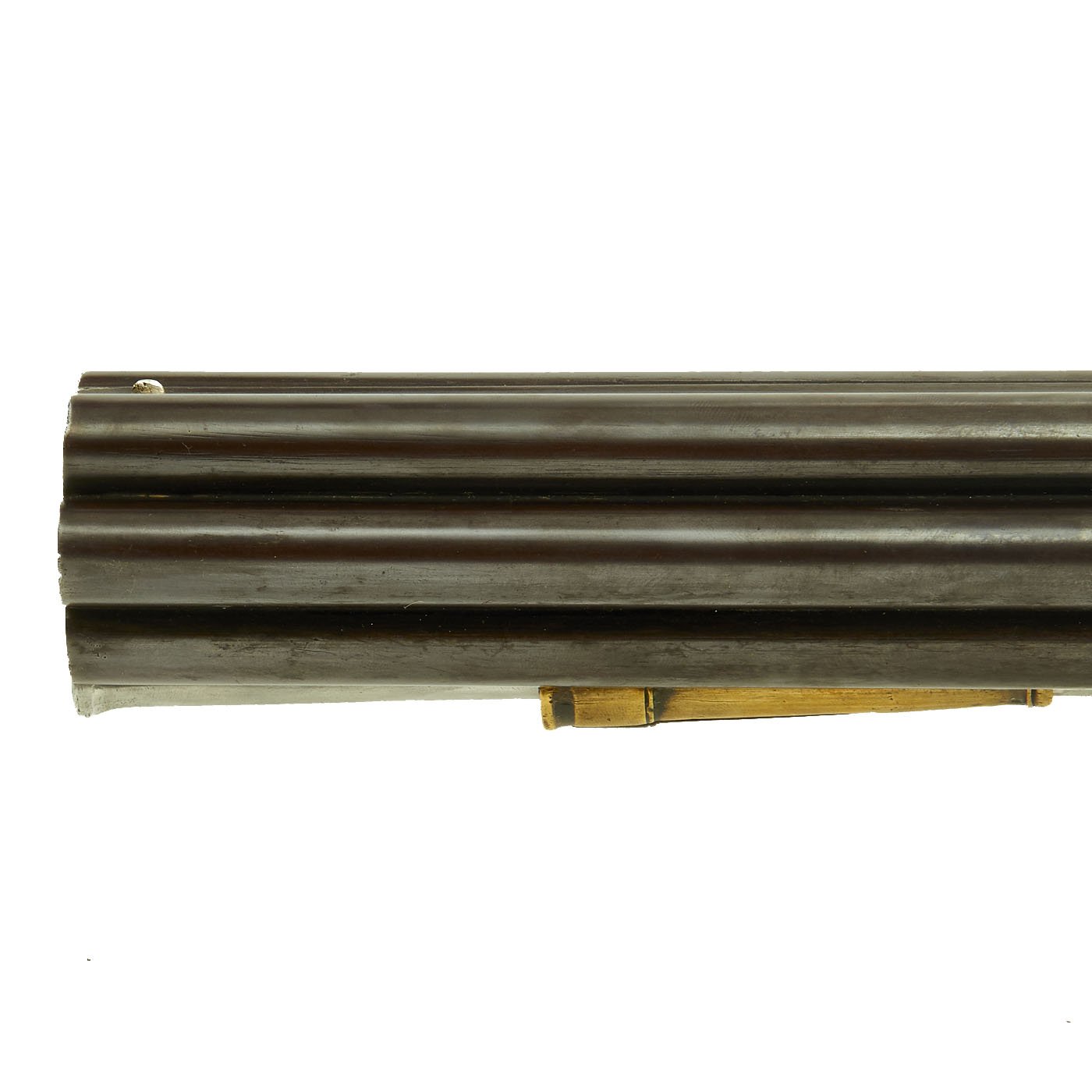

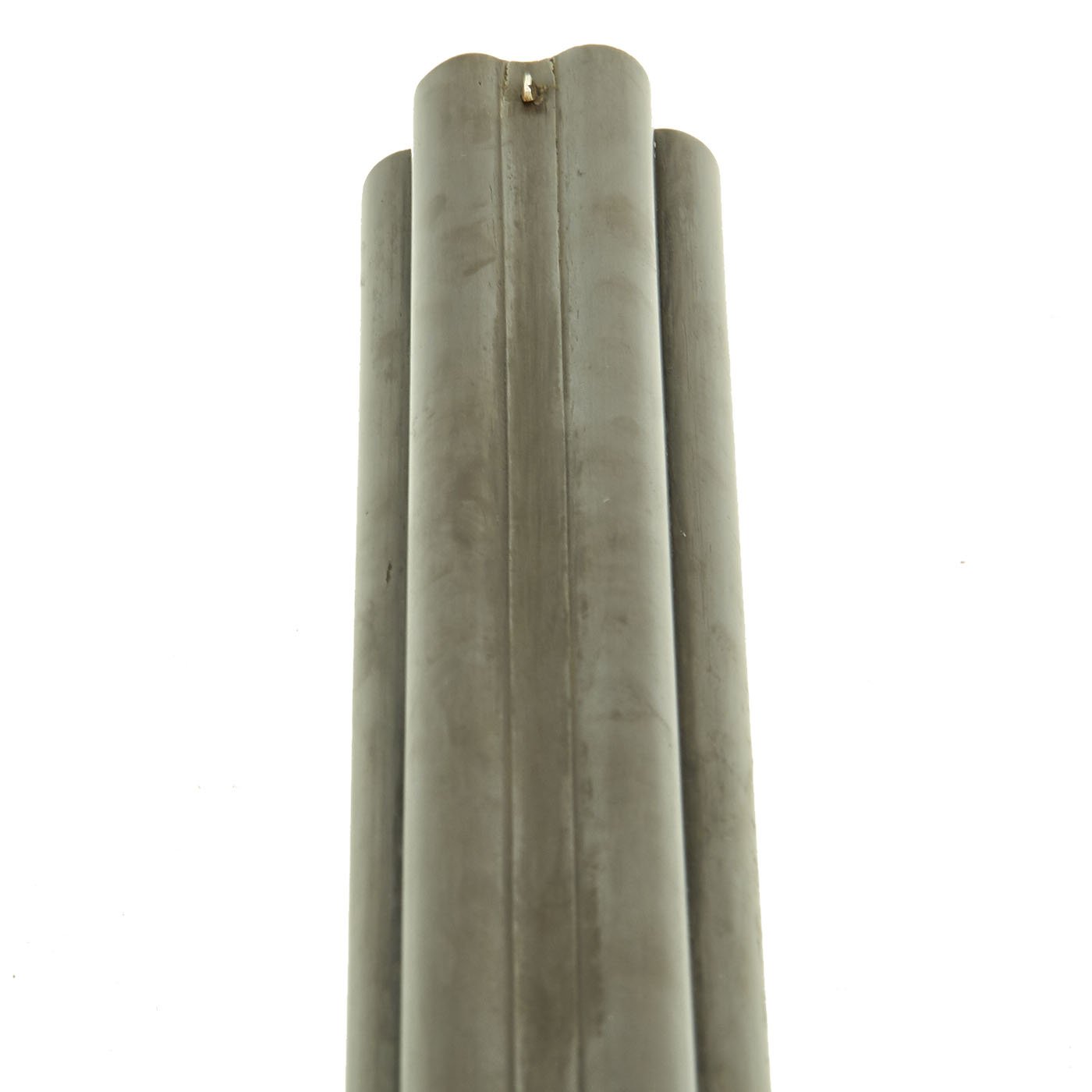

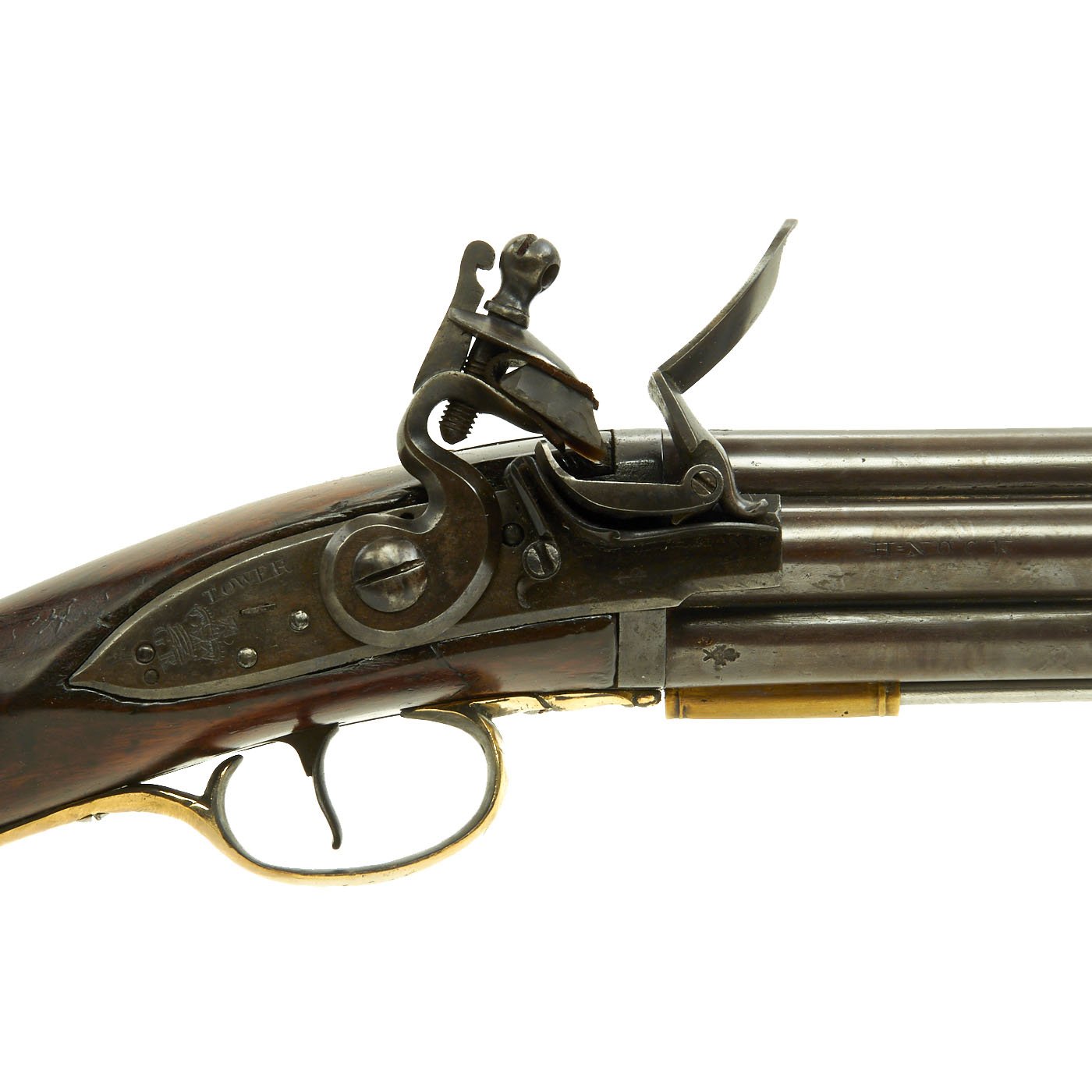

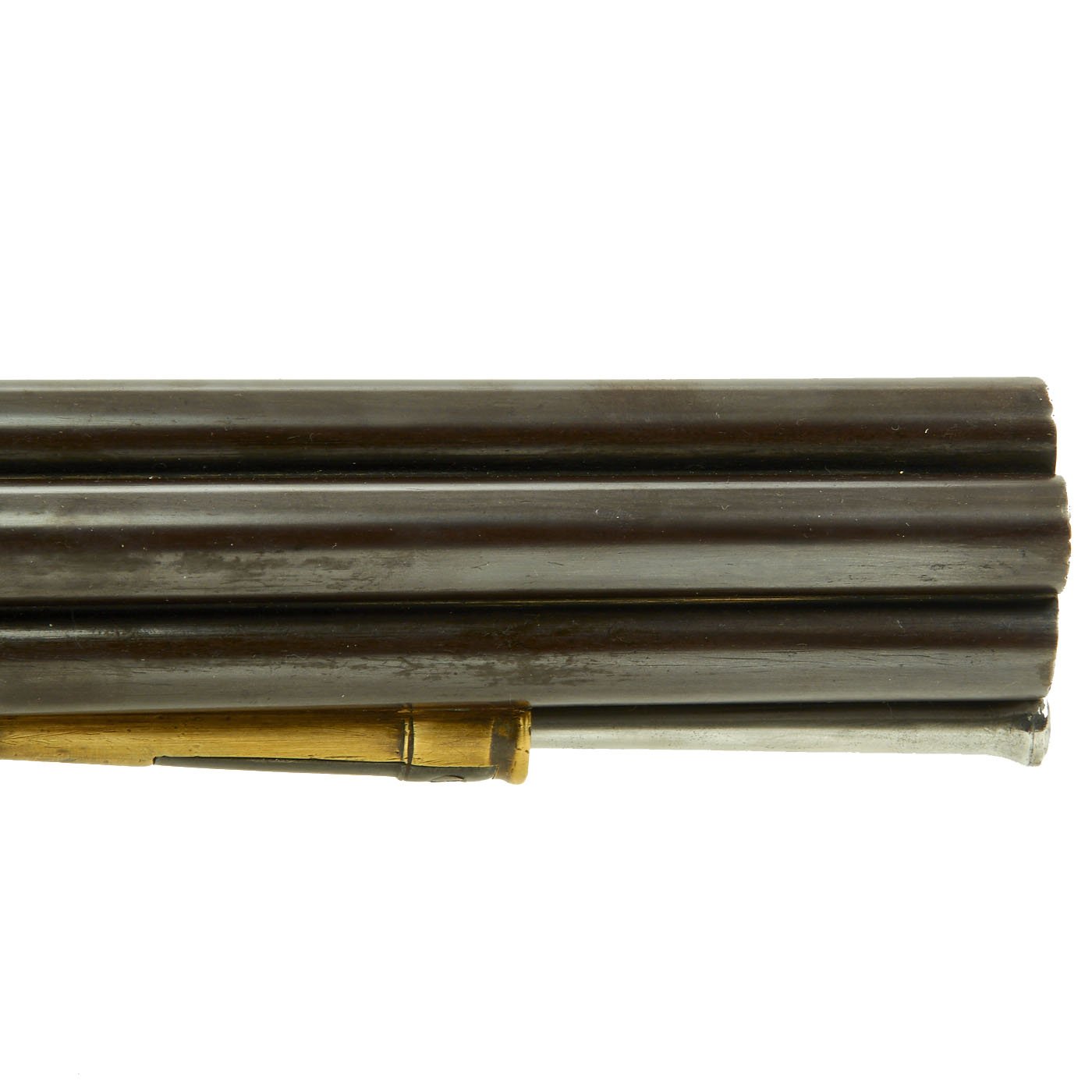

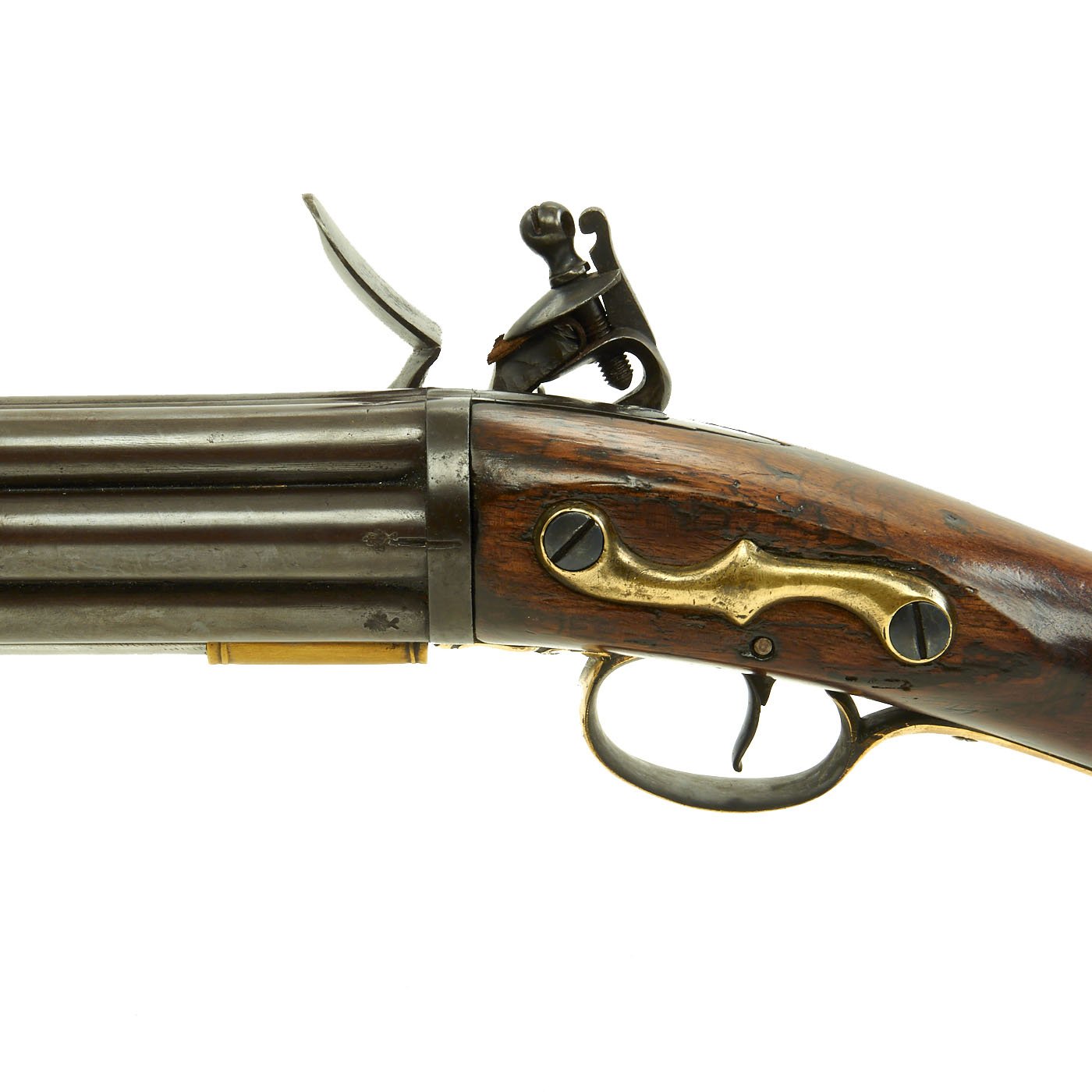

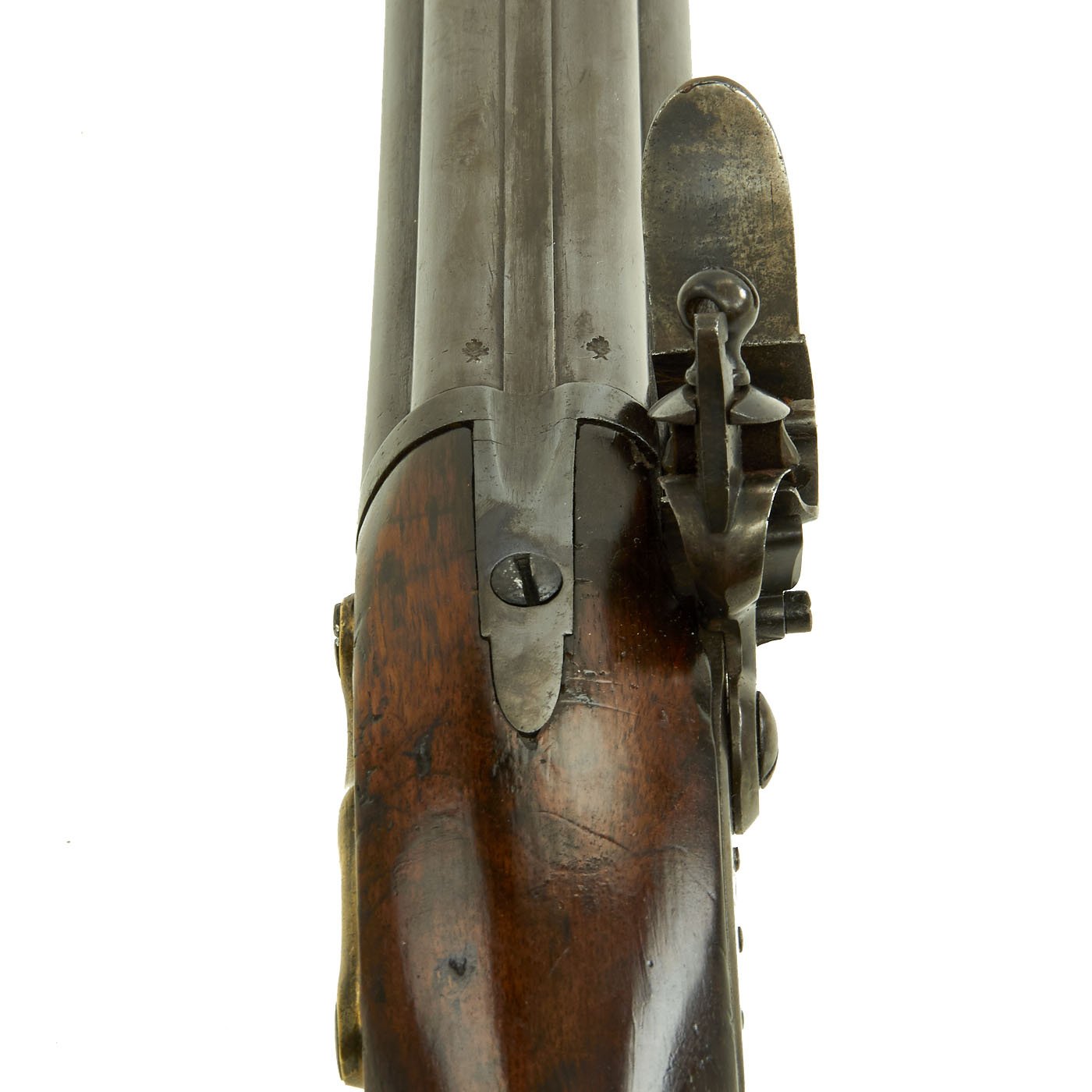

The locks on these weapons had a 5 1/2 inch by 1 inch back action lock mechanism. The lockplates and gooseneck cocks had flat beveled surfaces and the frizzen spring was placed in a vertical position. The locks were marked with a British ownership mark of a crown over a broad arrow. The barrel assembly consisted of a group of six, 19 13/16 inch long, .52 caliber barrels, grouped around a seventh center barrel. The vent arrangement allowed all barrels to fire at once. The breech end of each barrel is marked with a crown above crossed scepters and three ramrod guides hold the steel ramrod. In 1787 another one hundred of these guns were produced for the Ordnance. Those firearms were fitted with conventional lock mechanisms and are readily distinguishable from the Revolutionary War era model.
This weapon is an extremely rare example of a 1780 contract Nock Volley Gun. It conforms in every aspect to the description given above. Considering the small number of these weapons initially made it is a great rarity to have this unique firearm in such magnificent condition.
The Nock gun was a seven-barrel flintlock smoothbore firearm used by the Royal Navy during the early stages of the Napoleonic Wars. It is a type of volley gun adapted for ship-to-ship fighting, but was limited in its use because of the powerful recoil and eventually discontinued.
History and design:
The weapon was invented by British engineer James Wilson in 1779, and named after Henry Nock, the London-based gun maker contracted to build the gun. It was intended to be fired from the rigging of Royal Navy warships onto the deck in the event that the ship was boarded by enemy sailors. Theoretically, the simultaneous discharge of seven barrels would have devastating effect on the tightly packed groups of enemy sailors.

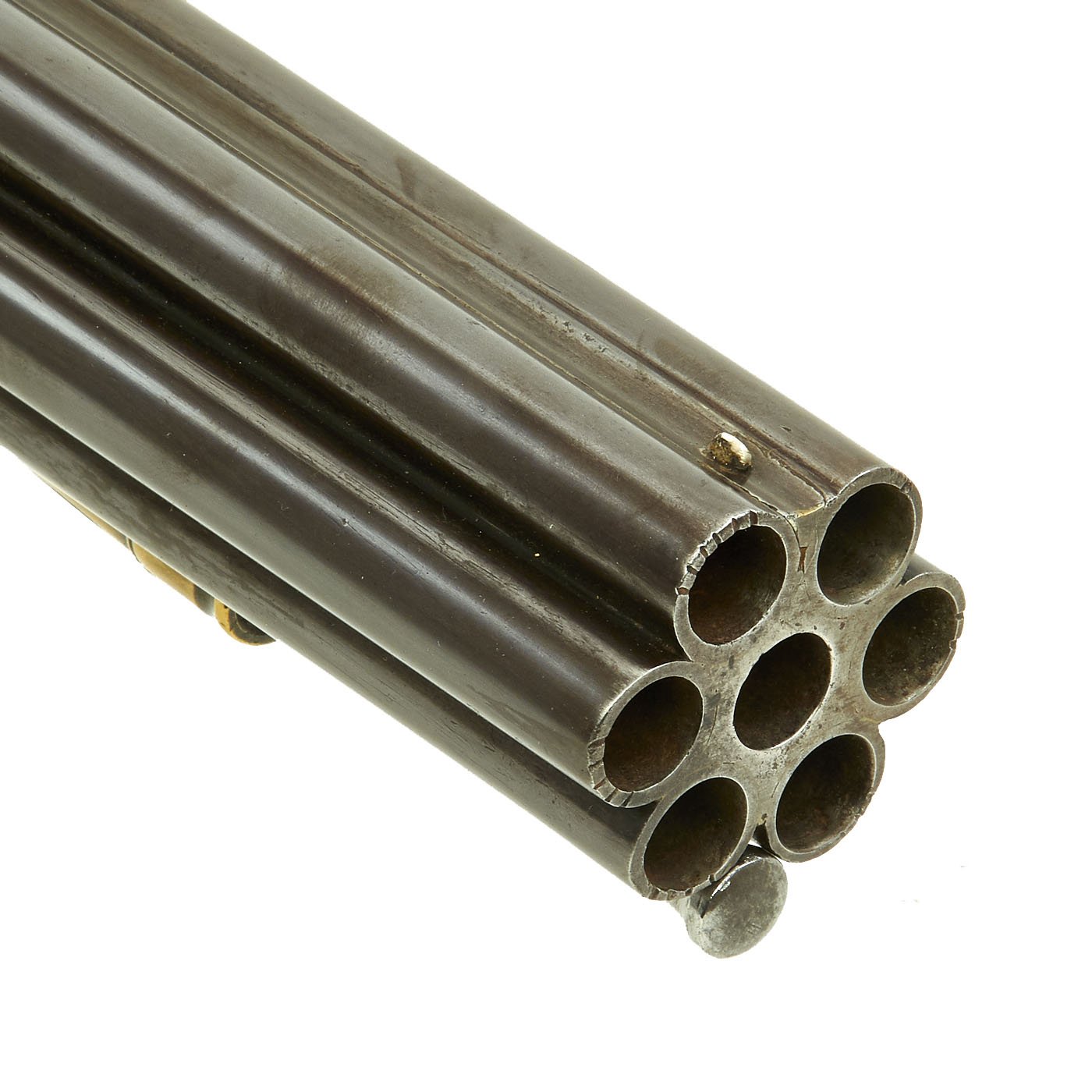

The volley gun consisted of seven barrels welded together, with small vents drilled through from the central barrel to the other six barrels clustered around it. The central barrel screwed onto a hollow spigot which formed the chamber and was connected to the vent.
The gun operated using a standard flintlock mechanism, with the priming gunpowder igniting the central charge via a small vent. When the flash reached the central chamber, all seven charges ignited at once, firing more or less simultaneously.
The first models featured rifled barrels, but this made loading a long and cumbersome process, resulting in all following models being manufactured with smoothbore barrels.
Deployment and use:
During the early stages of the Napoleonic Wars, 500 Nock guns were purchased by the Royal Navy. However, attempts to use the gun during combat quickly revealed design flaws. The recoil caused by all seven barrels firing at once was more powerful than had been thought, and frequently injured or broke the shoulder of whoever was firing the gun, and in any case made the gun very difficult to aim and control. Furthermore, officers were reluctant to issue the guns during battle out of fear that the discharge flames would set fire to the surrounding rigging and sails. The few models purchased by the Royal Navy were removed from service in 1804.
Examples are available for public viewing reside at the York Castle Museum, the Hollywood Guns exhibit at the National Firearms Museum, the Royal Armouries Museum, and the Charleston Museum in South Carolina.
The gun was placed into production with the well-known firm of Henry Nock of London in 1780, and by 1787 a total of 608 were manufactured in at least two different series. Part flame-thrower, part sawed-off shotgun, all crazy, the Nock never gained widespread acceptance.
The Nock gun was brought to modern attention in the 1960 film The Alamo in which one is used by actor Richard Widmark, playing Jim Bowie. Th gun used in the film is now in the National Firearms Museum. In Bernard Cornwell's series of historical novels featuring fictional British soldier Richard Sharpe and, more recently, in the Sharpe TV series, Nock guns are used by Sharpe himself, the character Patrick Harper (a strong, burly man), and Royal Navy crewmen.
Year of Manufacture: circa 1780
Caliber: about .52" - 7 barrels
Ammunition Type: Lead Ball / Shot & Powder
Barrel Length: 20 inches
Overall Length: 37 inches
Action: Flintlock Side Action
Feed System: Muzzle-Loaded
