Original British P-1885 Martini-Henry Pattern B MkIV Rifle by Enfield dated 1898 - Firozpur Arsenal Marked

Item Description

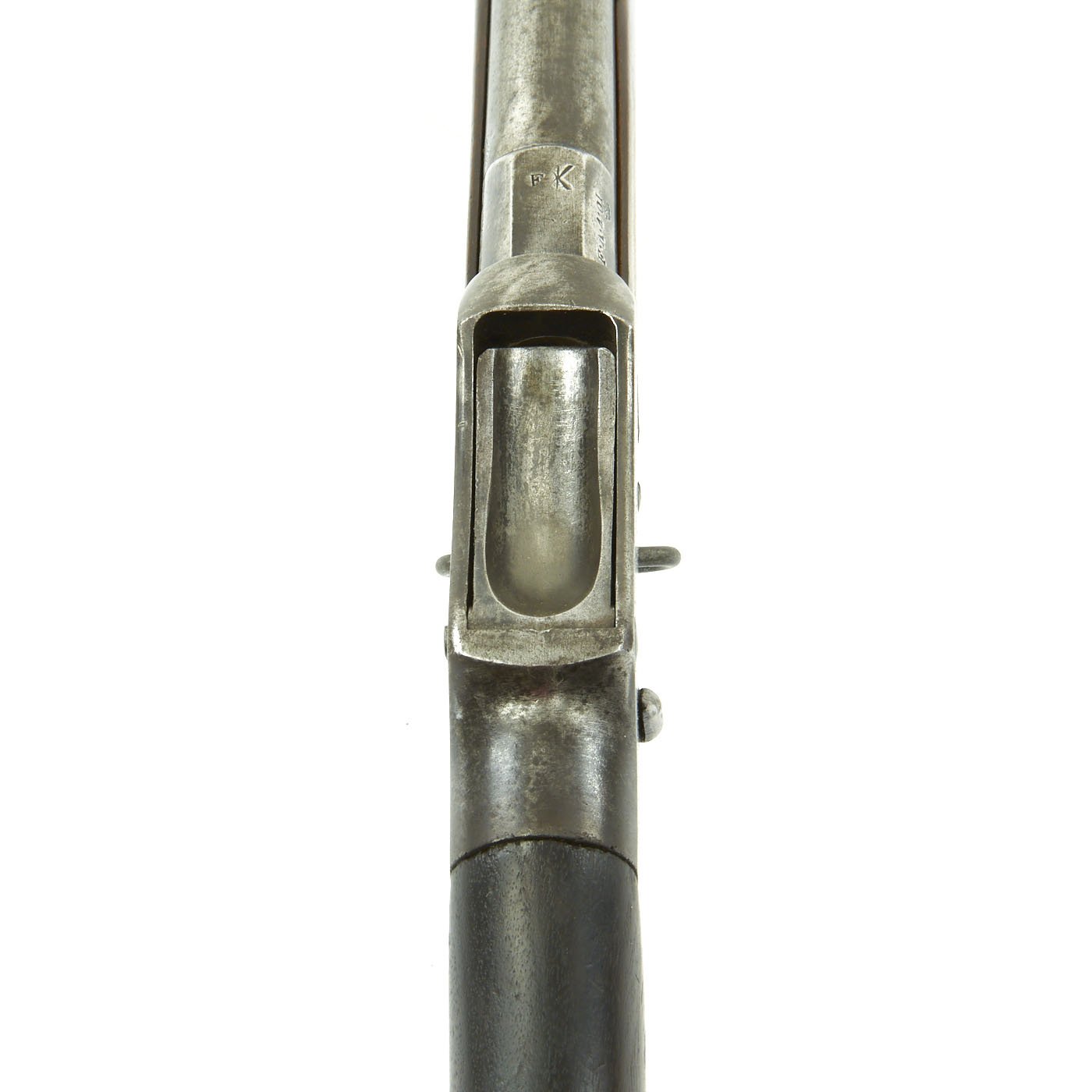

Original Item: Only One Available. We received this fine rifle as part of our exclusive discovery of antique firearms in the royal palace of Nepal. The great success of the P-1871 Martini Henry Short Lever Rifle had only been marred by the occasional difficulty experienced with the ejection of the spent cartridge from powder residue fouling the chamber.

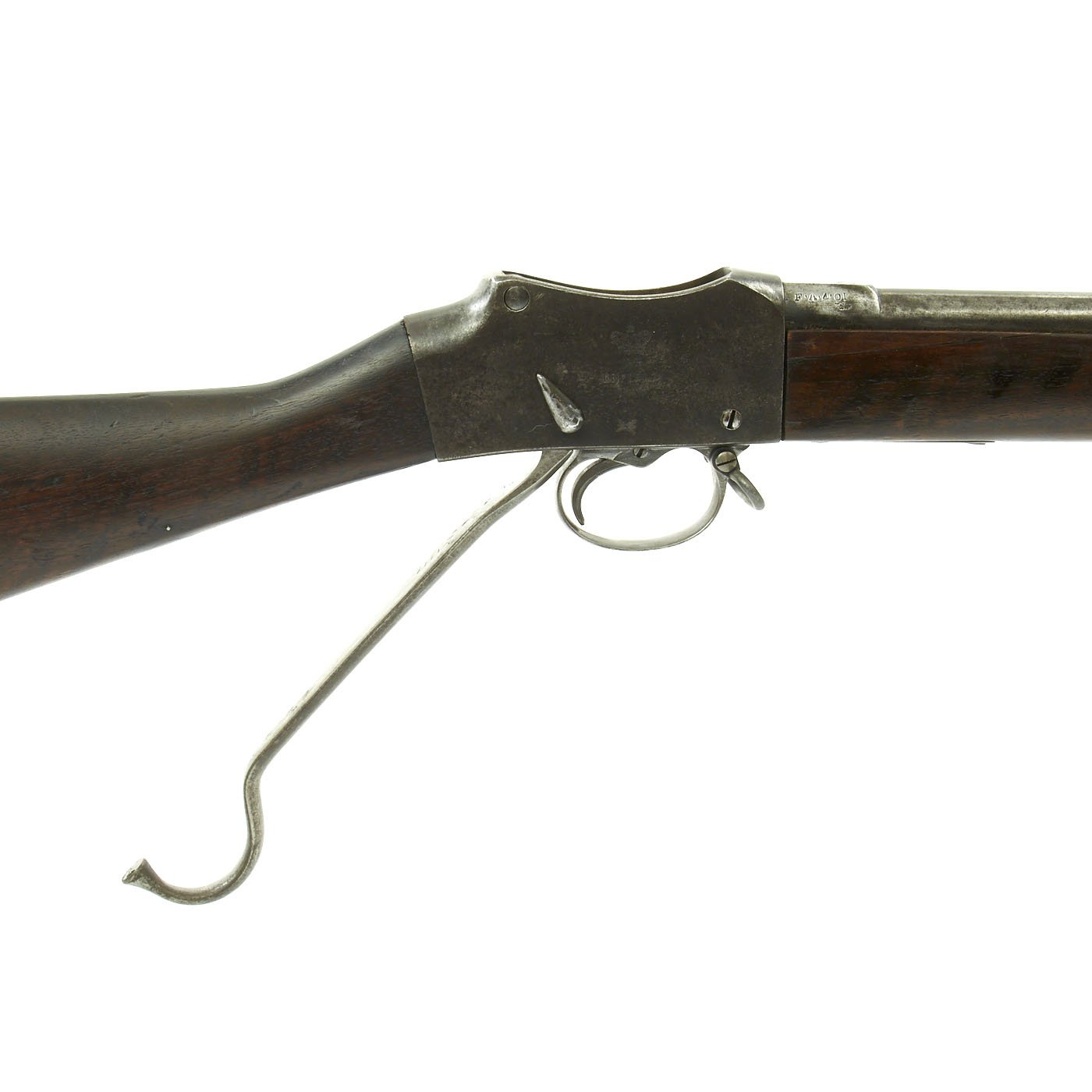

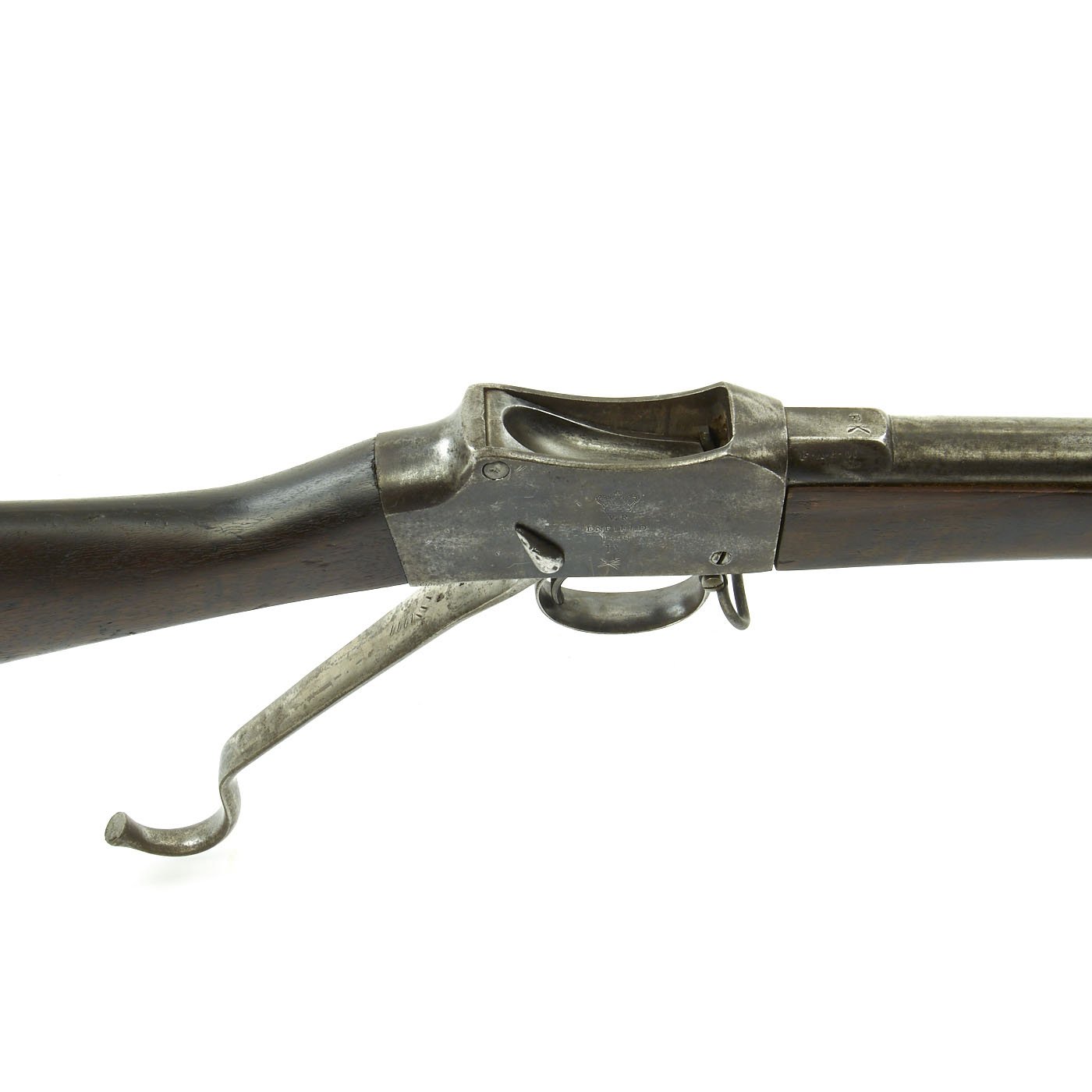

The solution was the introduction of the P-1885 "long lever" model that provided great leverage for case extraction. In front line service for only three years when it was superseded by the .303 cal P-1888 magazine Rifle the P-1885 Martini saw principal use in Britain's overseas colonial empire.

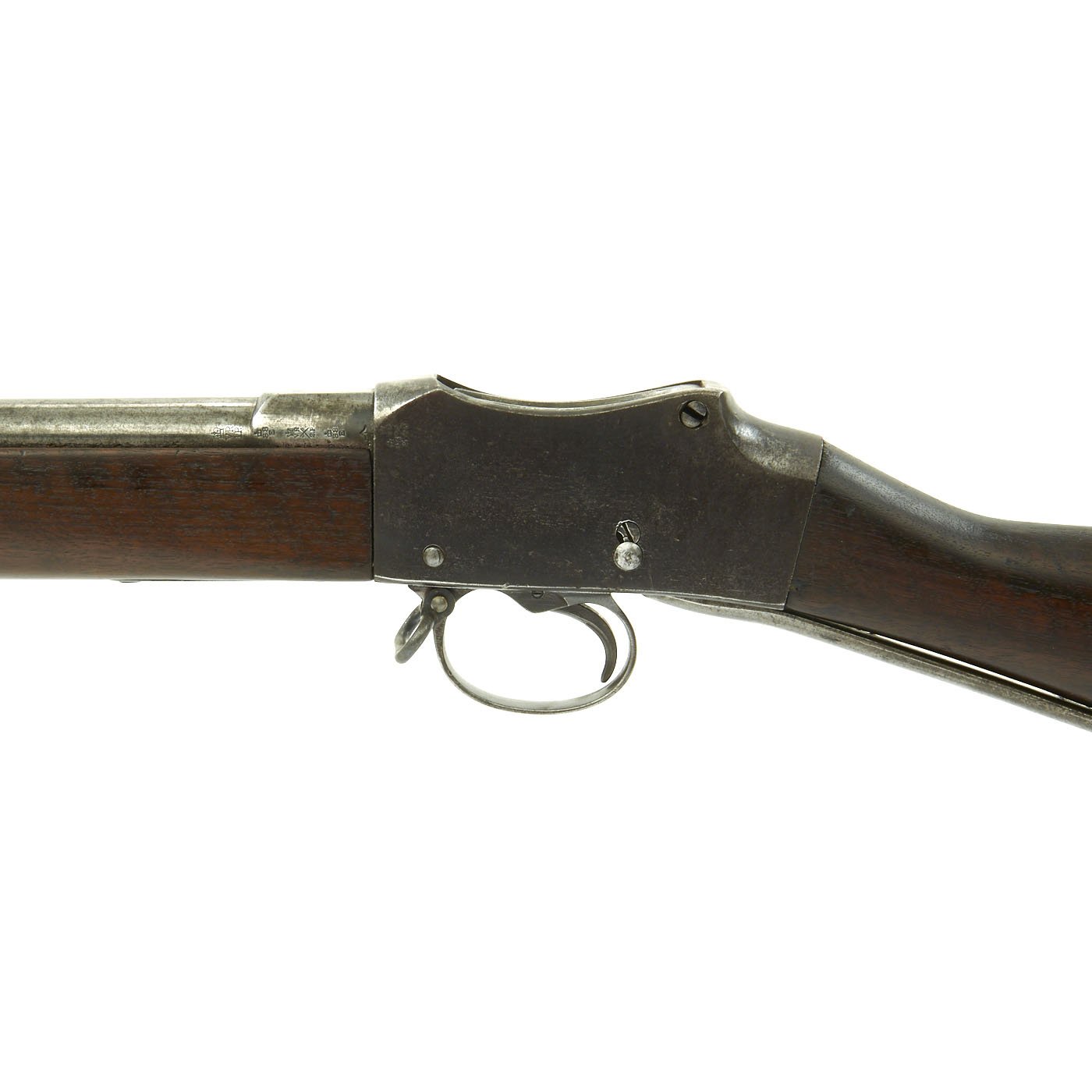

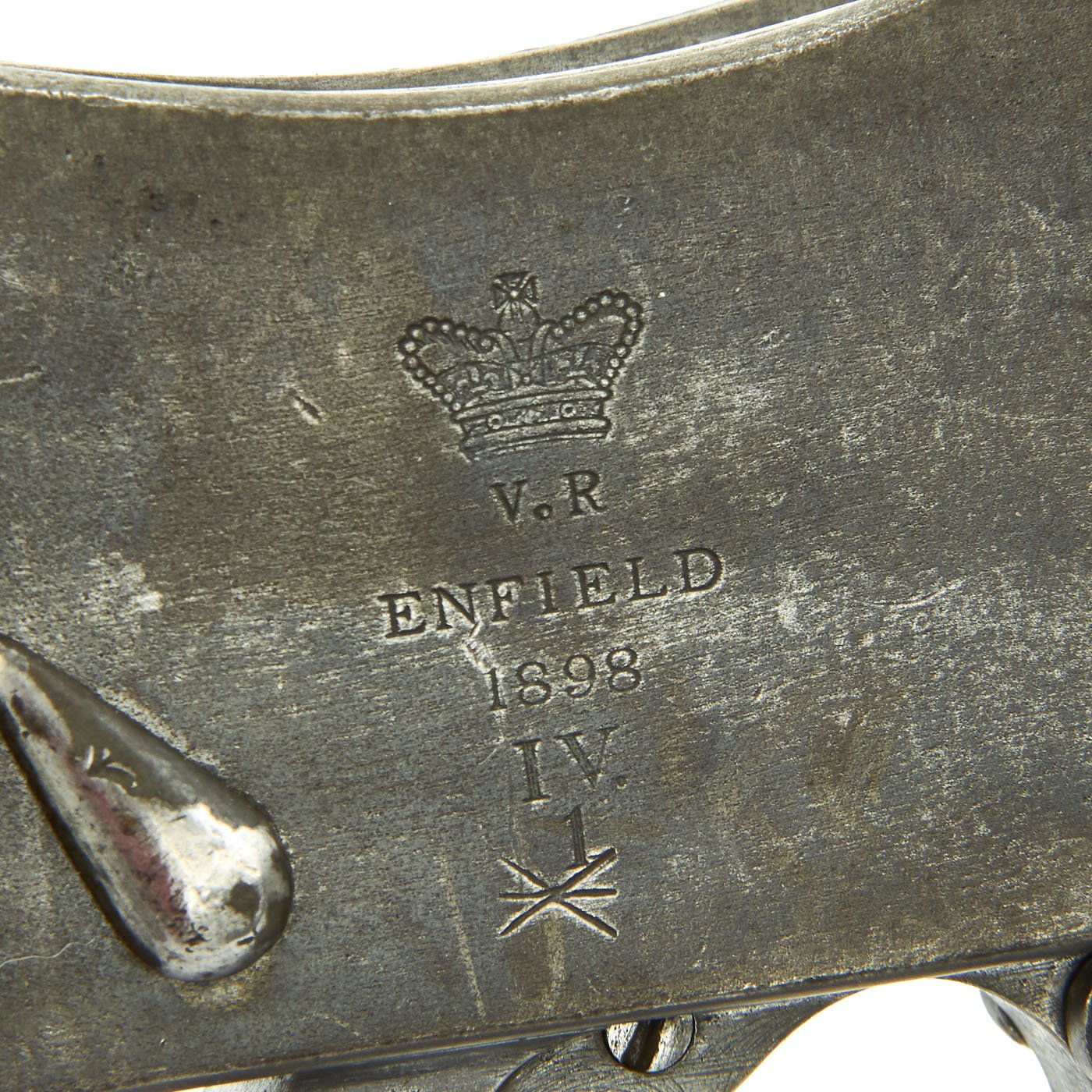

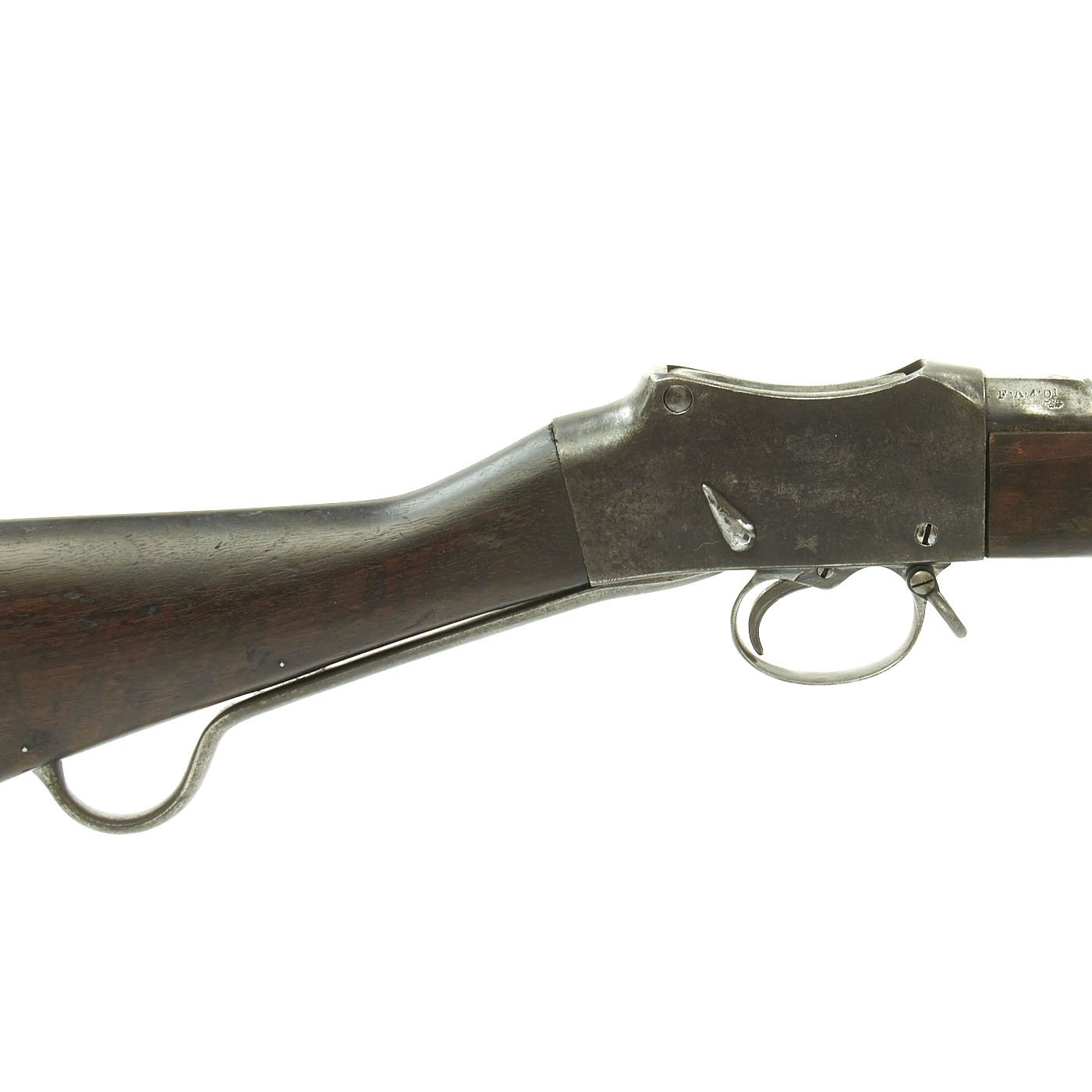

Officially, production of the Mark IV stopped in 1889, but as part of the Nepalese cache, several Martini Mark IV Pattern B rifles have been found with dates years after 1889. This one was in fact manufactured in 1898, as indicated by the markings on the right side of the receiver.

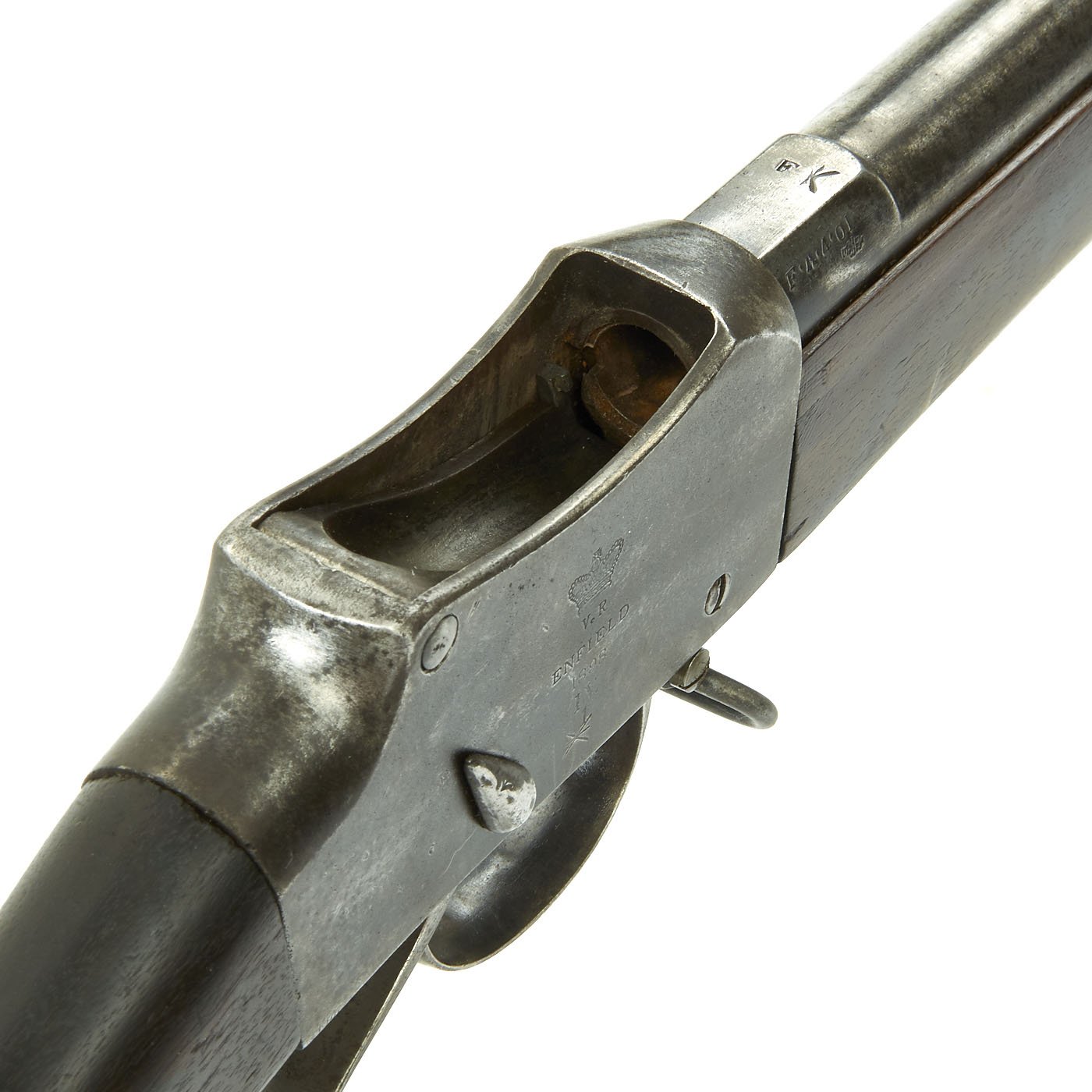

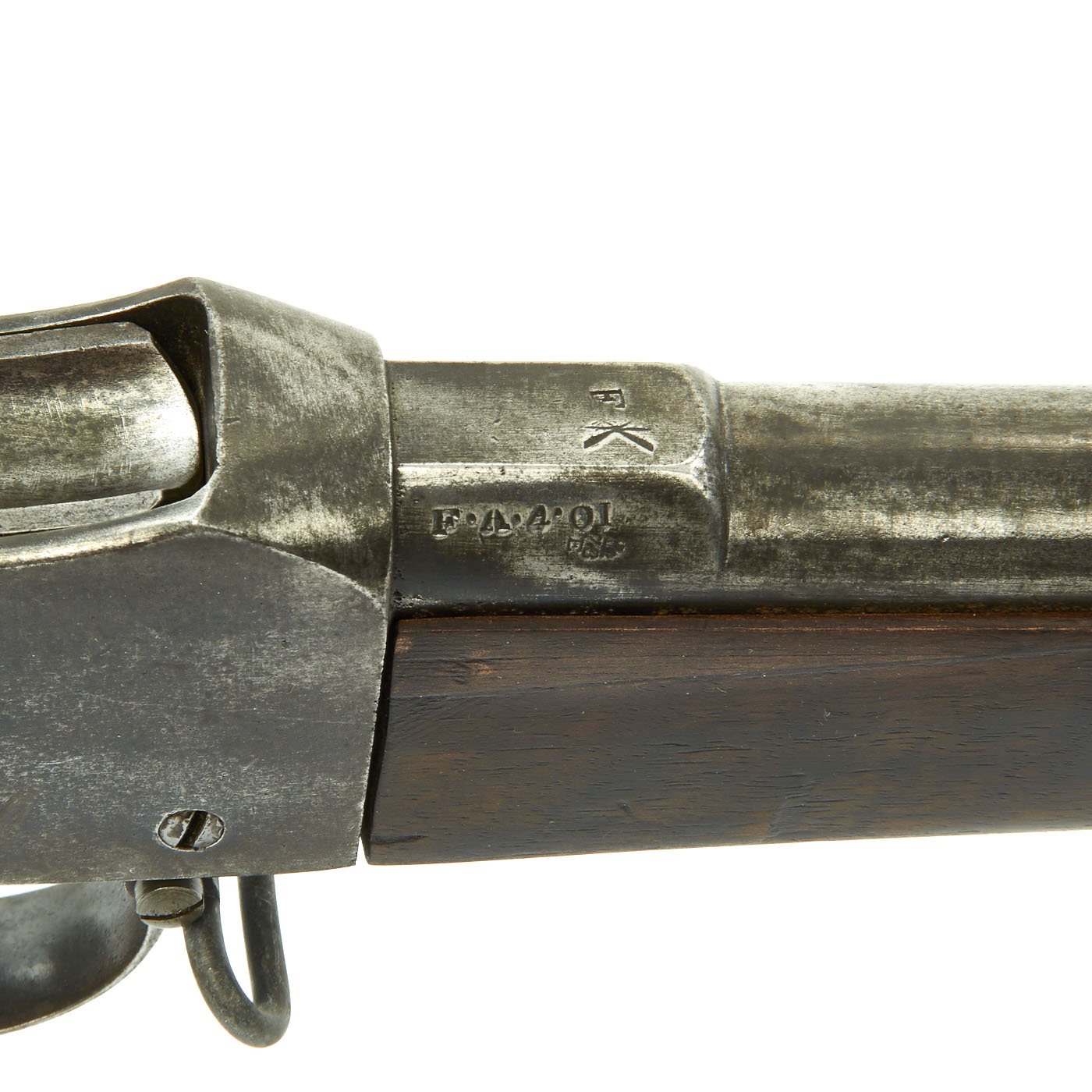

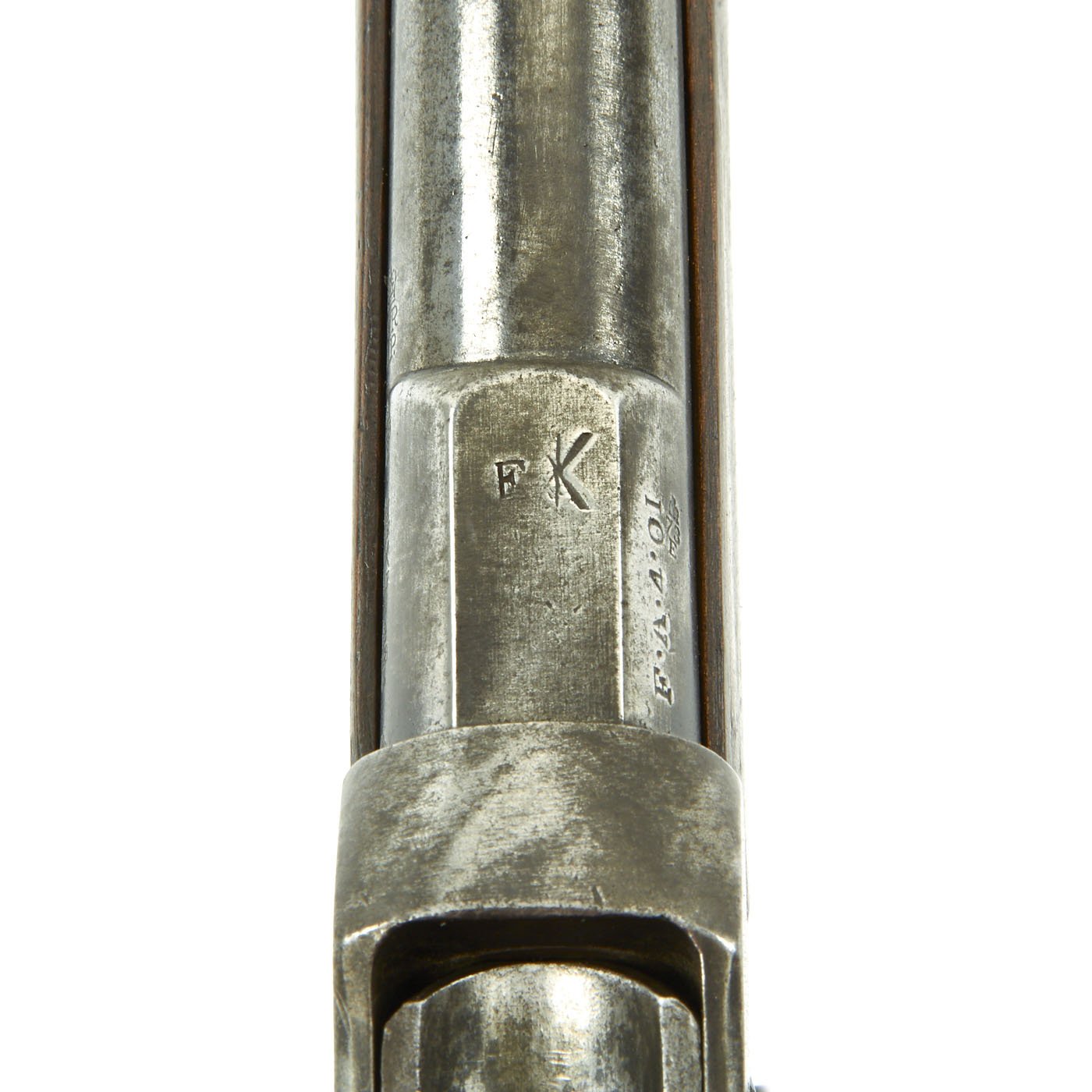

There is no "Lock Viewer's Mark" on this example, which is correct, as the marking was deemed superfluous in 1897, so any made after that did not have the marking. Below this are the "Opposed Cross Arrows" for being sold out of service. The barrel nocks form also has an interesting marking: F.A. 4.01, which would mean that this rifle was inspected and put into service at Firozpur Arsenal. Firozpur is located in the south-west portion of Punjab in India.  After service there, it was then sent to Nepal a decade or so later.

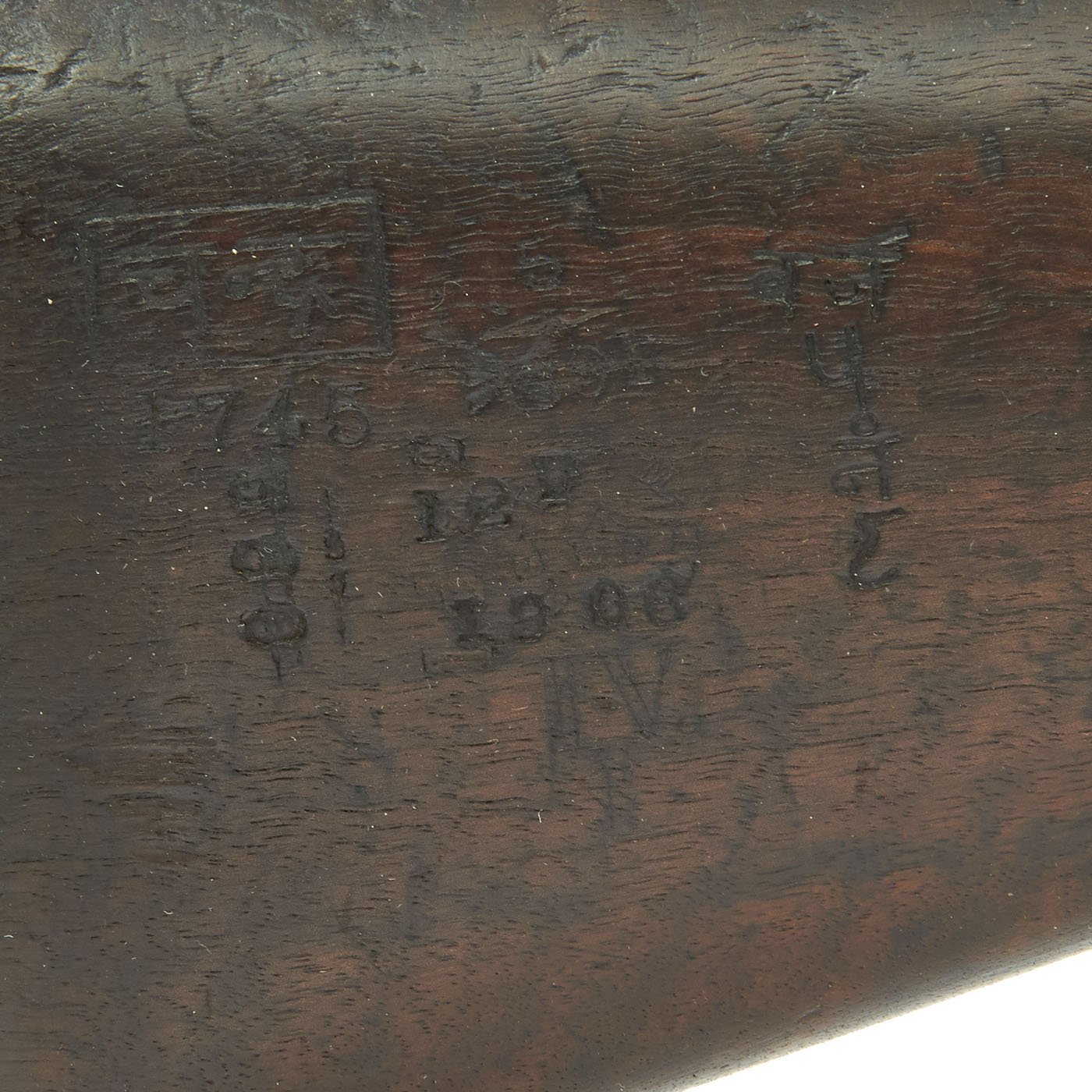

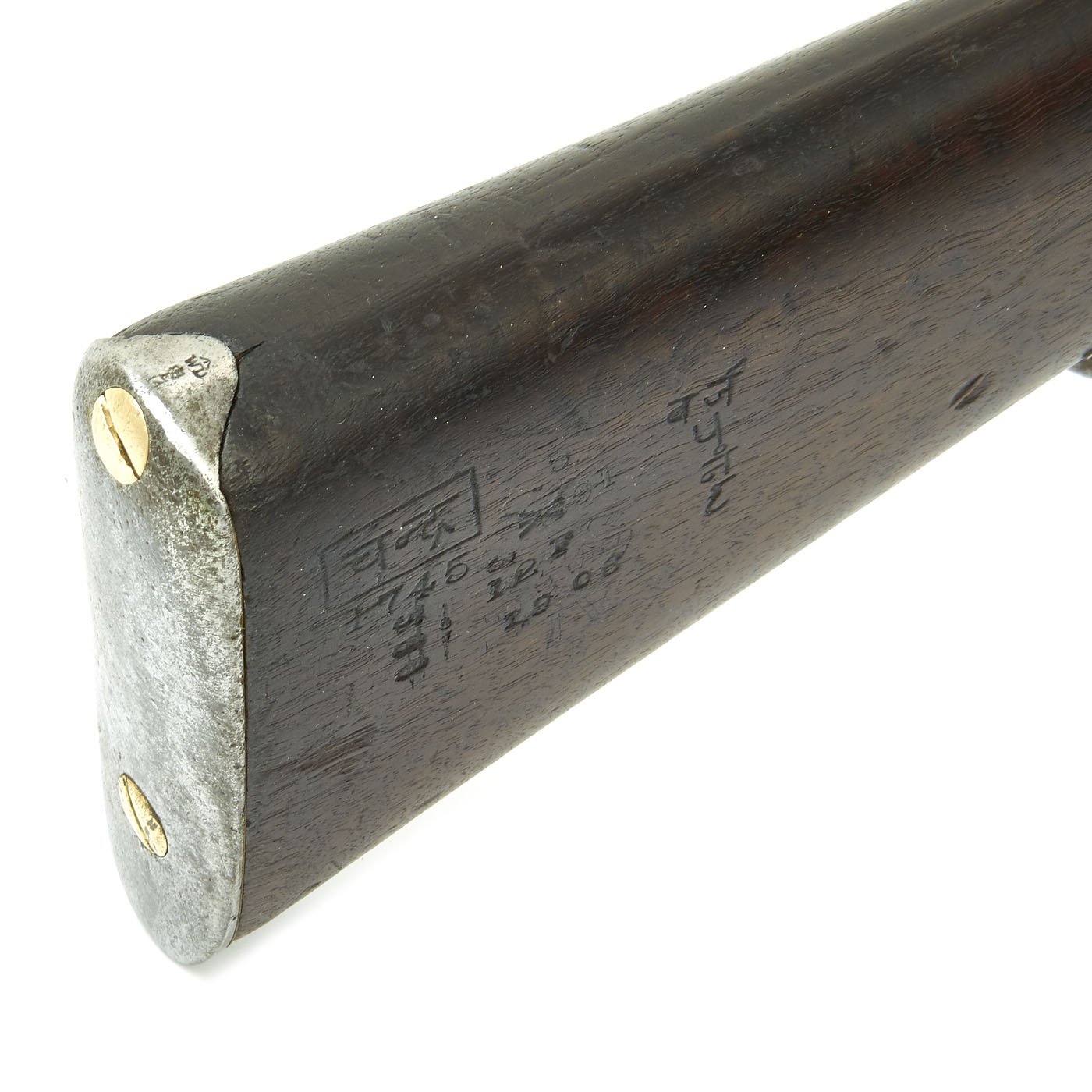

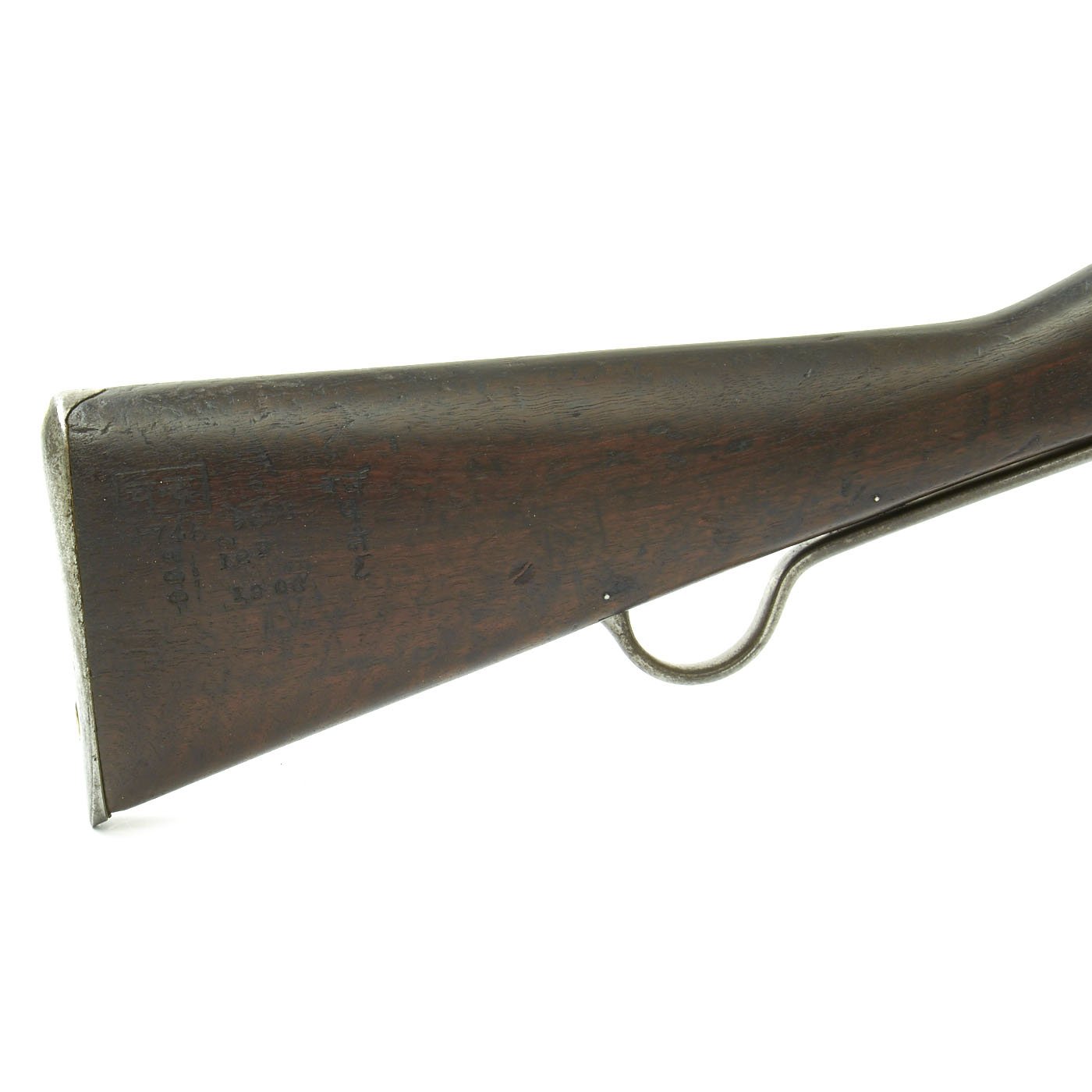

Still, the fact remains that this is an Enfield marked receiver, dated years after Enfield was supposed to have ceased production. Did RSAF Enfield make extra receivers, which were then dated as they were put into service? There also were orders for Martini-Henry parts placed with B.S.A.M&Co. in 1894, as well as some further orders with other companies. The history is not entirely clear, but there are loads of proof marks on the rifle, including under the stock, so perhaps the ambitious collector can examine them.

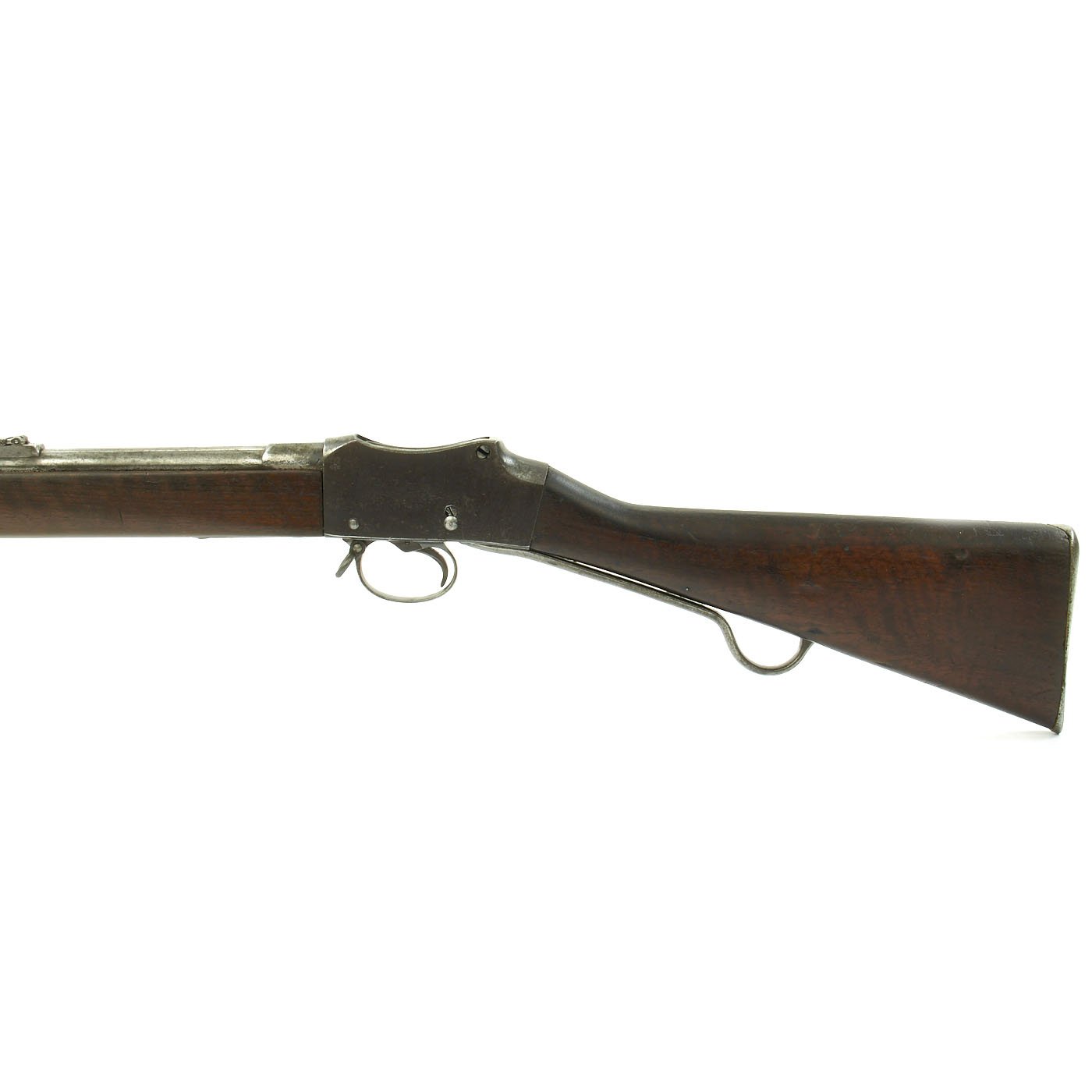

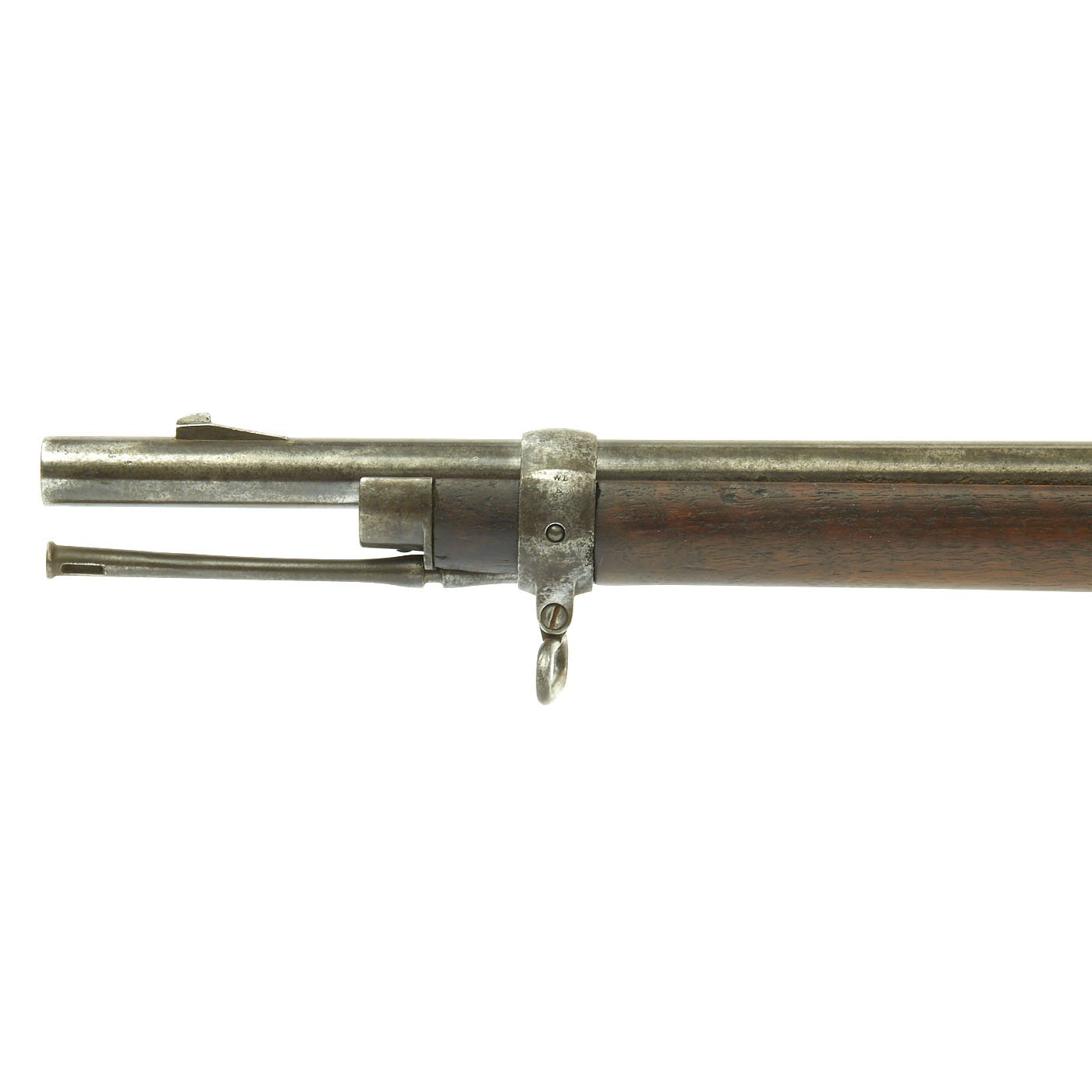

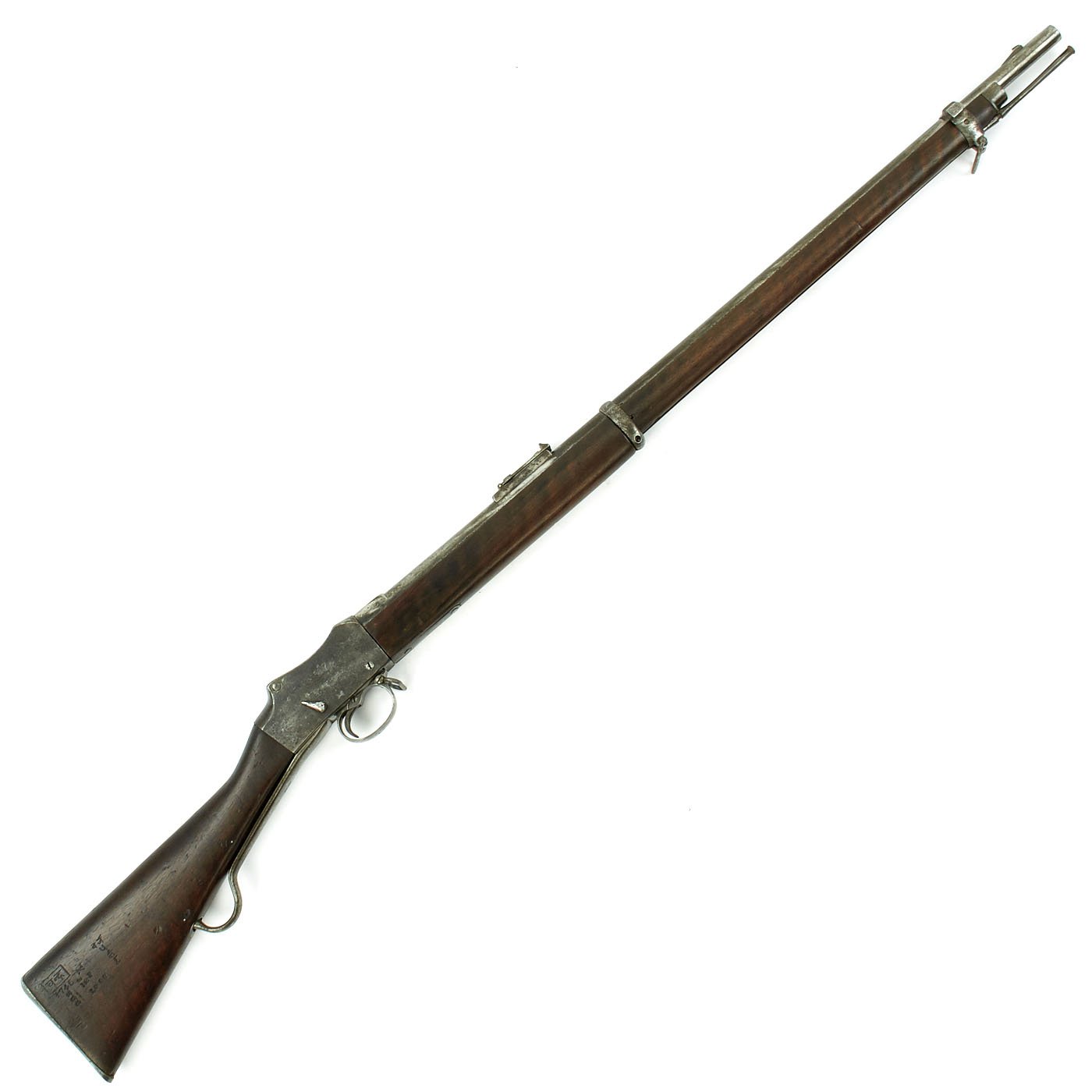

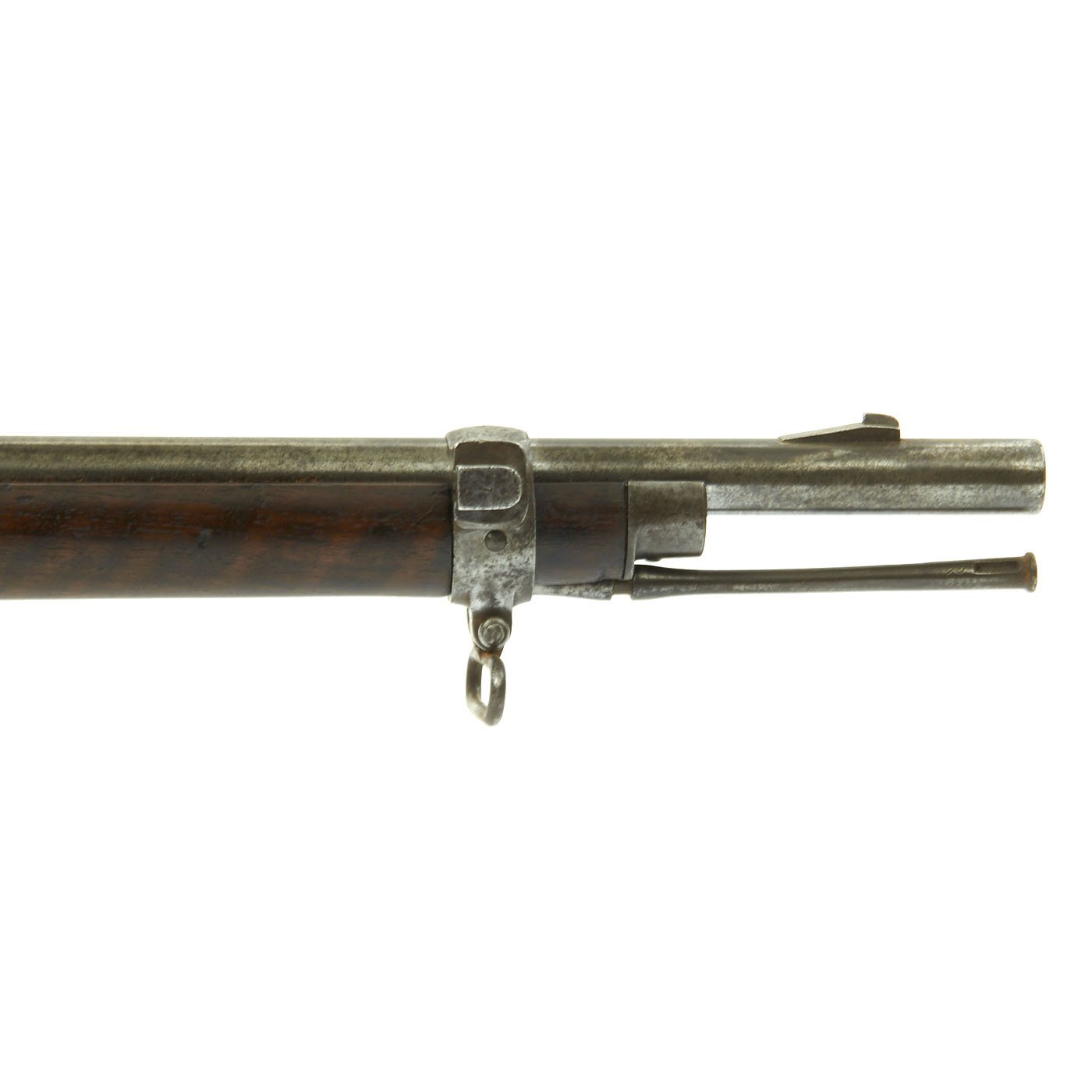

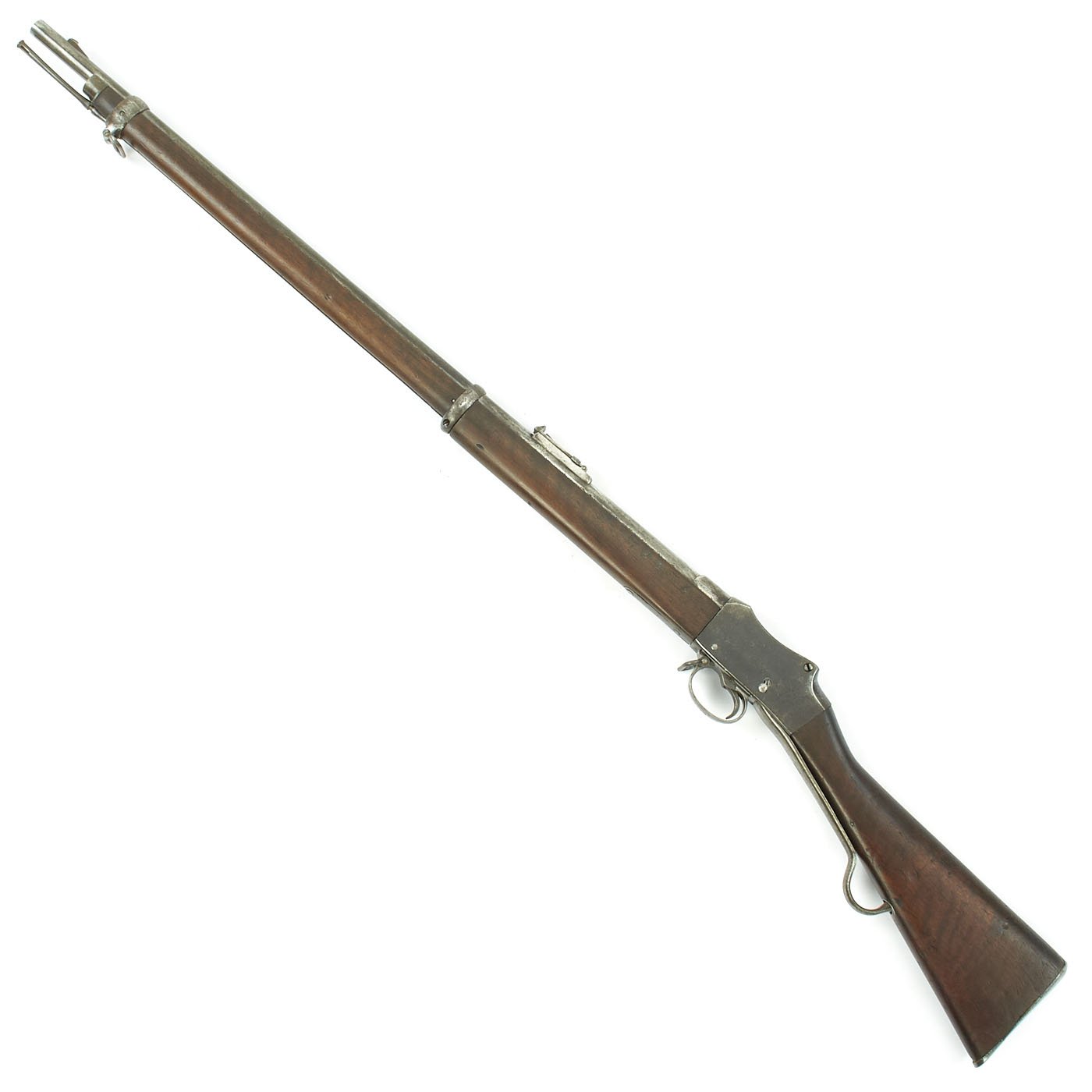

This example is in very nice condition, as the pictures show. The action cycles and dry fires, and the bore shows clear rifling, with a mostly bright finish. It comes complete with the correct Mark IV cleaning rod, and is just a joy to look at.

An interesting example of a very late production Mark IV Pattern B Martini-Henry rifle. Ready to research and display!

Below copy is courtesy of

With the decision to make general issue of the Martini Henry MKII & MkIII to the militia and Volunteers in January 1885 and the impending new .303" caliber and the suspension and ultimate cancellation of the .402" bore Enfield Martini in June 1887, it was decided as a short term measure to convert those 65000 .402" Enfield Martinis already made into a useable .577/450" arm. The new rifle was to be designated the Martini Henry MkIV at a cost to convert those arms was expected to be 6s 6d per piece.

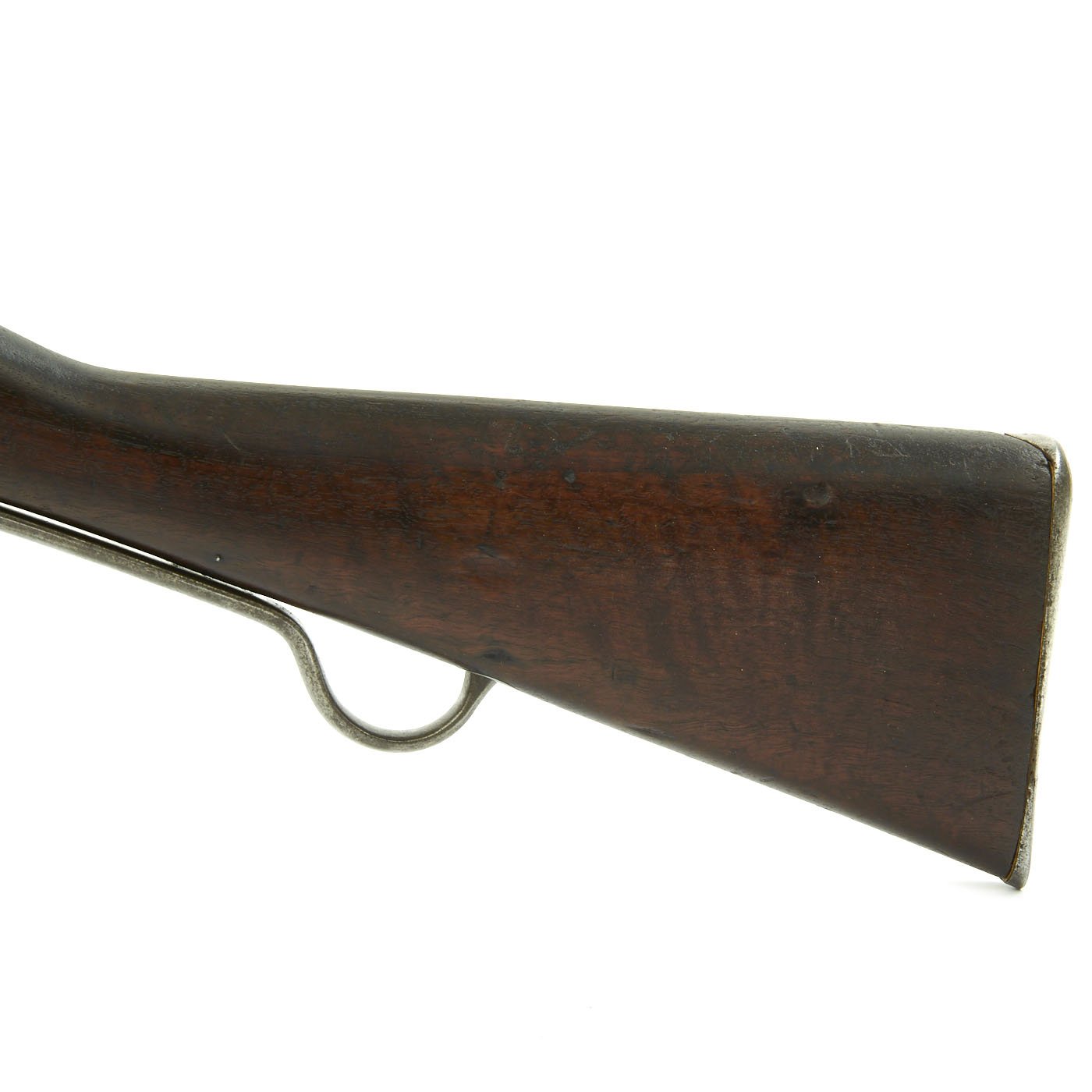

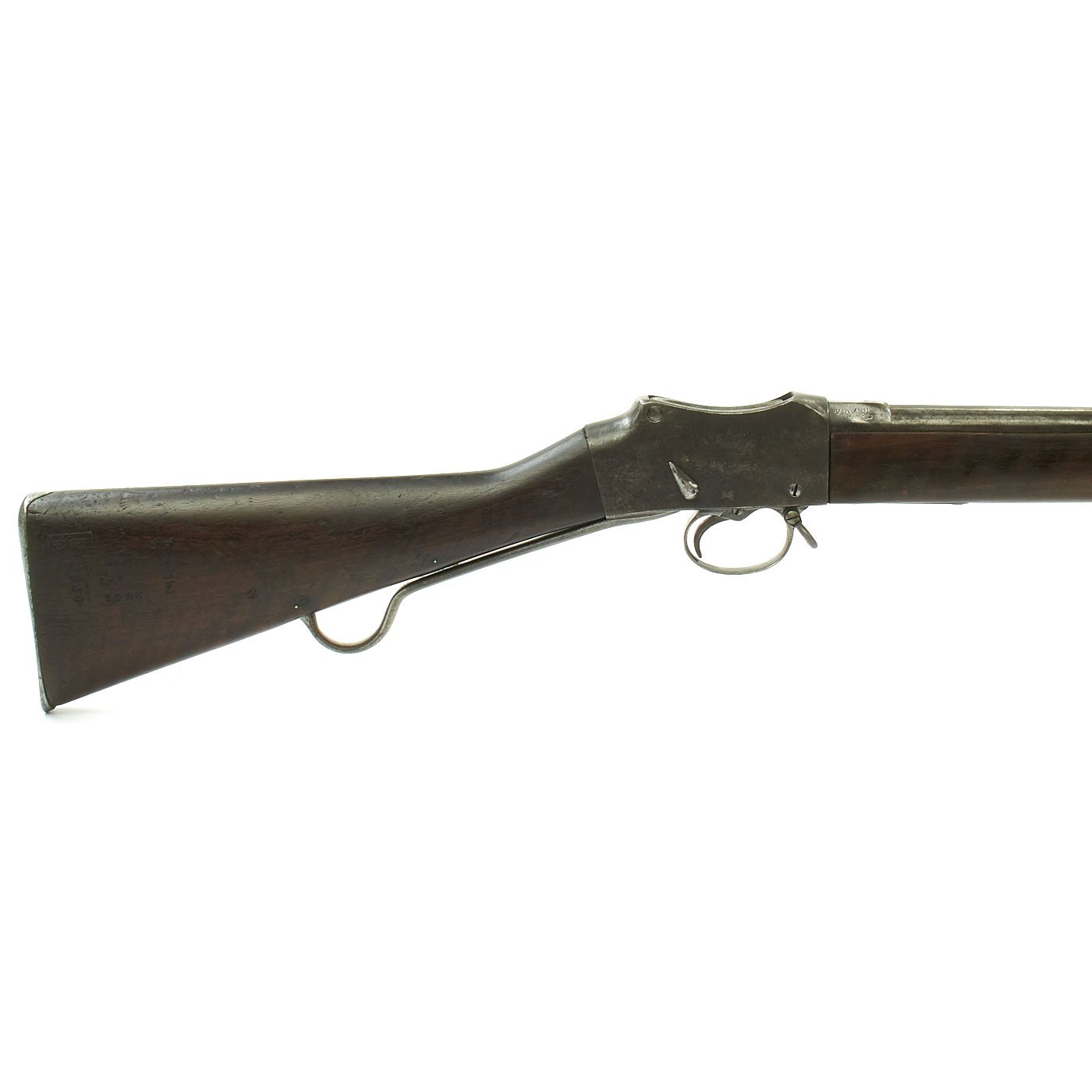

The success of enhanced extraction of the longer lever of the Enfield Martini Pattern B rifle was readily adopted for all MkIV patterns, those existing Enfield Martini A pattern walnut stocks required the brass stock cup re-sitting to correspond with the long levers' tip. The process required a fresh recess hole to be drilled and the cup re-set. A purpose made wooden plug was glued into the hole completing the process. As the stocks were all removed there is no consistency as which stock was fitted to A or B pattern, so they will be found on any pattern. Wherever possible the old components were re-used, and the "E-M" designation originally marked on many of the parts betrays today its original pedigree often scored through thus: E-M . The A pattern trigger assembly, designed to accept the E-M's safety was reamed to remove the original configuration, whilst Receivers and butt stocks of the old pattern had an extra Roman numeral "V" stamped alongside the original "I", whilst newly made but un-used components have a distinctive "IV" classification. A new pattern clearing rod, designed to spring into place and to be suitable with use of the new steel jag was installed and the nosecap was redesigned, however it was decided to retain to old pattern Barleycorn on Block foresight on the pattern "A".

Martini Henry MkIV pattern B & C

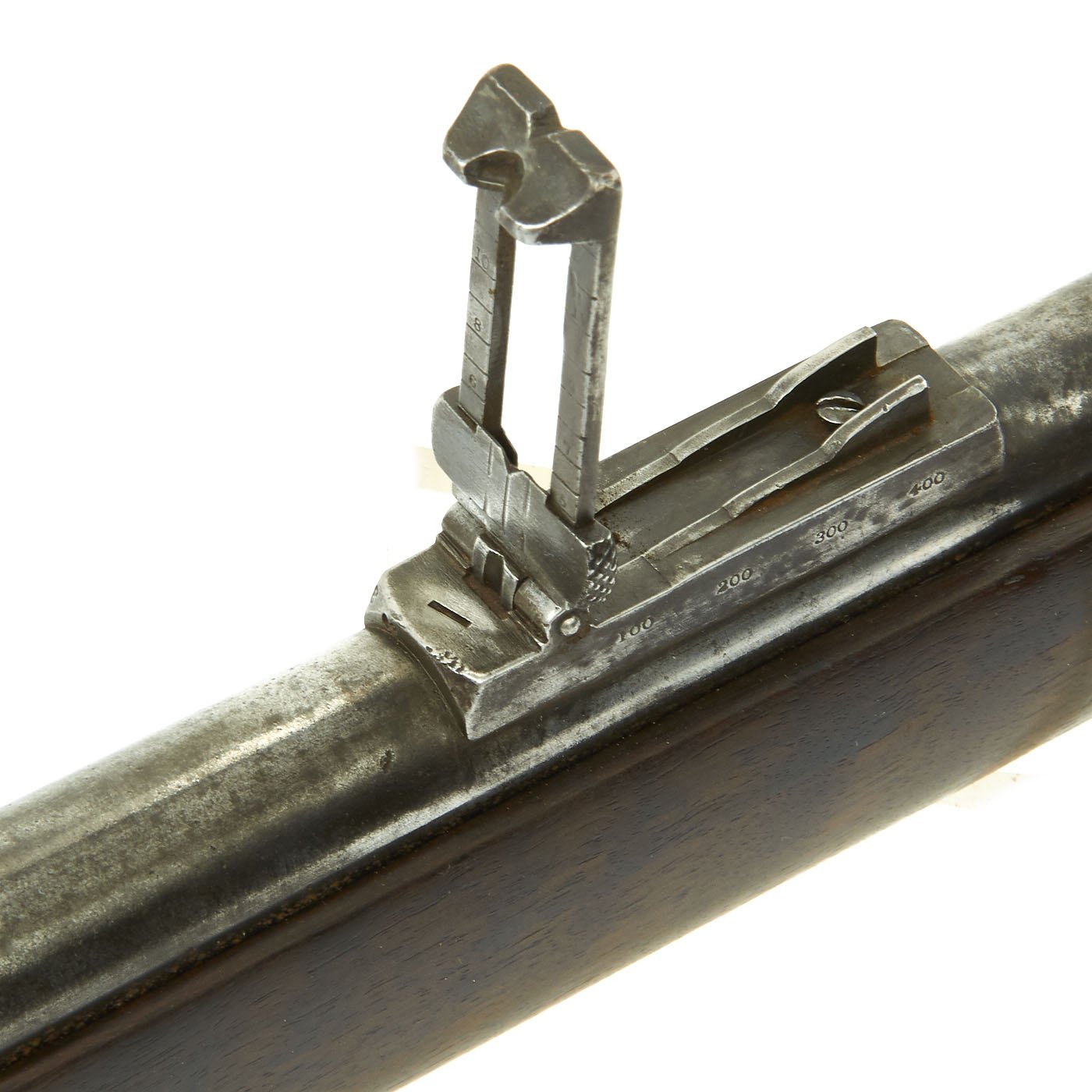

The Enfields' records throw into confusion as to what happened to the 49,902 Pattern B .402" arms manufactured, these rifles required less conversion, the obvious re-bore to .577/450 calibre, and apart from sighting alteration and re-tooling of the extractor it was a far easier task to convert. These existing Pattern B rifles after barrel conversion to the new .577/450 were designated as the Martini Henry MkIV Pattern "C", or "conversions", whilst those rifles made as new pieces, from new components which were rifled to .577/.450" were known as Martini Henry Pattern "B",

The author begs to be controversial and also doubts conventional thinking on the issue, In my collection I have a Martini Henry pattern B, with a "B"designation to the serial number, several B markings on the knocks form, and B on the receiver, I have inspected 15 other examples and found the same, all proof marks are single line, not a twin line of proofs clearly, a discrepancy, or maybe proof indeed of the original nomenclature, however to confuse matters, the official List of change No 5603, announcing the issue of the MH MkIV clearly states the knocks form of pattern A & B are 1/8th inch shorter than the pattern C, which ever, the new sealed patterns were offered for adoption and accepted on the same date 15th Sept 1887

In 1895 BSA & M Co was contracted to refurbish 5000 Martini Henry MkIV, it is to be noted these rifles carry the BSA & M Co logo, however these rifles have Enfield made barrels, and therefore are not BSA original pieces.


Year of Manufacture: 1898
Caliber: .577/450 Martini-Henry
Barrel Length: 33 inches
Overall Length: 49 Inches
Action type: Lever Action Falling Block
Feed System: Single Shot
