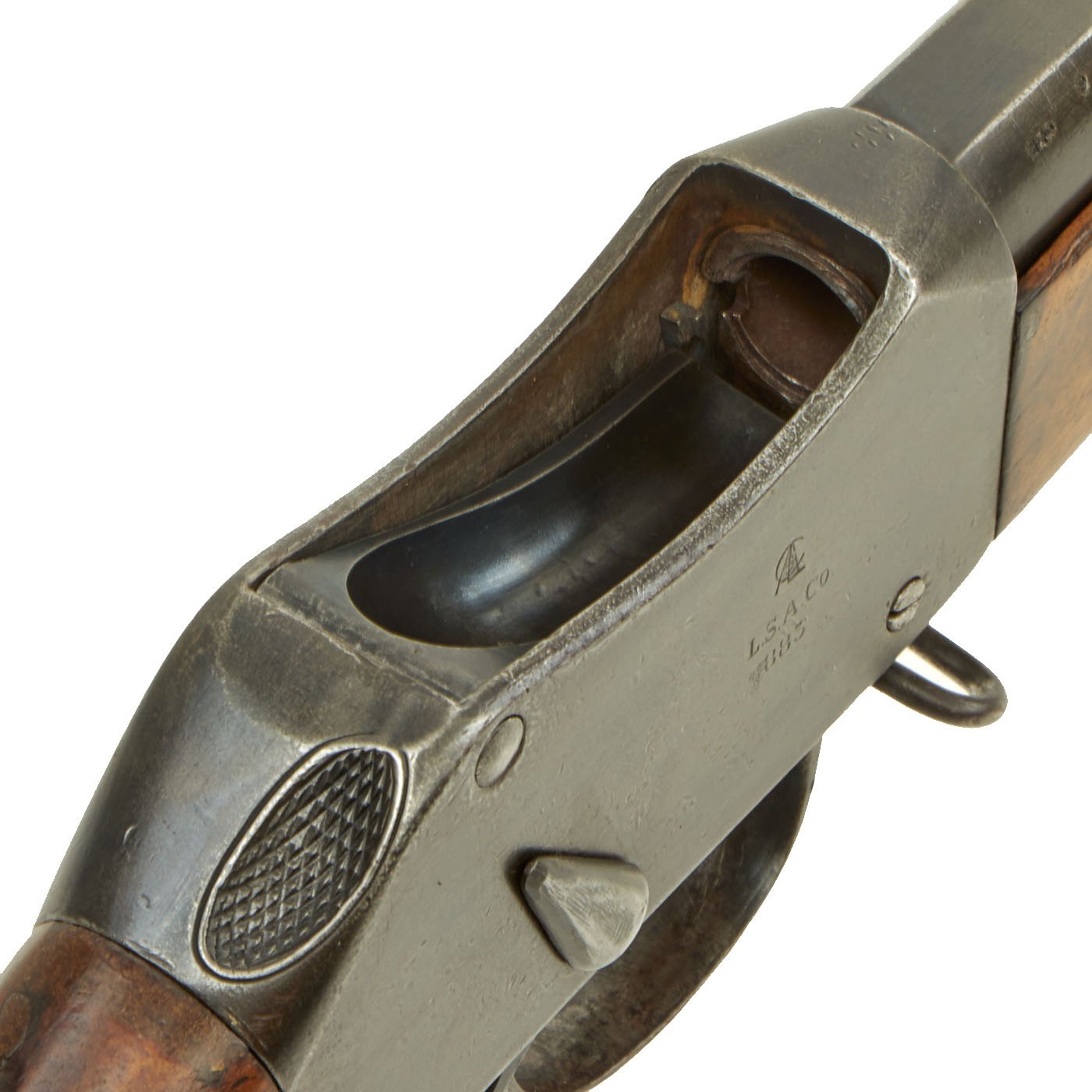

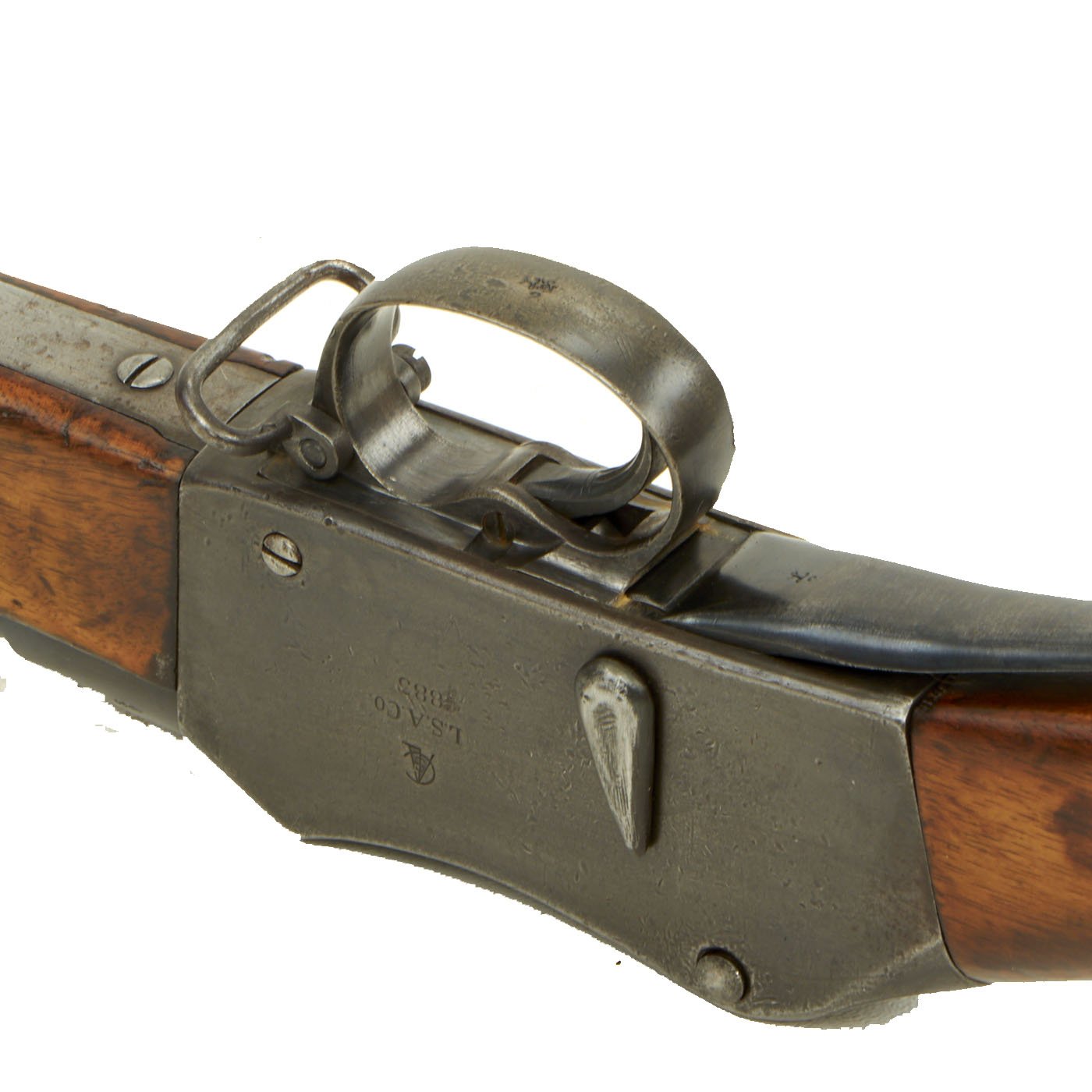

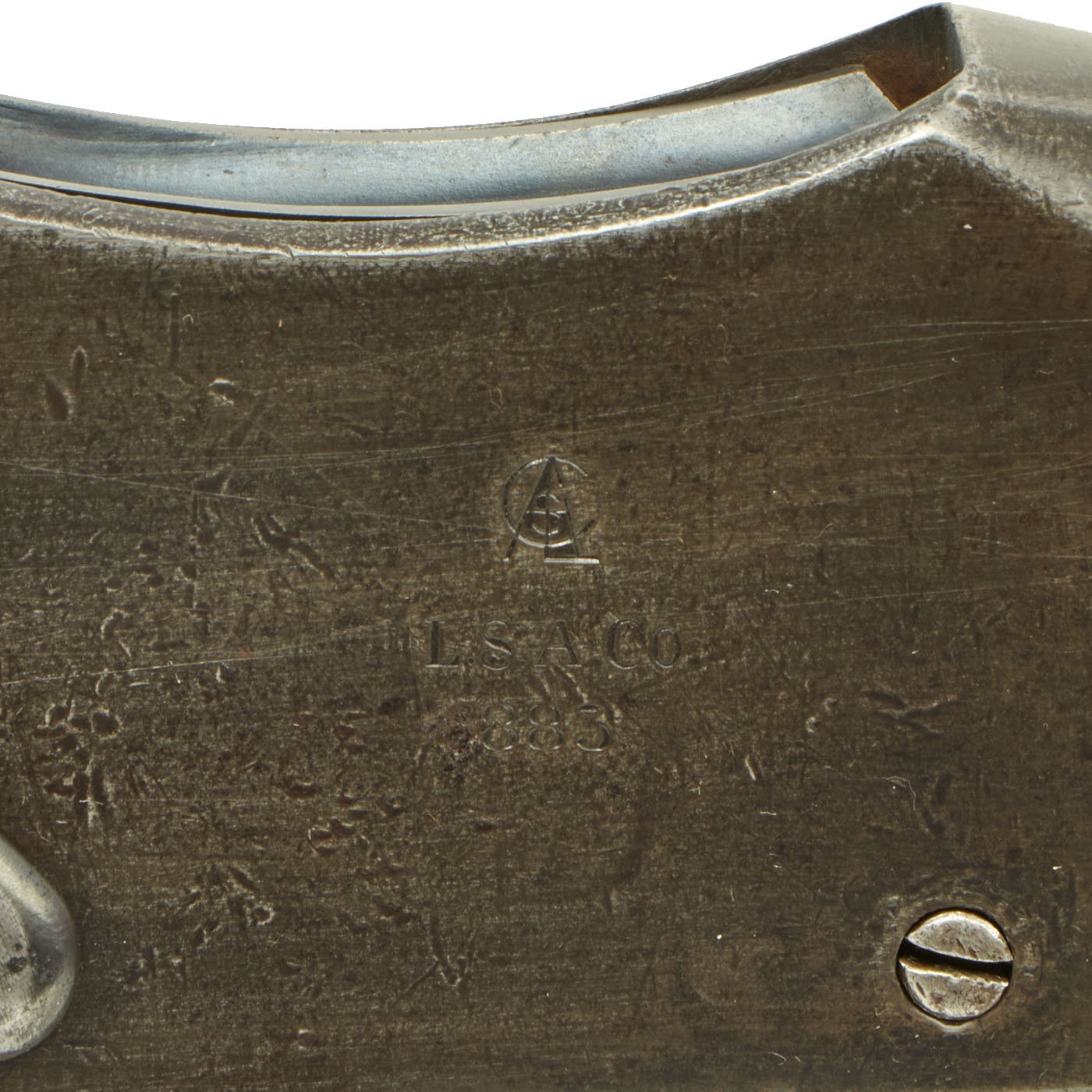

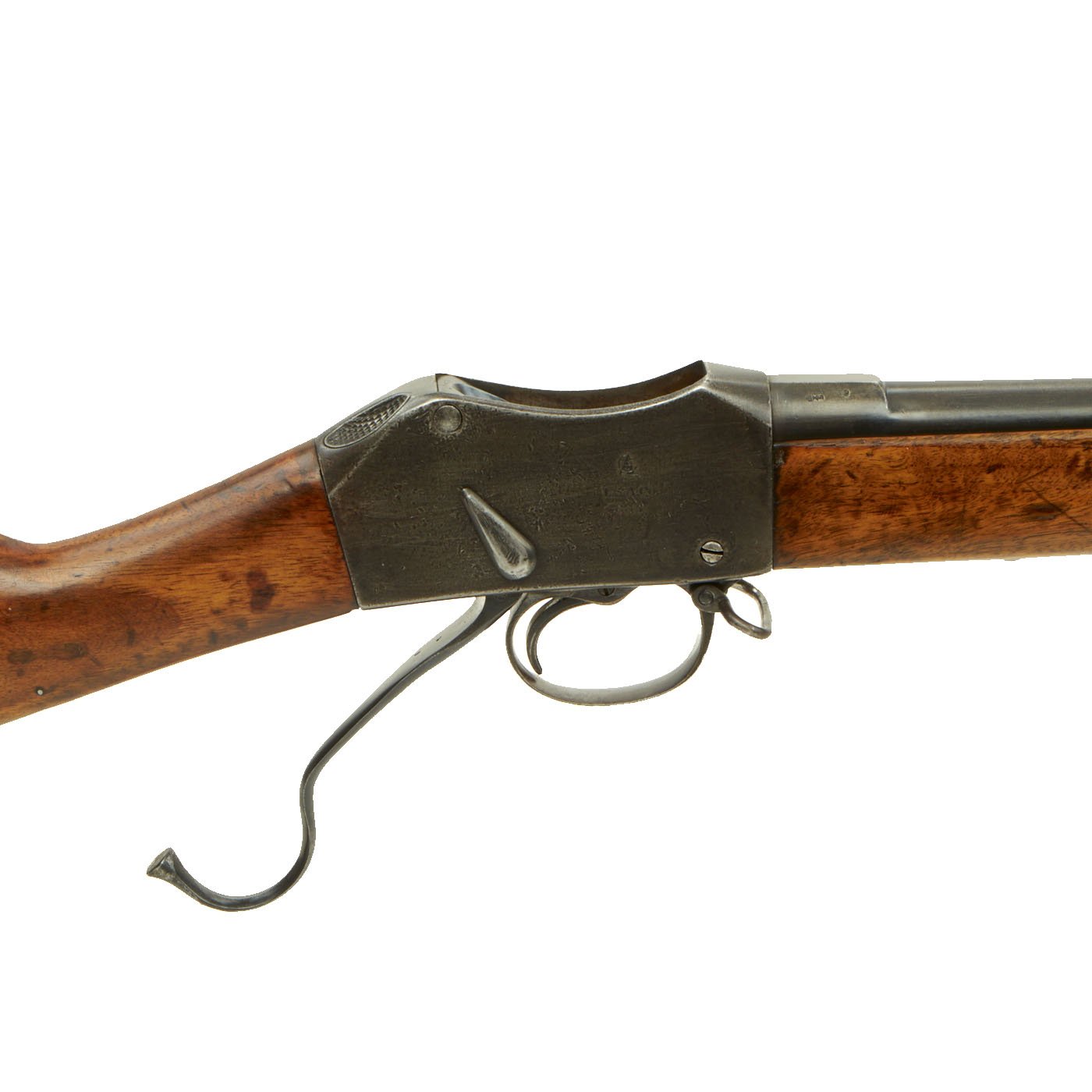

Original Item: Only One Available. Now this is something that we have never had before! Here we have an excellent British Martini-Henry MkIII rifle made by the London Small Arms Company in 1883. This was not part of the Nepal purchase, and actually it looks to be a rare "private purchase" example, which does not have any military issue markings on it. Instead it just has the maker marking and logo on the receiver over the date:

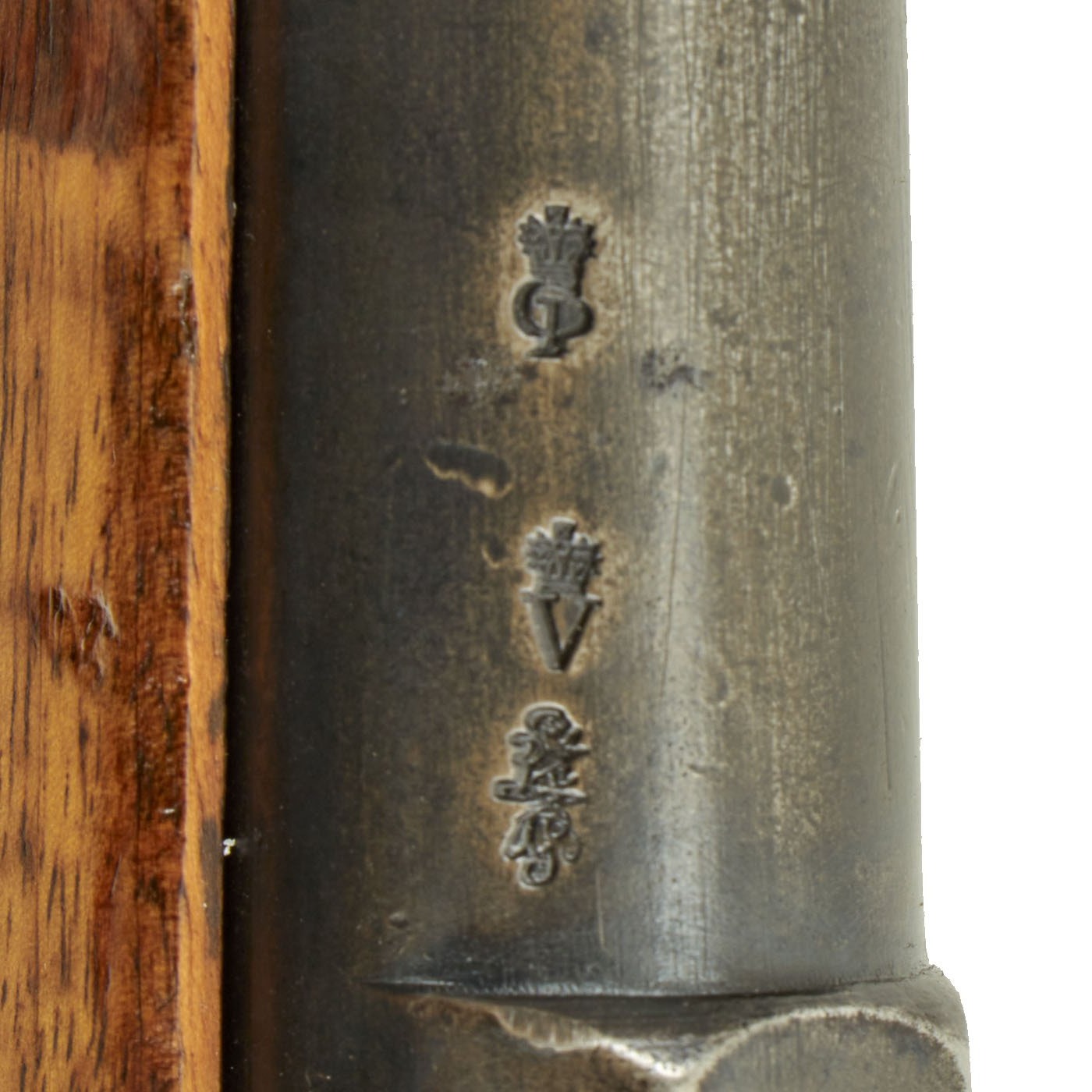

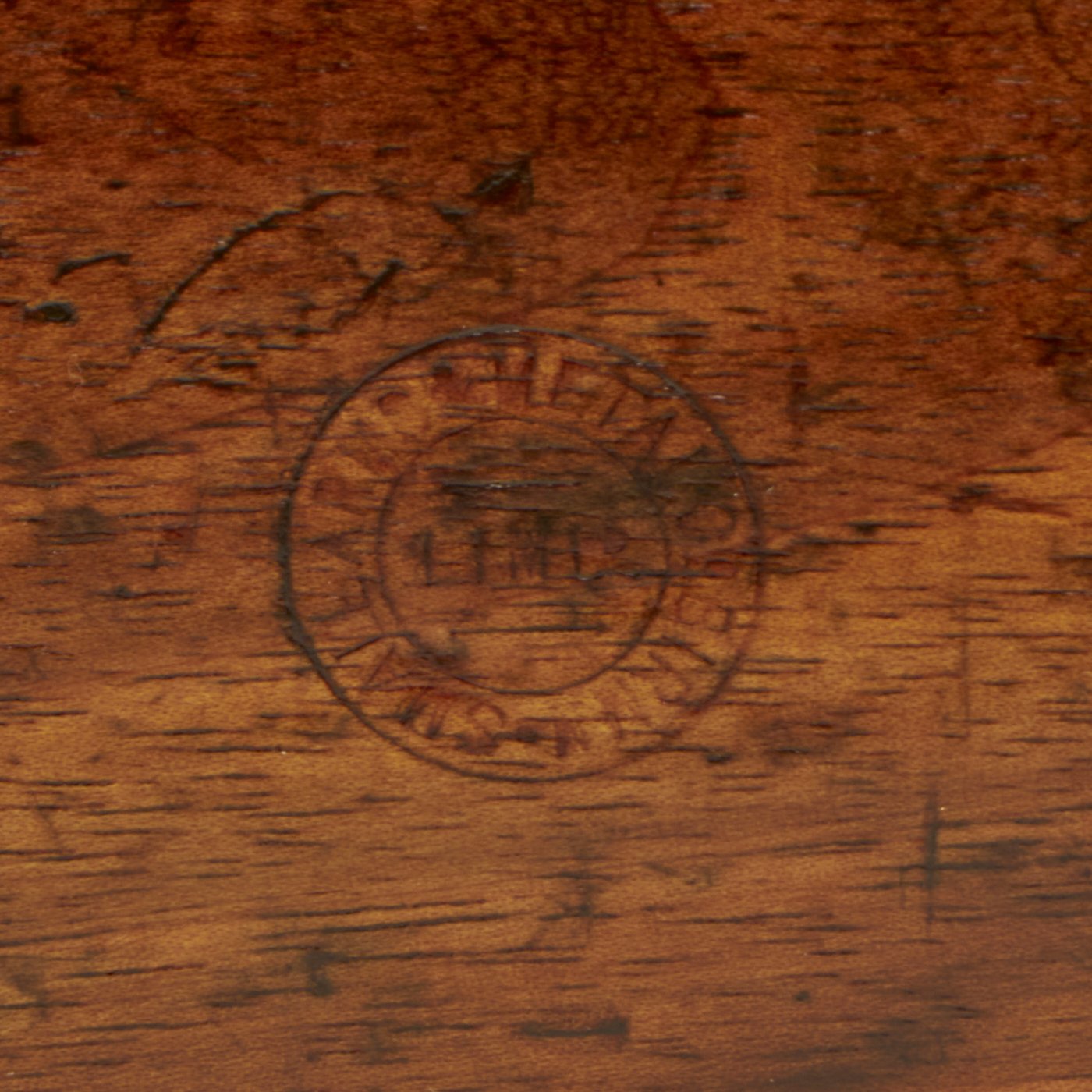

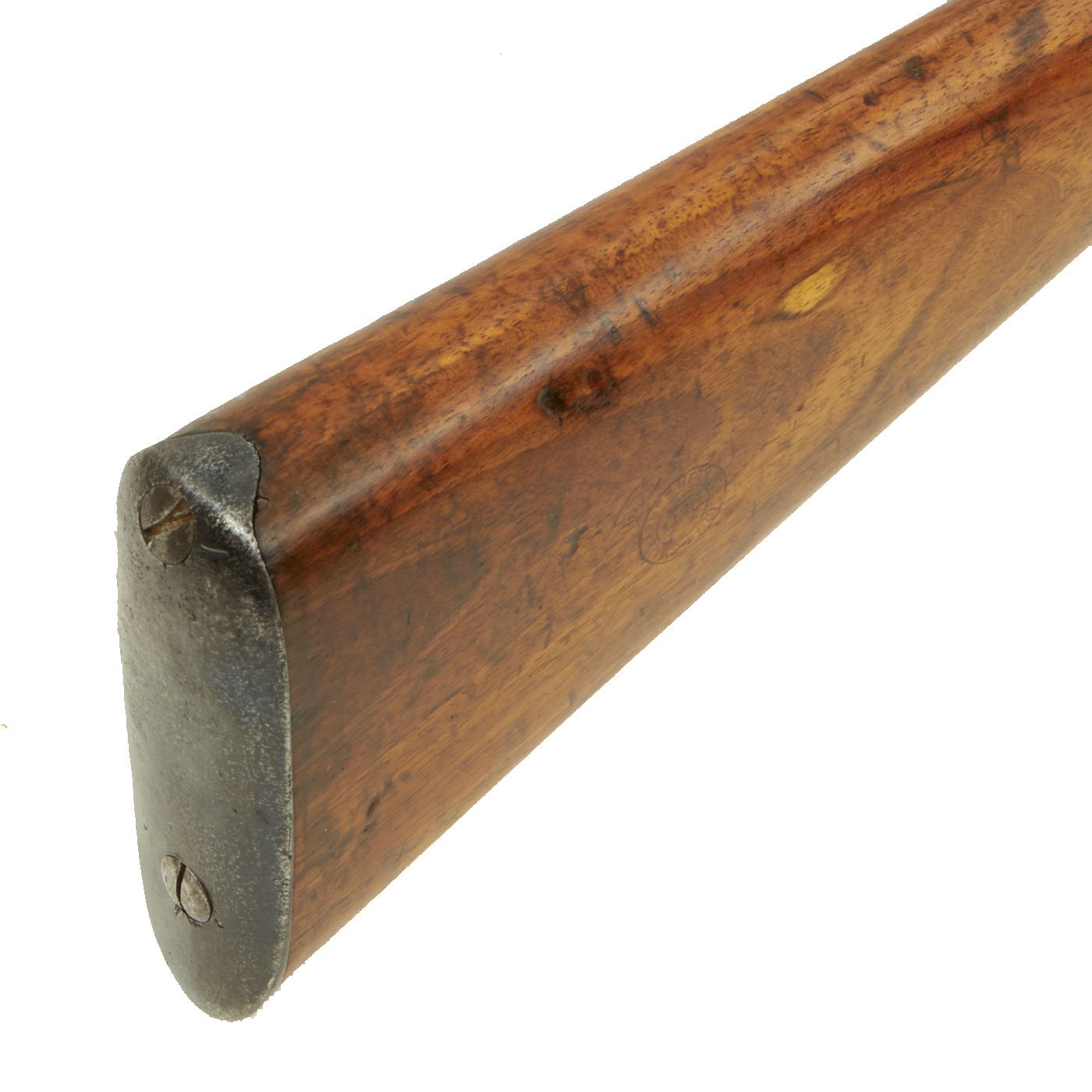

Many of the components of the rifle have the stylized "L" marking for LSA as well. The barrel nocks form bears the correct London Proof House markings for the period: CROWN / V "Viewed", CROWN / GP "Definitive Gunmakers Proof", and the RAMPANT LION / G "Provisional Proof". The left side of the receiver also has an additional "Viewed" marking on it. The right side of the butt stock shows a BSA & M Co rondel, possibly indicating the stock was supplied from there.

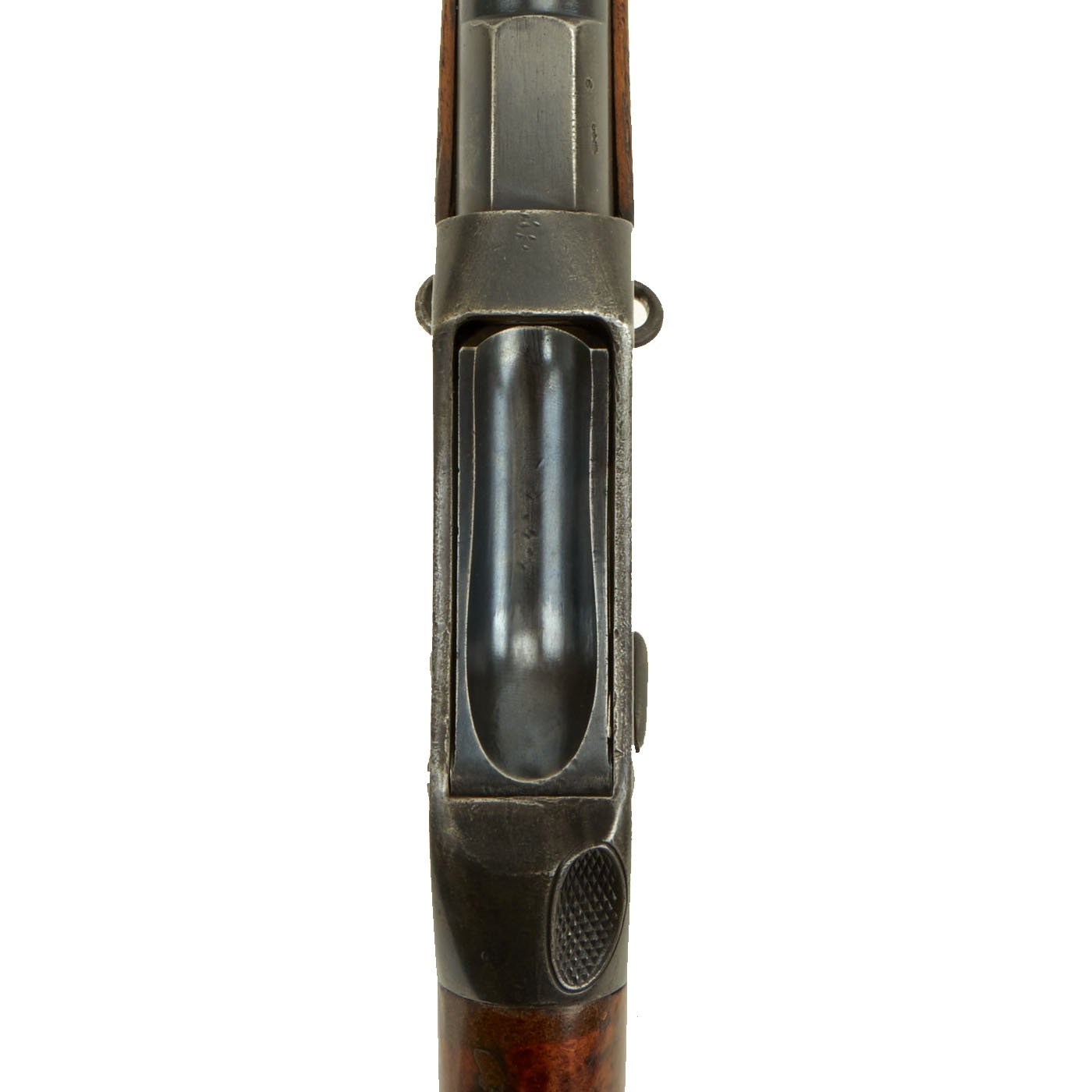

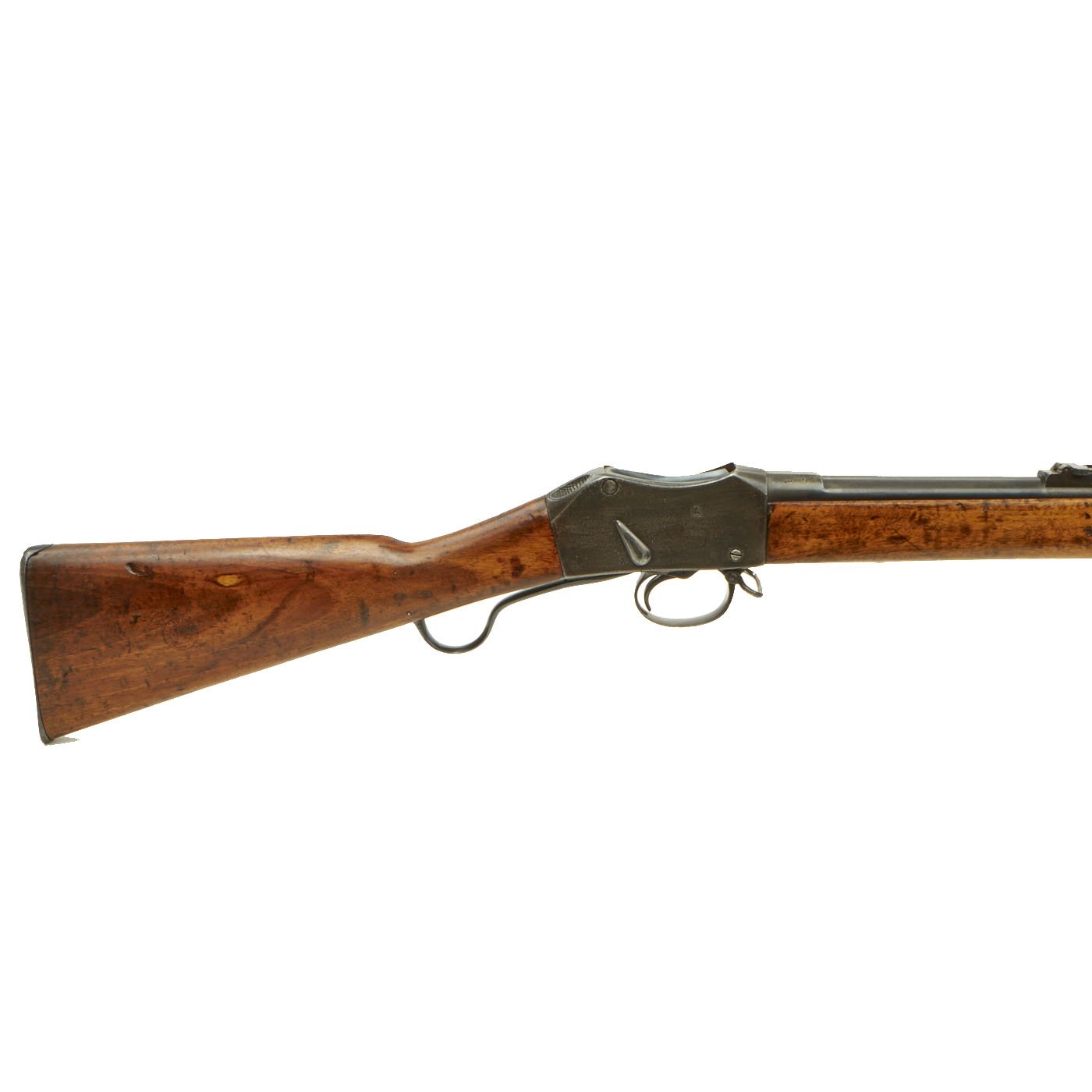

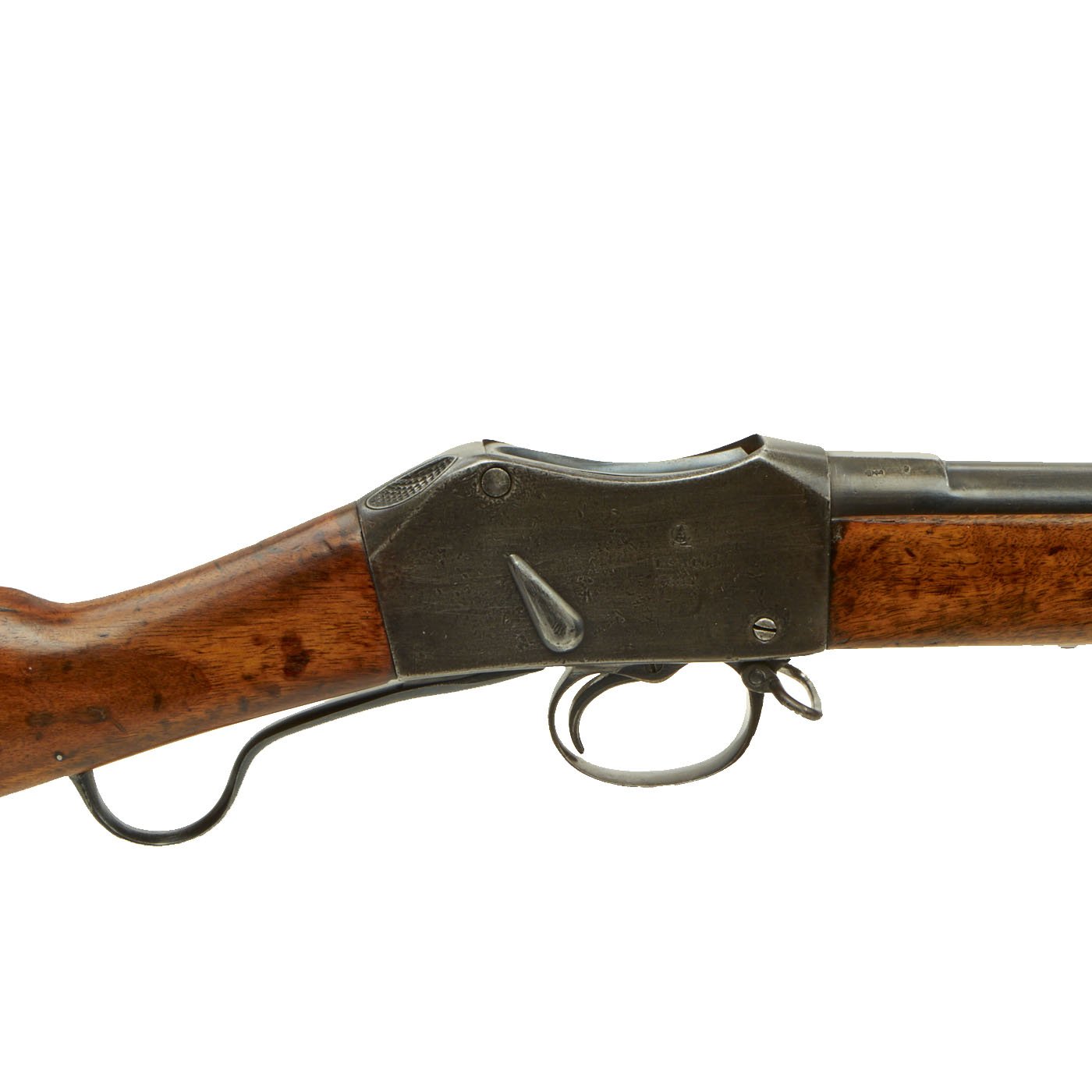

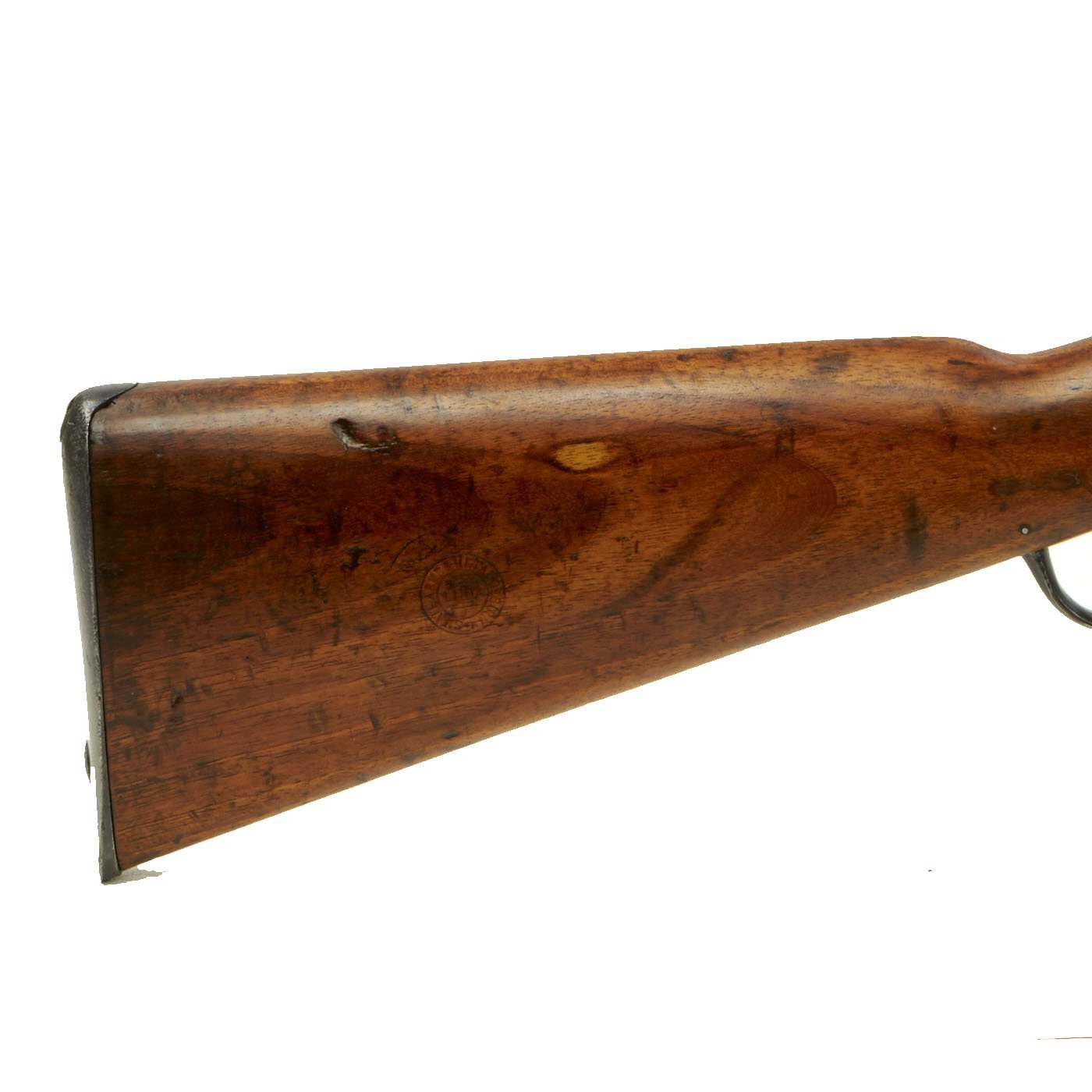

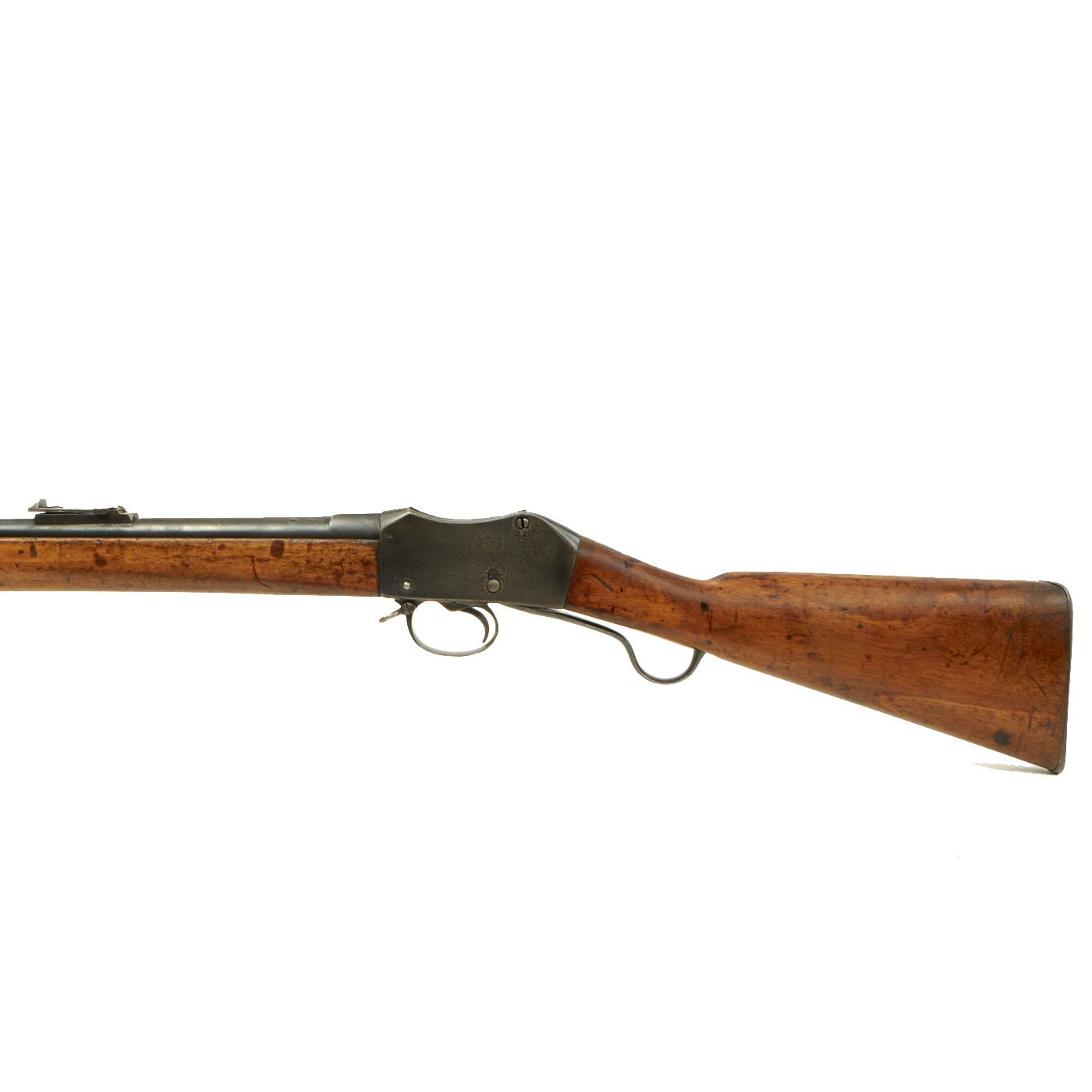

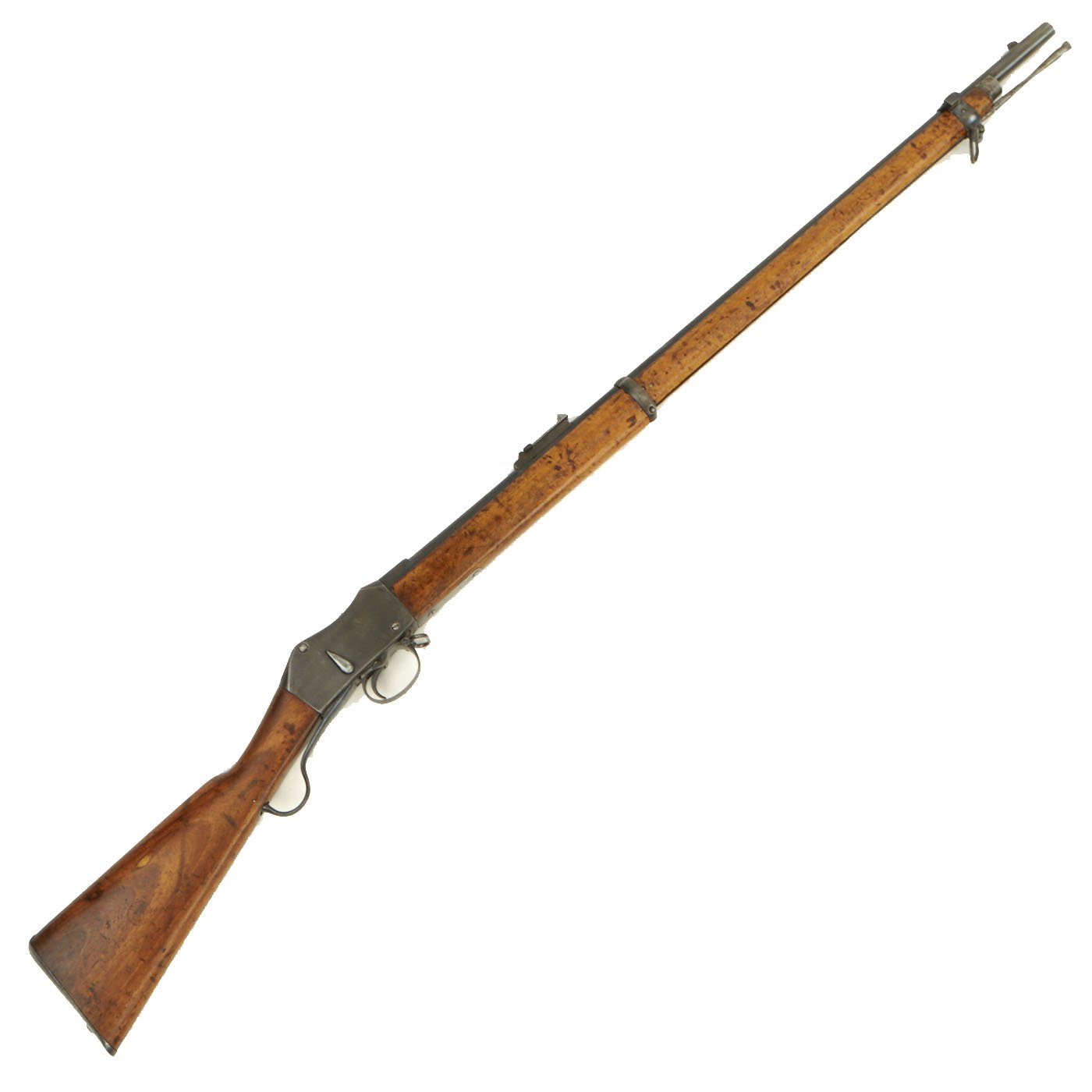

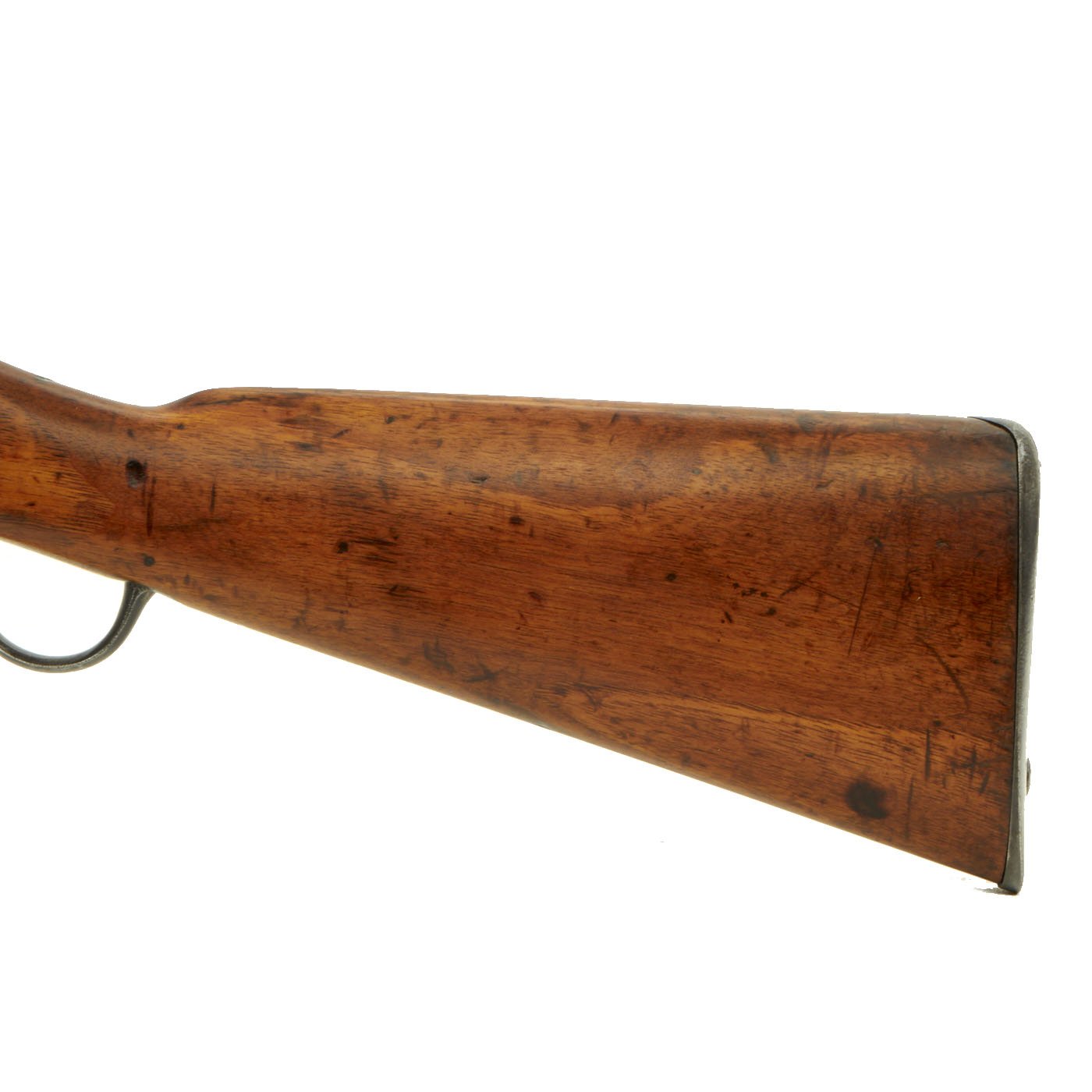

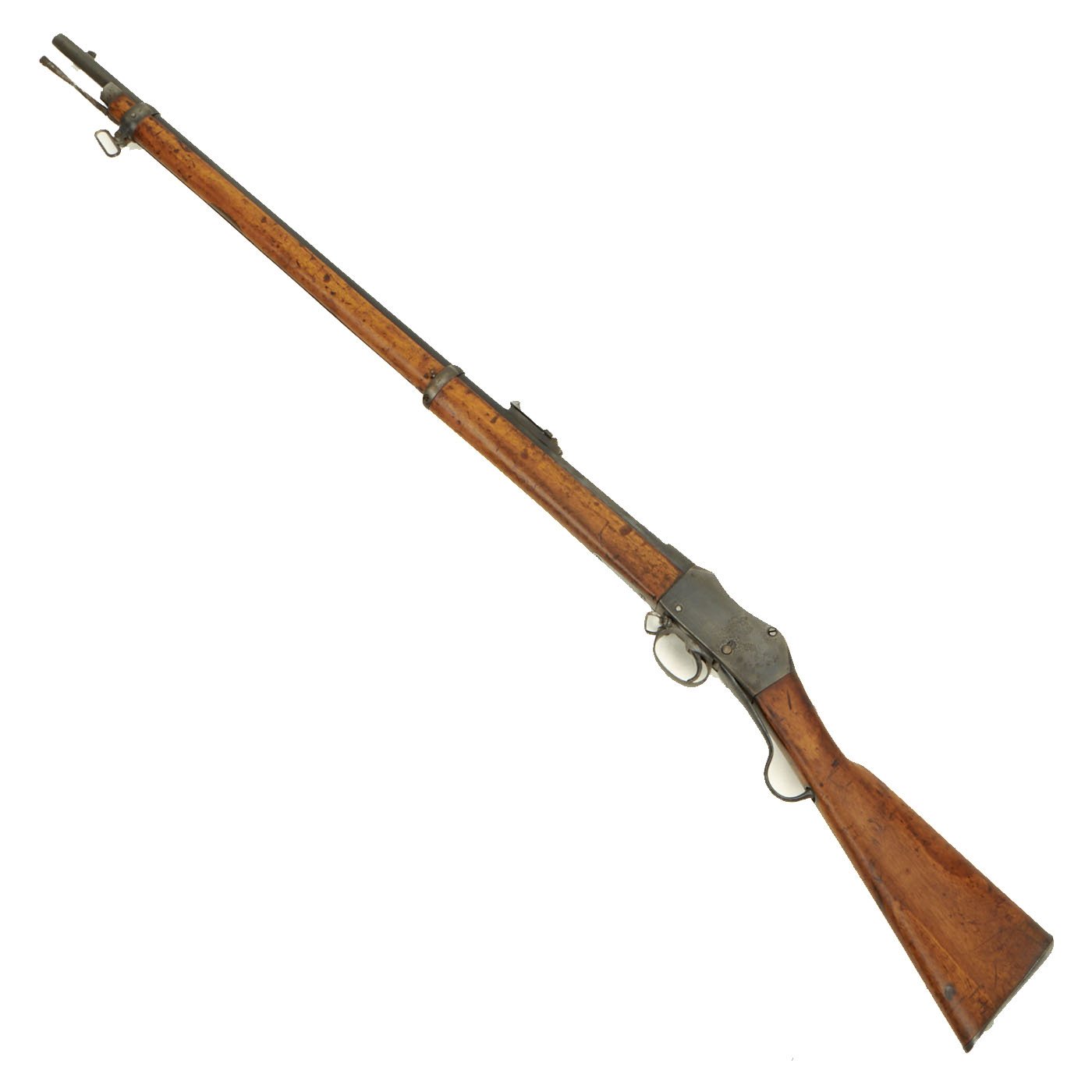

This example is in very nice condition, as the pictures show. The action cycles and dry fires, and the bore shows clear rifling, with a partly bright finish. The stock is a lovely color, showing usual wear from use.

A very interesting "Private Purchase" Martini-Henry MkIII rifle by LSA, with all the correct markings. Ready to research and display!

Specifications-

Year of Manufacture: 1883
Caliber: .577/450 Martini-Henry
Barrel Length: 33 inches
Overall Length: 49 Inches
Action type: Lever Action Falling Block
Feed System: Single Shot

Below copy is courtesy of martinihenry.org-

During the development of the Martini Henry IC1 carbine, the RSAF decided to utilize the same component parts to produce a new mark of rifle, the intention to make the parts interchangeable. On 22nd August 1879, the MkIII rifle was accepted into service LOC 3998 “Rifle Breech loading, with Cleaning rod Martini Henry Interchangeable MKIII”, it took the same basic form of the MkII rifle, with some re-designed features. The first orders for 30,000 MkIII were placed on the RSAF in 1879, at a cost per rifle of £2.13s.10d, with combined orders for the trade BSA, LSA & NAA fo9r 10,000 arms at a cost of £2.18S.9d. The MkIII. Rifle was designed primarily as an arm for Volunteer, Militia and Dominion governments.

The MkIII was an exercise in durability, the barrel had a new double hump knocks form, primarily to give an enhanced grip when the barrel was held in the breeching vice. Because of this re-design, the lug hole brazed on the underside of the barrel to hold the fore-end and cross pin common to MkI & II rifles were discontinued, as a result The MkIII had the “Fore-end Hook” method of fixing, a screw fixed metal plate was let into the underside of the forestock, this hooked into a keeper slot grooved into the front of the action, a feature copied from the carbine development. As the walnut fore stock blank no longer needed to be located into the receiver mortice slot, it extend .312” longer along the barrel than the MkII rifle.

During sighting tests, it was found that the Henry rifled barrel affected a natural deflection at ranges beyond 600 yards, as a result the MkIII. sight bed was soldered onto the barrel with a 1 degree 6 minutes left hand of centre bias, resulting that when the back sight ladder was lifted this adjustment corrected the deflection. The MkIII. back sight bed was lengthened by 1/8” (3mm), to give the lowered sight leaf more support

A new pattern Breech block had been approved under order No68 22nd March 1878, and designated pattern III. This new block was made wider to eliminate play in the action when opened and closed, it also utilized a new design of firing pin, .002” narrower at the point to increase clearance. The most obvious change was the firing pin itself, the MkIII design was now fully cylindrical with a diameter of .056” purpose made to be a sliding fit into the spring chamber of the block. The breech block was purposely designed to interchange with all previous marks of rifles and carbines, to make it readily identified, The block was marked with the Roman numeral III, under the WD mark and the Maltese Cross on the opposite side, the stop nut and the rear of the firing pin to be marked similarly.

On 5th March 1883, Viscount Lewisham asked parliamentary question directed to the Secretary of State “ when he could inform the House how soon the Martini Henry will be served out to the Volunteers?”, SoS reported “ It is not desirable to increase production although we are very anxious to issue the superior arm to the Volunteers as soon as possible, I am afraid I cannot promise them this year”

During this time production of MKIII rifles had exceeded 95,000, with orders for the New South Wales Government alone of 6,500 pieces and Canada 5000. The MkIII rifle was made in large quantities, ending production in 1889.

Manufacturers:-

• RSAF Enfield 1879-1888

• Birmingham Small Arms and Metals Co

• London Small Arms Co

• National Arms and Ammunition Co
