Item Description

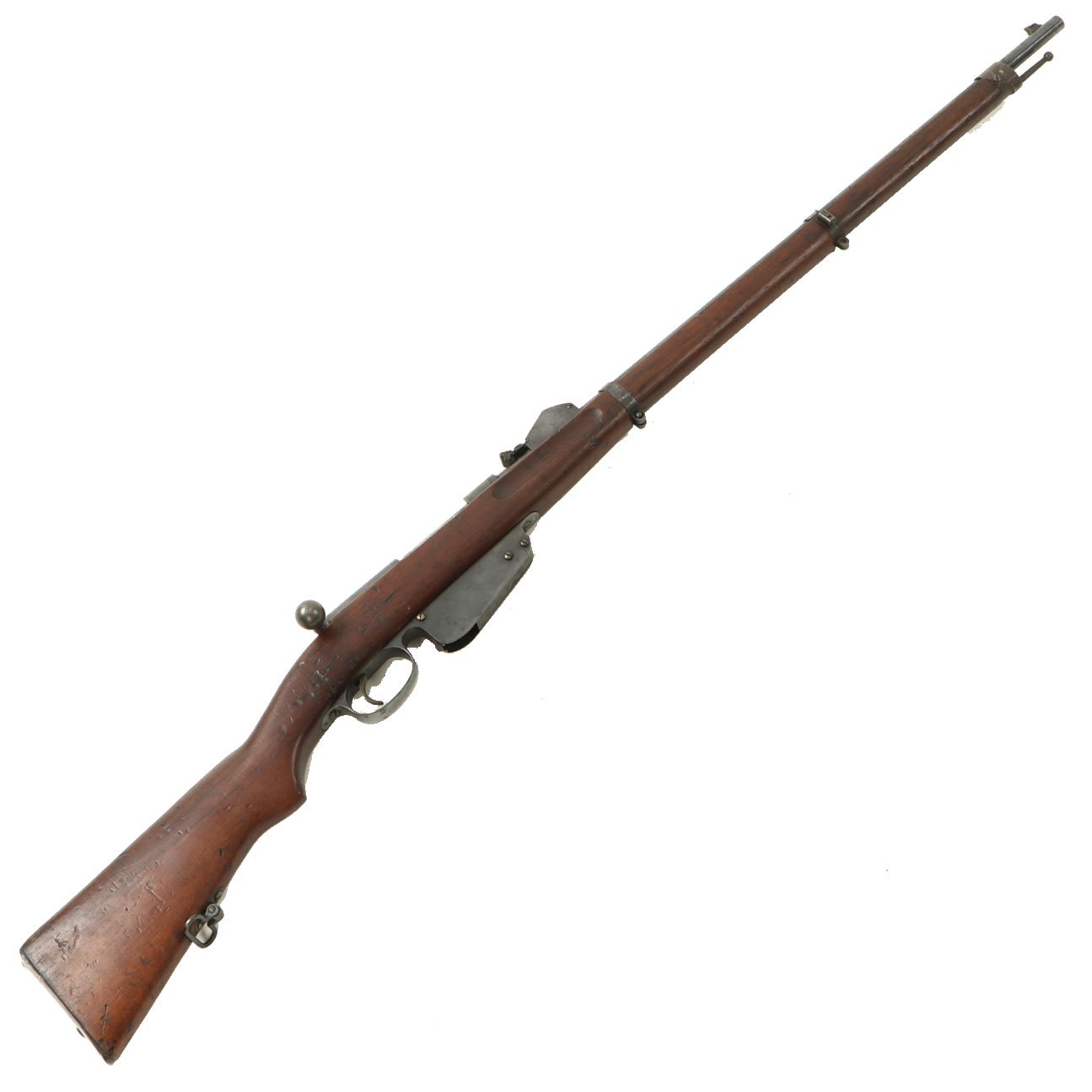

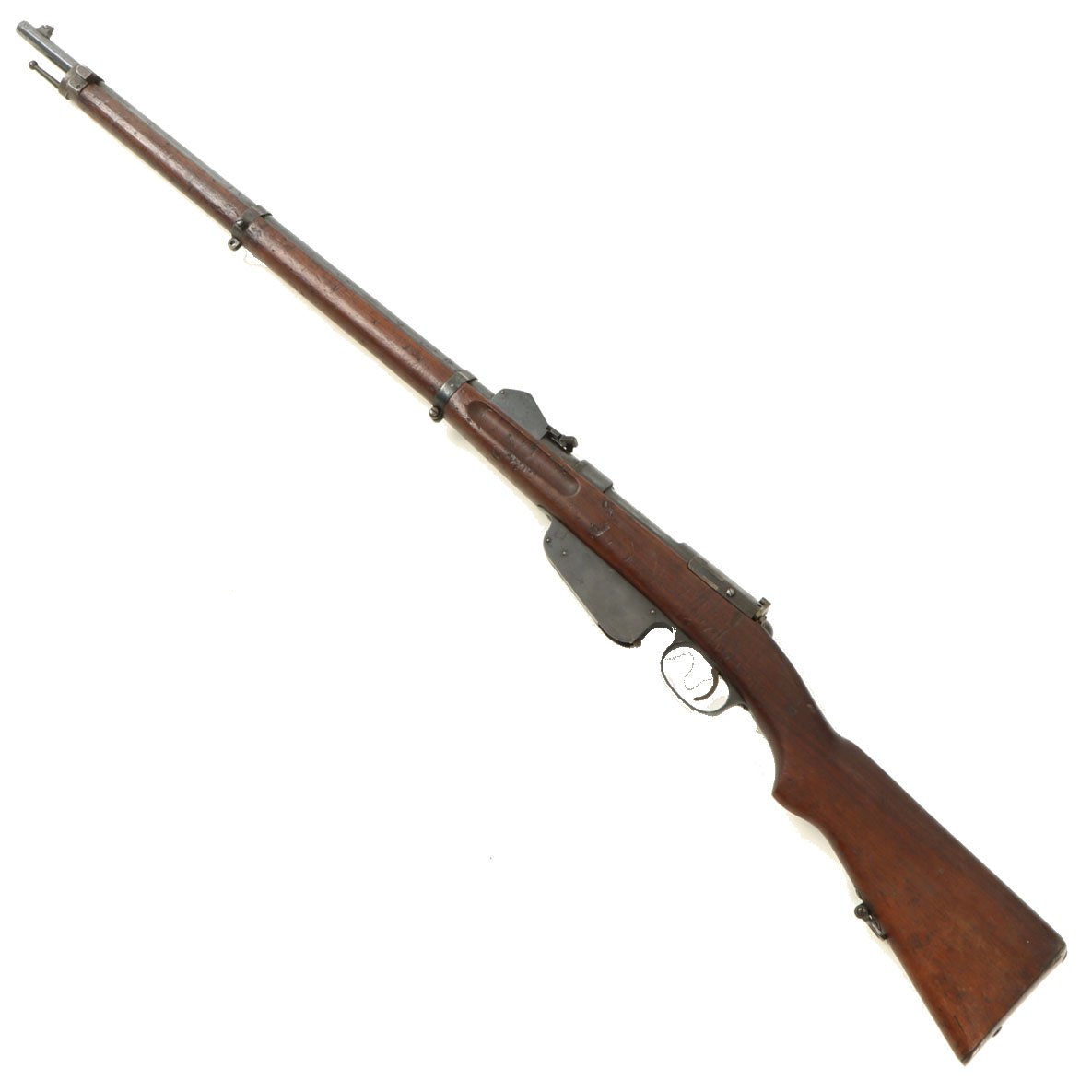

Original Item: Only One Available. The small arms revolution started by the French M1886 Lebel rifle and its small-bore, smokeless-powder cartridge immediately caused shockwaves throughout Europe's military establishments. The Austro-Hungarian Empire had just adopted a state-of-the-art technical masterpiece, the M1886 Mannlicher in caliber 11-mm Austrian. The challenge to the Empire was thus relatively simple: develop a comparable modern small-bore cartridge and then adapt their new M1886 to it. The resulting cartridge was the black powder 8 x 52R Austrian, and the rifle was the Model 1888 Mannlicher, a near-clone of the M1886. Two years later, they developed the smokeless powder 8 x 50R Austrian, the influence of the 8 x 50R Lebel cartridge being obvious, with a new Model 1888/90 to go with it.

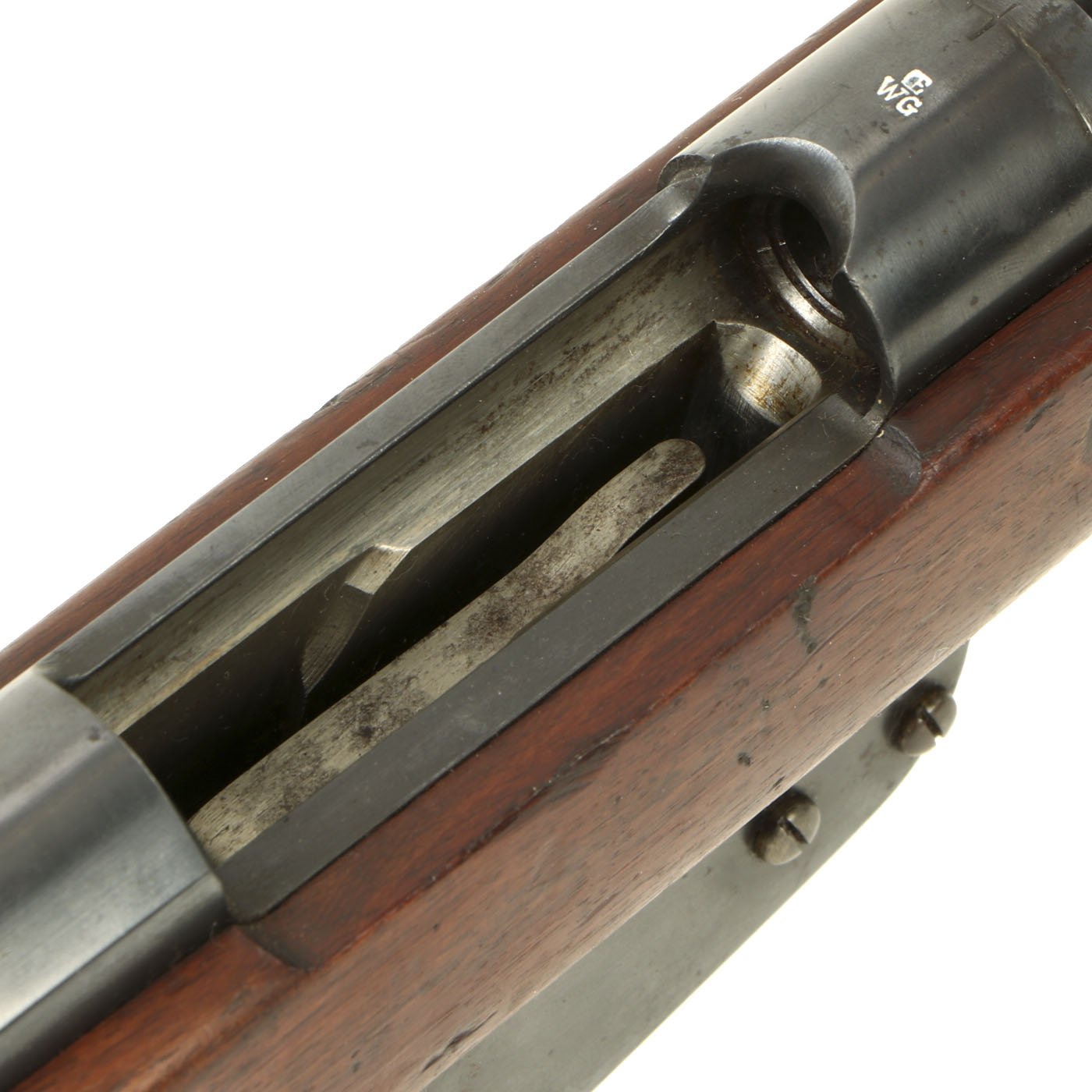

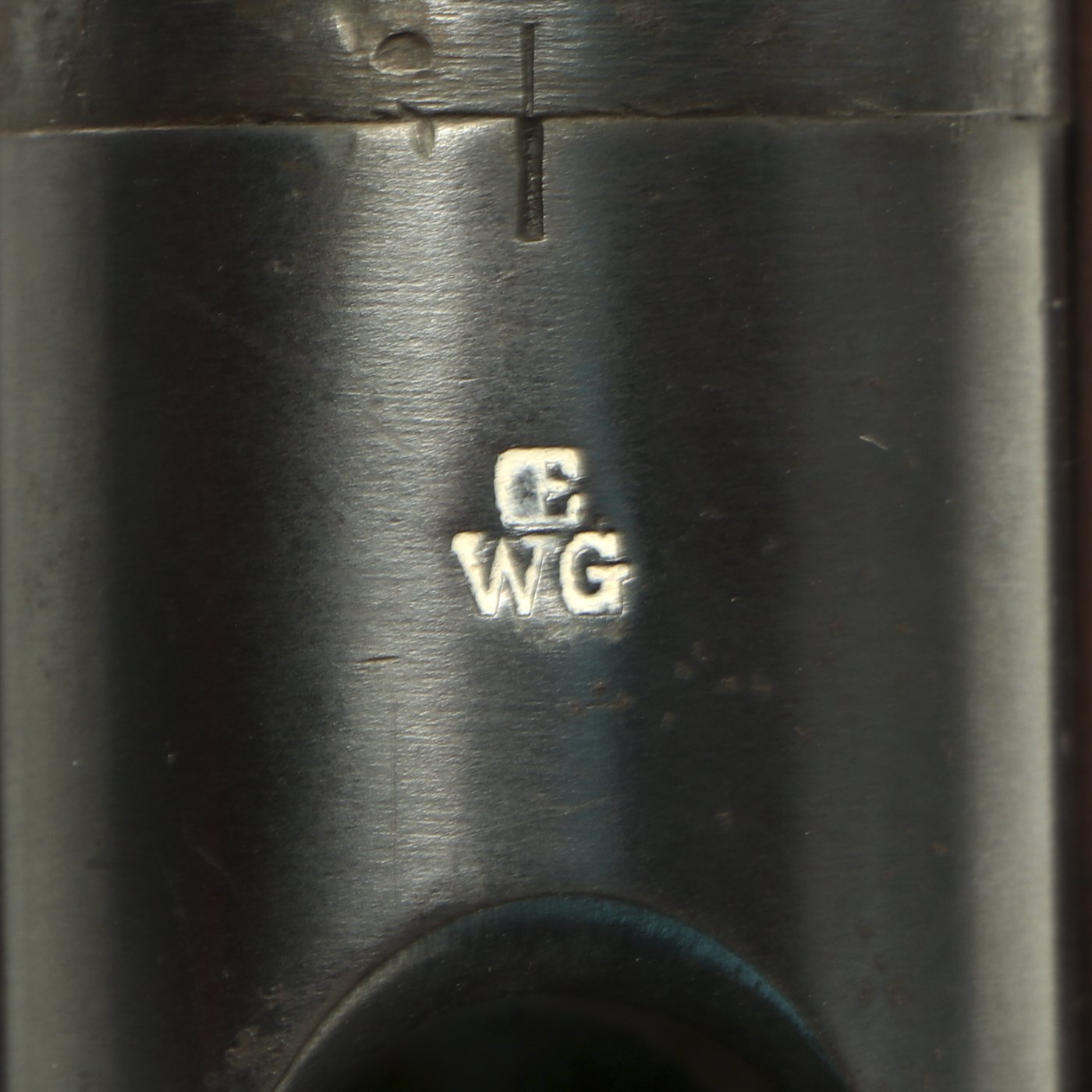

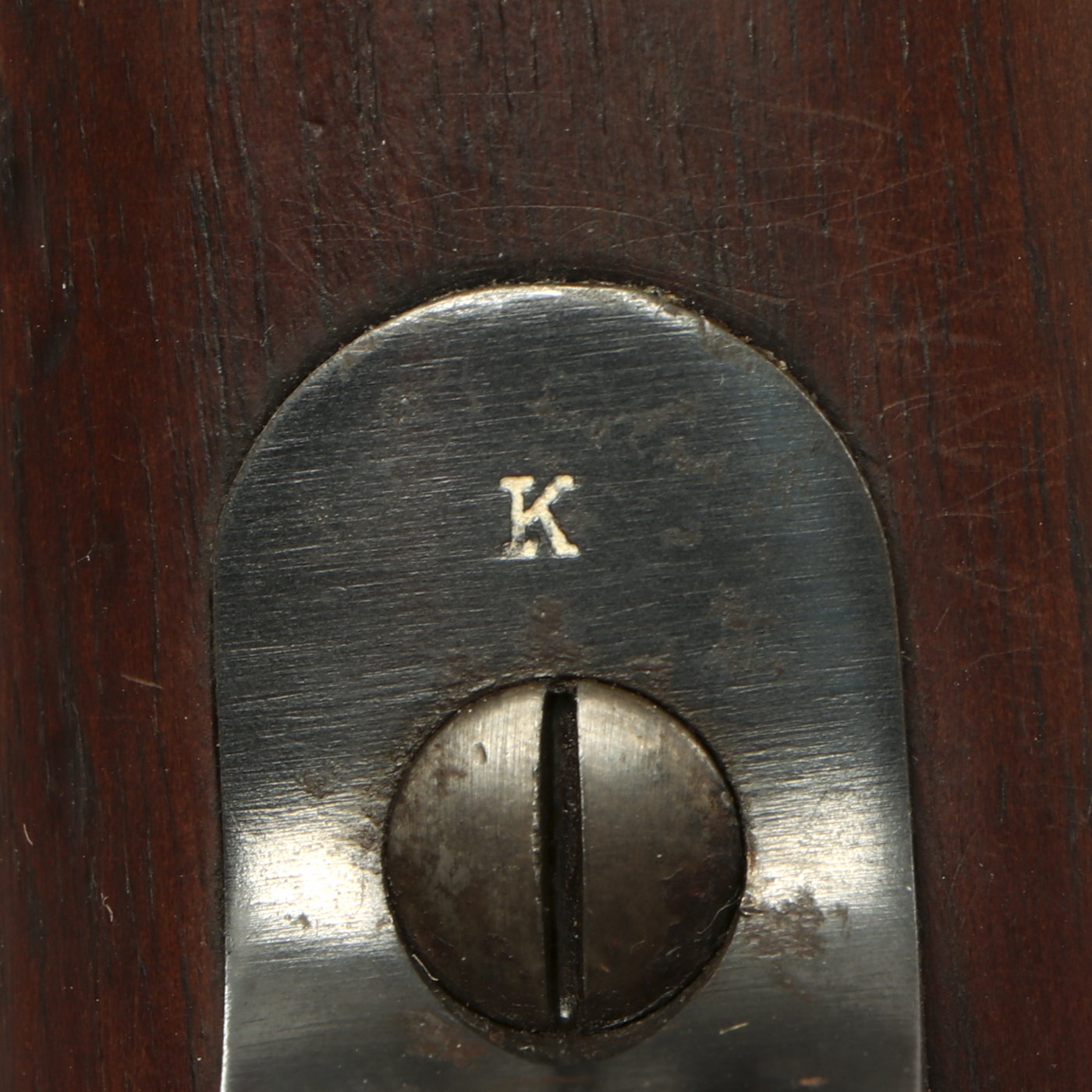

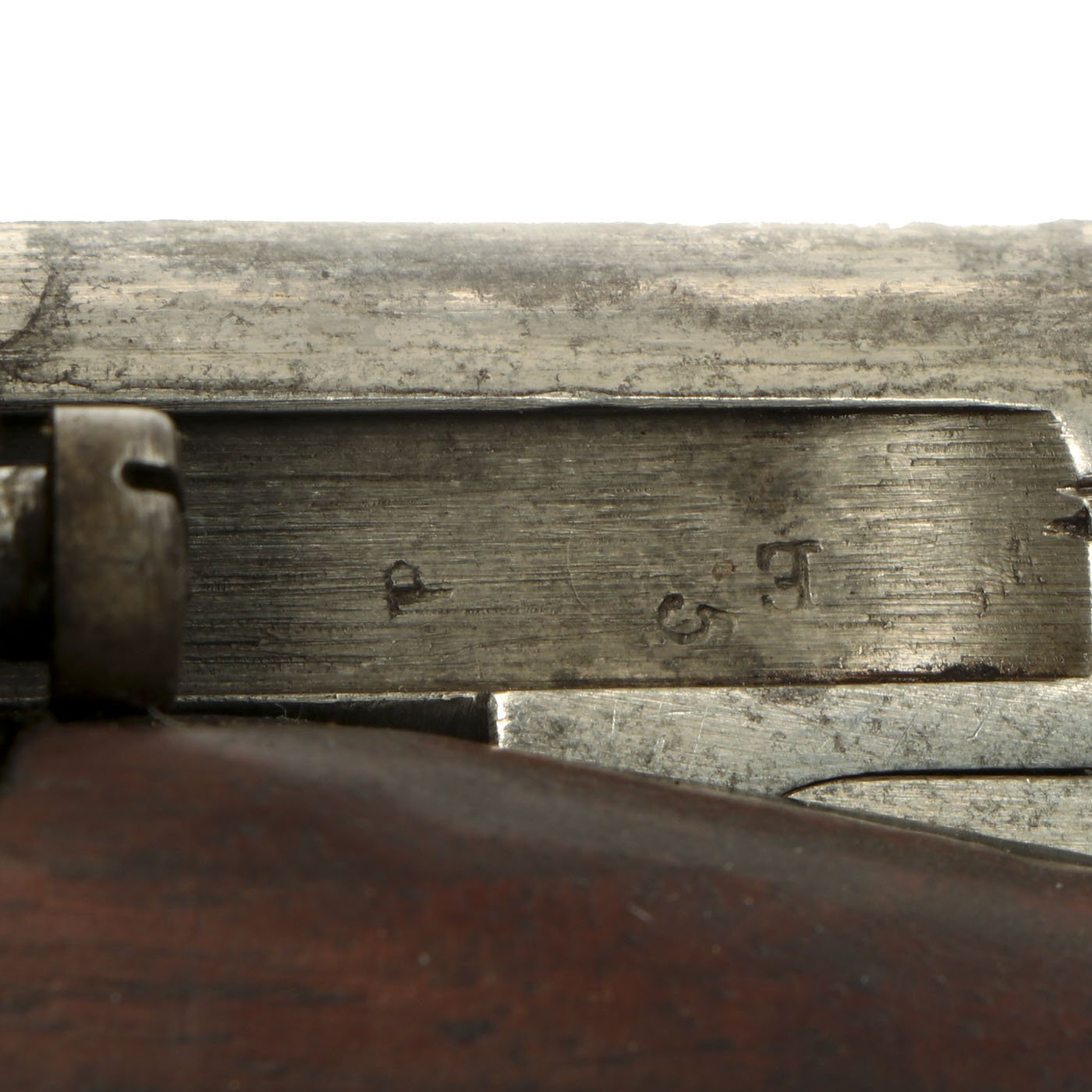

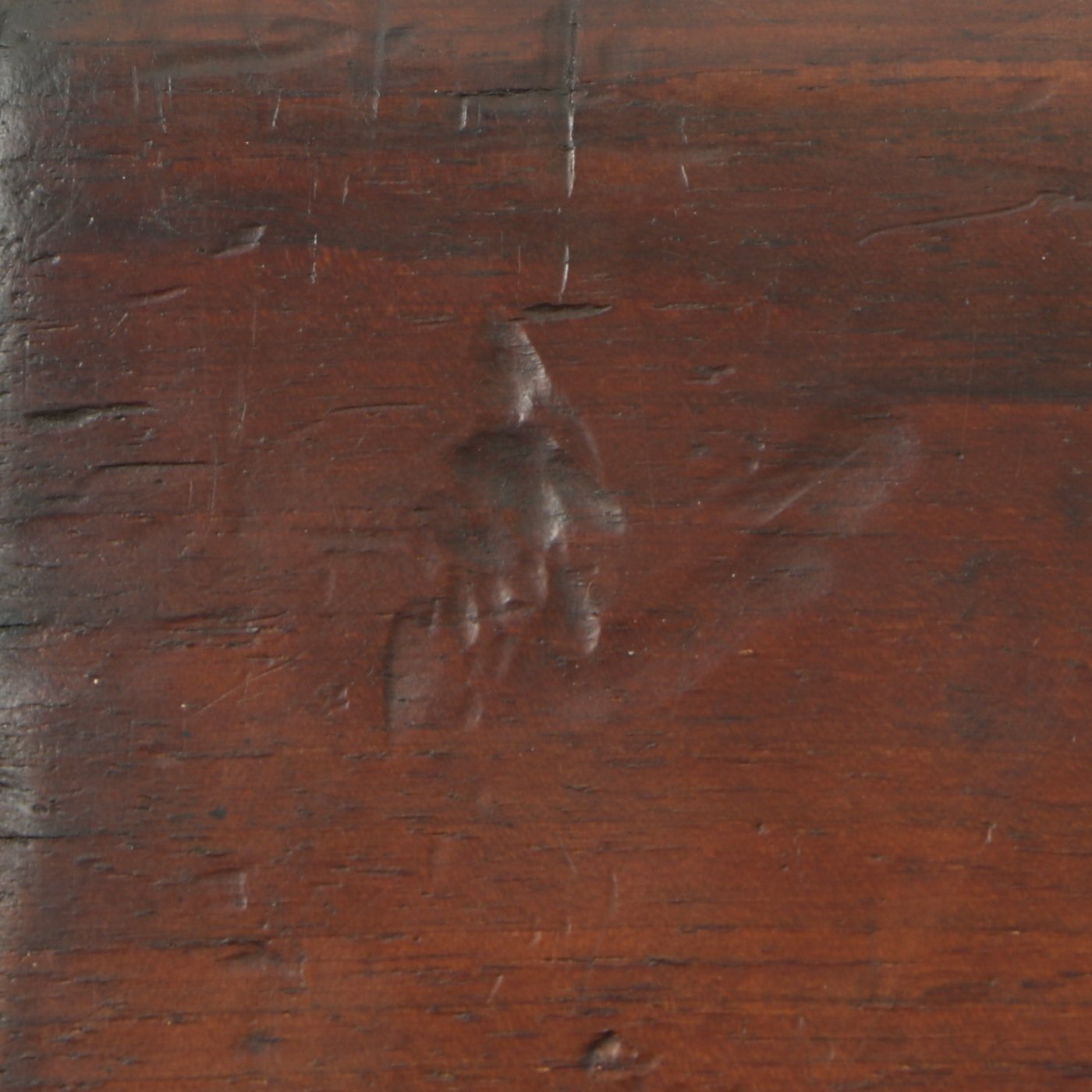

This example is definitely in 8mm, though unfortunately we are not able to tell if it is an M1888 or M1888/90. It is marked Œ / W G over the chamber, indicating it was manufactured by Österreichische Waffenfabriksgesellschaft, (ŒWG, Austrian Arms-Manufacturing Company), a legendary factory with a long history. This is the only marking on the rifle except for some proof marks.

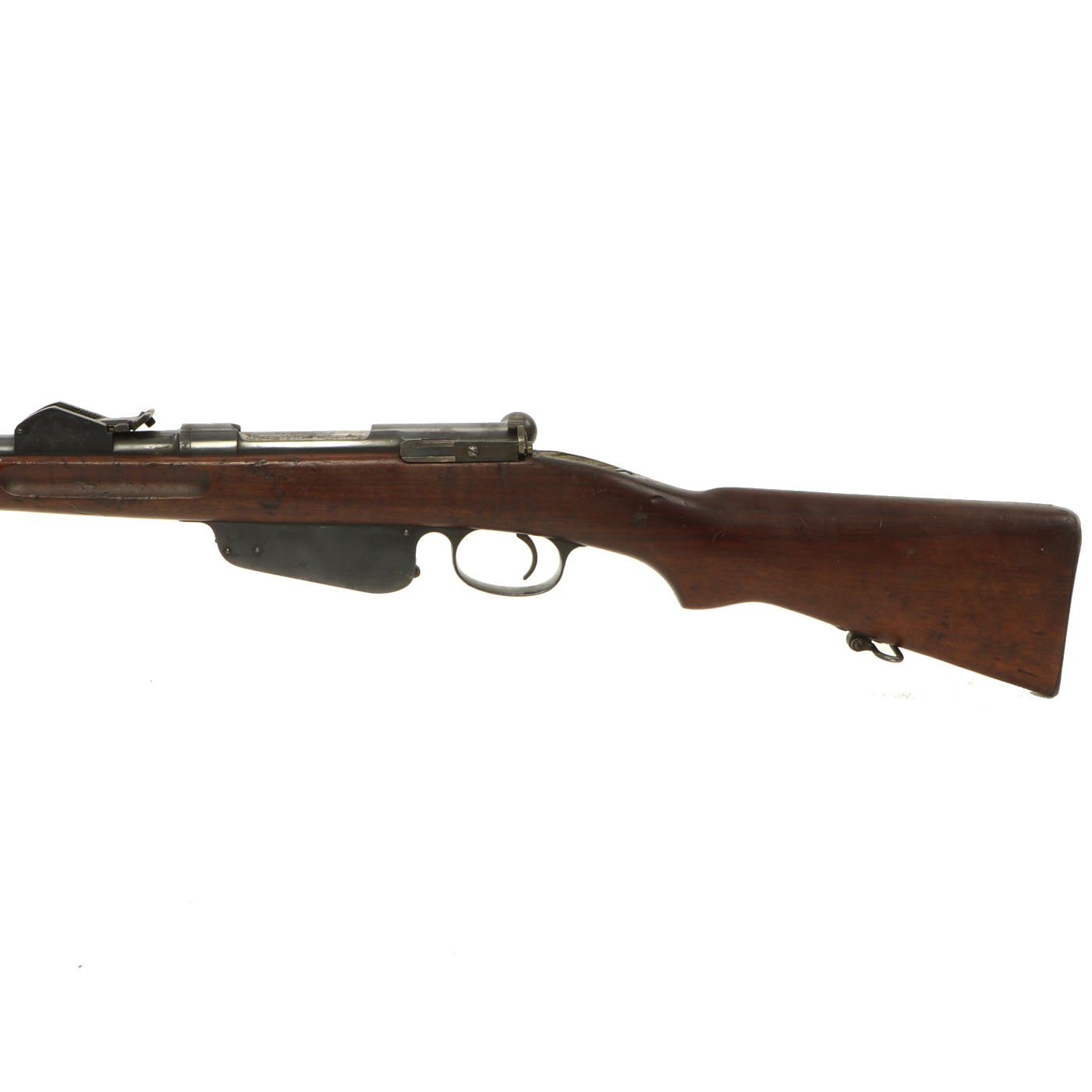

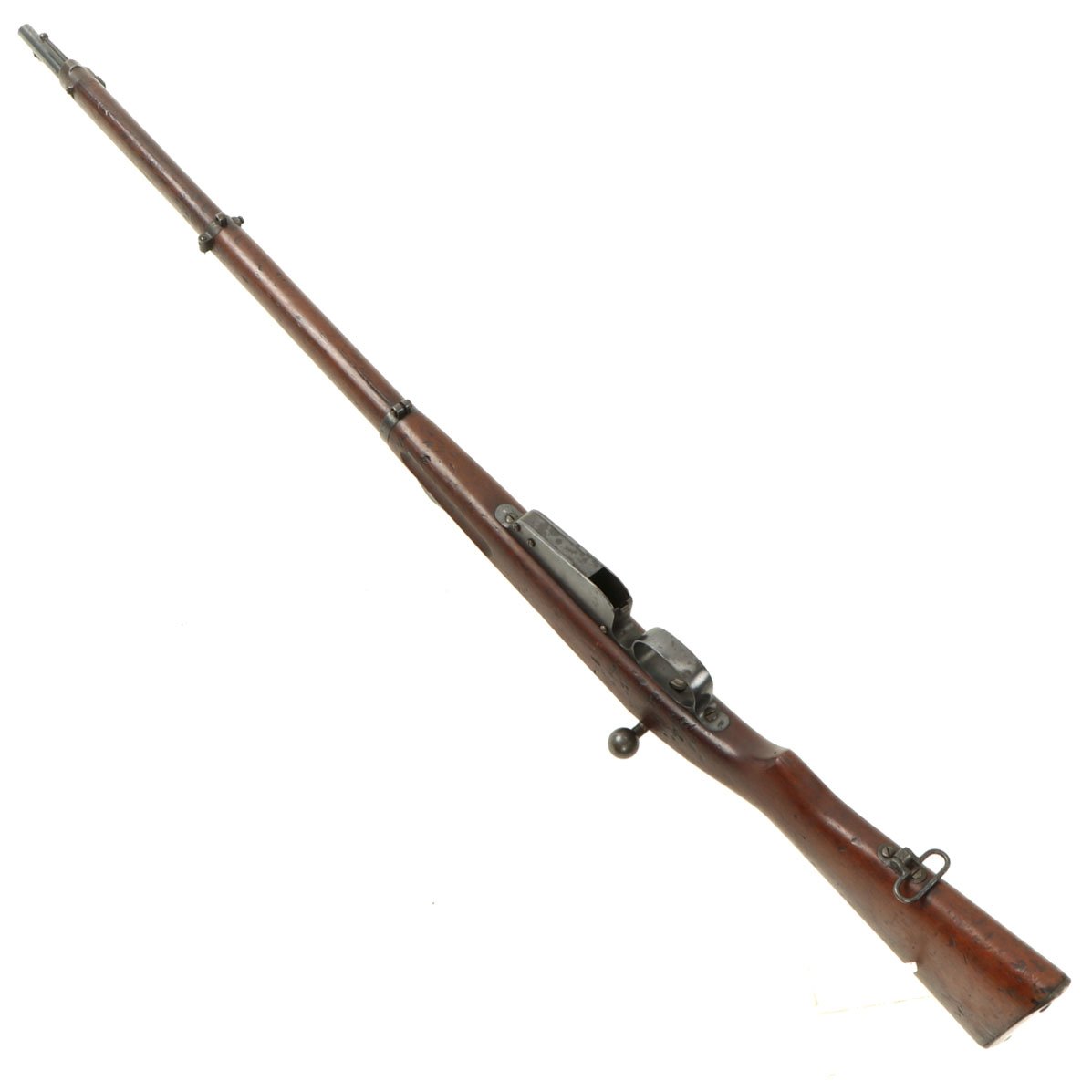

Condition is very nice, with a great lightly used look. It still has loads of the original blued finish present, with some rust speckling in areas. It doesn't seem to have been refinished or refurbished. The bore is in excellent condition, with crisp lands and grooves and a bright finish. There are just a few areas of oxidation visible. The rifle cycles and dry fires correctly.
Uncommon and in very good condition. Ready to display!
Specifications-
Years of Manufacture: 1888-1895
Caliber 8×52mmR or 8×50mmR
Cartridge Type: Centerfire Cartridge
Barrel Length: 30Inches
Overall Length: 50 Inches
Action type: Straight Pull Bolt-Action
Feed System: 5 round En-bloc clip Internal Magazine
More on the Austrian M1886, M1888, and M1888/90 Mannlicher Rifles:
The M1886 was the first Mannlicher design adopted by the Austro-Hungarian Empire. Baron Ferdinand Ritter von Mannlicher was a contemporary of the Mauser brothers, and it can be argued that his designs were more sophisticated and technologically advanced than Mauser models.
The M1886 has a straight-pull bolt, but the mechanism is wholly unlike the later M1895. In this rifle, a tilting breech lock is swiveled into locking position by the forward motion of the bolt handle. The brilliance of this concept is illustrated by its long line of descendants: the Browning Automatic Rifle (BAR); the Bren Light Machine Gun and its Czechoslovakian ZB antecedents; the Belgian gun that became the British GPMG, subsequently adopted by many countries, including the U.S. There were many less-well-known derivatives of this design, also, and the GPMG is still widely used by military forces throughout the world.
Not only was the tilting breech lock revolutionary, but the loading system was also a brand-new development and had a long series of descendents. Mannlicher introduced what is now called the en-bloc or packet loading system. In this system, several cartridges are held together in a sheet-metal clip. The clip and cartridges are all inserted into the rifle's magazine in one swift motion. When the last cartridge is fired, the empty clip drops out of the bottom of the magazine. Among the major rifles adopting this system one can count the French Mannlicher-Berthier, the Italian Carcano, and, most famously, the United States Rifle M1, or Garand.
Another very interesting feature of the rifle is the dual sighting system. The short-range front sight is a conventional barleycorn (tapered) blade. The rear sight is of an interesting but common 19th-Century design called a quadrant sight. The left ramp is graduated from 00 to 1700 meters and is used in conjunction with the V notch in the top of the sight leaf. The right ramp is graduated from 1800 to 2500 meters for the long-range or volley sight system. This system consists of a tapered-post front sight, mounted on the right side of the middle barrel band, and a very ingenious slide-out V notch on the rear sight leaf.
- This product is not available for shipping in US state(s): New Jersey
This product is not available for international shipping.
IMA considers all of our antique guns as non-firing, inoperable and/or inert. Title 18, U.S. Code, Section 921(a)(16) defines antique firearms as all guns made prior to 1899. This law exempts antique firearms from any form of gun control or special engineering because they are not legally considered firearms. No FFL, C&R or any license is required to possess, transport, sell or trade Antique guns. All rifles and muskets sold by IMA that were manufactured prior to 1899 are considered Antiques by the US BATF (United States Bureau of Alcohol, Tobacco & Firearms). Therefore, all of IMA's Antique guns may be shipped to most US States and most U.S. territories.
These antique guns are not sold in "live" condition, and are not tested for the the ability to feed or load any type of cartridge. They are sold as collector's items or as "wall hangers" not for use, and we make no guarantees regarding functionality aside from what is stated in the description. Any attempt at restoring an antique gun to be operational is strongly discouraged and is done so at the risk of the customer. By purchasing an antique gun from IMA you thereby release IMA, its employees and corporate officers from any and all liability associated with use of our Antique guns.
Pre-1899 Manufacture, no licenses required, allowed to ship to most addresses within the United States.
- Not eligible for payment with Paypal or Amazon
