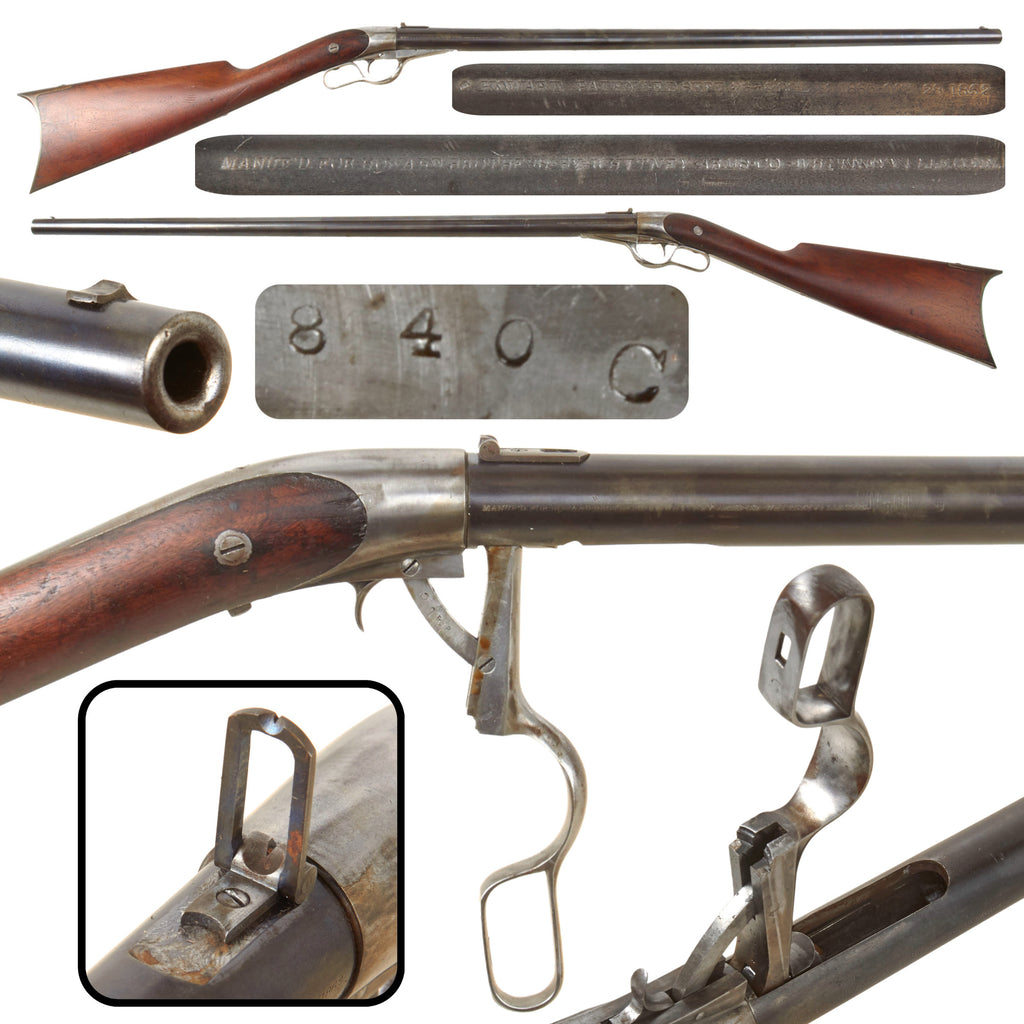

Original Item: Only One Available. Now THIS is rare! There were fewer than 2000 of these Whitney Howard "Thunderbolt" guns made, and this is number 840 C! These were submitted for U.S. Military trials, but were sadly rejected, not least because of it's weak bolt locking mechanism, which could "blow open" when fired. The fact that it was loaded from the bottom may also have had something to do with it. Stiff competition from other companies a well as the post-war glut of surplus arms led to little interest in the rifles at all. These are very rare to find on the market, and is only the second example that we have had.

There is not much on these guns, so we are not sure if this example qualifies as a "rifle", "carbine" or "sporting rifle". While most of these we see are in .44cal., this one definitely looks to be in .36cal., or "Navy Caliber". The barrel is 27 1/4" long, but since the breech is "inside" the barrel, the bore length is actually 24". The gun is marked with the patent information on the left side of the action / barrel:

The right side has the manufacturer information:

Condition is overall very good, with the expected wear to the metal finish and the wood stock. The "barrel" still retains strong bluing, while the rear frame and lever show a worn patina, with evidence of past oxidation. The stock has a lovely color, with no major damage such as cracks or repairs. Opening the breech shows the serial number 840 C on the top of the breech / lever and on the connecting bar. The gun cycles well and dry fires, though we have no way to check to see if it still can eject. The bore is in excellent condition, showing a bright finish with crisp lands and grooves. There is just a bit of past fouling near the muzzle, and it looks to have seen very little use. The original two leaf rear sight is present and functional.

A very nice example of a VERY rare gun, only the second we have ever had. Ready to add to your collection and display!

Specifications-

Year of Manufacture: circa 1866 - 1867
Caliber: .36
Cartridge Type: Rimfire Cartridge
Barrel Length: 24 Inches
Overall Length: 43 3/8 Inches
Action type: Side Action Lock
Feed System: Trapdoor Breech Single Shot

NOTE: International orders of antique firearms MUST be shipped using UPS WW Services (courier). USPS Priority Mail international will not accept these. International customers should always consult their country's antique gun laws prior to ordering.

The Howard "THUNDERBOLT" was the brainchild of two brothers - Charles and Sebre Howard. Sebre is responsible for the basic design, Patent number 36,779 being registered in his name on October 28, 1862. This original patent describes a breech-loading lever-operated rifle.

The cocking and firing mechanism was to be completely enclosed in a cylindrical extension of the breech of the rifle. Actuating the lever-like trigger guard drew back a piston and disc, compressing a spring housed in the cylinder. A hammer rod passing through the coil spring engaged the sear upon cocking. Closing the trigger guard sealed the breech by bringing the piston forward against the cartridge and chambering it. Pressure on the trigger released the hammer rod and attached disc, striking the piston. From the piston face protruded two small pegs which struck the rim of the rim-fire cartridge. Extractor jaws protrude from the top and bottom of the piston head alongside the cylinder wall to grip the base of the cartridge for extraction.

Three additional patents were granted, September 26,1865, October 10, 1865, and May 16, 1866, to Charles Howard, for improvements to the "THUNDERBOLT". These improvements covered the elimination of the set trigger, moving the loading port to the bottom of the weapon from the side, changes to the ignition and extraction systems, and improvements to the lever system and bayonet.

(From Marv Adams Presents: The Howard "THUNDERBOLT" by Marv Adams)
