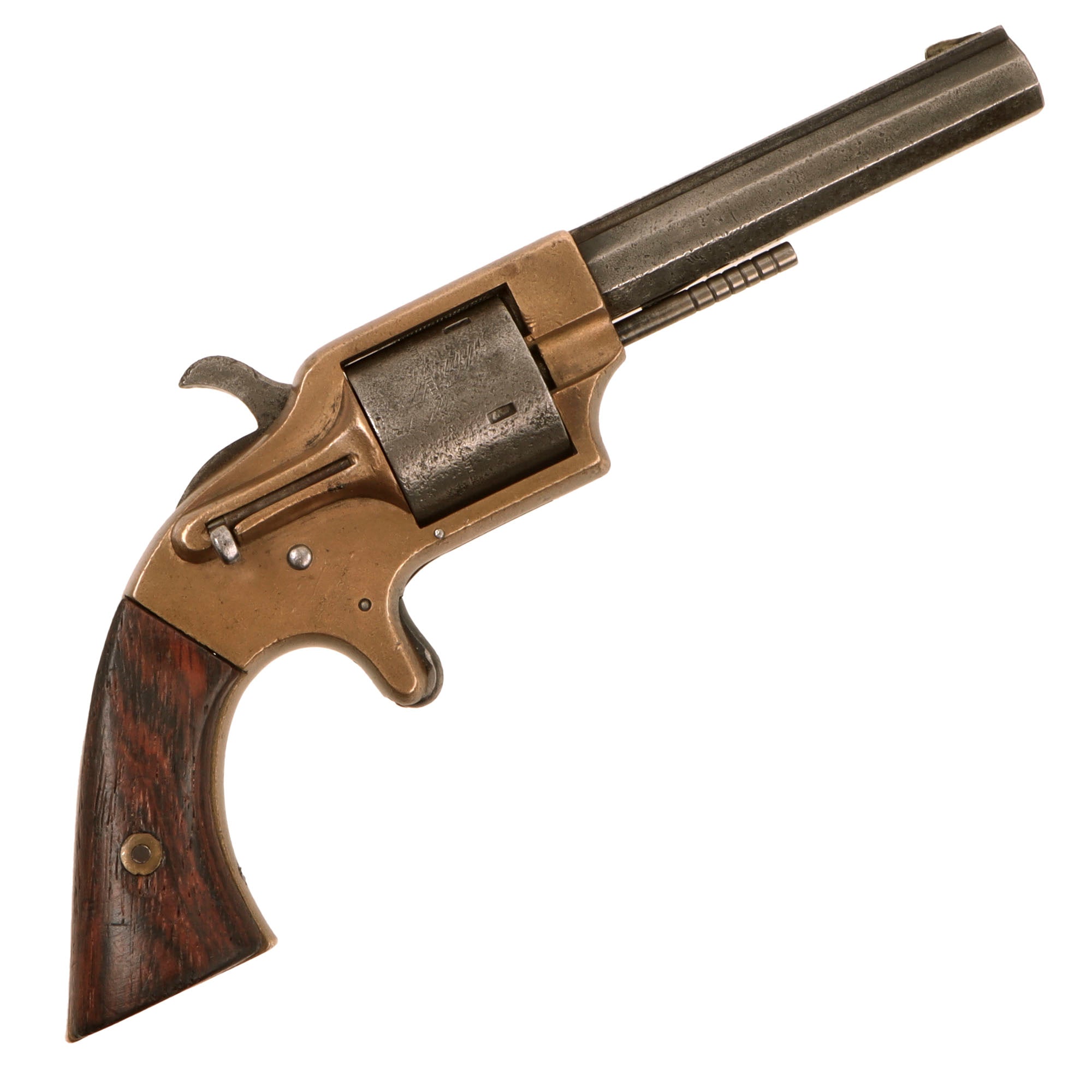

Original Item: Only One Available. Starting life between 1863 and 1873 this is a very rare unconverted Merwin & Bray CUP-FIRE brass frame revolver. Similar to the "Teat-Fire" design, it was one of several ways developed to produce a brass cartridge revolver that would not infringe on the Patents of Rollin White. Licensed and vigorously protected by SMITH & WESSON, this patent covered the use of a bored through revolver cylinder loaded through the rear with a cartridge. Even though these had already been in use in Europe, there was no U.S. Patent, which White exploited with his patent, which also utilized a box magazine to load the cylinder, and was in reality a totally unworkable design.

To infringe on the patent, the cylinder needed to be fully bored through, however, so Plant developed the the CUP FIRE system. This has the chambers reduced in size at the rear, with a lip around the edge. This meant that the system required loading from the front of the cylinder, in reverse so to speak. The cartridges used had a cup shaped base, which gave the system it's name, and were interesting in that the cartridge entirely surrounded the bullet as well. When cycled the firing pin goes into holes in the rear of the cylinder, and sets of the primer in the cupped base of the cartridges.

Plant Mfg. Co began making Cup Fire revolvers based on the Merwin & Bray patents in 1863, manufacturing an "Army" model in .42" Cupfire, which was relatively small in size, but packed much more of a punch than the .32 Smith & Wesson pocket revolvers of the time. They also however manufactured revolvers in the smaller .28" and .30" cupfire sizes. This lovely brass framed revolver has bore measuring about .28, which is actually the correct size for a .30" cupfire gun, as the actual bullets for the two smaller sizes were .26" and .28", respectively.

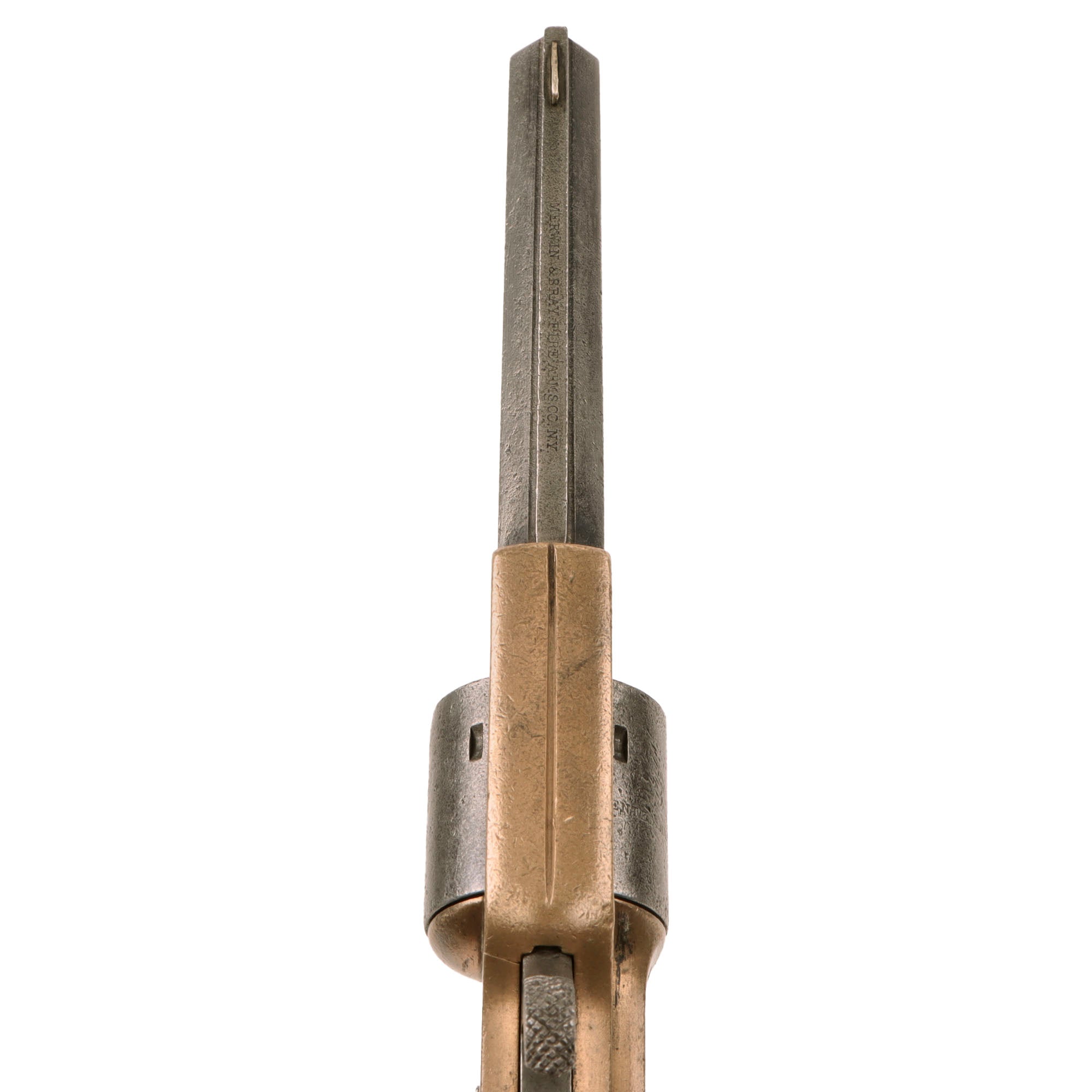

The top of the barrel still shows some past peppering, but is still marked with the correct Merwin & Bray address marking:-

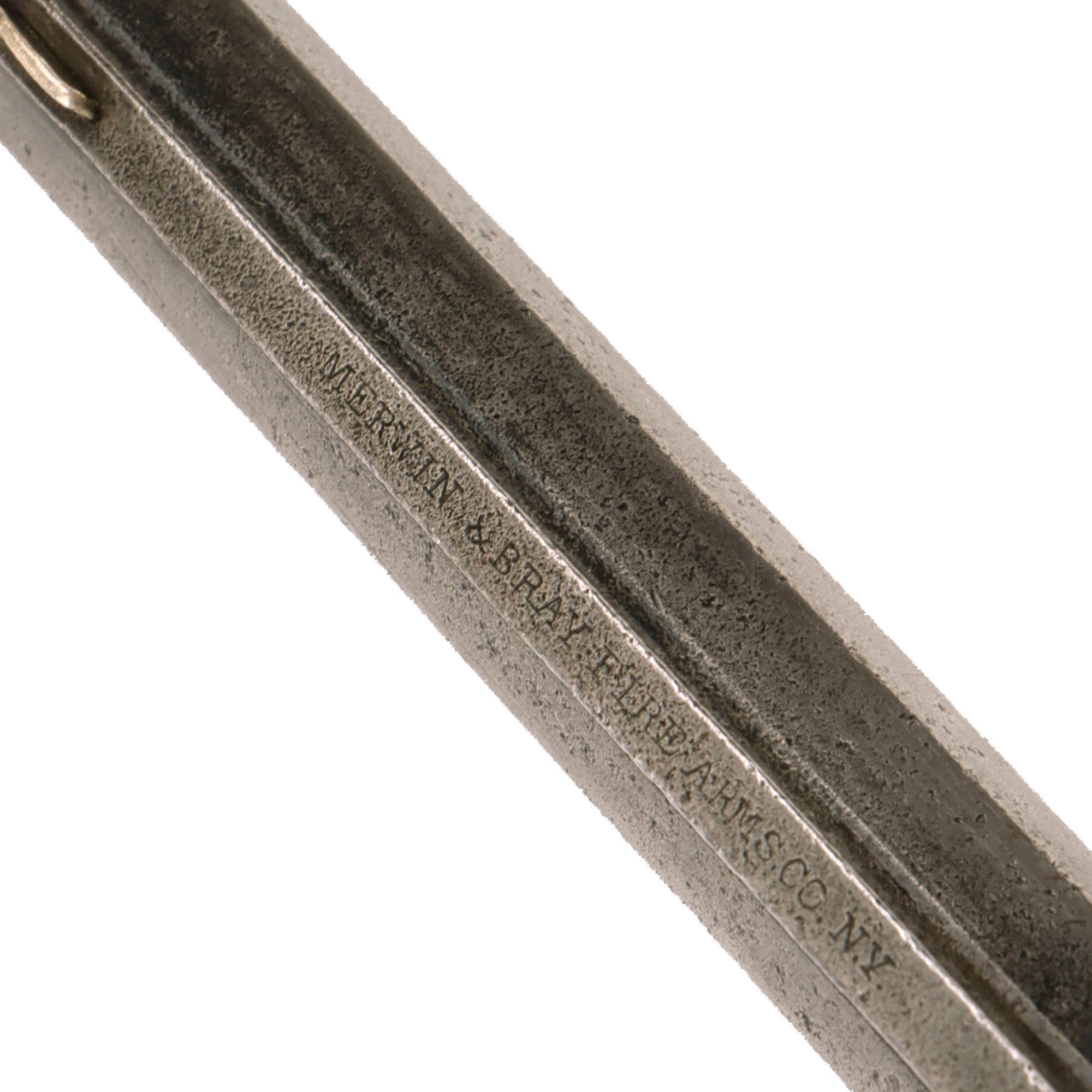

MERWIN & BRAY. FIRE-ARMS CO. N.Y.

As an added treat, the revolver still has a legible patent marking going around the cylinder, though it is a bit hard to read due to past peppering:-

PATENTED JULY 12 1859. & JULY 21 1863.

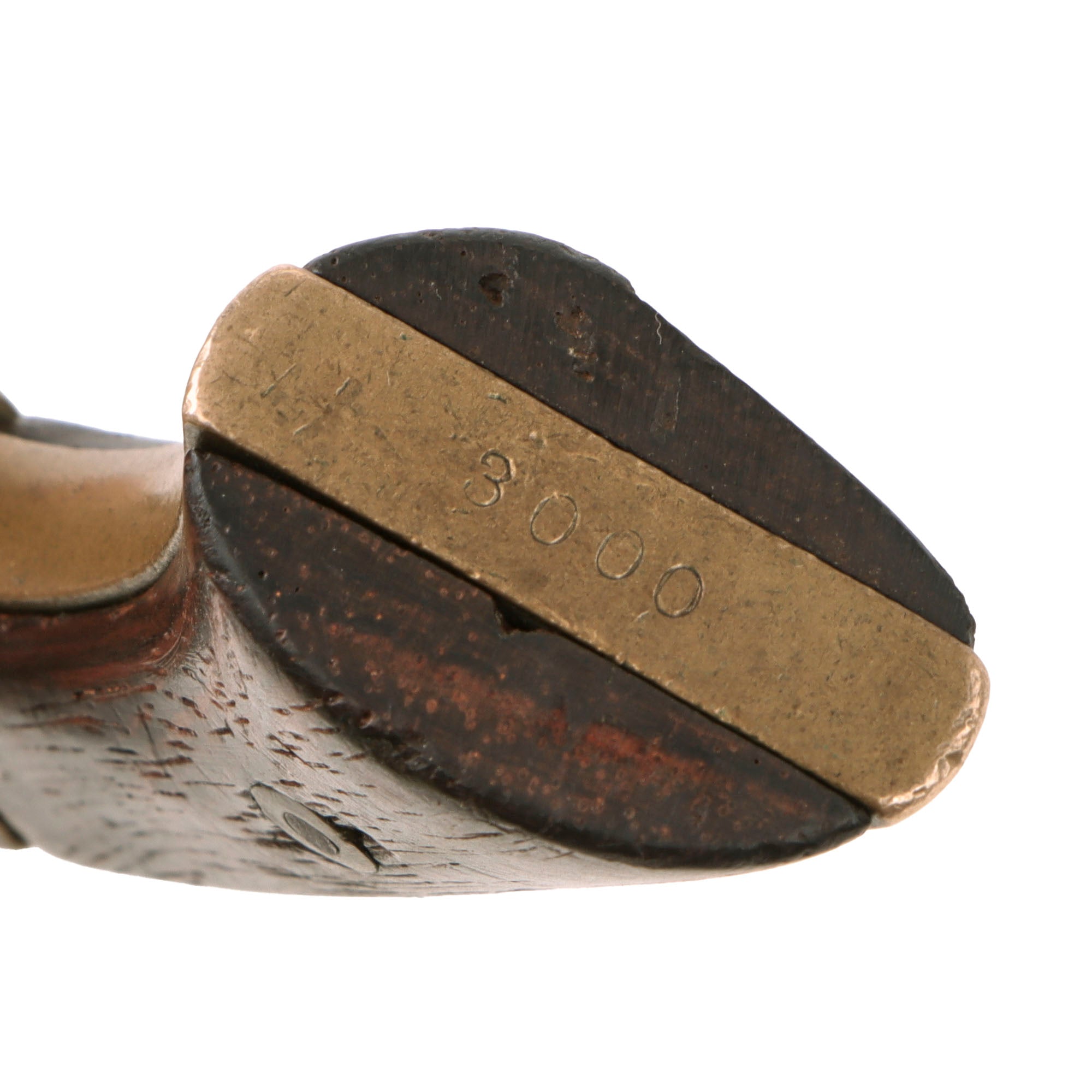

The bottom of the grip frame is marked with serial number 3000, which is also stamped on the bottom of the barrel, the rear of the cylinder, and on the inside of BOTH grip scales. The only unmatched item is the cylinder arbor pin, which is an unmarked fabricated replacement, which makes this a very nice "Mostly Matching" example.

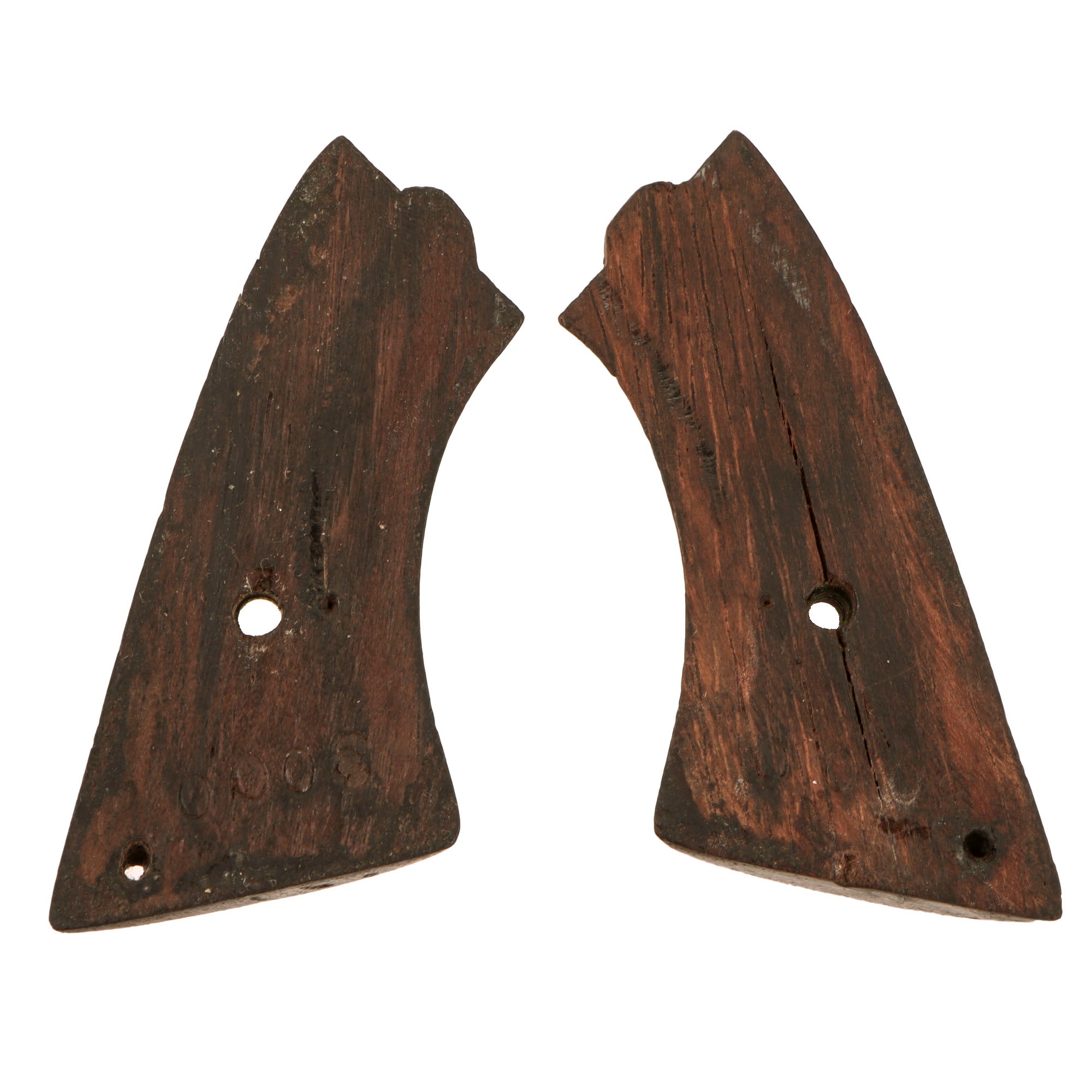

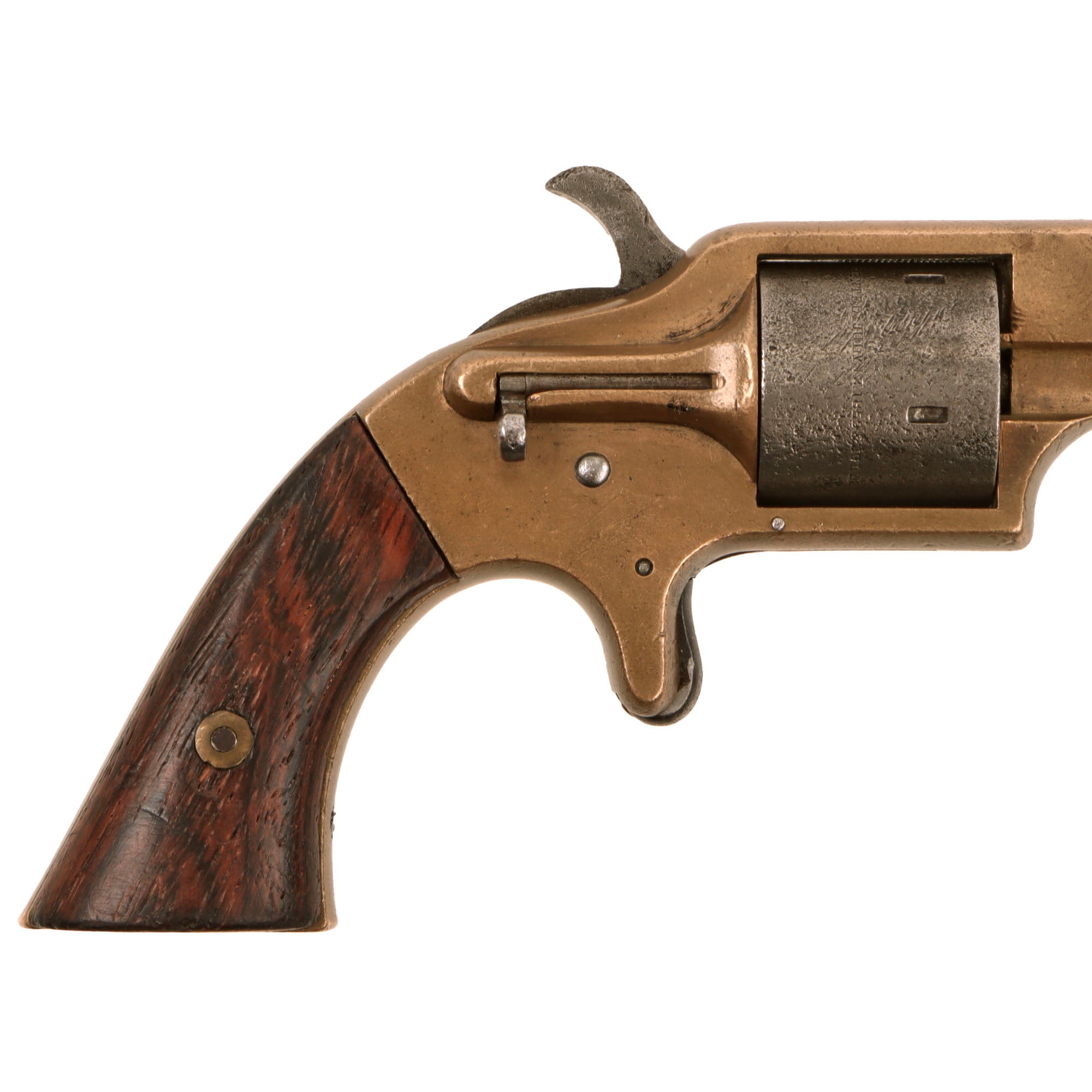

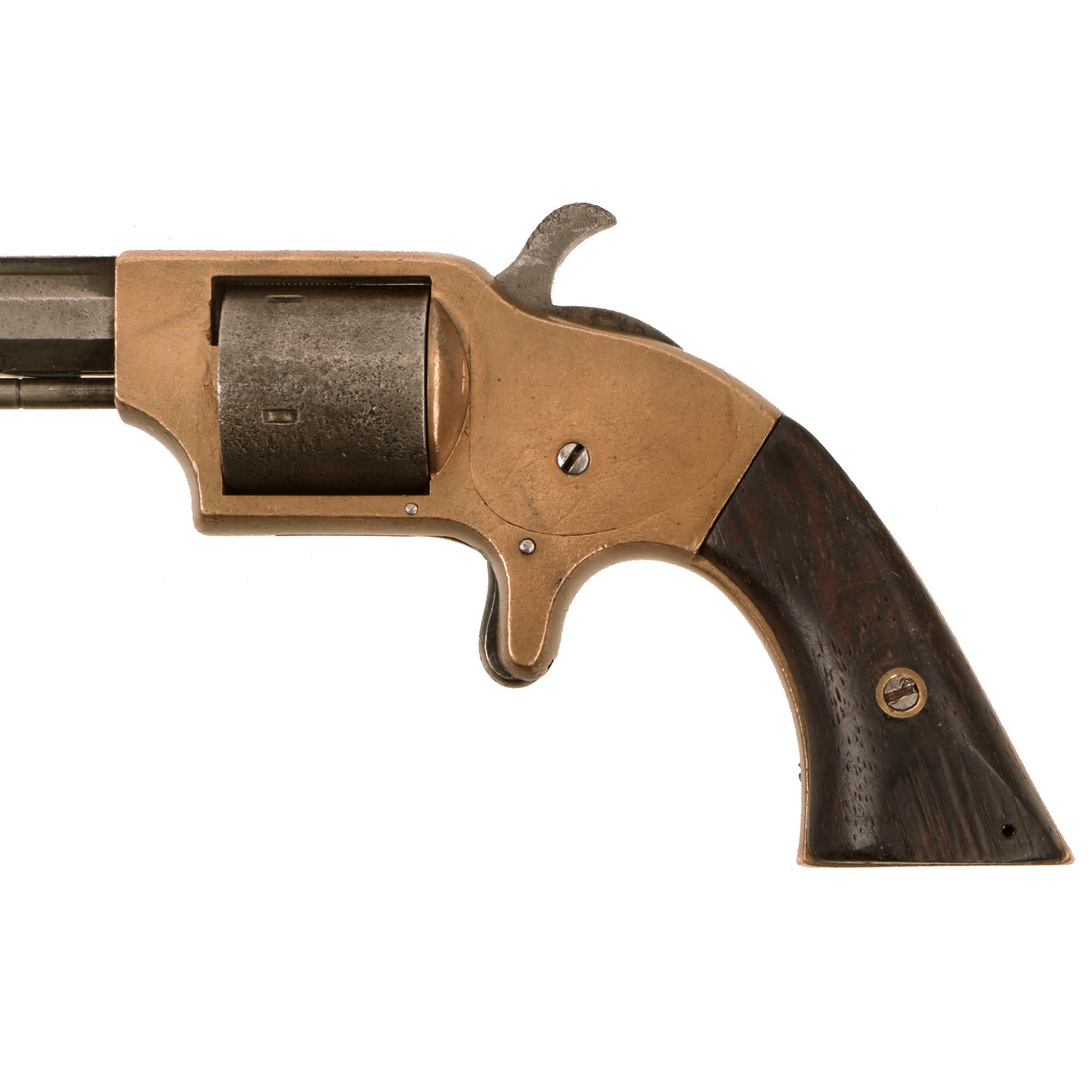

Overall condition of the revolver is just lovely, with a fantastic patina of age. The barrel and steel components show a lovely light gray patina overall, with evidence of past peppering, now cleaned away. As we usually see, the brass frame has lost almost all of the original plating, which is preserved only under the grips and in a few places around the cylinder. It now displays a lovely matured "mustard" patina. The rosewood grip scales are in very nice shape, though the left scale is missing a large wide chunk close to the bottom, which has exposed the indexing hole on the lower corner. These would originally have had a varnished finish, but it is now completely missing.

Revolver cycles beautifully, with good indexing and a firm cylinder lockup. It has a functional half-cock loading position, and a crisp dry fire. The ejector rod moves correctly, locking into place in the rear by turning the handle down. The revolver cylinder axis pin still pulls out towards the front correctly so that the cylinder can be removed for cleaning. We checked the bore, and it is in very good condition, showing clear three groove rifling with a bright finish and strong lands and grooves. There is just a bit of past oxidation and fouling in the grooves.

A rare revolver seldom seen today, especially in the original "Cup Fire" configuration! Most of these that we have seen were later updated to take standard cartridges in the "Old West". In very nice condition and ready to display!
