Original Item: Only One Available. This is an impressive and substantially complete Spanish Instalaza M65 88.9mm anti-tank rocket launcher, commonly known as the Spanish “Bazooka.” Developed during the Cold War for the Spanish Armed Forces, the M65 was based on the American M20 Super Bazooka but incorporated several Spanish improvements, including a revised ignition system and ammunition developed specifically for the launcher.

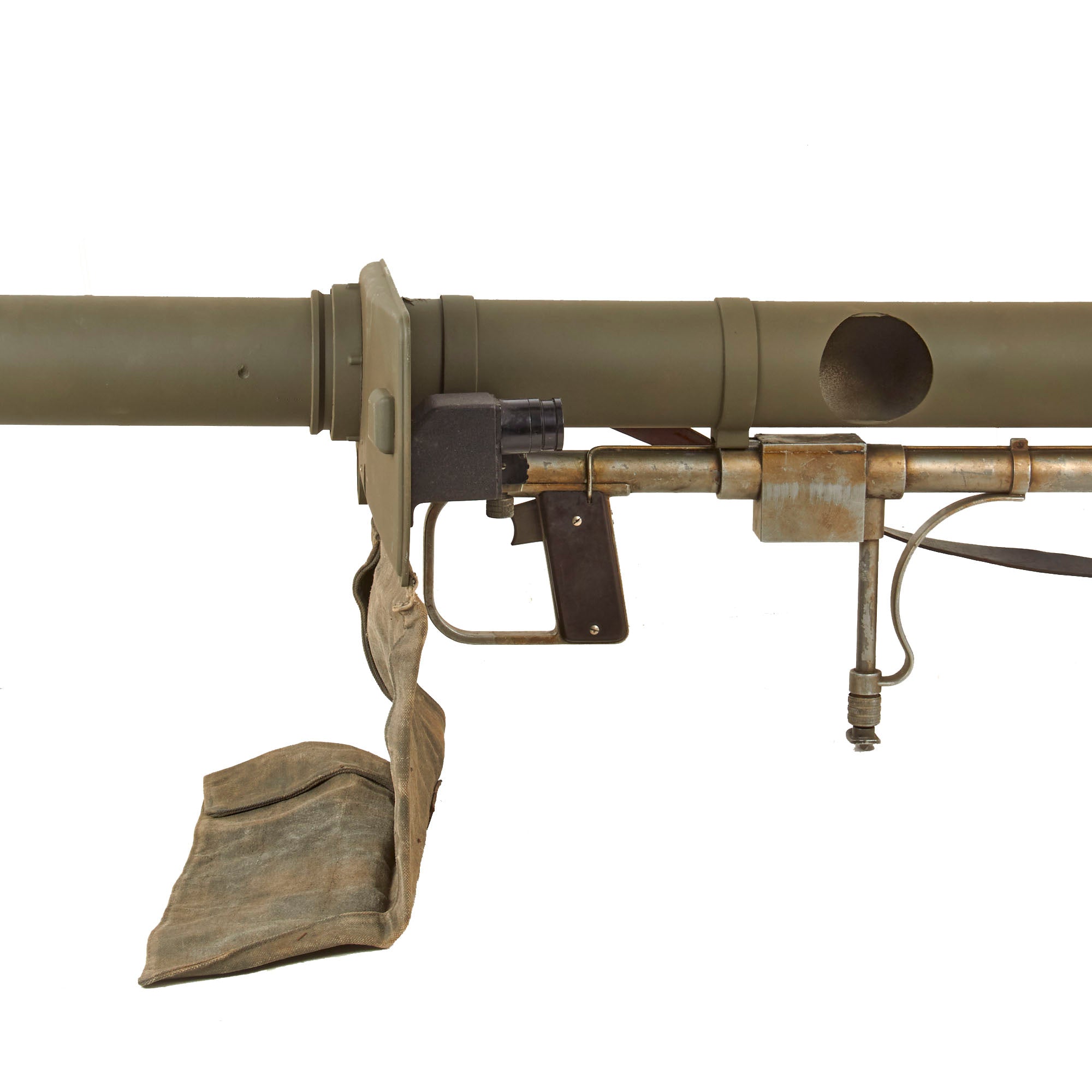

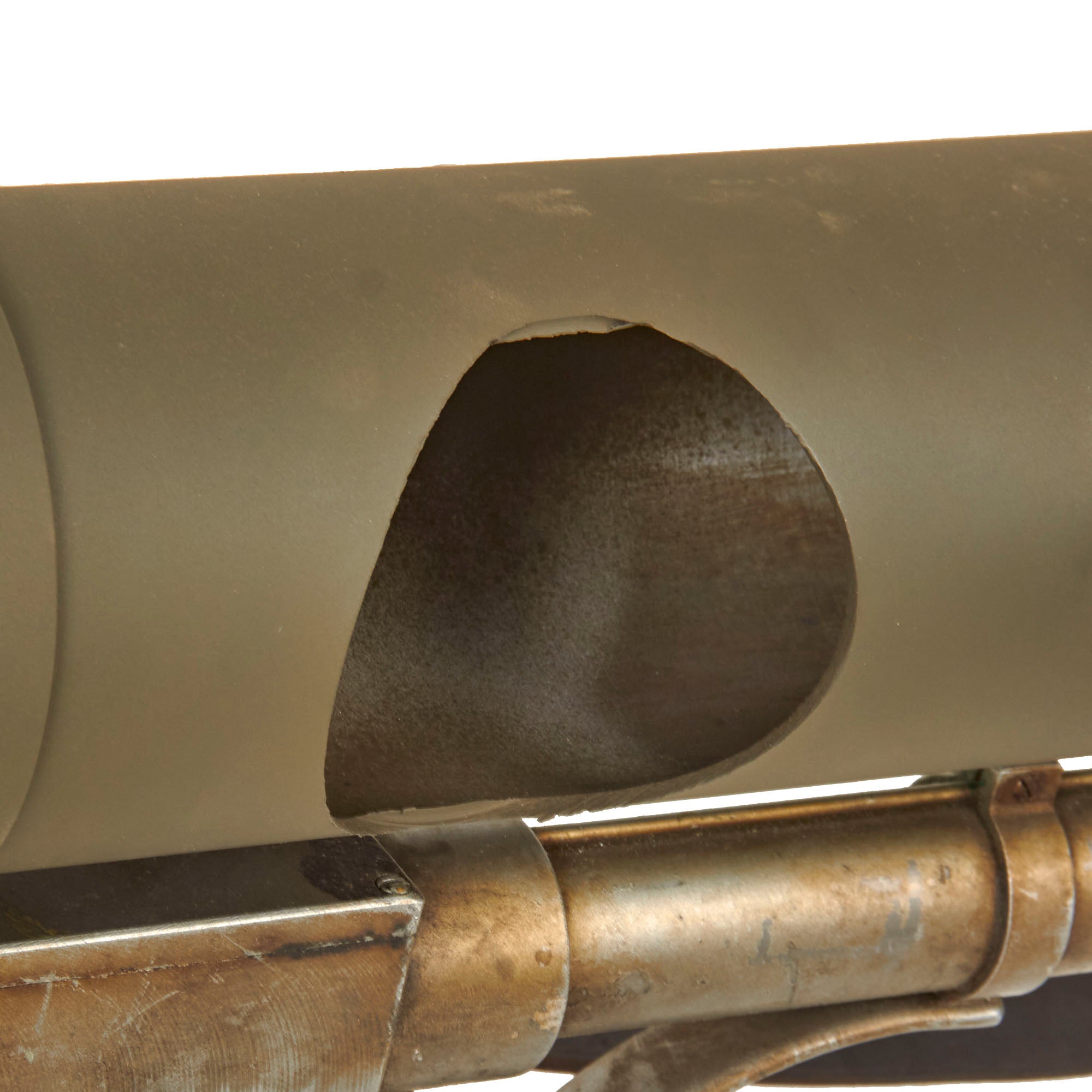

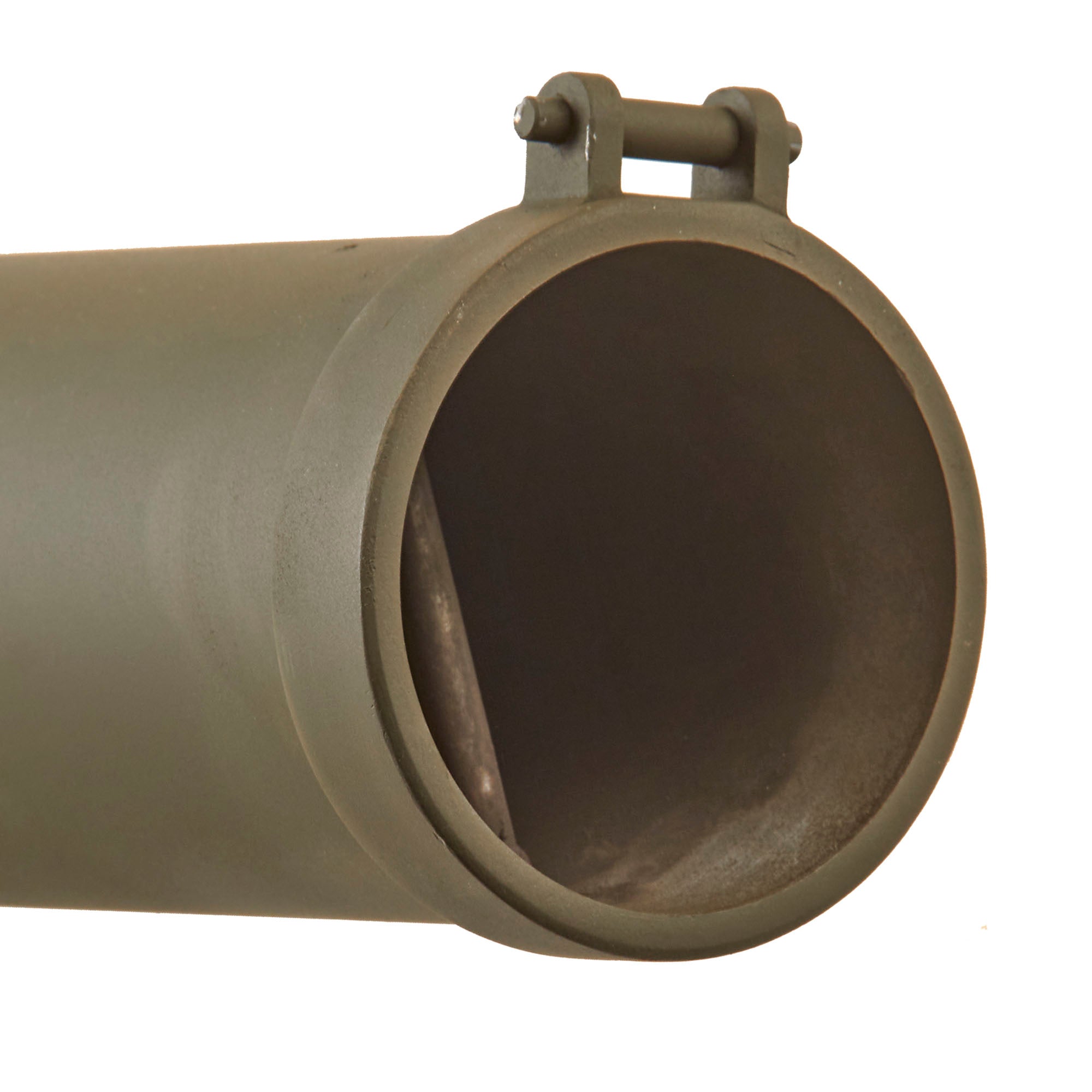

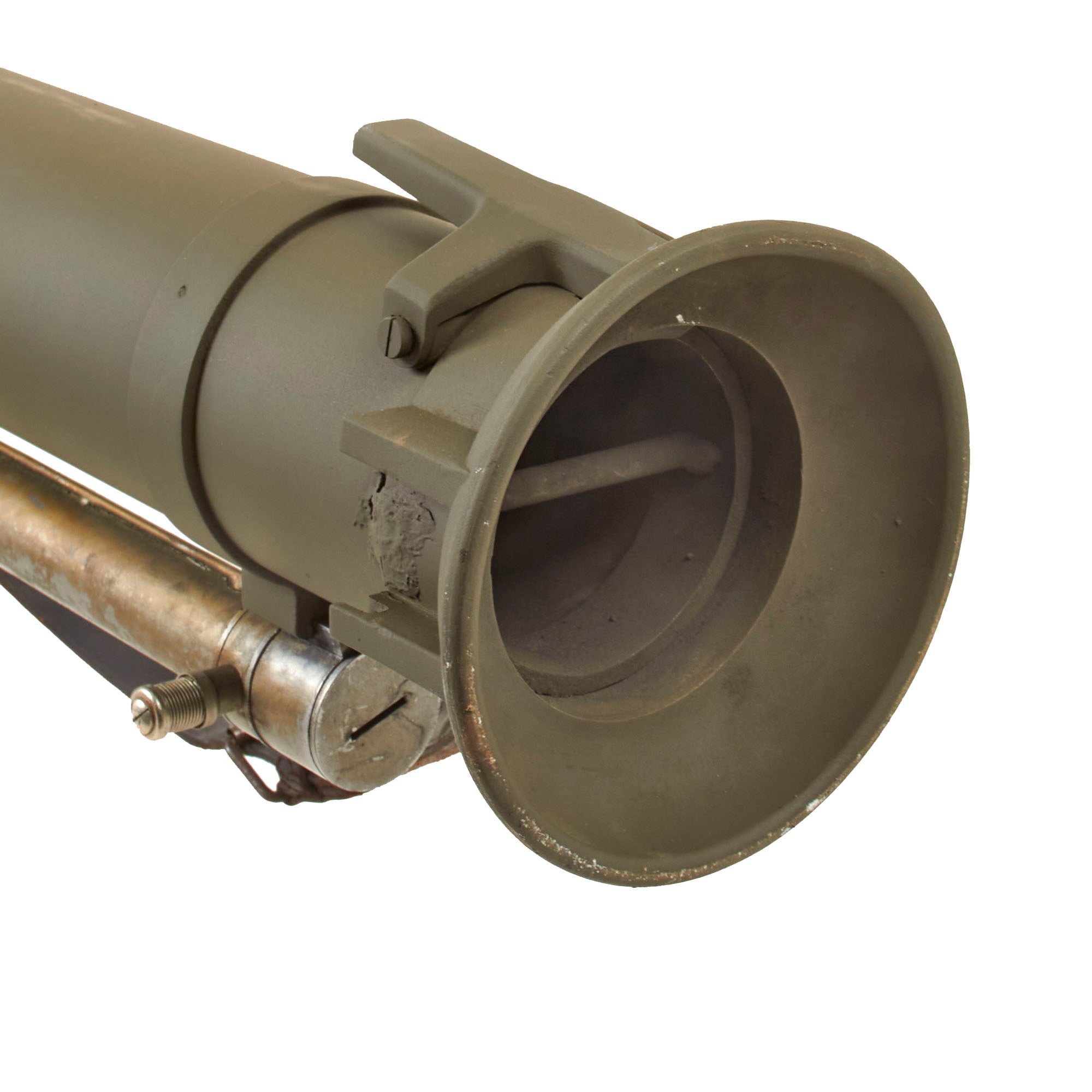

This inert launcher has been permanently deactivated in accordance with BATF specifications. A bore-width opening has been cut into the side of the tube, and a steel obstruction has been welded across the bore to prevent the loading of ammunition. NOT AVAILABLE FOR EXPORT.

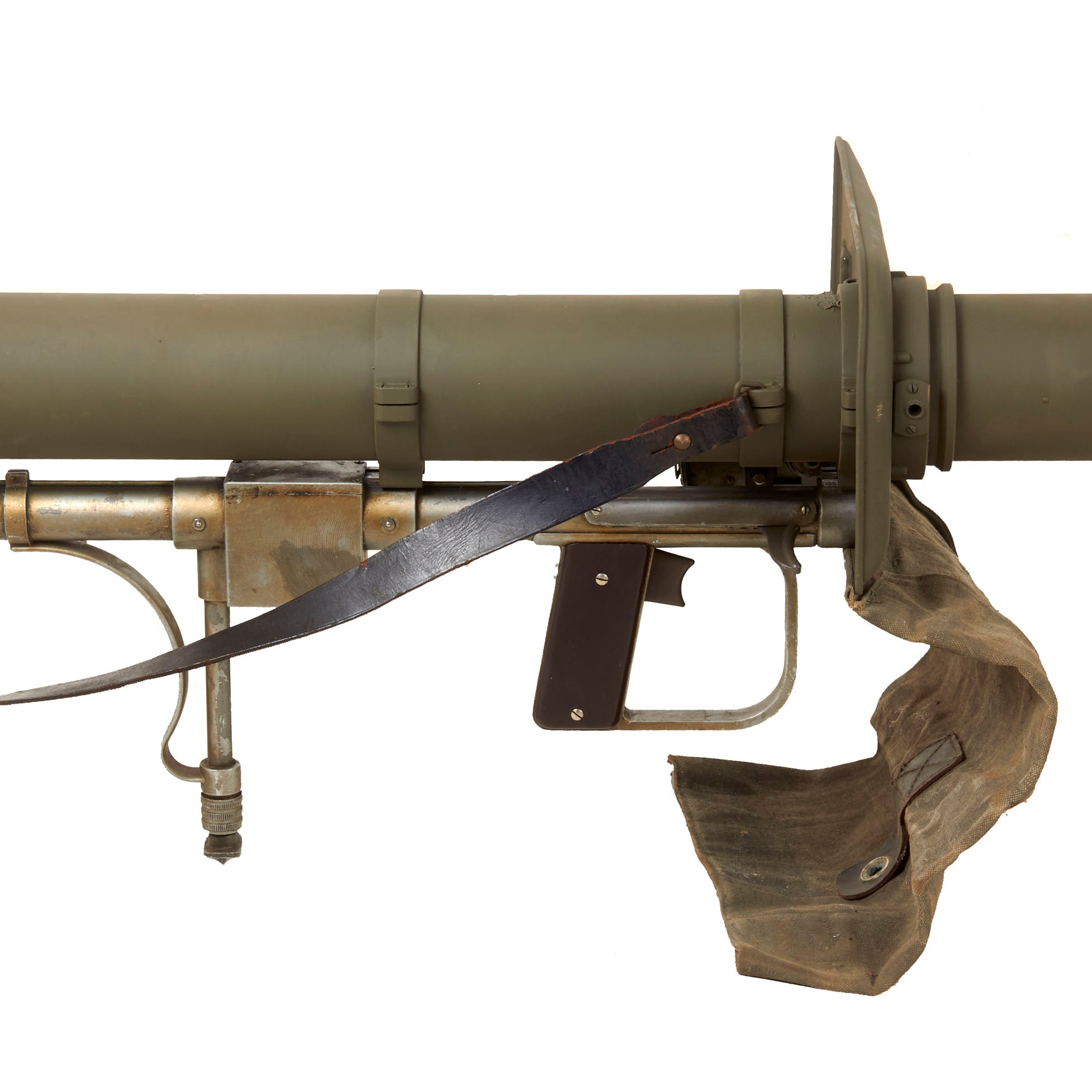

This example retains its optical sight, canvas face shield, integral bipod, rear monopod, shoulder and trigger assembly, and carrying sling, giving it exceptional visual presence when fully assembled.

The original American M20 Super Bazooka was developed near the end of the 1940s as a more powerful successor to the smaller 2.36-inch bazookas of WWII. Its 3.5-inch, or 88.9mm, rocket gave infantrymen a considerably greater anti-armor capability and saw extensive use during the Korean War.

Spain subsequently developed its own version through Instalaza, the Zaragoza-based defense manufacturer responsible for a variety of infantry anti-tank and support weapons. The resulting M65 retained the general configuration and collapsible construction of the American M20 while adapting the system to Spanish service requirements.

The M65 was designed to fire several types of Spanish ammunition, including:

CHM65 High-Explosive Anti-Tank Rocket
MB66 Dual-Purpose Rocket
FIM66 Smoke Rocket

The launcher could be broken into two primary sections for transport and reassembled in the field. Its bipod and rear monopod allowed the weapon to be supported in a stable firing position, while the face shield helped protect the operator from debris, propellant residue, and blast effects.

This example still separates at the central joint as intended. The connection can become somewhat tight if the sections are rotated too firmly during assembly, so care should be taken when setting it up or taking it apart.

The original joint-locking screw is missing. However, the sections remain together during ordinary display and handling.

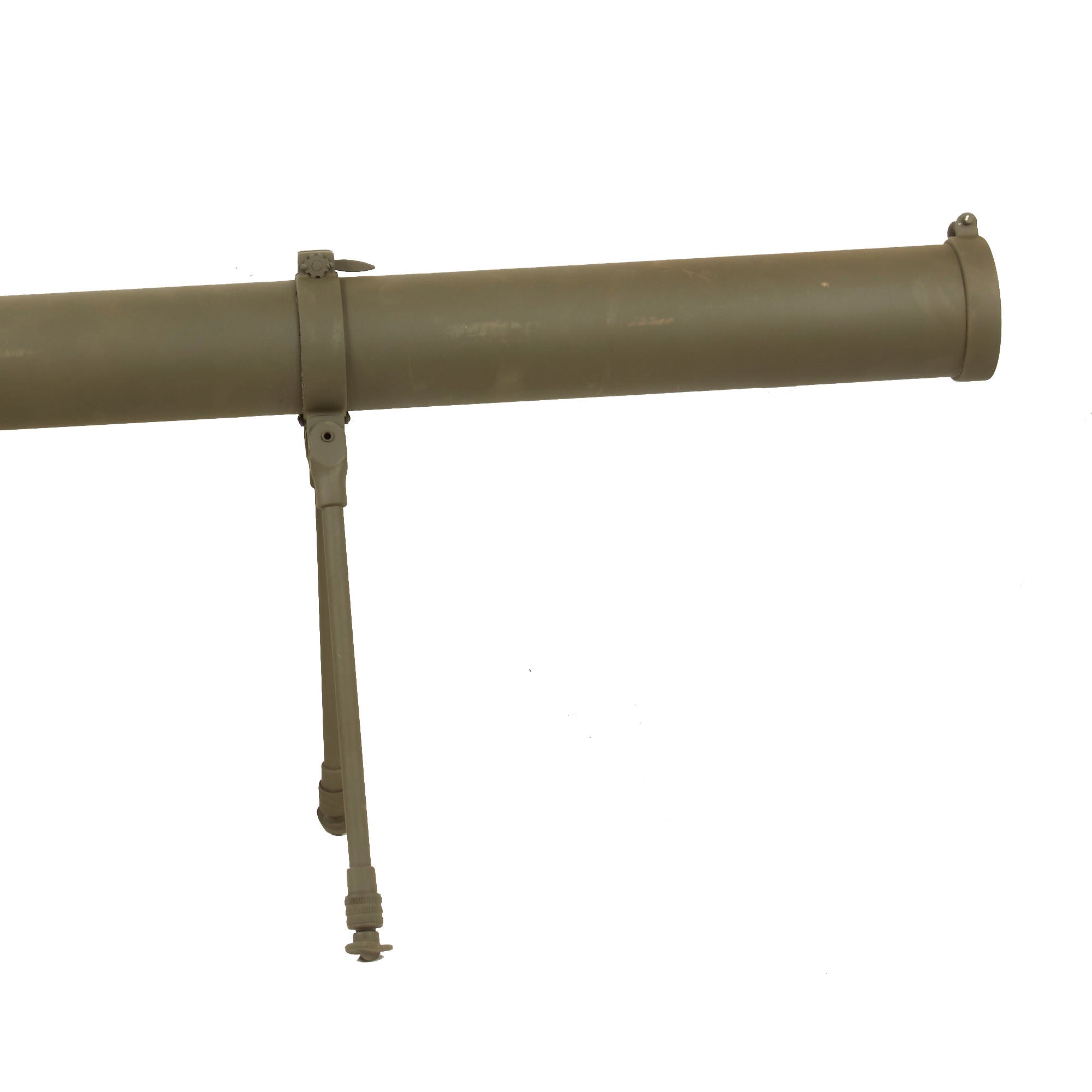

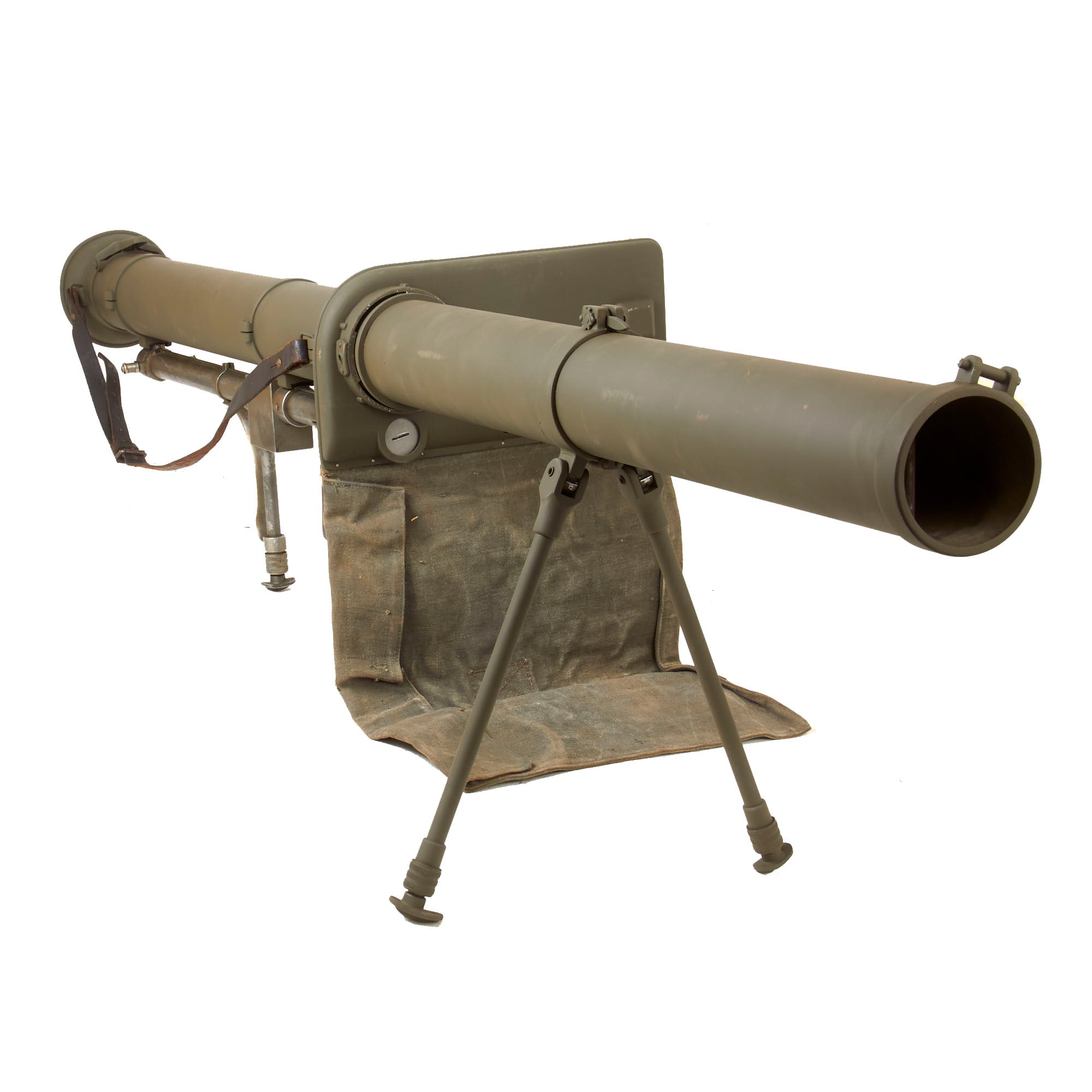

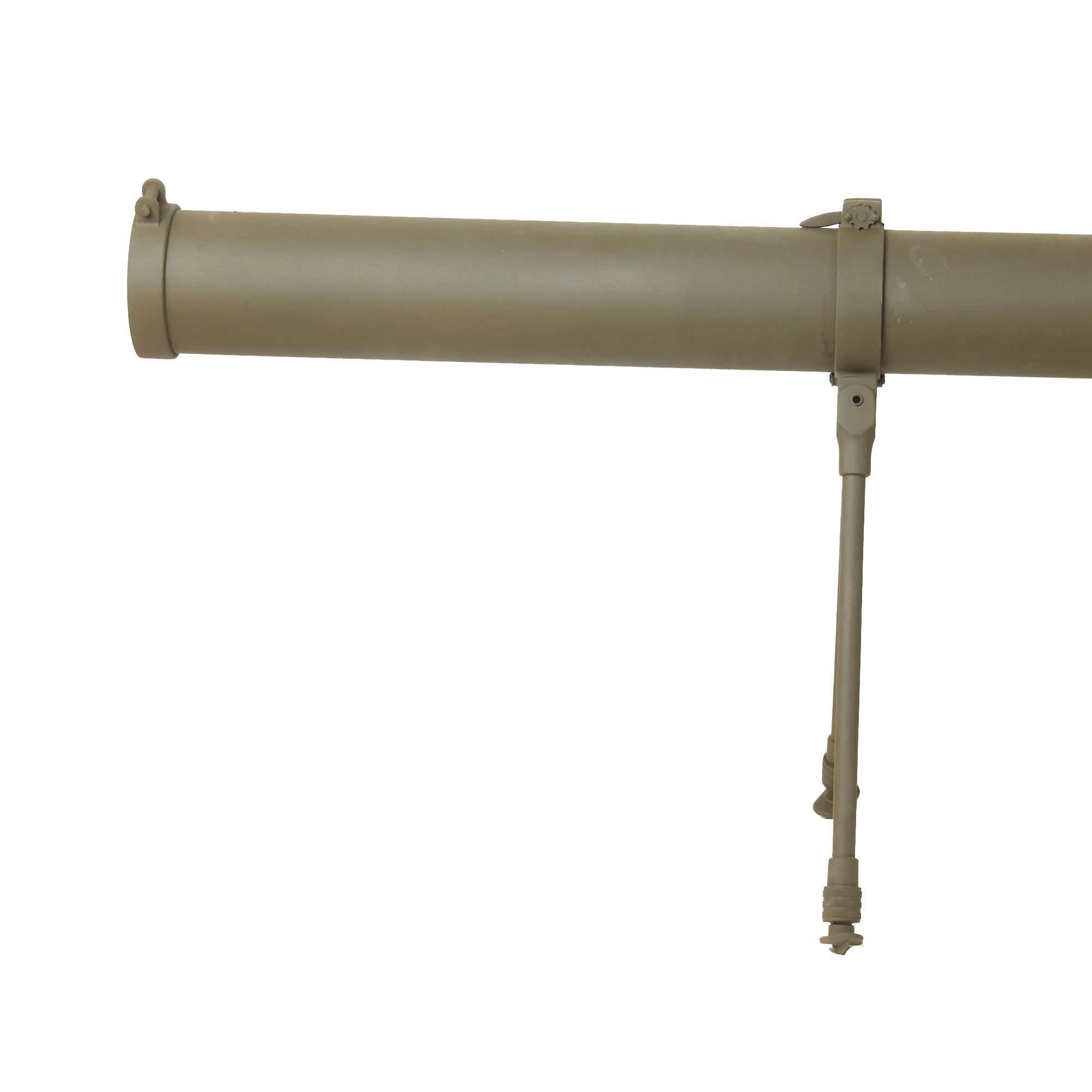

The integral folding bipod is present and remains adjustable.

The rear monopod is also intact and functional, allowing the launcher to be positioned in its complete supported firing configuration. The presence of both supports is particularly desirable, as these components are frequently missing from surviving examples.

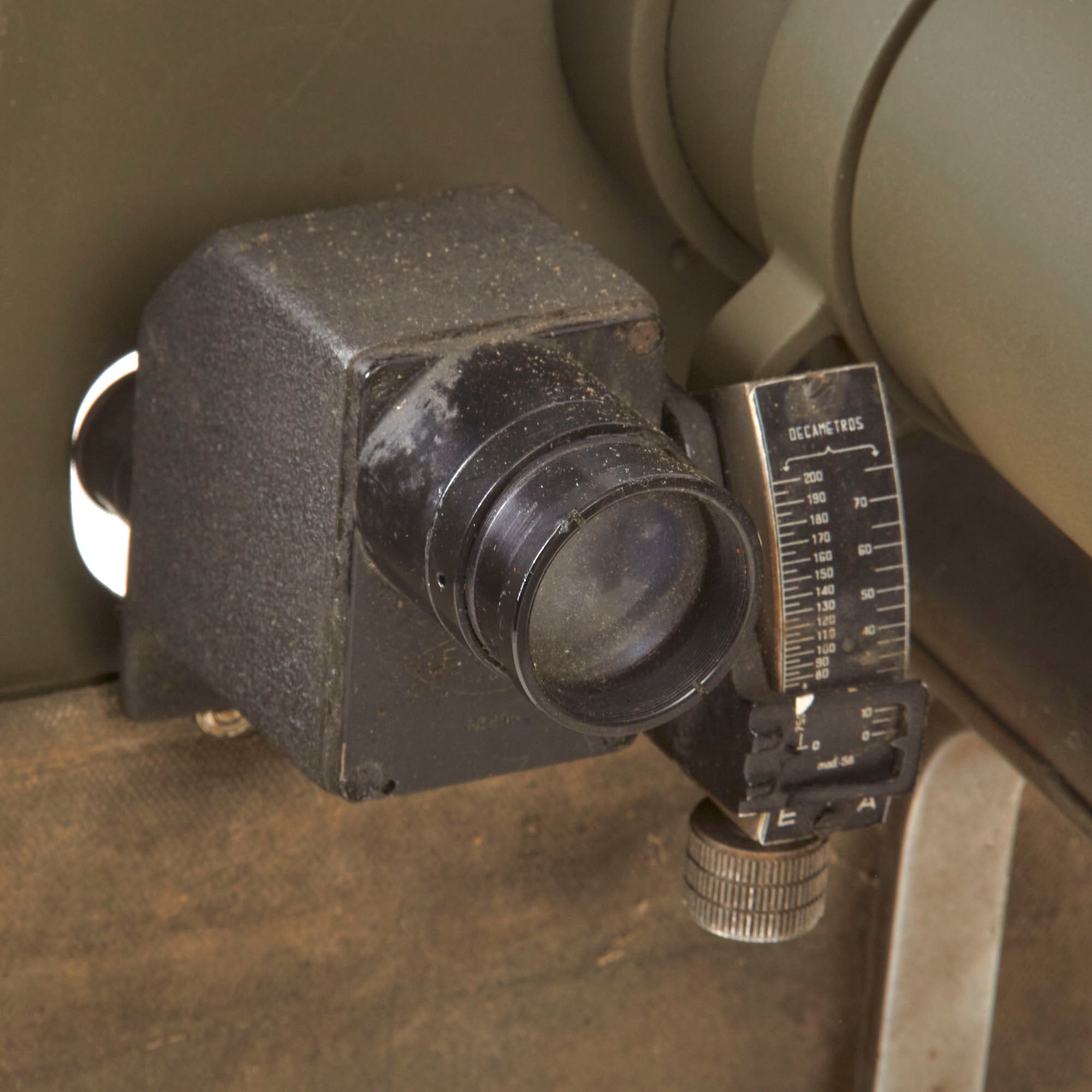

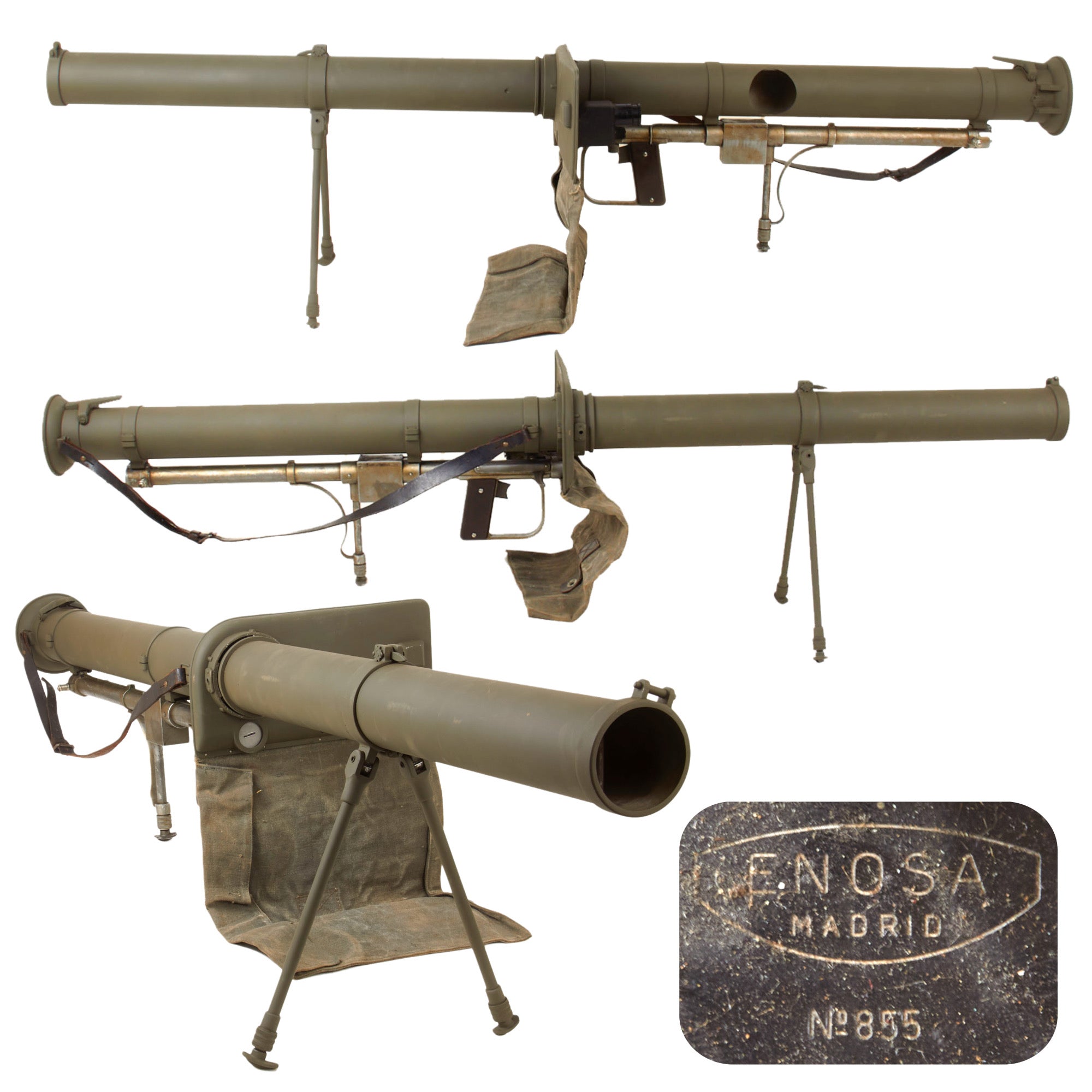

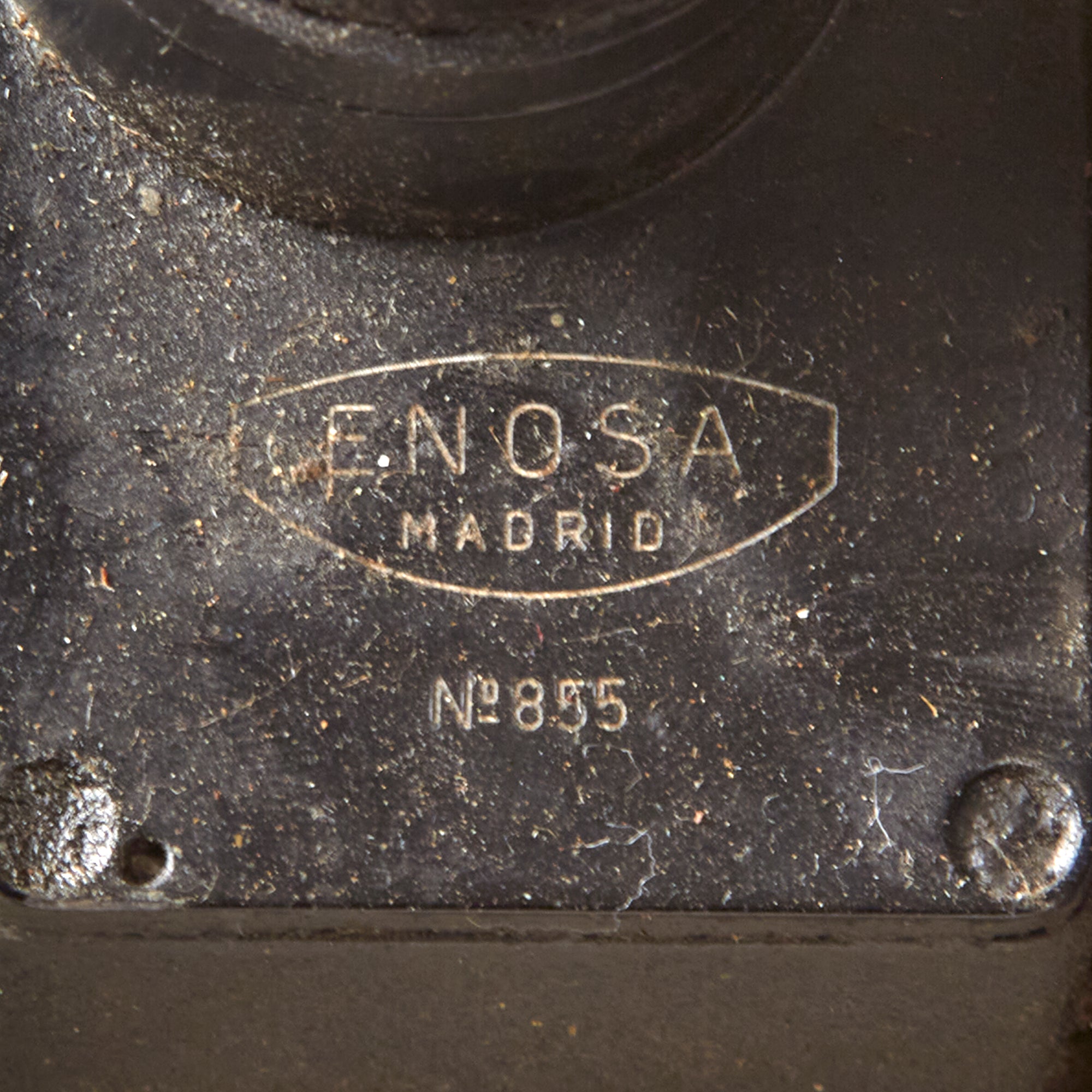

The optical sight was manufactured by:

ENOSA
MADRID

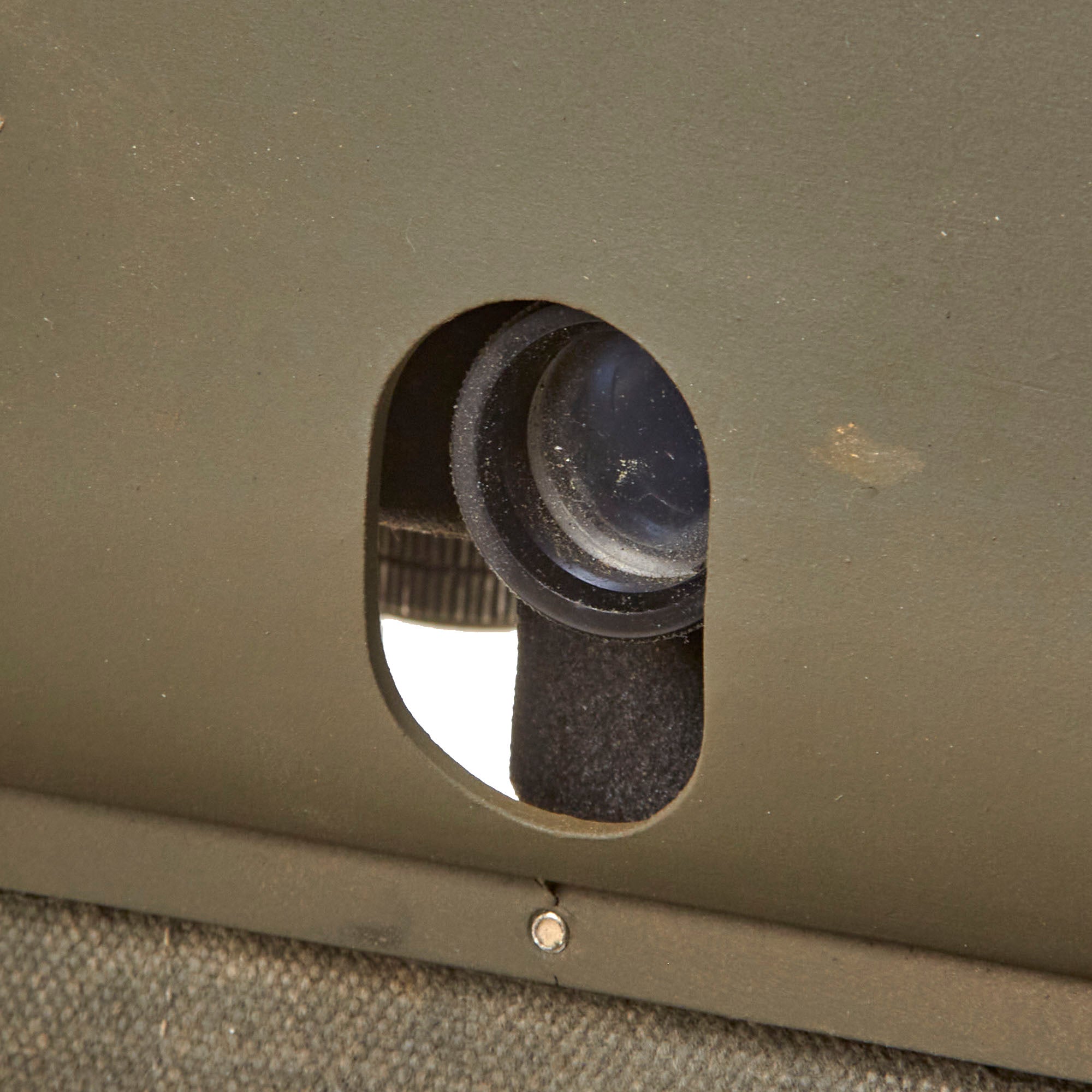

The sight remains complete with a visible reticle. The image is somewhat hazy or out of focus when viewed through the optic, indicating that the internal lenses may require professional cleaning.

The elevation adjustment beneath the sight remains operational.

The range scale is correctly graduated in decameters, each unit representing ten meters.

The original rubber eyecup is no longer present.

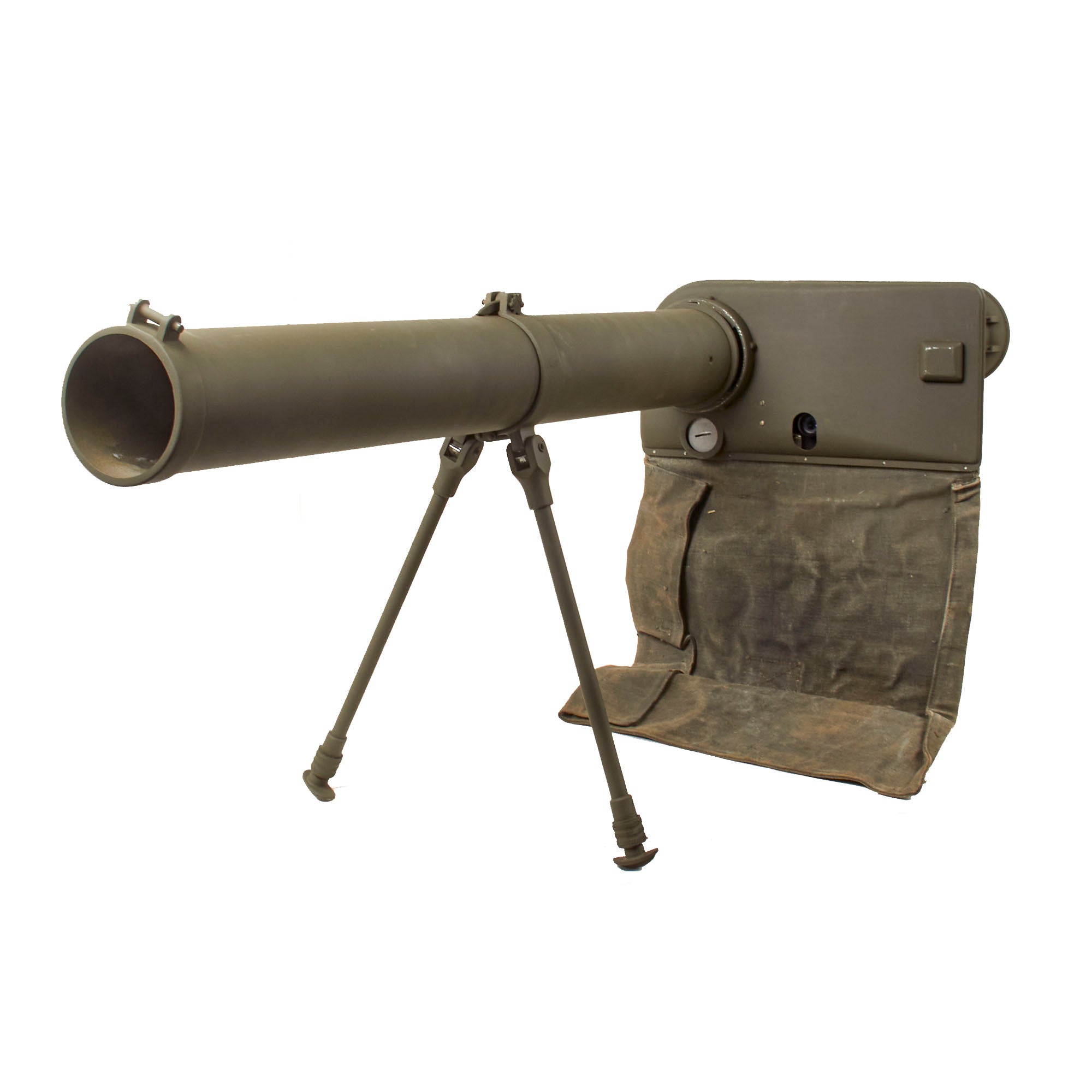

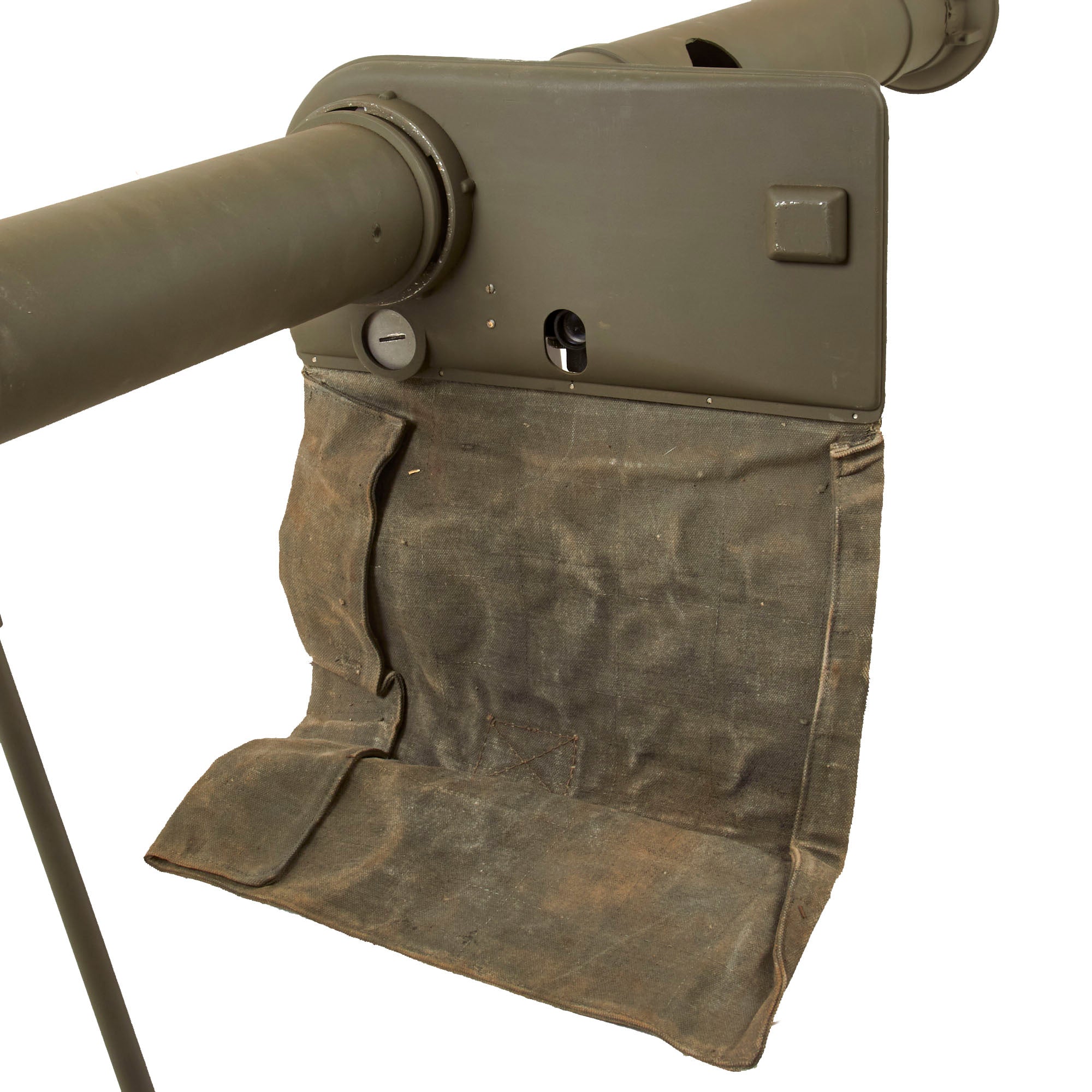

One of the most visually distinctive features is the surviving face shield. The rigid shield remains intact, and the canvas protective skirt is still attached beneath it.

These fabric components are often missing or heavily deteriorated, making the survival of the complete shield assembly a significant advantage.

The launcher was repainted in olive drab after demilitarization. The current finish is not believed to be the original Spanish military paint, but it gives the launcher a uniform and attractive display appearance.

Serial number 2685 remains visible on the upper portion of the launch tube near the takedown joint.

The same number is also marked on the underside of the trigger and shoulder-rest assembly: 2685

The matching serial numbers indicate that the major launcher sections remain together as a correct set.

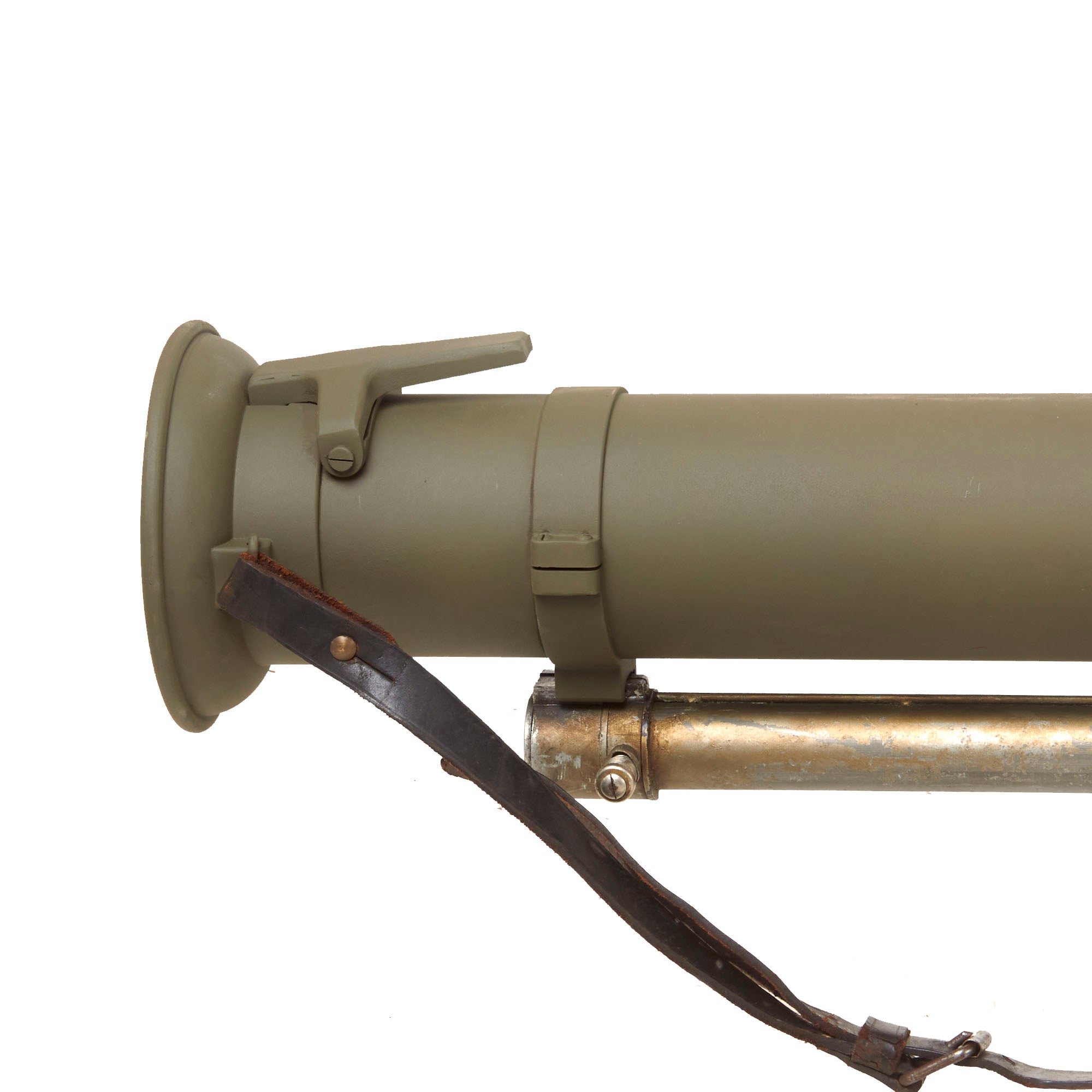

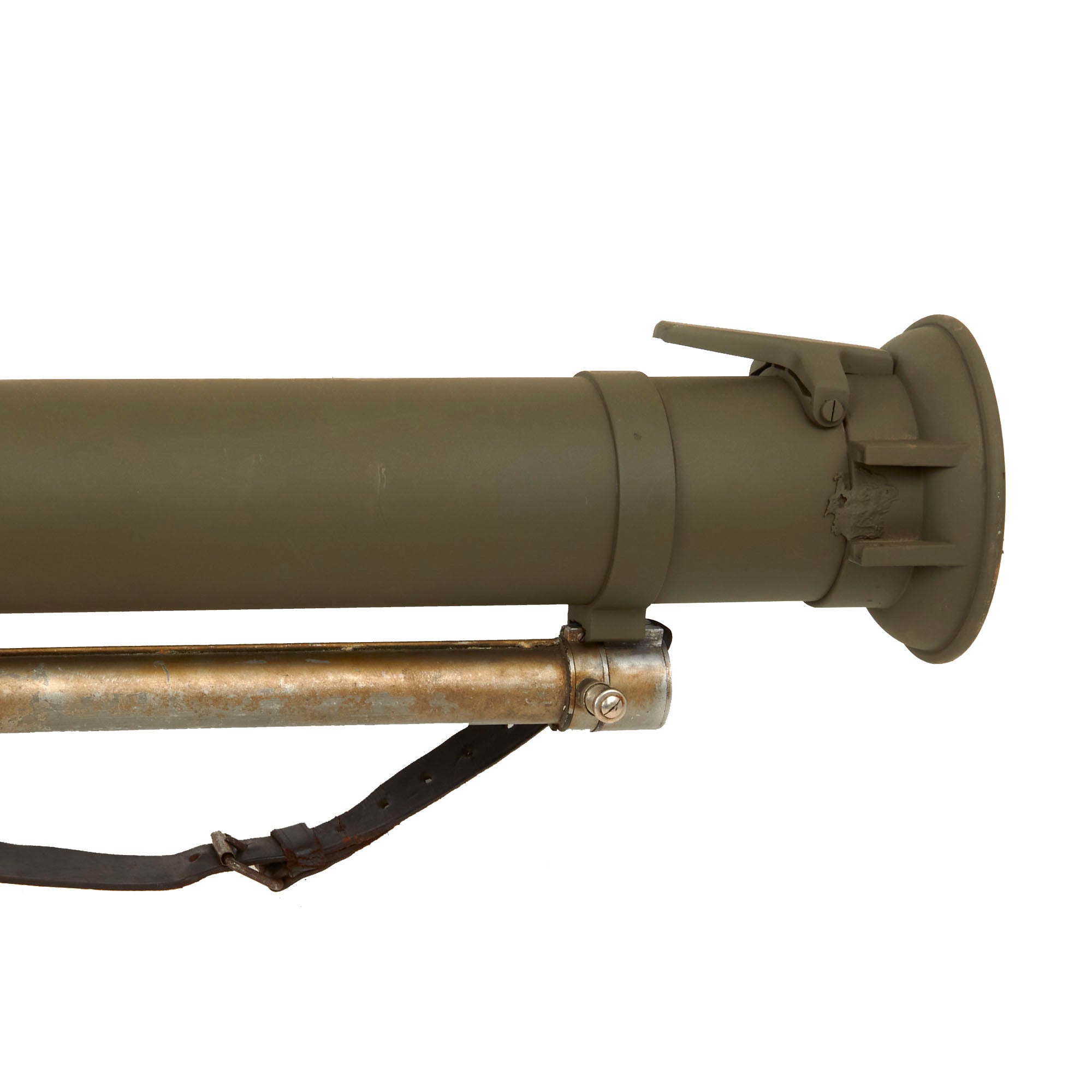

An older leather carrying sling is fitted to the launcher. It provides excellent visual appeal but is heavily aged and cracked through near the front attachment point. It currently remains positioned around the mounting stud but is weak and should not be relied upon to support the weight of the launcher.

The sling should be considered suitable for static display only.

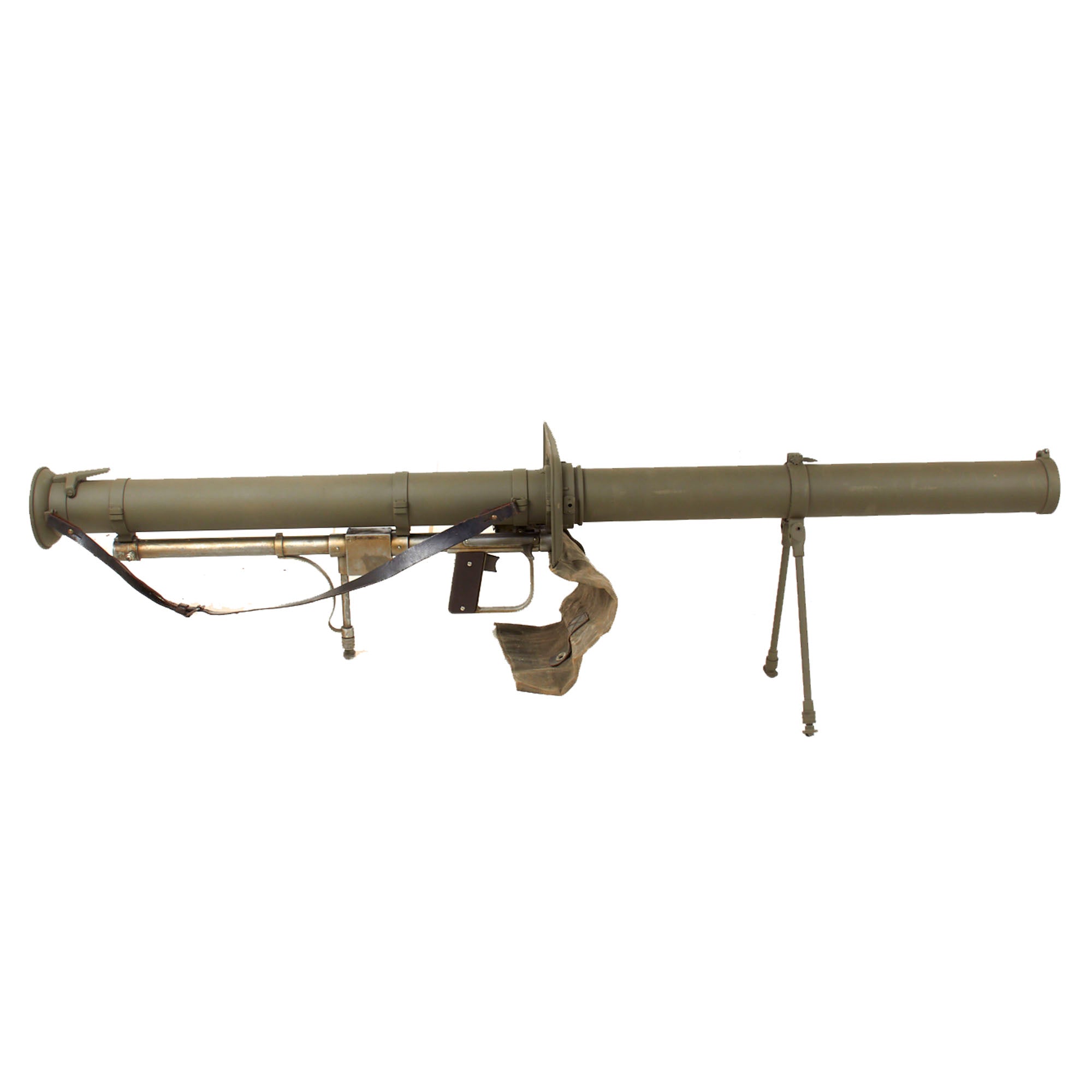

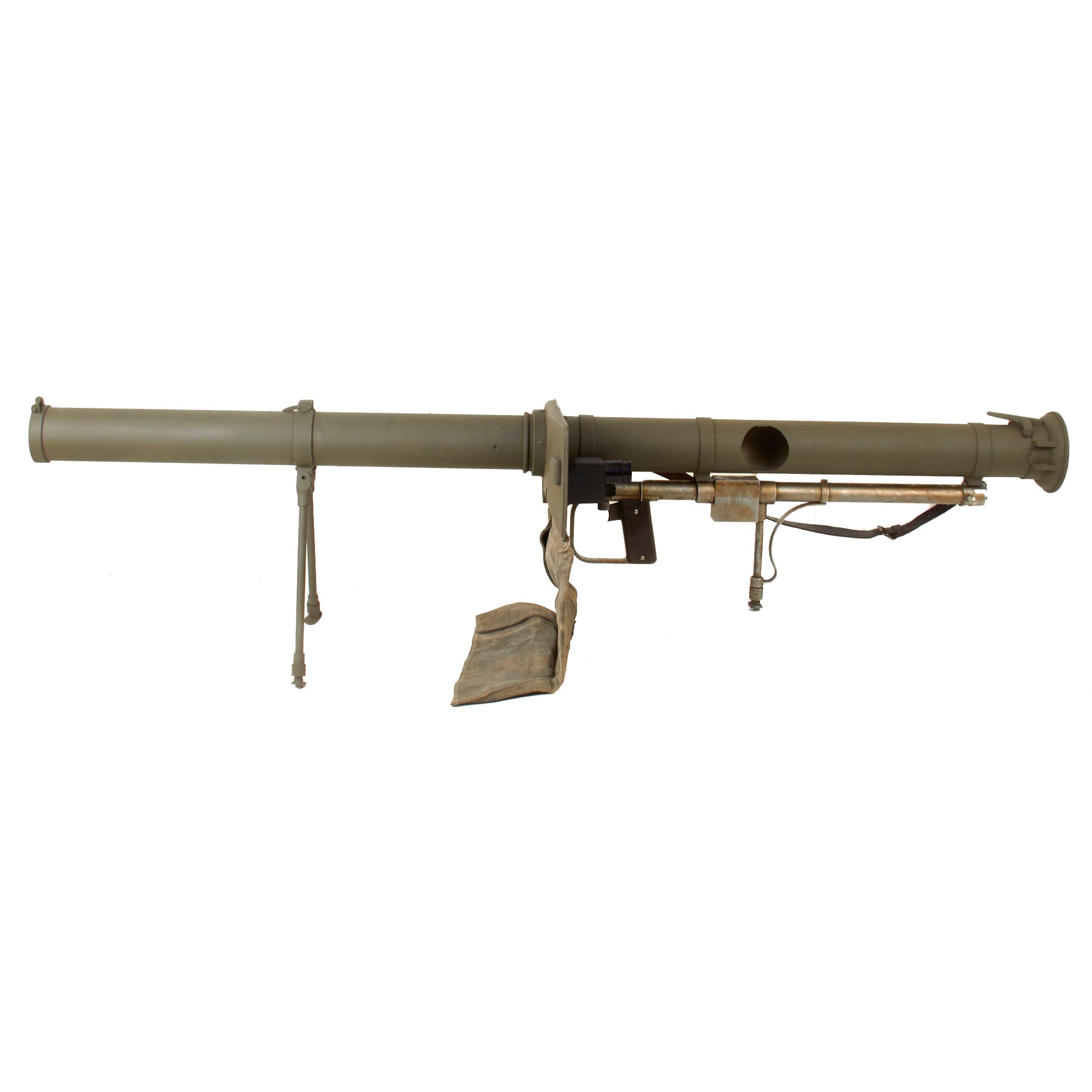

The launcher presents extremely well when assembled, with the combination of the long 88.9mm tube, optical sight, face shield, bipod, monopod, shoulder rest, and sling creating the unmistakable profile of a Cold War infantry anti-tank weapon.

Surviving examples of the American M20 Super Bazooka have become increasingly difficult and expensive to acquire. The Spanish M65 offers the same dramatic general form while representing an interesting chapter in the international development of postwar anti-armor weapons.

This example is especially appealing because it retains so many of the components commonly missing from display launchers. Its matching serial number, complete support system, sight, face shield, canvas skirt, and original takedown capability make it far more complete than the typical demilitarized example.

A striking centerpiece for a collection of Cold War weaponry, Spanish military equipment, anti-tank systems, or large-format inert ordnance.

Specifications:
Manufacturer: Instalaza
Country of Origin: Spain
Model: M65
Serial Number: 2685
Caliber: 88.9mm
Type: Recoilless Anti-Tank Rocket Launcher
Status: Permanently Deactivated and Inert
Sight: ENOSA Optical Sight
Feed System: Single Rocket
Included Accessories: Optical Sight, Face Shield, Canvas Skirt, Bipod, Monopod, and Sling
Export Status: Not Available for Export
